OMNIREL OM9517SP, OM9571SP, OM9572SP Datasheet

OM9571, OM9572

Rev.06,

10/18/00

205 Crawford Street, Leominster, MA 01453 USA

[phone] FAX [phone] www.omnirel.com

8- 20V Input, 3A
+5.0V, +3.3V
Switching Regulator

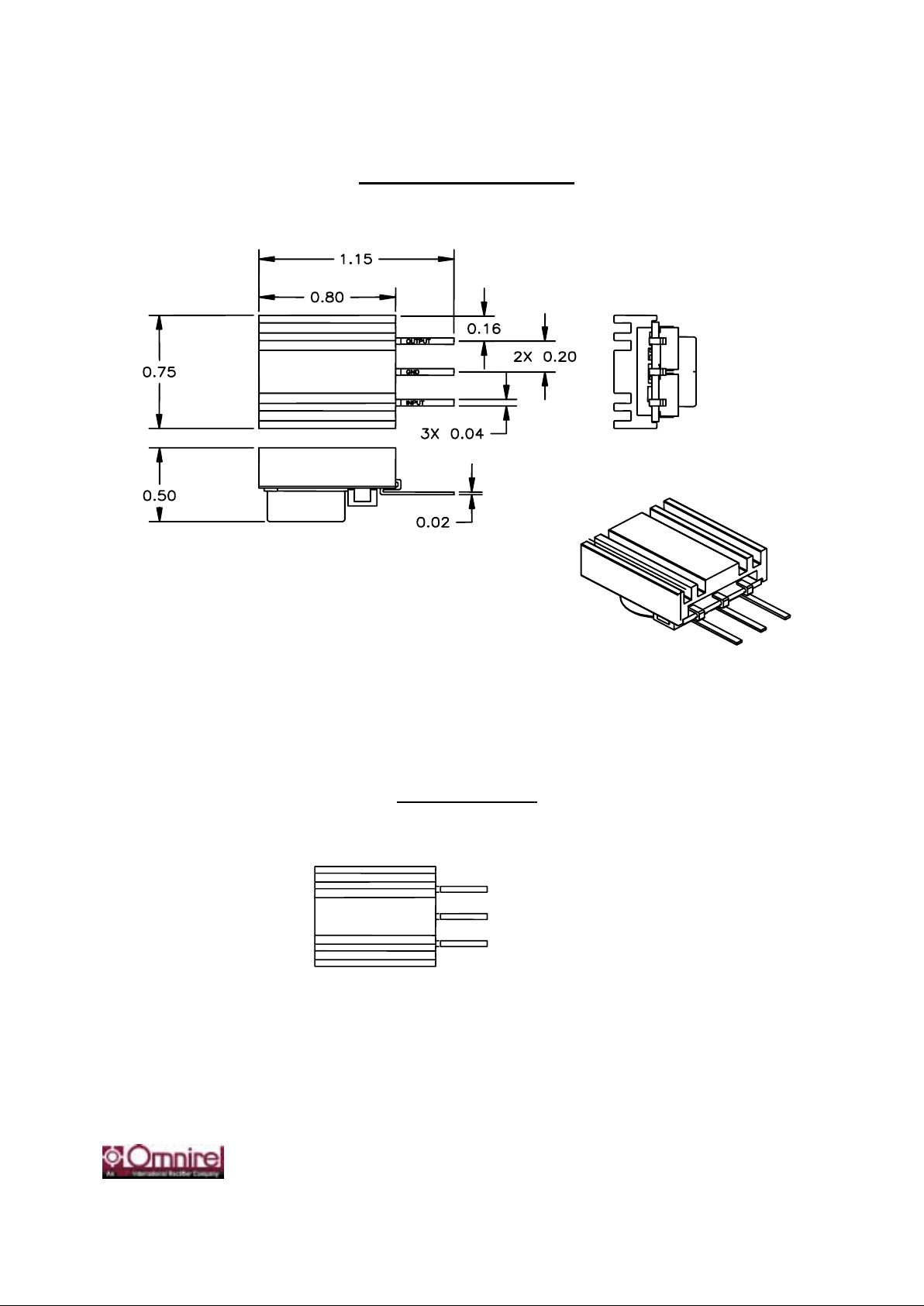

Three Terminal Package

PRELIMINARY SPECIFICATION

DESCRIPTION

The OM957XSP Integrated Switching Regulators are designed for pin compatibility with standard 3­Pin linear regulators. The parts are ideally suited for non- isolated, point of load power regulation
applications where small size and high efficiency are required. The package is designed using “Chip­on board” technology to reduce cost and maintain power density. This part will typically not require
any additional components in your application due to internal bulk capacity already provided.

MAXIMUM RATINGS @ Ta=25° C (unless otherwise specified)

Parameter

Value

Conditions

Input Voltage 28V Io= 3.0A

Power Dissipation 3W Vo = 5V

Output Power 16W Vo= 5V

Lead Temp.

230°C

<15 secs.

CONFIGURATION CHART

MODEL OUTPUT

VOLTAGE

TEMPERATURE

RANGE

MAX. OUTPUT

CURRENT

OM9571SP 5.0V

-25 to +85°°°°C

3.0A

OM9572SP 3.3V

-25 to +85°°°°C

3.0A

FEATURES

•

High Efficiency

•

Internal Short Circuit Protection

•

Small Footprint

•

High Power Density- 60W/in.3

•

On- Board Bulk Capacity

APPLICATIONS

•

Low Voltage Battery regulation

•

Embedded Processor Power

•

General Purpose Low Voltage Logic
Supply

•

FPGA Supply

OM9571, OM9572

Rev.06,

10/18/00

205 Crawford Street, Leominster, MA 01453 USA

[phone] FAX [phone] www.omnirel.com

PERFORMANCE CHARACTERISTICS (Ta= 25°°°°C)

INPUT

Parameter Symbol Test Conditions MIN MAX Units

Line Regulation Rline

10V≤≤≤≤Vin≤≤≤≤ 20V

-0.5 +0.5 %

Input Voltage
Range

Vin 8 20.0 V

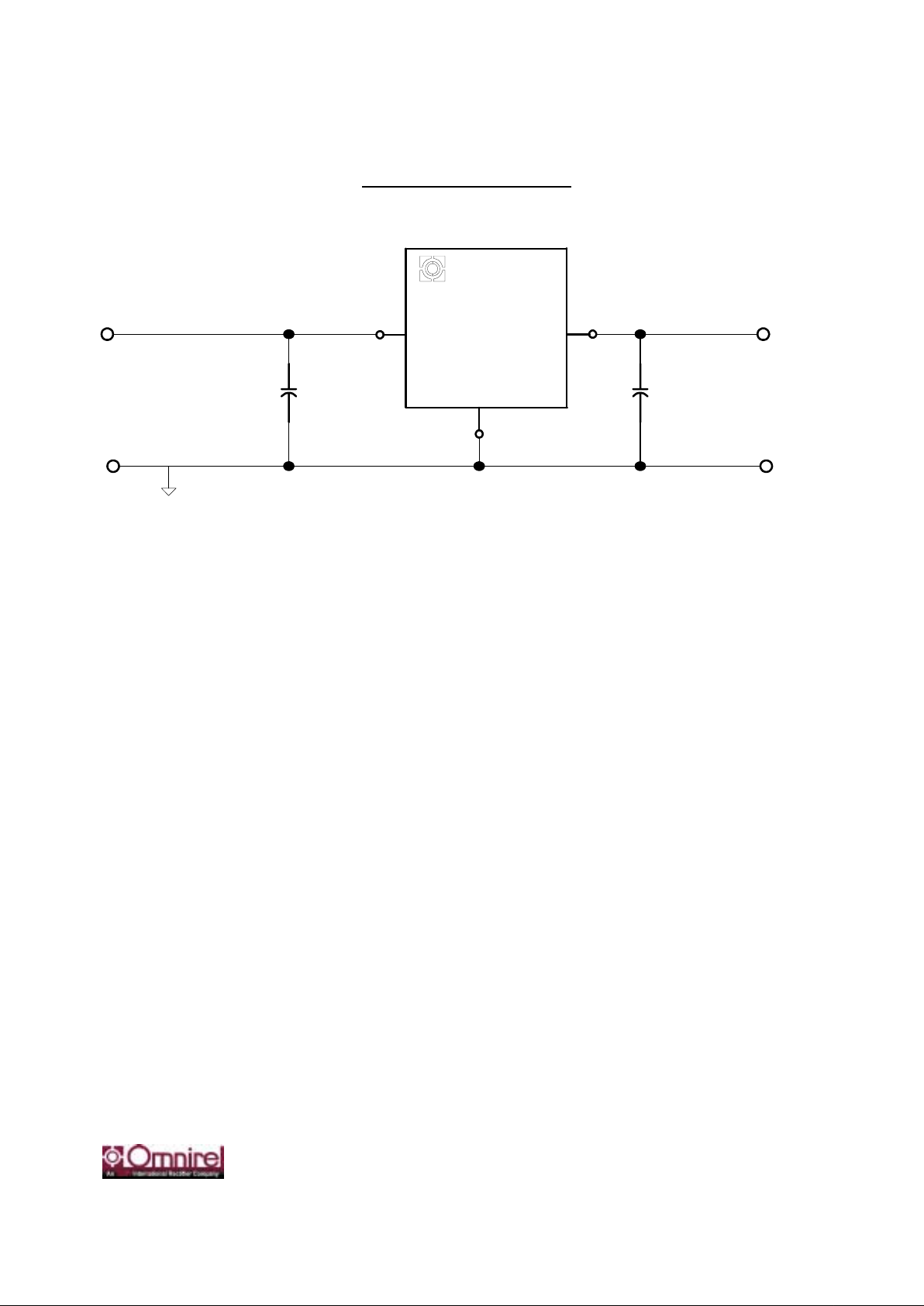

Input Filtering 22 uF

OUTPUT

Parameter Symbol Test Conditions MIN TYP MAX Units
Power Po Vo= 5.0V 15 W
Vout Accuracy

∆∆∆∆Vo

Vo= 5.0V, 3.3V 0.8 1.0 %

Vout Regulation Vreg

Vin= 10V, 0.1A≤≤≤≤Io≤≤≤≤3A

-1.0 -0.3 0.1

%

Output Ripple Vr Vin= 10V, Io= 3.0A 50 100 mV(p-p)
Current Limiting Ilim Vin= 10V 4.0 A
Efficiency

ηηηη

Vin= 10V, Io= 3A 85

%

Min. Load Current Il(min) 0.1 A
Output Filter 220 uF

DYNAMIC

Parameter Test Conditions MIN TYP MAX Units
Transient
Response

50% load step 40

200

µµµµS
mV

Frequency

0 to 85°°°°C

175 200 225 KHz

ENVIRONMENTAL

Parameter Model MIN MAX Units
Operating
Temperature

OM9571SP
OM9572SP

-25 +85

°°°°C

Storage Temp. -40 125

°°°°C

Flammability UL94V0
