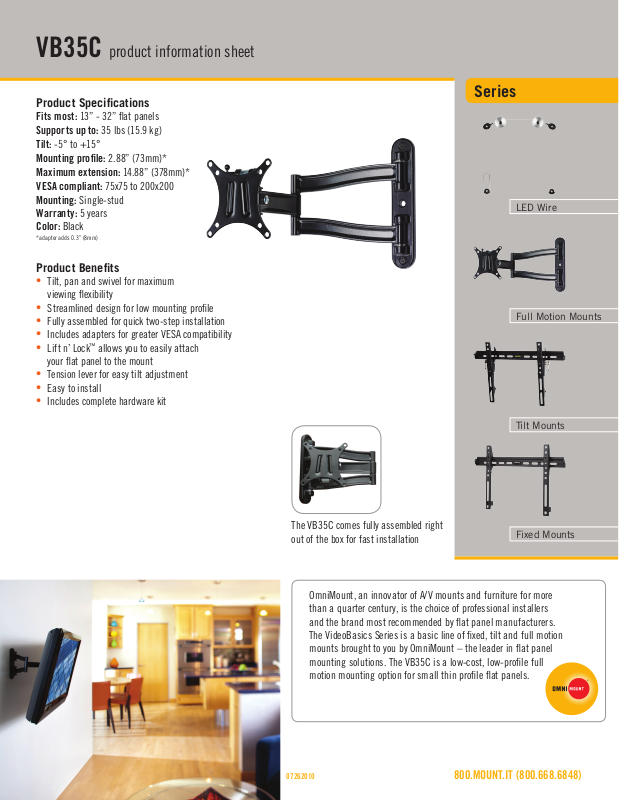

Omnimount VB35C Sales Sheet
VB35C product information sheet
Product Specifications
Fits most: 13” - 32” flat panels
Supports up to: 35 lbs (15.9 kg)
Tilt: -5° to +15°
Mounting profile: 2.88” (73mm)*
Maximum extension: 14.88” (378mm)*
VESA compliant: 75x75 to 200x200
Mounting: Single-stud
Warranty: 5 years
Color: Black
*adapter adds 0.3” (8mm)
Product Benefits
• Tilt, pan and swivel for maximum
viewing flexibility
• Streamlined design for low mounting profile
• Fully assembled for quick two-step installation
• Includes adapters for greater VESA compatibility
• Lift n’ Lock
your flat panel to the mount
• Tension lever for easy tilt adjustment
• Easy to install
• Includes complete hardware kit
™
allows you to easily attach
Series
LED Wire
Full Motion Mounts
Tilt Mounts
The VB35C comes fully assembled right
out of the box for fast installation
OmniMount, an innovator of A/V mounts and furniture for more
than a quarter century, is the choice of professional installers
and the brand most recommended by flat panel manufacturers.
The VideoBasics Series is a basic line of fixed, tilt and full motion
mounts brought to you by OmniMount – the leader in flat panel
mounting solutions. The VB35C is a low-cost, low-profile full
motion mounting option for small thin profile flat panels.
Fixed Mounts
07262010
800.MOUNT.IT (800.668.6848)
VB35C technical data sheet
OmniMount, an innovator of A/V mounts and furniture for more
than a quarter century, is the choice of professional installers
and the brand most recommended by flat panel manufacturers.
The VideoBasics Series is a basic line of fixed, tilt and full motion
mounts brought to you by OmniMount – the leader in flat panel
mounting solutions. The VB35C is a low-cost, low-profile full
motion mounting option for small thin profile flat panels.
Product Specifications
Fits most: 13” - 32” flat panels
Supports up to: 35 lbs (15.9 kg)
Tilt: -5° to +15°
Mounting profile: 2.88” (73mm)*
Maximum extension: 14.88” (378mm)*
VESA compliant: 75x75 to 200x200
Mounting: Single-stud
Warranty: 5 years
Color: Black
*adapter adds 0.3” (8mm)
Product Benefits
• Tilt, pan and swivel for maximum
viewing flexibility
• Streamlined design for low mounting profile
• Fully assembled for quick two-step installation
• Includes adapters for greater VESA compatibility
• Lift n’ Lock
your flat panel to the mount
™
allows you to easily attach
• Tension lever for easy tilt adjustment
• Easy to install
• Includes complete hardware kit
Stock Code Packaging UPC MC UPC
Americas
International
Box Contents Qty
Mount 1
Complete monitor hardware kit 1
Complete wall hardware kit 1
Instruction Manual 1
1004788-1 728901026034 728901719486
1004788INT-1 728901026034 728901719486
Product Box
Master Carton
Shown with adapter
Dimensions WxDxH inches (mm) Wt lbs (kg)
8.1 x 9.1 x 3.2 (206x230x80) 4.4 (2)
8.7 x 13 x 9.7 (220x330x245) 20.5 (9.3)
07262010
800.MOUNT.IT (800.668.6848)
