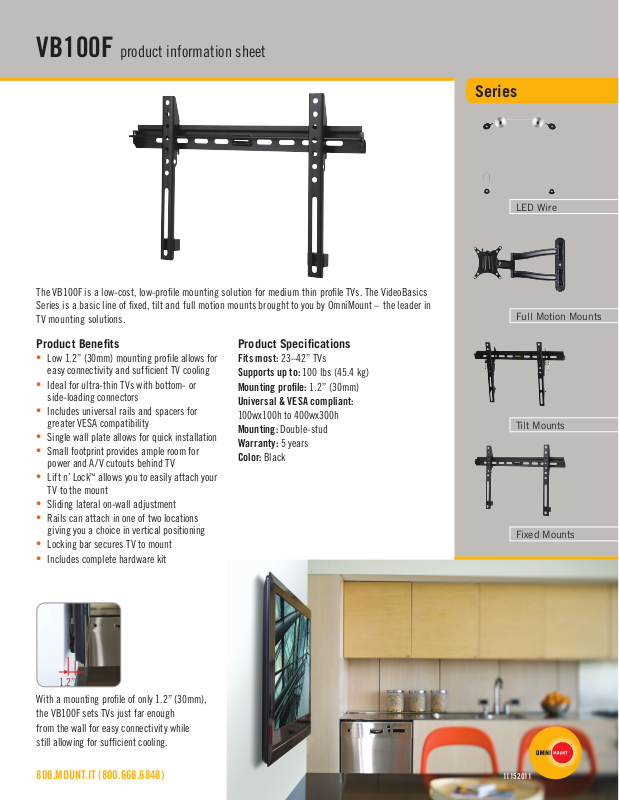

VB100F product information sheet
The VB100F is a low-cost, low-profile mounting solution for medium thin profile TVs. The VideoBasics
Series is a basic line of fixed, tilt and full motion mounts brought to you by OmniMount – the leader in
TV mounting solutions.
Series
LED Wire
Full Motion Mounts
Product Benefits
• Low 1.2” (30mm) mounting profile allows for
easy connectivity and sufficient TV cooling
• Ideal for ultra-thin TVs with bottom- or
side-loading connectors
• Includes universal rails and spacers for
greater VESA compatibility
• Single wall plate allows for quick installation
• Small footprint provides ample room for
power and A/V cutouts behind TV
• Lift n’ Lock
TV to the mount
™
allows you to easily attach your
• Sliding lateral on-wall adjustment
• Rails can attach in one of two locations
giving you a choice in vertical positioning
• Locking bar secures TV to mount
• Includes complete hardware kit
Product Specifications
Fits most: 23–42” TVs
Supports up to: 100 lbs (45.4 kg)
Mounting profile: 1.2” (30mm)
Universal & VESA compliant:
100wx100h to 400wx300h
Mounting: Double-stud
Warranty: 5 years
Color: Black
Tilt Mounts
Fixed Mounts
1.2”
With a mounting profile of only 1.2” (30mm),
the VB100F sets TVs just far enough
from the wall for easy connectivity while
still allowing for sufficient cooling.
800.MOUNT.IT (800.668.6848) 11152011
VB100F technical data sheet
21.8
2.0
(51)
(553)
1.1
(29)
13.8
(350)
FRONT VIEW
100 - 400
9
320
PANEL ATTACHMENT -
VESA COMPATABILITY (mm)
1.9
(49)
R .2
(4)
MOUNTING PROFILE
20.9
(530)
17
(432)
WALL MOUNTING
1.2
(31)
2
(51)
inches (mm)
Stock Code Packaging UPC MC UPC
Americas
International
Box Contents Qty
Wall plate 1
Vertical rail 2
Rubber vertical rail stop 2
Locking bar 1
1004795-1 728901026058 728901719509
1004795INT-1 728901026058 728901719509
Box
MC
Box Contents Qty
Bubble level 1
Complete monitor hardware kit 1
Complete wall hardware kit 1
Instruction manual 1
Dimensions WxDxH inches (mm) Wt lbs (kg) Qty
2.6 x 22.2 x 1.8 (65x565x45) 3.5 (1.6) NA
7.7 x 22.7 x 4.5 (195x575x115) 20.3 (9.2) 6
800.MOUNT.IT (800.668.6848) 11152011
