Omnimount OMT User Manual
Optional Installation Template / Modelo de instalación / Gabarit d'installation
Montageschablone / Installatiesjabloon Modello per l’installazione / Szablon instalacji / Šablona instalace / Szerelési
sablon / Εγκατάσταση βάσης / Escantilhão de instalação Installation skabelon / Asennusmalli / Monteringsmall /
Şablon pentru instalare / Шаблон за инсталация / Paigaldustrafarett / Uzstādīšanas veidne Montavimo pavyzdys /
Predloga za pritrditev / Šablóna inštalácie / Установочный шаблон / Montaj Şablonu / Installasjonsmal
ﻥﻡﻭﺫﺝ ﺍﻝﺕﺭﻙﻱﺏ / 安装面板 / 取り付けテンプレート

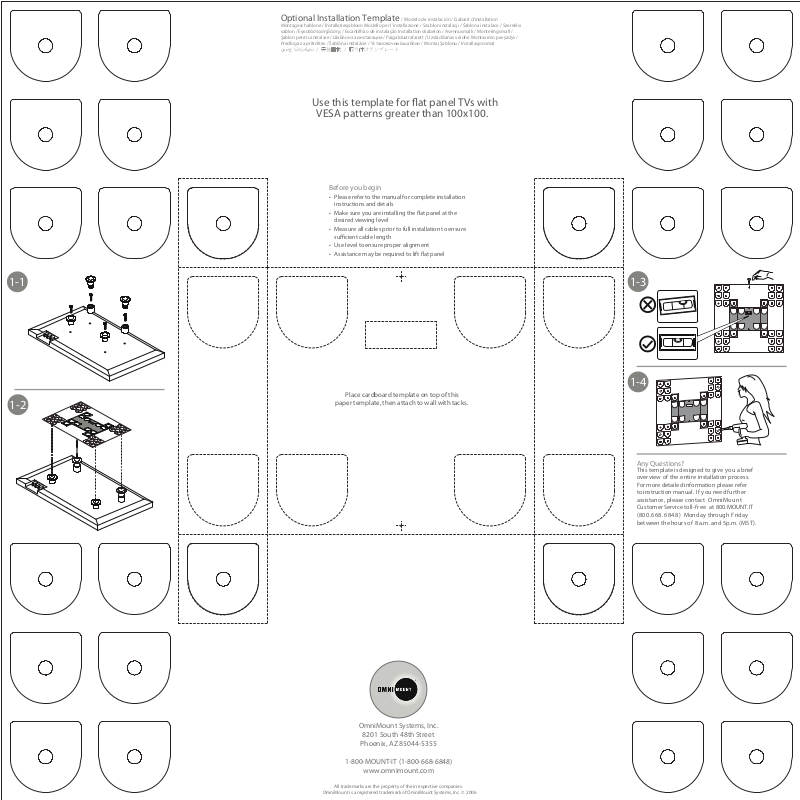

Use this template for flat panel TVs with
VESA patterns greater than 100x100.
Before you begin
• Please refer to the manual for complete installation
instructions and details
• Make sure you are installing the flat panel at the
desired viewing level
• Measure all cables prior to full installation to ensure
sucient cable length
• Use level to ensure proper alignment
• Assistance may be required to lift flat panel
1-1
1-2
1-3
1-4
Place cardboard template on top of this
paper template, then attach to wall with tacks.
Any Questions?
This template is designed to give y ou a brief
overview of the ntir e installation process.
For more detailed information please refer
to instruction manual. If you need further
assis tance, please con tact OmniMou nt
Customer Service toll-free at 800.MOUNT.IT
( 800 .668 .684 8) Monday through F riday
between the hours of 8 a.m. and 5 p.m. (MS T).
