Omega Products wiDRxx-zT Installation Manual

Download

User’s Guide

Shop on line at

omega.com

e-mail: info@omega.com

For Latest Product Manuals

omegamanual.info

wiDRxx-zT

Wireless DIN Rail

Monitor and Controller

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.

This device is marked with the international caution symbol. It is important to read the Setup Guide before installing or commissioning this device as the guide contains important information relating to safety and EMC.

TABLE OF CONTENTS

Part 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

1.1 Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

1.2 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

1.3 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Part 2 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.1 Physical Characteristics and Mounting . . . . . . . . . . . . . . . . .5

2.1.1 Front and Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.1.2 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.1.3 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2.1.4 Assembly and Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.1.4.1 Mounting Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.1.4.2 Antenna Mounting Instruction . . . . . . . . . . . . . . . . . . . . . . . .9

2.1.5 Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

2.1.5.1 Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

2.1.5.2 Wiring Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

2.1.5.3 DIP Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

2.2 Network Communications . . . . . . . . . . . . . . . . . . . . . . . . . .14

2.2.1 10Base-T RJ45 Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

2.2.2 10Base-T Crossover Wiring . . . . . . . . . . . . . . . . . . . . . . . . .14

Part 3 Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.1 Ethernet (MAC) Address . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.2 Network Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.3 DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.4 DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

3.5 IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

3.5.1 Default IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

3.5.2 Changing TCP/IP Properties on your Computer . . . . . . . . .18

Part 4 Network Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4.0 Testing the Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4.1 iConnect Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

4.2 Setting a New IP Address over the Network . . . . . . . . . . . .22

4.3 wiDR’s Configurations and Operations . . . . . . . . . . . . . . . .23

4.3.1 Power Up wiDR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

4.3.2 Get Readings from the End Device . . . . . . . . . . . . . . . . . . .26

4.3.3 Java Runtime Environment Setup . . . . . . . . . . . . . . . . . . . .28

4.3.3.1 Java Runtime Environment 1.5 (5.0) Setup Instructions . . .28

4.3.3.2 Java Runtime Environment 1.4 Setup Instructions . . . . . . .29

4.3.3.3 Browser Proxy Selection . . . . . . . . . . . . . . . . . . . . . . . . . . .30

4.3.4 Java Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

4.3.5 Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

4.3.6 Controller Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

4.3.7 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

4.3.7.1 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

4.3.7.2 Setpoints & On/Off Control . . . . . . . . . . . . . . . . . . . . . . . . . .38

4.3.7.3 Alarms 1 & 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

4.3.7.4 Analog Output Retransmission . . . . . . . . . . . . . . . . . . . . . .42

4.3.7.5 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

4.3.7.6 Passcode ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

4.3.8 Network Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

4.3.9 End Device Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

4.3.9.1 End Device Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

4.3.10 Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

4.4 Telnet Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

4.5 HTTPget Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

4.5.1 HTTPget using Port 2000 . . . . . . . . . . . . . . . . . . . . . . . . . .55

4.5.2 HTTPget and ARP to Setup Device IP Address . . . . . . . . . .56

4.6 ARP Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

4.7 iLog Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

4.8 Mail Notifier Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

4.8.1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

4.8.2 Program Options Setup and Configuration . . . . . . . . . . . . .61

4.8.3 Device Settings and Configuration . . . . . . . . . . . . . . . . . . . .62

4.8.4 Sending Txt Messages to a Cell Phone . . . . . . . . . . . . . . . .63

Part 5 Environment/Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . .64

5.1 General Deployment Guidelines . . . . . . . . . . . . . . . . . . . . .64

5.2 With Line-of-Sight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

5.3 Without Line-of-Sight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

5.4 Casing and Closure Around the Antenna . . . . . . . . . . . . . . .67

5.5 Fine Adjustment in Performance . . . . . . . . . . . . . . . . . . . . .68

Part 6 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Part 7 Factory Preset Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Appendix A Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Appendix B IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Appendix C IP Netmask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Appendix D ASCII Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Appendix E iLog Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Appendix F Warning and Regulatory Information . . . . . . . . . . . . . . . . . .81

LIST OF FIGURES:

Figure 1.1 Temperature Wireless Monitor and Control System

on the Ethernet Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Figure 2.1 Front and Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Figure 2.2 Front Panel Power and Output Connections . . . . . . . . . . . . . . .6

Figure 2.3 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Figure 2.4a Mounting - Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Figure 2.4b Mounting - Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Figure 2.5 Antenna Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Figure 2.6 Main Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Figure 2.7a Mechanical Relay and SSR Output Wiring Hookup . . . . . . . . .11

Figure 2.7b Pulse and Analog Output Wiring Hookup . . . . . . . . . . . . . . . . .11

Figure 2.8 Snubber Circuits Wiring Hookup . . . . . . . . . . . . . . . . . . . . . . . .11

Figure 2.9 Typical Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Figure 2.10 Location of DIP Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Figure 2.11 RJ45 Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Figure 2.12 10Base-T Crossover Cable Wiring . . . . . . . . . . . . . . . . . . . . .14

Figure 3.1 Label Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Figure 3.2 4 Position DIP Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Figure 3.3 Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18.

Figure 3.4 Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Figure 4.1 Pinging the wiDR from MS-DOS Prompt . . . . . . . . . . . . . . . . .19

Figure 4.2 Assigning an IP Address using iConnect . . . . . . . . . . . . . . . . .20

Figure 4.3 Accessing the Wireless System for Configuration . . . . . . . . . .21

Figure 4.4 Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Figure 4.5 Wireless System Home Page Menu . . . . . . . . . . . . . . . . . . . . .23

Figure 4.6 LOGIN and ADMINISTRATOR Passwords . . . . . . . . . . . . . . .24

Figure 4.7 Readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Figure 4.8 Comma Separated Value Format . . . . . . . . . . . . . . . . . . . . . . .27

Figure 4.9 Java 1.5.x.x Screen Shots . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Figure 4.10 Java 1.4 Screen Shots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Figure 4.11 Java Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Figure 4.12 Java Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Figure 4.13 Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Figure 4.14 Controller Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Figure 4.15 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Figure 4.16 Setpoints & On/Off Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Figure 4.17 Alarms 1 & 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Figure 4.18 Analog Output Retransmission . . . . . . . . . . . . . . . . . . . . . . . . .42

Figure 4.19 Display Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Figure 4.20 ID Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Figure 4.21 Network Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Figure 4.22 End Device Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Figure 4.23 End Device Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Figure 4.24 Remote End Char . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Figure 4.25 Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Figure 4.26 HTTPget Example of Polling End Device . . . . . . . . . . . . . . . . .56

Figure 4.27 ARP Commands and Responses . . . . . . . . . . . . . . . . . . . . . . .57

Figure 4.28 iLog Software Logging Data for End Device . . . . . . . . . . . . . . .58

iii

Figure 4.29 Mail Notifier Main Window . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Figure 4.30 Mail Notifier Profile Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Figure 4.31 Mail Notifier Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . .63

Figure 5.1 Operation in Buildings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Figure 5.2 Fresnel Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Figure 5.3 Materials in Buildings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Figure 5.4 Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

LIST OF TABLES:

Table 2.1 Front Panel Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Table 2.2 Fuse Requirements (See Specifications) . . . . . . . . . . . . . . . . .10

Table 4.1 Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Table 4.2 List of ASCII/Telnet Commands . . . . . . . . . . . . . . . . . . . . . . . .53

Table 4.3 iLog Excel Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Table 4.4 Mail Notifier Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Table 7.1 Factory Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

PART 1 INTRODUCTION

1.1 Safety Considerations

This device is marked with the international caution symbol. It is important to read this manual before installing or commissioning this device as it contains important information relating to Safety and EMC (Electromagnetic Compatibility).

This instrument is a panel mount device protected in accordance with EN 61010-1:2001, electrical safety requirements for electrical equipment for measurement, control and laboratory. Installation of this instrument should be done by qualified personnel. In order to ensure safe operation, the following instructions should be followed.

This instrument has no power-on switch. An external switch or circuitbreaker shall be included in the building installation as a disconnecting device. It shall be marked to indicate this function, and it shall be in close proximity to the equipment within easy reach of the operator. The switch or circuit-breaker shall meet the relevant requirements of IEC 947–1 and IEC 947-3 (International Electrotechnical Commission). The switch shall not be incorporated in the main supply cord.

Furthermore, to provide protection against excessive energy being drawn from the main supply in case of a fault in the equipment, an overcurrent protection device shall be installed.

• Do not exceed voltage rating on the label located on the top of the instrument housing.

• Always disconnect power before changing signal and power connections.

• Do not use this instrument on a work bench without its case for safety reasons.

• Do not operate this instrument in flammable or explosive atmospheres.

• Do not expose this instrument to rain or moisture.

• Unit mounting should allow for adequate ventilation to ensure instrument does not exceed operating temperature rating.

• Use electrical wires with adequate size to handle mechanical strain and power requirements. Install without exposing bare wire outside the connector to minimize electrical shock hazards.

EMC Considerations

• Whenever EMC is an issue, always use shielded cables.

• Never run signal and power wires in the same conduit.

• Use signal wire connections with twisted-pair cables.

• Install Ferrite Bead(s) on signal wires close to the instrument if EMC problems persist.

Failure to follow all instructions and warnings may result in injury!

This is a Class A ITE product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

1.2 Before You Begin

Inspecting Your Shipment:

Remove the packing slip and verify that you have received everything listed. Inspect the container and equipment for signs of damage as soon as you receive the shipment. Note any evidence of rough handling in transit. Immediately report any damage to the shipping agent. The carrier will not honor damage claims unless all shipping material is saved for inspection. After examining and removing the contents, save the packing material and carton in the event reshipment is necessary.

Customer Service: If you need assistance, please call the nearest Customer Service Department, listed in this manual.

Manuals, Software: The latest Operation Manual as well as free configuration software (iConnect) are available from the website listed on the cover pages of this manual, or on the CD-ROM enclosed with your shipment.

NOTES, WARNINGS and CAUTIONS

Information that is especially important to note is identified by following labels:

NOTE: Provides you with information that is important to successfully setup and use the wiSeries wireless monitoring and control system

CAUTION or WARNING: Tells you about the risk of electrical shock.

CAUTION, WARNING or IMPORTANT: Tells you of circumstances or

practices that can affect the instrument’s functionality and must refer to accompanying documents.

TIP: Provides you helpful hints.

1.3 Description

The wi®Series wireless monitoring and control system features meters compatible with a large and growing number of wireless sensors. For more information about the End Devices refer to the separate manual for these products.

The wiSeries Monitor-Controller can monitor up to sixteen (16) readings coming

from eight (8) End Devices. Compact End Devices (zED) are powered by two AA 1.5V alkaline batteries. High performance, high power End Devices in NEMA4 enclosures come with two

choices. The AC version (zED-P/-LCD) is powered by a 5 Vdc universal AC power adapter that operates on any voltage worldwide (110 to 240 Vac). Should AC power fail, the unit can operate on a 3.6V ultra-long-life lithium back-up battery (included).

A number of completely wireless wireless End Devices are powered by two AA (zED-LCD-AA), two C-cell (zED-CCELL), or two D-cell (zED-DCELL) alkaline batteries. These End Devices can operate for weeks, months, or years before changing the batteries. Battery life depends on the type of sensor and other user settings such as the frequency of transmission. The zED-DCELL version is not recommended for shock, vibration or in moving equipment.

1.3 Description (continued)

The End Devices transmit up to 300 feet (zED) or 3280 feet (zED-P/-LCD/-AA/

-CCELL/-DCELL) without obstructions or interference, to a wiSeries Monitor-

Controller connected directly to an Ethernet network and the Internet. The

wireless system complies with IEEE 802.15.4 operating at 2.4 GHz and the user

can switch to different communication channels to avoid interference with other

wireless technologies (e.g.Wi-Fi).

The Monitor-Controller also provides error detection mechanism for inactive

communication and diagnostic information including signal strength and data

transmission success rate to help troubleshooting potential wireless system

installation issues.

The Monitor-Controller connects directly to an Ethernet network and the Internet

and features award-winning embedded Web Server. It is easily configured and

monitored with a Web browser over the Ethernet network or the Internet. CONTROL, MONITOR, AND ALARM: The Monitor-Controller comes standard

with dual outputs of either Form C relays, SSR’s (solid state relays) or dc Pulses that can be used for ON/OFF control functions or alarms.

The Monitor-Controller can monitor alarm conditions for any or all of the wireless sensors. For example, the Monitor-Controller can be set up to trip an alarm if any one of the sensors indicated that it was above or below a pre-set alarm point.

Analog output is fully scalable and may be configured as an ON/OFF controller or re-transmission to follow your readings.

MONITOR AND CONTROL LOCALLY AND OVER THE INTERNET: The wiSeries wireless monitoring and control system provides local monitoring and control, along with remote Web-based monitoring of readings from End Devices.

The wiSeries system let’s you monitor and record temperature over an Ethernet network or the Internet without any special software--just your Web Browser.

ETHERNET: The wiSeries Monitor-Controller is an independent node on the network sending and receiving data in standard TCP/IP packets. It is easily configured from a Web Browser and can be password protected. From within an Ethernet LAN or over the Internet, the user simply types the IP address (such as

192.168.1.200) or an easy to remember name (such as "Oven5" or "Fixture") and the wiSeries meter serves a Web Page with the current readings.

EMAIL ALARM: The wiSeries Monitor-Controller can trigger an alarm if variables go above or below a Setpoint that you determine. Your alarm can be sent by email to a single user or to a group distribution list, including text messages to cell phones and PDA’s. The "Mail Notifier" software is a free and easy program for this application.

1.3 Description (continued)

zED-TP1-LCD

WIRELESS

MONITOR

(Receiver)

END DEVICES

(Transmitters)

COMPUTER (Datalogging

Software)

COMPUTER (Standard Web Browser)

ETHERNET

iLD Large Display Meter

Temperature

wiDRxx-zT

zED-TC-P zED-T

CHARTS AND GRAPHS: The wiSeries system serves Active Web Pages to display real time readings and charts of temperature. You can also log data in standard data formats for use in a spreadsheet or data acquisition program such as Excel or Visual Basic. We offer a free and easy to use program iLog for logging data to Excel.

The virtual chart viewed on the web page is a JAVA™ Applet that records a chart over the LAN or Internet in real time. With the wiSeries system there is no need to invest time and money learning a proprietary software program to log or chart the data. Chart scales are fully adjustable on the fly. For example, the chart can display one minute, one hour, one day, one week, one month or one year. Temperature can be charted across the full span or within any narrow range such as (20 to 30°C).

DATALOGGING: The OPC Server software makes it easy to integrate the wiSeries wireless sensor system with many popular Data Acquisition and Automation programs offered by NEWPORT, OMEGA, Wonderware, iConics, Intellution, Rockwell Automation, and National Instruments, among others.

The following example Figure 1.1 illustrates how you can hookup the

Temperature Wireless System to your network:

The wireless system consists of a single Monitor-Controller and one or more End

Devices. The End Devices will send data periodically to the Monitor-Controller

where it serves as a gateway between the users and the End Devices. The users

can access the data through the Monitor-Controller’s Web Server and provided

data acquisition software.

A standard web browser can be used to monitor and chart temperature. The

browser can also be used to configure the Monitor-Controller’s IP address,

passwords for access and overall configuration parameters.

Figure 1.1 Temperature Wireless Monitor and

Control System on the Ethernet Network

PART 2

ACTIVITY

NET LINKTXRX

L(+) N(-) 6 OUTPUTS 1

NOT USED

OFF

ACTIVITY

NET LINKTXRX

L(+) N(-) 6 OUTPUTS 1

NOT USED

N/C 1

DEFAULT 2

DHCP 3

N/C 4

HARDWARE

2.1 Physical Characteristics and Mounting

2.1.1 Front and Side Views

ETHERNET LEDS

ETHERNET RESET BUTTON

ETHERNET JACK

REMOTE DISPLAY

PROGRAMMER

CONNECTION

(NOT USED)

OUTPUT 1 & 2

ALARM 1 & 2 LEDs

ANTENNA CONNECTOR

POWER LED

CONNECTOR (NOT USED)

OUTPUT / POWER CONNECTOR

Figure 2.1 Front and Side Views

2.1.2 Front Panel

The front panel connections are shown in Figure 2.2.

Figure 2.2 Front Panel Power and Output Connections

Table 2.1 Front Panel Connector

POWER AC/DC Power Connector: All models OUTPUT 1 Based on one of the following models:

Relay SPDT Solid State Relay (SSR) Pulse Analog Output (Voltage and Current)

OUTPUT 2 Based on one of the following models:

Relay SPDT Solid State Relay (SSR) Pulse

Network Communication Interface Section: ETHERNET RJ45 interface for 10BASE-T connection.

RESET Button: Used for power reseting the Ethernet board. ACTIVITY LED (Red) Blinking: Indicates network activities (receiving or

sending packets).

NET LINK LED (Green) Solid: Indicates good network link. TX LED (Yellow) Blinking: Indicates transmitting data to the serial port. RX LED (Green) Blinking: Indicates receiving data on the serial port.

2.1.3 Dimensions

N/C 1

DEFAULT 2

DHCP 3

N/C 4

1 8

L(+) N(-) 6 OUTPUTS 1

NOT USED

ACTIVITY

NET LINKTXRX

Figure 2.3 Dimensions

2.1.4 Assembly and Mounting

2.1.4.1 Mounting Instruction

MOUNTING

To install unit onto DIN Rail:

1) Tilt unit, position mounting slot onto DIN Rail, as shown.

2) Push unit towards DIN Rail and it will snap into place.

Figure 2.4a Mounting - Installation

To remove unit from DIN Rail:

1) Insert flat screw-driver into tab and push downwards.

2) Unit will detach from DIN Rail.

Figure 2.4b Mounting - Removal

2.1.4.2 Antenna Mounting Instruction

For best reception: connect the antenna directly to the wiDR, if the device is not installed in a metal panel or enclosure.

If the wiDR is behind a metal panel or in a cabinet, use a coaxial cable to position the antenna outside outside of the enclosure in the open air.

Use the shortest cable that can reach a suitable location. The antenna on this wiDR and any End Devices should be installed in a vertical position, pointing towards the sky.

Metallic structure should be kept at least 0.8” (2 cm), although 2.4” (6 cm) is recommended away from the antenna.

Any casing that encloses the antenna should be plastic. In addition, it is also wise to avoid plastic case with dark fillers or colorants.

Refer to Section 5 for more Environmental / Operating Conditions.

Figure 2.5 Antenna Mounting

2.1.5 Electrical Installation

2.1.5.1 Power Connections

Warning: Do not connect ac power to your wiDR until you have

completed all output connections. This wiDR must only be installed by a specially trained electrician with corresponding qualifications. Failure to follow all instructions and warnings may result in injury!

Connect the main power connections as shown below.

Figure 2.6 Main Power Connections

Table 2.2 Fuse Requirement (See Specifications Section)

FUSE Connector Output Type For 115Vac For 230Vac DC

FUSE 1

FUSE 2

Power N/A 100 mA(T) 100 mA(T) 100 mA(T) Power

N/A N/A N/A 400 mA(T)

For the low voltage power option, in order to maintain the same degree of protection as the standard high voltage input power units (90 to 240 Vac), always use a Safety Agency Approved DC or AC source with the same Overvoltage Category and pollution degree as the standard AC unit (90 to 240Vac).

The Safety European Standard EN61010-1 for measurement, control, and laboratory equipment requires that fuses must be specified based on IEC127. This standard specifies for a Time-lag fuse, the letter code “T”. The above recommended fuses are of the type IEC127-2-sheet III. Be aware that there are significant differences between the requirements listed in the UL 248-14/CSA 248.14 and the IEC 127 fuse standards. As a result, no single fuse can carry all approval listings. A 1.0 Amp IEC fuse is approximately equivalent to a 1.4 Amp UL/CSA fuse. It is advised to consult the manufacturer’s data sheets for a cross-reference.

2.1.5.2 Wiring Outputs

RC CIRCUIT

VARISTOR

275 V

OUTPUT 1 OUTPUT 2

100 1/4 W

0.033

SSR

RELAY

External

Load

External

Load

0.5 A (T)

3 A (T)

OUTPUT 1 OUTPUT 2

RETURN

PULSE

RETURN

VOLTAGE

CURRENT

ANALOG

(OUTPUT 1 ONLY)

PULSE

This wiDR has two factory installed outputs. The SPDT Mechanical Relay, SPST Solid State Relay, Pulse and Analog Output Connection are shown below.

Figure 2.7 a) Mechanical Relay and SSR b) Pulse and Analog

Outputs Wiring Hookup Outputs Wiring Hookup

This device has snubber circuits designed to protect the contacts of the mechanical relays when it switches to inductive loads (i.e. solenoids, relays). These snubbers are internally connected between the Common (C) and Normally Open (NO) relay contacts of Output 1 and Output 2.

If you have an inductive load connected between Common (C) and Normally Closed (NC) contacts of the mechanical relays and you want to protect them from the rush current during the switching period, you have to connect an external snubber circuit between Common (C) and Normally Closed (NC) contacts as indicated in the figure below.

Figure 2.8 Snubber Circuits Wiring Hookup

2.1.5.2 Wiring Outputs (continued)

TEMPERATURE

CONTROLLER

CONTROL

SIDE

dc INPUT

SSR

ac INPUT

SSR

ac INPUT

SSR

LOAD

SIDE

HEATER

Vac

dc CONTROLLED SSR USED WITH TEMPERATURE CONTROLLER WITH dc VOLTAGE SSR DRIVER OUTPUT

FAST BLOW

FUSE

0 or 5 Vdc,

TYPICALLY

TEMPERATURE

CONTROLLER

CONTROL

SIDE

LOAD

SIDE

HEATER

Vac

ac CONTROLLED SSR USED WITH TEMPERATURE CONTROLLER WITH MECHANICAL RELAY OUTPUT

FAST BLOW

FUSE

Vac

DRIVING

SSR

TEMPERATURE

CONTROLLER

CONTROL SIDE

LOAD

RESISTOR

LOAD

SIDE

HEATER

Vac

ac CONTROLLED SSR USED WITH TEMPERATURE CONTROLLER WITH TRIAC OUTPUT

FAST BLOW

FUSE

Vac

DRIVING

SSR

Figure 2.9 Typical Applications

2.1.5.3 Dip Switches

OFF

ACTIVITY

NET LINKTXRX

N/C 1

DEFAULT 2

DHCP 3

N/C 4

To change the DIP switches, follow the instructions below:

Locate the 4 and 8 position DIP switches.

The wiDR is shipped with all DIP switches in "OFF" position To set the Wireless and Ethernet settings to Factory Default, Refer to

Section 7.

4 Position DIP Switch for

Ethernet settings

8 Position DIP Switch for

Wireless settings

Figure 2.10 Location of DIP Switches

4 Position DIP Switch 8 Position DIP Switch

1 Not Applicable 1 To change the Wireless

2 To change the Ethernet settings 2 - 8 Not Applicable

to Factory Default 3 To enable/disable DHCP 4 Not Applicable

settings to Factory Default

2.2 Network Communication Interfaces

2.2.1 10Base-T RJ-45 Pinout

The 10BASE-T Ethernet network (RJ-45) system is used in the wiDR for network connectivity. The 10 Mbps twisted-pair Ethernet system operates over two pairs of wires. One pair is used for receiving data signals and the other pair is used for transmitting data signals. This means that four pins of the eight-pin connector are used.

Pin Name Description

1 +Tx + Transmit Data 2 -Tx - Transmit Data 3 +RX + Receive Data 4 N/C Not Connected 5 N/C Not Connected 6 -Rx - Receive Data 7 N/C Not Connected 8 N/C Not Connected

Figure 2.11 RJ45

2.2.2 10Base-T Crossover Wiring

When connecting the iServer directly to the computer, the transmit data pins of the computer should be wired to the receive data pins of the wiDR, and vice versa. The 10Base-T crossover cable with pin connection assignments are shown below.

Figure 2.12 10Base-T Crossover Cable Wiring

Use straight through cable for connecting the wiDR to an Ethernet hub. The ports on the hub are already crossed.

PART 3

NET.ADDR

NID LABEL

NETWORK CONFIGURATION

3.1 Ethernet (MAC) Address

MAC (Media Access Control) address is your computer's unique hardware number. When you're connected to the LAN from your computer, a correspondence table relates your IP address to your computer's physical (MAC) address. The MAC address can be found on the label of your wiDR (see Figure

3.1) and contains 6 bytes (12 characters) of hexadecimal numbers XX:XX:XX:XX:XX:XX For Example

Remove the small label with the default IP address and there will be room to put your IP address.

There is also a small label for your Network ID address (NID).

: 0A:0C:3D:0B:0A:0B

Figure 3.1 Label Detail

3.2 Network Protocols

The wiDR can be connected to the network using standard TCP/IP protocols. It also supports ARP, HTTP (Web Server), DHCP, DNS and Telnet protocols.

3.3 DHCP

DHCP, Dynamic Host Configuration Protocol enables computers and devices to extract their IP configurations from a server (DHCP server).

If DHCP is enabled on your wiDR, as soon as the wiDR is connected to the network, there is an exchange of information between DHCP server and the wiDR. During this process the IP address, the Gateway address, and the Subnet Mask will be assigned to the wiDR by the DHCP server.

3.3 DHCP (continued)

The wiDR is shipped with DHCP disabled (factory default). If fixed or static IP address is desired, the DHCP must be disabled. The DHCP can be enabled by setting the DIP switch # 3 to the “ON” position

Figure 3.2 4 Position DIP Switch

Setting the wiDR’s IP address to 0.0.0.0 will also enable DHCP.

3.4 DNS

DNS, Domain Name System enables computers and devices to be recognized over a network based on a specific name instead of IP addresses.

For example, instead of having to use http://192.168.1.200 (IP address), you would use only http://wis03ec or any eight character name stored as Host

Name under "Access Control" page from the Wireless System Home Page. The default DNS name for the wiDR is "wis" followed by the last four digits of

the MAC address of that particular wiDR.

1. It is very important to communicate with the network administrator in order to understand DHCP and its existing configurations on the host server, before enabling DHCP on the wiDR.

2. The wiDR units are shipped with a default static IP address of

192.168.1.200 and Subnet Mask of 255.255.255.0.

3. On Windows servers where DCHP and DNS are separate functions it is very important to configure the DHCP server to communicate with DNS in order for the iServer’s Host Name to correctly respond. If you cannot access the iServer using its Host Name, please contact your network administrator to make sure the DHCP and DNS servers are linked together.

3.5 IP Address

Every active device connected to the TCP/IP network must have a unique IP address. This IP address is used to establish a connection to the wiDR. Every computer using TCP/IP should have a unique 32-bit address which is divided into two portions, the network ID and the host ID. For instance, every computer on the same network uses the same network ID. At the same time, all of them have a different host ID. For more details about the IP address see Appendix B.

3.5.1 Default IP Address

The wiDR is shipped with a default IP address of 192.168.1.200 and Subnet Mask of 255.255.255.0. If you are going to use a Web browser or Telnet program to access the wiDR using its default IP address, make sure that the PC from which you’re establishing the connection has an IP address that is in the same range as the wiDR’s IP address (192.168.1.x, where x can be any number from 1 to 254). See Section 3.5.2.

Your PC’s IP address cannot

You also need to make sure that your PC’s Subnet Mask is 255.255.255.0. This is a good way to access the wiDR over the network and make any configuration changes needed. If 192.168.1.200 is already in use on your network, use an Ethernet crossover cable between your computer and the wiDR to change the IP address or any other settings within the wiDR.

be the same as the wiDR’s IP address.

3.5.2 Changing TCP/IP Properties on Your Computer

Go to your computer’s Control Panel then Network Connections. Pick the network with the proper Ethernet card. Right click and choose

Properties

Look for Internet Protocol, click on it and press Properties

Figure 3.3 Network Connections

Setup the IP address (in this case, 192.168.1.1) as shown below and press OK

You can access the wiDR’s Web Server via any internet browser using IP address of 192.168.1.200.

Once you log into the wiDR’s Web Server, you will be able to change its IP configuration according to

Section 4.2.

After you configure the wiDR’s IP configurations, you should go back and set your PC’s previous IP settings.

Figure 3.4 Network Connections

PART 4 NETWORK OPERATIONS

This wiDR can be used and configured in several ways, depending on user’s preference and network setup. It can be configured using a Web browser, like Internet Explorer. It can also be configured using the iConnect Configuration Software.

If DHCP and DNS servers are configured to exchange information, the connection will be very simple. All you need to do is to enable DHCP on the wiDR (see Section 3.3) and use a straight through network cable to connect the wiDR to an Ethernet hub or switch and power it up. Now, you can use the wiDR’s default Host (Domain) Name, which is wisxxxx (where xxxx are the last four characters of its MAC address) to access the wiDR’s Web Server.

If DHCP is not the preferred method, you can configure your PC’s network connection with an IP address of 192.168.1.x that is in the same range as the wiDR’s default IP address (192.168.1.200) and connect to the wiDR using a cross- over network cable between your PC’s network port and the wiDR. After you’re done with configuring the wiDR, you can always set your PC back to its original settings. See Section 3.5.2 for more details.

On your computer, from the MS-DOS Prompt window type "ping 192.168.1.200” and press Enter. If DHCP and DNS servers are used type “ping wisxxxx”, where xxxx are the last four digits of the wiDR’s MAC address, located on the wiDR. You should get a reply as shown in Figure 4.1.

You can use the host name (wisxxxx) instead of the IP address only if your

DHCP server is configured to communicate with your DNS. Please consult with your IT department for details.

4.0 Testing the Connection

Figure 4.1 Pinging the wiDR from MS-DOS Prompt

This proves that the connection is proper and you can get into configuration or run mode using the Telnet or Web browser.

4.1 iConnect Software

The wiDR may also be assigned an IP Address by using the iConnect software. a) Download the iConnect software from the website listed in this manual. b) Install iConnect software on a networked PC. This software is compatible

with Windows 95, 98, NT, 2000, and XP.

c) Use iConnect to assign an IP address to the wiDR and access its web

pages for configuration. You can also use any standard web browser to access the Wireless System’ web pages. Consult with your IT department for obtaining an IP address.

Figure 4.2 Assigning an IP Address using iConnect

1) Place the IP address in this box.

2) Take the MAC address from the label attached to the bottom of the wiDR and place it in this box.

3) Click here to send the above IP address to the wiDR.

4) After the IP address is assigned to the wiDR, click here to access it’s web pages.

5) Click here to Ping the wiDR whose IP address is shown in the IP address box.

6) Click here to find all the wiDRs on your network .

7) The IP addresses for the wiDRs found by the iConnect will be listed here.

8) These fields indicate the IP address and the subnet mask of the PC on which the iConnect is running.

4.1 iConnect Software (continued)

WIRELESS SENSOR HOME PAGE

d) To access the Wireless System for Configuration:

Click on the “View Webpage” button, you will access the Wireless System’s home page, refer to Section 4.3 for details.

Figure 4.3 Accessing the Wireless System for Configuration

4.2 Setting a New IP Address over the Network

ACCESS CONTROL

http://192.168.1.200

Address

Main Menu

00000000

IP Address 192.168.1.200 Gateway Address

0.0.0.0

Subnet Mask

255.255.255.0

MAC Address 00:03:03:00:21:D9

Host Name wis21d9

Save Reset

Network Reset

Besides using the iConnect software, you may use the wiDR’s default IP address to access it and assign a new IP address to it.

The wiDR is shipped with a default IP address of 192.168.1.200 and Subnet Mask of 255.255.255.0. You can configure your PC’s Network connection with an IP address that is in the same range as the wiDR’s IP address (192.168.1.x) and connect to the wiDR using a crossover network cable between your PC and the wiDR.

With this completed, you can go to the DOS-Prompt and ping 192.168.1.200. If you receive responses back (Figure 4.1), you can go to the Web browser and

type in http://192.168.1.200

Page. Select button, you’ll be asked for the password. You should be

Access Control

on the Access Control page were you can simply type in the desired Static IP address, and click Save.

For more details about the “Access Control” page refer to Section 4.3.10.

and it will take you to the Wireless System’ Home

For the IP address to take effect, the wiDR needs to be turned OFF and ON using the “Network Reset” button. Pressing the physical button marked “RESET” on the wiDR does the same thing.

You can now connect the wiDR to an Ethernet hub using a straight through cable, power it up, and follow the ping routine mentioned in the previous section.

Figure 4.4 Access Control

4.3 wiDR’s Configurations and Operations

Using a web browser, you should be able to view the wiDR’s homepage.

• Start your web browser.

• From the browser you type http://wisxxxx

MAC address label located on the wiDR (see Figure 3.1), if DHCP and DNS

are used. If a static IP address is used, then simply type http://x.x.x.x x.x.x.x is the wiDR’s IP address.

• The Home Page, will be displayed.

using the last four-digits from the

, where

Figure 4.5 Wireless System Home Page Menu

In order to access certain menu items of the Home Page, users may be prompted for a password, as shown in the two following figures.

4.3 wiDR’s Configurations and Operations (continued)

ADMINISTRATOR

http://192.168.1.200 http://192.168.1.200

Figure 4.6 LOGIN and ADMINISTRATOR Passwords

There are 2 different access levels:

1. ADMINISTRATOR Password

(administrator) allows certain groups and

individual users to access and modify parameters without any restrictions. The default password is 00000000. This password can be up to 16

alphanumeric case-sensitive characters.

2. LOGIN Password

(operator) allows users to access and modify all of the parameters, except “Access Control” which requires an Administrator password.

The default password is 12345678. This password can be up to 16 alphanumeric case-sensitive characters.

4.3.1 Power Up wiDR

For instructions on how to power the wiDR, refer to Section 2.1.5. To verify that an End Device is working before deploying remotely, install the

battery and power it on right next to the wiDR. When the End Device is powered on, it will search for the wiDR in all 16 channels reserved for IEEE 802.15.4 (channel 11 through 26) by sending request packets.

While it’s searching, the blue LED on the End Device blinks every second. Once the wiDR responds to the End Device request, the LED will blink only when the End Device sends data to the wiDR (default is every 10 seconds). If the wiDR is not powered or it’s out of reach, the End Device will keep searching until the batteries discharge (e.g. roughly 36 hours for zED).

Once the wiDR responds back to the End Device it will include its network number in the response packet called Beacon. At this time the End Device would know which is the correct wiDR (as there could be more than one wiDR responding to the End Device’s request packet). The channel on which the wiDR responds back is automatically picked to be the clearest among all 16 channels and therefore the End Device starts sending data to the wiDR on that particular channel.

4.3.1 Power Up wiDR (continued)

Once the End Devices and the wiDR start communicating, make sure to leave DIP switch #1 of the wiDR to OFF position. This will lock the wiDR on the same channel it initially established the connection.

After the End Device transmits data to the wiDR, it expects an acknowledgment packet back from the wiDR. If the End Device does not receive an acknowledgment packet back within 50 ms, it will go to sleep mode for 2 seconds and then retransmit the data.

This cycle will be repeated 10 times and if it still does not receive the acknowledgment packet back, the End Device takes a longer sleep time of 3 minutes.

After 3 minutes, the End Device retransmits the data every 2 seconds for 4 times and each time it waits for 50 ms for an acknowledgment. If it still does not receive a response back from the wiDR it will take another 3 minutes of sleep.

This last sequence will continue until the batteries are drained. Through the whole retransmission cycle explained above the blue LED on the End Device will blink anytime retransmission takes place.

The data being retransmitted will automatically get updated as new readings take place.

If the communication channel is manually selected in the wiDR, the End Device(s) must be power-cycled in order to establish connection over the new channel.

If it’s not possible to power-cycle the End Devices locally, a remote option is available through the wiDR’s Web server.

When there are two End Devices with the same Device ID, both will be transmitting data every second with their LEDs blinking once a second. The wiDR will receive data from both End Devices and will display their data alternately. On the “Readings”, “Chart”, and “Diagnostic” pages of the wiDR’s Web server, the phrase “ID” error code will be placed indicating the conflict. Once the problem is resolved, click on the “Reset Sensor” button located on the Sensors Parameters page to remove the “ID” error code.

4.3.2 Get Readings from the End Device

wiSeries

Lab 200

Lab 100

ID: 1 Strength: 100%Sequence: 10 Success: 100% Battery: 3.78V Update: 120sec Running

ID: 2 Strength: 94%Sequence: 24 Success: 100% Battery: 3.67V Update: 120sec Running

7073

6877

Lab 700

ID: 7 Strength: 21%Sequence: 28 Success: 100% Battery: 3.67V Update: 120sec Running

7578

Data Logging: INACTIVE

Main Menu

Refresh seconds

Once you see the End Device’s LED blinking periodically, it means it is sending data which will appear on the “Readings” page. To view the data in a chart format, you can use the “Chart” page.

Click on from the Home Page, the following page will appear, showing updates of the Primary and Secondary Sensor Temperature readings.

Readings

Figure 4.7 Readings

While accessing the “Readings” page, If a blank screen appears without any “java application running” or image of a “Java logo”, please verify you have the latest Java Runtime Environment installed and configured according to the Section 4.3.3.1. If you do not have Java Runtime Environment, you may download it from our website or contact the

The “Readings” fields are defined as follows:

Title Name Reading Values

Customer Service Department nearest you.

: wiDR’s name, assigned in Network Setup Menu.

: End Device’s name, assigned in End Device Setup Menu.

First Reading: Temperature reading from the Primary Sensor. Second Reading: Temperature reading from the Secondary Sensor.

Reading “Open” indicates that no sensing device is detected.

4.3.2 Get Readings from the End Device (continued)

ID: End Device ID/address Sequence

The Sequence number is incremented for each newly received data. Therefore, it indicates if the sensor is transmitting data successfully.

Strength Success

battery lifetime and high network traffic.

Battery

gets to 2.7V, the batteries should be replaced.

Update Running/Lost/ID

It displays “Running” if the wiDR is receiving packages from the End Device. It displays “Lost” if the wiDR has not received data from the End Device. It displays “ID” if more than one End Device is configured with the same

Device ID.

Data Logging

activate data logging, a file browser pops up to ask for which file data will be saved. Data is in Comma Separated Value (csv) format, which can also be opened in Excel. Please name file with .csv extension.

: Sequence number [0-255 ].

: It is the radio signal strength (0-100%), the higher the better.

: 0-100%, a low success rate indicates a longer data delay, shorter

: The total voltage of the battery in the End Device. Once the voltage

: The time interval the End Device transmits data to the wiDR.

: Press to activate/de-activate data logging. When it is pressed to

Figure 4.8 Comma Separated Value Format

Columns from left to right: Date and time, Device ID, Device name, Reading 1, Unit 1, Reading 2, Unit 2 (up to 4 readings and units), Sequence number, Signal strength, Success rate, Battery voltage, Status, Update, Next Device ID, Next Device name ( up to 8 End Devices).

Refresh: How often the current applet asks for data from the embedded server.

See Section 4.3.4 before activating data logging.

4.3.3 Java Runtime Environment Setup

If your computer does not have Java installed, please download from java.sun.com. You can change the Java setting by clicking its icon in Control Panel. To load the applet, you have to enable the web browser and disable cache.

4.3.3.1 Java Runtime Environment 1.5 (5.0) Setup Instructions

1. Go to your computer's Control Panel. Open the Java Plug-in

2. Click on "Settings" & "View Applets" in the "General" tab.

3. Select the "Settings" button on the General Tab Un-check the "Enable Caching" box. Then close dialog box to show the

General Tab again

4. Select the "Network Settings" button on the General Tab. Proceed to the Browser tab. Follow the Browser Proxy Selection

instructions below.You should either select the "Use Browser Settings" option or the "Direct Connection" option depending on the network connections between your computer and the wiDR. (Generally, select "Direct Connection" if accessing the wiDR on your local network and select "Use Browser Settings" option for access from your internal network to the internet.)

5. Refresh or restart the webpage.

For Java Version 1.5.x.x it is found under “General” > “Settings” > “View Applets” and then at the bottom there is the Checkbox to REMOVE CACHE .

Figure 4.9 Java 1.5.x.x. Screen Shots

For Java 1.6.x.x it is similar to Java 1.5.x.x but there is no need to

Java (TM) Plug-in Control Panel

AdvancedBasic ProxiesBrowser CertificatesCache About

Update

Enable Caching

Cache Settings

View Clear

Location

Size

Jar Compression

Unlimited

C:\Documents and Settings\AppData\Sun\Java\Deploymentcache\java

None High

Apply Reset Help

Maximum

remove CACHE.

4.3.3.2 Java Runtime Environment 1.4 Setup Instructions

1. Go to your computer's Control Panel. Open the Java Plug-in

2. Select the "Cache" Tab Un-check the "Enable Caching" box

3. Select the "Proxy" Tab. Follow these Browser Proxy Selection instructions below. (Generally, un-check the box if accessing the wiDR on your local network and check the box for access from your internal network to the internet.)

4. Refresh or restart the webpage.

To disable cache setting: For Java Version 1.4.2.x it is found under the CACHE TAB.

Figure 4.10 Java 1.4.2.x Screen Shot

4.3.3.3 Browser Proxy Selection

Accessing wiDR units within your internal network

• Usually when the computer and wiDRs are on an internal network, you will

not use Proxy server access.

• You should un-check the "Use Browser Settings" option on the "Proxy" tab. Accessing wiDR units using the internet

• Often the web browser will use Proxy server access to the internet. In such

cases, the default Java runtime settings on the "Proxy" tab should suffice. The default setting is the "Use Browser Settings" option.

• If the default proxy setting doesn't work, then you may have a situation where the proxy settings of the web browser are incorrect.

Diagnostics:

If the web page of the Wireless System appears, then the HTTP Proxy is working fine.

If the data isn't updated on the Wireless System upon selecting the “Readings” page, there may be a problem with access through a winsock proxy server. In such cases your network administrator will need to provide the winsock proxy server and port #s. (The TCP ports the wiDR uses for Java applets are 1000 and 2003).

These values should be entered into the Socks line on the "Proxy" tab (of the Java Plugin control panel) or into the "connections" tab on the View,Internet Options dialog and make sure that the Proxy tab shows that the "Use Browser Settings" option is not selected (i.e. when you specify proxy connections in the Java Plugin control panel.

Accessing wiDR units over Peer-to-Peer network

A simple peer-to-peer network is setup by disconnecting from the main network (as users will often do when trying to do initial setup of the wiDR) and then connecting the wiDR to another computer using a ethernet hub, an ethernet switch, or a Cross-over cable connection.

Often when using a peer-to-peer network, the Java plugin and the web browser (such as Internet Explorer) have internet connections configured to connect through proxy servers. In such case, you will need to simply assign the final IP address on this peer to peer network and then view the Wireless System charts after connecting the wiDR into the regular network. Otherwise you can disable the Java plug-in's "Use Browser Settings" temporarily and then reconfigure the Java plug-in settings for regular network access after testing the Wireless System chart access on your peer-to-peer network.

The "Use Browser Settings" should not be selected. And the HTTP and Socks proxy entries should be blank. Also, setup the internet browser so that proxy servers are disabled.

Java and the Java Coffee Cup Logo are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries."

4.3.4 Java Policy

To activate data logging and save graphs from the Java applets, it is necessary to create a Java Policy file and copy it onto a folder.

1) Open a Notepad file and using the IP address of the wiDR type the

following:

grant codeBase “http://192.168.1.200/” {

permission java.security.AllPermission “*”, “*”;

};

This file should have the IP address of the wiDR; in this case the default IP address is 192.168.1.200. If the IP address is changed, then the IP address shown in the file needs to be changed; otherwise, it will not work. If more than one wiDR is being monitored from the same computer, it is necessary to repeat the above for each of the wiDRs in the same “java_policy.txt” file.

If DHCP/DNS is enabled, the unique wiDR’s name using DNS should replace the IP address. Example: “http:\\zServer_TEST”. Make sure the DHCP server updates the DNS table to keep track of the wiDR’s name and IP addresses (consult with your network administrator).

2) Save the file as java_policy.txt.

3) Create a folder in your C: drive called “0_JAVAPOLICY”.

4) Place the java_policy.txt file into the “0_JAVAPOLICY” folder.

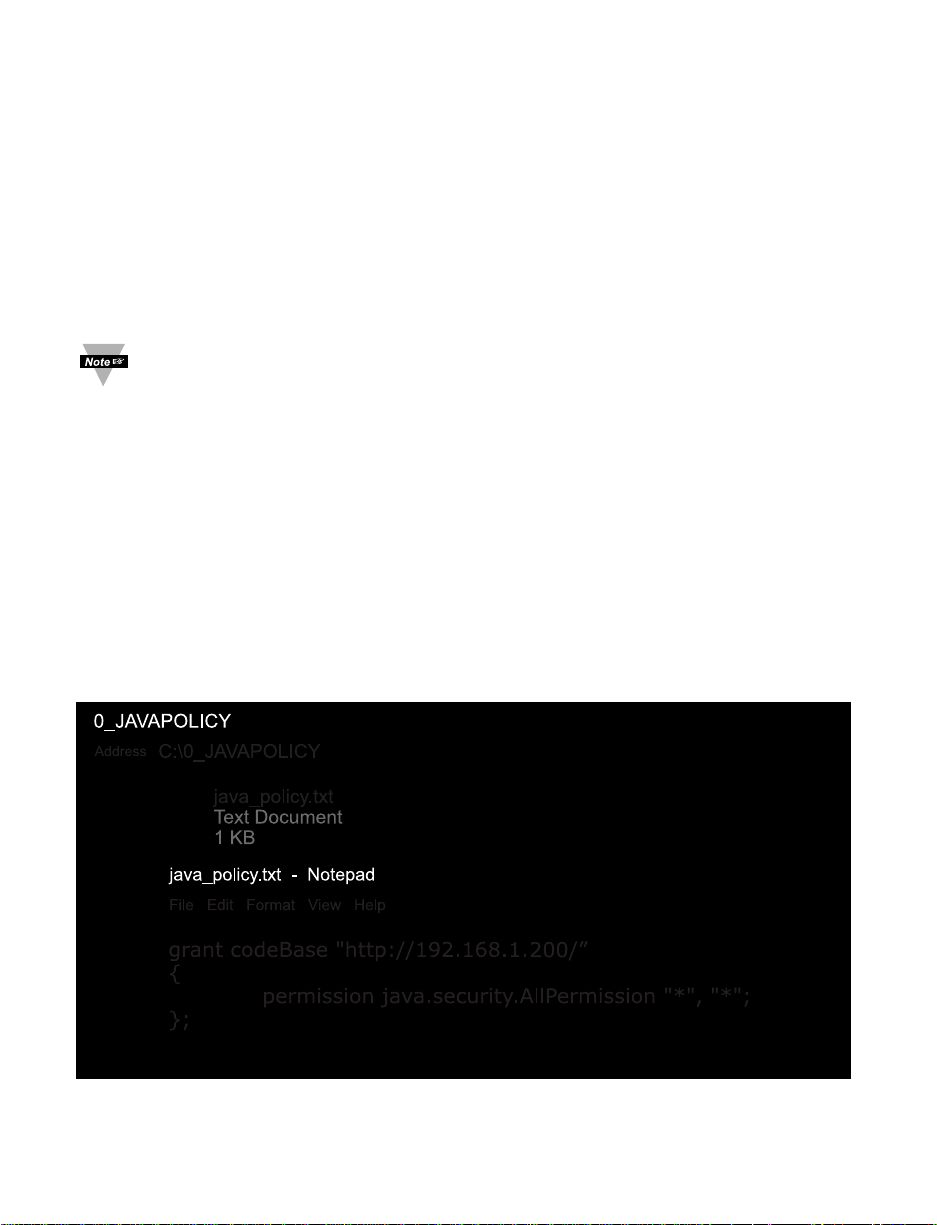

Figure 4.11 Java Policy

4.3.4 Java Policy (continued)

Java Runtime Settings

Control Panel

Java Control Panel

Control Panel

Address

CommentsName

Java Java(TM) Control Panel

General Update Security AdvancedJava

Java Applet Runtime Settings

Runtime settings are used when an applet is executed in the browser.

Java Applet Runtime Settings

Product Name Version Location Java Runtime Parameters

JRE 1.5.0_06 C:\Program Files\java\jre1.5.0_06 -Djava.security.policy=C:\0_JAVAPOLICY\java_policy.txt

OK Cancel

OK Cancel Apply

View...

5)Change Java Applet’s Runtime Parameters found on the following path:

a. Control Panel --> Java --> Java Control Panel --> Java Tab --> View b. Inside the box under the Java Runtime Parameters type the following:

-Djava.security.policy=C:\0_JAVAPOLICY\java_policy.txt

c. Click OK on the Java Runtime Settings window. d. Click Apply on the Java Control Panel window and then OK.

6) Close all opened Web browser.

Add text here

Figure 4.12 Java Policy

The “Data Logging” and “Save Current Graph” buttons in the “Readings” and “Chart” pages will not be active if the instructions explained in the above Section 4.3.4 are not followed.

4.3.5 Chart

wiSeries

Main Menu

CHART

(2 Seconds/Div)

1 Minute 1 Minute

1 Day 1 Week 1 Month 1 Year

C/Div

1200

300

100%

%/Div

hPa/Div

C hPa

Tue Feb 5 10:19:10 PDT 2008Tue Feb 5 10:18:10 PDT 2008

http://192.168.1.200

Min/Max Temperature

48.0/41.0

P1 Primary

P2 Sensor 2

P3 Primary

P4 Primary

P5 Primary

P6 Primary

P7 Primary

P8 Sensor 8

S1 Secondary

S2 Sensor 2

S3 Secondary

S4 Secondary

S5 Secondary

S6 Secondary

S7 Secondary

S8 Sensor 8

Save Current Graph

Click on from the Home Page, the following page will appear. The Java™ Applet graph displays the sensor temperature readings. It can be

charted across the full span or within any narrow range (such as 20 to 30ºC).

Chart

If a blank screen appears without any “java application running” or image of a “Java logo”, please verify you have the latest Java Runtime Environment installed and configured according to the instructions (refer to Section 4.3.3.1). If you do not have Java Runtime Environment, you may download it from our website or contact the Customer Service Department nearest you.

Figure 4.13 Chart

4.3.5 Chart (continued)

Title: wiDR’s name, assigned in Network Setup Menu. Save Current Graph: Save the current graph in PNG (Portable Network

Graphics) format. The filename has the extension .png. Max/Min Temperature: Maximum and minimum temperature of the current

graph. If a sensor is selected (trend line and sensor name turns bold), its most current

temperature reading is shown here.

Reading “Open” indicates that no sensing device is detected.

Temperature Unit: Temperature unit to be used, either ºC or ºF.

P# button (Primary): Displays the End Device name (assigned in the End

Device Setup Menu) and the chart line for the primary sensor. When clicked once, it turns bold, highlights primary sensor or first thermocouple

channel trend line and displays current readings.

When clicked twice, it turns white and the trend line will disappear.

When clicked again, it comes back to normal operation. Chart Area: Display the trend lines of the sensors. Range of temperature can be controlled by the upper and lower boxes on the

left. S# button (Secondary): Displays the End Device name (assigned in the End

Device Setup Menu) and the chart line for the secondary sensor. This button can also display errors, like Lost and ID.

When clicked once, it turns bold, highlights secondary sensor or second

thermocouple channel trend line and displays current sensor readings.

When clicked twice, it turns white and the trend line will disappear.

When clicked again, it comes back to normal operation.

Applet Start Date and Time: Activates when the chart page opens up. X-axis Drop-down List: Time scale for the chart.

The chart area can be shown based on 1 min, 1 hour, 1 day, 1 week, 1 month, or 1 year time intervals.

Last Update Date and Time: The last date and time when data arrived.

4.3.6 Controller Setup

Channel #

Please refer to local regulations for the allowed maximum transmission power

Transmission Power

PID 13106 (version x.x) iSeries Firmware Version x.x

Input Setpoints & On/Off

Alarm 2

Alarm 1

Passcode ID

Display

Permanent Store

Enable Standby Mode Before Configuring Unit

Scrolling

Main Menu

CONTROLLER SETUP

Setup

Transmission Power

Misc.

Monitor

CONTROLLER SETUP

http://192.168.1.200Address

Update

20dBm

End Device ID -

Reset Controller

Disable Standby

Enable Standby

Input Setpoints & On/Off

Alarm 2

Analog Out

CONTROLLER SETUP

Setup

CONTROLLER SETUP

http://192.168.1.200Address

Click on from the Home Page. In a few seconds the following page will appear.

Controller

This portion of the menu will

be different only if you have the Analog Output Option installed in your wiDR.

Figure 4.14 Controller Setup

Please refer to local

regulations for the maximum allowed transmit power.

4.3.6 Controller Setup (continued)

Below are the definitions of terms used in the Controller Setup page.

A) Setup:

Clicking on the options shown, allows user to modify the different parameters shown under this menu (see Section 4.3.7. Setup Page for more details)

B) Monitor:

If you have the DIN Rail version of the wiSeries, leave settings as shown below (default) as there is no front panel display;

Scrolling: Checked, default. End Device ID [A/b]-[1-8]: Not applicable.

C) Transmission Power: Channel: Choose the operating channel defined in IEEE 802.15.4 for the

sensor network. This allows you to select a wireless channel to communicate with the End Devices. It is strongly suggested to let the wiDR search for the best channel and not changing this field manually.

Transmission Power: This determines the signal power transmitted by the wiDR. The options are 10 dBm and 20 dBm.

Please refer to local regulations for the allowed maximum transmit power. For additional details, please refer to Appendix F

D) Miscellaneous: PID: The Personal Network ID is automatically detected and displayed. In the

parenthesis the firmware version of the radio module is indicated. The firmware version is also shown on a label attached to the wiDR (see Figure 3.1).

iSeries Version: The firmware version of the wiDR. The firmware version is also shown on a label attached to the wiDR (see Figure 3.1)

4.3.7 Setup

Temperature Unit

F xxx.x

Filter

Control End Device ID:

for Retransmission and On/Off

Decimal Point Position:

Please select xxx if input is larger than 999.9 or smaller than -99.9

A-1

Main Menu

SETUP

Input

SETUP

http://192.168.1.200Address

Cancel

Update

This section is used to configure the wiDR online. Click on the specific settings to change the parameters on that section

4.3.7.1 Input

Control End Device ID [A/b]-[1-8]: Specifies the measurement of an End

Device that will be used as input to control. Input letter “A” or “b” to indicate primary and secondary sensor respectively, followed by “-” and the End Device ID.

Filter: This option allows the user to specify the number of readings stored in the Digital Averaging Filter. Choice of: 1, 2, 4, 8, 16, 32, 64, 124.

Temperature Unit: Unit of temperature readings, [ ºC or ºF ]. Controller will be

reset automatically if temperature unt is changed. Decimal Point Position: For measurement reaching beyond 999.9 and/or -99.9,

“xxxx” should be selected and no decimal point is available. For measurement that falls within 999.9 to -99.9, “xxx.x” can be selected to

increase measurement resolution. Switching Decimal Point Position from “xxxx” to “xxx.x” is not allowed if any

Setpoint or Alarm High/Low is beyond 999.9 or -99.9. Controller will be reset automatically if Decimal Point Position is changed.

Figure 4.15 Input

4.3.7.2 Setpoints & On/Off Control

Auto Setpoint Deviation: If “enabled”, allows changes to Setpoint 1 to be

made automatically to Setpoint 2. This mode is very helpful if the Temperature changes often.

In Setpoint Deviation Mode, set SP2 a certain number of degrees or counts away from SP1--this relation remains fixed when SP1 is changed.

For instance: Setting SP1=200 and SP2=20 and enabling SP Deviation means that the

absolute value of SP2=220. Moving SP1 to 300, the absolute value of SP2 becomes 320.

Setpoint 1: This setpoint controls Output 1. Setpoint 2: This setpoint controls Output 2. Permanent Store: Check to save Setpoints in the wiDR’s permanent storage. On/Off 1 and On/Off 2: To enable and disable On/Off Control.

Enabling On/Off Controls will disable the Alarms, and vice versa. DeadBand: The Dead Band or neutral zone, is the number of degrees counts

around Setpoint 1 (or Setpoint 2 if On/Off 2) which the temperature value must pass above or below the Setpoint before the output changes state.

Action: Choice of direct or reverse. The error that results from the measurement of the Process Variable may be positive or negative since it may be greater or smaller than the Setpoint.

If a positive error should cause the wiDR output to increase (i.e. cooling), it would be called Direct Acting.

If a negative error should cause the output to increase (i.e. heating), it would be called Reverse Acting.

Table 4.1 Front Panel LEDs

OUT1 Red When Output 1 is ON. OUT2 Red When Output 2 is ON. AL1 Green When Output 1 is OFF and Alarm 1 is ON. AL2 Green When Output 2 is OFF and Alarm 2 is ON

See Figure 2.1 for LED location.

4.3.7.2 Setpoints & On/Off Control (continued)

Setpoint 2

Permanent Store

100

DeadBand

On/Off 1

On/Off 2

Auto Setpoint Deviation

Disabled

Direct

Setpoint 1

Action

Reverse

Main Menu

SETUP

Setpoints & On/Off Control

SETUP

http://192.168.1.200

Address

Cancel

Update

Figure 4.16 Setpoints & On/Off Control

4.3.7.3 Alarms 1 & 2

Alarm 1 (or 2) Relay: to enable or disable (no alarm function) the alarms . Alarm 1 (or 2) Low: editable box for the low alarm value. Alarm 1 (or 2) High: editable box for the high alarm value.

Active: If Above, Alarm condition triggered when the process variable is greater

than the Alarm Hi Value (Low value ignored).

If Below, Alarm condition triggered when the process variable is less than the

Alarm Low Value (Hi value ignored).

If Hi/Low, Alarm condition triggered when the process variable is less than the

Alarm Low Value or above the Hi Value.

If Band, Alarm condition triggered when the process variable is above or below

the "band" set around the Setpoint. Band equals Hi Value (Low Value ignored).

A "band" is set around the Setpoint only in the "Deviation" Mode.

Normally: if Open, then the relay is "energized" only when an alarm condition

occurs.

If Closed, this is "Fail Safe" Mode. Relay is energized under "normal" conditions

and becomes de-energized during alarm or power failure.

Latch: if Latched, Alarm remains "latched" until reset. If Unlatched, Alarm remains latched only as long as the alarm condition is true. Absolute: if Absolute, this allows Alarms to function independently from their

respective Setpoints. If the process being monitored does not change often, then "Absolute" Mode is recommended.

If Deviation, this allows changes to Setpoints to be made automatically to their

corresponding Alarms. Deviation Mode is typically the ideal mode if the process temperature changes often. In Deviation Mode, set Alarm 1 a certain number of degrees or counts away from Setpoints, this relation remains fixed even if Setpoints are changed.

Alarm at Power On: If the alarm is enabled at Power On, the alarm will be

active right after reset for all the End Devices (given the conditions are met), except the End Device designated in the “Input” menu of the Web Server.

If the alarm is disabled at Power On, the alarm will become enabled when the

process value enters the non alarm area. The alarm is not active while the process value is approaching the Setpoints.

Errors indicating “lost” or “open” sensor condition can trigger the alarm if the alarm is set for “active high” above 9000 degrees.

4.3.7.3 Alarms 1 & 2 (continued)

Normally

Alarm at Power On:

Alarm could be triggered immediately by non-controlling end device at startup.

Absolute

Active

Alarm 1 Relay Alarm 1 Low

Enabled 0

Above

Absolute Enabled

Alarm 1 High

100

Latch

Unlatched

Open

Main Menu

SETUP

Alarm 1

SETUP

http://192.168.1.200

Address

Cancel

Update

Figure 4.17 Alarms 1 & 2

4.3.7.4 Analog Output Retransmission

Input High

Output Low

Retransmission

Voltage/Current

Enabled Voltage

0.00

Input Low

Output High

10.00

Min. 0V

Max. 10V

1000

Main Menu

SETUP

Analog Output Retransmission

SETUP

http://192.168.1.200

Address

Cancel

Update

This menu will appear only if you have the Analog Output Option installed in your wiDR.

Figure 4.18 Analog Output Retransmission

Retransmission: When enabled, the input data will be scaled based on Input

Low and Input High and will be outputted. If the input reaches high value, the output will be 10V or 20mA. If the input reaches low value, the output will be 0V or 0mA.

Voltage/Current: Select the output to be Voltage (0-10V) or Current (0-20mA).

Input Low: The minimum input value scaled for Output Low. Output Low: Output Voltage or Current represented by Input Low. Input High: The minimum input value scaled for Output High. Output High: Output Voltage or Current represented by Input High.

4.3.7.5 Display

Screen Update (seconds)

Normal

Green

Alarm 1

Red

Alarm 2

Amber

Main Menu

SETUP

Display

SETUP

http://192.168.1.200

Address

Cancel

Update

This submenu is for the 1/8 DIN Panel Meter-Controller version of the wiSeries it allows the user to select the color of the display--green, red, amber.

If you have the DIN Rail version of the wiSeries, leave settings as shown below (default) as there is no front panel display; however the small LEDs will perform as described in Table 4.1 when these settings are used.

See Figure 2.1 and Table 4.1 for LED location and descriptions.

Figure 4.19 Display Menu

4.3.7.6 Passcode ID

Setpoint ID

Disabled

Full ID

Disabled

0000

Main Menu

SETUP

Passcode ID

SETUP

http://192.168.1.200Address

Cancel

Update

This submenu is for the 1/8 DIN Panel Meter-Controller version of the wiSeries. and is used to prevent unauthorized tampering with the setup parameters. The meter provides protection by requiring the user to enter the ID Code before allowing access to subsequent menus of the meter’s front panel. If the ID Code entered does not match the ID Code stored, the meter responds with an error message and access to subsequent menus will be denied.

This would not be used for the DIN Rail version of the wiSeries, as there are no front panel push buttons.

Figure 4.20 ID Code

4.3.8 Network Setup

Remote IP Address

Remote Port

0.0.0.0

02000

Remote Access

Disable

TCP/UDP

Server Type

TCP

Command

Forward CR

Disable

Secured Applet

Title

wiSeries

Number of Connections

Port

02000

Main Menu

NETWORK SETUP

General

Terminal Server

Remote Access (Tunneling)

NETWORK SETUP

http://192.168.1.200Address

Update

Click on from the Home Page, the following page will appear.

Network Setup

Figure 4.21 Network Setup

4.3.8 Network Setup (continued)

A) General Secured Applet: If checked, the LOGIN password is required to open

“Readings” and “Chart” pages. Title: wiDR’s name [maximum of 16 alphanumeric characters], shows on the

“Chart” and “Reading” pages.

B) Terminal Server

TCP/UDP*: The wiDR supports TCP and UDP protocols (default is TCP). If UDP

is selected, it can be configured either for Broadcast UDP or Directed UDP. In case of Broadcast UDP, the wiDR will transmit the data to every node on the network. This can be accomplished if the Remote IP Address is set to 255.255.255.255. The Broadcast UDP is a practical solution when one wiDR needs to communicate with multiple nodes over the network. In the case of directed UDP, the wiDR will transmit the data to a specific node on the network. This can be accomplished if the Remote IP Address is set to the IP address of that specific node.

Server Type: Continuous mode sends the temperature to the Ethernet, every two seconds. It is mainly used to send readings to a remote display. Command

mode (default) needs a command to query the wiDR to send the response back to querying device.

Forward CR: Forward CR can be enabled and disabled. If enabled the wiDR

will forward a <CR> along with the data to a network host in Command mode.

Number of Connections: The range is from 0 to 5. If 0 is selected, the Terminal

Server feature is disabled. This means that no network connection can be made to the wiDR. If 1 is selected, only one network connection can be made to the wiDR. Any number more than 1 would allow that number of network hosts to

read from the wiDR simultaneously (default is 5).

Port: Port number for TCP connections. Invalid ports: <500, >65536, 1000, 2002, 2003, and 7011.

C) Remote Access Remote IP Address: The wiDR can establish a connection to a remote device

(e.g. an iLD Remote Display with an Ethernet embedded board) with this IP.

Remote Port: (default 2000) the remote port number for the connection. Ports 1000 (used for HTTPget, refer to Section 4.5), 2002, 2003, and 7011 are

reserved for internal use. Remote Access: ** Remote Access can be enabled and disabled. If enabled,

the wiDR can send its data to a remote node on the same network (the “Remote IP address” and “Remote Port” must be entered).

* TCP/UDP: when UDP mode and Continuous are selected, Remote Access should be disabled and Remote IP and Port are the UDP remote listening IP and Port. If the Remote IP is set to 255.255.255.255, the UDP packet becomes a broadcasting packet which will allow any device listening to the Remote port to receive the packet.

** If Remote Access is enabled, Terminal Server is automatically disabled.

Update: Saves and Updates any changes on the “Network Setup” page.

4.3.9 End Device Setup

Main Menu

Update

Readings

Chart

END DEVICE SETUP

http://192.168.1.200

1 2 3 4 5 6 7 8

Lab 100 Lab 200 ABCDEFGH ABCDEFGH ABCDEFGH ABCDEFGH Lab 700 ABCDEFGH

10 10 10 10 10 10 10 10

C C

-C C

0D 0D 0D 0D 0D 0D 0D 0D 0D 0D 0D 0D 0D 0D 0D 0D

000000 000000 000000 000000 000000 000000 000000 000000 000000 000000 000000 000000 000000 000000 000000 000000

Name Update Network Units Remote Format EndChar Display Alarm

Click on End Device ID to modify Sensor Parameters.

Network: Access Data from Network/Applet

Display: Display Reading during Scrolling

Alarm: Enable to Trigger Controller Alarm

Address

Click on from the Home Page, the following page will appear.

End Device

Figure 4.22 End Device Setup

4.3.9 End Device Setup (continued)

The End Device Setup Page is for configuring the End Device parameters, such

as Name and Update Rate. # ID: End Device ID configured on the End Device. Click on the number (1 to 8) to view and modify End Device Parameters. Name: Name of an End Device, shows on the “Readings” and “Chart” pages. It is modified on the “End Device Parameters” page. Update: How often an End Device sends its data to the wiDR. It is modified on the “End Device Parameters” page. Network: Each check box controls whether or not readings from the End Device

will be outputted. If unchecked, the reading from the End Device will not be displayed on the

“Readings” and “Chart” pages, nor it will be reported through Telnet. Each End Device has two boxes assigned: the first is for the primary sensor, and

the second is for the secondary sensor.

Units: Type of data and the corresponding units [ºC or ºF].

Units of measurement from sensors inside an End Device that has joined the network will be displayed.

It is modified on the Controller Setup “Input” page.

Remote Format: Modified on the “End Device Parameters” page. End Char: Modified on the “End Device Parameters” page. Display: Modified on the “End Device Parameters” page. Alarm: Modified on the “End Device Parameters” page. Update: After checking/unchecking the boxes, make sure this is clicked to save

the changes.

Readings: This will take you to the “Readings” page. Chart: This will take you to the “Chart” page.

4.3.9.1 End Device Parameters

Remote Display Format: Remote End Char(Hex): 0x

000000

Offset(xxx.x): C

Cold Junction Compensation for Ch1 TC type:

K type

Device Name:

Update:

Sec

ABCDEFGH

Operation:

Normal

Display:

End Device Version: x.x

Alarm

Main Menu

END DEVICE PARAMETERS

End Device 1

END DEVICE PARAMETERS

http://192.168.1.200Address

Update

Cancel

Device Reset

Sensor1

Update rate is closely related to the lifetime of the battery.

Since the End Device is in low power consumption (sleep mode) when idle, a longer update rate will cause less energy usage and prolong the life of the battery.

On the other hand, a faster update rate shortens the battery life and results in a busy network, which will increase the chance of signal interference.

As a general rule of thumb, minimum update rate should be proportional to the number of sensors in the network.

Figure 4.23 End Device Parameters

Device Name: Name of this End Device, this is a text field and can take up to

16 alphanumeric characters. Update (Seconds): How often this sensor is sending its data to the wiDR.

A faster update period consumes more energy and creates more traffic. The update time must be selected to satisfy acceptable network performance and desired battery lifetime.

Operation: Choice of Normal or Identify. The LED of the End Device will blink (according to the update rate) in Normal condition (default). To identify an End Device in the field you may want to set the LED to be “ON”, this is the Identify setting.

4.3.9.1 End Device Parameters (continued)

Engr Lab 75F 75F Server Room 75F 77F Clean Room 73F 75F Engr Lab 75F 75F Server Room

Tera Term - 206.29.25.27 VT

File Edit Setup Control Window Help

Sensor 1

This is the field to modify the parameters for the primary sensor.

Remote Display Format: Remote display format is for Server Type continuous

mode. It basically defines the way the data is shown on a Remote Display. The default value is 00000000. This means that the value will be displayed up to 8 digits, followed by the Temperature Unit set in the wiDR. Any letters before and/or after the number will be displayed accordingly. Keep in mind that the displayed letters will take away from the available 8 characters.

Make sure that you have enough 0’s to display the entire reading. Any extra 0’s will be ignored.

If there is no unit, then the unit will be read from the “Input” menu of the Controller Setup.

Remote End Char: The default value is 0D (Hex representation of <CR>). This means that the wiDR sends <CR> after each reading. This will be done either in

Continuous or Command mode.

This is how the data will appear on the host with 0D assigned:

T75F T74F

If the end character for instance is 20 (Hex representation of space), the data will then appear as: T75F T74F

If nothing is set for the “Remote End Char” field, the wiDR will then forward the data to the LAN with no characters followed.

Offset: If it’s determined that the readings are slightly off, the user can manually assign numerical values to adjust the readings for temperature. The unit must be in degree C.

Display: Not used for the wiDR. This is for the 1/8 DIN panel meter-controller verison of the wiSeries to enable or disable the numerical display on the Meter’s Front Panel. By default, the box is checked (enabled).

Alarm: To enable or disable alarms for that particular sensor. By default, the box is checked (enabled).

Figure 4.24

Remote Display

4.3.9.1 End Device Parameters (continued)

ACCESS CONTROL

http://192.168.1.200

Address

Main Menu

00000000

IP Address 192.168.1.200 Gateway Address

0.0.0.0

Subnet Mask

255.255.255.0

MAC Address 00:03:03:00:21:D9

Host Name wis21d9

Save Reset

Network Reset

Cold Junction Compensation: This option is only available for thermocouple. Click on the link to follow instructions to perform cold junction compensation for the selected thermocouple channel.

Cold junction compensation will allow you to adjust (calibrate) the thermocouple in reference to 0°C environment.

Proper TC must be selected before doing cold junction compensation.

TC Type: Select the proper thermocouple type for the channel or you select “disabled” to disable the channel and reduce power consumption.

Sensor 2

This is the field to modify the parameters for the secondary sensor.

Update: Saves changes Cancel: Ignores all the changes and goes back to the “End Device Setup” page. Reset Device: Reset the End Device’s readings and status. If the End Device is

not on the network, the data will be cleared after 3 minutes. Otherwise, the End Device will reset itself and rejoin the network.

4.3.10 Access Control

This section describes the "Access Control" page of the Wireless System Web interface. This page allows the users to set up the network and security parameters of the Wireless System.

At the initial entrance to the “Access Control” page you may be prompted for the LOGIN Password (see Figure 4.6) prior to an ADMINISTRATOR Password.

Figure 4.25 Access Control

4.3.10 Access Control (continued)

System Home Page menu items, except “Access Control”, which requires an Administrator password. The default Login password is 12345678. This password can be up to 16 alpha-numeric case-sensitive characters.

If there is no Login Password assigned (blank box) the Wireless System will not require a password to access and modify any of the menu items, except the “Access Control” page.

Admin (administrator) Password: This allows users to access and modify the "Access Control" page. The default password is 00000000. This password can be up to 16 alpha-numeric case-sensitive characters.

If there is no Administrator Password assigned (blank box) the Wireless System will not require password to access and modify "Access Control" page.

Host Name: Name of the server (DNS) max 16 characters, default is “wis” and the last 4 digits of the MAC address. Refer to Section 3.4, DNS.

MAC Address: This is also called Hardware address or Ethernet address, which is assigned to the wiDR at production. The MAC (Media Access Control) address is the wiDR’s unique hardware number and is not changeable.

IP Address: The IP (Internet Protocol) address is a 32-bit number that identifies each sender or wiDR of information that is sent in packets across the Ethernet or the Internet. The wiDR’s default IP address is 192.168.1.200. The wiDR’s IP address should be changed to fit user’s networking environment. Consult with your IT department for obtaining an IP address.

The DHCP will be enabled in the wiDR if its IP address is set to 0.0.0.0. The DHCP can also be enabled by setting the 4 position DIP switch #3 to ON.

Gateway Address: A gateway is a network point that acts as an entrance to another network. A gateway is often associated with a router, which knows where to direct a given packet of data that arrives at the gateway. If the wiDR is sending packets to another network node that is not on the same network on which the wiDR is connected, a gateway address needs to be given to the wiDR. The gateway address should be the IP address of the router connected to the same LAN to which the wiDR is connected. The wiDR default gateway address is 0.0.0.0. Consult with your IT department for obtaining a gateway address.

Subnet Mask: It’s a 32-bit number that is used to determine which part of the IP address is the network portion and which part is the host portion. The wiDR default subnet mask is 255.255.255.0. Consult with your IT department for obtaining a subnet mask.

Save: Saves any changes for above settings. Reset: Pressing the Reset button will set all the fields back to their original values. Network Reset: Reboots the embedded server. Note that all updated network

parameters take effect after reboot.

Changes made in the Access Control page can be saved permanently by pressing the Save button and pressing the Network Reset button).

4.4 Telnet Setup

In the “Network Setup” page, under the Terminal Server section, set the TCP Connections to 1 - 5 other than 0, and use a telnet emulation program to connect to the wiDR (using Port 2000). The command can be sent to query the wiDR and get a response back.

Table 4.2 List of ASCII/Telnet Commands (01 indicates End Device #1)

Command Description Response *SR01a\r Reading from Sensor1 66F *SR01b\r Reading from Sensor2 68F *SR01e\r Readings from Sensor1 66F

and Sensor2 68F *SR01f\r Sequence number (0-255) 90 *SR01g\r End Device type 230 *SR01h\r Signal strength (0-100%) 49 *SR01i\r Success rate (0-100%) 100 *SR01j\r Battery voltage (mV) 2810 *SR01k\r Device status (hex, msb on the left hand side)

14th bit: set to enable control for the secondary sensor

12th bit: set to enable control for the primary sensor

10th bit: set to enable display for the secondary sensor

8th bit: set to enable display for the primary sensor

7th bit: set when Open detected 1100

6th bit: set when Lost detected

5th bit: shows if there is more than one End Device

having the same dip switch configuration. ‘1’ means

more than 1 End Device has the same Network ID

and Device ID.

4th bit: shows if there is any pending “identify mode

request” command for the End Device. ‘1’ means a

“start” command is issued.

3rd bit: not used

2nd bit: shows if there is any pending “reset” command

for the End Device. ‘1’ means a “reset” command

is issued.

1st bit: shows the source of power supply to the End

Device. ‘1’ means it’s powered by an adapter and

‘0’ means it’s powered by batteries.

0 bit: set when device is in identification mode;

otherwise it is in running mode

Table 4.2 (continued)

*SR01l\r How often an End Device sends its data to the wiDR 10 *SR01m\r End Device Firmware version 2.4 *SR01n\r Name Conf Room *SR01o\r Readings from Sensor1 in Celsius 19 *SR01p\r Readings from Sensor2 in Celsius 20 *SR00z\r Display all information

1 4 A66 F B68 F 90 49 100 2810 5500 10 Conf Room

2 4 A69 F B69 F 80 44 100 2810 5500 10 Engr Lab

6 4 A72 F 173 75 100 3110 1100 10 Server Room

7 4 A70 F 202 72 100 3450 1100 10 Clean Room

End Device Types

ZED_T 1 ZED_T_TP 4 ZED_TP 16 ZED_TC 20

4.5 HTTPget Program

The Httpget software is used to send a single HTTP or TCP request to the wiDR. In contrast, the telnet or Hyperterminal programs allow a continuous connection with multiple requests to be sent to the wiDR.

Generally HTTPget is used for simply programming an IP address to the wiDR or for quickly obtaining a reading from a End Device.

The wiDR must be configured from the “Network Setup” page so that the "TCP Connections" indicates any number between 1 and 5. Make sure that the Port Field number indicates 2000.

Whenever Terminal Server service (using Port 2000 by default) is required, the # of connections must be set to a value from 1 to 5. The Terminal Server mode is the recommended mode for the most reliable connection when operating with NEWPORT software or with other programs supporting TCP/IP communications.

The Port 2000 access can be used with NEWPORT software and may be needed with some wiDRs when you need to view readings from the web page while simultaneously collecting data through TCP/IP communications.

4.5.1 HTTPget using Port 2000

You can setup and read the information from the wiDR by using the HTTPget program. The following program can be used to read data from the embedded server firmware by using TCP port 2000. The command string is sent to this TCP port, then the response can be read back from the same socket.

The HTTPget.exe file is used to setup and read information from the wiDR. This file will be automatically installed when you install the MailNotifier software available on our website and CD.

Notes on using HTTPget : The Httpget.exe program is installed to the windows directory (usually c:\winnt or

c:\windows) when installing the Mail Notifier software.

1). Open up a command window (or have a DOS window) a) Click on start menu b) Click on "Run" c) In the dialog box that appears, type "cmd" or "command" and click on

"OK" button.

d) A command window should now appear.

2). If you now type "httpget" and press the "enter", the program options should be displayed.

4.5.1 HTTPget using Port 2000 (continued)

3). Next run HTTPget with the options displayed below

httpget -r -S *SR00z 192.168.1.135:2000 -C1 -q

where:

-r –S are parameters needed for the the command string Command (See Table 4.2)

192.168.1.135 is an IP address 2000 is a socket port number

-C1 closes the TCP connection after 1 second

-q displays no error messages once the connection is closed

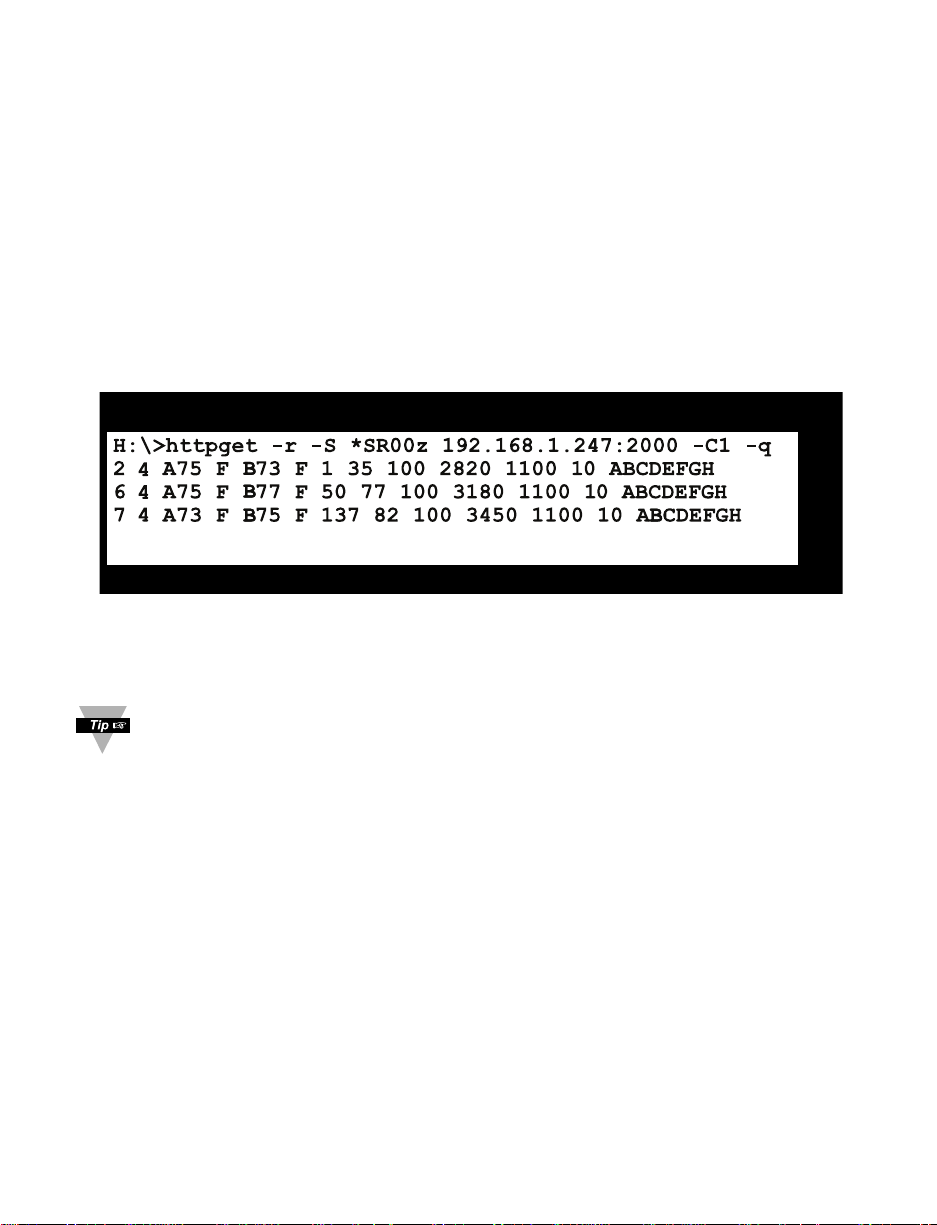

Figure 4.26 HTTPget Example of Polling End Device #2,6,7

4.5.2 HTTPget and ARP to Setup Device IP Address

Use the iConnect software, which may be downloaded from our website, to do these IP changes whenever possible.

Use ARP first to assign the mac address to a static IP address in computer arp table by this command:

arp –s 192.168.1.200 00-03-34-00-06-b6

Then use the following command to assign new IP to the device:

Httpget –r –S "00000000" 192.168.1.200:1 where:

“0000000” is admin. password. If the password is wrong, the unit will ignore the new IP. If the new IP is taken, you will get the message " New IP is Assigned" after the HTTPget command. The device will reset automatically.

“192.168.1.200” is an example of an IP address. It is replaced with IP address suitable for your network

“00-03-34-00-06-b6” is replaced with your wiDR’s MAC address.

4.6 ARP Protocol

C:\>ping 192.168.1.96 Pinging 192.168.1.96 with 32 bytes of data:  Reply from 192.168.1.96=bytes=32 time=5ms TTL=32 Reply from 192.168.1.96=bytes=32 time=3ms TTL=32 Reply from 192.168.1.96=bytes=32 time=3ms TTL=32 Reply from 192.168.1.96=bytes=32 time=4ms TTL=32  C:\>arp -a 192.168.1.96 Interface: 192.168.1.118 Internet Address Physical Addresss Type

192.168.1.96 00-03-34-00-00-23 dynamic 00-03-34-00-00-23  C:\>arp -d 192.168.1.96 C:\>arp -a 192.168.1.96 No ARP Entries Found C:\>

ARP is the Internet layer protocol responsible for matching or obtaining the MAC (hardware) address that corresponds to a particular IP address. The ARP command allows the user to view the current contents of the ARP cache of the local computer (residing on the same network). Microsoft includes the ARP.EXE utility for viewing and modifying the ARP cache with its Windows products. The following ARP commands can be used to view cache entries:

• arp –a

• arp –a associated with one particular interface on a network with multiple adapters.

• arp –g

• arp –N

• arp – s manually add a permanent static entry to the ARP cache.

• arp –d

The following window shows examples of arp commands and responses.

• Your computer has an IP address of 192.168.1.118

• The destination computer has an IP address of 192.168.1.96

➞ Use this command to view all ARP cache entries. plus IP address ➞ Use this command to view ARP cache entries

➞ Same as arp –a.

➞ Use this command to display ARP entries for specific network interface.

plus IP address plus Physical address ➞ Use this command to

plus IP address ➞ Use this command to manually delete a static entry.

Figure 4.27 ARP Commands and Responses

4.7 iLog Software

This is an Excel application software that can log temperature from the wiDR over the local network (Ethernet) or the internet.

a) Download the iLog software from the website listed in this manual. b) Install iLog software on a networked PC. This software is compatible with

Windows 95, 98, NT, 2000, XP, and Vista.

c) For complete information of how to use the iLog software, click on the HELP

button.

d) There is a list of Error Messages in Appendix E.

Figure 4.28 iLog Software Logging Data for End Device #2, 6, 7

4.7 iLog Software (continued)

Table 4.3 iLog Excel Applications

The iLog application actually consists of several Excel files, though most supported devices can be accessed by the main iLog program. The main program is listed as “iLog”, plus a version number, under the Start Menu program links (those links available by clicking the Start button on the Windows taskbar).

In the following table, the iLog File column shows how many sensors are logged by the main iLog file. If more than 3 sensors are available, then the Alternate column shows how many sensors the device can support. Devices with more than 3 sensors will have their own Excel file. For these files, click on the model device found in the Start Menu.

Networked Product iLog File Alternate

iTHX-W, iTHX-2 3 column iTHX-M, iTHX-SD 3 column iTHX-W Dual Probe 1st probe / 3 column 6 column iSE-TC, iSD-TC 3 column 5 column iSE-TH, iSD-TH 3 column 5 column iBTHX-W, iBTHX-D 3 column 4 column iBTX-M, iBTX-SD 2 column iPTX-W 2 column iTCX 3 column iTH Controller 3 column iVI 3 column 4 column iSeries 1 column iDRX/iDRN 1 column INF-B 1 column

Wireless Devices

The “Auto” column shows number of columns per remote device that are possibly displayed.

The Full column shows number of columns allocated per device for the “Full” spreadsheet, which will be able to display all data for all active devices.

Networked Product Auto Full

zSeries Receiver and Remotes 1 to 4 column / device 4 column / 32 device wiSeries with zED Remotes 1 to 2 column / device 2 column / 32 device UWTC REC-3 and Remotes 1 or 2 column / device 2 column / 32 device wiSeries with UWTC Remotes 1 to 2 column / device 2 column / 32 device

The active wireless devices, when shown in the Excel application, will be shown with the device number and the units returned.

4.8 Mail Notifier Software

iServer Mail Notifier

Status Indicators

Data Email Error

ile Monitor Mail View Help

Alerts List

Connected to Email Complete

Dev1 alarm: 74.6 Dev2 alarm: 89 Dev1 alarm: 74.7 Dev1 alarm: 74.7 Dev2 alarm: 89 Dev1 alarm: 74.7 Dev1 alarm: 74.6

For complete information of how to use the Mail Notifier software, click on the Help menu of the main window.

The Mail Notifier software generates email notifications for alarm conditions. Users can be notified automatically of alarm conditions monitored via internet connections throughout the world. By use of the email forwarding of alarm conditions, alarm conditions can be monitored on a network isolated from the internet and forwarded to connections on the Internet.

The Mail Notifier utility operates under Windows 98, NT 4.0, 2000, and XP in conjunction with existing email that supports the MAPI messaging interface. If MS Outlook

4.8.1 Installation

The Mail Notifier must be loaded on a computer running MicrosoftTMWindows (versions specified earlier) using an email program that provides MAPI access. Network access must be available between this computer and the wiDR. Network access must also be available from this computer to the appropriate email server and from the email server to the recipient’s email server.

has been loaded, the MAPI support should be available.

Figure 4.29 Mail Notifier Main Window

4.8.2 Program Options Setup and Configuration

Name/Profile

Password

Email Address MS Outlook Outlook 2002

MAPI

Mail Server

Use Login Box

Email Setup Content Startup GeneralSend To

Help OK Cancel

Options

Complete program setup requires:

• Entering a recipient for the email

• Specifying connection details to MAPI services.

Defining alarms for devices, and selecting how and when the email will be active.

•

Figure 4.30 Mail Notifier Profile Setup

Email Address Setup

The email addresses must be entered using individual addresses or alias. Select “Options” from the “View” menu and enter the email addresses on the “Send To” screen. This will be the list of email addresses to which alarm notifications will be sent.

Email Setup

The Mail Notifier is compatible with original MS Outlook The Mail Notifier will attempt to automatically identify whether the Outlook is a

newer version. A red bar appears under the Mail Notifier splash window to confirm that the detection of the 2002 or newer version is acceptable. With the newer versions, no additional steps should be taken to enable the connection between the Mail Notifier and the Email server.

MS Outlook tends to require that the users respond to a “login box” in order for email access to be activated for Mail Notifier. Some other email clients may allow for Mail Notifier to gain access without user login, as may be desired for a system recovering from a power outage. See the Help files for more information.

and OutlookTM2002 to 2005.

4.8.3 Device Setting and Configuration

The wiDR and End Devices should first be configured and ready to use. Make sure to have the following settings in the ”Network” web page of the wiDR

see Section 4.3.8.

Number of Connections = 5 Port = 2000 (other values may be acceptable as long as Mail Notifier is setup

with the same Port number)

Then on the Mail Notifier Alarm Editor, set the BusAddress/DeviceID to match the Device ID number for an End Device and set the Reading Cmd to a Reading Command from the following table:

Table 4.4 Mail Notifier Commands

Desired Value to Monitor Reading Command Actual Command

(see Note 2)

Temperature1 SR##a *SR05a\r in scale configured at wiDR

Temperature1 SR##o *SR05o\r in Degree C

Temperature2 SR##b *SR05b\r in scale configured at wiDR

Temperature2 SR##p *SR05p\r in Degree C

Battery voltage (mV) SR##j *SR05j\r Signal Level SR##h *SR05h\r Success Rate SR##i *SR05i\r

1. The commands used in Mail Notifier are symbolic commands rather than actual wiDR commands described in Table 4.2.

2. The sample commands in the table above are shown for a sensor with Device ID of 5 such that SR##a, for example, is sent as *SR05a\r.

4.8.3 Device Setting and Configuration (continued)

Alarm Editor

Cancel

Help

Add

Del

Bus Address/Device ID

Socket Number

Description Src ID

Reading Cmd

Server IP Address

2000

Dev1 zRdgA

192.168.1.200

Device Info (1 of 2)

Alarm Type

Alarm High

Alarm Low

Alarm High

Info Message

Email Interval

Monitor Interval

0.05

Alarm Hold Time 0.0

0.5

hrs.

min.

Alarm Configuration

Only Monitor Access to iServer device

SR##a

Figure 4.31 Mail Notifier Device Setting

4.8.4 Sending Txt Messages to a Cell Phone

Once you install the Mail Notifier Software and configure it to work with any of our networking products, you can use the following format to have Mail Notifier send a text message to your cell phone. Since most cell phones are capable of receiving text messages you just need to find the correct email format for your cell phone provider and use it within the Mail Notifier environment.

T-Mobile phone_number@tmomail.net Virgin Mobile phone_number@vmobl.com Cingular phone_number@cingularme.com AT&T phone_number@txt.att.net Sprint phone_number@messaging.sprintpcs.com Verizon phone_number@vtext.com Nextel phone_number@messaging.nextel.com

“phone_number” is your 10 digit cell phone number.

Part 5 ENVIRONMENT / OPERATING CONDITIONS

The End Device and wiDR monitor-controller are designed to be fixed mounted and operated in a clean and dry environment. Care should be taken to prevent the components of your wireless system from being exposed to moisture, toxic chemicals, extreme cold or hot temperature that are outside the specification listed in this manual.

The following is a list of basic good practice you should apply when operating this Wireless System.

1. Do not operate the wireless wiDR in flammable or explosive environments.

2. Do not use the wireless wiDR in medical, nuclear or other critical application where failure can cause damage or harm.

3. Always operate the wireless wiDR within the recommended environmental limits specified in the manual.

4. Do not operate the wireless wiDR with a battery or AC adapter other than what’s supplied or specified in this manual or on the battery compartment label.

5. Keep each wireless wiDR at least 8 inches (20 cm) from other radio transmitters, antennas, and people.

6. The FCC approval for this wiDR specifies the specific antenna supplied with this wiDR.

5.1 General Deployment Guidelines

1. Position wiDR in a central location. When multiple End Devices are in operation, position your wiDR in a central space if possible in equal distance to each End Device.

2. Test your system before permanent mounting. Try to move the devices to different location around and mounting angles to determine what installation achieves the best signal strength before permanently mounting the End Device.

3. Move your system components higher off the floor and away from exterior walls. The closer the End Device and wiDR are, the greater the interference and lose of signal strength will be.

4. Maintain a line-of-sight between antennas and keep Fresnel zone free of obstruction. See Figure 5.2.

5. Maintain a constant ambient temperature environment. Exposing your system components to extreme cold or hot temperatures, or sudden changes in ambient conditions will have an effect on the performance of your system.

6. As a general rule in buildings, head height or above is preferred. On the other hand, an End Device which stays close to the floor may have its range reduced by 50% to 90%.

7. Where possible, try to ensure an uninterrupted line-of-sight between nodes. Avoid obscuring objects (e.g. metal pillars, posts, sign) near the antenna. A close object obscures a wider range of solid angle.

8. It is important to understand that the environment may change over time due to new equipment or machinery being installed, building construction, etc. If new obstacles exist between the End Device and wiDR, antenna angle may need to be re-adjusted and/or the unit has to be relocated.
