1.2 cm (0.5") DIAMETER
HEART CROSS-SECTION
⻬ Steel Sheath
⻬ 3700 to 5300 Watts
⻬ 240 and 480V
⻬ 20 W/in
2
⻬ 400°C (750°F) Maximum
Sheath Temperature
APPLICATIONS
High element surface temperature
clamp-on or air heating applications
or where extreme rigidity is
required.
ADVANTAGES
More uniform surface temperatures
and resistance to deformation.
FEATURES
Type 4 Terminals: Integral parts
of the element are of high strength
to resist bending during tightening
of the wiring con nec tions. Type 4 is
threaded extension of the cold pin.
See terminal detail drawing in the
Tubular Heater Overview section
on omega.com/heaters.
Work Temperatures:
See Tubular Heater Overview
section on omega.com/heaters.
Bending: Customer’s minimum
inside bending radius is 6.4 cm
(2
1
⁄2"). See bending requirements in
the Tubular Heater Overview
section on omega.com/heaters.
Dimensions: cm (in)
1.2 cm (0.5") Dia.
Steel Sheath
Round
Section
Round
Section
TS Style
Starts at
$
355
2
(13⁄16)
6.3
(21⁄2)
B
A ± 1⁄2%
2
(13⁄16)
6.4
(21⁄2)
TS-11245/240V, $355,
shown smaller than
actual size.
Note: If element is to be bent, specify “must be annealed.’
Ordering Examples: TS-13045/240V, 3920 W, 240V heater, $385.
TS-11245/480V, 3700 W, 480V heater, $355.
To Order
(Specify Model Number)
Dimensions cm (in) Steel Sheath
Weight
Watts Volts W/In2Sheath A Heated B Model No. Price kg (lb)
3700 240 20 284 (112) 268 (1051⁄2) TS-11245/240V $355 1.5 (3.3)
3700 480 20 284 (112) 268 (1051⁄2) TS-11245/480V 355 1.5 (3.3)
3800 240 20 315 (124) 298 (1171⁄2) TS-12445/240V 375 1.5 (3.3)
3800 480 20 315 (124) 298 (1171⁄2) TS-12445/480V 375 1.5 (3.3)
3920 240 20 330 (130) 314 (1231⁄2) TS-13045/240V 385 1.5 (3.3)
3920 480 20 330 (130) 314 (1231⁄2) TS-13045/480V 385 1.5 (3.3)
4075 240 20 345 (136) 329 (1291⁄2) TS-13645/240V 395 2.0 (4.3)
4075 480 20 345 (136) 329 (1291⁄2) TS-13645/480V 395 2.0 (4.3)
4250 240 20 360 (142) 344 (1351⁄2) TS-14245/240V 405 2.0 (4.3)
4250 480 20 360 (142) 344 (1351⁄2) TS-14245/480V 405 2.0 (4.3)
4450 240 20 376 (148) 359 (1411⁄2) TS-14845/240V 415 2.0 (4.3)
4450 480 20 376 (148) 359 (1411⁄2) TS-14845/480V 415 2.0 (4.3)
4700 240 20 396 (156) 380 (1491⁄2) TS-15645/240V 425 2.0 (4.3)
4700 480 20 396 (156) 380 (1491⁄2) TS-15645/480V 425 2.0 (4.3)
5000 240 20 417 (164) 400 (1571⁄2) TS-16445/240V 440 2.0 (4.3)
5000 480 20 417 (164) 400 (1571⁄2) TS-16445/480V 440 2.0 (4.3)
5300 240 20 437 (172) 420 (1651⁄2) TS-17245/240V 450 2.0 (4.3)
5300 480 20 437 (172) 420 (165
1
⁄2) TS-17245/480V 450 2.0 (4.3)
MOST POPULAR MODELS HIGHLIGHTED!
149
To Order, Call or Shop Online at
omega.com
SM
®
0.95 cm (0.375") DIAMETER
HEART CROSS-SECTION
⻬ Steel Sheath
⻬ 225 to 1500 Watts
⻬ 120, 240 and 480V
⻬ 20 W/in
2
⻬ 400°C (750°F) Maximum
Sheath Temperature
APPLICATIONS
High element surface temperature
clamp-on or air heating applications
or where extreme rigidity is required.
ADVANTAGES
More uniform surface temperatures
and resistance to deformation.
FEATURES
Type 3 Terminals:
Heliarc-welded to the cold pin.
See terminal detail drawing in the
Tubular Heater Overview section
on omega.com/heaters.
Work Temperatures: See Tubular
Heater Overview section on
omega.com/heaters.
Bending: Customer’s minimum
inside bending radius is 4.8 cm
(17⁄8"). See bending re quire ments in
the Tubular Heater Overview
section on omega.com/heaters.
A ± 1⁄2%
B
2.5
(1)
0.95
(
3
⁄8)
0.95 mm (
3
⁄8") Heart Shaped Steel Sheath
3.8
(1
1
⁄2)
Round Sec tion
To Order
(Specify Model Number)
Dimensions In. (cm) Steel Sheath
Weight
Watts Volts W/In2Sheath A Heated B Model No. Price kg (lb)
225 120 20 39 (16) 24 (91⁄2) TS-1648/120V $31 0.2 (0.4)
250 120 20 44 (18) 28 (111⁄2) TS-1848/120V 34 0.2 (0.4)
300 120 20 49 (20) 33 (131⁄2) TS-2048/120V 36 0.2 (0.4)
350 120 20 54 (22) 45 (151⁄2) TS-2248/120V 39 0.2 (0.4)
450 120 20 61 (25) 45 (181⁄2) TS-2548/120V 42 0.2 (0.4)
500 120 20 66 (27) 50 (201⁄2) TS-2748/120V 45 0.2 (0.4)
500 240 20 66 (27) 50 (201⁄2) TS-2748/240V 45 0.2 (0.4)
500 120 20 69 (28) 53 (211⁄2) TS-2848/120V 46 0.4 (0.8)
500 240 20 69 (28) 53 (211⁄2) TS-2848/240V 46 0.4 (0.8)
550 120 20 74 (30) 57 (231⁄2) TS-3048/120V 48 0.4 (0.8)
550 240 20 74 (30) 57 (231⁄2) TS-3048/240V 48 0.4 (0.8)
600 120 20 78 (32) 62 (251⁄2) TS-3248/120V 51 0.4 (0.8)
600 240 20 78 (32) 62 (251⁄2) TS-3248/240V 51 0.4 (0.8)
650 120 20 83 (34) 67 (271⁄2) TS-3448/120V 53 0.4 (0.8)
650 240 20 83 (34) 67 (271⁄2) TS-3448/240V 53 0.4 (0.8)
700 120 20 88 (36) 72 (291⁄2) TS-3648/120V 56 0.4 (0.8)
700 240 20 88 (36) 72 (291⁄2) TS-3648/240V 56 0.4 (0.8)
750 120 20 93 (38) 77 (311⁄2) TS-3848/120V 58 0.4 (0.8)
750 240 20 93 (38) 77 (311⁄2) TS-3848/240V 58 0.4 (0.8)
800 120 20 98 (40) 82 (331⁄2) TS-4048/120V 61 0.5 (1)
800 240 20 98 (40) 82 (331⁄2) TS-4048/240V 61 0.5 (1)
850 120 20 103 (42) 87 (351⁄2) TS-4248/120V 63 0.5 (1)
850 240 20 103 (42) 87 (351⁄2) TS-4248/240V 63 0.5 (1)
900 120 20 108 (44) 92 (371⁄2) TS-4448/120V 65 0.5 (1)
900 240 20 44 (108) 92 (371⁄2) TS-4448/240V 65 0.5 (1)
950 120 20 46 (113) 97 (391⁄2) TS-4648/120V 87 0.5 (1)
950 240 20 46 (113) 97 (391⁄2) TS-4648/240V 87 0.5 (1)
1000 120 20 118 (48) 102 (411⁄2) TS-4848/120V 90 0.5 (1)
1000 240 20 118 (48) 102 (411⁄2) TS-4848/240V 90 0.5 (1)
1000 480 20 118 (48) 102 (411⁄2) TS-4848/480V 90 0.5 (1)
1050 120 20 123 (50) 106 (431⁄2) TS-5048/120V 93 0.5 (1)
1050 240 20 123 (50) 106 (431⁄2) TS-5048/240V 93 0.5 (1)
1050 480 20 123 (50) 106 (431⁄2) TS-5048/480V 93 0.5 (1)
1100 120 20 133 (54) 116 (471⁄2) TS-5448/120V 100 0.6 (1.3)
1100 240 20 133 (54) 116 (471⁄2) TS-5448/240V 100 0.6 (1.3)
1100 480 20 133 (54) 116 (471⁄2) TS-5448/480V 100 0.6 (1.3)
1200 120 20 142 (58) 126 (511⁄2) TS-5848/120V 107 0.6 (1.3)
1200 240 20 142 (58) 126 (511⁄2) TS-5848/240V 107 0.6 (1.3)
1200 480 20 142 (58) 126 (511⁄2) TS-5848/480V 107 0.6 (1.3)
1300 120 20 152 (62) 136 (551⁄2) TS-6248/120V 114 0.6 (1.3)
1300 240 20 152 (62) 136 (551⁄2) TS-6248/240V 114 0.6 (1.3)
1300 480 20 152 (62) 136 (551⁄2) TS-6248/480V 114 0.6 (1.3)
1400 120 20 162 (66) 146 (591⁄2) TS-6648/120V 120 0.6 (1.3)
1400 240 20 162 (66) 146 (591⁄2) TS-6648/240V 120 0.6 (1.3)
1400 480 20 162 (66) 146 (591⁄2) TS-6648/480V 120 0.6 (1.3)
1500 120 20 172 (70) 156 (631⁄2) TS-7048/120V 127 0.6 (1.3)
1500 240 20 172 (70) 156 (631⁄2) TS-7048/240V 127 0.6 (1.3)
1500 480 20 172 (70) 156 (63
1
⁄2) TS-7048/480V 127 0.6 (1.3)
Dimensions: cm (in)
Note: If element is to be bent, specify “must be annealed.”

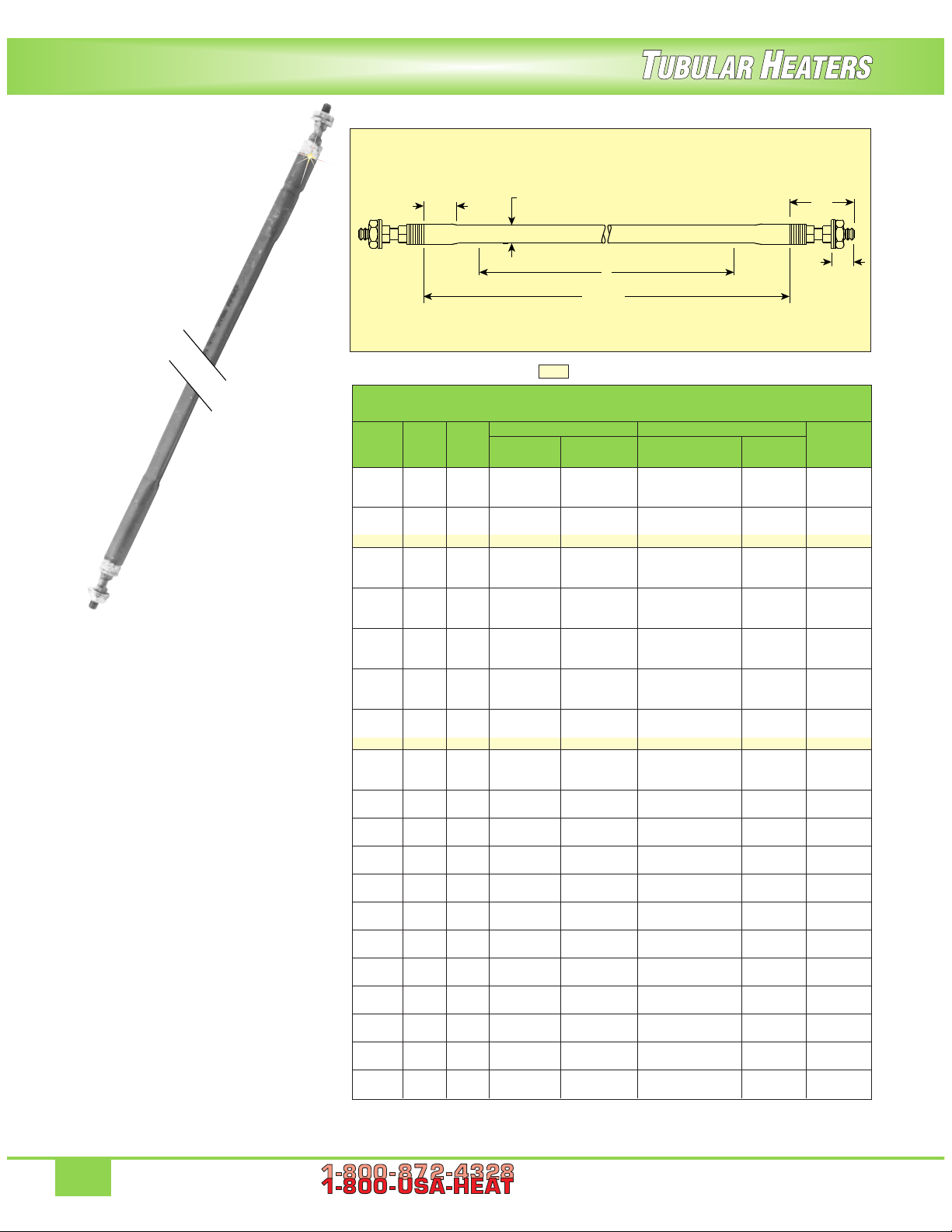

Ordering Examples: TS-4848/480V, 1000 W, 480V heater, $90.
TS-6248/240V, 1000 W, 240V heater, $114.
TS Style
Starts at
$
31
MOST POPULAR MODELS HIGHLIGHTED!
TS-2048/120V, $36,
shown smaller than
actual size.
150
To Order, Call or Shop Online at
omega.com
SM
®
⻬ Steel Sheath
⻬ 1600 to 3800 Watts
⻬ 120, 240 and 480V
⻬ 20 W/in
2
⻬ 400°C (750°F) Maximum
Sheath Temperature
APPLICATIONS
High element surface temperature
clamp-on or air heating applications
or where extreme rigidity is required.
ADVANTAGES
More uniform surface temperatures
and resistance to deformation.
FEATURES
Type 3 Terminals: Heliarc-welded
to the cold pin. See terminal detail
drawing in the Tubular Heater
Overview section on
omega.com/heaters
Work Temperatures: See Tubular
Heater Overview section on
omega.com/heaters
Bending: Customer’s minimum
inside bending radius is 4.8 cm
(17⁄8"). See bending re quire ments in
the Tubular Heater Overview
section on omega.com/heaters
Dimensions: cm (in)
A ± 1⁄2%
B
2.5
(1)
0.95
(
3
⁄8)
0.95 mm (
3
⁄8") Heart Shaped Steel Sheath
3.8
(1
1
⁄2)
Round Sec tion
TS-7448/120V, $134,
shown smaller than
actual size.
Note: If element is to be bent, specify “must be annealed.”
Ordering Examples: TS-12448/480V, 2750 W, 480 V heater, $250. TS-13648/240V, 3050 W,
240V heater, $265.
To Order
(Specify Model Number)
Dimensions cm (in) Steel Sheath
Weight
Watts Volts W/in2Sheath A Heated B Model No. Price kg (lb)
1600 120 20 191 (74) 171 (671⁄2) TS-7448/120V $134 0.6 (1.3)
1600 240 20 191 (74) 171 (671⁄2) TS-7448/240V 134 0.6 (1.3)
1600 480 20 191 (74) 171 (671⁄2) TS-7448/480V 134 0.6 (1.3)
1700 120 20 198 (78) 181 (711⁄2) TS-7848/120V 140 0.8 (1.8)
1700 240 20 198 (78) 181 (711⁄2) TS-7848/240V 140 0.8 (1.8)
1700 480 20 198 (78) 181 (711⁄2) TS-7848/480V 140 0.8 (1.8)
1800 120 20 208 (82) 185 (751⁄2) TS-8248/120V 147 0.8 (1.8)
1800 240 20 208 (82) 185 (751⁄2) TS-8248/240V 147 0.8 (1.8)
1800 480 20 208 (82) 185 (751⁄2) TS-8248/480V 147 0.8 (1.8)
1850 120 20 218 (86) 195 (791⁄2) TS-8648/120V 154 0.8 (1.8)
1850 240 20 218 (86) 195 (791⁄2) TS-8648/240V 154 0.8 (1.8)
1850 480 20 218 (86) 195 (791⁄2) TS-8648/480V 154 0.8 (1.8)
1950 120 20 228 (90) 205 (831⁄2) TS-9048/120V 194 0.8 (1.8)
1950 240 20 228 (90) 205 (831⁄2) TS-9048/240V 194 0.8 (1.8)
1950 480 20 228 (90) 205 (831⁄2) TS-9048/480V 194 0.8 (1.8)
2050 120 20 239 (94) 215 (871⁄2) TS-9448/120V 200 0.8 (1.8)
2050 240 20 239 (94) 215 (871⁄2) TS-9448/240V 200 0.8 (1.8)
2050 480 20 239 (94) 215 (871⁄2) TS-9448/480V 200 0.8 (1.8)
2150 120 20 245 (98) 225 (911⁄2) TS-9848/120V 205 0.8 (1.8)
2150 240 20 245 (98) 225 (911⁄2) TS-9848/240V 205 0.8 (1.8)
2150 480 20 245 (98) 225 (911⁄2) TS-9848/480V 205 0.8 (1.8)
2250 120 20 259 (102) 234 (951⁄2) TS-10248/120V 215 1.1 (2.5)
2250 240 20 259 (102) 234 (951⁄2) TS-10248/240V 215 1.1 (2.5)
2250 480 20 259 (102) 234 (951⁄2) TS-10248/480V 215 1.1 (2.5)
2350 240 20 269 (106) 244 (991⁄2) TS-10648/120V 220 1.1 (2.5)
2350 480 20 269 (106) 244 (991⁄2) TS-10648/480V 220 1.1 (2.5)
2500 240 20 284 (112) 258 (1051⁄2) TS-11248/240V 230 1.1 (2.5)
2500 480 20 284 (112) 258 (1051⁄2) TS-11248/480V 230 1.1 (2.5)
2600 240 20 300 (118) 273 (1111⁄2) TS-11848/240V 240 1.1 (2.5)
2600 480 20 300 (118) 273 (1111⁄2) TS-11848/480V 240 1.1 (2.5)
2750 240 20 315 (124) 289 (1171⁄2) TS-12448/240V 250 1.1 (2.5)
2750 480 20 315 (124) 289 (1171⁄2) TS-12448/480V 250 1.1 (2.5)
2900 240 20 330 (130) 303 (1231⁄2) TS-13048/240V 255 1.1 (2.5)
2900 480 20 330 (130) 303 (1231⁄2) TS-13048/480V 255 1.1 (2.5)
3050 240 20 345 (136) 317 (1291⁄2) TS-13648/240V 265 1.5 (3.3)
3050 480 20 345 (136) 317 (1291⁄2) TS-13648/480V 265 1.5 (3.3)
3200 240 20 360 (142) 332 (1351⁄2) TS-14248/240V 275 1.5 (3.3)
3200 480 20 360 (142) 332 (1351⁄2) TS-14248/480V 275 1.5 (3.3)
3350 240 20 376 (148) 347 (1411⁄2) TS-14848/240V 285 1.5 (3.3)
3350 480 20 376 (148) 347 (1411⁄2) TS-14848/480V 285 1.5 (3.3)
3550 240 20 396 (156) 366 (1491⁄2) TS-15648/240V 300 1.5 (3.3)
3550 480 20 396 (156) 366 (1491⁄2) TS-15648/480V 300 1.5 (3.3)
3700 240 20 417 (164) 386 (1571⁄2) TS-16448/240V 310 1.5 (3.3)
3700 480 20 417 (164) 386 (1571⁄2) TS-16448/480V 310 1.5 (3.3)
3800 240 20 172 (437) 1651⁄2 (405) TS-17248/240V 325 1.5 (3.3)
3800 480 20 172 (437) 1651⁄2 (405) TS-17248/480V 325 1.5 (3.3)
MOST POPULAR MODELS HIGHLIGHTED!
One Omega Drive | Stamford, CT 06907 | 1-888-TC-OMEGA (1-888-826-6342) | info@omega.com
EPG05
www.omega.com
UNITED KINGDOM
www. omega.co.uk
Manchester, England
0800-488-488
UNITED STATES
www.omega.com
1-800-TC-OMEGA
Stamford, CT.
CANADA
www.omega.ca
Laval(Quebec)
1-800-TC-OMEGA
GERMANY
www.omega.de
Deckenpfronn, Germany
0800-8266342
Karviná, Czech Republic
FRANCE
www.omega.fr
Guyancourt, France
088-466-342
CZECH REPUBLIC
www.omegaeng.cz
596-311-899
BENELUX
www.omega.nl
Amstelveen, NL
0800-099-33-44
More than 100,000 Products Available!
Temperature
Calibrators, Connectors, General Test and Measurement
Instruments, Glass Bulb Thermometers, Handheld Instruments
for Temperature Measurement, Ice Point References,
Indicating Labels, Crayons, Cements and Lacquers, Infrared
Temperature Measurement Instruments, Recorders Relative
Humidity Measurement Instruments, RTD Probes, Elements
and Assemblies, Temperature & Process Meters, Timers and
Counters, Temperature and Process Controllers and Power
Switching Devices, Thermistor Elements, Probes and
Assemblies,Thermocouples Thermowells and Head and Well
Assemblies, Transmitters, Wire
Flow and Level
Air Velocity Indicators, Doppler Flowmeters, Level
Measurement, Magnetic Flowmeters, Mass Flowmeters,
Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel
Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area
Flowmeters, Vortex Shedding Flowmeters
pH and Conductivity
Conductivity Instrumentation, Dissolved Oxygen
Instrumentation, Environmental Instrumentation, pH
Electrodes and Instruments, Water and Soil Analysis
Instrumentation
Data Acquisition
Auto-Dialers and Alarm Monitoring Systems,
Communication Products and Converters, Data
Acquisition and Analysis Software, Data Loggers
Plug-in Cards, Signal Conditioners, USB, RS232, RS485
and Parallel Port Data Acquisition Systems, Wireless
Transmitters and Receivers
Pressure, Strain and Force
Displacement Transducers, Dynamic Measurement
Force Sensors, Instrumentation for Pressure and Strain
Measurements, Load Cells, Pressure Gauges, Pressure
Reference Section, Pressure Switches, Pressure Transducers,
Proximity Transducers, Regulators,
Strain Gages, Torque Transducers, Valves
Heaters
Band Heaters, Cartridge Heaters, Circulation Heaters,
Comfort Heaters, Controllers, Meters and Switching
Devices, Flexible Heaters, General Test and Measurement
Instruments, Heater Hook-up Wire, Heating Cable
Systems, Immersion Heaters, Process Air and Duct,
Heaters, Radiant Heaters, Strip Heaters, Tubular Heaters
click here to go to the omega.com home page
Loading...
