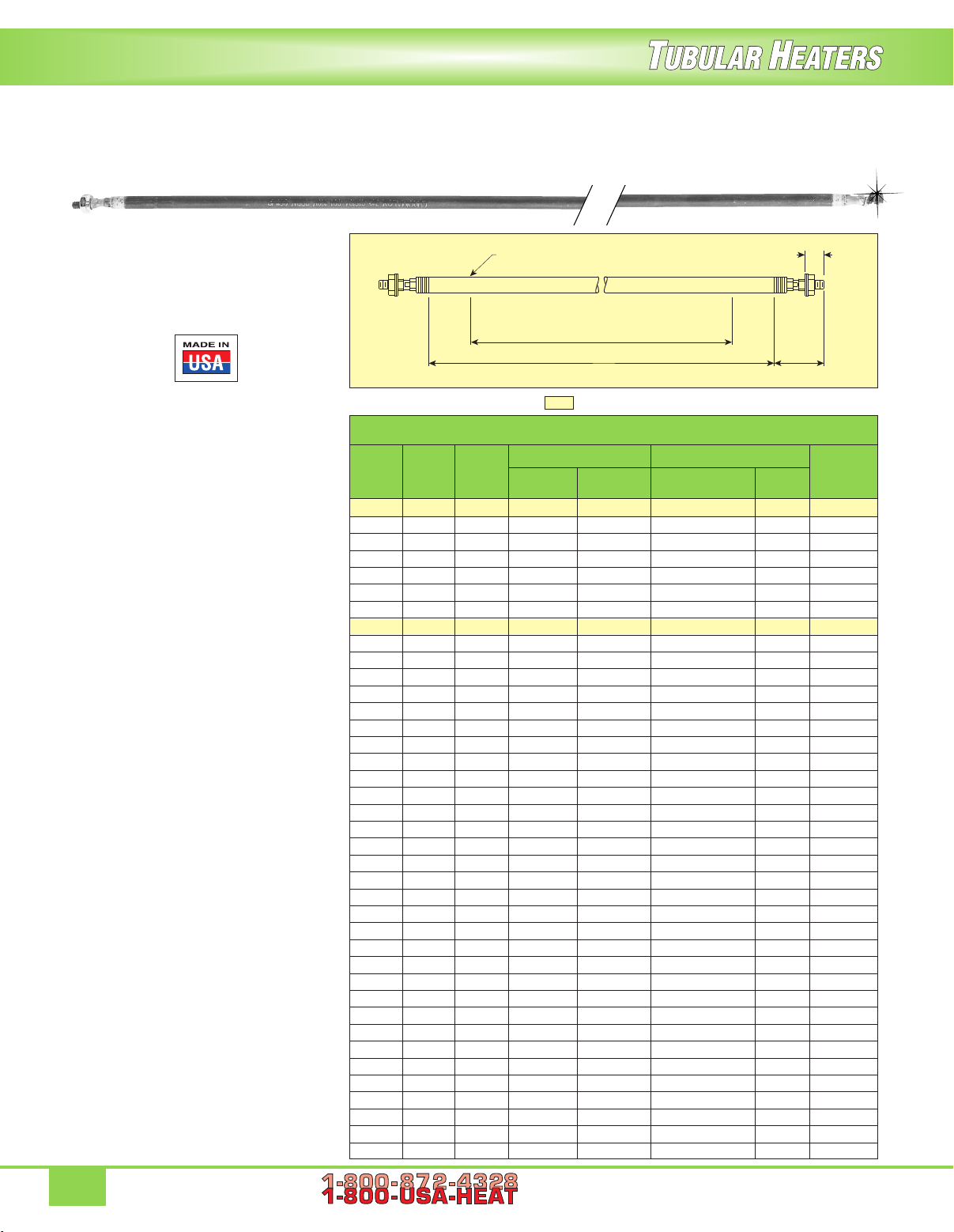

1.2 cm (0.475") DIAMETER
ROUND CROSS-SECTION

⻬ Copper Sheath
⻬ 675 to 2500 Watts
⻬ 120, 208, 240 and 480V
⻬ 50 W/in

2

⻬ 177°C (350°F) Max

Sheath Temperature

APPLICATIONS

Versatile tubular elements can be
designed for use in most
applications. See guidelines in the
Tubular Heater Overview section
at omega.com/heaters

ADVANTAGES

The metal sheath isolates and
protects the resistor wire from the
environment. At the same time it
maximizes heat transfer capability
to the work. Tubular elements can
be bent to put the heat where it
works best.

FEATURES

Type 4 Terminals: Standard.

Integral parts of the element are
of high strength to resist bending
during tightening of the wiring
connections. Type 4 is threaded
extension of the cold pin. See
terminal detail drawing in the
Tubular Heater Overview section
at omega.com/heaters

Work Temperatures: See Tubular
Heater Overview section at

omega.com/heaters

Bending: Customer’s minimum

inside bending radius is 3.8 cm
(1

1

⁄2"). See bending requirements

in the Tubular Heater Overview
section at omega.com/heaters

To Order

(Specify Model Number)

Dimensions: cm (in) Copper Sheath

Weight

Watts Volts W/In2Sheath A Heated B Model No. Price kg (lb)

TRC — 50 W/In

2

675 120 50 41 (16) 23 (91⁄8) TRC-1645/120V $54 0.2 (0.5)

815 120 50 46 (18) 28 (111⁄8) TRC-1845/120V 56 0.2 (0.5)
1000 120 50 51 (20) 33 (131⁄8) TRC-2045/120V 58 0.2 (0.5)
1000 208 50 51 (20) 33 (131⁄8) TRC-2045/208V 58 0.2 (0.5)
1000 240 50 51 (20) 33 (131⁄8) TRC-2045/204V 58 0.2 (0.5)
1250 120 50 58 (23) 41 (161⁄8) TRC-2345/120V 62 0.2 (0.5)
1250 208 50 58 (23) 41 (161⁄8) TRC-2345/208V 62 0.2 (0.5)
1250 240 50 58 (23) 41 (161⁄8) TRC-2345/240V 62 0.2 (0.5)
1300 120 50 64 (25) 46 (181⁄8) TRC-2545/120V 65 0.2 (0.5)
1300 240 50 64 (25) 46 (181⁄8) TRC-2545/240V 65 0.2 (0.5)
1450 120 50 69 (27) 51 (201⁄8) TRC-2745/120V 67 0.2 (0.5)
1450 240 50 69 (27) 51 (201⁄8) TRC-2745/240V 67 0.2 (0.5)
1500 120 50 71 (28) 54 (211⁄8) TRC-2845/120V 68 0.5 (1)
1500 208 50 71 (28) 54 (211⁄8) TRC-2845/208V 68 0.5 (1)
1500 240 50 71 (28) 54 (211⁄8) TRC-2845/240V 68 0.5 (1)
1500 480 50 71 (28) 54 (211⁄8) TRC-2845/480V 68 0.5 (1)
1650 120 50 76 (30) 59 (231⁄8) TRC-3045/120V 71 0.5 (1)
1650 240 50 76 (30) 59 (231⁄8) TRC-3045/240V 71 0.5 (1)
1800 120 50 81 (32) 64 (251⁄8) TRC-3245/120V 73 0.5 (1)
1800 240 50 81 (32) 64 (251⁄8) TRC-3245/240V 73 0.5 (1)
1950 120 50 86 (34) 69 (271⁄8) TRC-3445/120V 76 0.5 (1)
1950 240 50 86 (34) 69 (271⁄8) TRC-3445/240V 76 0.5 (1)
2100 120 50 91 (36) 74 (291⁄8) TRC-3645/120V 78 0.5 (1)
2100 240 50 91 (36) 74 (291⁄8) TRC-3645/240V 78 0.5 (1)
2200 120 50 97 (38) 79 (311⁄8) TRC-3845/120V 80 0.5 (1)
2200 240 50 97 (38) 79 (311⁄8) TRC-3845/240V 80 0.5 (1)

TRCC — 50 W/In

2

2000 120 50 102 (40) 71 (281⁄8) TRCC-4065/120V $83 0.6 (1.3)
2000 208 50 102 (40) 71 (281⁄8) TRCC-4065/208V 83 0.6 (1.3)
2000 240 50 102 (40) 71 (281⁄8) TRCC-4065/240V 83 0.6 (1.3)
2000 480 50 102 (40) 71 (281⁄8) TRCC-4065/480V 83 0.6 (1.3)
2350 120 50 104 (41) 71 (291⁄8) TRCC-4165/120V 84 0.6 (1.3)
2350 240 50 104 (41) 71 (291⁄8) TRCC-4165/240V 84 0.6 (1.3)
2500 120 50 111 (439⁄16) 80 (3111⁄16) TRCC-4365/120V 86 0.6 (1.3)
2500 208 50 111 (439⁄16) 80 (3111⁄16) TRCC-4365/208V 86 0.6 (1.3)
2500 240 50 111 (439⁄16) 80 (3111⁄16) TRCC-4365/240V 86 0.6 (1.3)
2500 480 50 111 (43

9

⁄16) 80 (3111⁄16) TRCC-4365/480V 86 0.6 (1.3)

Ordering Examples: TRC-3045/120V, 1650 Watt, 120V heater, $71.
TRCC-4365/240V, 2500 Watt, 240V heater, $86.
If element is to be bent, specify “must be annealed.”

TRC and TRCC Series

Starts at

$

54

MOST POPULAR MODELS HIGHLIGHTED!

A ±1%

B

1.2 (0.475) Dia. Copper Sheath

Dimensions: cm (in)

TRC-2045/120V, $58,
shown smaller than actual size.

2

(13⁄16)

2

(13⁄16)

143

To Order, Call or Shop Online at

omega.com

SM

®

1.2 cm (0.475") DIAMETER
ROUND CROSS-SECTION

⻬ Copper Sheath
⻬ 2600 to 10,000 Watts
⻬ 120, 208, 240 and 480V
⻬ 40 to 50 W/in

2

⻬ 177°C (350°F) Max

Sheath Temperature

APPLICATIONS

Versatile tubular elements can
be designed for use in most
applications. See guidelines in the
Tubular Heater Overview section
on omega.com/heaters

ADVANTAGES

The metal sheath isolates and
protects the resistor wire from the
environment. At the same time it
maximizes heat transfer capability
to the work. Tubular elements can
be bent to put the heat where it
works best.

FEATURES

Type 4 Terminals: Standard.

Integral parts of the element are
of high strength to resist bending
during tightening of the wiring
connections. Type 4 is threaded
extension of the cold pin. See
terminal detail drawing in the
Tubular Heater Overview section
on omega.com/heaters

Work Temperatures: See Tubular
Heater Overview section on

omega.com/heaters

Bending: Customer’s minimum

inside bending radius is

3.0 cm (11⁄2"). See bending
requirements in the Tubular
Heater Overview section on

omega.com/heaters

Ordering Examples: TRCC-7865/480V,

4500 Watt, 480V heater, $157.

TRCC-9285/240V, 5556 Watt, 240V heater, $215.

If element is to be bent, specify

“must be annealed.”

To Order

(Specify Model Number)

Dimensions: cm (in) Copper Sheath

Weight

Watts Volts W/In2Sheath A Heated B Model No. Price kg (lb)

2600 120 50 112 (44)

82 (321⁄8)

TRCC-4465/120V $88 0.6 (1.3)

2600 240 50

112 (44)

82 (321⁄8) TRCC-4465/240V

88 0.6 (1.3)

2700 120 50 117 (46) 87 (341⁄8) TRCC-4665/120V 88

0.6 (1.3)

2700 240 50 117 (46) 87 (341⁄8) TRCC-4665/240V 88

0.6 (1.3)

2800 120 50 122 (48) 92 (361⁄8) TRCC-4865/120V 107

0.6 (1.3)

2800 240 50 122 (48) 92 (361⁄8) TRCC-4865/240V 107

0.6 (1.3)

2900 120 50 127 (50) 97 (381⁄8) TRCC-5065/120V 111 0.8 (1.8)
2900 240 50 127 (50) 97 (381⁄8) TRCC-5065/240V 111 0.8 (1.8)
3000 208 50 138 (541⁄4) 108 (423⁄8) TRCC-5465/208V 117 0.8 (1.8)
3000 240 50 138 (541⁄4) 108 (423⁄8) TRCC-5465/240V 117 0.8 (1.8)
3000 480 50 138 (541⁄4) 108 (423⁄8) TRCC-5465/480V 117 0.8 (1.8)
3250 240 50 147 (58) 117 (461⁄8) TRCC-5865/240V 124 0.8 (1.8)
3250 480 50 147 (58) 117 (461⁄8) TRCC-5865/480V 124 0.8 (1.8)
3500 240 50 152 (60) 122 (481⁄8) TRCC-6065/240V 127 0.8 (1.8)
3500 480 50 152 (60) 122 (481⁄8) TRCC-6065/480V 127 0.8 (1.8)
3750 240 50 167 (66) 130 (511⁄8) TRCC-6665/240V 137 0.8 (1.8)
3750 480 50 167 (66) 130 (511⁄8) TRCC-6665/480V 137 0.8 (1.8)
4000 208 50 178 (70) 148 (581⁄8) TRCC-7065/208V 144 0.8 (1.8)
4000 240 50 178 (70) 148 (581⁄8) TRCC-7065/240V 144 0.8 (1.8)
4000 480 50 178 (70) 148 (581⁄8) TRCC-7065/480V 144 0.8 (1.8)
4250 240 50 188 (74) 158 (621⁄8) TRCC-7465/240V 151 1.0 (2.3)
4250 480 50 188 (74) 158 (621⁄8) TRCC-7465/480V 151 1.0 (2.3)
4500 240 50 198 (78) 168 (661⁄8) TRCC-7865/240V 157 1.0 (2.3)
4500 480 50 198 (78) 168 (661⁄8) TRCC-7865/480V 157 1.0 (2.3)
4750 240 50 208 (82) 178 (701⁄8) TRCC-8265/240V 164 1.0 (2.3)
4750 480 50 208 (82) 178 (701⁄8) TRCC-8265/480V 164 1.0 (2.3)
5000 208 50 216 (85) 186 (731⁄8) TRCC-8565/208V 169 1.0 (2.3)
5000 240 50 216 (85) 186 (731⁄8) TRCC-8565/240V 169 1.0 (2.3)
5000 480 50 216 (85) 186 (731⁄8) TRCC-8565/480V 169 1.0 (2.3)
5250 240 50 229 (90) 198 (781⁄8) TRCC-9065/240V 210 1.0 (2.3)
5250 480 50 229 (90) 198 (781⁄8) TRCC-9065/480V 210 1.0 (2.3)
5500 240 50 239 (94) 209 (821⁄8) TRCC-9465/240V 220 1.0 (2.3)
5500 480 50 239 (94) 209 (821⁄8) TRCC-9465/480V 220 1.0 (2.3)
5750 240 50 249 (98) 219 (861⁄8) TRCC-9865/240V 225 1.5 (3.3)
5750 480 50 249 (98) 219 (861⁄8) TRCC-9865/480V 225 1.5 (3.3)
6000 208 50 254 (100) 224 (881⁄8) TRCC-10065/208V 230 1.5 (3.3)
6000 240 50 254 (100) 224 (881⁄8) TRCC-10065/240V 230 1.5 (3.3)
6000 480 50 254 (100) 224 (881⁄8) TRCC-10065/480V 230 1.5 (3.3)
6667 208 50 274 (108) 244 (961⁄8) TRCC-10865/208V 240 1.5 (3.3)
6667 240 50 274 (108) 244 (961⁄8) TRCC-10865/240V 240 1.5 (3.3)
6667 480 50 274 (108) 244 (961⁄8) TRCC-10865/480V 240 1.5 (3.3)
8334 480 50 340 (134) 310 (1221⁄8) TRCC-13465/480V 280 2.0 (4.3)

10000 480 50 406 (160) 376 (1481⁄8) TRCC-16065/480V 325 2.0 (4.3)

2778 240 50 152 (60) 113 (443⁄8) TRCC-6085/240V 127 0.8 (1.8)
4166 240 50 198 (78) 158 (623⁄8) TRCC-7885/240V 157 1.0 (2)
5556 240 50 234 (92) 194 (763⁄8 ) TRCC-9285/240V 215 1.4 (3)

TRCC Series

Starts at

$

88

2

13/16

2

13/16

A ±1%

B

1.2 (0.475) Dia. Copper Sheath

Dimensions: cm (in)

MOST POPULAR MODELS HIGHLIGHTED!

TRCC-5465/240V, $117,
shown smaller than acual size.

®

0.8 cm (0.315") DIAMETER

0.8 cm (0.315") Dia. copper sheath

B

A ±1%

2.5 (1)

0.95

(0.375)

ROUND CROSS-SECTION

TRC Series

Starts at

$

23

Dimensions: cm (inches)

⻬ Copper Sheath
⻬ 500 to 5475 Watts

⻬ 120, 240 and 480V
⻬ 53 W/in

2

⻬ 177°C (350°F) Max

Sheath Temperature

APPLICATIONS

Versatile tubular elements can be
designed for use in most
applications. See guidelines in the
Tubular Heater Overview section
at omega.com/heaters

ADVANTAGES

The metal sheath isolates and
protects the resistor wire from the
environment. At the same time it
maximizes heat transfer capability
to the work. Tubular elements can
be bent to put the heat where it
works best.

FEATURES

Type 3 Terminals: Heliarc-welded
to the cold pin. See terminal detail
drawing in the Tubular Heater
Overview section at

omega.com/heaters

Work Temperatures: See Tubular

Heater Overview section at

omega.com/heaters

Bending: Customers minimum

inside bending radius is 2.7 cm
(11⁄16"). See bending requirements in
the Tubular Heater Overview
section at omega.com/heaters

Ordering Examples: TRC-6448/240V,

2975 Watt, 240V heater, $112.

TRC-4048/120V, 1725 Watt 120V heater, $54.

If element is to be bent.

specify “must be annealed”.

To Order (Specify Model Number)

Dimensions cm (in) Copper Sheath

Watts Volts W/In2Sheath A Heated B Model No. Price kg (lb)

500 120 53 41 (16) 23 (91⁄4) TRC-1648/120V $23 0.2 (0.4)
700 120 53 51 (20) 34 (131⁄4) TRC-2048/120V 28 0.2 (0.4)

700 240 53 51 (20) 34 (131⁄4) TRC-2048/240V 28 0.2 (0.4)
1125 120 53 71 (28) 54 (211⁄4) TRC-2848/120V 38 0.4 (0.8)
1125 240 53 71 (28) 54 (211⁄4) TRC-2848/240V 38 0.4 (0.8)
1325 120 53 81 (32) 64 (251⁄4) TRC-3248/120V 43 0.4 (0.8)
1325 240 53 81 (32) 64 (251⁄4) TRC-3248/240V 43 0.4 (0.8)
1525 120 53 91 (36) 74 (291⁄4) TRC-3648/120V 48 0.4 (0.8)
1525 240 53 91 (36) 74 (291⁄4) TRC-3648/240V 48 0.4 (0.8)
1725 120 53 102 (40) 84 (331⁄4) TRC-4048/120V 54 0.5 (1)
1725 240 53 102 (40) 84 (331⁄4) TRC-4048/240V 54 0.5 (1)
2050 120 53 117 (46) 100 (391⁄4) TRC-4648/120V 81 0.5 (1)
2050 240 53 117 (46) 100 (391⁄4) TRC-4648/240V 81 0.5 (1)
2050 480 53 117 (46) 100 (391⁄4) TRC-4648/480V 81 0.5 (1)
2350 120 53 132 (52) 115 (451⁄4) TRC-5248/120V 91 0.6 (1.3)
2350 240 53 132 (52) 115 (451⁄4) TRC-5248/240V 91 0.6 (1.3)
2350 480 53 132 (52) 115 (451⁄4) TRC-5248/480V 91 0.6 (1.3)
2675 120 53 147 (58) 130 (511⁄4) TRC-5848/120V 102 0.6 (1.3)
2675 240 53 147 (58) 130 (511⁄4) TRC-5848/240V 102 0.6 (1.3)
2675 480 53 147 (58) 130 (511⁄4) TRC-5848/480V 102 0.6 (1.3)
2975 120 53 163 (64) 145 (571⁄4) TRC-6448/120V 112 0.6 (1.3)
2975 240 53 163 (64) 145 (571⁄4) TRC-6448/240V 112 0.6 (1.3)
2975 480 53 163 (64) 145 (571⁄4) TRC-6448/480V 112 0.6 (1.3)
3300 240 53 178 (70) 161 (631⁄4) TRC-7048/240V 123 0.6 (1.3)
3300 480 53 178 (70) 161 (631⁄4) TRC-7048/480V 123 0.6 (1.3)
3600 240 53 193 (76) 176 (691⁄4) TRC-7648/240V 133 0.6 (1.3)
3600 480 53 193 (76) 176 (691⁄4) TRC-7648/480V 133 0.6 (1.3)
3900 240 53 208 (82) 191 (751⁄4) TRC-8248/240V 144 0.8 (1.8)
3900 480 53 208 (82) 191 (751⁄4) TRC-8248/480V 144 0.8 (1.8)
4225 240 53 224 (88) 206 (811⁄4) TRC-8848/240V 147 0.8 (1.8)
4225 480 53 224 (88) 206 (811⁄4) TRC-8848/480V 147 0.8 (1.8)
4525 240 53 239 (94) 222 (871⁄4) TRC-9448/240V 157 0.8 (1.8)
4525 480 53 239 (94) 222 (871⁄4) TRC-9448/480V 157 0.8 (1.8)
4850 240 53 254 (100) 232 (931⁄4) TRC-10048/240V 166 1.1 (2.5)
4850 480 53 254 (100) 232 (931⁄4) TRC-10048/480V 166 1.1 (2.5)
5150 240 53 269 (106) 252 (991⁄4) TRC-10648/240V 176 1.1 (2.5)
5150 480 53 269 (106) 252 (991⁄4) TRC-10648/480V 176 1.1 (2.5)
5475 240 53 284 (112) 267 (1051⁄4) TRC-11248/240V 186 1.1 (2.5)
5475 480 53 284 (112) 267 (105

TRC-1648/120V, $23,
shown smaller than actual size.

MOST POPULAR MODELS HIGHLIGHTED!

Weight

1

⁄4) TRC-11248/480V 186 1.1 (2.5)

144

To Order, Call or Shop Online at omega.com

SM

One Omega Drive | Stamford, CT 06907 | 1-888-TC-OMEGA (1-888-826-6342) | [e-mail]

EPG05

www.omega.com

UNITED KINGDOM

www. omega.co.uk

Manchester, England

0800-488-488

UNITED STATES

www.omega.com

1-800-TC-OMEGA

Stamford, CT.

CANADA

www.omega.ca

Laval(Quebec)

1-800-TC-OMEGA

GERMANY

www.omega.de

Deckenpfronn, Germany

0800-8266342

Karviná, Czech Republic

FRANCE

www.omega.fr

Guyancourt, France

088-466-342

CZECH REPUBLIC

www.omegaeng.cz

596-311-899

BENELUX

www.omega.nl

Amstelveen, NL
0800-099-33-44

More than 100,000 Products Available!

Temperature

Calibrators, Connectors, General Test and Measurement
Instruments, Glass Bulb Thermometers, Handheld Instruments
for Temperature Measurement, Ice Point References,
Indicating Labels, Crayons, Cements and Lacquers, Infrared
Temperature Measurement Instruments, Recorders Relative
Humidity Measurement Instruments, RTD Probes, Elements
and Assemblies, Temperature & Process Meters, Timers and
Counters, Temperature and Process Controllers and Power
Switching Devices, Thermistor Elements, Probes and
Assemblies,Thermocouples Thermowells and Head and Well
Assemblies, Transmitters, Wire

Flow and Level

Air Velocity Indicators, Doppler Flowmeters, Level
Measurement, Magnetic Flowmeters, Mass Flowmeters,
Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel
Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area
Flowmeters, Vortex Shedding Flowmeters

pH and Conductivity

Conductivity Instrumentation, Dissolved Oxygen
Instrumentation, Environmental Instrumentation, pH
Electrodes and Instruments, Water and Soil Analysis
Instrumentation

Data Acquisition

Auto-Dialers and Alarm Monitoring Systems,
Communication Products and Converters, Data
Acquisition and Analysis Software, Data Loggers
Plug-in Cards, Signal Conditioners, USB, RS232, RS485
and Parallel Port Data Acquisition Systems, Wireless
Transmitters and Receivers

Pressure, Strain and Force

Displacement Transducers, Dynamic Measurement
Force Sensors, Instrumentation for Pressure and Strain
Measurements, Load Cells, Pressure Gauges, Pressure
Reference Section, Pressure Switches, Pressure Transducers,
Proximity Transducers, Regulators,
Strain Gages, Torque Transducers, Valves

Heaters

Band Heaters, Cartridge Heaters, Circulation Heaters,
Comfort Heaters, Controllers, Meters and Switching
Devices, Flexible Heaters, General Test and Measurement
Instruments, Heater Hook-up Wire, Heating Cable
Systems, Immersion Heaters, Process Air and Duct,
Heaters, Radiant Heaters, Strip Heaters, Tubular Heaters

click here to go to the omega.com home page
