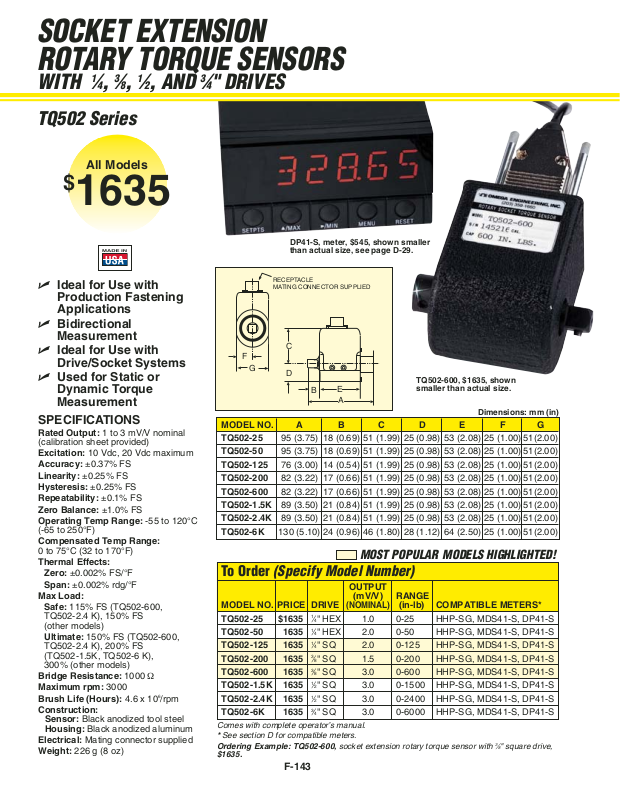

Omega Products TQ502-1.5K User Manual
F-143
Comes with complete operator’s manual.
* See section D for compatible meters.
Ordering Example: TQ502-600, socket extension rotary torque sensor with 3⁄8" square drive,
$1635.
To Order
(Specify Model Number)
OUTPUT
(mV/V) RANGE
MODEL NO. PRICE DRIVE
(NOMINAL)
(in-lb) COMPATIBLE METERS*
TQ502-25 $16351⁄4" HEX 1.0 0-25 HHP-SG, MDS41-S, DP41-S
TQ502-50 16351⁄4" HEX 2.0 0-50 HHP-SG, MDS41-S, DP41-S
TQ502-125 16351⁄4" SQ 2.0 0-125 HHP-SG, MDS41-S, DP41-S
TQ502-200 16353⁄8" SQ 1.5 0-200 HHP-SG, MDS41-S, DP41-S
TQ502-600 16353⁄8" SQ 3.0 0-600 HHP-SG, MDS41-S, DP41-S
TQ502-1.5K 16351⁄2" SQ 3.0 0-1500 HHP-SG, MDS41-S, DP41-S
TQ502-2.4K 16351⁄2" SQ 3.0 0-2400 HHP-SG, MDS41-S, DP41-S
TQ502-6K 16353⁄4" SQ 3.0 0-6000 HHP-SG, MDS41-S, DP41-S
MODEL NO. A B C D E F G
TQ502-25 95 (3.75) 18 (0.69) 51 (1.99) 25 (0.98) 53 (2.08) 25 (1.00) 51(2.00)
TQ502-50 95 (3.75) 18 (0.69) 51 (1.99) 25 (0.98) 53 (2.08) 25 (1.00) 51(2.00)
TQ502-125 76 (3.00) 14 (0.54) 51 (1.99) 25 (0.98) 53 (2.08) 25 (1.00) 51(2.00)
TQ502-200 82 (3.22) 17 (0.66) 51 (1.99) 25 (0.98) 53 (2.08) 25 (1.00) 51(2.00)
TQ502-600 82 (3.22) 17 (0.66) 51 (1.99) 25 (0.98) 53 (2.08) 25 (1.00) 51(2.00)
TQ502-1.5K 89 (3.50) 21 (0.84) 51 (1.99) 25 (0.98) 53 (2.08) 25 (1.00) 51(2.00)
TQ502-2.4K 89 (3.50) 21 (0.84) 51 (1.99) 25 (0.98) 53 (2.08) 25 (1.00) 51(2.00)
TQ502-6K 130 (5.10) 24 (0.96) 46 (1.80) 28 (1.12) 64 (2.50) 25 (1.00) 51(2.00)
DP41-S, meter, $545, shown smaller
than actual size, see page D-29.
Ideal for Use with
Production Fastening
Applications
Bidirectional
Measurement
Ideal for Use with
Drive/Socket Systems
Used for Static or
Dynamic Torque
Measurement
SPECIFICATIONS
Rated Output: 1 to 3 mV/V nominal
(calibration sheet provided)
Excitation: 10 Vdc, 20 Vdc maximum
Accuracy: ±0.37% FS
Linearity: ±0.25% FS
Hysteresis: ±0.25% FS
Repeatability: ±0.1% FS
Zero Balance: ±1.0% FS
Operating Temp Range: -55 to 120°C
(-65 to 250°F)
Compensated Temp Range:
0 to 75°C (32 to 170°F)
Thermal Effects:
Zero: ±0.002% FS/°F
Span: ±0.002% rdg/°F
Max Load:
Safe: 115% FS (TQ502-600,
TQ502-2.4 K), 150% FS
(other models)
Ultimate: 150% FS (TQ502-600,
TQ502-2.4 K), 200% FS
(TQ502-1.5K, TQ502-6 K),
300% (other models)
Bridge Resistance: 1000 Ω
Maximum rpm: 3000
Brush Life (Hours): 4.6 x 10
6
/rpm
Construction:
Sensor: Black anodized tool steel
Housing: Black anodized aluminum
Electrical: Mating connector supplied
Weight: 226 g (8 oz)
Dimensions: mm (in)
SOCKET EXTENSION
ROTARY TORQUE SENSORS
WITH 1⁄4, 3⁄8, 1⁄2, AND 3⁄4" DRIVES
TQ502-600, $1635, shown
smaller than actual size.
TQ502 Series
All Models
$
1635
MOST POPULAR MODELS HIGHLIGHTED!
RECEPTACLE
MATING CONNECTOR SUPPLIED
C
F
G
D
E
B
A
