B-151

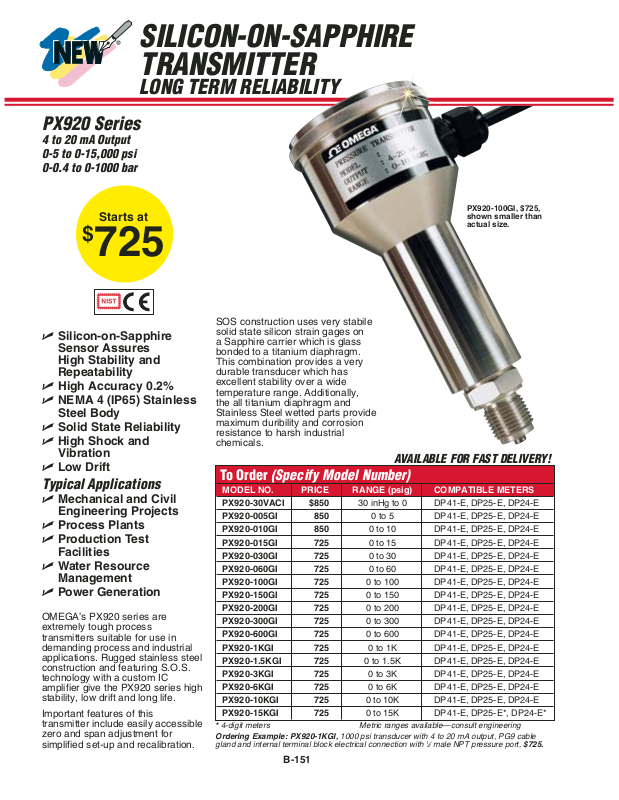

SILICON-ON-SAPPHIRE
TRANSMITTER
LONG TERM RELIABILITY
⻬ Silicon-on-Sapphire
Sensor Assures
High Stability and
Repeatability
⻬ High Accuracy 0.2%
⻬ NEMA 4 (IP65) Stainless
Steel Body
⻬ Solid State Reliability
⻬ High Shock and
Vibration
⻬ Low Drift
Typical Applications
⻬ Mechanical and Civil
Engineering Projects
⻬ Process Plants
⻬ Production Test
Facilities
⻬ Water Resource
Management
⻬ Power Generation
OMEGA’s PX920 series are
extremely tough process
transmitters suitable for use in
demanding process and industrial
applications. Rugged stainless steel
construction and featuring S.O.S.
technology with a custom IC
amplifier give the PX920 series high
stability, low drift and long life.
Important features of this
transmitter include easily accessible
zero and span adjustment for
simplified set-up and recalibration.
SOS construction uses very stabile
solid state silicon strain gages on
a Sapphire carrier which is glass
bonded to a titanium diaphragm.
This combination provides a very
durable transducer which has
excellent stability over a wide
temperature range. Additionally,
the all titanium diaphragm and
Stainless Steel wetted parts provide
maximum duribility and corrosion
resistance to harsh industrial
chemicals.
Starts at
$
725
PX920 Series
4 to 20 mA Output
0-5 to 0-15,000 psi
0-0.4 to 0-1000 bar
To Order
(Specify Model Number)
MODEL NO. PRICE RANGE (psig) COMPATIBLE METERS
PX920-30VACI $850 30 inHg to 0 DP41-E, DP25-E, DP24-E
PX920-005GI 850 0 to 5 DP41-E, DP25-E, DP24-E
PX920-010GI 850 0 to 10 DP41-E, DP25-E, DP24-E
PX920-015GI 725 0 to 15 DP41-E, DP25-E, DP24-E
PX920-030GI 725 0 to 30 DP41-E, DP25-E, DP24-E
PX920-060GI 725 0 to 60 DP41-E, DP25-E, DP24-E
PX920-100GI 725 0 to 100 DP41-E, DP25-E, DP24-E
PX920-150GI 725 0 to 150 DP41-E, DP25-E, DP24-E
PX920-200GI 725 0 to 200 DP41-E, DP25-E, DP24-E
PX920-300GI 725 0 to 300 DP41-E, DP25-E, DP24-E
PX920-600GI 725 0 to 600 DP41-E, DP25-E, DP24-E
PX920-1KGI 725 0 to 1K DP41-E, DP25-E, DP24-E
PX920-1.5KGI 725 0 to 1.5K DP41-E, DP25-E, DP24-E
PX920-3KGI 725 0 to 3K DP41-E, DP25-E, DP24-E
PX920-6KGI 725 0 to 6K DP41-E, DP25-E, DP24-E
PX920-10KGI 725 0 to 10K DP41-E, DP25-E, DP24-E
PX920-15KGI 725 0 to 15K DP41-E, DP25-E*, DP24-E*
AVAILABLE FOR FAST DELIVERY!
* 4-digit meters Metric ranges available—consult engineering
Ordering Example: PX920-1KGI, 1000 psi transducer with 4 to 20 mA output, PG9 cable
gland and internal terminal block electrical connection with 1⁄2male NPT pressure port, $725.
PX920-100GI, $725,
shown smaller than
actual size.
