Omega Products OS530HRE User Manual

OMEGASCOPE
®
Handheld High-Performance Infrared Thermometer
Loaded with Features–New Distance Measurement Option Available!
OS533E-DM
Optional
TM
BUILT-IN DISTANCE MEASURING OPTION AVAILABLE
Also Available with Wireless
Communications.
See omega.com
Portable
mini-tripod
included.
FREE
DATA LOGGING
SOFTWARE
INCLUDED
CAUTION! is not intended for medical use or use on humans
– This product
PATENTED
Covered by U.S. and
International patents and
pending applications
Retractable cable
expands to 1.2 m (4').
batteries included.
Shown with SPHT-K-6, 6" long K Type surface probe included.
J-23
OMEGASCOPE® Unmatched Performance, Features and Value
U Rugged, High-Performance Design U Built-In Patented Laser Sighting is
Switchable Between Laser Dot and Circle Patterns
U The Laser Can be Flashing
or Continuous
U New Series Includes High-Performance,
General Purpose, Close-Focus, and High-Resolution Models
U Models Available with Temperature
Ranges from -23 to 871°C (-10 to 1600°F)
U Emissivity Adjustable
from 0.1 to 1.00 in 0.01 Steps
U Models OS532E, OS533E, OS534E
Come with 6" Long Type K Surface Probe
U Distance Measuring Option—
Either Field Mountable or Built-In [0.9 and 9 m (3 and 30') Range]
U Backlit LCD U Dual Digital Display Indicates Current
Temperature as well as Min, Max, Average, or Differential Temperatures
U °C/°F Switchable U 1 mV/Degree Analog Output Standard U RS232 Output Models Include
FREE Windows
®
Based Data
Logging Software
U Audible and Visible Alarms U Integral Tripod Mount U Type K Thermocouple Input Available U Temperature Data Storage Available on
OS534E (up to 800 Data Points)
U Electronic Trigger Lock U Last Temperature Recall U All Models Include Built-In Laser
Sighting, Display and Lens Protective Bumpers, Wrist Strap, Soft Carrying Case, 4 “AA” Lithium Batteries, Portable Mini-Tripod and User’s Manual with Emissivity Reference Chart
U Wireless RS232
Communication Available
A
B
G
H
A
Backlit LCD
B
High-Alarm Icon
Emissivity Setting
C
Backlight Icon
D
°C or °F Units
E
Temperature Reading
F
We make running
changes when technical
advances allow. Check
at time of ordering for
additional features.
C
D
E
F
I
J
Shown actual size.
G
Function Key/Scrolling
H
t For Decrementing Data;
For Changing Units of Measure °F/°C or ft/m
I
Locks the Trigger/ Enables/Disables Alarm
J
s For Incrementing Data; For Turning the Display Backlight On/Off
Laser Circle to Dot Switchable
Laser Sight Model Configurations
Built-In Laser Sighting
High Intensity
Energy
Zone
TM
Single Dot
Circle
J
J-24
HH-DM field installable distance measuring meter easily mounts on top of an OS530 unit and measures distance from (3 to 30˚). Also available
as a built-in feature on OS530-DM models.
Specifications
Repeatability: ±(1% rdg + 1 digit) Resolution: 1°C or 1°F (0.1°C or °F
on OS530HRE)
Response Time: 100 ms Spectral Response: 8 to 14 microns Emissivity: 0.10 to 1.00 in
0.01 increments Ambient Temperature Range: 0 to 50°C (32 to 122°F) Power: 4 “AA” lithium batteries (included) or optional AC adaptor Battery Life: 80-hr, alkaline; 14 days, lithium (without laser sighting)
Analog Output: 1 mV/°C or 1 mV/°F Tripod Mount: Display: Backlit LCD; displays current
and min or max, differential, average temperatures simultaneously
1
4" to 20 UNC
Dimensions:
218 H x 168 D x 51 mm W (8.6 x 6.6 x 2") Alarm: High alarm standard, with audible and visible indication RS232: Two-way communication
Laser Sight Specifications
Wavelength (Color):
650 nm (red)
Operating Distance:
Laser Dot: 0.6 to 12 m (2 to 40') Laser Circle: 0.6 to 4.5 m (2 to 15')
Laser Power Output: <1 mW FDA Classification: Class II European Classification: Class 2 Beam Diameter: 5 mm

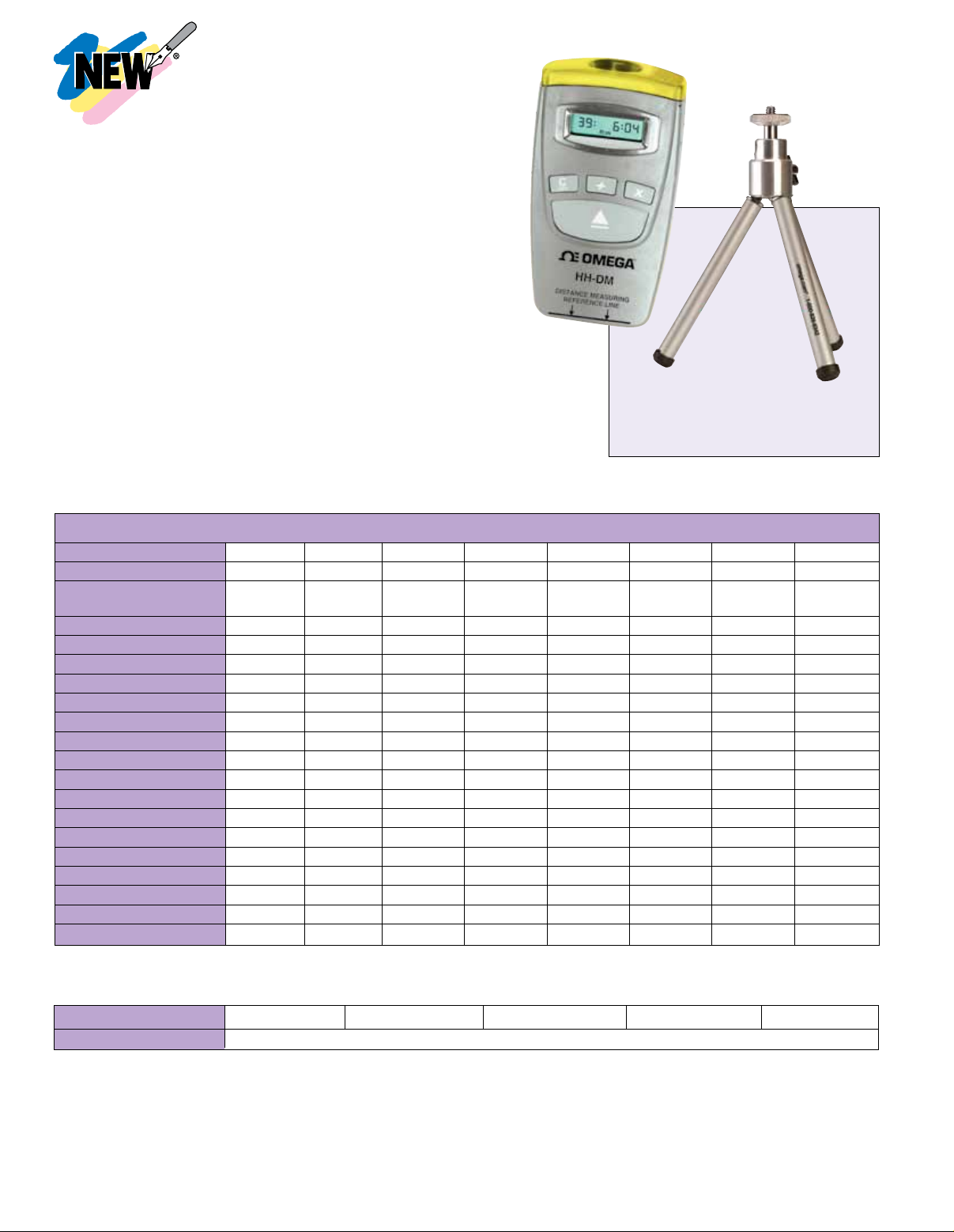

Optional HH-DM field-installable distance measuring meter (sold separately) and lightweight mini-tripod (included). Shown smaller than actual size.
Operating Temperature: 0 to 50°C
(32 to 122°F)
Basic Models
To Order Visit omega.com/os532e_os533e_os534e for Pricing and Details
Model No.
Accuracy* ±1% rdg ±1% rdg ±1% rdg ±1% rdg ±1% rdg ±1% rdg ±1% rdg ±1% rdg Range -23 to 538°C -30 to 121°C -23 to 538°C -23 to 538°C -23 to 538°C -23 to 538°C -23 to 871°C -23 to 871°C
-10 to 1000°F -22 to 250°F -10 to 1000°F -10 to 1000°F -10 to 1000°F -10 to 1000°F -10 to 1600°F -10 to 1600°F
Emissivity Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Adjustable Display Resolution 1° 0.1° 1° 1° 1° 1° 1° 1° Distance to Spot Size Ratio 10:1 20:1 0.15"@6" 10:1 0.15"@6" 20:1 0.15"@6" 30:1 Differential Temperature Std Std Std Std Std Std Std Std Min/Max Temperature Std Std Std Std Std Std Std Std Average Temperature Std Std Std Std Std Std Std Std High Alarm Std Std Std Std Std Std Std Std Low Alarm — — — — Std Std Std Std Audible Buzzer and Indicator Std Std Std Std Std Std Std Std
Ambient Target Temp Comp. Analog Output 1 mV/deg 1 mV/deg 1 mV/deg 1 mV/deg 1 mV/deg 1 mV/deg 1 mV/deg 1 mV/deg RS232 Output — — — — Std Std Std Std Thermocouple Input — — — Std Std Std Std Std Data Storage — — — — — — Std Std Laser Sight (Built-In) Dot/circle Dot/circle Dot Dot/circle Dot Dot/circle Dot Dot/circle Trigger Lock Std Std Std Std Std Std Std Std Last Temperature Recall Std Std Std Std Std Std Std Std
Or 1.7°C (3°F), whichever is greater.
*
OS530LE OS530HRE
Std Std Std Std
OS530LE-CF
OS532E OS533E-CF OS533E OS534E-CF OS534E
Models with Built-In Distance Measurement
Model No. Other Specs Same as basic models
Comes complete with operator’s manual, analog cable, software (RS232 models), mini-tripod, soft carrying case and 4 “AA” lithium batteries. Ordering Examples: OS530LE handheld infrared thermometer with built-in Laser Circle to Dot SwitchableTM feature and thermocouple input,
plus OCW-3 OMEGACARESM 3-year extended warranty. OS532E handheld infrared thermometer with built-in Laser Circle to Dot Switchable
OMEGACARESM 3-year extended warranty. OS534E-CF close-focus handheld infrared thermometer with built-in Laser Circle to Dot SwitchableTM feature, thermocouple input and RS232
output, plus OCW-3 OMEGACARESM 3-year extended warranty.
OS530LE-DM OS530HRE-DM OS532E-DM OS533E-DM OS534E-DM
TM
feature and thermocouple input, plus OCW-3
J-25
TM
PATENTED
Patents issued and pending on many
aspects of this device including but not
limited to laser circle and
distance measurement.
SM
Extended Warranty
Program
OMEGACARESM extended warranty program is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARESM covers parts, labor and equivalent loaners.
Fields of View
DISTANCE: SENSOR LENS TO OBJECT (FT)
DISTANCE: SENSOR LENS TO OBJECT (FT)
OS534E-DM with built-in distance measuring.
Windows data logging, PC application software (laptop not included).
DISTANCE: SENSOR LENS TO OBJECT (IN)
J
SPOT DIA.* (INCH)
SPOT DIA.* (MM)
DISTANCE: SENSOR LENS TO OBJECT (CM)
OS530LE, OS530LE-DM,
OS532E and OS532E-DM
DISTANCE: SENSOR LENS TO OBJECT (FT)
SPOT DIA.* (INCH)SPOT DIA.* (CM)
DISTANCE: SENSOR LENS TO OBJECT (CM)
OS530HRE, OS530HRE-DM,
OS533E and OS533E-DM
SPOT DIA.* (INCH)SPOT DIA.* (CM)
1.2"
DISTANCE: SENSOR LENS TO OBJECT (CM)
OS534E and OS534E-DM
D:S = 30:1
SPOT DIA.* (INCH)
SPOT DIA.* (MM)
DISTANCE: SENSOR LENS TO OBJECT (CM)
OS530LE-CF, OS533E-CF
and OS534E-CF
Accessories Model No. Description UNIV-AC-100/240 Universal 9V adaptor OS520-RCC Hard carrying case OM-3000-SC Spare soft carrying case 88013K Surface probe, up to 815°C (1500°F) 88001K Surface probe, up to 482°C (900°F) CAL-3-IR NIST traceable calibration CAL-3-IR-X NIST calibration for over 1000°F MINI-TRIPOD Replacement mini-tripod expands from
142 to 279 mm (5.6 to 11") HH-DM Distance measuring meter w/mounting bracket
(3 to 30') SPHT-K-6 Type K 6" surface probe, rated up to 650°C (1200°F) OM-CONV-USB RS232 to USB cable
WRS232-USB Wireless RS232 transceiver
