Omega Products OS-500F User Manual

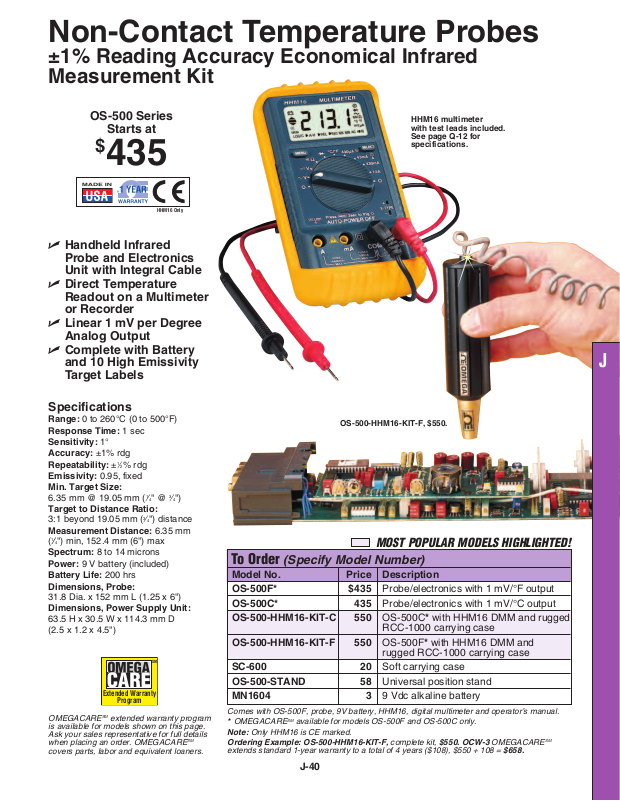

Non-Contact Temperature Probes
Extended Warranty
Program
SM
±1% Reading Accuracy Economical Infrared
Measurement Kit
OS-500 Series
Starts at
$
435
HHM16 Only
⻬ Handheld Infrared
Probe and Electronics
Unit with Integral Cable
⻬ Direct Temperature
Readout on a Multimeter
or Recorder
⻬ Linear 1 mV per Degree
Analog Output
⻬ Complete with Battery
and 10 High Emissivity
Target Labels
Specifications
Range: 0 to 260°C (0 to 500°F)
Response Time: 1 sec
Sensitivity: 1°
Accuracy: ±1% rdg
Repeatability: ±
Emissivity: 0.95, fixed
Min. Target Size:
6.35 mm @ 19.05 mm (
Target to Distance Ratio:
3:1 beyond 19.05 mm (
Measurement Distance: 6.35 mm
1
(
⁄4") min, 152.4 mm (6") max
Spectrum: 8 to 14 microns
Power: 9 V battery (included)
Battery Life: 200 hrs
Dimensions, Probe:
31.8 Dia. x 152 mm L (1.25 x 6")
Dimensions, Power Supply Unit:
63.5 H x 30.5 W x 114.3 mm D
(2.5 x 1.2 x 4.5")
OMEGACARESMextended warranty program
is available for models shown on this page.
Ask your sales representative for full details
when placing an order. OMEGACARE
covers parts, labor and equivalent loaners.
1
⁄2% rdg
1
⁄4" @ 3⁄4")
3
⁄4") distance
SM
HHM16 multimeter
with test leads included.
See page Q-12 for
specifications.
OS-500-HHM16-KIT-F, $550.
MOST POPULAR MODELS HIGHLIGHTED!
To Order (Specify Model Number)
Model No. Price Description
OS-500F* $435 Probe/electronics with 1 mV/°F output
OS-500C* 435 Probe/electronics with 1 mV/°C output
OS-500-HHM16-KIT-C 550 OS-500C* with HHM16 DMM and rugged
OS-500-HHM16-KIT-F 550 OS-500F* with HHM16 DMM and
SC-600 20 Soft carrying case
OS-500-STAND 58 Universal position stand
MN1604 3 9 Vdc alkaline battery
Comes with OS-500F, probe, 9V battery, HHM16, digital multimeter and operator’s manual.
* OMEGACARESMavailable for models OS-500F and OS-500C only.
Note: Only HHM16 is CE marked.
Ordering Example: OS-500-HHM16-KIT-F, complete kit, $550. OCW-3 OMEGACARE
extends standard 1-year warranty to a total of 4 years ($108), $550 + 108 = $658.
J-40
RCC-1000 carrying case
rugged RCC-1000 carrying case
SM
J
