Two-Color and Single Color
Handheld Infrared Pyrometers
OMEGASCOPE
®
OS3750 Series
Starts at
$
1425
†
ptional
O
Through the
Lens Optical
System
High
Temperature
Applications
Models Available:
• 2-Color/1-Color
Wide Range from
400 to 3000°C
(752 to 5432°F)
• Single Color
300 to 1000°C
(572 to 1832°F)
• Single Color
600 to 2000°C
(1112 to 3632°F)
Two Color Unit Uses
Both InGaAs and Si
Element Which Reduces
Influence of Emissivity
and Provide High
Sensitivity and High
Accuracy Measurement
Measured Value Is
Digitally Displayed in the
Viewfinder and on Front
Panel
Target Size of 20 mm
(0.8") Can be Measured
at a Distance of 4 m (13')
By Connecting a Type K
Surface Thermocouple,
You Can Measure Low
Temperature Surfaces
and Compensate for
Emissivity
Small Size,
100 H x 148 W x 70 mm D
(4 x 6 x 3''), and Light
Weight, 350 g (13 oz),
Make Long-Term
Measurement Easy
500 Readings Can Be
Stored and Replayed
Maximum, Minimum, and
Average Value Math
Functions
Peak and Hold Readings
Optional Software
and Cable
Includes New Portable
Mini-Tripod
FREE
Thermocouple Included!
All models include a free 900 mm (36") Type K
insulated beaded wire thermocouple with
subminiature connector and wire spool caddy.
Order a Spare! Model No. SC-GG-K-30-36, $15
J-45
OS3753 2-color
pyrometer, $2704.
The OS3750 Series is a small,
lightweight handheld thermometer
with a clear viewfinder. The thruthe-lens optical system enables it
to measure small targets from a
long distance. The measured value
can be read on the internal digital
display in the viewfinder. Three
models are available. The OS3753
IR Pyrometer combines the
functions of a 2-color and single
color wide range pyrometer in one
model. The OS3751 is a singlecolor medium temperature range
model, and the OS3752 is a singlecolor high temperature range model.
The OS3750 Series can be
mounted on a tripod or when
there is no room for a tripod,
on a fixed location by a universal
head (sold separately).
OS3753 Two-Color Model
The OS3753 allows for
measurement to be made by
comparing the ratio of 2 different
wavelengths. The advantage of this
Historical
Data and
s by using a ratio, the measurement
i
s independent of emissivity. It is
i
lso unaffected by dust or other
a
ontaminants in the field of view or by
c
irt collecting on a viewing window.
d
OS3750-SOFT
Trend.
Historical
Trend.
Datalogging Software
and OS3750-CABLE
Datalogging software is available
for easy data processing by a
personal computer. Also available
is an RS232, 9-pin cable.
Three kinds of data management
modes are available: real-time trend
mode, multi-point monitoring mode
by utilizing memory, and 1-point
historical trend mode. Graph
display, report creation, printing,
and data storage can be easily
executed. The export of the
measured data to worksheet
applications is also possible.
Model No. OS3750-SOFT
Environment OS Windows Vista
Media CD-R (2m of RS232C cable with D-Sub 9 pins female connector is attached)
Readout Readout of transmitted data by RS232C from OS3750 Series
Functions Display on a personal computer; data storage and replay; printer output
Graphic Display 640 x 480 dots (initial), 1024 x 768 (resized by a personal computer)
Measurement Mode Real-time trend mode; multi-point monitoring mode, 1-point trend mode
Real Time.
J
Real-time Trend Monitoring (30 points) (500 data)
Readout of
Data Stored
Datalogging and
Graphic Display
Storage Type • File for replay of trend graph • Storage of 30 points
Export to • All data of date, time and
Excel 2003 (*) temperature on real-time trend • Monitoring data base table • Continuous data up
Data Stored • Maximum 1000 data
Printer Output • Real-time trend graph • Table form report • Historical trend graph
• Real-time trend graph
(in real-time trend logging mode)
• Alarm summary • Readout of monitoring
• Measuring cycle: 0.5 to 10 seconds
• Chart speed: 10-second, 1-minute,
5-minute, 10-minute, 1-hour,
2-hour screen (6-step selection)
• Scroll function: chart time axis can
be scrolled after measurement stop
or reply of data stored
• Temperature range: auto-range or
fixed range is selectable
• High/low alarms
• Alarm summary up to 30 points to 500
(maximum memory capacity=600kb) • Database up to 30 points
• Alarm summary 100 data
(renewed to updated data)
• Alarm summary report • Graph form report
Multi-Point 1-Point Trend
data up to 30 point • Readout of continuous data
• Creation of reports up to 500 data
(table, graph) • Display by graph
• Input of measurement • Display of all data
place name and settings • Display of specified data
of high/low alarms are
enabled on each • Maximum, minimum,
measurement place and average
• Grouping each 5-point
on table and graph
data base
(100 points/10 points selectable
Excel: Up to Excel 2007
*
J-46
RS-232C
CD-R
Personal
computer
Connectors
T/C
PC
DC Power
Viewfinder
Memory
Select key
Set key
Entry key
Measuring switch
OMEGAOME
GA
+ -
+
-
O
ME
G
A
O
ME
G
A
+ -
+
-

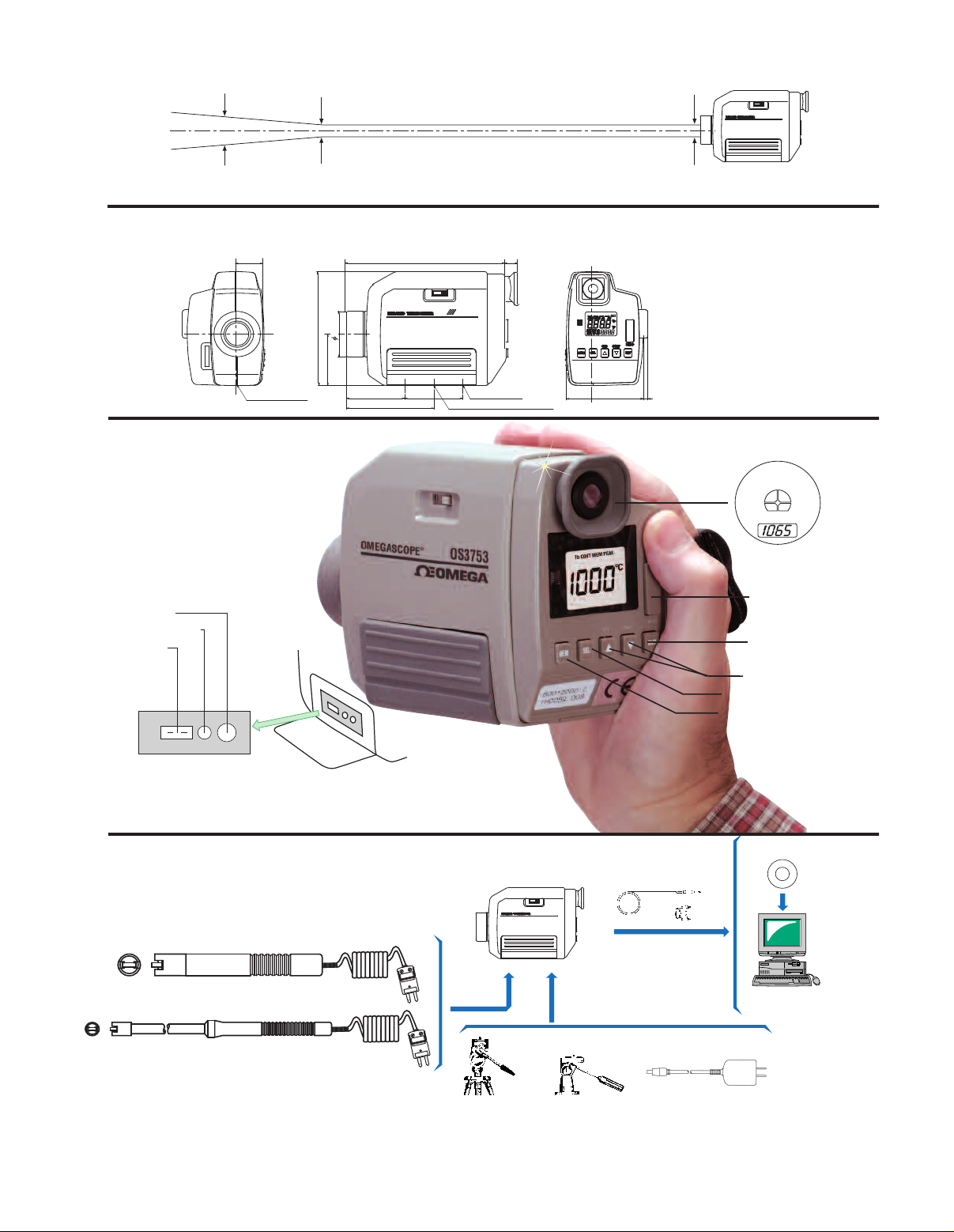

DIAMETER/DISTANCE
Dimensions mm (in)
ø33 (1.3)
ø20 (0.79)
5
m (197)
4
m (157.5)
ø20 (0.79)
0 m (0)
OUTSIDE DIMENSIONS
TRIPOD
OS3750-ADAPTOR
OS3750-UH
OS3750-CABLE
RS-232C Cable
TYPICAL SURFACE THERMOCOUPLES
USED WITH OS SERIES OMEGASCOPE
®
CONFIGURATION
(Mounting Head)
(AC Power Adaptor)
OS3750-SOFT
FUNCTIONS
1
37 (5.39)
1
1 (0.43)
1/4 W x 5 D (for tripod)
2
-M4 D 6.5
7
5 (2.95)
50 (1.97)
100 (3.94)
45 (1.77)
40 (1.57)
23 (0.905)
6
6 (2.6)
4 (0.16)
5
0 (1.97)
S
crew hole position
D
imensions mm (in)
Field of View Diagram
88006K, $115
88010K, $175
J-47
MEGASCOPE
Extended Warranty
Program
SM
O
®
pecifications
S
Dual Function Type
Single-Color Single-Color (2-Color and Single-Color
Types For Medium Temperature For High Temperature Wide Range Type)
Model No. OS3751 OS3752 OS3753
Measuring System Narrow band radiation thermometer
Element InGaAs Si Si/InGaAs
Wavelength 1.55 µm 0.9µm 0.9/1.55 µm
600 to 2000°C (1112-3632°F)(2-color)
Temperature Range 300 to 1000°C 600 to 2000°C 400 to 3000°C (752-5432°F)(single-color)
(572 to 1832°F) (1112 to 3632°F) (key switching)
Less than 1000°C (1832°F): ±6°C (±10.8°F)
Accuracy Rating ±6°C (11°F)
1000 to 1500°C (1832 to 2732°F): ±0.6% of measured value
1500 to 2000°C (2732 to 3632°F): ±1.2% of measured value
More than 2000°C (3632°F): ±2.4% of measured value
Repeatability within ±1°C (1.8°F)
Temperature Stability Temperature drift: 0.2°C/°C Temperature drift: less than 1000°C (1832°F): 0.2°C/°C (0.36°F/°F);
(0.36°F/°F) Over 1000°C (1832°F): 0.02% of measured value/°C or °F
Resolution 1°C (34°F)
Response Time 0.25 second (approx 4 seconds: with surface temperature sensor Type K)
Emissivity Compensation 0.100 to 1.000 (0.001 increment)
Math Maximum value, minimum value, average value
Signal Modulation Peak, delay
Display LCD digital display 4-digit in viewfinder and on front panel
Data Storage Maximum 500 data points
Communications RS232C (data logging software/OS3750-SOFT)
Optics Fixed focus system
Spot Size 20/4000 mm (0.79/157'') (diameter/distance) see field of view diagram
Targeting Direct view finder (through the lens)
Lens Diameter 20 mm Dia. (0.79")
Thermocouple Input K thermocouple: -50 to 800°C (-58 to 1427°F)
Accuracy: ±2°C (±3.6°F) at 23 ±5°C (±9°F)
Other Functions Automatic power-off, automatic backlight display, continuous
measurement °C/°F selection, battery check, high/low alarms
Working Temperature 0 to 50°C (32 to 122°F)
Software and Cable Optional
Power 2 “AA” batteries included (50 hrs at continuous operation)
AC power adaptor OS3750-ADAPTOR (sold separately)
Case Material/Color ABS resin/gray
Outside Dimensions/Weight 100 H x 148 W x 70 mm D (4 x 6 x 3"), about 350 g (13 oz) (thermometer only)
AVAILABLE FOR FAST DELIVERY!
To Order (Specify Model Number)
Model No. Price Description
OS3751 $1625 Single-color IR 300 to 1000°C (1832ºF)
OS3752 1425 Single-color IR 600 to 2000°C (3632ºF)
OS3753 2704 Dual 2-color/single color wide range IR pyrometer
Comes complete with portable mini-tripod, wrist strap, 2 “AA” alkaline batteries, 1 Type K
insulated beaded wire thermocouple, and operator’s manual.
† NIST-traceable calibration with 3 data points is available by adding suffix “-NIST ” and $700
to price. A calibration certificate (factory check) is available by adding suffix “-NIST CERT” and
$110 to price.
Ordering Example: OS3752, single color IR pyrometer, OS3750-SOFT, software
and cable, OS3750-ADAPTOR, AC adaptor, and TRIPOD, tripod for mounting,
$1425 + 175 + 39 + 45 = $1684.
1-year warranty to a total of 4 years ($350), $1425 + 350 = $1775.
Accessories
OCW-3, OMEGACARE
RECOMMENDED ACCESSORIES HIGHLIGHTED!
SM
extends standard
Model No. Price Description
SC-530 $65 Soft case with shoulder strap
OS3750-SOFT 175 Software and cable (OS:XP)
OS3750-CABLE 50 RS232, 9-pin cable (spare)
OS3750-ADAPTOR 39 100 to 240 Vac power
Type K Surface Probes*
for Contact Surface Measurement
Model No. Price Description
88006K $115 Miniature surface probe,
88016K 160 Miniature right-angle surface
88003K 120 Surface probe, 480°C (900°F)
88101K 115 Right-angle surface probe,
OS3750-UH 285 Universal mounting head
MINI-TRIPOD 12
Replacement portable mini-tripod
88010K 175 High temperature surface probe,
expands from 142 to 279 mm (5.6 to 11")
SC-GG-K-30-36 15 Spare 900 mm (36") Type K beaded wire
88107K 200 Right-angle high temperature
MN1500 1.75 Spare “AA” Alkaline battery (2-pack)
MN1500-L 6.90 Spare “AA” Lithium battery (2-pack)
See Section A for additional surface probes.
*
J-48
OMEGACARESMextended warranty program
is available for models shown on this page.
Ask your sales representative for full details
when placing an order. OMEGACARE
covers parts, labor and equivalent loaners.
SM
480°C (900°F)
probe, 480°C (900°F)
480°C (900°F)
760°C (1400°F)
surface probe, 760°C (1400°F)
J
One Omega Drive | Stamford, CT 06907 | 1-888-TC-OMEGA (1-888-826-6342) | info@omega.com
EPG05
www.omega.com
UNITED KINGDOM
www. omega.co.uk
Manchester, England
0800-488-488
UNITED STATES
www.omega.com
1-800-TC-OMEGA
Stamford, CT.
CANADA
www.omega.ca
Laval(Quebec)
1-800-TC-OMEGA
GERMANY
www.omega.de
Deckenpfronn, Germany
0800-8266342
Karviná, Czech Republic
FRANCE
www.omega.fr
Guyancourt, France
088-466-342
CZECH REPUBLIC
www.omegaeng.cz
596-311-899
BENELUX
www.omega.nl
Amstelveen, NL
0800-099-33-44
More than 100,000 Products Available!
Temperature
Calibrators, Connectors, General Test and Measurement
Instruments, Glass Bulb Thermometers, Handheld Instruments
for Temperature Measurement, Ice Point References,
Indicating Labels, Crayons, Cements and Lacquers, Infrared
Temperature Measurement Instruments, Recorders Relative
Humidity Measurement Instruments, RTD Probes, Elements
and Assemblies, Temperature & Process Meters, Timers and
Counters, Temperature and Process Controllers and Power
Switching Devices, Thermistor Elements, Probes and
Assemblies,Thermocouples Thermowells and Head and Well
Assemblies, Transmitters, Wire
Flow and Level
Air Velocity Indicators, Doppler Flowmeters, Level
Measurement, Magnetic Flowmeters, Mass Flowmeters,
Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel
Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area
Flowmeters, Vortex Shedding Flowmeters
pH and Conductivity
Conductivity Instrumentation, Dissolved Oxygen
Instrumentation, Environmental Instrumentation, pH
Electrodes and Instruments, Water and Soil Analysis
Instrumentation
Data Acquisition
Auto-Dialers and Alarm Monitoring Systems,
Communication Products and Converters, Data
Acquisition and Analysis Software, Data Loggers
Plug-in Cards, Signal Conditioners, USB, RS232, RS485
and Parallel Port Data Acquisition Systems, Wireless
Transmitters and Receivers
Pressure, Strain and Force
Displacement Transducers, Dynamic Measurement
Force Sensors, Instrumentation for Pressure and Strain
Measurements, Load Cells, Pressure Gauges, Pressure
Reference Section, Pressure Switches, Pressure Transducers,
Proximity Transducers, Regulators,
Strain Gages, Torque Transducers, Valves
Heaters
Band Heaters, Cartridge Heaters, Circulation Heaters,
Comfort Heaters, Controllers, Meters and Switching
Devices, Flexible Heaters, General Test and Measurement
Instruments, Heater Hook-up Wire, Heating Cable
Systems, Immersion Heaters, Process Air and Duct,
Heaters, Radiant Heaters, Strip Heaters, Tubular Heaters
click here to go to the omega.com home page
Loading...
