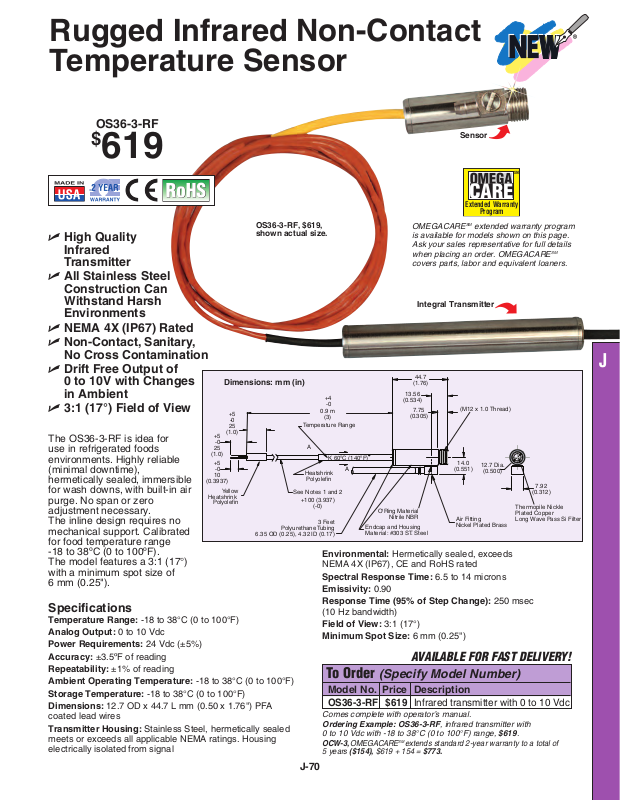

Omega Products OS36-3-RF User Manual



Rugged Infrared Non-Contact

(M12 x 1.0 Thread)

12.7 Dia.
(0.500)

14.0

(0.551)

7.75

(0.305)

13.56

(0.534)

44.7

(1.76)

+100 (3.937)

(-0)

3 Feet

Polyurethane Tubing

6.35 OD (0.25), 4.32 ID (0.17)

+5

-0

25

(1.0)

+5

-0

25

(1.0)

+5

-0

10

(0.3937)

Yellow

Heatshrink

Polyolefin

Thermopile Nickle
Plated Copper
Long Wave Pass Si Filter

7.92

(0.312)

Air Fitting
Nickel Plated Brass

O‘Ring Material

Nitrile NBR

Endcap and Housing
Material: #303 ST. Steel

0.9 m
(3)

+4

-0

Temperature Range

A

A

Heatshrink

Polyolefin

See Notes 1 and 2

K 60ºC (140ºF)

Extended Warranty

Program

SM

Temperature Sensor

OS36-3-RF

$

619

⻬ High Quality

Infrared
Transmitter

⻬ All Stainless Steel

Construction Can
Withstand Harsh
Environments

⻬ NEMA 4X (IP67) Rated
⻬ Non-Contact, Sanitary,

No Cross Contamination

⻬ Drift Free Output of

0 to 10V with Changes
in Ambient

⻬ 3:1 (17°) Field of View

OS36-3-RF, $619,
shown actual size.

Dimensions: mm (in)

Sensor

OMEGACARESMextended warranty program
is available for models shown on this page.
Ask your sales representative for full details
when placing an order. OMEGACARE
covers parts, labor and equivalent loaners.

Integral Transmitter

SM

J

The OS36-3-RF is idea for
use in refrigerated foods
environments. Highly reliable
(minimal downtime),
hermetically sealed, immersible
for wash downs, with built-in air
purge. No span or zero
adjustment necessary.
The inline design requires no
mechanical support. Calibrated
for food temperature range

-18 to 38ºC (0 to 100ºF).
The model features a 3:1 (17°)
with a minimum spot size of
6 mm (0.25").

Specifications

Temperature Range: -18 to 38°C (0 to 100°F)
Analog Output: 0 to 10 Vdc
Power Requirements: 24 Vdc (±5%)
Accuracy: ±3.5ºF of reading
Repeatability: ±1% of reading
Ambient Operating Temperature: -18 to 38°C (0 to 100°F)
Storage Temperature: -18 to 38°C (0 to 100°F)
Dimensions: 12.7 OD x 44.7 L mm (0.50 x 1.76") PFA

coated lead wires
Transmitter Housing: Stainless Steel, hermetically sealed

meets or exceeds all applicable NEMA ratings. Housing
electrically isolated from signal

Environmental: Hermetically sealed, exceeds
NEMA 4X (IP67), CE and RoHS rated

Spectral Response Time: 6.5 to 14 microns
Emissivity: 0.90
Response Time (95% of Step Change): 250 msec

(10 Hz bandwidth)

Field of View: 3:1 (17°)
Minimum Spot Size: 6 mm (0.25")

AVAILABLE FOR FAST DELIVERY!

To Order (Specify Model Number)

Model No. Price Description
OS36-3-RF $619 Infrared transmitter with 0 to 10 Vdc

Comes complete with operator’s manual.
Ordering Example: OS36-3-RF, infrared transmitter with

0 to 10 Vdc with -18 to 38°C (0 to 100°F) range, $619.
OCW-3, OMEGACARE

5 years ($154), $619 + 154 = $773.

J-70

SM

extends standard 2-year warranty to a total of
