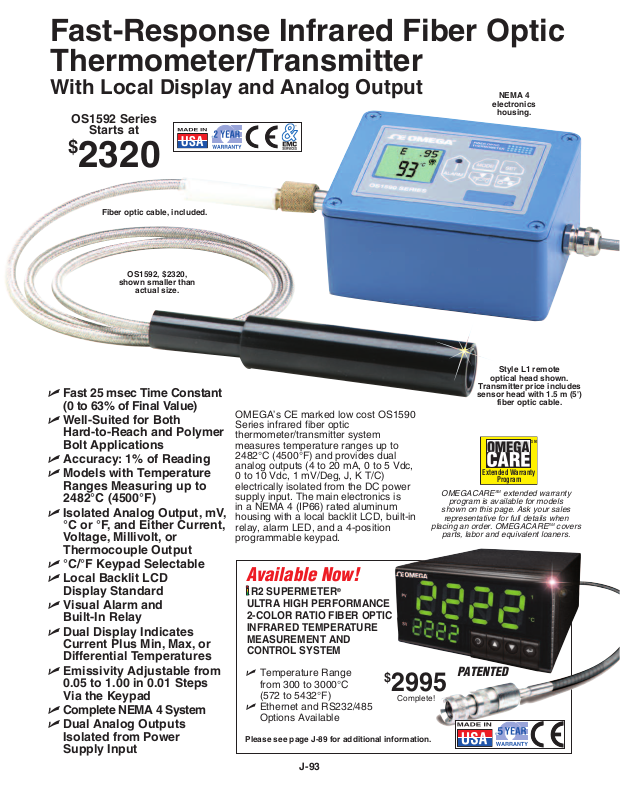

Fast-Response Infrared Fiber Optic
Extended Warranty
Program
SM
Thermometer/Transmitter
With Local Display and Analog Output
OS1592 Series
Starts at
$
2320
Fiber optic cable, included.
OS1592, $2320,
shown smaller than
actual size.
⻬ Fast 25 msec Time Constant
(0 to 63% of Final Value)
⻬ Well-Suited for Both
Hard-to-Reach and Polymer
Bolt Applications
⻬ Accuracy: 1% of Reading
⻬ Models with Temperature
Ranges Measuring up to
2482°C (4500°F)
⻬ Isolated Analog Output, mV,
°C or °F, and Either Current,
Voltage, Millivolt, or
Thermocouple Output
⻬ °C/°F Keypad Selectable
⻬ Local Backlit LCD
Display Standard
⻬ Visual Alarm and
Built-In Relay
⻬ Dual Display Indicates
Current Plus Min, Max, or
Differential Temperatures
⻬ Emissivity Adjustable from
0.05 to 1.00 in 0.01 Steps
Via the Keypad
⻬ Complete NEMA 4 System
⻬ Dual Analog Outputs
Isolated from Power
Supply Input
OMEGA’s CE marked low cost OS1590
Series infrared fiber optic
thermometer/transmitter system
measures temperature ranges up to
2482°C (4500°F) and provides dual
analog outputs (4 to 20 mA, 0 to 5 Vdc,
0 to 10 Vdc, 1 mV/Deg, J, K T/C)
electrically isolated from the DC power
supply input. The main electronics is
in a NEMA 4 (IP66) rated aluminum
housing with a local backlit LCD, built-in
relay, alarm LED, and a 4-position
programmable keypad.
Available Now!
R2 SUPERMETER
ULTRA HIGH PERFORMANCE
2-COLOR RATIO FIBER OPTIC
INFRARED TEMPERATURE
MEASUREMENT AND
CONTROL SYSTEM
⻬ Temperature Range
from 300 to 3000°C
(572 to 5432°F)
⻬ Ethernet and RS232/485
Options Available
Please see page J-89 for additional information.
J-93
®
$
2995
Complete!
NEMA 4
electronics
housing.
Style L1 remote
optical head shown.
Transmitter price includes
sensor head with 1.5 m (5')
fiber optic cable.
OMEGACARE
program is available for models
shown on this page. Ask your sales
representative for full details when
placing an order. OMEGACARESMcovers
parts, labor and equivalent loaners.
SM
extended warranty
PATENTED
Specifications
Temperature Range:
-R1: 260 to 538°C (500 to 1000°F)
-R2: 538 to 1093°C (1000 to 2000°F)
-R3: 1093 to 2482°C (2000 to 4500°F)
Accuracy: 1% of rdg
Repeatability: 0.75% of rdg
esponse Time: 25 msec (0 to 63% of final value)
R
Emissivity: 0.05 to 1.00 adjustable,
set via keypad
Spectral Response: 0.8 to 1.8 microns
Analog Output: 1 mV/deg, standard
Second Analog Output: 0 to 5 Vdc, 0 to 10 Vdc,
4 to 20 mA, or Type J or K thermocouple
Display: Backlit dual LCD
eypad: 4 position, tactile feedback membrane switch
K
alculated Temperature Values:
C
Maximum, minimum, differential
High Alarm: Set via keypad
with built-in relay
Relay Contact Rating:
5 A @ 28 Vdc
Operating Ambient
Temperature:
0 to 50°C (32 to 122°F)
Enclosure: Die-cast
aluminum, NEMA 4 (IP66)
Dimensions
Main Housing:
5.6 H x 8.9 W x 11.4 cm L
(2.2 x 3.5 x 4.5")
Optical Assembly:
L1-Lens: 2.5 Dia. x 15.9 cm (1 x 6.25")
L2-Ceramic Tip: 0.47 Dia. x 15.2 cm (0.187 x 6")
L3-Polymer Bolt: 0.95 Dia. x 10 cm (0.375 x 4")
Power: 18 to 36 Vdc
Note: Contact factory if a replacement probe is needed.
Probe is calibrated with your transmitter at time of purchase
and is not field replaceable.
L3–polymer
bolt.
OS1590 Series backlit display and programmable key pad.
Available Probe Styles
L2–ceramic tip.
L1–lens.
Transmitter price includes 1 probe supplied
with 1.5 m (5') fiber optic cable and sensor head.
Custom
probes.
MOST POPULAR MODELS HIGHLIGHTED!
Shown
smaller than
actual size.
Recommended
output cable:
TX8-100, 30.5 m
(100'), $95.
J
To Order (Specify Model Number)
Model No. Price Temperature Range Optical Assembly, Spot Size Cable Length
OS1592-L1-R1-1-(*) $2320 260 to 538°C (500 to 1000˚F) Lens probe, 6.35 mm @ 203.2 mm (0.25" @ 8") 1.5 m (5')
OS1592-L2-R1-(*) 2360 260 to 538°C (500 to 1000˚F) Ceramic tip, 152.4 mm (6") Probe 1.5 m (5')
OS1592-L3-R1-(*) 2965 260 to 538°C (500 to 1000˚F) Polymer bolt, 101.6 mm (4") Probe 1.5 m (5')
OS1592-L1-R2-1-(*) 2320 538 to 1093°C (1000 to 2000˚F) Lens probe, 6.35 mm @ 203.2 mm (0.25" @ 8") 1.5 m (5')
OS1592-L1-R2-2-(*) 2320 538 to 1093°C (1000 to 2000˚F) Lens probe, 4.83 mm @ 508 mm (0.19" @ 20") 1.5 m (5')
OS1592-L1-R2-3-(*) 2320 538 to 1093°C (1000 to 2000˚F) Lens probe, 1.93 mm @ 152.4 mm (0.076" @ 6") 1.5 m (5')
OS1592-L2-R2-(*) 2320 538 to 1093°C (1000 to 2000˚F) Ceramic tip, 152.4 mm (6") Probe 1.5 m (5')
OS1592-L3-R2-(*) 2965 538 to 1093°C (1000 to 2000˚F) Polymer bolt, 101.6 mm (4") Probe 1.5 m (5')
OS1592-L1-R3-2-(*) 2320 1093 to 2482°C (2000 to 4500˚F) Lens probe, 4.83 mm @ 508 mm (0.19" @ 20") 1.5 m (5')
OS1592-L1-R3-3-(*) 2320 1093 to 2482°C (2000 to 4500˚F) Lens probe, 1.93 mm @ 152.4 mm (0.076" @ 6") 1.5 m (5')
Accessories
Model No. Price Description
OS1500-BLS $495 Backlight source
OS1500-BLF 145 Backlight fiber assembly to use with OS1500-BLS
OS1500-RC 35 Replacement bulb for backlit source
PSR-24S 60
PSR-24L 60
PSR-24L-230 60
PSU-93 40 Unregulated power supply, 16 to 23 Vdc, 300 mA max, screw terminal
TX8-100 95 8-conductor shielded cable, 30.5 m (100')
Specify second analog output: J = Thermocouple output, Type J (for R1 temp range only); K = Thermocouple output, Type K (for R1and R2 temp range
*
only); mA = 4 to 20 mA output; V1 = 0 to 5 Vdc output; V2 = 0 to 10 Vdc output. This unit provides two separate analog outputs.
The first is 1 mV/deg.
Ordering Examples: OS1592-L1-R1-1-MA, OS1592 transmitter with lens probe, 260 to 538°C (500 to 1000°F) temperature range, 1 mV/deg
and 4 to 20 mA output, $2320.
OCW-3, OMEGACARE
SM
extends standard 2-year warranty to a total of 5 years ($350), $2320 + 350 = $2670.
Regulated power supply, US plug, 90 to 264 Vac input, 24 Vdc output, 400 mA, screw terminals, UL
Regulated power supply, US plug, 90 to 264 Vac input, 24 Vdc output, 400 mA, stripped leads, UL
Regulated power supply, European plug, 230 Vac input, 24 Vdc output, 400 mA, stripped leads, CE
