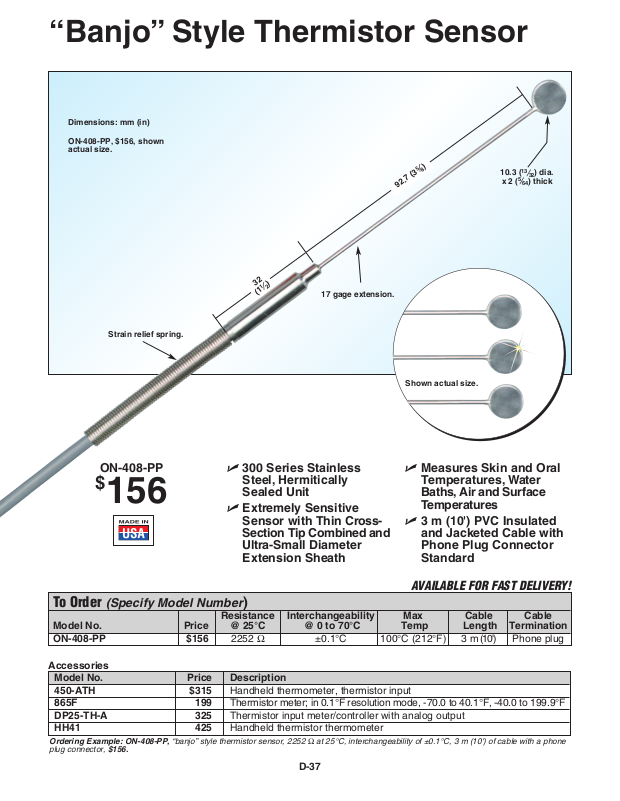

“Banjo” Style Thermistor Sensor
Dimensions: mm (in)
ON-408-PP, $156, shown
actual size.
)
5
⁄
Strain relief spring.
32
8
3
(
7
2.
9
)
1
⁄
2
1
(
17 gage extension.
10.3 (
x 2 (
5
13
⁄
32
) thick
⁄
4
6
) dia.
Shown actual size.
ON-408-PP
$
156
⻬ 300 Series Stainless
Steel, Hermitically
Sealed Unit
⻬ Extremely Sensitive
Sensor with Thin CrossSection Tip Combined and
Ultra-Small Diameter
Extension Sheath
⻬ Measures Skin and Oral
Temperatures, Water
Baths, Air and Surface
Temperatures
⻬ 3 m (10') PVC Insulated
and Jacketed Cable with
Phone Plug Connector
Standard
AVAILABLE FOR FAST DELIVERY!
To Order (Specify Model Number)
Resistance Interchangeability Max Cable Cable
Model No. Price @ 25°C @ 0 to 70°C Temp Length Termination
ON-408-PP $156 2252 Ω ±0.1°C 100°C (212°F) 3 m (10') Phone plug
Accessories
Model No. Price Description
450-ATH $315 Handheld thermometer, thermistor input
865F 199 Thermistor meter; in 0.1°F resolution mode, -70.0 to 40.1°F, -40.0 to 199.9°F
DP25-TH-A 325 Thermistor input meter/controller with analog output
HH41 425 Handheld thermistor thermometer
Ordering Example: ON-408-PP, “banjo” style thermistor sensor, 2252 Ω at 25°C, interchangeability of ±0. 1°C, 3 m (10') of cable with a phone
plug connector, $156.
D-37
