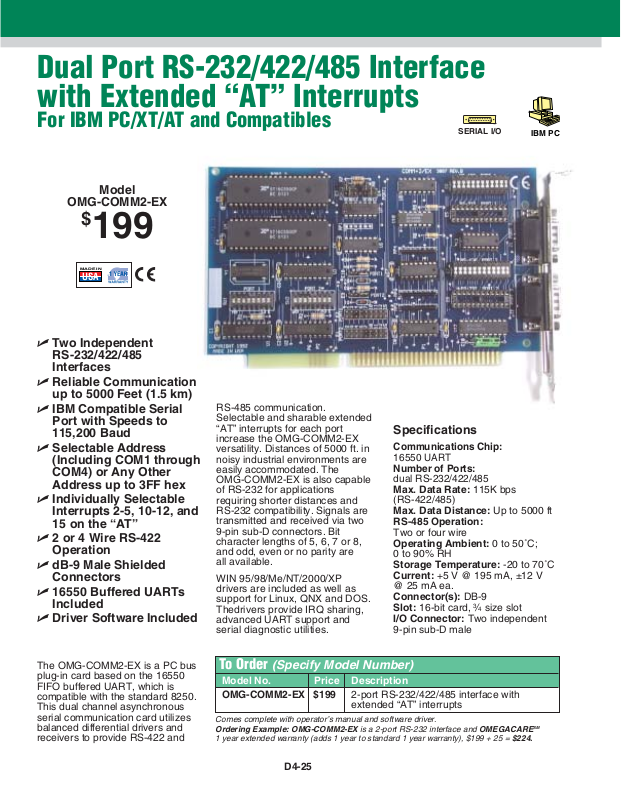

D4-25
Comes complete with operator’s manual and software driver.
Ordering Example: OMG-COMM2-EX is a 2-port RS-232 interface and OMEGACARE
SM
1 year extended warranty (adds 1 year to standard 1 year warranty), $199 + 25 = $224.
To Order (Specify Model Number)
Model No. Price Description
OMG-COMM2-EX $199 2-port RS-232/422/485 interface with
extended “AT” interrupts
The OMG-COMM2-EX is a PC bus
plug-in card based on the 16550
FIFO buffered UART, which is
compatible with the standard 8250.
This dual channel asynchronous
serial communication card utilizes
balanced differential drivers and
receivers to provide RS-422 and
Dual Port RS-232/422/485 Interface
with Extended “AT” Interrupts
For IBM PC/XT/AT and Compatibles
Model
OMG-COMM2-EX
$
199
Two Independent
RS-232/422/485
Interfaces
Reliable Communication
up to 5000 Feet (1.5 km)
IBM Compatible Serial
Port with Speeds to
115,200 Baud
Selectable Address
(Including COM1 through
COM4) or Any Other
Address up to 3FF hex
Individually Selectable
Interrupts 2-5, 10-12, and
15 on the “AT”
2 or 4 Wire RS-422
Operation
dB-9 Male Shielded
Connectors
16550 Buffered UARTs
Included
Driver Software Included
RS-485 communication.
Selectable and sharable extended
“AT” interrupts for each port
increase the OMG-COMM2-EX
versatility. Distances of 5000 ft. in
noisy industrial environments are
easily accommodated. The
OMG-COMM2-EX is also capable
of RS-232 for applications
requiring shorter distances and
RS-232 compatibility. Signals are
transmitted and received via two
9-pin sub-D connectors. Bit
character lengths of 5, 6, 7 or 8,
and odd, even or no parity are
all available.
WIN 95/98/Me/NT/2000/XP
drivers are included as well as
support for Linux, QNX and DOS.
Thedrivers provide IRQ sharing,
advanced UART support and
serial diagnostic utilities.
Specifications
Communications Chip:
16550
UART
Number of Ports:
dual RS-232/422/485
Max. Data Rate: 115K bps
(RS-422/485)
Max. Data Distance: Up to 5000 ft
RS-485 Operation:
Two or four wire
Operating Ambient: 0 to 50˚C;
0 to 90% RH
Storage Temperature: -20 to 70˚C
Current: +5 V @ 195 mA, ±12 V
@ 25 mA ea.
Connector(s): DB-9
Slot: 16-bit card, 3/4size slot
I/O Connector: Two independent
9-pin sub-D male
USA
MADE IN
SERIAL I/O
IBM PC
