Omega Products OM-EL-USB-LITE Installation Manual

OM-EL-USB-LITE
Instruction Sheet
OM-EL-USB-LITE
TEMPERATURE DATA LOGGER
OM-EL-USB-LITE
OM-EL-USB-LITE
Low Cost USB Temperature Data Logger
ORDERING INFORMATION
Low Cost USB Temperature Data Logger
Standard Data Logger
(Data Logger, Software on CD, Battery)
Replacement Battery Pack
OM-EL-USB-LITE
OM-EL-BATT-LITE
FEATURES
• -10°C to +50°C (+14 to +122°F) measurement range
• 30 minute sample rate
• USB interface for set-up and data download
• User-programmable alarm thresholds
• Status indication via red and green LEDs
• Supplied with replaceable internal lithium battery and Windows control software
This low cost data logger measures and stores up to 4,080 temperature
readings over a -10 to +50°C (+14 to +122°F) measurement range with a
xed 30 minute sample rate and a battery life of 1 month continuous use.
Press the button and a red/green LED indicates whether a preset alarm level has been recorded. The data logger is confi gured and the stored
data downloaded by plugging the data logger into a PC’s USB port and running the purpose designed control software under Windows 2000,
XP, Vista or 7. The downloaded data can be graphed, printed and exported to other applications. The latest version of the control software
may be downloaded free of charge from: www.omega.com. A battery is fi tted; to begin using the data logger, remove the tab.
Specifi cations
Measurement range
Internal resolution
Accuracy (overall error)
Logging rate
Operating temperature range
Battery Life (CR1620 Lithium coin cell)
Minimum
-10 (+14)
-10 (+14)
1
Typical
1(2)
every 30 minutes
Maximum
+50 (+122)
±2.5 (±4.5)
+50 (+122)
Unit
°C (°F)
°C (°F)
°C (°F)
°C (°F)
Month
WINDOWS CONTROL SOFTWARE
Omega’s EasyLog USB control software is supplied free of charge with each data logger. Easy to install and use, the control software runs
under Windows 2000, XP (Home and Professional Editions), Vista & 7. The software is used to set-up the data logger as well as
download, graph and export data to Excel.
to be confi gured:
• Logger name
• °C, °F
• High and low alarm levels
• Start time and start date
The latest version of the control software
may be downloaded free of charge from
www.omega.com
www.omega.com
Specifi cations liable to change without prior warning Page 1 of 2
OM-EL-USB-LITE
OM-EL-USB-LITE
Low Cost USB Temperature Data Logger
Low Cost USB Temperature Data Logger

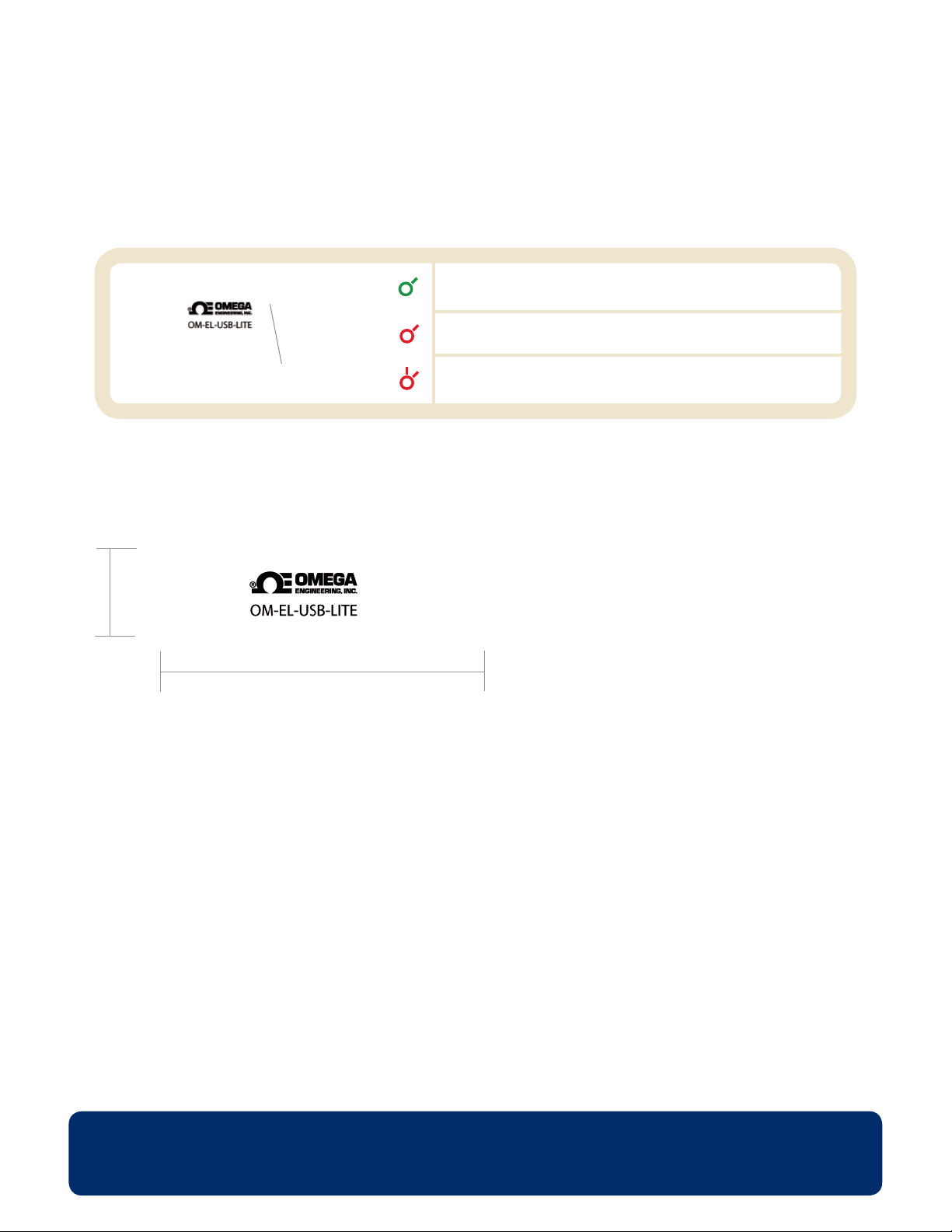

LED FLASHING MODES
OM-EL-USB-LITE features a bi-color LED to indicate the status of the data logger. To save power, the status indication only operates
when the push button is pressed for a short while.
DIMENSIONS
All dimensions in mm (inches)
18.5 (0.72)
Red/Green LED
68.0 (2.67)
Green single fl ash
The data logger is currently logging. No alarm on the channel.
Red single fl ash
The data logger is currently logging. Low alarm on the channel.
Red double fl ash
The data logger is currently logging. High alarm on the channel.
BATTERY REPLACEMENT
We recommend that you replace the battery every 1 month, or prior to logging critical data. The OM-EL-USB-LITE does not lose its stored
readings when the battery is discharged or when the battery is replaced; however, the data logging process will be stopped and cannot
be re-started until the battery has been replaced and the logged data has been downloaded to a PC.
For maximum logging life, only use Maxell or Panasonic CR1620 lithium batteries. Before replacing the battery, remove the
OM-EL-USB-LITE from the PC.
Note:
Leaving the OM-EL-USB-LITE plugged into the USB port for longer than necessarywill cause some of the battery capacity to be lost.
WARNING
Handle lithium batteries carefully. Dispose of in accordance with local regulations.
www.omega.com
Specifi cations liable to change without prior warning Page 2 of 2
M4307/0810
