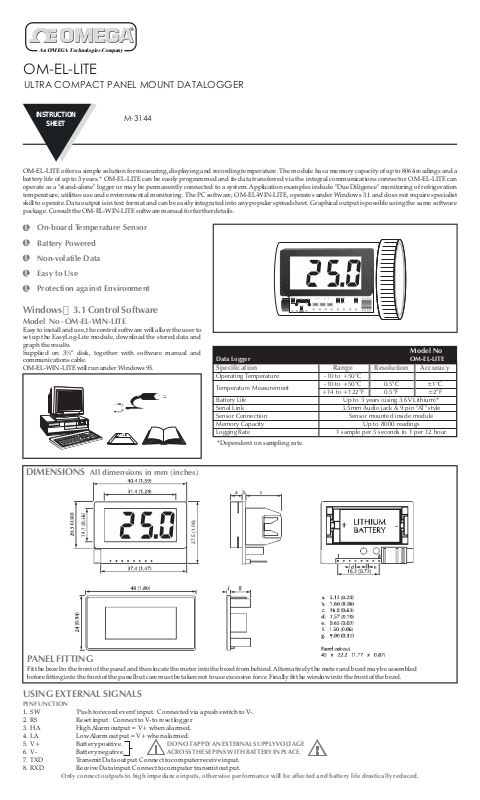

Omega Products OM-EL-LITE Installation Manual

®

An OMEGA Technologies Company

OM-EL-LITE

ULTRA COMPACT PANEL MOUNT DATALOGGER

INSTRUCTION

SHEET

OM-EL-LITE offers a simplesolution for measuring, displaying andrecording temperature.The module has a memory capacity ofup to 8064 readings anda
battery life of up to 3 years.* OM-EL-LITE can be easily programmed and its data transferred via the integral communications connector. OM-EL-LITE can
operate as a "stand-alone" logger or may be permanently connected to a system. Application examples include "Due Diligence" monitoring of refrigeration
temperature, utilities use and environmental monitoring. The PC software, OM-EL-WIN-LITE, operates under Windows 3.1 and does not require specialist
skill tooperate. Dataoutput is in text format and canbe easilyintegrated intoany popular spreadsheet. Graphical outputis possibleusing thesame software
package. Consult theOM-EL-WIN-LITE softwaremanualforfurther details.

M-3144

On-board Temperature Sensor

Battery Powered

Non-volatile Data

Easy to Use

Protection against Environment

Windows 3.1 Control Software

Model No - OM-EL-WIN-LITE

Easy toinstall and use,the control softwarewill allow theuser to
set up the EasyLog-Lite module, download the stored data and
graph the results.
Supplied on 3½“ disk, together with software manual and
communications cable.
OM-EL-WIN-LITEwillrun under Windows 95.

Data Logger OM-EL-LITE

Specification Range Resolution Accuracy

Operating Temperature -10 to +50°C

Temperature Measurement

Battery Life Up to 3 years (using 3.6V Lithium)*
Serial Link 3.5mm Audio jack & 9 pin "AT" style
Sensor Connection Sensor mounted inside module
Memory Capacity Up to 8000 readings
Logging Rate 1 sample per 5 seconds to 1 per 12 hour

*Dependent on sampling rate.

-10 to +50°C 0.5°C ±1°C

+14 to +122°F 0.5°F ±2°F

Model No

DIMENSIONS All dimensions in mm (inches)

27.5 (1.06)

PANELFITTING

Fit the bezel to thefront ofthe panel and thenlocate themeter into the bezelfrom behind.Alternatively the meterand bezelmay be assembled
before fitting intothe frontof the panel but caremust betakennot to use excessive force.Finallyfitthewindow into the frontof thebezel.

USING EXTERNAL SIGNALS

PIN FUNCTION

1. SW 'Pushtorecordevent' input. Connectedvia apush switchtoV-.

2. RS Reset input. Connectto V- toreset logger.

3. HA High Alarm output = V+ when alarmed.

4. LA Low Alarm output = V+ when alarmed.

5. V+ Batterypositive.

6. V- Battery negative.

7. TXD Transmit Data output. Connect to computer receive input.

8. RXD ReceiveData input.Connecttocomputertransmitoutput.

Only connect outputs to high impedance inputs, otherwise performance will be affected and battery life drastically reduced.

DO NOT APPLYANEXTERNAL SUPPLYVOLTAGE
ACROSS THESE PINS WITH BATTERY IN PLACE.

BATTERY REPLACEMENT

Only use ½AA 3.6V lithium. The list below isnot exhaustive. Check withsupplier thatthe battery youare orderingis 'press fit' andis notfitted with solder
tags or leads. Take care to connect correctly.

* DO NOT PRESS ON LCD WHEN INSERTINGBATTERY.

MANUFACTURER PARTNUMBER MANUFACTURER'SORDER CODE

MAXELL ER3S TC n/a

SAFT LS3 n/a

SONNENSCHEIN SL-750/S 1107 501 100

TADIRAN ½AA/S 1551-02-210-000

WARNING: Handle lithiumbatteries carefully- observewarningsonbattery casing. Dispose of in accordance with local regulations.

Temperature sensor

1. SINGLE EVENT OPERATION
(Make sure logger is set up correctly
within OM-EL-WIN-LITE software.)

or

2. PUSH TO START,
if selected via OM-EL-WIN-LITE software.

SWRSHALAV+V-TXD

RXD
