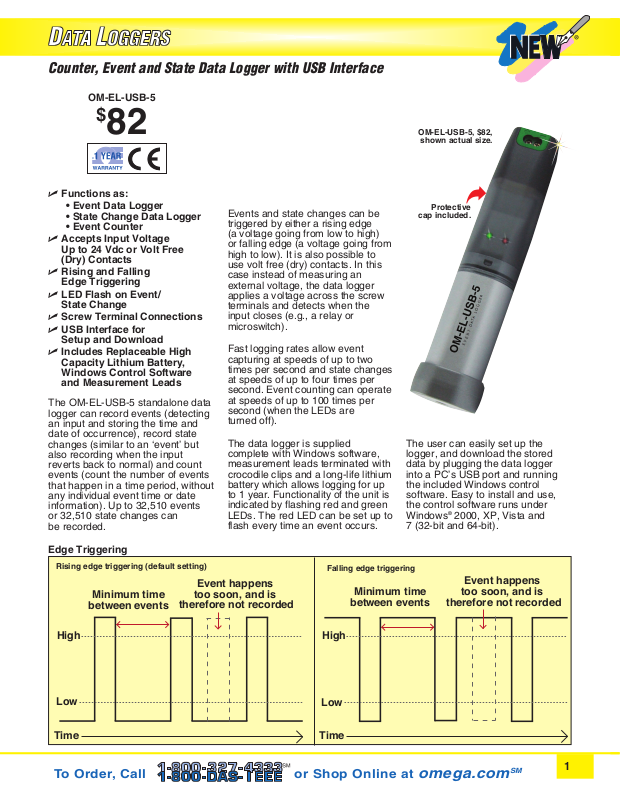

Omega Products OM-EL-BATT User Manual



Counter, Event and State Data Logger with USB Interface

High

Low

Time

Minimum time

between events

Event happens

too soon, and is

therefore not recorded

High

Low

Time

Minimum time

between events

Event happens

too soon, and is

therefore not recorded

OM-EL-USB-5

$

82

 Functions as:

• Event Data Logger

• State Change Data Logger

• Event Counter

 Accepts Input Voltage

Up to 24 Vdc or Volt Free
(Dry) Contacts

 Rising and Falling

Edge Triggering

 LED Flash on Event/

State Change

 Screw Terminal Connections
 USB Interface for

Setup and Download

 Includes Replaceable High

Capacity Lithium Battery,
Windows Control Software
and Measurement Leads

The OM-EL-USB-5 standalone data
logger can record events (detecting
an input and storing the time and
date of occurrence), record state
changes (similar to an ‘event’ but
also recording when the input
reverts back to normal) and count
events (count the number of events
that happen in a time period, without
any individual event time or date
information). Up to 32,510 events
or 32,510 state changes can
be recorded.

Events and state changes can be
triggered by either a rising edge
(a voltage going from low to high)
or falling edge (a voltage going from
high to low). It is also possible to
use volt free (dry) contacts. In this
case instead of measuring an
external voltage, the data logger
applies a voltage across the screw
terminals and detects when the
input closes (e.g., a relay or
microswitch).

Fast logging rates allow event
capturing at speeds of up to two
times per second and state changes
at speeds of up to four times per
second. Event counting can operate
at speeds of up to 100 times per
second (when the LEDs are
turned off).

The data logger is supplied
complete with Windows software,
measurement leads terminated with
crocodile clips and a long-life lithium
battery which allows logging for up
to 1 year. Functionality of the unit is
indicated by flashing red and green
LEDs. The red LED can be set up to
flash every time an event occurs.

OM-EL-USB-5, $82,

shown actual size.

Protective

cap included.

The user can easily set up the
logger, and download the stored
data by plugging the data logger
into a PC’s USB port and running
the included Windows control
software. Easy to install and use,
the control software runs under
Windows®2000, XP, Vista and
7 (32-bit and 64-bit).

Edge Triggering

Rising edge triggering (default setting)

Falling edge triggering

To Order, Call or Shop Online at omega.com

SM

1



The software is used to set-up the
data logger as well as download,
graph and export data to Excel.
The software allows the following
parameters to be configured: logger
name, recording mode (events,
state changes or count events),
triggering on rising of falling edges,
voltage or volt free (dry) contact
triggering, input voltage range, flash
red LED on event/state change,
time period for event counting
(i.e. count the number of events
every 10 s). The maximum number
of events per time period is limited
to 65,000.

Specifications

Time Between:

Events: 500 msec min
State Changes: 250 msec min
Event Counts: 10 msec min

(with LEDs disabled);
50 msec min (with LEDs enabled)

Input Voltage: Software selectable
input voltage range (see input
voltage table below)

Volt Free (Dry) Contacts:

Voltage: 2.75V min, 3.6V max

(voltage decreases as the
battery is discharged)

Current: 35 uA typical

Timing Accuracy: ±3 sec per

24 hours at 20ºC
Memory: Up to 32,510 readings in

event mode or state change mode,
or up to 32,510 timed intervals in
event counter mode

Operating Temperature Range:

-35 to 80°C (-31 to 176°F)

Visual Indicators (Red and
Green LEDs): The green LED will

flash once every 10 sec to indicate
normal logging, once every 20 sec
to indicate low battery or twice every
20 sec to indicate data logger
memory full; the red LED can be set
up to flash once each time an event,
state change or count is recorded

OM-EL-USB-5, $82,

shown larger

than actual size.

Windows®control software included free with
the OM-EL-USB-5.

Software: Windows 2000/XP/

VISTA and 7 (32-bit and 64-bit)

Power:

1

⁄2 “AA” 3.6V lithium battery

(included)
Battery Life: 1 year (assuming

1 event every 5 mins at 20ºC in
voltage input mode)

Weight: 40 g (1.4 oz)
Dimensions: 98 L x 26.8 mm W

(3.86 x 1.05")

Input Voltage

Input Range Low Trigger Voltage High Trigger Voltage

(Vdc) (Vdc) (Vdc)

0 to 3 0.8 2.0

0 to 5 1.3 3.4
0 to 12 3.2 8.0
0 to 24 6.4 16.0

AVAILABLE FOR FAST DELIVERY!

To Order (Specify Model Number)

Model No. Price Description

OM-EL-USB-5 $82 Counter, event and state data logger with USB interface
OM-EL-BATT 8 Replacement 3.6V lithium battery

Comes complete with measurement leads terminated with crocodile clips,
operator’s manual on CD.

Ordering Example: OM-EL-USB-5,

2

To Order, Call or Shop Online at omega.com

counter, event and state data logger with USB interface,

1

“AA” 3.6V lithium battery, Windows®control software and

⁄

2

$82.

SM
