Bearings

There are no sleeve bearings in our entire line of general purpose motors. We use nothing but premium quality SKF brand ball bearings on both the DE (drive end) and the ODE (opposite drive end). It is exactly for this reason that we can mount our motors in the “shaft up” or “shaft down” position with no derating. And all of our AC motors have a high tensile strength steel shaft.

Seals

Our motors are protected from moisture and contaminants by the use of V-ring shaft seals on both the drive-end and the opposite drive-end. These motors are name plated IP54 Enclosure.

Windings/Insulation

All of our motors have copper windings and are manufactured with Class F insulation. This 155°C insulation system gives us inverter duty capability:

A. Variable Torque Applications: (Basically, fans and blowers) 5 to 1 speed turndown permitted B. Constant Torque Applications: (Basically, all but fan and blower loads) 2 to 1 speed turndown

Castings

Our motors are unicast construction, meaning the entire frame is cast iron in one piece, as opposed to two-piece castings that are welded in the middle of the main frame or at the point where the feet are attached to the frame. This unfortunate, cost cutting practice is becoming more prevalent in our industry.

D-43q

Drives and Motors

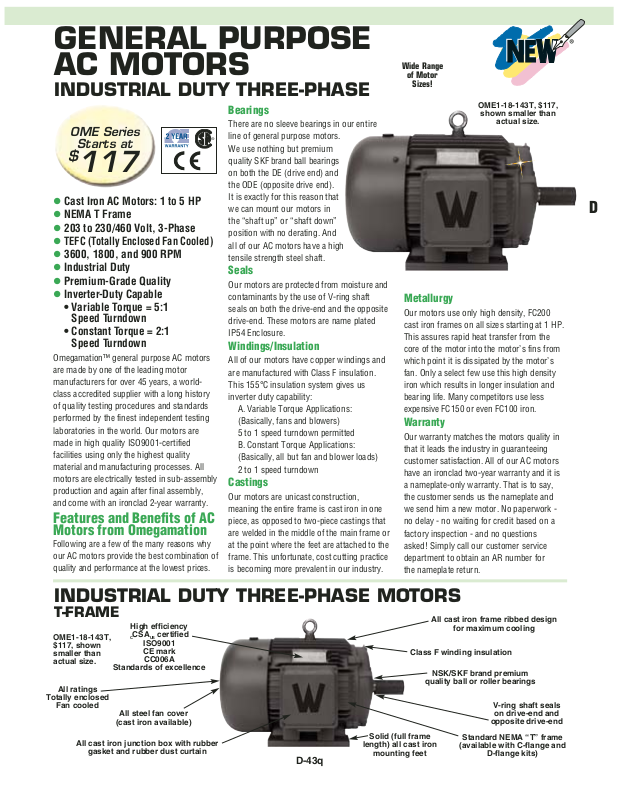

GENERAL PURPOSE AC MOTORS

INDUSTRIAL DUTY THREE-PHASE

OME Series

Starts at

117

Wide Range

of Motor

Sizes!

INDUSTRIAL DUTY THREE-PHASE MOTORS

T-FRAME

High efﬁciency

CSAUScertiﬁed

ISO9001 CE mark CC006A

Standards of excellence

All ratings

Totally enclosed

Fan cooled

All steel fan cover

(cast iron available)

All cast iron junction box with rubber

gasket and rubber dust curtain

Solid (full frame

length) all cast iron

mounting feet

Standard NEMA “T” frame

(available with C-ﬂange and

D-ﬂange kits)

V-ring shaft seals

on drive-end and

opposite drive-end

NSK/SKF brand premium

quality ball or roller bearings

Class F winding insulation

All cast iron frame ribbed design

for maximum cooling

OME1-18-143T, $117, shown smaller than actual size.

 Cast Iron AC Motors: 1 to 5 HP  NEMA T Frame  203 to 230/460 Volt, 3-Phase 

TEFC (Totally Enclosed Fan Cooled)

 3600, 1800, and 900 RPM  Industrial Duty  Premium-Grade Quality  Inverter-Duty Capable

• Variable Torque = 5:1 Speed Turndown

• Constant Torque = 2:1 Speed Turndown

Omegamation™ general purpose AC motors are made by one of the leading motor manufacturers for over 45 years, a worldclass accredited supplier with a long history of quality testing procedures and standards performed by the finest independent testing laboratories in the world. Our motors are made in high quality ISO9001-certified facilities using only the highest quality material and manufacturing processes. All motors are electrically tested in sub-assembly production and again after final assembly, and come with an ironclad 2-year warranty.

Features and Beneﬁts of AC Motors from Omegamation

Following are a few of the many reasons why our AC motors provide the best combination of quality and performance at the lowest prices.

Metallurgy

Our motors use only high density, FC200 cast iron frames on all sizes starting at 1 HP. This assures rapid heat transfer from the core of the motor into the motor’s fins from which point it is dissipated by the motor’s fan. Only a select few use this high density iron which results in longer insulation and bearing life. Many competitors use less expensive FC150 or even FC100 iron.

Warranty

Our warranty matches the motors quality in that it leads the industry in guaranteeing customer satisfaction. All of our AC motors have an ironclad two-year warranty and it is a nameplate-only warranty. That is to say, the customer sends us the nameplate and we send him a new motor. No paperwork no delay - no waiting for credit based on a factory inspection - and no questions asked! Simply call our customer service department to obtain an AR number for the nameplate return.

OME1-18-143T, $117,

shown smaller than

actual size.

(1.45)

(2.25)

9 (0.34) HOLE

127 (5)

102 (4)

178 (7)

104 (4.09)

100 (3.94)

317 (12.47)

22 (0.875)

36 (1.41)

5 (0.188)

20 (0.771)

175 (6.89)

114 (4.49)

42 (1.65)

19 (3/4)

182 (7.16)

180 (7.08)

89 (3.5)

13 (0.512)

(2.25)

(2.75)

Dimensions: mm (in)

D-43r

(1.45)

(2.25)

9 (0.34) HOLE

127 (5)

102 (4)

178 (7)

104 (4.09)

113 (4.45)

345 (13.58)

22 (0.875)

36 (1.41)

5 (0.188)

20 (0.771)

175 (6.89)

114 (4.49)

42 (1.65)

19 (3/4)

182 (7.16)

180 (7.08)

89 (3.5)

13 (0.512)

(2.25)

(2.75)

102 (4)

152 (6)

Dimensions: mm (in)

NEMA Frame 145T

T-FRAME

NEMA Frame 143T

50 (1.97)

(2.75)

10 (0.41) HOLE

165 (6.5)

114 (4.5)

229 (9)

116 (4.57)

124 (4.88)

384 (15.11)

29 (1.125)

45 (1.78)

6 (0.25)

25 (0.986)

95 (3.75)

189 (7.45)

127 (5)

52 (2.05)

25 (1)

224 (8.82)

228 (8.97)

114 (4.5)

15 (0.59)

95 (3.75)

(1.42)

(2.75)

D-43s

Dimensions: mm (in)

NEMA Frame 182T

50 (1.97)

(2.75)

10 (0.41) HOLE

191 (7.5)

140 (5.5)

229 (9)

116 (4.57)

137 (5.39)

409 (16.11)

29 (1.125)

45 (1.78)

6 (0.25)

25 (0.986)

95 (3.75)

189 (7.45)

127 (5)

52 (2.05)

25 (1)

224 (8.82)

228 (8.97)

114 (4.5)

15 (0.59)

95 (3.75)

(1.42)

114 (4.5)

(2.75)

13 (0.53) HOLE

210 (8.25)

274 (10.8)

197 (7.76)

592 (23.29)

160 (6.3)

102 (4)

108 (4.25)

38 (1½)

318 (12.5)

74 (2.91)

41 (1.625)

36 (1.416)

10 (0.375)

285 (11.2)

127 (5)

(2.76)

52 (2.05)

327 (12.89)

20 (0.787)

159 (6.25)

45°„

320 (12.6)

127 (5)

76 (3)

183 (7.2)

Dimensions: mm (in)

NEMA Frame 184T

Dimensions: mm (in)

NEMA Frame 254T

D-43t

“T” FRAME MOTORS SPECIFICATIONS

OME1-18-143T OME1.5-36-143T OME1.5-18-145T OME2-36-145T HP 11.5 1.5 2 RPM/POLES 1800/4 3600/2 1800/4 3600/2 VOLTAGE/PHASE 208 to 230/460V 3 208 to 230/460V 3 208 to 230/460V 3 208 to 230/460V 3 FRAME 143T 143T 145T 145T FREQUENCY 60 HZ 60 HZ 60 HZ 60 HZ RATED SPEED 1760 RPM 3480 RPM 1755 RPM 3480 RPM FULL LOAD AMPS 3.0/1.5 A 3.8/1.9 A 4.2/2.1 A 5.0/2.5 A DUTY CYCLE Continuous Continuous Continuous Continuous SERVICE FACTOR 1.15 1.15 1.15 1.15 AMBIENT TEMP 40°C 40°C 40°C 40°C ALTITUDE 3300' 3300' 3300' 3300' INSULATION CLASS FF F F TEMP RISE @ FULL LOAD 80°C 80°C 80°C 80°C DESIGN BB B B RATED TORQUE 3.00 lb-ft 2.23 lb-ft 4.41 lb-ft 3.03 lb-ft LOCKED ROTOR TORQUE 250% 180% 240% 200% BREAKDOWN TORQUE 350% 250% 320% 270% LOCKED ROTOR

30.0/15.0 A 40.0/20.0 A 40.0/20.0 A 50.0/25.0 A

AMPS (STARTING) IL/IN 10.0 Code N 10.5 Code M 9.5 Code M 10.0 Code L INRUSH CURRENT 84.8/42.4 A 113.2/56.6 A 113.2/56.6 A 141.4/70.7 A SLIP 2.22% 3.33% 2.50% 3.33% NO LOAD CURRENT 1.9/0.95 A 1.44/0.72 A 2.44/1.22 A 1.54/0.77 A MAX TIME LOCKED

20 seconds 20 seconds 20 seconds 20 seconds

ROTOR (HOT) DE BEARING 6205-ZZ 6205-ZZ 6205-ZZ 6205-ZZ ODE BEARING 6205-ZZ 6205-ZZ 6205-ZZ 6205-ZZ REGREASING

INT-DE

N/A N/A N/A N/A

REGREASING INT-ODE

N/A N/A N/A N/A

ENCLOSURE TEFC (IP54) TEFC (IP54) TEFC (IP54) TEFC (IP54) MOUNTING F-1 (F-2 suitable) F-1 (F-2 suitable) F-1 (F-2 suitable) F-1 (F-2 suitable) ROTATION CW/CCW CW/CCW CW/CCW CW/CCW MOMENT OF INERTIA 0.015 lb-ft 0.009 lb-ft 0.015 lb-ft 0.010 lb-ft

squared squared squared squared

C FLANGE W140TC W140TC W140TC W140TC D FLANGE W140TD W140TD W140TD W140TD CONNECTION DIAGRAM 230/460V 230/460V 230/460V 230/460V

9 lead Y 9 lead Y 9 lead Y 9 lead Y

SHAFT MATERIAL 1045 1045 1045 1045

carbon steel carbon steel carbon steel carbon steel

APPROX WEIGHT 58 lb 50 lb 60 lb 60 lb POWER FACTOR

@ LOAD = 100%

0.71 0.86 0.74 0.87

POWER FACTOR @ LOAD = 75%

0.63 0.82 0.66 0.83

POWER FACTOR @ LOAD = 50%

0.44 0.72 0.54 0.74

EFFICIENCY (%) @ LOAD = 100%

82.5 82.5 84.0 84.0

EFFICIENCY (%) @ LOAD = 75%

81.5 82.0 84.1 83.5

EFFICIENCY (%) @ LOAD = 50%

77.9 81.0 82.0 83.3

D-43u

OME2-18-145T OME3-18-182T OME3-36-182T OME5-18-184T OME5-36-184T OME5-9-254T

233555

1800/4 1800/4 3600/2 1800/4 3600/2 900/8

208 to 230/460V 3 208 to 230/460V 3 208 to 230/460V 3 208 to 230/460V 3 208 to 230/460V 3 208 to 230/460V 3

145T 182T 182T 184T 184T 254T

60 HZ 60 HZ 60 HZ 60 HZ 60 HZ 60 HZ

1750 RPM 1750 RPM 3520 RPM 1750 RPM 3510 RPM 870 RPM

5.4/2.7 A 7.72/3.86 A 7.2/3.6 A 11.8/5.9 A 11.3/5.65 A 15.2/7.6 A

Continuous Continuous Continuous Continuous Continuous Continuous

1.15 1.15 1.15 1.15 1.15 1.15

40°C 40°C 40°C 40°C 40°C 40°C

3300' 3300' 3300' 3300' 3300' 3300'

FFFFFF

80°C 80°C 80°C 80°C 80°C 80°C

BBBBBB

6.05 lb-ft 9.07 lb-ft 4.50 lb-ft 15.1 lb-ft 7.46 lb-ft 30 lb-ft 230% 280% 230% 270% 210% 210% 290% 330% 360% 310% 355% 280%

50.0/25.0 A 64.0/32.0 A 64.0/32.0 A 92.0/46.0 A 92.0/46.0 A 92.0/46.0 A

9.3 Code L 8.3 Code K 8.9 Code K 7.8 Code J 8.1 Code J 6.1 Code J

141.4/70.7 A 181/90.5 A 181/90.5 A 260/130 A 260/130 A —

2.78% 2.78% 2.22% 2.78% 2.50% 3.33%

2.76/1.38 A 3.74/1.87 A 2.8/1.4 A 5.1/2.55 A 3.96/1.98 A 7.6/3.8 A

20 seconds 20 seconds 20 seconds 20 seconds 20 seconds 20 seconds

6205-ZZ 6306-ZZ 6306-ZZ 6306-ZZ 6306-ZZ 6309 6205-ZZ 6306-ZZ 6306-ZZ 6306-ZZ 6306-ZZ 6209

12,400 hour

N/A N/A N/A N/A N/A

(0.46 oz)

12,700 hour

N/A N/A N/A N/A N/A

(0.29 oz)

TEFC (IP54) TEFC (IP54) TEFC (IP54) TEFC (IP54) TEFC (IP54) TEFC (IP54)

F-1 (F-2 suitable) F-1 (F-2 suitable) F-1 (F-2 suitable) F-1 (F-2 suitable) F-1 (F-2 suitable) F-1 (F-2 suitable)

CW/CCW CW/CCW CW/CCW CW/CCW CW/CCW CW/CCW

0.020 lb-ft 0.020 lb-ft 0.034 lb-ft 0.069 lb-ft 0.040 lb-ft 2.036 lb-ft squared squared squared squared squared squared

W140TC W180TC W180TC W180TC W180TC W250TC W140TD W180TD W180TD W180TD W180TD W250TD

230/460V 230/460V 230/460V 230/460V 230/460V 230/460V

9 lead Y 9 lead Y 9 lead Y 9 lead Y 9 lead Y 9 lead delta

1045 1045 1045 1045 1045 1045

carbon steel carbon steel carbon steel carbon steel carbon steel carbon steel

70 lb 90 lb 100 lb 110 lb 110 lb 240 lb

0.77 0.81 0.86 0.84 0.88 0.71

0.70 0.75 0.81 0.78 0.83 0.66

0.58 0.63 0.73 0.66 0.74 0.56

84.0 87.5 85.5 87.5 87.5 85.5

84.5 87.1 85.2 88.0 88.0 85.7

83.5 85.3 82.7 87.6 87.4 84.2

D-43v

MODEL NO. PRICE DESCRIPTION

OMW140TC $13 C-ﬂange kit, frame 143T,145T OMW180TC 18 C-ﬂange kit, frame 182T,184T OMW250TC 45 C-ﬂange kit, frame 254T,256T OMW140TD 13 D-ﬂange kit, frame 143T,145T OMW180TD 18 D-ﬂange kit, frame 182T,184T OMW250TD 45 D-ﬂange kit, frame 254T,256T OMW143T 16 Motor slide base, 143T frame OMW145T 16 Motor slide base, 145T frame OMW182T 21 Motor slide base, 182T frame OMW184T 21 Motor slide base, 184T frame OMW254T 45 Motor slide base, 254T frame

ACCESSORIES

Ordering Example: OMW140TC, C-ﬂange kit for 143T-frame motor, $13.

OMW184T, $21, shown smaller than actual size.

OMW140TC, $13, shown smaller than actual size.

MODEL NO. PRICE DESCRIPTION

OME1-18-143T $117 143T frame cast iron motor, 208-230/460 V, three-phase, 1 HP, 1800 RPM OME1.5-36-143T 143 143T frame cast iron motor, 208-230/460 V, three-phase, 1.5 HP, 3600 RPM OME1.5-18-145T 146 145T frame cast iron motor, 208-230/460 V, three-phase, 1.5 HP, 1800 RPM OME2-36-145T 162 145T frame cast iron motor, 208-230/460 V, three-phase, 2 HP, 3600 RPM OME2-18-145T 152 145T frame cast iron motor, 208-230/460 V, three-phase, 2 HP, 1800 RPM OME3-18-182T 198 182T frame cast iron motor, 208-230/460 V, three-phase, 3 HP, 1800 RPM OME3-36-182T 205 182T frame cast iron motor, 208-230/460 V, three-phase, 3 HP, 3600 RPM OME5-18-184T 221 184T frame cast iron motor, 208-230/460 V, three-phase, 5 HP, 1800 RPM OME5-36-184T 264 184T frame cast iron motor, 208-230/460 V, three-phase, 5 HP, 3600 RPM OME5-9-254T 622 245T frame cast iron motor, 208-230/460 V, three-phase, 5 HP, 900 RPM

To Order

(Specify Model Number)
