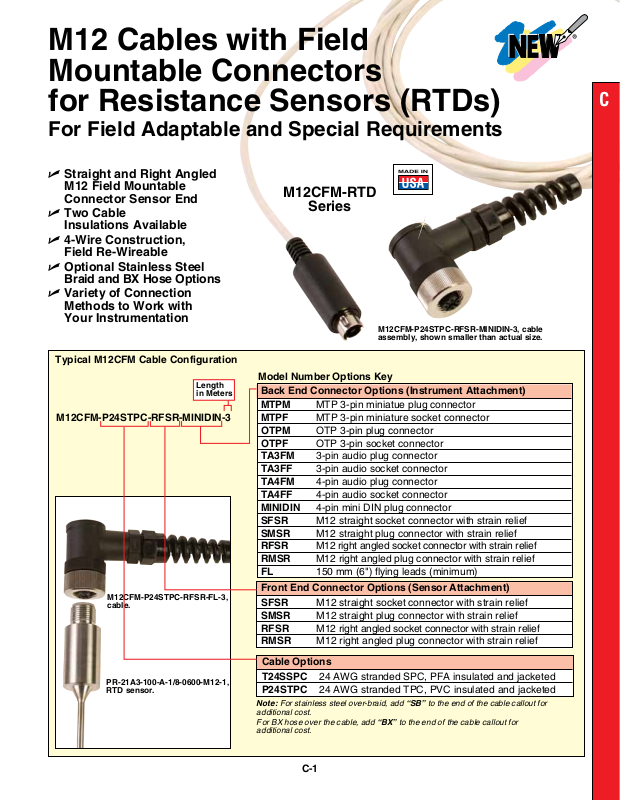

M12 Cables with Field Mountable Connectors for Resistance Sensors (RTDs)

For Field Adaptable and Special Requirements

U Straight and Right Angled

M12 Field Mountable Connector Sensor End

U Two Cable

Insulations Available

U 4-Wire Construction,

Field Re-Wireable

U Optional Stainless Steel

Braid and BX Hose Options

U Variety of Connection

Methods to Work with Your Instrumentation

Typical M12CFM Cable Configuration

Length in Meters

M12CFM-P24STPC-RFSR-MINIDIN-3

M12CFM-P24STPC-RFSR-FL-3, cable.

M12CFM-RTD

Series

M12CFM-P24STPC-RFSR-MINIDIN-3, cable assembly, shown smaller than actual size.

Model Number Options Key

Back End Connector Options (Instrument Attachment) MTPM MTP 3-pin miniatue plug connector

MTPF MTP 3-pin miniature socket connector OTPM OTP 3-pin plug connector OTPF OTP 3-pin socket connector TA3FM 3-pin audio plug connector TA3FF 3-pin audio socket connector TA4FM 4-pin audio plug connector TA4FF 4-pin audio socket connector MINIDIN 4-pin mini DIN plug connector SFSR M12 straight socket connector with strain relief SMSR M12 straight plug connector with strain relief RFSR M12 right angled socket connector with strain relief RMSR M12 right angled plug connector with strain relief FL 150 mm (6") flying leads (minimum)

Front End Connector Options (Sensor Attachment) SFSR M12 straight socket connector with strain relief

SMSR M12 straight plug connector with strain relief RFSR M12 right angled socket connector with strain relief RMSR M12 right angled plug connector with strain relief

PR-21A3-100-A-1/8-0600-M12-1, RTD sensor.

Cable Options T24SSPC 24 AWG stranded SPC, PFA insulated and jacketed

P24STPC 24 AWG stranded TPC, PVC insulated and jacketed

Note: For stainless steel over-braid, add “SB” to the end of the cable callout for additional cost.

For BX hose over the cable, add “BX” to the end of the cable callout for additional cost.

C-1

M12 Connector

Sensor Side

M12CFM-P24STPC-RFSR-MINIDIN-3, cable assembly, shown smaller than actual size.

M12 right angled socket connector with strain relief.

Cable Wiring M12

Connector mini MTP/ Pin Number Color TA3 TA4 DIN OTP

1 Brown 1 1 1 + 2 White 2 2 2 – 3 Blue 3 3 3 G 4 Black N/C 4 4 N/C

To Order Visit omega.com/m12cfm-rtd

Sensor Length Model No. Cable Connector Termination (Meters)

M12CFM-T24SSPC-SFSR-FL-3 3 M12CFM-T24SSPC-SFSR-FL-5 5 M12CFM-T24SSPC-SFSR-FL-10 10 M12CFM-T24SSPC-SFSR-FL-15 15 M12CFM-T24SSPC-SFSR-FL-20 20 M12CFM-P24STPC-SRSR-FL-3 3 M12CFM-P24STPC-SRSR-FL-5 5 M12CFM-P24STPC-SRSR-FL-10 10 M12CFM-P24STPC-SRSR-FL-15 15 M12CFM-P24STPC-SRSR-FL-20 20

For longer cables, change last number in model number to the desired length in meters for additional cost. To add a connector to the end of the cable, replace “FL” in the model number with the connector designation in the table and add the following

to the price: “MTP” no additional charge, “OTP” no additional charge, for “TA3M”, “TA3F”, “TA4M”, “TA4F” or “MINIDIN” for additional cost, for “SFSR”, “RFSR”, “SMSR” or “RMSR” for additional cost.

For Stainless Steel overbraid, add “SB” to the end of the cable callout for additional cost. For BX Hose, add “BX” to the end of the cable callout for additional cost. Ordering Examples: M12CFM-T24SSPCSB-RFSR-MTPM-3, 4-conductor, 24 AWG, stranded silver plated copper conductors, PFA insulation

and jacket and stainless steel braid 3 m long, M12 right angled plug connector with strain relief one end and MTP-male connector on the other. M12CFM-P24STPC-RFSR-SMSR-5, 4-conductor, 24 AWG stranded tin plated copper conductors, PVC insulation and jacket, 5 m long,

M12 right angled socket connector with strain relief one end and M12 straight plug connector with strain relief on the other.

PFA insulated and jacketed,

24 AWG stranded silver plated

copper

PVC insulated and jacketed,

24 AWG stranded

tin plated copper

C-2

M12 straight 150 mm (6")

socket flying leads

M12 right 150 mm (6") angled socket flying leads
