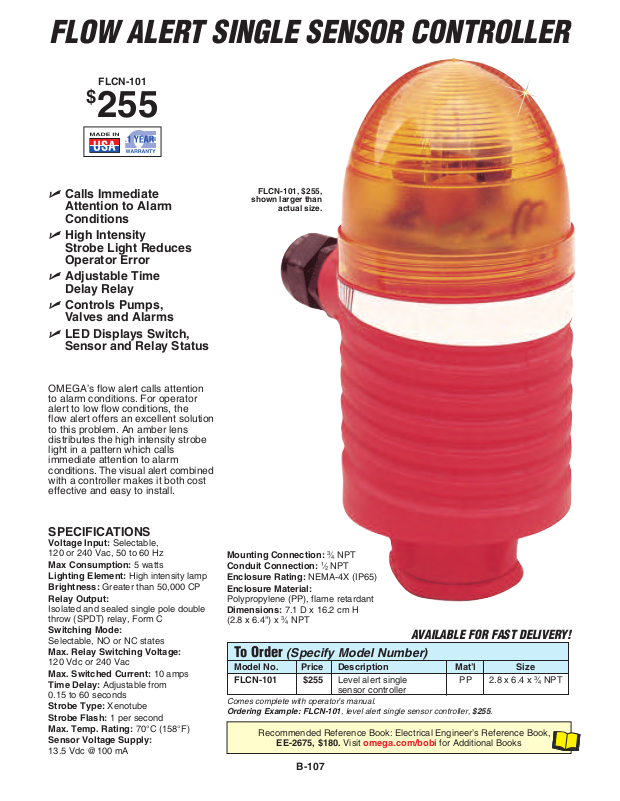

FLOW ALERT SINGLE SENSOR CONTROLLER
FLCN-101
$
255
⻬ Calls Immediate
Attention to Alarm
Conditions
⻬ High Intensity
Strobe Light Reduces
Operator Error
⻬ Adjustable Time
Delay Relay
⻬ Controls Pumps,
Valves and Alarms
⻬ LED Displays Switch,
Sensor and Relay Status
OMEGA’s flow alert calls attention
to alarm conditions. For operator
alert to low flow conditions, the
flow alert offers an excellent solution
to this problem. An amber lens
distributes the high intensity strobe
light in a pattern which calls
immediate attention to alarm
conditions. The visual alert combined
with a controller makes it both cost
effective and easy to install.
FLCN-101, $255,
shown larger than
actual size.
SPECIFICATIONS
Voltage Input: Selectable,
120 or 240 Vac, 50 to 60 Hz
Max Consumption: 5 watts
Lighting Element: High intensity lamp
Brightness: Greater than 50,000 CP
Relay Output:
Isolated and sealed single pole double
throw (SPDT) relay, Form C
Switching Mode:
Selectable, NO or NC states
Max. Relay Switching Voltage:
120 Vdc or 240 Vac
Max. Switched Current: 10 amps
Time Delay: Adjustable from
0.15 to 60 seconds
Strobe Type: Xenotube
Strobe Flash: 1 per second
Max. Temp. Rating: 70°C (158°F)
Sensor Voltage Supply:
13.5 Vdc @100 mA
Mounting Connection:
Conduit Connection:
Enclosure Rating: NEMA-4X (IP65)
Enclosure Material:
Polypropylene (PP), flame retardant
Dimensions: 7.1 D x 16.2 cm H
(2.8 x 6.4") x
3
⁄4NPT
3
⁄4NPT
1
⁄2NPT
AVAILABLE FOR FAST DELIVERY!
To Order (Specify Model Number)
Model No. Price Description Mat’l Size
FLCN-101 $255 Level alert single PP 2.8 x 6.4 x 3⁄4NPT
Comes complete with operator’s manual.
Ordering Example: FLCN-101, level alert single sensor controller, $255.
Recommended Reference Book: Electrical Engineer’s Reference Book,
EE-2675, $180. Visit omega.com/bobi for Additional Books
B-107
sensor controller
