Page 1

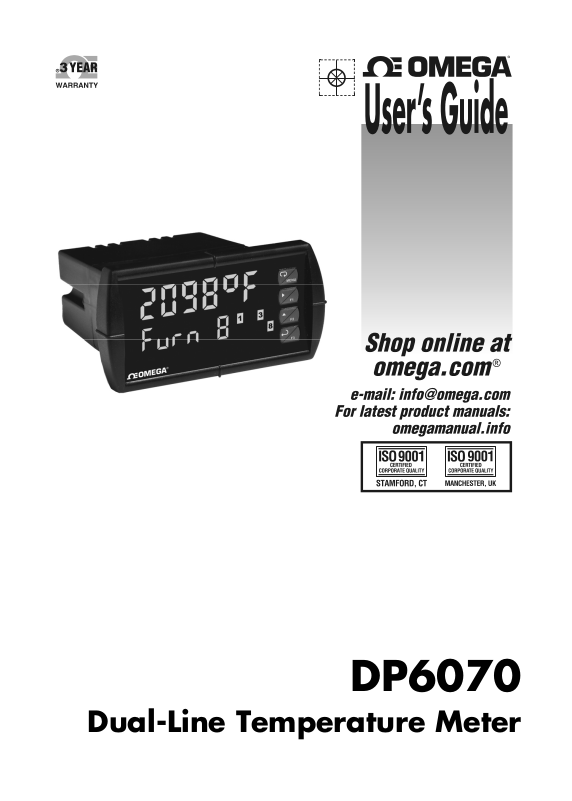

DP6070

Dual-Line Temperature Meter

Page 2

DP6070 Temperature Meter Instruction Manual

Page 3

DP6070 Temperature Meter Instruction Manual

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 37 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal three (3) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product. If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

RETURN REQUEST/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence. The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:

1. Purchase Order number under which the product was PURCHASED,

2. Model and serial number of the product under warranty, and

3. Repair instructions and/or specific problems relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.

© Copyright 2012 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

ARRANTY/DISCLAIMER

FOR NON-WARRANTY REPAIRS, consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems relative to the product.

Page 4

DP6070 Temperature Meter Instruction Manual

CAUTION: Read complete

instructions prior to installation and operation of the meter.

WARNING: Risk of electric shock or personal injury.

Warning!

This product is not recommended for life support applications or applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. OMEGA shall not be held liable for damages resulting from such improper use.

Page 5

DP6070 Temperature Meter Instruction Manual

Table of Contents

INTRODUCTION ------------------------------------------------------------ 8 ORDERING INFORMATION --------------------------------------------- 9 SPECIFICATIONS --------------------------------------------------------- 10

General ----------------------------------------------------------------------------- 10 Temperature Input -------------------------------------------------------------- 11 Relays ------------------------------------------------------------------------------ 12 Isolated 4-20 mA Transmitter Output ------------------------------------ 13 Modbus® RTU Serial Communications ---------------------------------- 14 DPA1044 Digital Input & Output Expansion Module ---------------- 14

COMPLIANCE INFORMATION ---------------------------------------- 15

Safety ------------------------------------------------------------------------------- 15 Electromagnetic Compatibility --------------------------------------------- 15

SAFETY INFORMATION ------------------------------------------------ 16 INSTALLATION ------------------------------------------------------------ 17

Unpacking ------------------------------------------------------------------------- 17 Panel Mounting Instructions ------------------------------------------------ 17

Mounting Dimensions ------------------------------------------------------- 18

Configuration for 12 or 24 VDC Power Option ------------------------ 19 Connections ---------------------------------------------------------------------- 20

Connectors Labeling --------------------------------------------------------- 21 Power Connections ---------------------------------------------------------- 21 Signal Connections ---------------------------------------------------------- 22 Connections for Averaging RTD Sensors ------------------------------ 24 Modbus RTU Serial Communications ----------------------------------- 25 Relay Connections ----------------------------------------------------------- 25 Switching Inductive Loads -------------------------------------------------- 26 F4 Digital Input Connections ----------------------------------------------- 27 4-20 mA Output Connections ---------------------------------------------- 27 Analog Output Transmitter Power Supply ------------------------------ 27 External Relays & Digital I/O Connections ----------------------------- 28 Interlock Relay Feature ----------------------------------------------------- 29

SETUP AND PROGRAMMING ---------------------------------------- 30

Front Panel Buttons and Status LED Indicators --------------------- 31 Display Functions & Messages -------------------------------------------- 32 Main Menu ------------------------------------------------------------------------ 35 Setting Numeric Values ------------------------------------------------------ 36

Page 6

DP6070 Temperature Meter Instruction Manual

Setting Up the Meter (setup) ------------------------------------------------ 37

Setting the Input Signal (Input) ------------------------------------------ 39 Selecting the Temperature Scale (F or C) ---------------------------- 39 Setting the Decimal Point (dEc pt) -------------------------------------- 39 Setting the Display Parameter & Intensity (dsplay) ----------------- 39 Display Setup Menu --------------------------------------------------------- 40 Setting the Input Units or Custom Tags (units) ---------------------- 41 Setting the Relay Operation (relay) ------------------------------------ 42

Setting the Relay Action ----------------------------------------------------- 44

Programming Set and Reset Points ------------------------------------- 45 Setting Fail-Safe Operation ------------------------------------------------ 45 Programming Time Delay -------------------------------------------------- 45 Relay Action for Loss of Input (Input Break) --------------------------- 45 DP6000-SOFT Software ---------------------------------------------------- 46

Relay and Alarm Operation Diagrams ----------------------------------- 47

High Alarm Operation (Set > Reset) ------------------------------------- 47 Low Alarm Operation (Set < Reset) -------------------------------------- 48 High Alarm with Fail-Safe Operation (Set > Reset) ------------------ 49 Low Alarm with Fail-Safe Operation (Set < Reset) ------------------- 50 Relay Alternation Control Operation ------------------------------------- 51 Relay Sampling Operation ------------------------------------------------- 52 Signal Loss or Input Break Relay Operation --------------------------- 53 Time Delay Operation ------------------------------------------------------- 54

Relay Operation Details ------------------------------------------------------ 55

Overview ------------------------------------------------------------------------ 55 Relays Auto Initialization ---------------------------------------------------- 55 Fail-Safe Operation ---------------------------------------------------------- 55 Front Panel LEDs ------------------------------------------------------------- 56 Latching and Non-Latching Relay Operation -------------------------- 56 Non-Latching Relay (Auto) ------------------------------------------------- 57 Non-Latching Relay (A-nman) --------------------------------------------- 57 Latching Relay (LatcH) ----------------------------------------------------- 57 Latching Relay (Lt-Clr) ---------------------------------------------------- 58 Acknowledging Relays ------------------------------------------------------ 58 Setting Up the Interlock Relay (Force On) Feature ------------------ 59

Scaling the 4-20 mA Analog Output (Aout) ---------------------------- 60 Reset Menu (reset) ------------------------------------------------------------ 61 Control Menu (Contrl) -------------------------------------------------------- 61  Setting Up the Password (pass) ------------------------------------------- 62

Protecting or Locking the Meter ------------------------------------------- 62 Making Changes to a Password Protected Meter -------------------- 63 Disabling Password Protection -------------------------------------------- 63



Page 7

DP6070 Temperature Meter Instruction Manual

Advanced Features Menu ---------------------------------------------------- 64

Advanced Features Menu & Display Messages ---------------------- 65 Offset Adjust (Adjust) ------------------------------------------------------ 68 Recalibration of the Meter (t CAL) --------------------------------------- 68 Noise Filter (filter) -------------------------------------------------------- 70 Noise Filter Bypass (bypass) ---------------------------------------------- 70 Rounding Feature (round) ------------------------------------------------- 70 Modbus RTU Serial Communications (serial) ---------------------- 71 Select Menu (SElect) ------------------------------------------------------- 72 Analog Output Programming (AoutPr) ---------------------------------- 73 Programmable Function Keys User Menu (user) -------------------- 74 Internal Temperature Calibration (ICAL) -------------------------------- 75 Meter Copy Function (Copy) ----------------------------------------------- 78

METER OPERATION ----------------------------------------------------- 80

Front Panel Buttons Operation -------------------------------------------- 80 Function Keys Operation ---------------------------------------------------- 80 F4 Operation --------------------------------------------------------------------- 81 Maximum/Minimum Readings ---------------------------------------------- 81

TROUBLESHOOTING ---------------------------------------------------- 82

Diagnostics Menu (diag) ----------------------------------------------------- 82

Determining Software Version -------------------------------------------- 82

Reset Meter to Factory Defaults ------------------------------------------- 83

Factory Defaults & User Settings ----------------------------------------- 84

Troubleshooting Tips --------------------------------------------------------- 87 Alphabetical List of Display Functions & Messages --------------- 88



Page 8

DP6070 Temperature Meter Instruction Manual

Table of Figures

Figure 1. 1/8 DIN Panel Cutout Dimensions ....................................... 17

Figure 2. Meter Dimensions - Side View ............................................. 18

Figure 3. Meter Dimensions - Top View .............................................. 18

Figure 4. Panel Mounting Details ........................................................ 19

Figure 5. Jumper Configuration for 12/24 VDC Power ...................... 19

Figure 6. Connector Labeling for Fully Loaded DP6070 ................... 21

Figure 7. Power Connections .............................................................. 21

Figure 8. Thermocouple Input Connections ...................................... 22

Figure 9. Three-Wire RTD Input Connections .................................... 23

Figure 10. Two-Wire RTD Input Connections ..................................... 23

Figure 11. Four-Wire RTD Input Connections .................................... 24

Figure 12. Average Temperature RTD Input Connections ................ 24

Figure 13. Relay Connections ............................................................. 25

Figure 14. AC and DC Loads Protection ............................................. 26

Figure 15. Low Voltage DC Loads Protection .................................... 26

Figure 16. F4 Digital Input Connections ............................................. 27

Figure 17. 4-20 mA Output Connections ............................................ 27

Figure 18. Expansion Modules & DIN Rail Mounting Kit ................... 28

Figure 19. External Relays Module Connections ............................... 28

Figure 20. Digital I/O Module Connections ......................................... 29

Figure 21. Interlock Connections ........................................................ 29

Figure 22. Acknowledge Relays w/Function Key or Digital Input .... 58

Figure 23. Meter Copy Connection ..................................................... 78

INTRODUCTION

The DP6070 meter boasts specifications and functionality that clearly makes it one of the most advanced temperature meters available. Its dual-line 6-character display, function keys, and optional expansion modules are only a few of the features you will find on the DP6070.

A fully loaded DP6070 meter has the following: four SPDT relays, 4-20 mA output, and one 24 VDC power supply to power the 4-20 mA output. The DP6070 capabilities may be enhanced by adding the following external expansion modules: four SPST relays (creating an eight-relay temperature meter), two digital I/O modules with four inputs and four outputs each, and USB, RS-232 or RS-485 communication adapters.

The eight relays can be used for alarm indication or temperature control applications. The 4-20 mA isolated output, Modbus RTU serial communications, and digital I/O options make the DP6070 an excellent addition to any system.

Page 9

DP6070 Temperature Meter Instruction Manual

ORDERING INFORMATION

Standard Display Models

85-265 VAC Model

DP6070-6R0 DP6070-7R0 No options DP6070-6R2 DP6070-7R2 2 relays DP6070-6R3 DP6070-7R3 4-20 mA output DP6070-6R4 4 relays DP6070-6R5 2 relays & 4-20 mA output DP6070-6R7 4 relays & 4-20 mA output

Sunlight Readable Display Models

85-265 VAC Model

DP6070-6H0 DP6070-7H0 No options DP6070-6H2 DP6070-7H2 2 relays DP6070-6H3 DP6070-7H3 4-20 mA output

Accessories

Model Description

DPA1002 DIN rail mounting kit for two expansion modules DPA1004 4 SPST (Form A) relays DPA1044 4 digital inputs & 4 digital outputs (2 may be connected) DPA1200 Meter copy cable DPA1232 RS-232 serial adapter DPA1485 RS-485 serial adapter DPA7485-I RS-232 to RS-422/485 isolated converter DPA7485-N RS-232 to RS-422/485 non-isolated converter DPA8008 USB serial adapter DPA8232-N USB to RS-232 non-isolated converter DPA8485-I USB to RS-422/485 isolated converter DPA8485-N USB to RS-422/485 non-isolated converter

12/24 VDC Model

Options Installed

Page 10

DP6070 Temperature Meter Instruction Manual

SPECIFICATIONS

Except where noted all specifications apply to operation at +25°C.

General

DISPLAY

RESOLUTION

DISPLAY INTENSITY

DISPLAY UPDATE RATE

OVERRANGE

UNDERRANGE

PROGRAMMING METHODS

NOISE FILTER Programmable from 2 to 199 (0 will disable filter)

FILTER BYPASS Programmable from 0.1 to 99.9% of calibrated span

RECALIBRATION All ranges are calibrated at the factory. Recalibration is

MAX/MIN DISPLAY

PASSWORD

NON-VOLATILE MEMORY

POWER OPTIONS

FUSE Required external fuse: UL Recognized, 5 A max, slow

NORMAL MODE REJECTION

ISOLATION 4 kV input/output-to-power line

Main display: 0.60" (15 mm) high red LEDs; Second display: 0.46" (12 mm) high red LEDs. Both displays have six characters with leading zero blanking. Temperature value is four or five-digit F/C, based on configuration. 1 or 0.1 for all thermocouples and RTD inputs

Eight user selectable intensity levels

5/second (200 ms)

Display flashes

Four front panel buttons, digital inputs, PC and DP6000-SOFT software, Modbus registers, or cloning using Copy function.

recommended at least every 12 months.

Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.

Three programmable passwords restrict modification of programmed settings.

Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs.

All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.

85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or jumper selectable 12/24 VDC  10%, 15 W max

blow; up to 6 meters may share one 5 A fuse

Greater than 60 dB at 50/60 Hz

500 V input-to-output

99999

-9999

Page 11

DP6070 Temperature Meter Instruction Manual



OVERVOLTAGE CATEGORY

ENVIRONMENTAL Operating temperature range: -40 to 65°C

CONNECTIONS Removable screw terminal blocks accept 12 to 22 AWG

ENCLOSURE 1/8 DIN, high impact plastic, UL 94V-0, color: black

MOUNTING 1/8 DIN panel cutout required:

TIGHTENING TORQUE

OVERALL DIMENSIONS

WEIGHT 9.5 oz (269 g)

WARRANTY 3 years parts & labor

Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Storage temperature range: -40 to 85°C Relative humidity: 0 to 90% non-condensing

wire, RJ45 for external relays, digital I/O, and serial communication adapters.

3.622" x 1.772" (92 mm x 45 mm) Two panel mounting bracket assemblies are provided.

Screw terminal connectors: 5 lb-in (0.56 Nm)

4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D)

Temperature Input

INPUTS Thermocouple: J, K, T, E, R, S, B, N, C;

COLD JUNCTION REFERENCE

TEMPERATURE DRIFT

OFFSET ADJUSTMENT

INPUT IMPEDANCE

SENSOR BREAK DETECTION

RTD AVERAGING

RTD: 100  platinum (0.00385 & 0.00392 coefficients), 10  copper, 120  nickel, 1000  platinum (0.00385 &

0.00392 coefficients)

Automatic, fixed, no user calibration needed

2C maximum from 0 to 65C ambient temperature 4C maximum from -20 to 0C ambient temperature

User programmable offset adjust ±50.0 degrees. This parameter allows the user to apply an offset value to the temperature being displayed.

Greater than 100 k

Open TC or RTD sensor indicated by display flashing oPEn, relays can be programmed to go “On”, “Off”, or to “Ignore” (Note: Ignore is detected as an upscale condition). Analog output goes to the programmed sensor break value.

Up to 10 RTDs connected in parallel can be averaged.

Page 12

DP6070 Temperature Meter Instruction Manual

ACCURACY & RANGES

Type Range (°F) Accuracy Range (°C) Accuracy

J -200 to 2000 ±1.8°F -129 to 1093 ±1°C

K -200 to 2400 ±1.8°F -129 to 1316 ±1°C

T -200 to 752 ±1.8°F -129 to 400 ±1°C

E -200 to 1800 ±1.8°F -129 to 982 ±1°C

R -50 to 3000 ±3.6°F -46 to 1649 ±2°C

S -50 to 3000 ±3.6°F -46 to 1649 ±2°C

B 752 to 3300 ±3.6°F 400 to 1816 ±2°C

N -100 to 2300 ±3.6°F -73 to 1260 ±2°C

C 32 to 4100 ±3.6°F 0 to 2260 ±2°C

10

100

120

1000

-328 to 500 ±0.2°F -200 to 260 ±0.1°C

-328 to 1562 ±0.7°F -200 to 850 ±0.4°C

-110 to 500 ±0.2°F -79 to 260 ±0.1°C

-328 to 900 ±0.7°F -200 to 482 ±0.4°C

F4 DIGITAL INPUT CONTACTS

F4 DIGITAL INPUT LOGIC LEVELS

3.3 VDC on contact. Connect normally open contacts across F4 to COM.

Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC

Relays

RATING 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A)

NOISE SUPPRESSION

DEADBAND 0-100% of span, user programmable

HIGH OR LOW ALARM

RELAY OPERATION

external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads

Noise suppression is recommended for each relay contact switching inductive loads; see page 26 for details.

User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turn off).

Automatic (non-latching) Latching (requires manual acknowledge) Sampling (based on time) Relay alternation control (2 to 8 relays)

Page 13

DP6070 Temperature Meter Instruction Manual

Off (disable unused relays and enable Interlock feature) Manual on/off control mode

RELAY RESET User selectable via front panel buttons or digital inputs

TIME DELAY 0 to 999.9 seconds, on & off relay time delays

FAIL-SAFE OPERATION

AUTO INITIALIZATION

1. Automatic reset only (non-latching), when the input passes the reset point.

2. Automatic + manual reset at any time (non-latching)

3. Manual reset only, at any time (latching)

4. Manual reset only after alarm condition has cleared (L)

Note: Front panel button or digital input may be assigned to acknowledge relays programmed for manual reset.

Programmable and independent for each relay

Programmable and independent for each relay.

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

When power is applied to the meter, relays will reflect the state of the input to the meter.

Isolated 4-20 mA Transmitter Output

OUTPUT SOURCE

SCALING RANGE 1.000 to 23.000 mA for any display range

CALIBRATION Factory calibrated 0.0 to 2000.0 = 4-20 mA output

ANALOG OUT PROGRAMMING

ACCURACY ± 0.1% of span ± 0.004 mA

TEMPERATURE DRIFT

ISOLATED TRANSMITTER POWER SUPPLY

EXTERNAL LOOP POWER SUPPLY

OUTPUT LOOP RESISTANCE

35 VDC (external)

PV (temperature), max, min, set points 1-8, Modbus PV input, or manual control mode

23.000 mA maximum for all parameters:

Overrange, underrange, max, min, and break

0.4 µA/C max from 0 to 65C ambient,

0.8 µA/C max from -20 to 0C ambient

Note: Analog output drift is separate from input drift.

Terminals I+ & R: 24 VDC  10%. May be used to power the 4-20 mA output or other devices.Refer to Figure 6 on page 21 and Figure 17 on page 27.

All models rated @ 40 mA max.

35 VDC maximum

Power supply Minimum Maximum

24 VDC

10  700 

100  1200 

Page 14

DP6070 Temperature Meter Instruction Manual

Modbus

SLAVE ID 1 – 247 (Meter address)

BAUD RATE 300 – 19,200 bps

TRANSMIT TIME DELAY

DATA 8 bit (1 start bit, 1 or 2 stop bits)

PARITY Even, Odd, or None with 1 or 2 stop bits

BYTE-TO-BYTE TIMEOUT

TURN AROUND DELAY

Note: Refer to the Modbus Register Tables located at www.omega.com for details.

RTU Serial Communications

Programmable between 0 and 199 ms

0.01 to 2.54 sec

Less than 2 ms (fixed)

DPA1044 Digital Input & Output Expansion Module

CHANNELS 4 digital inputs & 4 digital outputs per module

SYSTEM Up to 2 modules for a total of 8 inputs & 8 outputs

DIGITAL INPUT LOGIC HIGH

DIGITAL INPUT LOGIC LOW

DIGITAL OUTPUT LOGIC HIGH

DIGITAL OUTPUT LOGIC LOW

SOURCE CURRENT

SINK CURRENT

+5 V TERMINAL

3 to 5 VDC

0 to 1.25 VDC

3.1 to 3.3 VDC

0 to 0.4 VDC

10 mA maximum output current

1.5 mA minimum input current

To be used as pull-up for digital inputs only. Connect normally open contacts across +5 V & DI 1-4

Page 15

DP6070 Temperature Meter Instruction Manual

COMPLIANCE INFORMATION

Safety

UL & c-UL LISTED USA & Canada

UL FILE NUMBER E356479

FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel gasket provided

LOW VOLTAGE DIRECTIVE

Electromagnetic Compatibility

EMISSIONS

Radiated Emissions

AC Mains Conducted Emissions

IMMUNITY

RFI - Amplitude Modulated

Electrical Fast Transients

Electrostatic Discharge

RFI - Conducted AC Surge Surge Power-Frequency

Magnetic Field Voltage Dips

Voltage Interruptions

UL 508 Industrial Control Equipment

EN 61010-1:2001 Safety requirements for measurement, control, and laboratory use

EN 55022:2006/A1:2007 Class A ITE emissions requirements

Class A

EN 61326-1:2006 Measurement, control, and laboratory equipment

EN 61000-6-2:2005 EMC heavy industrial generic immunity standard

80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)

±2kV AC mains, ±1kV other

±4kV contact, ±8kV air

10V, 0.15-80 MHz, 1kHz 80% AM

±2kV Common, ±1kV Differential

1KV (CM)

3 A/m 70%V for 0.5 period

40%V for 5 & 50 periods 70%V for 25 periods

<5%V for 250 periods

Page 16

DP6070 Temperature Meter Instruction Manual

Note:

Testing was conducted on DP6070 meters installed through the covers of grounded metal enclosures with cable shields grounded at the point of entry representing installations designed to optimize EMC performance.

Declaration of Conformity available at www.omega.com

SAFETY INFORMATION

WARNING!

CAUTION: Read complete

instructions prior to installation and operation of the meter.

Hazardous voltages exist within enclosure. Installation and service should be performed only by trained service personnel.

WARNING: Risk of electric shock or personal injury.

Page 17

DP6070 Temperature Meter Instruction Manual

INSTALLATION

There is no need to remove the meter from its case to complete the installation, wiring, and setup. Instructions are provided for setting up a 12/24 VDC powered meter to operate from 12 VDC power, see page 19.

Unpacking

Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the meter malfunctions, please contact your supplier or the factory for assistance.

Panel Mounting Instructions

 Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm x 45 mm).

Refer to Figure 1 below, for more details.

 Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.

 Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).

Recommended minimum panel thickness to maintain Type 4X rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.

 Remove the two mounting brackets provided with the meter (back-off the two

screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the bracket toward the front of the case and remove).

 Insert meter into the panel cutout.

 Install mounting brackets and tighten the screws against the panel. To

achieve a proper seal, tighten the mounting bracket screws evenly until meter is snug to the panel along its short side. DO NOT OVER TIGHTEN, as the rear of the panel may be damaged.

3.622" (92mm)

1.772"

(45mm)

Square Corners to 0.060"

(1.5mm) Max Radius

Panel Cutout to DIN 43700

Tolerances:

: +0.032 (+0.8mm)

-0.000 (-0.0mm) B: +0.024 (+0.6mm)

-0.000 (-0.0mm)

Refer to page 18 for mounting dimensions

Figure 1. 1/8 DIN Panel Cutout Dimensions

Page 18

DP6070 Temperature Meter Instruction Manual

Mounting Dimensions

Figure 2. Meter Dimensions - Side View

Figure 3. Meter Dimensions - Top View

Page 19

DP6070 Temperature Meter Instruction Manual

Gasket

Panel

Removable Connectors

Mounting

Bracket

Mounting

Screw

Figure 4. Panel Mounting Details

Configuration for 12 or 24 VDC Power Option

Warning!

Do not exceed voltage rating of the selected configuration.

Meters equipped with the 12/24 VDC power option are shipped from the factory ready to operate from 24 VDC.

To configure the meter for 12 VDC power:

1. Remove all the connectors.

2. Unscrew the back cover.

3. Slide the back cover about 1 inch.

4. Configure the J9 jumper, located behind the power connector, for 12 V as shown below.

J9 CONFIGURATION

+ _

MAIN BOARD

12 V

24 V

Factory Default

M-LINK

24 VDC 12 VDC POWER

Figure 5. Jumper Configuration for 12/24 VDC Power

Page 20

DP6070 Temperature Meter Instruction Manual

Connections

All connections are made to removable screw terminal connectors located at the rear of the meter.

Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety

regulations. Electrical wiring should be performed in accordance with all applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

Page 21

DP6070 Temperature Meter Instruction Manual

Connectors Labeling

The connectors’ label, affixed to the meter, shows the location of all connectors available with requested configuration.

Do not connect any equipment other than OMEGAs expansion modules, cables, or meters to the RJ45

Warning!

M-LINK connector. Otherwise damage will occur to the equipment and the meter.

Figure 6. Connector Labeling for Fully Loaded DP6070

Power Connections

Power connections are made to a two-terminal connector labeled POWER on Figure 6. The meter will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention.

POWER

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

Figure 7. Power Connections

Page 22

DP6070 Temperature Meter Instruction Manual

Signal Connections

Signal connections are made to a three-terminal connector labeled SIGNAL on Figure 6.

Thermocouple and RTD Connections

The following figures show examples for thermocouple and RTD connections.

The TYPE selector switch must be set to the proper position for the meter to accept the selected RTD or TC input.

The RANGE selector switch is used to select 100-ohm platinum or 10-ohm copper RTD. The 1000-ohm platinum RTD input uses the same setting as the 100-ohm RTD.

The input type is selected using the Setup menu. The selected thermocouple input must correspond to the thermocouple

sensor and wire type used.

SIGNAL

EXC T+ COM

123

RTD

100

12 3 45678

TYPE

RANGE

M-LINK

Figure 8. Thermocouple Input Connections

Page 23

DP6070 Temperature Meter Instruction Manual

SIGNAL

EXC T+ COM

123

RTD

100

12 3 45678

TYPE

RANGE

M-LINK

RTD

Sensor

Figure 9. Three-Wire RTD Input Connections

The meter accepts two, three, or four-wire RTDs. The three-wire RTD connection has built-in lead wire compensation.

SIGNAL

EXC T+ COM

123

RTD

TYPE

100

RANGE

RTD

Sensor

Figure 10. Two-Wire RTD Input Connections

Lead wire compensation for two-wire RTDs can be applied using the Adjust menu. See the Advanced Features Menu on page 64.

12 3 45678

M-LINK

Page 24

DP6070 Temperature Meter Instruction Manual

SIGNAL

EXC T+ COM

123

RTD

100

12 3 45678

TYPE

RANGE

M-LINK

RTD

Sensor

Figure 11. Four-Wire RTD Input Connections

The four-wire RTD connection is similar to the three-wire. One of the leads of a four-wire RTD is not connected, and may be clipped off.

The three-wire connection provides sufficient lead wire compensation to obtain accurate readings even with long leads.

Connections for Averaging RTD Sensors

To obtain the average temperature from 2 to 10 RTD sensors, connect all the sensors in parallel and select the number of sensors in the RTD Total (

rtdtot) menu. See the Advanced Features Menu on page 64.

SIGNAL

EXC T+ COM

123

RTD

TYPE

100

RANGE

12 3 45678

M-LINK

RTD1

RTD2 RTD3

Figure 12. Average Temperature RTD Input Connections

Page 25

DP6070 Temperature Meter Instruction Manual

Modbus RTU Serial Communications

Serial communications connection is made to an RJ45 connector labeled M-LINK on Figure 6. For interfacing to the DP6070 for RS-232, the DPA1485 for RS-485, or the DPA8008 for USB. The same port is used for interfacing with all expansion modules (i.e. external relays, digital I/O).

Use the DPA1200 meter copy cable for meter-to-meter interfacing for cloning purposes (i.e. copying settings from one meter to other meters).

, use the DPA1232

Relay Connections

Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4 on Figure 6. Each relay’s C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the corresponding relay. The relays’ C terminals should not be confused with the COM (common) terminal of the INPUT SIGNAL connector.

RELAY4 RELAY3

4365 21

CNONO NC NC C

Figure 13. Relay Connections

RELAY2 RELAY1

4365 21

CNONO NC NC C

Page 26

DP6070 Temperature Meter Instruction Manual

Switching Inductive Loads

The use of suppressors (snubbers) is strongly recommended when switching inductive loads to prevent disrupting the microprocessor’s operation. The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:

Figure 14. AC and DC Loads Protection

Choose R and C as follows: R: 0.5 to 1  for each volt across the contacts

C: 0.5 to 1 µF for each amp through closed contacts

Notes:

1. Use capacitors rated for 250 VAC.

2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.

3. Install the RC network at the meter's relay screw terminals. An RC network may also be installed across the load. Experiment for best results.

Use a diode with a reverse breakdown voltage two to three times the circuit voltage and forward current at least as large as the load current.

Note: Relays are de-rated to 1/14th HP (50 watts) with an inductive load.

Figure 15. Low Voltage DC Loads Protection

Page 27

DP6070 Temperature Meter Instruction Manual

F4 Digital Input Connections

A digital input, F4, is standard on the meter. This digital input connected with a normally open closure across F4 and COM, or with an active low signal applied to F4.

Figure 16. F4 Digital Input Connections

4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connector terminals labeled MA OUT. The 4-20 mA output may be powered internally or from an external power supply.

24 V

MA OUT

12-35 VDC

Power Supply

RI- I+

132

RELAY1

321

MA OUT

4-20 mA Input

Remote Display,

Chart Recorder, Etc.

24 V

RI- I+

132

RELAY1

321

4-20 mA

Input Meter

Figure 17. 4-20 mA Output Connections

Analog Output Transmitter Power Supply

The internal 24 VDC power supply powering the analog output may be used to power other devices, if the analog output is not used. The I+ terminal is the +24 V and the R terminal is the return.

Page 28

DP6070 Temperature Meter Instruction Manual

External Relays & Digital I/O Connections

The relay and the digital I/O expansion modules DPA1004 & DPA1044 are connected to the meter using a CAT5 cable provided with each module. The two RJ45 connectors on the expansion modules are identical and interchangeable; they are used to connect additional modules to the system.

Note: The jumper located between the RJ45 connectors of the DPA1044

must be removed on the second digital I/O module in order for the system to recognize it as module #2.

Do not connect or disconnect the expansion modules

Warning!

with the power on! More detailed instructions are provided with each optional expansion module.

Figure 18. Expansion Modules & DIN Rail Mounting Kit

RLY5 RLY6 RLY7 RLY8

NO C NO C NO C NO C

Figure 19. External Relays Module Connections

345 678

Page 29

DP6070 Temperature Meter Instruction Manual

123456

+5 I1 I2 I3 I4 O1

5 VDC GND

DI 1-4 DO 1-4

O2 O3

910

O4 G

Figure 20. Digital I/O Module Connections

Interlock Relay Feature

As the name implies, the interlock relay feature reassigns one, or more, alarm/control relays for use as interlock relay(s). Interlock contact(s) are wired to digital input(s) and trigger the interlock relay. This feature is enabled by configuring the relay, and relative digital input(s) (see page

59). In one example, dry interlock contacts are connected in series to

one digital input which will be used to force on (energize) the assigned interlock power relay when all interlock contacts are closed (safe). The interlock relay front panel LED flashes when locked out. The interlock relay would be wired in-series with the load (N/O contact). See below.

Figure 21. Interlock Connections

Page 30

DP6070 Temperature Meter Instruction Manual

SETUP AND PROGRAMMING

The meter is factory calibrated prior to shipment to read temperature in degrees Fahrenheit. The calibration equipment is certified to NIST standards.

Overview

There are two switches, located at the back of the meter, to set the input selection for TC or RTD and for 100-ohm platinum or 10-ohm copper. The 1000-ohm RTD input uses the same setting as the 100-ohm.

Setup and programming is done through the front panel buttons. After power and input signal connections have been completed and

verified, apply power to the meter.

Page 31

DP6070 Temperature Meter Instruction Manual

Front Panel Buttons and Status LED Indicators

Button Symbol

Description LED Status

1-8 Alarm 1-8 indicator

Right arrow/F1

1-8-M

Up arrow/F2

Enter/F3

1-4

Note: F4 is a digital input. Alarms 5-8

are enabled when relay expansion module is installed.

 Press the Menu button to enter or exit the Programming Mode at any

time.

 Press the Right arrow button to move to the next digit during digit or

decimal point programming.

 Press or hold the Up arrow button to scroll through the menus,

move the decimal point or to increment the value of a digit.

 Press the Enter button to access a menu or to accept a setting.  Press and hold the Menu button for three seconds to access the

advanced features of the meter.

Note: LEDs for relays in manual mode

flash with the “M” LED every 10 seconds.

Flashing: Relay in manual control mode

Manual control relays &/or analog output

Flashing: Relay interlock switch open

Page 32

DP6070 Temperature Meter Instruction Manual

Display Functions & Messages

The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.

Display Parameter Action/Setting Description

setup

Input

Rtd

A385

A392

F or C

unitS

Dec pt

dsplay

big

Little

d-Inty

RELaY

Setup

Input

RTD

A385

A392

F or C

Units

Decimal point

Display

Big display

Little display

Display intensity

Relay

Enter Setup menu

Enter Input selection menu

Set meter for thermocouple input J, K, T, E, R, S, B, N, C

Set meter for RTD input 100Pt, 1000Pt, 10Cu, 120Ni

Set meter for 0.00385 curve

Set meter for 0.00392 curve

Press Enter to select degrees F or C

Select the display units/tags

Set decimal point dddd, dddd.d, dddd

Enter the Display menu

Press Enter to assign the Main display parameter (default: PV - temperature)

Press Enter to assign the small display parameter (default: engineering units)

Set display intensity level from 1 to 8

Enter the Relay menu

°F, dddd.dF

RLY 1

Act 1

Auto

A-nman

Relay 1

Action 1

Automatic

Auto-manual

Relay 1 setup

Set relay 1 action

Set relay for automatic reset

Set relay for automatic & manual reset any time

Page 33

DP6070 Temperature Meter Instruction Manual

Display Parameter Action/Setting Description

LatcH

Lt-CLr

Altern

Sanmpl

OFF

Set 1

RSt 1

RLY 2

FaiLSF

FLS 1

FLS 2

DeLAY

DLY 1

On 1

Latching

Latchingcleared

Alternate

Sampling

Off

Set 1

Reset 1

Relay 2

Fail-safe

Fail-safe 1

Fail-safe 2

Delay

Delay 1

On 1

Set relay for latching operation

Set relay for latching operation with manual reset only after alarm condition has cleared

Set relay for alternation control

Set relay for sampling operation

Disable relay and front panel status LED (Select Off to enable Interlock feature)

Program set point 1

Program reset point 1

Relays 2-8 setup

Note: Relays 5-8 are shown only if expansion relay module is installed

Enter Fail-safe menu

Set relay 1 fail-safe operation

Enable fail-safe operation

Set relays 2-8 fail-safe operation

Enter relay Time Delay menu

Enter relay 1 time delay setup

Set relay 1 On time delay

OFF 1

DLY 2

break

ignore

Off 1

Delay 2

Break

Ignore

Set relay 1 Off time delay

Enter relays 2-8 time delay setup

Set relay condition if input break detected

Ignore input break condition (Processed as an upscale condition)

Relay goes to alarm condition when input break is detected

Page 34

DP6070 Temperature Meter Instruction Manual

Display Parameter Action/Setting Description

Off

Aout

Dis 1

Out 1

Dis 2

Out 2

reset

Rst Hi

Rst Lo

Rst HL

Contrl

Auto

mAn

pass

Pass 1

Off

Analog output

Display 1

Output 1

Display 2

Output 2

Reset

Reset high

Reset low

Reset hi/low

Control

Automatic

Manual

Password

Password 1

Relay goes to non-alarm condition when input break is detected

Enter the Analog output scaling menu

Program display 1 value

Program output 1 value (e.g. 4.000 mA)

Program display 2 value

Program output 2 value (e.g. 20.000 mA)

Press Enter to access the Reset menu

Press Enter to reset max display

Press Enter to reset min display

Press Enter to reset max & min displays

Enter Control menu

Press Enter to set meter for auto operation

Press Enter to manually control relays or analog output operation

Enter the Password menu

Set or enter Password 1

Pass 2

Pass 3

unloc

locd

99999

-9999

Open

Password 2

Password 3

Unlocked

Locked

Flashing display

Open

Set or enter Password 2

Set or enter Password 3

Program password to lock meter

Enter password to unlock meter

Overrange condition Underrange condition

Open sensor indication

Page 35

DP6070 Temperature Meter Instruction Manual

Main Menu

The main menu consists of the most commonly used functions: Reset,

Control, Setup

 Press Menu button to enter Programming Mode then press the Up

arrow button to scroll main menu.

, and Password.

 Press Menu, at any time, to exit and return to Run Mode. Changes

made to settings prior to pressing Enter are not saved.

 Changes to the settings are saved to memory only after pressing

Enter/F3.

 The display moves to the next menu every time a setting is accepted

by pressing Enter/F3.

Page 36

DP6070 Temperature Meter Instruction Manual

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit value.

The digit being changed is displayed brighter than the rest. Press and hold up arrow to auto-increment the display value. Press the Enter button, at any time, to accept a setting or Menu button to

exit without saving changes.

001

001.00

set set set

Select

Next Digi

Increment

Digital

Va l u e

002

ccept

Setting

eet

Page 37

DP6070 Temperature Meter Instruction Manual

Setting Up the Meter (setup)

It is very important to read the following information, before proceeding to program the meter:

 The meter is factory calibrated prior to shipment to read

temperature in degrees Fahrenheit. The calibration equipment is certified to NIST standards.

 There is no need to calibrate the meter, simply select the input

type, °F or °C, and decimal point.

The

Setup menu is used to select:

1. Input type the meter will accept

2. Degrees F or C

3. Select the display units/tags

4. Decimal point position and F or C indication

5. Display parameter and intensity

6. Relay operation

7. 4-20 mA analog output scaling

Press the Enter button to access any menu or press Up arrow button to scroll through choices. Press the Menu button to exit at any time.

Page 38

DP6070 Temperature Meter Instruction Manual

Page 39

DP6070 Temperature Meter Instruction Manual

Setting the Input Signal (Input)

Enter the Input menu to set up the meter to accept thermocouple (tc) or

rtd) inputs. The Type selector switch, located at the rear of the

RTD ( meter, must be set accordingly.

The thermocouple input is capable of accepting various types of thermocouples.

The RTD input is capable of accepting various types of RTD sensors. After selecting 100 Pt or 1000Pt, it is necessary to select either A385 (0.00385) or A392 (0.00392) coefficient.

Selecting the Temperature Scale (F or C)

The meter can display the temperature in degrees Fahrenheit or Celsius.

Setting the Decimal Point (dEc pt)

The temperature may be displayed with one decimal or with no decimal point. The temperature scale can also be displayed with the reading. The degree symbol is available only with no decimal point selected.

Pressing the Up arrow scrolls the decimal point and temperature format selections.

Setting the Display Parameter & Intensity (dsplay)

The main display (Big) can be programmed to display:

1. Process value

2. Relay set points

3. Max & min values

4. Modbus input

5. Display reading and units

The small display (

1. Process value

2. Relay set points

3. Max & min values

4. Engineering units or custom legends

5. Modbus input

6. Off (no display)

7. Display reading and units

Display Intensity: The meter has eight display intensity levels to give the

best performance under various lighting conditions. Select intensity 8 for outdoor applications. The default intensity is 8.

Little) can be programmed to display:

Page 40

DP6070 Temperature Meter Instruction Manual

Display Setup Menu

 Press the Up arrow to change selection  Press Enter to accept setting  Press Menu to exit programming

After setting up the input and display, press the Menu button to exit programming and skip the rest of the setup menu. Press the Menu button again and the Up arrow to reach the setup of the meter.

Setup menu again and complete the

Page 41

DP6070 Temperature Meter Instruction Manual

Setting the Input Units or Custom Tags (units)

Enter the input unit or custom tag that will be displayed if alternating rate, total, or grand total and units is selected in the selected as the little display parameter. See the flow chart on page 40 to access the display menu to show the unit or tag on the little display. The engineering units or custom legends can be set using the following 7segment character set:

Display Character

0 1 2 3 4 5 6 7 8 9 A b C c d e f g 9 H h I

I j

Notes: Degree symbol represented by (<) if programming with DP6000-SOFT. The letters “m” and “w” use two 7-segment LEDs each; when selected the

characters to the right are shifted one position. Press and hold up arrow to auto-scroll the characters in the display.

0 1 2 3 4 5 6 7 8 9 A b C c d E F

I i

Display Character

units menu, or d unit is

k l

n O o p q r s t u v

x y z

/ [ ] =

K L

o P q

t u V

X Y Z

]

[ =

Degree(<)

Space

Page 42

DP6070 Temperature Meter Instruction Manual

Setting the Relay Operation (relay)

This menu is used to set up the operation of the relays.

CAUTION! During setup, the relays do not follow the input and they will

remain in the state found prior to entering the Relay menu.

1. Relay action a. Automatic reset only (non-latching) b. Automatic + manual reset at any time (non-latching) c. Latching (manual reset only) d. Latching with Clear (manual reset only after alarm condition

has cleared) e. Relay alternation control (automatic reset only) f. Sampling (the relay is activated for a user-specified time) g. Off (relay disabled and Interlock feature enabled)

2. Set point

3. Reset point

4. Fail-safe operation a. On (enabled) b. Off (disabled)

5. Time delay a. On delay (0-999.9 seconds) b. Off delay (0-999.9 seconds)

6. Relay action for loss (break) of input (ignore, on, off)

Page 43

DP6070 Temperature Meter Instruction Manual

Page 44

DP6070 Temperature Meter Instruction Manual

Setting the Relay Action

Operation of the relays is programmed in the Action menu. The relays may be set up for any of the following modes of operation:

1. Automatic reset (non-latching)

2. Automatic + manual reset at any time (non-latching)

3. Latching (manual reset only, at any time)

4. Latching with Clear (manual reset only after alarm condition has cleared)

5. Relay alternation control (automatic reset only)

6. Sampling (the relay is activated for a user-specified time)

7. Off (relay disabled and Interlock feature enabled)

The following graphic shows relay 1 action setup; relay 2-8 are set up in a similar fashion.

Page 45

DP6070 Temperature Meter Instruction Manual

Programming Set and Reset Points

High alarm indication: program set point above reset point. Low alarm indication: program set point below reset point. The deadband is determined by the difference between set and reset

points. Minimum deadband is one display count. If the set and reset points are programmed with the same value, the relay will reset one count below the set point.

Note: Changes are not saved until the reset point has been accepted.

Setting Fail-Safe Operation

In fail-safe mode of operation, the relay coil is energized when the process variable is within safe limits and the relay coil is de-energized when the alarm condition exists. The fail-safe operation is set independently for each relay. Select fail-safe operation.

on to enable or select off to disable

Programming Time Delay

The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay.

The

On time delay is associated with the set point.

The

Off time delay is associated with the reset point.

Relay Action for Loss of Input (Input Break)

Each relay may be programmed to go to one of the following conditions when the meter detects the loss of the input signal:

1. Turn

2. Turn

3. Ignore (Processed as an upscale condition)

On (Go to alarm condition) Off (Go to non-alarm condition)

Page 46

DP6070 Temperature Meter Instruction Manual

DP6000-SOFT Software

The meter can also be programmed using the PC-based DP6000-SOFT software available for free download at www.omega.com.

Data logging for one meter at the time is available with DP6000-SOFT software. More advanced data acquisition may be accomplished by using any Modbus RTU compliant software.

In order to program the meter using a computer, the meter must be connected using a USB, RS-232, or RS-485 serial adapter, see ORDERING INFORMATION on page 9 for details.

Page 47

DP6070 Temperature Meter Instruction Manual

Relay and Alarm Operation Diagrams

The following graphs illustrate the operation of the relays, status LEDs, and ACK button.

High Alarm Operation (Set > Reset)

Input

Set

Reset

Relay

LED

energized

off

de-energized

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing below Reset (latching with clear)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

Page 48

DP6070 Temperature Meter Instruction Manual

Low Alarm Operation (Set < Reset)

Input

Reset

Set

Relay

LED

energized

de-energized

off

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing above Reset (latching with clear)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. For relay to turn back "on", signal must go above set point, and then go below it.

Page 49

DP6070 Temperature Meter Instruction Manual

High Alarm with Fail-Safe Operation (Set > Reset)

Input

Set

Reset

Relay

LED

energized

off

de-energized

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing below Reset (latching with clear)

Note: Relay coil is energized in non-alarm condition. In

case of power failure, relay will go to alarm state.

Page 50

DP6070 Temperature Meter Instruction Manual

Low Alarm with Fail-Safe Operation (Set < Reset)

Input

Reset

Set

Relay

LED

de-energized

energized

off

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing above Reset (latching with clear)

Note: Relay coil is energized in non-alarm condition. In

case of power failure, relay will go to alarm state.

Page 51

DP6070 Temperature Meter Instruction Manual

LEDs indicate the relay status

Relay Alternation Control Operation

Input

de-energized energized

Pump 1

Relay1 &

Relay1 Set

Relay2 Set

Relay2 Reset

Pump 2

Relay1 Set

Relay2 Set

de-energized energized

Relay2 Reset

Relay1 Reset

Pump 1

Input

de-energized energized

Pump 1

Pump 2

Relay1 Set

Relay2 Set

Relay1 Reset

Relay2 Reset

Pump 2

Page 52

DP6070 Temperature Meter Instruction Manual

Relay Sampling Operation

Input

Set

Reset

Relay

LED

Sample

Tim e

Sample

Tim e

Sample

Tim e

When the signal crosses the set point, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the set point is crossed, going up for high alarms and going down for low alarms.

The sample time can be programmed between 0.1 and 5999.9 seconds.

Page 53

DP6070 Temperature Meter Instruction Manual

Signal Loss or Input Break Relay Operation

The following graph shows the input break relay operation for a high alarm relay.

Set

Reset

Relay

LED

Relay

LED

Relay

Input

de-energized energized

off on

Input Break = Ignore

INPUT

BREAK

Input Break = Off

INPUT BREAK

LED

Input Break = On

When the meter detects a break in the input, the relay will go to one of the following selected actions:

1. Turn

2. Turn

On (Go to alarm condition) Off (Go to non-alarm condition)

3. Ignore (Processed as an upscale condition)

Page 54

DP6070 Temperature Meter Instruction Manual

Time Delay Operation

The following graphs show the operation of the time delay function.

Input

Set

Reset

<Tdelay <Tdelay >=Tdelay

Relay

LED

On Time Delay

Input

Set

Reset

<Tdelay <Tdelay >=Tdelay

Relay

LED

Off Time Delay

When the signal crosses the set point, the

On time delay timer starts and

the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the On time delay timer resets and the relay does not change state. The same principle applies to the Off time delay.

Note: If “Automatic or Manual (

A-nmAn

)” reset mode is selected, the LED

follows the reset point and not the relay state when the relay is acknowledged.

Page 55

DP6070 Temperature Meter Instruction Manual

Relay Operation Details

Overview

The relay capabilities of the meter expand its usefulness beyond simple indication to provide users with alarm and control functions. These capabilities include front panel alarm status LEDs as well as either 2 or 4 optional internal relays and/or 4 external relays expansion module. Typical applications include high or low temperature alarms, control applications such as simple on/off temperature control. There are four basic ways the relays can be used:

1. High or Low Alarms with Latching or Non-Latching Relays

2. Simple On/Off Control with 100% Adjustable Deadband

3. Sampling (Based on Time)

4. Relay Alternation Control

Relays Auto Initialization

When power is applied to the meter, the front panel LEDs and alarm relays will reflect the state of the input to the meter. The following table indicates how the alarm LEDs and relays will react on power-up based on the set and reset points:

Alarm # HI or LO

Alarm

1 HI 1000 500 499 Off 2 LO 700 900 499 On 3 LO 250 400 499 Off 4 HI 450 200 499 On

Set

Point

Reset

Point

Power-Up

Reading

Fail-Safe Operation

The following table indicates how the relays behave based on the failsafe selection for each relay:

Fail-Safe Selection

Off Open Closed Closed Open Relays go to

On Closed Open Open Closed Relays go to

Note: NO = Normally Open, NC = Normally Closed. This refers to the

Non-Alarm State Alarm State Power Failure

NO NC NO NC

condition of the relay contacts when the power to the meter is off.

Relay &

LED

non-alarm state

alarm state

Page 56

DP6070 Temperature Meter Instruction Manual

Front Panel LEDs

The LEDs on the front panel provide status indication for the following:

LED Status LED Status

1 Alarm 1 5 Alarm 5 2 Alarm 2 6 Alarm 6 3 Alarm 3 7 Alarm 7 4 Alarm 4 8 Alarm 8

The meter is supplied with four alarm points that include front panel LEDs to indicate alarm conditions. This standard feature is particularly useful for alarm applications that require visual-only indication. The LEDs are controlled by the set and reset points programmed by the user. When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset point the LED will go off. The front panel LEDs respond differently for latching and non-latching relays.

For non-latching relays, the LED is always off during normal condition and always on during alarm condition, regardless of the state of the relay (e.g. Relay acknowledged after alarm condition).

For latching relays, the alarm LEDs reflect the status of the relays, regardless of the alarm condition. The following tables illustrate how the alarm LEDs function in relation to the relays and the acknowledge button (Default: F3 key assigned to ACK):

Latching and Non-Latching Relay Operation

The relays can be set up for latching (manual reset) or non-latching (automatic reset) operation.

Relay terminology for following tables Terminology Relay Condition

On Alarm (Tripped) Off Normal (Reset)

Ack Acknowledged

The On and Off terminology does not refer to the status of the relay’s coil, which depends on the fail-safe mode selected.

Warning!

In latching relay mode, latched relays will reset

(unlatch) when power is cycled.

Page 57

DP6070 Temperature Meter Instruction Manual

Non-Latching Relay (Auto)

Automatic reset only

Condition LED Relay

Normal Off Off Alarm On On Ack (No effect) On On Normal Off Off

In this application, the meter is set up for automatic reset (non-latching relay). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm finally goes away, the relay automatically resets and the LED also goes off.

Non-Latching Relay (A-nman)

Automatic + manual reset at any time

Condition LED Relay

Normal Off Off Alarm On On Normal Off Off Next Alarm On On Ack On Off Normal Off Off

In this application, the meter is set up for automatic and manual reset at any time (non-latching relay). The LED and the relay automatically reset when the meter returns to the normal condition. The next time an alarm occurs, the operator acknowledges the alarm manually while the alarm condition still exists. This causes the relay to reset, but the LED stays on until the meter returns to the normal condition.

Latching Relay (LatcH)

Manual reset any time

Condition LED Relay

Normal Off Off Alarm On On

Ack Off Off In this application, the meter is set up for manual reset at any time. Acknowledging the alarm even if the alarm condition is still present resets the relay and turns off the LED.

Page 58

DP6070 Temperature Meter Instruction Manual

Latching Relay (Lt-Clr)

Manual reset only after alarm condition has cleared

Condition LED Relay

Normal Off Off Alarm On On Ack (No effect) On On Normal On On

Ack Off Off In this application, the meter is set up for manual reset only after the signal passes the reset point (alarm condition has cleared). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm is acknowledged after it returns to the normal state, the LED and the relay go off. Notice that the LED remains on, even after the meter returns to the normal condition. This is because, for latching relays, the alarm LED reflects the status of the relay, regardless of the alarm condition.

Acknowledging Relays

There are two ways to acknowledge relays programmed for manual reset:

1. Via the programmable front panel function keys F1-F3 (Default: F3 assigned to ACK).

2. Remotely via a normally open pushbutton wired across one of the digital inputs and the +5 V terminals on the digital I/O modules, or using the F4 digital input, which is triggered with a contact closure to COM, or with an active low signal (see page 27).

When the ACK button or the assigned digital input is closed, all relays programmed for manual reset are acknowledged.

DPA1044 Digital I/O Module

1 234 5678910

I1 I2 I3 I4

DI 1-4

O1 O2 O3 O4 G

DO 1-4

GND

Figure 22. Acknowledge Relays w/Function Key or Digital Input

Page 59

DP6070 Temperature Meter Instruction Manual

Setting Up the Interlock Relay (Force On) Feature

Relays 1-4 can be set up as interlock relays. To set up the relays for the interlock feature:

1. Access the

2. In the Advanced features – inputs to

3. Connect a switch or dry contact between the +5V terminal and the corresponding digital input (dI-1 to dI-4) terminal.

Setup – Relay – Action menu and set the action to off.

User menu program any of the digital

Force On any of the internal relays (1-4).

SW2

SW1

123456

+5 I1 I2 I3 I4 O1

5 VDC GND

DI 1-4 DO 1-4

O2 O3

910

O4 G

Interlock Relay Operation

Relays 1 & 2 are energized when SW1 & SW2 switches are closed and the front panel LEDs are off. If the contact to the digital input is opened, the corresponding front panel LED flashes indicating this condition. The processes being controlled by the interlock relay stop and will re-start only after the interlock relay is activated by the digital inputs.

Page 60

DP6070 Temperature Meter Instruction Manual

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog output can be scaled to provide a 4-20 mA signal for any display range selected.

No equipment is needed to scale the analog output; simply program the display values to the corresponding mA output signal.

The

Analog Output menu is used to program the 4-20 mA output based

on display values.

Note: During the analog output scaling, the display value is always

indicated with a decimal point regardless of the decimal point selection for the temperature display.

For instructions on how to program

numeric values see

Values

Setting Numeric

, page 36.

Page 61

DP6070 Temperature Meter Instruction Manual

Reset Menu (reset)

The Reset menu is used to reset the maximum or minimum reading (peak or valley) reached by the process; both may be reset at the same time by selecting “reset high & low” (rst HL).

Control Menu (Contrl)

The Control menu is used to control the 4-20 mA analog output and the relays manually, ignoring the input. Each relay and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.

Page 62

DP6070 Temperature Meter Instruction Manual

Setting Up the Password (pass)

The Password menu is used for programming three levels of security to prevent unauthorized changes to the programmed parameter settings.

Protecting or Locking the Meter

Enter the Password menu and program a six-digit password. For instructions on how to program numeric values see

Values

, page 36.

Setting Numeric

Record the password for future reference. If appropriate, it may be recorded in the space provided.

Model: Serial Number: Password 1: __ __ __ __ __ __ Password 2: __ __ __ __ __ __ Password 3: __ __ __ __ __ __

Page 63

DP6070 Temperature Meter Instruction Manual

Making Changes to a Password Protected Meter

If the meter is password protected, the meter will display the message

Locd (Locked) when the Menu button is pressed. Press the Enter button

while the message is being displayed and enter the correct password to gain access to the menu.

Note: After exiting the programming mode, the meter returns to its

password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and enter the correct password twice, as shown below. The meter is now unprotected until a new password is entered.

If the correct six-digit password is entered, the meter displays the message password is programmed.

If the password entered is incorrect, the meter displays the message

Locd (Locked) for about two seconds, and then it returns to Run Mode.

To try again, press Enter while the

unLoc (unlocked) and the protection is disabled until a new

Locked message is displayed.

Did you forget the password?

The password may be disabled by entering a master password once. If you are authorized to make changes, enter the master password 508655 to unlock the meter.

Page 64

DP6070 Temperature Meter Instruction Manual

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the

Press and hold the Menu button for three seconds to access the advanced features of the meter.

Advanced Features menu.

Page 65

DP6070 Temperature Meter Instruction Manual

Advanced Features Menu & Display Messages

The following table shows the functions and messages of the Advanced

Features

Display Parameter Action/Setting

Adjust

T cal

rtdtot

filtEr

bypASs

Round

seriAl

SelEct

menu in the order they appear in the menu.

Set adjust value to offset temperature reading

Enter temperature calibration menu

Apply the low temperature input (e.g. 32°F)

Apply the high temperature input (e.g. 1000

Set the number of RTDs connected in parallel to obtain average temperature

Set noise filter value

Set filter bypass value

Set the rounding value for display variables

Set serial communication parameters

Set slave ID or meter address

Select baud rate

Set transmit delay for serial communication

Select parity Even, Odd, or None with 1 or 2 stop bits

Set byte-to-byte timeout

Enter the Select menu

Program analog output parameters

Select source for the 4-20 mA output

Program mA output for display overrange

Program mA output for display underrange

Set relay condition if loop break detected

Program maximum mA output allowed

Program minimum mA output allowed

T lo

T Hi

SlaveId

baud

Tr dLY

Parity

t-byt

AoutPr

Source

O-rang

u-rang

Break

mAx

min

Adjust

T Cal

T Low

T High

RTD Total

Filter

Bypass

Round

Serial

Slave ID

Baud rate

Transmit delay

Parity

Time byte

Select

Analog output programming

Source

Overrange

Underrange

Loop Break

Maximum

Minimum

°F)

Page 66

DP6070 Temperature Meter Instruction Manual

Display Parameter Action/Setting

Calib

4 mA

20 mA

user

dI I

dO 1

ICal

mref

0nmv

100nmv

Copy

send

done

Diag

Input

F or C

Units

Adjust

rtdtot

filter

Calibrate

4 mA output

20 mA output

User I/O

F1 function key

F2 function key

F3 function key

F4 function

Digital input 1

Digital output 1

Internal temp calibration

Measured temp reference

0 mV

100 mV

Copy

Send

Done

Diagnostics

Input

Degree units

Units

Adjust

Rtd Total

Filter

Calibrate 4-20 mA output (internal reference source used for scaling the output)

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

Assign function keys and digital I/O

Assign F1 function key

Assign F2 function key

Assign F3 function key

Assign F4 function (digital input)

Assign digital input 1- 8, if expansion modules are connected

Assign digital output 1- 8, if expansion modules are connected

Enter internal temperature calibration (used for factory calibration only)

Enter the measured reference temperature in degrees Celsius (e.g. 25.0)

Apply 0.000 mV input Internal Calibration

Apply 100.000 mV input

Enter copy function

Send meter settings to another meter

Copy function completed

Display parameter settings

Input selection

Fahrenheit or Celsius

Select the display units/tags

Enter Adjust Menu

Enter RTD Total Menu

Filter value

Page 67

DP6070 Temperature Meter Instruction Manual

Display Parameter Action/Setting

bypass

round

dsplay

relay

Aout

Aout pr

Serial

LED t

Info

Bypass

Round

Display

Relays

Analog output

Analog output programming

Serial

LED test

Information

Bypass value

Round value

Display assignments

Relay settings

Analog output scaling

Analog output programming

Serial communication settings

Test all LEDs

Display software and S/N information

Page 68

DP6070 Temperature Meter Instruction Manual

Offset Adjust (Adjust)

This parameter allows the user to select an offset adjustment to the temperature being displayed. Offset adjustment values can be either positive or negative and can be any number within offset adjustment value is programmed through the

The offset adjustment feature can be useful to compensate for errors due to thermocouple junctions or excessive lead wire resistance in RTDs.

Note: The offset adjustment value is not reset to zero when the type of

temperature sensor is changed (i.e. TC type or RTD curve). Celsius/Fahrenheit conversion must be made manually by the user.

50.0F (+27.8C). The

Adjust menu.

Recalibration of the Meter (t CAL)

The Calibration (t CAL) menu is used to recalibrate the thermocouple and RTD inputs.

 The meter is factory calibrated prior to shipment to read

temperature in degrees Fahrenheit. The calibration equipment is certified to NIST standards.

 There is no need to calibrate the meter, simply select

the input type, °F or °C, and decimal point.

 Check calibration of the meter at least every 12 months.

Allow at least 30 minutes warm-up time before performing recalibration procedure to ensure specified accuracy.

Page 69

DP6070 Temperature Meter Instruction Manual

Recommended Calibration Points

To recalibrate the meter, it is recommended to use the Fahrenheit scale; this will give a greater degree of accuracy to the calibration. The scale can be changed to the Celsius scale after calibration is completed. The meter will display temperature accurately in any scale. The following table shows the recommended low and high calibration points for all types.

Type of input Input 1

Type J

Type K

Type T

Type E

Type R

Type S

Type B

Type N

Type C

10  Cu RTD

100  Pt RTD (0.00385)

100  Pt RTD (0.00392)

120  Ni RTD

1000  Pt RTD (0.00385)

1000  Pt RTD (0.00392)

(Low)

500

32F

9.035

32F

100

32F

100

32F

120

32F

1000

32F

1000

Input 2 (High)

F 1184F 600F

F 1895F 960F

F 698F 360F

F 1652F 800F

F 3110F 1500F

F 1472F 700F

F 3650F 1800F



450F

18.032

1148F

320.12

1148F

324.49

410F

315.31

900F

2750.4

900F

2785.1



Check (Middle)

200

12.639

590

215.61

590

217.89

221

205.22

450

1876.5

450

1893.7

F



F



F



F



F



F



Recalibration Procedure

1. Connect signal to the meter using the appropriate wire (e.g. type J

thermocouple wire to recalibrate type J input), see page 22.

2. Set up the meter to accept the selected input (e.g. type J T/C), see

page 39.

Page 70

DP6070 Temperature Meter Instruction Manual

3. Set up the meter to display temperature in degrees Fahrenheit.

4. Apply signal corresponding to input 1 (32°F) and program the display

to read 32.0.

5. Apply signal corresponding to input 2 (1184°F for type J) and

program the display accordingly.

6. After the meter accepts input 2, the display returns to reading mode.

This completes the recalibration procedure for the selected input.

Noise Filter (filter)

The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise filter averages the input signal over a certain period. The filter level determines the length of time over which the signal is averaged. The filter level can be set between 2 and 199. The higher the filter level, the longer the averaging time and so the longer it takes the display to settle to its final value. Setting the filter level to zero disables the filter function.

Noise Filter Bypass (bypass)

The noise filter bypass changes the behavior of the meter so that small variations in the signal are filtered out but large abrupt changes in the input signal are displayed immediately. The bypass value determines the minimum amount of signal change to be displayed immediately. All signal changes smaller than the bypass value are filtered or averaged by the meter. The noise filter bypass may be set between 0.1 and 99.9% of full scale.

Rounding Feature (round)

The rounding feature is used to give the user a steadier display with fluctuating signals. Rounding is used in addition to the filter function.

Rounding causes the display to round to the nearest value according the rounding selected. This setting affects the last two digits, regardless of decimal point position. On the DP6070 the valid selections are 1, 2, 5, 10 only.

Page 71

DP6070 Temperature Meter Instruction Manual

Modbus RTU Serial Communications (serial)

The meter is equipped with serial communications capability as a standard feature using the Modbus RTU Serial Communication Protocol.

To communicate with a computer or other data terminal equipment, an RS-232, RS-485, or USB adapter (DPA8008) option is required; see

Ordering Information on page 9 for details.

Do not connect any equipment other than OMEGA’s

Warning!

Note: More detailed instructions are provided with each optional serial

Note: Refer to the Modbus

expansion modules, cables, or meters to the RJ45 M-LINK connector. Otherwise damage will occur to the equipment and the meter.

communications adapter.

for details.

When using more than one meter in a multi-drop mode, each meter must be have its own unique Slave ID or meter address. The ID or address may be programmed between 1 and 247. The transmit delay may be set between 0 and 199 ms. The parity can be set to even, odd, or none with 1 or 2 stop bits.

The DP6070 can also be connected to another DP6070 with a special DPA1200 cable, allowing the user to copy all the settings from one meter to another, using the

Copy function.

Page 72

DP6070 Temperature Meter Instruction Manual

Select Menu (SElect)

The Select menu is used to program the analog output parameters. There are no other selections for this model.

Page 73

DP6070 Temperature Meter Instruction Manual

Analog Output Programming (AoutPr)

The Analog Output Programming menu is used to program the behavior of the 4-20 mA output. The following parameters and functions are programmed in this menu:

1. Source: Source for generating the 4-20 mA output (e.g. PV -

temperature)

2. Overrange: Analog output value with display in overrange condition

3. Underrange: Analog output value with display in underrange condition

4. Break: Analog output value when input break is detected

5. Max: Maximum analog output value allowed regardless of input

6. Min: Minimum analog output value allowed regardless of input

7. Calibrate: Calibrate the internal 4-20 mA source reference used to

scale the 4-20 mA output

Analog Output Source

The source for generating the 4-20 mA output may be assigned to the process variable, maximum or minimum value reached by the process, one of the set points, or the Modbus PV input.

Analog Output Calibration

To perform the analog output calibration it is recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output current. The values saved internally during this procedure are used for scaling the 4-20 mA output in the

Setup menu.

Page 74

DP6070 Temperature Meter Instruction Manual

Programmable Function Keys User Menu (user)

The User menu allows the user to assign the front panel function keys F1, F2, F3, digital input F4 and up to eight digital inputs to access most of the menus or to activate functions immediately (e.g. Reset max & min). Up to eight digital outputs can be assigned to a number of actions and functions executed by the meter (e.g. Alarms, relay acknowledgement, etc.).

*If installed

Function Keys & Digital I/O Available Settings

Display Description Display Description

Rst HL

relay

Set 1

Rly d

Rly E

O Hold

d Hold

Big Hi

Big Lo

Big HL

Lit Hi

Lit Lo

Lit HL

Contrl

Reset max & min

Relay menu

Set point 1 - 8

Disable all relays

Enable all relays

Relays & output hold

Display hold

Max on big display

Min on big display

Max/min big display

Max on little display

Min on little display

Max/min little display

Control Menu

disabl

AcH

reset

Rst Hi

Rst Lo

Right

Enter

Alm 1

F On 1

F On 2

F On 3

F On 4

Disable function key

Acknowledge relays

Reset Menu

Reset max

Reset min

Menu button

Right arrow button/F1

Up arrow button/F2

Enter button/F3

Alarm 1 – 8

Force relay 1 on

Force relay 2 on

Force relay 3 on

Force relay 4 on

Page 75

DP6070 Temperature Meter Instruction Manual

Internal Temperature Calibration (ICAL)

The meter is factory calibrated prior to shipment to read temperature in degrees Fahrenheit. The calibration equipment is certified to NIST standards.

The Internal Calibration ( calibrate all the thermocouple and RTD ranges. This procedure should only be used by qualified personnel.

To recalibrate the meter for a specific input and range, refer to page 68 Recalibration of the Meter (

Notes:

1. If meter is in operation and it is intended to

2. Allow the meter to warm up for at least

3. Use the Recalibration of the Meter

The

Internal calibration menu is part of the Advanced Features menu and

is described in the following pages. This procedure should only be used by qualified personnel.

Note: Most users should not require the use of the Internal Calibration

procedure. The T CAL procedure should be used instead of the ICAL procedure.

ICAL) is a function used at the factory to

t CAL).

accept only one input type (e.g. 100 Pt), recalibration of other inputs is not necessary.

30 minutes before performing the calibration procedure.

(t CAL)

procedure found on page 68.

Page 76

DP6070 Temperature Meter Instruction Manual

Thermocouple Input Internal Calibration (ICAL)

1. Set the Type selector switch in the TC position and using copper

wire connect a precision mV calibrator to the input.

2. In the

Setup menu select the input: TC – Type J.

3. Press and hold the Menu button for three seconds to access the

advanced features of the meter.

4. Press the Up

(

ICAL) and press Enter.

5. The meter displays either current calibration (

arrow button to scroll to the Internal calibration menu

mref). Press Enter to

start the calibration process.

6. Measure the room temperature in degrees Celsius using a reliable

reference, enter the room temperature (e.g. 25.0), and press Enter.

7. The meter displays

0mv, apply an input equal to 0.000 mV and

press Enter. The display flashes while accepting the 0 mV input; press Enter again when the display stops flashing.

8. The meter displays

100mv, apply an input equal to 100.000 mV

and press Enter. The display flashes while accepting the 100 mV input; press Enter again when the display stops flashing.

9. Apply 0 mV, the meter should read room temperature.

10. This completes the calibration of all the thermocouple ranges.

Page 77

DP6070 Temperature Meter Instruction Manual

RTD Input Internal Calibration (ICAL)

1. Set the Type selector switch in the RTD position and the Range

switch in the 10 position. Using 3 wires connect a precision calibrator resistance output to the meter.

2. In the

3. Access the

Setup menu select the input: RTD – 100 Pt – A385.

Advanced Features menu and scroll to the ICAL menu

and press Enter.

4. The meter displays the message (

10 lo). Apply 9.035 ohm and

press Enter. The display flashes for a moment while the meter is accepting the low input signal for the 10-ohm RTD. After the display stops flashing, press Enter again.

5. The meter displays the message (

10 Hi). Apply 18.032 ohm and

press Enter. The display flashes for a moment while the meter is accepting the high input signal for the 10-ohm RTD. After the display stops flashing, press Enter again.

6. The meter displays the message (

100 lo). Do NOT press Enter.

7. Move the Range selector switch to the 100 position. Apply 100 ohm

and press Enter. The display flashes for a moment while the meter is accepting the low input signal for the 100-ohm RTD.

8. The meter displays the message (

100 Hi). Apply 320.12 ohm and

press Enter. The display flashes for a moment while the meter is accepting the high input signal for the 100-ohm RTD.

9. At the end of the calibration process the meter should read 1148.0F

with the 320.12 ohm input applied.

10. This completes the calibration of all the RTD ranges.

Page 78

DP6070 Temperature Meter Instruction Manual

Meter Copy Function (Copy)

The Copy function is used to copy (or clone) all the settings from one meter to other meters requiring exactly the same setup and programming (i.e. type of input, decimal point, filter, bypass, etc.).

Warning!

Only the DPA1200 meter copy cable must be used for meter-to-meter interfacing. The DPA1200 is a special eight-conductor flat cable with two wires swapped.

Using standard CAT5 or other cable will cause damage to both meters.

Figure 23. Meter Copy Connection

Copy Function Requirements

To successfully copy settings from one meter to another, both meters must have:

1. Same software version

2. Same baud rate setting

See Determining Software Version,

page 82 for instructions.

Page 79

DP6070 Temperature Meter Instruction Manual

Meter Copy or Cloning Instructions

Do not connect the two meters to

Caution!

1. Connect two meters using a DPA1200 meter copy cable.

Warning!

2. Do not connect the two meters to the same signal source.

3. Power up both meters. Leave Clone meter in Run Mode.

4. Enter the

Advanced Features Menu on page 64.

5. Scroll to the

Enter.

6. The meter displays the message

flashes while sending data. The message copying is completed.

Advanced Features menu of the Master meter; see

Copy function using the Up arrow button then press

the same signal source while cloning. Internal calibration may be affected.

Using standard CAT5 or other cable will cause damage to both meters. Use DPA1200 meter copy cable only.

Send. Press Enter, the display

done is displayed when

7. The Clone meter displays the message CPY rC while being

programmed then the message The meter initializes and returns to Run Mode using the same settings as the Master.

8. If meter to be cloned does not respond to the data being sent, refer

Copy Function Requirements above.

done when copying is completed.

Page 80

DP6070 Temperature Meter Instruction Manual

METER OPERATION

The meter is capable of accepting a variety of thermocouples and RTDs. The dual-line display can be customized by the user to operate in such a

way as to satisfy a specific application. Typically the main display is used for the process variable; while the second display is used engineering units, custom legend, or set point indication.

Additionally the meter can be set up to display the thermocouple or RTD input on the main display and the Modbus input on the second display. The relays and analog output can be programmed to operate from the Modbus PV input.

Front Panel Buttons Operation

Button Symbol

Description

Press to enter or exit Programming Mode, view settings, or exit max/min readings

Press to reset max readings or other parameter/function assigned through the menu

Press to display max/min readings or other parameter/function assigned through the menu

User

Press to acknowledge relays or other parameters/function assigned through the

User menu

Function Keys Operation

During operation, the programmable function keys operate according to the way they have been programmed in the menu.

The table above shows the factory default settings for F1, F2, and F3.

Advanced Features – User

Page 81

DP6070 Temperature Meter Instruction Manual

F4 Operation

A digital input, F4, is standard on the meter. This digital input is programmed identically to function keys F1, F2, and F3. The input is triggered with a contact closure to COM, or with an active low signal. During operation, F4 operates according to the way is has been programmed in the Advanced Features – User menu.

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentary:

1. Display briefly by assigning to the F1-F3 function keys or to the digital inputs in the

2. Display continuously by assigning either display to max/min through the

Any of the F1-F3 function keys (buttons) and the digital inputs can be programmed to reset the max & min readings. The meters are set at the factory to display the max reading by pressing the Up arrow/F2 button and to use the Right arrow/F1 button to access the

To display max reading using function key with factory defaults:

1. Press Up arrow/F2 button to display maximum reading since the last reset/power-up.

2. To reset max/min press Right arrow/F1 button to access the Reset menu. The max & min displays are reset to actual values.

3. Press Menu to exit max/min display reading.

To display max/min readings continuously:

Assign either display to Max (d Hi), Min (d Lo), or toggle between Max and Min (

d HL) every 10 seconds.

User menu.

Display menu.

Reset menu.

Page 82

DP6070 Temperature Meter Instruction Manual

TROUBLESHOOTING

The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. However, due to the many features and functions of the meter, it’s possible that the setup of the meter does not agree with what an operator expects to see.

If the meter is not working as expected, refer to the and recommendations below.

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced Features menu, to access

It provides an easy way to view the programmed parameter settings for troubleshooting purposes. Press the Enter the Menu button to exit at any time.

For a description of the diagnostic messages,

Menu &

To determine the software version of a meter:

Diagnostics menu see Advanced Features Menu, page 64.

button to view the settings and

Display Messages, page 65.

Determining Software Version

1. Go to the

2. Press Up arrow button and scroll to Information menu (

3. Press Enter to access the software number (

(

UER) information. Write down the information as it is displayed.

Continue pressing Enter until all the information is displayed.

4. The meter returns to Run Mode after displaying all the settings.

Diagnostics menu (diAG) and press Enter button.

Diagnostics menu

see Advanced Features

Info).

SFT) and version

Page 83

DP6070 Temperature Meter Instruction Manual

Reset Meter to Factory Defaults

When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced Features menu. See Advanced Features Menu, page 64.

2. Press Up arrow to go to

3. Press and hold Right arrow for three seconds, press Enter when display flashes Note: If Enter is not pressed within three seconds, the display returns to the

4. The meter goes through an initialization sequence (similar as on power-up), and loads the factory default settings.

Diagnostics menu.

Diagnostics menu

reset.

Page 84

DP6070 Temperature Meter Instruction Manual

Factory Defaults & User Settings

The following table shows the factory setting for most of the programmable parameters on the meter. Next to the factory setting, the user may record the new setting for the particular application.

Model: ______________ S/N: _______________ Date: _________

Parameter Display Default Setting User Setting

Input type

Temp scale

Adjust

RTD total

Filter

Bypass

Round

Decimal point

Big display (Main)

Little display (Small)

Display intensity

Relay 1 action

Relay 1 set point

Relay 1 reset point

Relay 2 action

Relay 2 set point

Relay 2 reset point

Relay 3 action

Relay 3 set point

Relay 3 reset point

Relay 4 action

Relay 4 set point

Input

F or C

Adjust

rtdtot

filter

bypass

Round

ddddoF

big

Little

d-Inty

Act 1

Set 1

RSt 1

Act 2

Set 2

RSt 2

Act 3

Set 3

RSt 3

Act 4

Set 4

Type J TC

°F

0.0

0.2

No decimal

PV: Temperature

Eng units: Temp

Automatic

100

Automatic

200

150

Automatic

300

250

Automatic

400

Page 85

DP6070 Temperature Meter Instruction Manual

Parameter Display Default Setting User Setting

Relay 4 reset point

Fail-safe relay 1

Fail-safe relay 2

Fail-safe relay 3

Fail-safe relay 4

On delay relay 1

Off delay relay 1

On delay relay 2

Off delay relay 2

On delay relay 3

Off delay relay 3

On delay relay 4

Off delay relay 4

Input break relay 1

Input break relay 2

Input break relay 3

Input break relay 4

Display 1 analog out

Output 1 value

Display 2 analog out

Output 2 value

Source analog output

Overrange output

Underrange output

Input break output

Maximum output

RSt 4

Fls 1

Fls 2

Fls 3

Fls 4

On 1

Off 1

On 2

Off 2

On 3

Off 3

On 4

Off 4

ignore

Dis 1

Out 1

Dis 2

Out 2

Source

O-rang

u-rang

break

mAx

350

Off

0.0 sec

Ignore

0.0

4.000 mA

2000.0

20.000 mA

Process Variable

21.000 mA

3.000 mA

1.000 mA

23.000 mA

Page 86

DP6070 Temperature Meter Instruction Manual

Parameter Display Default Setting User Setting

Minimum output

Slave ID

Baud rate

Transmit delay

Parity

Byte-to-byte timeout

F1 function key

F2 function key

F3 function key

F4 function

Digital input 1

Digital input 2

Digital input 3

Digital input 4

Digital output 1

Digital output 2

Digital output 3

Digital output 4

Password 1

Password 2

Password 3

min

SlavId

baud

Tr dly

Parity

t-byt

dI 1

dI 2

dI 3

dI 4

dO 1

dO 2

dO 3

dO 4

Pass 1

Pass 2

Pass 3

1.000 mA

247

9600

10 ms

Even

010 (0.1 sec)

Reset max & min

Big display: Max (Hi)

Acknowledge relays

Right arrow

Up arrow

Enter

Alarm 1

Alarm 2

Alarm 3

Alarm 4

000000 (unlocked)

Page 87

DP6070 Temperature Meter Instruction Manual

Troubleshooting Tips

Symptom Check/Action

No display at all Not able to change setup or

programming, Meter displays error message

during calibration (

Meter displays

99999

-9999

Display is unstable

Display response is too slow Display reading is not accurate

Display does not respond to input changes, reading a fixed number

Display alternates between

Hi and a number

Lo and a number

Relay operation is reversed

Relay and status LED do not respond to signal

Flashing relay status LEDs

Meter not communicating with application programs

If the display locks up or the meter does not respond at all

Other symptoms not described above

Locd is displayed

Error)

Note: Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and map changes ahead of time, rather than at random.

Check power at power connector Meter is password-protected, enter

correct six-digit password to unlock Check:

1. Signal connections

2. Type and range selector switches

3. Input selected in Check:

1. Input selected in

2. Corresponding signal at Signal connector

Check:

1. Input signal stability and value

2. Filter and bypass values (increase)

Check filter and bypass values Check:

1. TC wire type

2. Input selection in

Check:

1. Display assignment, it might be displaying max, min, or set point.

Press Menu to exit max/min display readings.

Check:

1. Fail-safe in

2. Wiring of relay contacts

Check:

1. Relay action in

2. Set and reset points

Relays in manual control mode or relay interlock switches opened. Check:

1. Serial adapter and cable

2. Serial settings

3. Meter address and baud rate

Cycle the power to reboot the microprocessor.

Call Technical Support for assistance.

Setup menu

Page 88

DP6070 Temperature Meter Instruction Manual

Alphabetical List of Display Functions & Messages

Display Parameter Action/Setting

100nmv

4 mA

20 mA

99999

-9999

A385

A392

Act 1

100 mV

4 mA output

20 mA output

Flashing display

A385

A392

Action 1

Apply 100.000 mV input

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

Overrange condition Underrange condition

Set meter for 0.00385 curve

Set meter for 0.00392 curve

Set relay 1 action

Adjust

Altern

A-nman

Aout

Auto

baud

big

Break bypASs

Calib

Contrl

Copy

d-Inty

Dec pt

Adjust

Alternate

Auto-manual

Analog output

Automatic

Auto Control

Baud rate

Big display

Loop Break

Bypass

Calibrate

Control

Copy

Display intensity

Decimal point

Set adjust value to offset temp reading

Set relay for alternation control

Set relay for automatic & manual reset

Enter the Analog output scaling menu

Set relay for automatic reset

Press Enter to set meter for auto operation

Select baud rate

Press Enter to assign the Main display parameter (default: PV - temperature)

Set relay condition if loop break detected

Set filter bypass value

Calibrate 4-20 mA output (internal reference source used for scaling the output)

Enter Control menu

Enter copy function

Set display intensity level from 1 to 8

Set decimal point dddd, dddd.d, dddd

°F, dddd.dF

Page 89

DP6070 Temperature Meter Instruction Manual

Dis 1

Dis 2

DeLAY

dI I

Diag

DLY 1

DLY 2

dO 1

done

dsplay

FaiLSF

F4 F or C

filtEr

FLS 1

FLS 2

ICal

ignore

Info

Input

LatCH

LED t

Little

locd

Display 1

Display 2

Delay

Digital input 1

Diagnostics

Delay 1

Delay 2

Digital output 1

Done

Display

Fail-safe

F1 function key

F2 function key

F3 function key

F4 function

F or C

Filter

Fail-safe 1

Fail-safe 2

Internal temp calibration

Ignore

Information

Input

Latching

LED test

Little display

Locked

Program display 1 value

Program display 2 value

Enter relay Time Delay menu

Assign digital input 1- 8, if expansion modules are connected

Display parameter settings

Enter relay 1 time delay setup

Enter relays 2-8 time delay setup

Assign digital output 1- 8, if expansion modules are connected

Copy function completed

Enter the Display menu

Enter Fail-safe menu

Assign F1 function key

Assign F2 function key

Assign F3 function key

Assign F4 function (digital input)

Press Enter to select degrees F or C

Set noise filter value

Set relay 1 fail-safe operation

Set relays 2-8 fail-safe operation

Enter internal temperature calibration (used for factory calibration only)

Ignore input break condition (Processed as an upscale condition)

Display software and S/N information

Enter Input selection menu

Set relay for latching operation

Test all LEDs

Press Enter to assign the small display parameter (default: engineering units)

Enter password to unlock meter

Page 90

DP6070 Temperature Meter Instruction Manual

Lt-CLr

mAn

mAx

min

mref

Off

OFF

OFF 1

0nmv

On 1

Open

O-rang

Out 1

Out 2

Parity

pass

Pass 1-3

RELaY

reset

RLY 1

RLY 2

Round

Latchingcleared

Manual Control

Maximum

Minimum

Measured temp reference

Off

Off 1

0 mV

On 1

Open

Overrange

Output 1

Output 2

Parity

Password

Password 1-3

Relay

Reset

Relay 1

Relay 2

Round

Set relay for latching operation with manual reset only after alarm condition has cleared

Press Enter to manually control relays or analog output operation

Program maximum mA output allowed

Program minimum mA output allowed

Enter the measured reference temperature in degrees Celsius (e.g. 25.0)

Relay goes to non-alarm condition when input break is detected

Disable relay and front panel status LED (Select Off to enable Interlock feature)

Set relay 1 Off time delay

Apply 0.000 mV input Internal Calibration

Enable fail-safe operation

Relay goes to alarm condition when input break is detected

Set relay 1 On time delay

Open sensor indication

Program mA output for display overrange

Program output 1 value (e.g. 4.000 mA)

Program output 2 value (e.g. 20.000 mA)

Select parity Even, Odd, or None with 1 or 2 stop bits

Enter the Password menu

Set or enter Password 1 -3

Enter the Relay menu

Press Enter to access the Reset menu

Relay 1 setup

Relays 2-8 setup

Note: Relays 5-8 are shown only if expansion relay module is installed

Set the rounding value for display variables

Page 91

DP6070 Temperature Meter Instruction Manual

RSt 1

Rst Hi

Rst Lo

Rst HL

Rtd

rtdtot

Sanmpl

SelEct

send

seriAl

Set 1

setup

SlaveId

Source

T cal

T lo

T Hi

Tr dLY

t-byt

unitS

unloc

u-rang

user

Reset 1

Reset high

Reset low

Reset hi/low

RTD

RTD Total

Sampling

Select

Send

Serial

Set 1

Setup

Slave ID

Source

T Cal

T Low

T High

Transmit delay

Time byte

Units

Unlocked

Underrange

User I/O

Program reset point 1

Press Enter to reset max display

Press Enter to reset min display

Press Enter to reset max & min displays

Set meter for RTD input 100Pt, 1000Pt, 10Cu, 120Ni

Set the number of RTDs connected in parallel to obtain average temperature

Set relay for sampling operation

Enter the Select menu

Send meter settings to another meter

Set serial communication parameters

Program set point 1

Enter Setup menu

Set slave ID or meter address

Select source for the 4-20 mA output

Set meter for thermocouple input J, K, T, E, R, S, B, N, C

Enter temperature calibration menu

Apply the low temperature input (e.g. 32°F)

Apply the high temperature input (e.g. 1000

Set transmit delay for serial communication

Set byte-to-byte timeout

Select the display units/tags

Program password to lock meter

Program mA output for display underrange

Assign function keys and digital I/O

°F)

Page 92

M-5192

LIM7000OM_A

SFT063 Ver 3.100 & up

08/12
