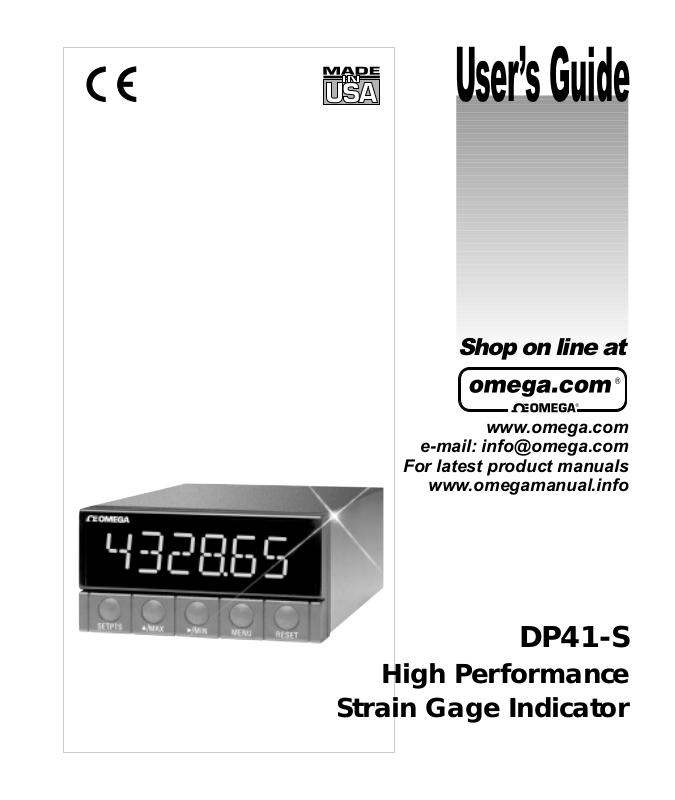

Omega Products DP41-S-230 Installation Manual

www.omega.com

e-mail: [e-mail]

For latest product manuals

www.omegamanual.info

®

®

User’s Guide

Shop on line at

DP41-S

High Performance

Strain Gage Indicator

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply.
OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to
every appropriate device upon certification.

The information contained in this document is believed to be correct but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the
right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, patient connected applications.

This device is marked with the international hazard symbol. It is important to read the Setup Guide before installing or commissioning this device as it
contains important information relating to safety and EMC.

®

®

OMEGAnet® On-Line Service

www.omega.com

Internet e-mail

[e-mail]

Servicing North America:

USA: One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford CT 06907-0047

TEL: [phone] FAX: [phone]
e-mail: [e-mail]

Canada: 976 Bergar
Laval (Quebec) H7L 5A1
TEL: [phone] FAX: [phone]
e-mail: [e-mail]

For immediate technical or application assistance:

USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA
Customer Service: 1-800-622-2378 / 1-800-622-BEST
Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN

Mexico and TEL: [phone] FAX: [phone]
Latin America: e-mail: [e-mail]

®

®

®

Servicing Europe:

Benelux: TEL: [phone] FAX: [phone]
Toll Free in Benelux: 0800 0993344
e-mail: [e-mail]

Czech Republic: Frystatska 184, 733 01 Karviná
TEL: [phone] FAX: [phone]
e-mail: [e-mail]

France: TEL: [phone] FAX: [phone]
Toll Free in France: 0800 466 342
e-mail: [e-mail]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
TEL: [phone] FAX: [phone]
Toll Free in Germany: 0800 639 7678
e-mail: [e-mail]

United Kingdom: One Omega Drive

ISO 9001 Certified River Bend Technology Centre

Northbank, Irlam Manchester M44 5BD United Kingdom
TEL: [phone] FAX: [phone]
Toll Free in England: 0800 488 488
e-mail: [e-mail]

SECTION 1 INTRODUCTION

1.1 Description.............................................................................1-1

1.2 Features.................................................................................1-1

1.3 Available Models....................................................................1-2

SECTION 2 UNPACKING .........................................................................2-1

SECTION 3 SAFETY CONSIDERATIONS

3.1 Safety Considerations............................................................3-1

SECTION 4 PARTS OF THE METER

4.1 Front of the Meter ..................................................................4-1

4.2 Rear of the Meter...................................................................4-3

SECTION 5 SETUP

5.1 Conditions Requiring Disassembly........................................5-1

5.2 Assembly/Disassembly Opening ...........................................5-1

5.2.1 Safety Precaution/Product ID Label ......................................5-4

5.2.2 Main Board Power Jumpers ..................................................5-5

5.2.3 Printed Circuit Board(s) Installation .......................................5-6

5.2.4 How to Access Jumpers ........................................................5-7

5.2.5 Panel-Mount Assembly ........................................................5-11

SECTION 6 JUMPER POSITIONS

6.1 Introduction............................................................................6-1

6.2 S1 Jumper Positions for Readrate and

Unipolar or Bipolar Input(s)....................................................6-1

6.3 S2 Jumper Positions for Input Range....................................6-1

6.4 Jumper setting(s) for Sensor Excitation.................................6-3

6.4.1 Jumper setting(s) for Sensor Excitation ac-powered unit ......6-3

6.4.2 Jumper setting(s) for Sensor Excitation dc-powered unit ......6-5

SECTION 7 SIGNAL AND POWER INPUT CONNECTIONS

7.1 Introduction............................................................................7-1

7.2 Signal Input Connections.......................................................7-1

7.3 Connecting Main Power.........................................................7-3

SECTION 8 METHODS FOR SCALING THE METER TO DISPLAY IN

ENGINEERING UNITS

8.1 Introduction............................................................................8-1

8.2 Strain Gage (Bridge) Input, programming the meter for a

desired Display ......................................................................8-1

8.3 Voltage Input (Non-Ratiometric), programming the meter

for a desired Display...........................................................8-15

8.4 Current Input, programming the meter for a desired Display ....8-28

i

Table of Contents

8.5 Potentiometer Input, programming the meter

for a desired Display............................................................8-40

SECTION 9 METER FUNCTION MENUS

9.1 Individual Lockout Information...............................................9-1

9.2 Meter Function Menus...........................................................9-7

9.2.1 Input.......................................................................................9-7

9.2.2 RDG.CNF (Reading Configuration) .......................................9-7

9.2.3 RDG SC (Reading Scale) and RDG OF (Reading Offset).....9-9

9.2.4 IN CNF (Input Configuration) ...............................................9-11

9.2.5 IN.SC.OF (Input Scale and Offset) ......................................9-12

9.2.6 DEC PT (Decimal Point)......................................................9-14

9.2.7 CNT BY (Count By) .............................................................9-15

9.2.8 FIL.CNF (Filter Configuration) .............................................9-16

9.2.9 FIL TI (Filter Time Constant)................................................9-17

9.2.10 SP CNF (Setpoints 1 & 2 Configuration) .............................9-18

9.2.11 AL CNF (Alarm Configuration).............................................9-19

9.2.12 AL FNC (Alarm Function) ....................................................9-21

9.2.13 AL RDG (Alarm Readings) ..................................................9-22

9.2.14 SP DB (Setpoint Deadband)................................................9-23

9.2.15 AL DB (Alarm Deadband)....................................................9-23

9.2.16 OUT.CNF (Output Configuration).........................................9-24

9.2.17 OT.SC.OF (Output Scale and Offset) ..................................9-25

9.2.18 BAUD (Baud Rate) ..............................................................9-26

9.2.19 SERCNF (Serial Communication Configuration).................9-27

9.2.20 ADDRESS (Multipoint Communications Device Address)...9-28

9.2.21 DAT FT (Data Format) .........................................................9-28

9.2.22 BUS FT (Bus Format)..........................................................9-30

9.2.23 SERCNT (Serial Count).......................................................9-31

9.2.24 Analog Output Calibration Numbers....................................9-32

SECTION 10 SETPOINTS/ALARMS

10.1 Features overview ...............................................................10-1

10.2 Unlocking the Features........................................................10-3

10.3 Selecting “SP CNF” Setpoint Configuration Features..........10-3

10.4 Deviation Function for Alarms..............................................10-4

10.5 Selecting “AL CNF” Alarm Configuration Features ..............10-5

10.6 Selecting “AL FNC” Alarm Configuration Features ..............10-7

10.7 “AL RDG”: Alarm Readings-Select Delay in Alarm Action ...10-8

10.8 “SP DB”: Select “SP 1”and “SP 2” Deadband (Hysteresis) .10-8

10.9 “AL DB”: Select Alarm 1 (“SP 3”)

and Alarm 2 (“SP 4”) Deadband ( Hysteresis) .....................10-8

10.10 “OUT.CNF”: Control Flashing of the Display........................10-9

10.11 Entering Setpoint Levels (in Run Mode)..............................10-9

Table of Contents

ii

SECTION 11 PEAK AND VALLEY READINGS .......................................11-1

SECTION 12 ANALOG OUTPUT OPTION

12.1 Features Overview...............................................................12-1

12.2 Unlocking.............................................................................12-2

12.3 “OUT.CNF”: Configuring the Output.....................................12-2

12.4 “OT.SC.OF”: Setting Output Scale and Offset .....................12-2

12.5 Board Installation; Entering the trim Data............................12-3

12.6 Filter Configuration “FIL.CNF” Value to be transmitted .......12-5

12.7 Wiring/Connections..............................................................12-5

SECTION 13 BCD OPTION

13.1 Features Overview...............................................................13-1

13.2 BCD Card Jumper Table......................................................13-3

13.3 Interconnect Board ..............................................................13-3

13.4 50-Line Cable Compatibility.................................................13-4

13.5 Selecting the source of BCD Data: “OUT.CNF” ...................13-4

13.6 Hold Control.........................................................................13-4

13.7 Data Ready Timing Pulses ..................................................13-4

13.8 Bringing out the BCD Overflow line .....................................13-4

13.9 3 Digit at a time Multiplex.....................................................13-4

13.10 6 Digit at a time Card Address.............................................13-5

13.11 Select Data Polarity: Jumper S8..........................................13-6

13.12 Decimal Point Address Code...............................................13-6

13.13 Applying Non-Isolated/Isolated Power.................................13-6

13.14 Driving a Printer...................................................................13-6

SECTION 14 RELAY OPTIONS

14.1 Features Overview...............................................................14-1

14.2 Wiring/Connections..............................................................14-3

SECTION 15 RS-232 OR RS-485 OPTION BOARD

15.1 Features Overview...............................................................15-1

15.2 Front-Panel Pushbutton Configuration ................................15-3

SECTION 16 EXTERNAL CONTROL LINES

16.1 TARE (PIN 1) .......................................................................16-1

16.2 PEAK (PIN 2).......................................................................16-1

16.3 VALLEY (PIN 3) ...................................................................16-1

16.4 SWLIN2 (PIN 4)...................................................................16-1

16.5 PEAK & VALLEY or EXTERNAL RESET (PIN 5)................16-1

16.6 PUSH TO CAL (PIN 6).........................................................16-2

16.7 Digital Return (PIN 7)...........................................................16-2

16.8 +5 V (PIN 8).........................................................................16-2

16.9 Display Hold (PIN 9) ............................................................16-2

16.10 LOCKOUT EEPROM (and ‘MENU’ BUTTON) (PIN 10) ......16-2

iii

Table of Contents

16.11 Print Command and/or Reset of Alarms (PIN 11) ................16-2

16.12 Nonstandard RX (PIN 12) and Nonstandard TX (PIN 13) ...16-2

16.13 PUSH TO CAL (PIN 14).......................................................16-3

16.14 +V EXT (PIN 15)..................................................................16-3

16.15 SP1 (PIN 16)........................................................................16-3

16.16 SP2 (PIN 17)........................................................................16-3

16.17 AL1 (PIN 18)........................................................................16-3

16.18 AL2 (PIN 19)........................................................................16-3

16.19 RTN EXT (PIN 20) ...............................................................16-3

SECTION 17 DISPLAY MESSAGES AND TROUBLESHOOTING GUIDE

17.1 Error Mode Message ...........................................................17-1

17.1.1 Flashing “999999” (Numerical Overflow).............................17-1

17.1.2 Flashing “ERR O1” (Offset Overflow) ..................................17-1

17.1.3 Flashing “ERR O2” (Setpoint Overflow)...............................17-1

17.1.4 “NOSTOR” & “STORED

(Programming Entries In EEPROM)....................................17-1

17.1.5 Flashing “+OVLD” (Positive Input Overload) .......................17-1

17.1.6 Flashing “+OPEN” (Open Sensor Indication) ......................17-1

17.1.7 Flashing “-OPEN” (Open Sensor Indication) .......................17-2

17.1.8 Flashing “I OVSC” (Input Overscale)...................................17-2

17.1.9 Flashing “R OVSC” (Reading Overscale)............................17-2

17.1.10 Flashing “CB OVF” (Count By Overflow).............................17-2

17.1.11 Flashing “UOM.OVF” (Unit Of Measure Overflow) ..............17-2

17.2 Troubleshooting Guide ........................................................17-2

SECTION 18 SPECIFICATIONS

18.1 Current Input........................................................................18-1

18.2 Voltage Input........................................................................18-1

18.3 Potentiometer Input .............................................................18-1

18.4 General................................................................................18-1

SECTION 19 FACTORY PRESET VALUES .............................................19-1

SECTION 20 RECORD YOUR SETUP VALUES......................................20-1

Table of Contents

iv

Figure 4-1 Front Detail .........................................................................4-1

Figure 4-2A AC Power - Connector Label for Rear Connectors ............4-3

Figure 4-2B DC Power - Connector Label for Rear Connectors ............4-4

Figure 4-3 Rear View with the optional 4-relay output board

and a serial communications board installed. ....................4-5

Figure 4-4 Rear View with the optional BCD output board

and a serial communications output board installed. .........4-5

Figure 5-1 Meter Exploded View..........................................................5-2

Figure 5-2 Board Assembly Removing/Installing Detail.......................5-3

Figure 5-3 Transformer Jumpers .........................................................5-5

Figure 5-4 Optional Printed Circuit Board Locations ...........................5-6

Figure 5-5 Signal Input Board ..............................................................5-7

Figure 5-6 ac-Powered Main Board .....................................................5-8

Figure 5-7 dc-Powered Main Board .....................................................5-8

Figure 5-8 Relay Option Board ............................................................5-9

Figure 5-9 4-Relay Option Board .........................................................5-9

Figure 5-10 Analog Output Option Board ............................................5-10

Figure 5-11 RS-232 Option Board .......................................................5-10

Figure 5-12 RS-485 Option Board .......................................................5-10

Figure 5-13 BCD Option Board ............................................................5-11

Figure 5-14 Panel Mounting Assembly ................................................5-14

Figure 6-1 S1 and S2 Jumper Locations on Signal Input Board..........6-1

Figure 6-2 ac Main Board Jumper Positions S3 and S4 ......................6-4

Figure 6-3 dc Main Board Jumper Positions S3 and S4 ......................6-5

Figure 7-1 Current Input Without Sensor Excitation ............................7-1

Figure 7-2 Current Input With Sensor Excitation .................................7-1

Figure 7-3 Voltage Input Without Sensor Excitation ............................7-2

Figure 7-4 3-Wire Voltage Input With Sensor Excitation......................7-2

Figure 7-5 4-Wire Voltage Input With Sensor Excitation......................7-3

Figure 7-6 Bridge Input with External Sensor Excitation .....................7-3

Figure 7-7 Potentiometer Connections with Internal Power Supply

and Ratio Measurement. ....................................................7-3

Figure 7-8 Potentiometer Connections With External Power Supply

and Ratio Measurement (Remove jumper S2-T) ...............7-3

v

Figures

Figure 7-9 AC Connector Wiring at P1 ................................................7-4

Figure 7-10 DC Connector Wiring at P1 ................................................7-4

Figure 8-1 S3 and S4 Main Board Jumper Positions...........................8-2

Figure 8-2 S1 and S2 Signal Input Jumper Positions ..........................8-3

Figure 8-3 Internally-Powered Bridge Input .........................................8-4

Figure 8-4 S3 and S4 Main Board Jumper Positions.........................8-16

Figure 8-5 S1 and S2 Signal Input Jumper Positions ........................8-16

Figure 8-6 Sensor Input Connections ................................................8-17

Figure 8-7 S3 and S4 Main Board Jumper Positions.........................8-28

Figure 8-8 S1 and S2 Signal Input Jumper Positions ........................8-29

Figure 8-9 Sensor Input Connections ................................................8-29

Figure 8-10 S3 and S4 Main Board Jumper Positions.........................8-41

Figure 8-11 S1 and S2 Signal Input Jumper Positions ........................8-42

Figure 8-12 Sensor Input Connections ................................................8-42

Figure 10-1 Setpoints 1 & 2 Action ......................................................10-2

Figure 10-2 Setpoints 3 & 4 Action ......................................................10-2

Figure 10-3 Process Deviation ............................................................10-4

Figure 10-4 High Deviation for both Active Above and Active Below...10-4

Figure 10-5 Low Deviation for both Active Above and Active Below....10-5

Figure 10-6 Band Deviation for both Active Above and Active Below..10-5

Figure 10-7 AL CNF Hysteresis ...........................................................10-6

Figure 12-1 Analog Option Board and Connection Diagram at P5. .....12-3

Figure 12-2 Isolated Analog Output Board Wiring Connections. .........12-5

Figure 13-1 BCD 40-Pin Cable Connector (P8)...................................13-1

Figure 13-2 BCD Option Board............................................................13-2

Figure 13-3 Address Programming Chart for 4 -line Address..............13-5

Figure 14-1 Dual Relay ........................................................................14-1

Figure 14-2 4 Relay Board Jumpers and Plugs ...................................14-2

Figure 14-3 Dual Relay Output Board Wiring Connections .................14-3

Figure 14-4 4 Relay Output Board Wiring Connections.......................14-3

Figure 15-1 RS-232/RS-485 Option Board and Pin Designations .......15-1

Figure 15-2a Older RS-232 Option Board and Pin Designations ..........15-1

Figures

vi

Figure 15-2b Older RS-485 Option Board and Pin Designations ..........15-1

Figure 16-1 Connector Label Detail .....................................................16-1

Figure 16-2 Connection of External Power for Setpoint Transistors....16-3

Figure 18-1 Meter Housing and Panel Cutout. ....................................18-4

Table 4-1 Rear Connector Descriptions .............................................4-5

Table 8-1 Meter’s Natural Gain Chart.................................................8-5

Table 8-2 Reading Scale (RDG SC) vs. Decimal Point Shift............8-13

Table 8-3 Reading Scale (RDG SC) vs. Decimal Point Shift............8-26

Table 8-4 Reading Scale (RDG SC) vs. Decimal Point Shift............8-39

Table 8-5 Meter’s Natural Gain Chart...............................................8-43

Table 8-6 Reading Scale (RDG SC) vs. Decimal Point Shift............8-52

Table 14-1 Dual Relay Board Jumpers ..............................................14-1

Table 14-2 4 Relay Board Jumpers....................................................14-2

Table 14-3 Pin assignments for the P6, P7 and P18 plugs................14-3

vii

Figures

Information that is especially important to note is identified by these labels:

• NOTE

• WARNING

• CAUTION

• IMPORTANT

NOTE: provides you with information that is important to successfully setup

and use the Programmable Digital Meter.

CAUTION or WARNING: tells you about the risk of electric shock.

CAUTION, WARNING or IMPORTANT: tells you of circumstances or

practices that can effect the meter's functionality and must refer to
accompanying documents.

Notes, Warnings, and Cautions

viii

Note

☞

1.1 DESCRIPTION

This Strain Gage meter is part of a complete line of process indicators/
controllers, offering exceptional performance.

The strain gage meter is front panel programmable to accept unipolar and
bipolar DC voltage inputs and 0-20 or 4-20 mAdc inputs. The meter will
accept inputs from most of the process sensors in use today such as
transmitters, pressure transducers, and potentiometers.

Configuring the meter is accomplished through the 5 front panel buttons. If
the RS-232 or RS-485 communication option is installed, the user may
remotely set the display parameters.

Options for the meter include analog and BCD outputs, relay outputs, and
RS-232 or RS-485 communications.

1.2 FEATURES

The following is a list of features of the meter.

• 6-digit LED display in red or green

• 0.005% accuracy of reading

• 12 DC input ranges: 0-100 mV, 0-1 V, 0-5 V, 1-5 V, 0-10 V, 0-100 V,
±50 mV, ±500 mV, ±5 V, ±50 V, 0-20 mA, or 4-20 mA

• 1.5 to 11 or 24 V dc sensor excitation

• Peak & Valley detection and memory

• Tare

• Up to 13 readings per second

• 4 isolated open collector outputs (standard) and optional isolated relay or
isolated BCD and isolated analog outputs

• Optional isolated RS-232 or RS-485 communications

• NEMA 4 Front Panel/IP65

• Non-volatile memory without battery back-up

• 115 Vac, 50/60 Hz, 230 Vac, 50/60 Hz power supply

• Optional 10-32 Vdc power supply

1-1

Introduction

1

1.3 AVAILABLE MODELS

The following models and options are available. Optional boards are either
installed at the time of purchase, or available as separate items and installed
by the user after purchase.

MAIN ASSEMBLIES

MODEL
NUMBER DESCRIPTION

DP41-S Red LEDs, 115 V ac, 50/60Hz
DP41-S-230 Red LEDs, 230 V ac, 50/60Hz
DP41-S-GN Green LED’s, 115 V ac, 50/60 Hz
DP41-S-230-GN Green LED’s, 230 V ac, 50/60Hz
DP41-S-DC Red LEDs, 10-32 V dc
DP41-S-DC-GN Green LED’s, 10-32 V dc

NOTE: The following options are available installed at the time of purchase
or as separate items installed by the user after purchase:

Analog Output Board, BCD Output Board, Relay Output Board, RS-232
Communications Board, and RS-485 Communications Board.

CONTROL/BCD OUTPUT OPTIONS

MODEL
NUMBER DESCRIPTION

- Standard four open-collector outputs are standard
DP40-B Isolated BCD Output Board
DP40-R Dual 7A Form-C Relays
DP40-R4 Dual 7A & Dual 1A Form-C Relays

NOTE: Choose only one Control/BCD output option per meter. A 40-pin
mating connector is included with the BCD option.

ANALOG OUTPUT

MODEL
NUMBER DESCRIPTION

- None
DP40-A Isolated configurable analog (4-20 mA, 0-1, 0-5, 1-5,

0-10 V dc, 0-20 mA) output

1

Introduction

1-2

Note

Note

☞

☞

SERIAL COMMUNICATIONS OPTION

MODEL
NUMBER DESCRIPTION

DP40-S2 * Isolated RS-232 Communications
DP40-S4 ** Isolated RS-485 Communications

NOTES: Choose only one option per meter. Both computer communications
comes with 6 ft. communications cable with phone plug termination.

Free configuration software is available from www.omega.com or on the
CD-ROM enclosed with your shipment.

* Recommend purchase of DP40-9SC2 or DP40-25SC2

(see OPTIONS below)

** Recommend purchase of DP40-9SC4 or DP40-25SC4

(see OPTIONS below)

OPTIONS

MODEL
NUMBER DESCRIPTION

DP40-9SC2 9-pin Serial Connector for RS-232
DP40-9SC4 9-pin Serial Connector for RS-485
DP40-25SC2 25-pin Serial Connector for RS-232
DP40-25SC4 25-pin Serial Connector for RS-485
SPC4 1/8 DIN NEMA 4 heavy duty cover with thumb screws
SPC18 1/8 DIN NEMA 4 Splash Proof lens cover with spring clip

1-3

Introduction

1

Note

☞

Unpack all items and make sure that every item on the packing list is
present. The items you should receive are listed below. If something is
missing, use the phone number for the Customer Service Department
nearest you.

Also, inspect the shipping container and enclosed equipment for any signs of
damage. Take particular note of any evidence of rough handling in transit.
Immediately report any damage to the shipping agent.

NOTE: The shipping agent will not honor any claims unless all shipping
material is saved for their examination. After examining and removing
contents, save all packing material and containers in the event that
reshipment is required.

When you ordered your process meter, you will receive the following items in
the shipping box:

QTY

DESCRIPTION ILLUSTRATION

1 Basic Meter in a Mounting

Sleeve with Gasket

1 Front-Panel Button Cover

AC Power Connector
(orange - P1)

2 Input Connectors

(gray - P3 and P9)

2

Unpacking

2-1

1
2
3

P1

N

L

1
2
3

Note

☞

1 Rear Protective

Cover with Screw

1 20-Socket Ribbon

Connector
(P2 Connector)

2 Panel-Mounting

Gaskets (1 Spare)

1 Strain Gage Owner’s Guide

1 Quick Start Manual

Other items may also be in the box depending on the options ordered. Refer
to specific options described previously.

2-2

Unpacking

2

3.1 SAFETY CONSIDERATIONS

This device is marked with the international caution symbol. It is important to read
this manual before installing or commissioning this device as it contains important
information relating to Safety and EMC

(Electromagnetic Compatibility).

Unpacking & Inspection

Unpack the instrument and inspect for obvious shipping damage. Do not attempt to
operate the unit if damage is found.

This instrument is a panel mount device protected in accordance with Class I of EN
61010 (115/230 AC power connections), Class III for the DC power option (10-32Vdc).
Installation of this instrument should be done by Qualified personnel. In order to ensure
safe operation, the following instructions should be followed.

This instrument has no power-on switch. An external switch or circuit-breaker shall be included
in the building installation as a disconnecting device. It shall be marked to indicate this function,
and it shall be in close proximity to the equipment within easy reach of the operator. The switch or
circuit-breaker shall not interrupt the Protective Conductor (Earth wire), and it shall meet the
relevant requirements of IEC 947–1 and IEC 947-3 (International Electrotechnical Commission).
The switch shall not be incorporated in the mains supply cord.

Furthermore, to provide protection against excessive energy being drawn from the
mains supply in case of a fault in the equipment, an overcurrent protection device shall
be installed.

• The Protective Conductor must be connected for safety reasons. Check that the
power cable has the proper Earth wire, and it is properly connected. It is not safe
to operate this unit without the Protective Conductor Terminal connected.
Conductor Terminal connected.

• Do not exceed voltage rating on the label located on the top of the instrument
housing.

• Always disconnect power before changing signal and power connections.

• Do not use this instrument on a work bench without its case for safety reasons.

• Do not operate this instrument in flammable or explosive atmospheres.

• Do not expose this instrument to rain or moisture.

• Unit mounting should allow for adequate ventilation to ensure instrument does
not exceed operating temperature rating.

• Use electrical wires with adequate size to handle mechanical strain and power
requirements. Install without exposing bare wire outside the connector to
minimize electrical shock hazards.

EMC Considerations

• Whenever EMC is an issue, always use shielded cables.

• Never run signal and power wires in the same conduit.

• Use signal wire connections with twisted-pair cables.

• Install Ferrite Bead(s) on signal wires close to the instrument if EMC problems
persist.

Failure to follow all instructions and warnings may result in injury!

3

Safety Considerations

3-1

Note

Note

☞

☞

4.1 FRONT OF THE METER

The following is a brief description of each part of the front of the meter.

Figure 4-1. Front Detail

ITEM DESCRIPTION

1 –.8.8.8.8.8. or 8.8.8.8.8.8.

6-digit, 14 segment, alphanumeric 0.54” high LED display with
programmable decimal point.

2 SETPOINT LED

These LEDs, labeled 1 through 4, display the status of setpoints
1, 2, 3 (Alarm 1), and 4 (Alarm 2).

3 SETPTS BUTTON

This button functions only in the run mode. When the
Setpoint/Alarm features are unlocked, pressing this button
sequentially recalls the previous setpoint settings to the display.
After the ‘MIN’ and ‘MAX’ buttons are used to alter those
values as desired, pressing the ‘SETPTS’ button, again, stores
these new values.

Unless the ‘SETPTS’ button is pressed, each of the four setpoint
values is displayed for approximately 10 seconds after the last
press of the ‘SETPTS’ button. Holding the ‘SETPTS’ button
depressed stalls this automatic sequence, retaining the most
recent setpoint number on the display.

4-1

Parts of the Meter

4

1

1234

2

SETPTS

3 4

2 2 2

MAX

MIN

MENU RESET

5

6

7

ITEM DESCRIPTION

4  /MAX BUTTON

During run mode, pressing this button displays the “HI RDG”
(peak reading) value that has occurred up to the moment the

‘MAX’ button is pressed. This peak reading flashes, to

distinguish its value from the current readings. Since this is a
dynamic peak reading, the value will change if the value
increases while reviewing it.

To return to display of the current readings without resetting the
peak-value memory to zero (0), press the ‘MAX’ button once
again.

To reset the peak-value memory (start a new peak determining
period), press the ‘RESET’ button once.

During the configuration mode, the ‘MAX’ button is used to
change the numerical value of the flashing digit displayed. For
submenu items, such as “L1C.1=0”, pressing the ‘MAX’ button
toggles the choice from “0” to “1”.

The meter allows rapid changes of a displayed numerical value
by making “0” the first value to occur when the ‘MAX’ button is
pressed. After that, the numbers increase to “9” and then roll
over to “0” again. A negative (“–”) symbol may be displayed in
the most significant digit (i.e. the digit at the far left such as
shown here “–.8.8.8.8.8.”)

In the SETPT (SETPOINT) mode (SP1, SP2, etc), pressing the
‘MAX’ button causes the flashing digit to increment by 1 from 0
to 9.

5



/MIN BUTTON

During run mode, pressing the ‘MIN’ button recalls the “LO
RDG” (valley reading) measured since the last press of the
‘RESET’ button. This lowest value flashes, to distinguish it from
the current process display. Since this is a dynamic valley
reading, the value will change if the value decreases while
reviewing it.

4

Parts of the Meter

4-1

ITEM DESCRIPTION

To return to the actual process display, without resetting the low­value memory, press the ‘MIN’ button once again.

To reset the memory for current-value readings (start a new
observation period), press the ‘RESET’ button once and the
meter will return to the run mode.

In the configuration mode, once in a submenu (like input type)
the ‘MIN’ button allows you scroll through the available choices
such as, 0-20 mA or 4-20 mA, etc.

In the SETPT mode, the ‘MIN’ button advances the flashing digit
to the right.

6 MENU BUTTON

In the run mode, this button terminates the measurement
process and allows you to enter the configuration mode,
advancing through the configuration menus.

In the configuration mode, this button will store changes in the
non-volatile memory at the same time advancing the display to
the next menu item.

7 RESET BUTTON

In the run mode, pressing the ‘RESET’ button once erases the
memories of peak (“HI RDG”), valley (“LO RDG”), and ALARM
latches. The display then returns to the run mode.

WARNING: Pressing the ‘RESET’ button two (2) times will
result in a hard reset of the meter. This will clear the Peak &
Valley, Alarm latches and meter reading and immediately begin
a new measurement.

In the configuration mode, pressing the ‘RESET’ button once,
displays the previous selection. For example, if you were in
“IN CNF” then pressed the ‘RESET’ button once, the display will
then show “RD.SC.OF”. Press the ‘RESET’ button two times to
return to the run mode.

4-2

Parts of the Meter

4

4.2 REAR OF THE METER

The following is a brief description of each part of the rear of the meter. The
label on the top of the mounting sleeve (not the case) identifies the location
of the connectors found at the rear of the meter. Figure 4-2A & figure 4-2B
shows this label.

Figure 4-2A. AC Power - Connector Label for Rear Connectors

4

Parts of the Meter

4-3

VALLEY(V) 3

PEAK/VALLEY OR EXT RESET 5

RESET ALARMS AND/OR 9

P4 / RS232

6 N/C
5 COMM RTN
4 RX
3 TX
2 RTS
1 N/C

P6 / RELAY

1 2 3

DISPLAY HOLD 9

PRINT COMMAND 11

NONSTANDARD TX 13

P2 / CABLE CONNECTOR

TARE(T) 1

DIG RTN 7

+V EXT 15

SP2 17

AL2 19

P4 / RS485

6 N/C
5 B,-RX
4 A, +RX
3 COMM RTN
2 B, -TX/RX
1 A, +TX/RX

P7 / RELAY

1 2 3

2 PEAK(P)
4 SWLIN2
6 PUSH TO CAL
8 +5V

LOCKOUT EEPROM &

10

MENU PUSH BUTTON

11

12 NONSTANDARD RX
14 PUSH TO CAL
16 SP1
18 AL1
20 RTN EXT

P5 / ANALOG OUT

1 RETURN
2 4-20MA
3 0-10V

* NOT AVAILBALE

WITH=DC POWER

* P18 / 4RELAY

1 2 3 4 5 6

NO1

CM1

NC1

P8 / BCD (see manual for pinout) P9&P3 / SIGNAL IN

P1 / AC

POWER

LINE L

NUETRAL N

GND 

CONNECT TO LOW VOLTAGE LIMITED ENERGY CIRCUITRY ONLY.

1

1

P1

P6

NO2

CM2

NC2

P7

P8 or P16

P4

1

P5

19

1

P2

1

NO3

CM3

NC3

NO4

CM4

NC4

+E

1

P9

1

P3

+S

- S

1

- E
+R

- R

4-4

Parts of the Meter

4

Figure 4-2B. DC Power - Connector Label for Rear Connectors

P2 / CABLE CONNECTOR

TARE(T) 1

VALLEY(V) 3

PEAK/VALLEY OR EXT RESET 5

DISPLAY HOLD 9

RESET ALARMS AND/OR 9

PRINT COMMAND 11

NONSTANDARD TX 13

P4 / RS232

6 N/C
5 COMM RTN
4 RX
3 TX
2 RTS
1 N/C

P6 / RELAY

1 2 3

DIG RTN 7

+V EXT 15

P4 / RS485

2 PEAK(P)
4 SWLIN2
6 PUSH TO CAL
8 +5V

LOCKOUT EEPROM &

10

MENU PUSH BUTTON

11

12 NONSTANDARD RX
14 PUSH TO CAL
16 SP1

SP2 17
AL2 19

6 N/C
5 B,-RX
4 A, +RX
3 COMM RTN
2 B, -TX/RX
1 A, +TX/RX

P7 / RELAY

1 2 3

18 AL1
20 RTN EXT

P5 / ANALOG OUT

1 RETURN
2 4-20MA
3 0-10V

* NOT AVAILBALE

WITH=DC POWER

* P18 / 4RELAY

1 2 3 4 5 6

NO1

CM1

NC1

P8 / BCD (see manual for pinout) P9&P3 / SIGNAL IN

P1 / DC

POWER

N/C

+

CONNECT TO LOW VOLTAGE LIMITED ENERGY CIRCUITRY ONLY.

1

1

P1

P6

NO2

CM2

NC2

P7

P8 or P16

P4

1

P5

19

1

P2

1

NO3

CM3

NC3

NO4

CM4

NC4

+E

1

P9

1

P3

+S

- S

1

- E
+R

- R

Figure 4-3 shows the rear of the meter with the optional 4-relay output board
and a serial communications board installed.

Figure 4-3. Rear View

Figure 4-4 shows the rear of the meter with the optional BCD output board
and a serial communications output board installed.

Figure 4-4. Rear View

CONNECTOR # DESCRIPTION

P1 AC Power Connector
P2 External I/O Connector
P3 Input Connector, –E, +R, –R
J4 Optional RS-232 or RS-485 Phone Jack Connector
P5 Optional Analog Out Connector
P6 Optional Form-C Relay #1 Connector
P7 Optional Form-C Relay #2 Connector
P8 Optional BCD Connector
P9 Input Connector, +E, +S, –S
P18 Optional Form-C Relay #3 and #4 Connector

TABLE 4-1 Rear Connector Descriptions

4

Parts of the Meter

4-5

P6

1

2

3

1

P1

L

1
2

N

3

1

P7

P18

1

2

2

3

3

4

5

6

J4

20

P2

1
2

P9

3

1
2

P3

3

U1

L1

P1

L

1
2

N

3

P8

U20

L20

J4

1

20

P2

1
2

P9

3

1

P5

2
3

1
2

P3

3

5.1 CONDITIONS REQUIRING DISASSEMBLY

You may need to remove the sleeve or open the meter for several reasons:

1. To inspect the rating label on the case (not the same label as on the
sleeve) (Section 5.2.1).

2. To check or change the 115 V ac or 230 V ac or main board jumpers
(Sections 5.2.2 and 5.2.4).

3. To install optional output board(s) (Section 5.2.3).

4. To mount the meter in a panel (Section 5.2.5).

5.2 ASSEMBLY/DISASSEMBLY OPENING

OPENING THE METER

Your meter is fully assembled, but not wired. See Section 7 for wiring
connection for power and sensor inputs. In most cases, if you have ordered
optional boards with the meter, these boards will already be installed.

You will need to remove only the rear cover to complete wiring, but you will
have to open the meter to do one or more of the following:

WARNING!: You must disconnect and turn-off the power and connector
signals before accessing the unit and installing optional boards. Failure to do
so may result in injury!

a. Check or reconfigure the Transformer Jumpers on the Main Board so

that they correspond to your line voltage (W1 and W2 for 115 V ac, or
W3 for 230 V ac). See Section 5.2.2.

b. Install optional boards. See Section 5.2.3.

c. Access jumpers on the Main and optional boards. See Section 5.2.4.

5-1

Setup

5

Figure 5-1. Meter Exploded View

Using Figures 5-1 as a guide, follow these simple instructions to open the
meter:

IMPORTANT: Turn-off the power and input signals from the unit before
proceeding. Failure to do so may result in injury!

1. Remove the cover mounting screw that secures the rear protective cover
to the meter, and remove the Rear Protective Cover.

If you are simply wiring the meter–but not checking jumpers or installing
or removing boards–this is as far as the meter needs to be
disassembled. Go to Section 5.2.1.

2. Remove all wiring connectors from the rear of the meter.

3. Remove the two thumbnuts that secure the case to the sleeve.

4. Remove the sleeve completely by sliding it back from the front bezel.

5

Setup

5-2

REAR
PROTECTIVE
COVER

COVER
MOUNTING
SCREW

THUMBNUTS

GASKET

SLEEVE

AC POWER BOARD

MAIN BOARD ASSY

CASE

BEZEL

5. Using Figure 5-2 as a guide, bend the side-panel detents on the case
outward and pull the board assembly out of the case by the mounting
screw stem.

NOTE: From this point forward, these 5 steps are referred to as “Reveal the
main board”.

Figure 5-2. Board Assembly Removing/Installing Detail

The meter is now disassembled to the point where you can check and
configure jumpers and install boards.

REINSERTING THE MAIN BOARD ASSEMBLY INTO THE CASE

Reinsert the Main Board into the case once jumpers and optional boards
have been configured and installed.

Spread the side-panel detents of the case, and carefully slide the main
board all the way in.

5-3

Setup

5

Note

☞

PRODUCT
IDENTIFICATION
LABEL

SIGNAL INPUT
JUMPER LABEL

TO INSTALL

TO REMOVE

CASE

MOUNTING
SCREW
STEM

MAIN BOARD ASSY

BEND DETENTS OUTWARD
TO INSTALL MAIN BOARD

5.2.1 Safety Precaution/Product ID Label

To look at the Rating/Product ID label on the case, you must follow the first
step as described in Section 5-2. Refer to Figure 5-2 for the location of the
Product Identification label.

The meter is protected in accordance with Class I of EN61010. Refer to
Safety Considerations page.

WARNING: If your meter is to be wired to sensors to control inputs that
could be hazardous potentials, these potentials will be carried to the 20-pin
output connector (P2) at the rear. They will also be present on the meter’s
circuit boards. Follow all instructions carefully BEFORE connecting the
meter to any source of power.

DO NOT contact any exposed metal parts, install optional board(s), change
jumpers, or in any way disassemble or assemble the meter while it is
connected to AC voltage.

Note the following information and guidelines for safe operation of your
meter:

Power Voltage

Your power source voltage rating should agree with the voltage under which
the meter has been configured to operate. The first thing you should do is
verify this.

The meter’s operating voltage is shown in the VOLTS: entry of the Product
Identification and Serial Number Label. It is located on the case, as shown in
Figure 5-2, and is clearly visible on the meter packing box.

5

Setup

5-4

5.2.2 Main Board Power Jumpers

To check voltage jumpers or to change from 115 V ac to 230 V ac:

CAUTION: The meter has no power-on switch; it will be in operation as soon
as you apply power. To change the factory preset jumpers, disconnect the
power from the unit. Failure to do so may result in injury! The jumpers must
be changed by specifically trained personnel.

1. “Reveal the Main Board” (refer to Section 5.2, Disassembly).

2. Locate the main board assembly and position it in front of you the same
way as shown in Figure 5-3.

3. On the main board, locate the transformer jumpers W1, W2, and W3
near the transformer T1.
If your power requirement is 115 V ac, jumpers W1 and W2 should be
installed. (DO NOT INSTALL W3)

If your power requirement is 230 V ac, jumper W3 should be installed.
(DO NOT INSTALL W1 OR W2)

Figure 5-3. Transformer Jumpers

5-5

Setup

5

T1

W2

W3

W1

AC POWER
BOARD

MAIN
BOARD

REAR OF
METER

5

Setup

5-6

5.2.3 Printed Circuit Board(s) Installation

To install optional printed circuit board(s):

1. “Reveal the Main Board” (refer to Section 5.2, Disassembly).

2. Using Figure 5-4 as a reference, insert option board(s) into the
corresponding slot(s) on the main board. Each circuit board is
keyed to fit in it’s own position.

Figure 5-4. Optional Printed Circuit Board Locations

J20

BCD BOARD OR 4 RELAY BOARD

P20

P14

RETAINER
(ALWAYS USED
EXCEPT FOR
BCD OR 4 RELAY
OPTION)

P12

INTERCONNECT BOARD
(PART OF BCD ASSY)

P10

(4 RELAY BOARD ONLY)

REAR
PROTECTIVE
COVER

DUAL RELAY
BOARD

COVER
MOUNTING
SCREW

P11

ISOLATED ANALOG

OUTPUT BOARD

RS-232/RS-485 BOARD

J12 J11

J14

BEND DETENTS OUTWARD
TO INSTALL MAIN BOARD

CASE

P10

J10

AC POWER BOARD

MAIN BOARD ASSY

GASKET

THUMBNUTS

SLEEVE

5-7

Setup

5

5.2.4 How to Access Jumpers

To gain access to jumper S1 and S2 used to configure input type remove the
mounting sleeve. The jumpers may be accessed through the slot in the
case.

To gain access to jumpers on the main board for power, excitation and
lockout selection:

1. “Reveal the main board” (refer to Section 5.2, Disassembly).

NOTE: To access the S1 and S2 jumpers on the Signal Input Board, you
only need to remove the mounting sleeve.

2. To re-assemble the meter, follow the steps in reverse order.

Figures 5-5 through 5-13 show the layout of the seven (7) printed circuit
boards with respective jumper blocks, where applicable, used in the meter.
Figures 5-7 through 5-13 show the optional boards.

Figure 5-5. Signal Input Board

Note

☞

M

E

B

A

G

A

B

S1

D

F

C

K

H

L

J

R

P

S

Q

N

V

T

U

S2

TOP VIEWS

R135

J9

J3

5

Setup

5-8

Figure 5-6. ac-Powered Main Board

Figure 5-7. dc-Powered Main Board

D

DISPLAY

BD

R39

S4

B

A

C

T1

S3

C

B

A

SIGNAL INPUT BD

MAIN BD

J9

J3

J2

W2

W3

W1

AC POWER BD

J1

B

AA

1

S

PINS FOR RS 485

1

1A

ALL PINS FOR RS232A

DETAIL A

S4

SEE

11

DETAIL A

J10

J2

R34

J11

1A

1

PINS FOR RELAY

A

S5

S5

10

J12

PINS FOR

ANALOG OUT

A

S4

3

S

A B C D

3

S
