Sanitary Pressure Transducers and Transmitters

Using Micro-Machined Silicon Technology
10 mV/V, 0 to 5 Vdc, 4 to 20 mA Outputs

Gage Pressure: 10 inH2O to 600 psi (25 mb to 41 bar)
Absolute Pressure: 5 to 600 psi (345 mb to 41 bar)
Compound Gage: ±10 inH2O to ±15 psi (±25 mb to ±1 bar)
Vacuum (Negative Gage): 0 to -10 inH2O to 0 to -15 psi

(25 mb to 1 bar)
Barometric Ranges: 0 to 32 inHg to 26 to 32 inHg

Tri-Grip

1

1

or 2"

2

⁄

TM

Twist-lock

Fitting

style.

mini DIN

style.

PX409S Tri-GripTM

Sanitary Series

®

Standard

74-03

U High, 0.08% Accuracy
U Solid State Sensor for Durability
U Excellent Long Term Stability
U Welded Stainless Steel

Construction

U 316L SS Wetted Parts
U Shock and Vibration Rated
U High Overpressure Rating
U Ruggedized with Secondary

Containment System

The PX409S Series micro-machined
silicon transducers with 11⁄2 or
2" sanitary fittings are ideal for
pressure or level CIP applications
in food processing, beverage or
bio/pharmaceutical applications as
well as industrial applications that
require a rugged, high accuracy

ø22.25

5.21 (0.20)

60.97 (2.40)

(0.88)

ø63.91

(2.52)

PX429S20 2" flange

Dimensions: mm (inch)
Ø = Diameter

Twist lock
connector
PT06F10-6S
(sold separately)

PX429S15-015GV, shown

smaller than actual size.

transducer. The micro-machined
silicon sensor provides a very stable
transducer with exceptional high
accuracy of 0.08% and a broad
compensated range of -6.7 to
85°C (20 to 185°F). The modular
construction allows for fast delivery
of most configurations and fittings.

Common
Specifications

Accuracy: ±0.08% best straight line

(linearity, hysteresis and repeatability
combined) compound gage models
calibrated in positive direction only

Calibration: 5-point NIST traceable
calibration with zero and span
values, calibrated in horizontal
direction

Zero Balance: ±0.5% FS typical
±1% max (for ranges ≤2.5 psi ±1%
typ. ±2% max)

Span Setting: ±0.5% FS typical
±1% max (for ranges ≤2.5 psi ±1%
typ. ±2% max)

Operating Temperature Range:

-15 to 115°C (-5 to 240°F)

ø22.25

(0.88)

Mating DIN
connector
included (not
shown)

5.21 (0.20)

60.97 (2.40)

ø50.39

(1.98)

PX419S15 1½" flange

PX419S20-100AV, shown

smaller than actual size.

Compensated Temperature Range:

Ranges ≤ 5 psi: 4.4 to 60°C

(40 to 140°F)
Ranges > 5 psi: -4 to 85°C
(25 to 185°F)

Temperature Compensation:
Zero and Span Shift Over

Compensated Range
Ranges ≤ 25 psi:

Zero: 1.00%

Span: 0.70%

Range = 5 psi:
Zero: 0.80%

Span: 0.50%

Ranges > 5psi:
Zero: 0.50%

Span: 0.50%

26B & 26HB Barometric Range:
Zero: 0.90%

Span: 0.50%

Minimum Isolation Between Case
and Output Terminations:

100M Ω @ 50 Vdc

Pressure Cycles: 1 million, min
Long Term Stability (1-Year):

±0.1% FS typical
Shock: 50 g, 11 mS half sine shock,

(under test)

Vibration: ±20 g (under test)
Bandwidth: DC to 1 kHz typical
Response Time: <1 mS
Fill Fluid: NEOBEE M5 food grade
Approved to 3A Sanitary

Specification 74-03 CE Compliant:

Meets industrial emissions and
immunity standard IEC61326 for
industrial locations

75

Sanitary product line continues to expand,

visit omega.com/sanitary for details!

Environmental Protection:

IP65 or IP67 depending upon
electrical termination

Pressure Rating:

1

⁄2" and 2" Tri-GripTM (compatible

1
with Tri-Clamp®)

Fitting: 600 psi using suitable clamp
Over Pressure: 4 x rated pressure

to maximum rated flange pressure
Secondary Containment: 6 x rated

pressure to a maximum of 2000 psi
(not in clamp)

Wetted Parts:
316L SS

Weight: 285 g (10 oz)

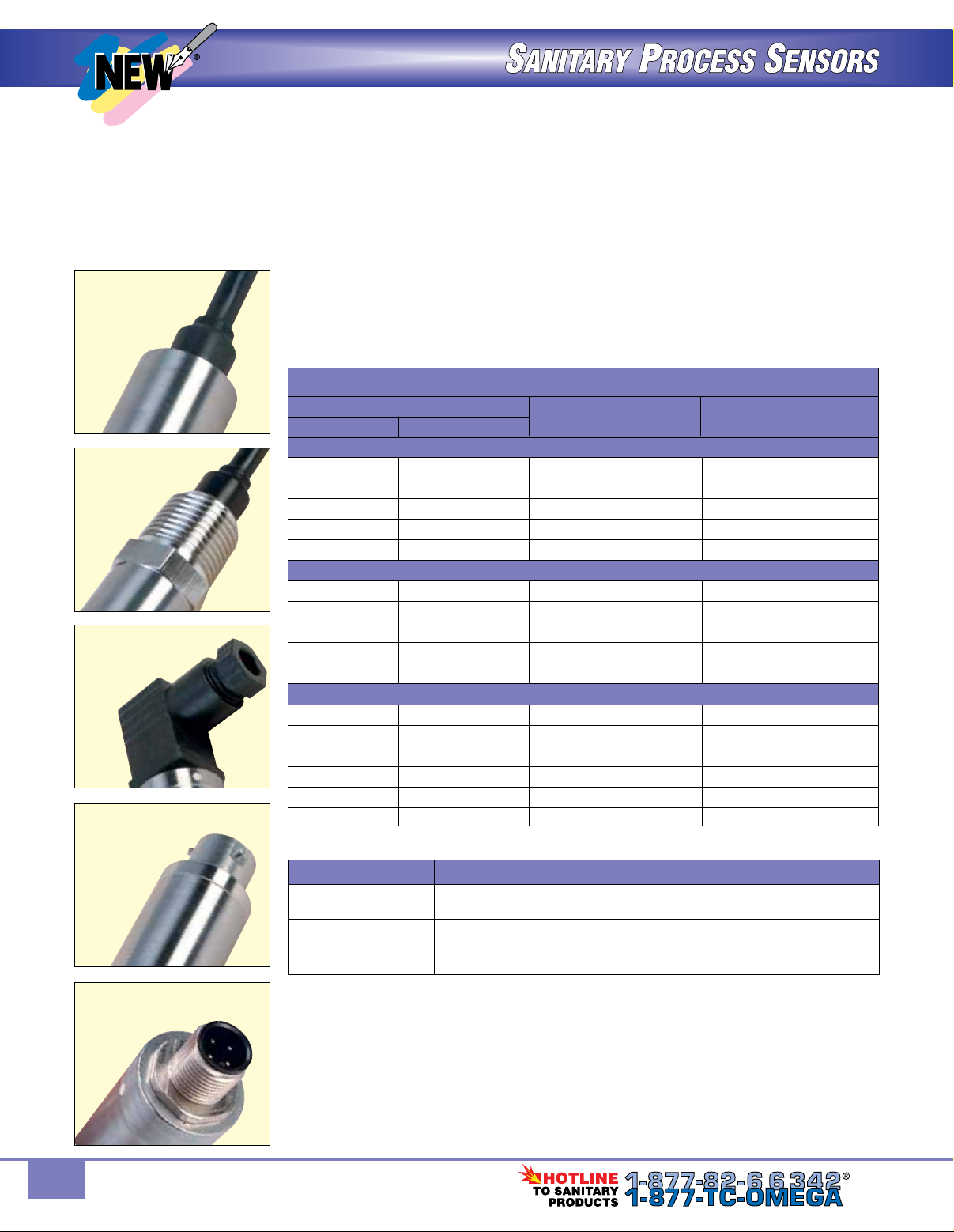

Electrical Terminations

PX409S: 2 m (6')
cable, IP67 rating

PX409CS: Conduit/
cable IP67 rating

PX419S: mini DIN
IP67 rating, absolute
IP65 rating, gage

PX429S: Twist-lock
IP67 rating, absolute
IP65 rating, gage

PX459S: M12 connector
IP67 rating, absolute
IP65 rating, gage

Sanitary Pressure Transducers

Gage and Absolute Range

10 mV/V Output
U

11⁄2 or 2" Tri-GripTM Fittings Available

10 mV/V

Output

U All Stainless Steel Construction
U High Reliability Silicon Sensor
U 3A Approved

To Order Visit omega.com/px409s-mv for Pricing and Details

Range

psi bar Fitting Fitting

Gage Pressure Models, 10 mV/V Output

0 to 10 inH2O 0 to 25 mb PX4[*]9S15-10WGV PX4[*]9S20-10WGV
0 to 1 0 to 69 mb PX4[*]9S15-001GV PX4[*]9S20-001GV
0 to 2.5 0 to 172 mb PX4[*]9S15-2.5GV PX4[*]9S20-2.5GV
0 to 5 0 to 345 mb PX4[*]9S15-005GV PX4[*]9S20-005GV
0 to 15 0 to 1 PX4[*]9S15-015GV PX4[*]9S0-015GV
0 to 30 0 to 2.1 PX4[*]9S15-030GV PX4[*]9S20-030GV
0 to 50 0 to 3.4 PX4[*]9S15-050GV PX4[*]9S20-050GV
0 to 100 0 to 6.9 PX4[*]9S15-100GV PX4[*]9S20-100GV
0 to 150 0 to 10.3 PX4[*]9S15-150GV PX4[*]9S20-150GV
0 to 250 0 to 17.2 PX4[*]9S15-250GV PX4[*]9S20-250GV
0 to 500 0 to 34.5 PX4[*]9S15-500GV PX4[*]9S20-500GV
0 to 600 0 to 41.4 PX4[*]9S15-600GV

Absolute Pressure Models, 10 mV/V Output

0 to 5 0 to 345 mb PX4[*]9S15-005AV PX4[*]9S20-005AV
0 to 15 0 to 1 PX4[*]9S15-015AV PX4[*]9S0-015AV
0 to 30 0 to 2.1 PX4[*]9S15-030AV PX4[*]9S20-030AV
0 to 50 0 to 3.4 PX4[*]9S15-050AV PX4[*]9S20-050A
0 to 100 0 to 6.9 PX4[*]9S15-100AV PX4[*]9S20-100AV
0 to 150 0 to 10.3 PX4[*]9S15-150AV PX4[*]9S20-150AV
0 to 250 0 to 17.2 PX4[*]9S15-250AV PX4[*]9S20-250AV
0 to 500 0 to 34.5 PX4[*]9S15-500AV PX4[*]9S20-500AV
0 to 600 0 to 41.4 PX4[*]9S15-600AV

[*] Select Electrical Termination Below (no extra charge)
0 (PX409S) = 2 m (6') cable**
1 (PX419S) = mini DIN connector (mating connector supplied)
2 (PX429S) = twist lock connector (mating connector PT06F10-6S sold separately)
5 (PX459S) = M12 connector (M12 cables sold separately, see accessories on next page)

** To order with a
Ordering Examples: PX409S15-005GV, 2 m (6') cable termination, 1.5" Tri-Grip fitting, 5 psig range,

10 mV/V output.

PX419S20-10WGV, mini DIN connector, 2" Tri-Grip fitting, 10 inH2O range, 10 mV/V output.
PX429S15-050GV, twist-lock connector, 1.5" Tri-Grip fitting, 50 psig range, 10 mV/V output. mating

connector sold separately, PT06F10-6S.
PX459S15-100GV, M12 connector, 1.5" Tri-Grip fitting, 100 psig range, 10 mV/V output.

11⁄2" Tri-GripTM 2" Tri-GripTM

1

⁄2 NPT conduit fitting, specify model PX409CS.

Shop

online at

SM

To download information and to

order online, visit omega.com/sanitary

76

Sanitary Pressure Transducers

Compound, Vacuum and Barometric Ranges

Specifications

Electrical Terminations

PX409S: 2 m (6')
cable, IP67 rating

(mV/V Output)

Output: 10 mV/V: ratiometric

5 to 10 Vdc
Supply: 5 to 10 Vdc

To Order Visit omega.com/px409s-mv for Pricing and Details

PX409CS: Conduit/
cable IP67 rating

PX419S: mini DIN
IP67 rating, absolute
IP65 rating, gage

PX429S: Twist-lock
IP67 rating, absolute
IP65 rating, gage

PX459S: M12 connector
IP67 rating, absolute
IP65 rating, gage

psi mbar

Compound Gage Ranges

±10 inH2O ±25 PX4[*]9S15-10WCGV PX4[*]9S20-10WCGV
±1 ±69 PX4[*]9S15-001CGV PX4[*]9S20-001CGV
±2.5 ±172 PX4[*]9S15-2.5CGV PX4[*]9S20-2.5CGV
±5 ±345 PX4[*]9S15-005CGV PX4[*]9S20-005CGV
±15 ±1034 PX4[*]9S15-015CGV PX4[*]9S20-015CGV

Vacuum Ranges (Negative Gage, 0 = Ambient)

0 to -10 inH2O 0 to -25 PX4[*]9S15-10WVV PX4[*]9S20-10WVV
0 to -1 0 to -69 PX4[*]9S15-001VV PX4[*]9S20-001VV
0 to -2.5 0 to -172 PX4[*]9S15-2.5VV PX4[*]9S20-2.5VV
0 to -5 0 to -345 PX4[*]9S15-005VV PX4[*]9S20-005VV
0 to -15 0 to -1034 PX4[*]9S15-015VV PX4[*]9S20-015VV
Barometric Ranges (Absolute Pressure)
0 to 32 inHg – PX4[*]9S15-32BV PX4[*]9S20-32BV
16 to 32 inHg – PX4[*]9S15-16BV PX4[*]9S20-16BV
26 to 32 inHg – PX4[*]9S15-26BV PX4[*]9S20-26BV
— 0 to 1100 hPa PX4[*]9S15-32HBV PX4[*]9S20-32HBV
— 600 to 1100 hPa PX4[*]9S15-16HBV PX4[*]9S20-16HBV
— 880 to 1100 hPa PX4[*]9S15-26HBV PX4[*]9S20-26HBV

Accessories

Model No. Description
M12C-PVC-4-S-F-5 PVC cable, straight 4-pin M12 female connector one end, flying

M12C-PVC-4-R-F-5 PVC cable, right angled 4-pin M12 female connector one end, flying

PT06F10-65 Twist lock connector for PX429

[*] Select Electrical Termination Below (no extra charge)
0 (PX409S) = 2 m (6') with flying leads
1 (PX419S) = mini DIN connector (mating connector supplied)
2 (PX429S) = twist lock connector (mating connector PT06F-10S sold separately)
5 (PX459S) = M12 connector (M12 cables sold separately see chart above)

To order with a 1⁄2 NPT conduit fitting, specify model PX409CS.
Custom configurations also available, see omega.com/pxconfig
Ordering Examples: PX409S15-015CGV, cable termination, 1.5" Tri-grip fitting, ±15 psig range,

10 mV/V output.

PX459S20-001VV, M12 termination, 2" Tri-grip fitting, 0 to -1 psi (vacuum) range, 10 mV/V output.
PX419S15-16HBV, mini DIN termination, 1.5" Tri-grip fitting, 550 to 1100 hPa calibrated range, 10 mV/V

output.

Range

Accuracy: ±0.08% BSL (linearity,

hysteresis repeatability combined)
compound gage models calibrated in
positive direction only

11⁄2 Tri-GripTM 2" Tri-Grip

Fitting Fitting

leads one end, 5 m (16.4') long, for PX459

leads one end 5 m (16.4') long, for PX459

TM

77

Sanitary product line continues to expand,

visit omega.com/sanitary for details!

Sanitary Pressure
Transducers

Gages and Absolute
Ranges

0 to 5 Vdc or

0 to 10 Vdc

Output

0 to 5 or 0 to 10 Vdc
Output

U

11⁄2 or 2" Tri-GripTM
Fittings Available

U All Stainless Steel

Construction

U High Reliability Silicon

Sensor

U 3A Approved

DP41-E, shown smaller

than actual size.

Twist-lock style.

Exploded view showing
PX429S15-005GI. Standard
Tri-GripTM fitting works with

commercially available sanitary

pipes and fittings.

Shown smaller

than actual size.

To Order Visit omega.com/px409s-5v for Pricing and Details

Range

psi bar Fitting Fitting

Gage Pressure Models, 0 to 5 Vdc Output

0 to 10 inH2O 0 to 25 mb PX4[*]9S15-10WG5V PX4[*]9S20-10WG5V
0 to 1 0 to 69 mb PX4[*]9S15-001G5V PX4[*]9S20-001G5V
0 to 2.5 0 to 172 mb PX4[*]9S15-2.5G5V PX4[*]9S20-2.5G5V
0 to 5 0 to 345 mb PX4[*]9S15-005G5V PX4[*]9S20-005G5V
0 to 15 0 to 1 PX4[*]9S15-015G5V PX4[*]9S0-015G5V
0 to 30 0 to 2.1 PX4[*]9S15-030G5V PX4[*]9S20-030G5V
0 to 50 0 to 3.4 PX4[*]9S15-050G5V PX4[*]9S20-050G5V
0 to 100 0 to 6.9 PX4[*]9S15-100G5V PX4[*]9S20-100G5V
0 to 150 0 to 10.3 PX4[*]9S15-150G5V PX4[*]9S20-150G5V
0 to 250 0 to 17.2 PX4[*]9S15-250G5V PX4[*]9S20-250G5V
0 to 500 0 to 34.5 PX4[*]9S15-500G5V PX4[*]9S20-500G5V
0 to 600 0 to 41.4 PX4[*]9S15-600G5V

Absolute Pressure Models, 0 to 5 Vdc Output

0 to 5 0 to 345 mb PX4[*]9S15-005A5V PX4[*]9S20-005A5V
0 to 15 0 to 1 PX4[*]9S15-015A5V PX4[*]9S0-015A5V
0 to 30 0 to 2.1 PX4[*]9S15-030A5V PX4[*]9S20-030A5V
0 to 50 0 to 3.4 PX4[*]9S15-050A5V PX4[*]9S20-050A
0 to 100 0 to 6.9 PX4[*]9S15-100A5V PX4[*]9S20-100A5V
0 to 150 0 to 10.3 PX4[*]9S15-150A5V PX4[*]9S20-150A5V
0 to 250 0 to 17.2 PX4[*]9S15-250A5V PX4[*]9S20-250A5V
0 to 500 0 to 34.5 PX4[*]9S15-500A5V PX4[*]9S20-500A5V
0 to 600 0 to 41.4 PX4[*]9S15-600A5V

[*] Select Electrical Termination Below (no extra charge)
0 (PX409S) = 2 m (6') cable**
1 (PX419S) = mini DIN connector (mating connector supplied)
2 (PX429S) = twist Lock connector (mating connector PT06F10-6S not included)
5 (PX459S) = M12 connector (M12 cables sold separately, see accessories on next page)

** To order with a
To order 0 to 10 Vdc output, change “5V” to “10V”, no extra charge.
Ordering Examples: PX409S15-005G5V, 2 m (6') cable termination, 1.5" Tri-Grip fitting, 5 psig range,

0 to 5 Vdc output.

PX419S20-10WG5V, mini DIN connector, 2" Tri-Grip fitting, 10 inH2O range, 0 to 5 Vdc output.
PX429S15-050G10V, twist-lock connector, 1.5" Tri-Grip fitting, 50 psig range, 0 to 10 Vdc output, mating

connector sold separately, PT06F10-6S.
PX459S15-100G5V, M12 connector, 1.5" Tri-Grip fitting, 100 psig range, 0 to 5 Vdc output.

11⁄2" Tri-GripTM 2" Tri-GripTM

1

⁄2 NPT conduit fitting, specify model PX409CS.

Shop

online at

SM

To download information and to

order online, visit omega.com/sanitary

78

Sanitary Pressure Transmitters

Compound, Vacuum and Barometric Ranges

Electrical Terminations

PX409S: 2 m (6')
cable, IP67 rating

Specifications
(Amplified Voltage Output)

Output/Supply:
0 to 5 Vdc: 10 to 30 Vdc

0 to 10 Vdc: 15 to 30 Vdc

To Order Visit omega.com/px409s-5v for Pricing and Details

PX409CS: Conduit/
cable IP67 rating

PX419S: mini DIN
IP67 rating, absolute
IP65 rating, gage

PX429S: Twist-lock
IP67 rating, absolute
IP65 rating, gage

PX459S: M12 connector
IP67 rating, absolute
IP65 rating, gage

psi mbar

Compound Gage Ranges

±10 inH2O ±25 PX4[*]9S15-10WCG5V PX4[*]9S20-10WCG5V
±1 ±69 PX4[*]9S15-001CG5V PX4[*]9S20-001CG5V
±2.5 ±172 PX4[*]9S15-2.5CG5V PX4[*]9S20-2.5CG5V
±5 ±345 PX4[*]9S15-005CG5V PX4[*]9S20-005CG5V
±15 ±1034 PX4[*]9S15-015CG5V PX4[*]9S20-015CG5V

Vacuum Ranges (Negative Gage, 0 = Ambient)

0 to -10 inH2O 0 to -25 PX4[*]9S15-10WV5V PX4[*]9S20-10WV5V
0 to -1 0 to -69 PX4[*]9S15-001V5V PX4[*]9S20-001V5V
0 to -2.5 0 to -172 PX4[*]9S15-2.5V5V PX4[*]9S20-2.5V5V
0 to -5 0 to -345 PX4[*]9S15-005V5V PX4[*]9S20-005V5V
0 to -15 0 to -1034 PX4[*]9S15-015V5V PX4[*]9S20-015V5V

Barometric Ranges (Absolute Pressure)

0 to 32 inHg – PX4[*]9S15-32B5V PX4[*]9S20-32B5V
16 to 32 inHg – PX4[*]9S15-16B5V PX4[*]9S20-16B5V
26 to 32 inHg – PX4[*]9S15-26B5V PX4[*]9S20-26B5V
— 0 to 1100 hPa PX4[*]9S15-32HB5V PX4[*]9S20-32HB5V
— 600 to 1100 hPa PX4[*]9S15-16HB5V PX4[*]9S20-16HB5V
— 880 to 1100 hPa PX4[*]9S15-26HB5V PX4[*]9S20-26HB5V

Accessories

Model No. Description
M12C-PVC-4-S-F-5 PVC cable, straight 4-pin M12 female connector one end, flying

M12C-PVC-4-R-F-5 PVC cable, right angled 4-pin M12 female connector one end, flying

PT06F10-65 Twist lock connector for PX429

[*] Select Electrical Termination Below (no extra charge)
0 (PX409S) = 2 m (6') with flying leads
1 (PX419S) = mini DIN connector (mating connector supplied)
2 (PX429S) = twist lock connector (mating connector PT06F-10S sold separately)
5 (PX459S) = M12 connector (M12 cables sold separately see chart above)

To order with a
To order 0 to 10 Vdc output, change “5V” to “10V”, no extra charge.
Ordering Examples: PX409S15-015CG5V, cable termination, 1.5" Tri-grip fitting, ±15 psig range,

0 to 5 Vdc output.

PX459S20-001V5V, M12 termination, 2" Tri-grip fitting, 0 to -1 psi (vacuum) range, 0 to 5 Vdc output.
PX419S15-16HB10V, mini DIN termination, 1.5" Tri-grip fitting, 550 to 1100 hPa calibrated range,

0 to 10 Vdc output.

Range

1

⁄2 NPT conduit fitting, specify model PX409CS.

Accuracy: ±0.08% BSL (linearity,
hysteresis repeatability combined)
compound gage models calibrated in
positive direction only

11⁄2 Tri-GripTM 2 Tri-Grip

Fitting Fitting

leads one end, 5 m (16.4') long, for PX459

leads one end 5 m (16.4') long, for PX459

TM

79

Sanitary product line continues to expand,

visit omega.com/sanitary for details!

Sanitary Pressure Transducers

Gages and Absolute Ranges

Electrical Terminations

PX409S: 2 m (6')
cable, IP67 rating

4 to 20 mA

1

U 1

⁄2 or 2" Tri-GripTM Fittings Available

U All Stainless Steel Construction
U High Reliability Silicon Sensor

U 3A Approved

4 to 20 mA

Output

PX409CS: Conduit/
cable IP67 rating

PX419S: mini DIN
IP67 rating, absolute
IP65 rating, gage

PX429S: Twist-lock
IP67 rating, absolute
IP65 rating, gage

PX459S: M12 connector
IP67 rating, absolute
IP65 rating, gage

To Order Visit omega.com/px409s-i for Pricing and Details

Range

psi bar Fitting Fitting

Gage Pressure Models, 4 to 20 mA Output

0 to 10 inH2O 0 to 25 mb PX4[*]9S15-10WGI PX4[*]9S20-10WGI
0 to 1 0 to 69 mb PX4[*]9S15-001GI PX4[*]9S20-001GI
0 to 2.5 0 to 172 mb PX4[*]9S15-2.5GI PX4[*]9S20-2.5GI
0 to 5 0 to 345 mb PX4[*]9S15-005GI PX4[*]9S20-005GI
0 to 15 0 to 1 PX4[*]9S15-015GI PX4[*]9S0-015GI
0 to 30 0 to 2.1 PX4[*]9S15-030GI PX4[*]9S20-030GI
0 to 50 0 to 3.4 PX4[*]9S15-050GI PX4[*]9S20-050GI
0 to 100 0 to 6.9 PX4[*]9S15-100GI PX4[*]9S20-100GI
0 to 150 0 to 10.3 PX4[*]9S15-150GI PX4[*]9S20-150GI
0 to 250 0 to 17.2 PX4[*]9S15-250GI PX4[*]9S20-250GI
0 to 500 0 to 34.5 PX4[*]9S15-500GI PX4[*]9S20-500GI
0 to 600 0 to 41.4 PX4[*]9S15-600GI

Absolute Pressure Models, 4 to 20 mA Output

0 to 5 0 to 345 mb PX4[*]9S15-005AI PX4[*]9S20-005AI
0 to 15 0 to 1 PX4[*]9S15-015AI PX4[*]9S0-015AI
0 to 30 0 to 2.1 PX4[*]9S15-030AI PX4[*]9S20-030AI
0 to 50 0 to 3.4 PX4[*]9S15-050AI PX4[*]9S20-050A
0 to 100 0 to 6.9 PX4[*]9S15-100AI PX4[*]9S20-100AI
0 to 150 0 to 10.3 PX4[*]9S15-150AI PX4[*]9S20-150AI
0 to 250 0 to 17.2 PX4[*]9S15-250AI PX4[*]9S20-250AI
0 to 500 0 to 34.5 PX4[*]9S15-500AI PX4[*]9S20-500AI
0 to 600 0 to 41.4 PX4[*]9S15-600AI

[*] Select Electrical Termination Below (no extra charge)
0 (PX409S) = 2 m (6') cable**
1 (PX419S) = mini DIN connector (mating connector supplied)
2 (PX429S) = Twist Lock connector (mating connector PT06F10-6S sold separately)
5 (PX459S) = M12 connector (M12 cables sold separately, see accessories on next page)

To order with a 1⁄2 NPT conduit fitting, specify model PX409CS.
Ordering Examples: PX409S15-005GI, 2 m (6') cable termination, 1.5" Tri-Grip fitting, 5 psig range,

4 to 20 mA output.

PX419S20-10WGI, mini DIN connector, 2" Tri-Grip fitting, 10 inH2O range, 4 to 20 mA output.
PX429S15-050GI, twist-lock connector, 1.5" Tri-Grip fitting, 50 psig range, 4 to 20 mA output, mating

connector sold separately, PT06F10-6S.
PX459S15-100GI, M12 connector, 1.5" Tri-Grip fitting, 100 psig range, 4 to 20 mA output.

11⁄2" Tri-GripTM 2" Tri-GripTM

Shop

online at

SM

To download information and to

order online, visit omega.com/sanitary

80

Sanitary Pressure Transmitters

Compound, Vacuum and Barometric Ranges

Specifications)

Output/Supply:

Electrical Terminations

PX409S: 2 m (6')
cable, IP67 rating

Output: 4 to 20 mAdc

Supply: 9 to 30 Vdc

[9 to 20 Vdc above 105°C (229°F)]
max loop res Ω = (Vs-9) x 50

Accuracy: ±0.08% BSL (linearity, hysteresis
repeatability combined) compound gage models
calibrated in positive direction only

To Order Visit omega.com/px409s-i for Pricing and Details

PX409CS: Conduit/
cable IP67 rating

PX419S: mini DIN
IP67 rating, absolute
IP65 rating, gage

PX429S: Twist-lock
IP67 rating, absolute
IP65 rating, gage

PX459S: M12 connector
IP67 rating, absolute
IP65 rating, gage

psi mbar

Compound Gage Ranges

±10 inH2O ±25 PX4[*]9S15-10WCGI PX4[*]9S20-10WCGI
±1 ±69 PX4[*]9S15-001CGI PX4[*]9S20-001CGI
±2.5 ±172 PX4[*]9S15-2.5CGI PX4[*]9S20-2.5CGI
±5 ±345 PX4[*]9S15-005CGI PX4[*]9S20-005CGI
±15 ±1034 PX4[*]9S15-015CGI PX4[*]9S20-015CGI

Vacuum Ranges (Negative Gage, 0 = Ambient)

0 to -10 inH2O 0 to -25 PX4[*]9S15-10WVI PX4[*]9S20-10WVI
0 to -1 0 to -69 PX4[*]9S15-001VI PX4[*]9S20-001VI
0 to -2.5 0 to -172 PX4[*]9S15-2.5VI PX4[*]9S20-2.5VI
0 to -5 0 to -345 PX4[*]9S15-005VI PX4[*]9S20-005VI
0 to -15 0 to -1034 PX4[*]9S15-015VI PX4[*]9S20-015VI
Barometric Ranges (Absolute Pressure)
0 to 32 inHg — PX4[*]9S15-32BI PX4[*]9S20-32BI
16 to 32 inHg — PX4[*]9S15-16BI PX4[*]9S20-16BI
26 to 32 inHg — PX4[*]9S15-26BI PX4[*]9S20-26BI
— 0 to 1100 hPa PX4[*]9S15-32HBI PX4[*]9S20-32HBI
— 600 to 1100 hPa PX4[*]9S15-16HBI PX4[*]9S20-16HBI
— 880 to 1100 hPa PX4[*]9S15-26HBI PX4[*]9S20-26HBI

Accessories

Model No. Description
M12C-PVC-4-S-F-5 PVC cable, straight 4-pin M12 female connector one end, flying

M12C-PVC-4-R-F-5 PVC cable, right angled 4-pin M12 female connector one end, flying

PT06F10-65 Twist lock connector for PX429

[*] Select Electrical Termination Below (no extra charge)
0 (PX409S) = 2 m (6') cable with flying leads
1 (PX419S) = mini DIN cable (mating connector included)
2 (PX429S) = twist-lock connector (mating connector PT06F-10S sold separately)
5 (PX459S) = M12 connector, (M12 cables sold separately see chart above)

For 1⁄2 NPT conduit connector order model PX409CS
Custom configurations also available, see omega.com/pxconfig
Ordering Examples: PX409S15-015CGI, cable termination, 1.5" Tri-grip fitting, ±15 psig range,

4 to 20 mA output.

PX459S20-001VI, M12 termination, 2" Tri-grip fitting, 0 to -1 psi (vacuum) range, 4 to 20 mA output.
PX419S15-16HBI, mini DIN termination, 1.5" Tri-grip fitting, 550 to 1100 hPa calibrated range, 4 to 20 mA

output.

Range

4 to 20 mA

Fitting Fitting

leads one end, 5 m (16.4') long, for PX459

leads one end 5 m (16.4') long, for PX459

11⁄2 Tri-GripTM 2" Tri-Grip

Output

TM

81

Sanitary product line continues to expand,

visit omega.com/sanitary for details!

High Accuracy Pressure Transducers

Conduit backend PX409C

Integral cable backend PX409

Twist-lock backend PX429

5 (0.2)

28

(1.1)

½ NPT TH’D

(gage units only)

Piezoresistive Design With High Temperature Performance

All images shown

smaller than actual size.

Cable style.

PX409S Series

PX409 Cable Connection

Color mV 5/10V mA

Black – EXC Common – Supply
White + SIG + Output NC
Green – SIG NC NC
Red + EXC + EXC + Supply

Conduit backend PX409C

28

(1.1)

Integral cable backend PX409

5 (0.2)

½ NPT TH’D

mini DIN and M12 style. Twist-lock style.

PX419S Series

PX459S M12

connector.

PX419/PX459 Pinout

Pin mV 5/10V mA

1 + EXC + EXC + Supply
2 – EXC Common – Supply
3 + SIG + Output NC
4 – SIG NC NC

5 (0.2)

Vent with porous plug
(gage units only)

mini DIN backend PX419

5 (0.2)

PX429 Twist-Lock Pinout

Pin mV 5/10V mA

A + EXC + EXC + Supply
B – EXC Common – Supply
C + SIG + Output NC
D – SIG NC NC
E NC NC NC
F NC NC NC

Dimensions: mm (inch)

PX429S Series

NC = No Connection.

2 connector
bacend 

Ø 20.2

(0.8)

2  

 (0.2)

Compatible Meters and Accessories

Meters
Model No. Description

DP41-S 6-digit high accuracy (0.005%) process meter for use with milli voltage and strain gage bridge

DP41-E

DP25B-E 4-digit precision process meter for use with voltage and current output models

Accessories

CX5302 Extra mini DIN connector for PX419 Series
PT06F10-6S Mating twist lock connector for PX429 Series
M12C-PVC-4-S-F-5 PVC cable, straight 4-pin M12 female connector one end, flying leads one end, 5 m (16.4’) long,

M12C-PVC-4-R-F-5 PVC cable, right angled 4-pin M12 female connector one end, flying leads one end 5 m (16.4’) long,

6-digit high accuracy (0.005%) meter for use with voltage and current output models

Shop

online at

output models

for PX459

for PX459

Vent with porous plug

SM

To download information and to

order online, visit omega.com/sanitary

82
