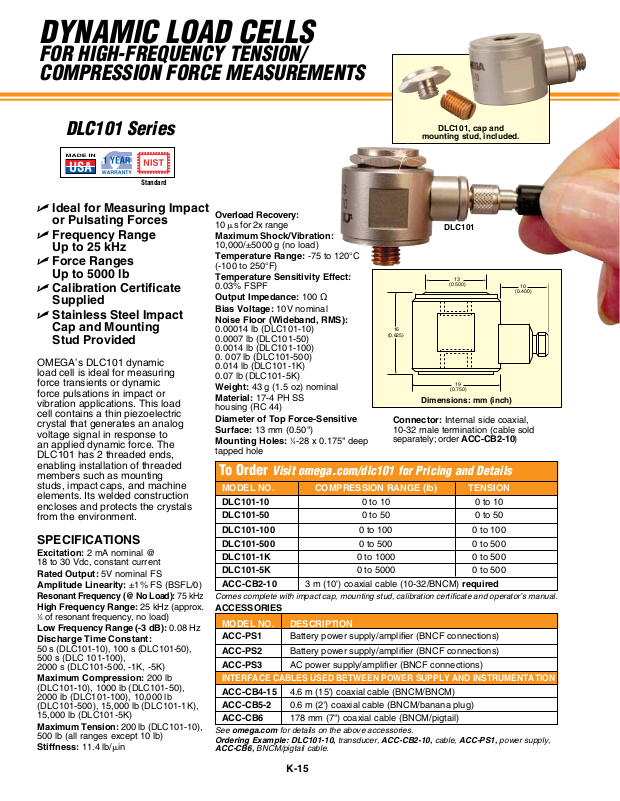

DYNAMIC LOAD CELLS
FOR HIGH-FREQUENCY TENSION/
COMPRESSION FORCE MEASUREMENTS
DLC101 Series
Standard
U Ideal for Measuring Impact
or Pulsating Forces
U Frequency Range
Up to 25 kHz
U Force Ranges
Up to 5000 lb
U Calibration Certificate
Supplied
U Stainless Steel Impact
Cap and Mounting
Stud Provided
OMEGA’s DLC101 dynamic
load cell is ideal for measuring
force transients or dynamic
force pulsations in impact or
vibration applications. This load
cell contains a thin piezoelectric
crystal that generates an analog
voltage signal in response to
an applied dynamic force. The
DLC101 has 2 threaded ends,
enabling installation of threaded
members such as mounting
studs, impact caps, and machine
elements. Its welded construction
encloses and protects the crystals
from the environment.
SPECIFICATIONS
Excitation: 2 mA nominal @
18 to 30 Vdc, constant current
Rated Output: 5V nominal FS
Amplitude Linearity: ±1% FS (BSFL/0)
Resonant Frequency (@ No Load): 75 kHz
High Frequency Range: 25 kHz (approx.
1
⁄3 of resonant frequency, no load)
Low Frequency Range (-3 dB): 0.08 Hz
Discharge Time Constant:
50 s (DLC101-10), 100 s (DLC101-50),
500 s (DLC 101-100),
2000 s (DLC101-500, -1K, -5K)
Maximum Compression: 200 lb
(DLC101-10), 1000 lb (DLC101-50),
2000 lb (DLC101-100), 10,000 lb
(DLC101-500), 15,000 lb (DLC101-1K),
15,000 lb (DLC101-5K)
Maximum Tension: 200 lb (DLC101-10),
500 lb (all ranges except 10 lb)
Stiffness: 11.4 lb/min
DLC101, cap and
mounting stud, included.
Overload Recovery:
10 ms for 2x range
Maximum Shock/Vibration:
10,000/±5000 g (no load)
Temperature Range: -75 to 120°C
(-100 to 250°F)
Temperature Sensitivity Effect:
0.03% FSPF
Output Impedance: 100 Ω
Bias Voltage: 10V nominal
Noise Floor (Wideband, RMS):
0.00014 lb (DLC101-10)
0.0007 lb (DLC101-50)
0.0014 lb (DLC101-100)
0. 007 lb (DLC101-500)
0.014 lb (DLC101-1K)
0.07 lb (DLC101-5K)
Weight: 43 g (1.5 oz) nominal
Material: 17-4 PH SS
housing (RC 44)
Diameter of Top Force-Sensitive
Surface: 13 mm (0.50")
Mounting Holes:
tapped hole
To Order
MODEL NO. COMPRESSION RANGE (lb) TENSION
DLC101-10 0 to 10 0 to 10
DLC101-50 0 to 50 0 to 50
DLC101-100 0 to 100 0 to 100
DLC101-500 0 to 500 0 to 500
DLC101-1K 0 to 1000 0 to 500
DLC101-5K 0 to 5000 0 to 500
ACC-CB2-10 3 m (10') coaxial cable (10-32/BNCM) required
Comes complete with impact cap, mounting stud, calibration certificate and operator’s manual.
ACCESSORIES
MODEL NO. DESCRIPTION
ACC-PS1 Battery power supply/amplifier (BNCF connections)
ACC-PS2 Battery power supply/amplifier (BNCF connections)
ACC-PS3 AC power supply/amplifier (BNCF connections)
INTERFACE CABLES USED BETWEEN POWER SUPPLY AND INSTRUMENTATION
ACC-CB4-15 4.6 m (15') coaxial cable (BNCM/BNCM)
ACC-CB5-2 0.6 m (2') coaxial cable (BNCM/banana plug)
ACC-CB6 178 mm (7") coaxial cable (BNCM/pigtail)
See omega.com for details on the above accessories.
Ordering Example: DLC101-10, transducer, ACC-CB2-10, cable, ACC-PS1, power supply,
ACC-CB6, BNCM/pigtail cable.
1
⁄4-28 x 0.175" deep
Visit omega.com/dlc101 for Pricing and Details
16
(0.625)
Connector: Internal side coaxial,
10-32 male termination (cable sold
separately; order ACC-CB2-10)
DLC101
13
(0.500)
19
(0.750)
Dimensions: mm (inch)
10
(0.400)
K-15
