STAINLESS STEEL SHEATH
CARTRIDGE HEATERS
Standard and High Watt Density Construction
CSS Series
Starts at
$
16
⻬ Stainless Steel Sheath
⻬ CSH Series:
Sheath Temperatures
to 760°C (1400°F)
⻬ CSS Series:
Sheath Temperature
to 677°C (1250°F)
⻬ 3.2 to 19 mm (
1
⁄8 to 3⁄4")
Diameters
⻬ 120V and 240V
⻬ UL Recognized (E56973)
⻬ CSA Certified (LR-16386)
APPLICATIONS
⻬ Dies
⻬ Molds
⻬ Platens
⻬ Heat Sealing
⻬ Labeling
⻬ Packaging
⻬ Hot Melt Adhesive
Machinery
OMEGALUX
®
CS Series cartridge
heaters provide high wattage in
limited spaces. They are
manufactured with 300 Series
stainless steel sheaths to precise
dimensions and tolerances to
ensure maximum heat transfer for
minimum core temperature and
faster heating. The CSS Series
cartridge heaters feature an
economical design of coiled
resistance elements and ceramic
cores and can be used whenever
a high watt density is not required.
The CSH Series consists of high
watt density cartridge heaters that
feature a swaged construction,
which allows for longer life at higher
temperatures. See next page for
the maximum recommended
watt density when selecting the
high watt density CSH Series
cartridge heaters.
CSS and CSH Series cartridge
heaters are designed to fit holes
drilled and reamed to the nominal
SPECIFICATIONS
Lead Length: 150 mm L (6")
Lead Insulation:
CSH Series:
Fiberglass, rated to 250°C (482°F)
CSS Series:
Heater dia. of 6.4 mm (
1
⁄4") and smaller:
PFA, rated to 200°C (392°F)
Heater Dia. of 7.9 mm (5⁄16") and
larger: Fiberglass, rated to 250°C
(482°F)
Wattage Tolerance:
5 to -10% at rated voltage
Diameter Tolerance:
From 0.025 to 0.229 mm (0.001 to 0.009")
less the nominal diameter in inches
Length Tolerance: ±2% or ±1.6 mm (
1
⁄16"),
whichever is greater
Camber Tolerance:
1.7 mm/m (0.020"/ft) of length for units
up to 305 mm (12") L
Sheath Material:
300 Series stainless steel
Diameters as small as
3.2 mm (1⁄8")
diameter of the heater. The hole
should be reamed to the fractional
size with a +0.025 mm (0.001")
tolerance.
CSS-102100/120,
$20, shown larger
than actual size
CSH-201100/120,
$23, shown larger
than actual size
71
To Order, Call or Shop Online at
omega.com
SM
®
To Order
(Specify Model Number)
Length Weight
mm (in) Watts W/in2Model Number g (lb) Price
89 (3.50) 90 35 CSS-10390/* 27 (0.06) $20
89 (3.50) 200 85 CSH-103200/* 18 (0.04) 27
89 (3.50) 260 110 CSH-103260/* 18 (0.04) 27
102 (4.00) 110 40 CSS-104110/* 32 (0.07) 21
102 (4.00) 235 85 CSH-104235/* 18 (0.04) 29
102 (4.00) 300 110 CSH-104300/* 18 (0.04) 29
102 (4.00) 400 150 CSH-104400/* 18 (0.04) 29
114 (4.50) 70 21 CSH-10470/120 23 (0.05) 30
114 (4.50) 110 30 CSS-1041101/* 36 (0.08) 23
114 (4.50) 270 85 CSH-104270/* 23 (0.05) 30
114 (4.50) 350 110 CSH-104350/* 23 (0.05) 30
127 (5.00) 305 85 CSH-105305/* 27 (0.06) 36
127 (5.00) 400 115 CSH-105400/* 27 (0.06) 36
178 (7.00) 150 30 CSS-107150/120 54 (0.12) 28
To Order
(Specify Model Number)
Length Weight
mm (in) Watts W/in2Model Number g (lb) Price
25 (1.00) 30 40 CSS-20130/120 18 (0.04) $17
25 (1.00) 100 165 CSH-201100/120 18 (0.04) 23
32 (1.25) 100 110 CSH-2011001/120 18 (0.04) 23
32 (1.25) 150 165 CSH-201150/120 18 (0.04) 23
38 (1.50) 50 40 CSS-20150/* 32 (0.07) 17
38 (1.50) 150 125 CSH-2015150/120 23 (0.05) 23
38 (1.50) 200 105 CSH-201200/* 23 (0.05) 23
51 (2.00) 70 35 CSS-20270/* 41 (0.09) 18
51 (2.00) 100 50 CSS-202100/120 41 (0.09) 18
51 (2.00) 150 85 CSH-202150/* 27 (0.06) 25
51 (2.00) 200 110 CSH-202200/* 27 (0.06) 25
51 (2.00) 250 135 CSH-202250/* 27 (0.06) 25
64 (2.50) 100 40 CSS-2021001/* 54 (0.12) 19
64 (2.50) 200 85 CSH-202200/120 32 (0.07) 25
To Order
(Specify Model Number)
Length Weight
mm (in) Watts W/in2Model Number g (lb) Price
38 (1.50) 30 40 CSS-03130/120 32 (0.07) $20
51 (2.00) 35 35 CSS-03235/120 41 (0.09) 22
76 (3.00) 65 40 CSS-03365/120 50 (0.11) 25
102 (4.00) 90 40 CSS-03490/120 59 (0.13) 27
102 (4.00) 60 25 CSS-03460/120 59 (0.13) 27
102 (4.00) 100 45 CSS-034100/120 59 (0.13) 27
To Order
(Specify Model Number)
Length Weight
mm (in) Watts W/in2Model Number g (lb) Price
25 (1.00) 10 35 CSS-01110/120 5 (0.01) $36
25 (1.00) 15 50 CSS-01115/120 5 (0.01) 36
38 (1.50) 20 40 CSS-01120/120 14 (0.03) 40
38 (1.50) 25 50 CSS-01125/120 14 (0.03) 40
51 (2.00) 35 50 CSS-01235/120 27 (0.06 ) 42
3.18 mm (1⁄8") Diameter CSS Series Cartridge Heaters
(Actual Dia: 0.124 to 0.120")
6.35 mm (
1
⁄4") Diameter
CSS and CSH Series
Cartridge Heaters
(cont.)
4 mm (5⁄32") Diameter CSS Series Cartridge Heaters
(Actual Dia: 0.155 to 0.152")
4.76 mm (3⁄16") Diameter CSS Series Cartridge Heater
(Actual Dia: 0.186 to 0.183")
9.53 mm (3⁄8") Diameter CSS and CSH Series
Cartridge Heaters (Actual Dia: 0.374 to 0.370")
More 6.35 mm (1⁄4") diameter CSS and CSH Series cartridge heaters at
top right, this page.
* Insert “120” or “240” to indicate desired operating voltage.
More 9.53 mm (
3
⁄8") diameter CSS and CSH Series cartridge heaters on
following page.
Ordering Example: CSS-01120/120, 3.18 mm (1⁄8") diameter cartridge
heater, 120 Vac, $40.
Ordering Example: CSH-103220/120, 6.35 mm (1⁄4") diameter cartridge
heater, 120 Vac, $27.
To Order
(Specify Model Number)
Length Weight
mm (in) Watts W/in2Model Number g (lb) Price
25 (1.00) 10 25 CSS-02110/120 23 (0.05) $27
38 (1.50) 20 35 CSS-02120/120 32 (0.07) 28
51 (2.00) 35 40 CSS-02235/120 41 (0.09) 29
To Order
(Specify Model Number)
Length Weight
mm (in) Watts W/in
2
Model Number g (lb) Price
25 (1.00) 20 35 CSS-10120/120 5 (0.01) $16
25 (1.00) 100 250 CSH-101100/120 9 (0.02) 22
32 (1.25) 20 25 CSS-101201/120 5 (0.01) 17
32 (1.25) 100 165 CSH-1011001/120 9 (0.02) 22
38 (1.50) 30 30 CSS-10130/* 9 (0.02) 17
38 (1.50) 50 50 CSS-10150/* 9 (0.02) 17
38 (1.50) 70 85 CSH-10170/120 9 (0.02) 22
38 (1.50) 120 150 CSH-101120/120 9 (0.02) 22
51 (2.00) 50 35 CSS-10250/120 14 (0.03) 17
51 (2.00) 100 85 CSH-102100/120 14 (0.03) 24
51 (2.00) 150 125 CSH-102150/120 14 (0.03) 24
64 (2.50) 65 35 CSS-10265/* 18 (0.04) 19
64 (2.50) 135 85 CSH-102135/120 14 (0.03) 25
64 (2.50) 185 115 CSH-102185/120 14 (0.03) 25
76 (3.00) 100 45 CSS-103100/240 23 (0.05) 20
76 (3.00) 170 90 CSH-103170/120 18 (0.04) 27
76 (3.00) 220 115 CSH-103220/120 18 (0.04) 27
6.35 mm (1⁄4") Diameter CSS and CSH Series
Cartridge Heaters (Actual Dia: 0.249 to 0.245")
MOST POPULAR
MODELS HIGHLIGHTED!
72
To Order, Call or Shop Online at
omega.com
SM
®
To Order
(Specify Model Number)
Length Weight
mm (in) Watts W/in2Model Number g (lb) Price
38 (1.50) 75 50 CSS-30175/* 32 (0.07) $18
38 (1.50) 90 60 CSS-30190/120 32 (0.07) 18
38 (1.50) 135 85 CSH-301135/* 32 (0.07) 24
38 (1.50) 335 210 CSH-301335/120 32 (0.07) 24
51 (2.00) 120 50 CSS-302120/* 50 (0.11) 21
51 (2.00) 200 85 CSH-302200/* 36 (0.08) 28
51 (2.00) 400 165 CSH-302400/120 36 (0.08) 28
64 (2.50) 80 25 CSS-30280/120 64 (0.14) 22
64 (2.50) 150 50 CSS-302150/* 64 (0.14) 22
64 (2.50) 270 85 CSH-302270/* 41 (0.09) 30
64 (2.50) 470 150 CSH-302470/* 41 (0.09) 30
76 (3.00) 200 50 CSS-303200/* 77 (0.17 ) 23
76 (3.00) 335 85 CSH-303335/* 45 (0.10) 32
76 (3.00) 535 135 CSH-303535/* 45 (0.10) 32
102 (4.00) 275 50 CSS-304275/* 104 (0.23) 25
102 (4.00) 470 85 CSH-304470/* 50 (0.11) 33
127 (5.00) 350 50 CSS-305350/* 122 (0.27) 26
127 (5.00) 500 70 CSH-305500/* 59 (0.13) 36
152 (6.00) 425 50 CSS-306425/* 150 (0.33) 30
152 (6.00) 735 85 CSH-306735/* 68 (0.15) 40
178 (7.00) 550 55 CSS-307550/* 218 (0.48) 32
203 (8.00) 650 55 CSS-308650/* 240 (0.53) 34
203 (8.00) 1000 85 CSH-3081000/* 77 (0.17) 54
254 (10.00) 850 55 CSS-310850/* 281 (0.62) 40
254 (10.00) 1200 80 CSH-3101200/240 100 (0.22) 62
305 (12.00) 1000 55 CSS-3121000/* 313 (0.69) 45
12.7 mm (1⁄2") Diameter
CSS and CSH Series
Cartridge Heaters (Actual
Dia: 0.499 to 0.494")
* Insert “120” or “240” to indicate desired operating voltage.
Note for CSS and CSH Series heaters: the watt densities are based
on a unit installed in mild steel. Different materials affect the above
values, i.e., the lower the thermal conductivity of the material, the
lower the maximum allowable watts per square inch.
800
1000
600
500
400
300
200
100
80
60
50
40
30
20
20
.001
.002
.003
.004
.005
.006
.008
.010
.020
.030
.040
.050
.060
.080
WATTS PER SQUARE INCH
HOLE SIZE OVER NOMINAL FRACTIONAL SIZE
.100
1000∞F
800∞F
1200∞F
1400∞F
600∞F
400∞F
200∞F
Maximum watts per square inch with various
increasing temperatures and hole tolerances
High watt density construction CSH Series
To Order
(Specify Model Number)
Length Weight
mm (in) Watts W/in2Model Number g (lb) Price
64 (2.50) 300 125 CSH-202300/* 32 (0.07) $26
76 (3.00) 75 25 CSS-20375/* 68 (0.15) 20
76 (3.00) 250 85 CSH-203250/* 36 (0.08) 27
76 (3.00) 400 135 CSH-203400/* 36 (0.08) 27
89 (3.50) 150 50 CSS-203150/* 82 (0.18) 20
89 (3.50) 300 85 CSH-203300/* 41 (0.09) 28
89 (3.50) 450 130 CSH-203450/120 82 (0.18) 28
102 (4.00) 75 20 CSS-20475/120 91 (0.20) 23
102 (4.00) 220 50 CSS-204220/* 91 (0.20) 23
102 (4.00) 350 85 CSH-204350/* 45 (0.10) 29
102 (4.00) 500 120 CSH-204500/* 45 (0.10) 29
114 (4.50) 250 50 CSS-204250/* 104 (0.23) 23
127 (5.00) 280 50 CSS-205280/* 122 (0.27) 24
127 (5.00) 500 95 CSH-205500/* 50 (0.11) 33
140 (5.50) 100 15 CSS-205100/240 141 (0.31) 26
152 (6.00) 350 50 CSS-206350/* 163 (0.36) 27
152 (6.00) 600 90 CSH-206600/* 59 (0.13) 37
9.53 mm (3⁄8") Diameter CSS and CSH Series
Cartridge Heaters (
continued from page 71)
* Insert “120” or “240” to indicate desired operating voltage.
MOST POPULAR
MODELS HIGHLIGHTED!
73
To Order, Call or Shop Online at
omega.com
SM
®
To Order
(Specify Model Number)
Length Weight
mm (in) Watts W/in2Model Number g (lb) Price
64 (2.50) 230 50 CSS-502230/* 95 (0.21) $26
89 (3.50) 350 50 CSS-503350/* 132 (0.29) 27
127 (5.00) 500 50 CSS-505500/* 195 (0.43) 32
152 (6.00) 650 50 CSS-506650/* 222 (0.49) 36
152 (6.00) 1000 80 CSH-5061000/240 200 (0.44) 51
152 (6.00) 1500 115 CSH-5061500/240 200 (0.44) 51
178 (7.00) 760 50 CSS-507760/* 259 (0.57) 38
203 (8.00) 750 40 CSS-508750/120 318 (0.70) 42
203 (8.00) 885 50 CSS-508885/* 318 (0.70) 42
203 (8.00) 1500 85 CSH-5081500/240 263 (0.58) 70
203 (8.00) 2000 110 CSH-5082000/240 263 (0.58) 70
254 (10.00) 1100 45 CSS-5101100/240 363 (0.80) 47
254 (10.00) 2000 90 CSH-5102000/240 204 (0.45) 82
305 (12.00) 1300 45 CSS-5121300/240 417 (0.92) 53
305 (12.00) 2200 80 CSH-512220/240 454 (1.00) 108
To Order
(Specify Model Number)
Length Weight
mm (in) Watts W/in2Model Number g (lb) Price
51 (2.00) 250 85 CSH-402250/* 59 (0.13) $27
64 (2.50) 75 20 CSS-40275/240 68 (0.15) 23
64 (2.50) 200 50 CSS-402200/* 68 (0.15) 23
64 (2.50) 335 85 CSH-402335/* 68 (0.15) 30
76 (3.00) 250 50 CSS-403250/* 95 (0.21) 25
76 (3.00) 415 85 CSH-403415/* 77 (0.17) 32
89 (3.50) 300 50 CSS-403300/* 113 (0.25) 26
89 (3.50) 350 60 CSS-403350/120 113 (0.25) 26
102 (4.00) 350 50 CSS-404350/* 132 (0.29) 27
102 (4.00) 585 85 CSH-404585/* 91 (0.20) 35
127 (5.00) 450 50 CSS-405450/* 159 (0.35) 28
152 (6.00) 350 30 CSS-406350/120 200 (0.44) 31
152 (6.00) 400 30 CSS-406400/120 200 (0.44) 31
152 (6.00) 540 50 CSS-406540/* 200 (0.44) 31
152 (6.00) 920 85 CSH-406920/* 136 (0.30) 41
178 (7.00) 635 50 CSS-407635/* 259 (0.57) 34
203 (8.00) 750 57 CSS-408750/* 249 (0.55) 37
203 (8.00) 1000 70 CSH-4081000/240 181 (0.40) 48
203 (8.00) 1500 100 CSH-4081500/240 181 (0.40) 55
229 (9.00) 950 55 CSS-409950/* 286 (0.63) 40
254 (10.00) 1000 53 CSS-4101000/* 308 (0.68) 41
254 (10.00) 1600 85 CSH-4101600/240 318 (0.70) 66
305 (12.00) 1200 53 CSS-4121200/240 340 (0.75) 47
305 (12.00) 1750 80 CSH-4121750/240 363 (0.80) 75

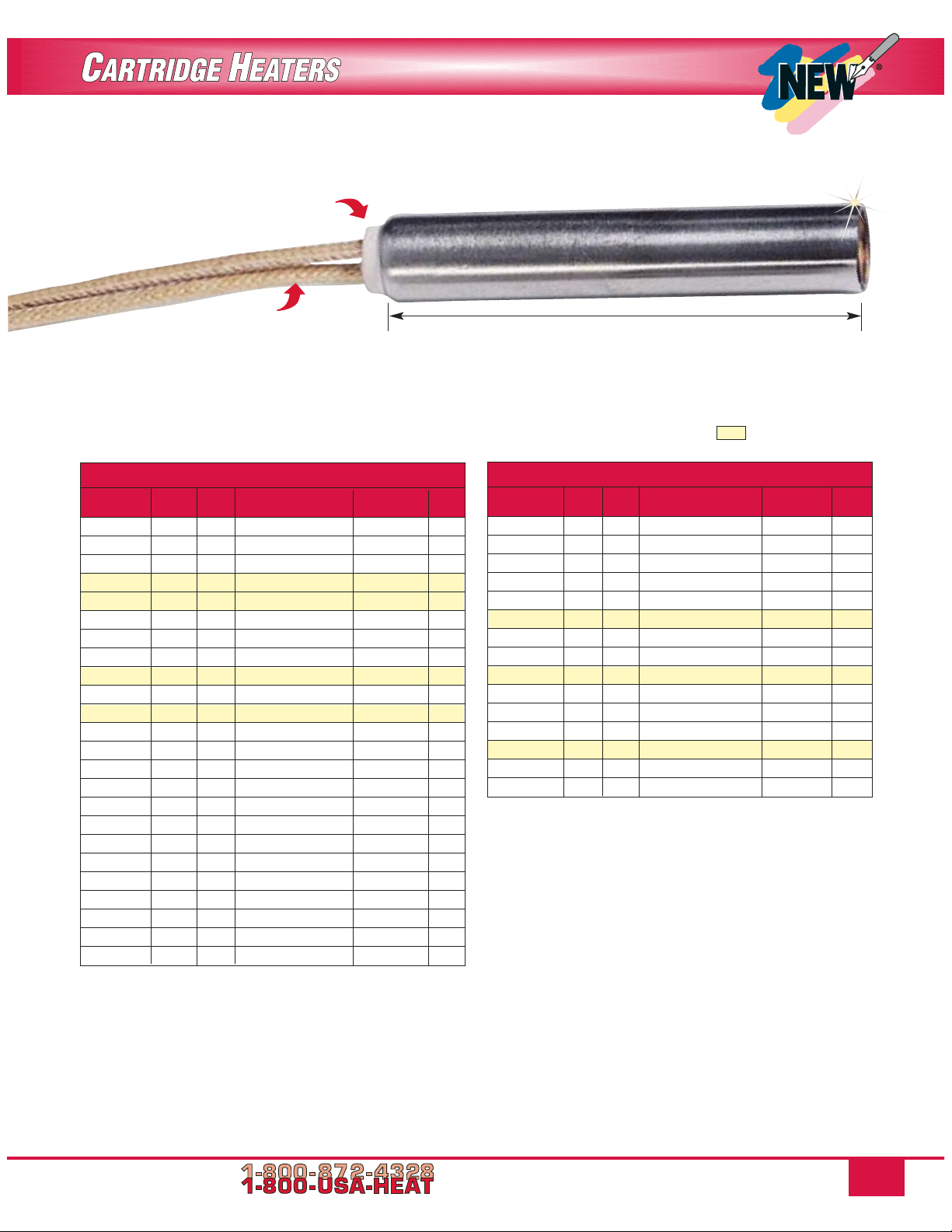

15.9 mm (5⁄8") Diameter CSS and CSH Series
Cartridge Heaters (Actual Dia: 0.624 to 0.619")
19 mm (
3
⁄4") Diameter
CSS and CSH Series
Cartridge Heaters (Actual
Dia: 0.749 to 0.741")
Compact design provides high wattage in small spaces
Diameter tolerance from 0.001
to 0.009" less than the
nominal diameter in inches
CSS Series: 150 mm (6") long leads
standard, with PFA insulation on 6.35
mm (
1
⁄4") and smaller models,
fiberglass insulation on 7.94 mm
(5⁄16") and larger models
CSH Series: fiberglass insulation
±2% or ±1.6 mm (
1
⁄16") length tolerance
(whichever is greater)
Ordering Example: CSS-403250/240, 15.9 mm (5⁄8") diameter,
76 mm (3") long cartridge heater, 240 Vac, $25.
Ordering Example: CSH-4081500/240, 15.9 mm (
5
⁄8") diameter,
203 mm (8") long cartridge heater, 240 Vac, $55.
Ordering Example: CSS-502230/120, 19 mm (
3
⁄4") diameter,
64 mm (2.50") long cartridge heater, 120 Vac, $26.
* Insert “120” or “240” to indicate desired operating voltage.
Standard Construction CSS Series
All cartridge heaters are rated by wattage and watt
density (watts per square inch) for either 120 or 240 volt
operation. In some applications it may be useful to
derate the wattage by operating the cartridge heater at
a lower voltage. When operating at lower voltages, the
wattage is derated using the following formula:
(Operating Voltage/Rated Voltage)
2
x Wattage at Rated Voltage = Derated Wattage
Example: The CSH-5102000/240 cartridge heater
is rated at 2000 watts and 90 watts per square inch at
240 volts. To determine the derated wattage when
operating on 120 volts:
(120 Volts/240 Volts)
2
x 2000 Watts = 500 Watts
When operating on 120 volts, the watt density of this
heater would also be reduced by a factor of 4 from
90 watts per square inch to approximately 22 watts
per square inch.
MOST POPULAR
MODELS HIGHLIGHTED!
One Omega Drive | Stamford, CT 06907 | 1-888-TC-OMEGA (1-888-826-6342) | info@omega.com
EPG05
www.omega.com
UNITED KINGDOM
www. omega.co.uk
Manchester, England
0800-488-488
UNITED STATES
www.omega.com
1-800-TC-OMEGA
Stamford, CT.
CANADA
www.omega.ca
Laval(Quebec)
1-800-TC-OMEGA
GERMANY
www.omega.de
Deckenpfronn, Germany
0800-8266342
Karviná, Czech Republic
FRANCE
www.omega.fr
Guyancourt, France
088-466-342
CZECH REPUBLIC
www.omegaeng.cz
596-311-899
BENELUX
www.omega.nl
Amstelveen, NL
0800-099-33-44
More than 100,000 Products Available!
Temperature
Calibrators, Connectors, General Test and Measurement
Instruments, Glass Bulb Thermometers, Handheld Instruments
for Temperature Measurement, Ice Point References,
Indicating Labels, Crayons, Cements and Lacquers, Infrared
Temperature Measurement Instruments, Recorders Relative
Humidity Measurement Instruments, RTD Probes, Elements
and Assemblies, Temperature & Process Meters, Timers and
Counters, Temperature and Process Controllers and Power
Switching Devices, Thermistor Elements, Probes and
Assemblies,Thermocouples Thermowells and Head and Well
Assemblies, Transmitters, Wire
Flow and Level
Air Velocity Indicators, Doppler Flowmeters, Level
Measurement, Magnetic Flowmeters, Mass Flowmeters,
Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel
Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area
Flowmeters, Vortex Shedding Flowmeters
pH and Conductivity
Conductivity Instrumentation, Dissolved Oxygen
Instrumentation, Environmental Instrumentation, pH
Electrodes and Instruments, Water and Soil Analysis
Instrumentation
Data Acquisition
Auto-Dialers and Alarm Monitoring Systems,
Communication Products and Converters, Data
Acquisition and Analysis Software, Data Loggers
Plug-in Cards, Signal Conditioners, USB, RS232, RS485
and Parallel Port Data Acquisition Systems, Wireless
Transmitters and Receivers
Pressure, Strain and Force
Displacement Transducers, Dynamic Measurement
Force Sensors, Instrumentation for Pressure and Strain
Measurements, Load Cells, Pressure Gauges, Pressure
Reference Section, Pressure Switches, Pressure Transducers,
Proximity Transducers, Regulators,
Strain Gages, Torque Transducers, Valves
Heaters
Band Heaters, Cartridge Heaters, Circulation Heaters,
Comfort Heaters, Controllers, Meters and Switching
Devices, Flexible Heaters, General Test and Measurement
Instruments, Heater Hook-up Wire, Heating Cable
Systems, Immersion Heaters, Process Air and Duct,
Heaters, Radiant Heaters, Strip Heaters, Tubular Heaters
click here to go to the omega.com home page
Loading...
