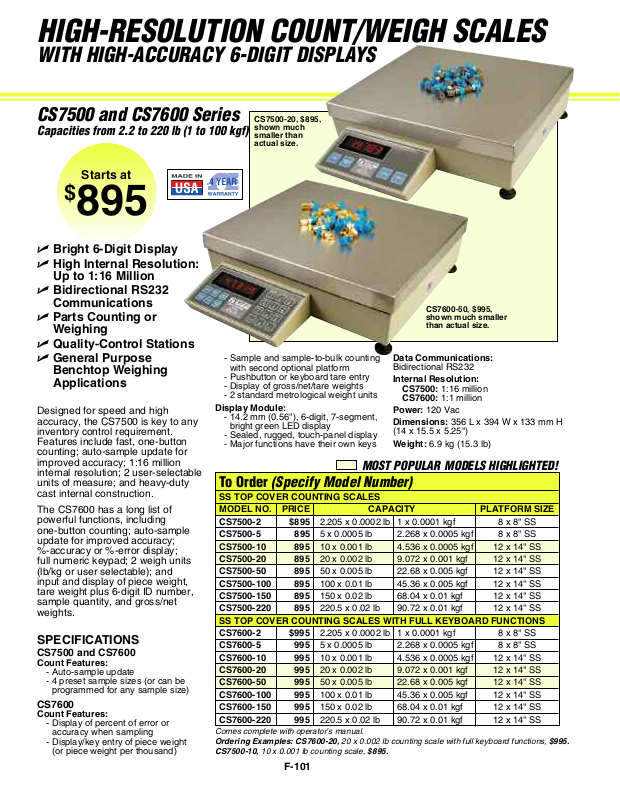

HIGH-RESOLUTION COUNT/WEIGH SCALES
WITH HIGH-ACCURACY 6-DIGIT DISPLAYS
CS7500 and CS7600 Series
Capacities from 2.2 to 220 lb (1 to 100 kgf)
Starts at
$
895
⻬ Bright 6-Digit Display
⻬ High Internal Resolution:
Up to 1:16 Million
⻬ Bidirectional RS232
Communications
⻬ Parts Counting or
Weighing
⻬ Quality-Control Stations
⻬ General Purpose
Benchtop Weighing
Applications
Designed for speed and high
accuracy, the CS7500 is key to any
inventory control requirement.
Features include fast, one-button
counting; auto-sample update for
improved accuracy; 1:16 million
internal resolution; 2 user-selectable
units of measure; and heavy-duty
cast internal construction.
The CS7600 has a long list of
powerful functions, including
one-button counting; auto-sample
update for improved accuracy;
%-accuracy or %-error display;
full numeric keypad; 2 weigh units
(lb/kg or user selectable); and
input and display of piece weight,
tare weight plus 6-digit ID number,
sample quantity, and gross/net
weights.
SPECIFICATIONS
CS7500 and CS7600
Count Features:
- Auto-sample update
- 4 preset sample sizes (or can be
programmed for any sample size)
CS7600
Count Features:
- Display of percent of error or
accuracy when sampling
- Display/key entry of piece weight
(or piece weight per thousand)
- Sample and sample-to-bulk counting
with second optional platform
- Pushbutton or keyboard tare entry
- Display of gross/net/tare weights
- 2 standard metrological weight units
Display Module:
- 14.2 mm (0.56"), 6-digit, 7-segment,
bright green LED display
- Sealed, rugged, touch-panel display
- Major functions have their own keys
To Order (Specify Model Number)
SS TOP COVER COUNTING SCALES
MODEL NO. PRICE CAPACITY PLATFORM SIZE
CS7500-2 $895 2.205 x 0.0002 lb 1 x 0.0001 kgf 8 x 8" SS
CS7500-5 895 5 x 0.0005 lb 2.268 x 0.0005 kgf 8 x 8" SS
CS7500-10 895 10 x 0.001 lb 4.536 x 0.0005 kgf 12 x 14" SS
CS7500-20 895 20 x 0.002 lb 9.072 x 0.001 kgf 12 x 14" SS
CS7500-50 895 50 x 0.005 lb 22.68 x 0.005 kgf 12 x 14" SS
CS7500-100 895 100 x 0.01 lb 45.36 x 0.005 kgf 12 x 14" SS
CS7500-150 895 150 x 0.02 lb 68.04 x 0.01 kgf 12 x 14" SS
CS7500-220 895 220.5 x 0.02 lb 90.72 x 0.01 kgf 12 x 14" SS
SS TOP COVER COUNTING SCALES WITH FULL KEYBOARD FUNCTIONS
CS7600-2 $995 2.205 x 0.0002 lb 1 x 0.0001 kgf 8 x 8" SS
CS7600-5 995 5 x 0.0005 lb 2.268 x 0.0005 kgf 8 x 8" SS
CS7600-10 995 10 x 0.001 lb 4.536 x 0.0005 kgf 12 x 14" SS
CS7600-20 995 20 x 0.002 lb 9.072 x 0.001 kgf 12 x 14" SS
CS7600-50 995 50 x 0.005 lb 22.68 x 0.005 kgf 12 x 14" SS
CS7600-100 995 100 x 0.01 lb 45.36 x 0.005 kgf 12 x 14" SS
CS7600-150 995 150 x 0.02 lb 68.04 x 0.01 kgf 12 x 14" SS
CS7600-220 995 220.5 x 0.02 lb 90.72 x 0.01 kgf 12 x 14" SS
Comes complete with operator’s manual.
Ordering Examples: CS7600-20, 20 x 0.002 lb counting scale with full keyboard functions, $995.
CS7500-10, 10 x 0.001 lb counting scale, $895.
CS7500-20, $895,
shown much
smaller than
actual size.
CS7600-50, $995,
shown much smaller
than actual size.
Data Communications:
Bidirectional RS232
Internal Resolution:
CS7500: 1:16 million
CS7600: 1:1 million
Power: 120 Vac
Dimensions: 356 L x 394 W x 133 mm H
(14 x 15.5 x 5.25")
Weight: 6.9 kg (15.3 lb)
MOST POPULAR MODELS HIGHLIGHTED!
F-101
