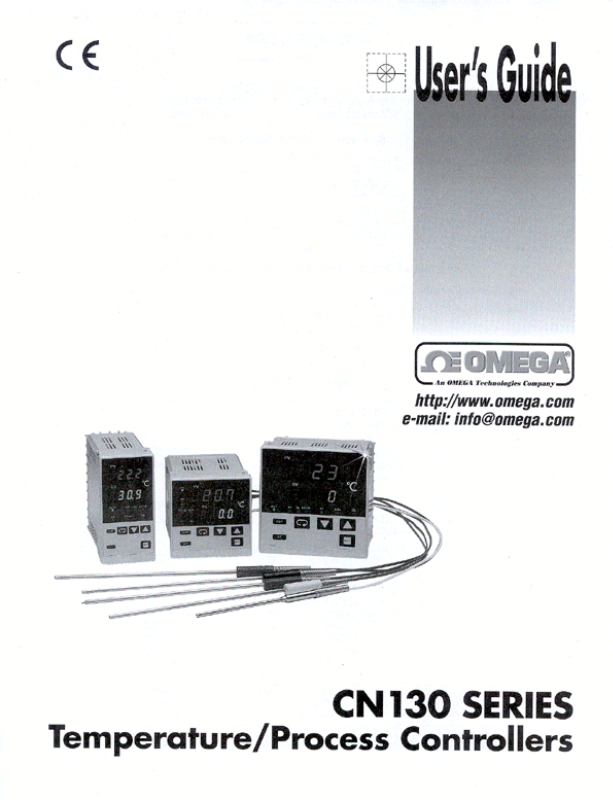

Omega Products CN130 Installation Manual
CN130 Digital Controller
Operating Instructions
Thank you for having selected the CN130 Series digital controller. Read these instructions carefully to
ensure correct operation the the product. If you have any questions, contact our sales reqpresentative or
your nearest sales office.
Request
Please ensure that this instruction manual is given to the final user of the instrument.
Preface
This instruction manual is meant for those who will be involved in the wiring, installation, operation and routine maintenance of the
series .
This manual describes the care, installation, wiring, function, and proper procedures for the operation of series.
Keep this manual at the work site during operation of the series. While using this instrument, you should always follow the
guidance provided herein.
Contents
1. The Matters regarding Safety.....................................................................................................................................................................2
2. Specifications.............................................................................................................................................................................................3
3. Introduction................................................................................................................................................................................................5
3-1. Check before Use ..........................................................................................................................................................................5
3-2. Handing Instruction.......................................................................................................................................................................5
4. Installation and Wiring...............................................................................................................................................................................5
4-1. Installation Site..............................................................................................................................................................................5
4-2. Mounting .......................................................................................................................................................................................5
4-3. How to Take the Controller out of the Case..................................................................................................................................5
4-4. External Dimensions and Panel Cutout.........................................................................................................................................5
4-5. Wiring............................................................................................................................................................................................6
4-6. Terminal Layout............................................................................................................................................................................6
4-7. Terminal Arrangement Table........................................................................................................................................................6
5. Names and Functions of Parts....................................................................................................................................................................6
6. Parameter Operating Procedure, Flow, and Functions ..............................................................................................................................7
6-1. Operating Procedure......................................................................................................................................................................7
6-2. Parameter Flow and Functions......................................................................................................................................................8
7. Operation..................................................................................................................................................................................................10
7-1. Power ON and Initial Screen Display .........................................................................................................................................10
7-2. Function Selection Screen "Mode 2-1".......................................................................................................................................10
7-3. Measuring Range Scaling "Mode 2-2" (For voltage or current input)........................................................................................11
7-4. Setting of set value "Mode 0-0" ..................................................................................................................................................12
7-5. Setting of alarm action point "Mode 0-2/0-3" (Optional) ...........................................................................................................12
7-6. Execution of Auto Tuning (AT) Action......................................................................................................................................12
7-7. Operation by Manual Control "Mode 0-1"..................................................................................................................................13
7-8. Setting of Set Value Bias (Sb) "Mode 0-5" (Optional)...............................................................................................................13
7-9. Setting of Current Values for Heater Break and Heater Loop Alarms (Optional).....................................................................13
7-10. Operation of Keylock ( ) "Mode 1-18"..............................................................................................................................14
7-11. Automatic Return of Display Screen...........................................................................................................................................14
8. Error Messages.........................................................................................................................................................................................14
8-1. Problems with Process Value Input.............................................................................................................................................14
8-2. Problems with CT Input for Heater Break Alarm (HB)..............................................................................................................14
1. The Matters regarding Safety
WARNING
For matters, regarding safety, potential damage to equipment and/or
facilities, additional instructions are indicated by the following headings:
Exercise extreme caution as indicated. This heading indicates hazardous
conditions that could cause injury or death of personnel.
CAUTION
Exercise extreme caution as indicated. This heading indicates hazardous
conditions that could cause damage to equipment and/or facilities.
NOTE
This heading indicates additional instructions and/or notes.
The mark designates a protective conductor terminal. Make sure to
properly ground it.
CAUTION
•Fuse: Since the instrument does not have a built-in fuse, do not
forget to install a fuse in the power circuit to be connected to the
power terminal.
The fuse should be positioned between the switch or the breaker
and the instrument and be attached to the L side of the power
terminal.
Fuse Rating: 250V AC 1.0A/medium lagged or lagged type
Use a fuse which meets the requirements of IEC 127.
•Voltage/current of a load to be connected to the output terminal
and the alarm terminal should be within a rated range. Otherwise,
the temperature will rise and reduce the life of the product and/or
result in problems with the product.
For the rated voltage/current, see 2. Specifications on page 12.
The output terminal should be connected with a device which
meets the requirements of IEC 1010.
•A voltage/current different from that of the input specification
should not be added on the input terminal. It may reduce the life
of the product and/or result in problems with the product.
WARNING
series controller is designed for controlling temperature,
humidity and other physical subjects. It must not be used in any
way that may adversely affect the safety, health or working
conditions of those who come into contact with the effects of its
usage. When used, adequate and effective safety countermeasures
must be provided at all times. No warranty, express or implied, is
valid in the case of using this product without the use of proper
safety countermeasures correspondingly.
CAUTION
To avoid damage to the connected equipment, facilities or the
product itself due to a fault of the product, safety countermeasure
must be taken before usage, such as proper installation of the fuse
and the overheating protection device. No warranty, express or
implied, is valid in the case of usage without having implemented
proper safety countermeasures.
CAUTION
• The mark on the plate affixed to the instrument: On the
terminal nameplate affixed to the case of your instrument, the
mark is printed. This is to warn you of the risk of electrical shock
which may result if the charger is touched while it is energized.
For the rated voltage/current, see 2. Specifications on page 12.
For the rated voltage (mV or V) or current (4~20 mA) input, the
input terminal should be connected with a device which meets the
requirements of IEC1010 as input terminals.
•As the CT input terminal for the heater break alarm (optional),
only the attachment CT should be used. Using anything else may
result in problems with the product.
For the CT provided, refer to 3-1. Check before Use on page 14.
•The CN130 series controller is provided with a draft hole for heat
discharge. Take care to prevent metal or other foreign matter from
obstructing it. Failure to do so may result in problems with the
product and may even result in fire.
•Do not block the draft hole or allow dust or the like to adhere to it.
Any rise in temperature or insulation failure may result in a
shortening of the life of product and/or problems with the product.
For spaces between installed instruments, refer to 4-4. External
Dimensions and Panel Cutout on page 3.
• It should be noted that repeated tolerance tests against voltage,
noise, surge, etc., may lead to deterioration of the instrument.
• Remodeling the instrument or using it in an anomalous way is
prohibited.
• A means to allow the power to be turned off, such as a switch or a
breaker, should be installed in the external power circuit to be
connected to the power terminal of the instrument.
Fix the switch or the breaker adjacently to the instrument in a
position which allows it to be operated with ease, and with an
indication that it is a means of turning the power off. The switch
or the breaker should meet the requirements of IEC 947.
- 2 -
2. Specifications
Display
•
Digital display: 7 segments / Measured value (PV)
Red LED 4 digits, Set value (SV)
Green LED 4 digits
Display accuracy: ± (1/3% FS+1 digit)
Refer to Table of Measuring Range Codes.
Display accuracy range: 23 ± 5°C
Display resolution: Depends on measuring range
(0.001, 0.01, 0.1, 1)
Sampling cycle: 0.25 sec.
• Action display / colors: 7-type LED lamp indication:
Control output (OUT) / Green, Higher limit
alarm action (AH) / Red, Lower limit
alarm action (AL) / Red, Event / Heater
break alarm action (EV/HB) / Red, Auto
tuning (AT) / Green, Manual control
(MAN) / Red, Set value bias (SB) / Green
Setting
•
Setting: By 6 front key switches
Setting range: Same as the measuring range
Setting limit: Higher / lower limits individual setting as
desired within measuring range (lower
limit value < higher limit value)
Input
•
Thermocouple: B, R, S, K, E, J, T, N, PL II, WRe 5-26,
{U, L (DIN 43710)}
(Multi input, multi range: Refer to Table of
Measuring Range Codes.)
External resistance: 100Ω max.
Input impedance: 500kΩ min.
Burnout: Standard feature (up scale)
Cold junction
temperature
compensation accuracy: ±2˚C (5~45˚C)
• R.T.D.: JIS Pt100 / JPt100 3-wire type
(Multi range: Refer to Table of Measuring
Range Codes.)
Amperage: Approx. 0.25mA
Lead wire tolerable
resistance: 5Ω max. / wire
• Voltage: -10~10, 0~10, 0~20, 0~50, 10~50,
0~100mV DC or -1~1, 0~1, 0~2, 0~5, 1~5,
0~10V DC
(Multi input, programmable range: Refer to
Table of Measuring Range Codes.)
Input impedance: 500kΩ min.
• Current: 4 ~20, 0~20mA DC
(Multi input, programmable range: Refer to
Table of Measuring Range Codes.)
Receiving impedance: 250Ω
• Sampling cycle: 0.25 sec.
• PV bias: -1999~1999 unit
• PV filter: 0~100 sec.
• Isolation: Insulated between input and output (not
insulated between input and system, SV
bias and CT input)
Control
•
Control mode: Auto-tuning PID
Proportional band (P): Off, 0.1~999.9% FS (Off setting: On-Off
action)
Integral time (I): 1~6000 sec.
(Off setting: PD, P action)
Derivative time (D): 0~3600 sec.
(Off setting: PI, P action)
Manual reset (MR): -50.0~50.0% (valid when I=Off.)
On-Off hysteresis: 1~999 unit
• Proportional cycle: 1~120 sec.
• Control output
characteristics: RA / DA selectable (set to RA when
shipped)
• Higher and lower output
limit: 0.0~100.0%
(lower limit < higher limit)
Control Output type / rating
•
Contact output (Y1): 240V AC 2.5A / resistive load
• Current output (I1): 4~20mA DC / load resistance: 600Ω max.
• SSR drive voltage
output (P1): 15±3V DC / load current: 20mA max.
• Voltage output (V1): 0~10V DC / load current: 2mA max.
• Isolation: Insulated between control output and
system and input (not insulated between
control output I, P, V and analog output)
Manual control
•
Output setting range: 0.0~100.0%
(setting resolution: 0.1%)
Within range of higher / lower output
limits
Output resolution: 0.5%
• Auto/Manual switching: Balanceless and bumpless (within
proportional band range)
Alarm Output
•
Alarm method: Individual setting and individual output,
higher and lower limit alarms
• Alarm type: Deviation value alarm or absolute value
alarm is selectable.
• Alarm setting range:
Deviation value: Higher limit: 0~5000 unit
Lower limit: -1999~0 unit
When alarm is set beyond higher or lower
limit of measuring range, alarm is activated
at a point 10% beyond higher or lower
limit.
Absolute value: Higher and lower limits: Within measuring
range
• Alarm action: On-Off action
• Action hysteresis: 1~999 unit (both higher and lower limits)
• Inhibit mode: Selectable (both higher and lower limits)
• Alarm output / rating: Contact 1a (common) / 240 V AC 1.5A
(resistive load)
- 3 -
- 4 -
Event Output
(Can not be selected when heater break alarm is selected.)
•
Number of event
outputs: 1 point
•
Event type: Selectable from following 8 types
1. Higher limit deviation value alarm
without inhibit action
2. Lower limit deviation value alarm
without inhibit action
3. Higher limit absolute value alarm
without inhibit action
4. Lower limit absolute value alarm
without inhibit action
5. Higher limit deviation value alarm with
inhibit action
6. Lower limit deviation value alarm with
inhibit action
7. Higher limit absolute value alarm with
inhibit action
8. Lower limit absolute value alarm with
inhibit action
• Setting range:
Deviation value: Higher limit: 0~5000 unit
Lower limit: -1999~0 unit
When alarm is set beyond higher or lower
limit of measuring range, alarm is activated
at a point 10% beyond higher or lower
limit.
Absolute value: Within measuring range of higher and
lower limits
• Event action: On-Off action
• Event action hysteresis: 1~999 unit
• Event output / rating: Contact 1a / 240V AC 1.5A (resistive load)
Heater break alarm
(Can not be selected when event output is selected.)
• Alarm action: Heater amperage detected by externally
attached CT (CT provided)
Alarm output On upon detection of heater
break while output is On.
Alarm output On upon detection of heater
loop alarm while output is Off.
• Current setting range: Off, 0.1~50.0A (Alarm action stops when
Off is set.)
• Setting resolution: 0.1A
• Amperage display: 0.0~55.0A
• Display accuracy: 3% FS (when sine wave is 50 Hz)
• Minimum time for
action confirmation: On time: 250 msec. minimum
• Alarm output / rating: Contact 1a / 240V AC 1.5A (resistive load)
• Alarm holding: Selectable
• Sampling cycle: 0.5 sec.
• Isolation: Insulated between CT input and output (not
insulated between CT input and system and
other inputs)
Analog output
•
Number of analog
outputs: 1 point
• Analog output type: Selectable between process value (PV) and
set value (SV)
• Analog output: 0~10mV DC, Output resistance: 10Ω
0~10V DC, Load current: 2mA max.
4~20mA DC, Load resistance:
300Ωmax.
• Output accuracy: ± 1/3% (of displayed value)
• Output resolution: Approx. 0.0125% (1/8000)
• Output updating cycle: 0.25 sec.
• Output scaling: Within measuring range
• Isolation: Insulated between analog output and
system and input (not insulated between
analog output and control output I, P, V)
Set value Bias
•
Setting range: -1999~5000 unit
•
Setting resolution: Same as display resolution
• Action input: Non-voltage contact (bias in action when
input is closed)
• Isolation: Insulated between the set value bias input
and output (not insulated between set
value bias input and system and other
inputs)
Safety and EMC requirements
•
Safety : IEC1010-1, EN61010-1
•
EMC: EMI (emission) EN50081-1
EMS (immunity) EN50082-2
Others
•
Data storage: By non-volatile memory (EEPROM)
•
Operating ambient
temperature/humidity
range: -10~50˚C / 90% RH max. (no dew
condensation)
• Supply voltage: 100 – 240V AC±10% (50 / 60 Hz), 24V
AC±10% (50/60Hz) or 24V DC±10%
•Power consumption:Max. 10VA(AC),6W
(DC)
•
Insulation resistance: Between input / output terminal and power
supply terminal:
500V DC 20 MΩ minimum
Between input / output terminal and
ground terminal:
500V DC 20 MΩ minimum
•
Dielectric strength: 1 min. at 2300V AC between input / output
terminal and power supply terminals
1 min. at 1500V AC between power supply
terminal and ground terminal
•
Protective structure: Only front panel has simple dust-proof and
drip-proof structure
•
Material: PPO resin molding (equivalent to UL94V-1)
•
External dimensions : CN137 H72 × W72 × D110
(panel depth: 100) mm
CN134 H96 × W96 × D70
(panel depth: 60) mm
CN138 H96 × W48 × D110
(panel depth: 100) mm
•
Mounting: Push-in panel (one-touch mount)
•
Panel thickness: 1.0~3.5 mm
•Panel cutout: CN137 H68 × W68mm
CN134 H92 × W92mm
CN138 H92 × W45mm
•
Weight: CN137 Approx. 290g
CN134 Approx. 310g
CN138 Approx. 280g
Loading...
