hot point® Dry Block
Probe Calibrators
CL900/950 Series
Optional
Patented
Covered by U.S. and
International patents and
pending applications.
U Calibrates
Thermocouples and
RTD’s in Seconds
U Highly Accurate 0.9°C
(1.5°F) and Exceptional
Stability (0.3°F) for
Precision Calibrations
U Completely Portable for
Factory, Laboratory and
Instrument Shops
U Interchangeable Test
Wells and CL950 BuiltIn 5 Port Well Design
Provides Customer
Flexibility
U Wide Temperature
Range 40°F Above
Ambient to 900°F (482°C)
Covers Most Industrial
Applications
U NIST Calibration
Available

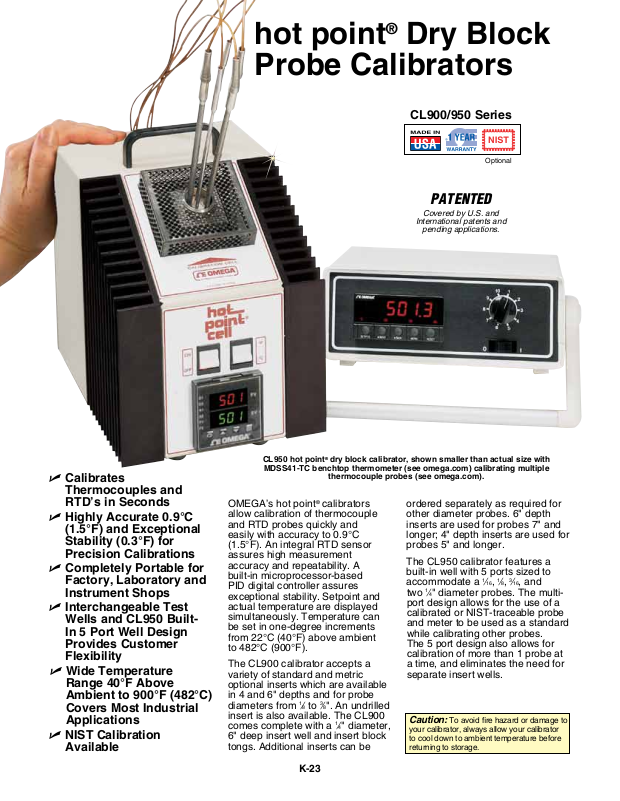

CL950 hot point® dry block calibrator, shown smaller than actual size with
MDSS41-TC benchtop thermometer (see omega.com) calibrating multiple
thermocouple probes (see omega.com).
OMEGA’s hot point® calibrators
allow calibration of thermocouple
and RTD probes quickly and
easily with accuracy to 0.9°C
(1.5°F). An integral RTD sensor
assures high measurement
accuracy and repeatability. A
built-in microprocessor-based
PID digital controller assures
exceptional stability. Setpoint and
actual temperature are displayed
simultaneously. Temperature can
be set in one-degree increments
from 22°C (40°F) above ambient
to 482°C (900°F).
The CL900 calibrator accepts a
variety of standard and metric
optional inserts which are available
in 4 and 6" depths and for probe
diameters from 1⁄8 to 3⁄8". An undrilled
insert is also available. The CL900
comes complete with a 1⁄4" diameter,
6" deep insert well and insert block
tongs. Additional inserts can be
ordered separately as required for
other diameter probes. 6" depth
inserts are used for probes 7" and
longer; 4" depth inserts are used for
probes 5" and longer.
The CL950 calibrator features a
built-in well with 5 ports sized to
accommodate a 1⁄16, 1⁄8, 3⁄16, and
two 1⁄4" diameter probes. The multi-
port design allows for the use of a
calibrated or NIST-traceable probe
and meter to be used as a standard
while calibrating other probes.
The 5 port design also allows for
calibration of more than 1 probe at
a time, and eliminates the need for
separate insert wells.
Caution: To avoid fire hazard or damage to
your calibrator, always allow your calibrator
to cool down to ambient temperature before
returning to storage.
K-23
CL950 multi-well accepts up to 5 probes
at one time and comes standard with
1
⁄16, 1⁄8, 3⁄16 and two 1⁄4" diameter holes.
CL900-110 hot point® dry
block calibrator with DSS-460-K
benchtop thermometer (see
omega.com), calibrating a single
thermocouple probe, shown
smaller than actual size.
CL900 accepts any insert listed in
the table at right.
Specifications
(All specifications are based on the test
probes being in contact with the bottom
of the test well)
Temperature Range: Ambient
22 to 482°C (40 to 900°F)
Operating Ambient Temperature
Range: 5°C to 38°C (40°F to 100°F)
Accuracy: (1°F resolution)
CL900 with 6" Test Well Inserts:
±1.5°F ±1 LSD
CL900 with 4" Test Well Inserts:
±3°F ±1 LSD
CL950: ±1.5°F, ±1 LSD
Control Stability: ±0.3°F or better
Temperature Uniformity (Within the
Bottom 1" of the Test Well):
CL900 with 6" Test Well
Inserts: 0.3%
CL900 with 4" Test Well
Inserts: ±0.4%
CL950: ± 0.3%
Max Probe Immersion:
CL900 with 6" Test Well Inserts:
150 mm (6")
CL900 with 4" Test Well Inserts:
100 mm (4")
CL950: 150 mm (6")
Control: Microprocessor-based PID
digital controller with data retention
Power: 110 to 125 Vac, 50/60 Hz,
1050 W; 220 Vac, 50/60 Hz, 1050 W
Dimensions:
300 H x 216 W x 311 mm D
(11.75 x 8.5 x 12.25")
Weight: 10.1 kg (22.3 lb)
SM
extended warranty program
SM
Extended Warranty
Program
SM
OMEGACARE
is available for models shown on this page.
Ask your sales representative for full details
when placing an order. OMEGACARE
covers parts, labor and equivalent loaners.
To Order Visit omega.com/cl900_950 for Pricing and Details
Model No. Description
CL900-110 hot point calibrator, 110 Vac
CL900-220 hot point calibrator, 220 Vac
CL950-110 Multi-well hot point 110V
CL950-220 Multi-well hot point 220V
Comes complete with operator’s manual. Inserts are for CL900 and CL900A hot point
calibrators only.
To order NIST Calibration points add suffix “-NIST” to model number for an additional cost.
Ordering Examples: CL900-110, hot point calibrator, 110 Vac, and CL905, 10 cm (4") test
well insert for 6.3 cm (1⁄4") probes.
OCW-3, OMEGACARESM extends standard 1-year warranty to a total of 4 years.
Inserts for CL900 Series
Model No. Description
CL901 Insert,
CL901-M Metric insert, 2 diameter x 101.6 mm deep test well
CL902 Insert, 1⁄8 diameter x 6" deep test well
CL902-M Metric insert, 2 diameter x 152.4 mm deep test well
CL903 Insert, 3⁄16 diameter x 4" deep test well
CL903-M Metric insert, 3 diameter x 101.6 mm deep test well
CL904 Insert, 3⁄16 diameter x 6" deep test well
CL904-M Metric insert, 3 diameter x 152.4 mm deep test well
CL905 Insert, 1⁄4 diameter x 4" deep test well
CL905-M Metric insert, 4.5 diameter x 101.6 mm deep test well
CL906 Insert, 1⁄4 diameter x 6" deep test well
CL906-M Metric insert, 4.5 diameter x 152.4 mm deep test well
CL907 Insert, 5⁄16 diameter x 4" deep test well
CL907-M Metric insert, 6 diameter x 101.6 mm deep test well
CL908 Insert, 5⁄16 diameter x 6" deep test well
CL908-M Metric insert, 6 diameter x 152.4 mm deep test well
CL909 Insert, 3⁄8 diameter x 4" deep test well
CL910 Insert, 3⁄8 diameter x 6" deep test well
CL911 Insert, undrilled
1
⁄8 diameter x 4" deep test well
K
