Thermocouple Source

Accessories

Included: Part Number

Four “AA” Alkaline batteries, Certificate of Calibration
mV Wire Kit 020-0207

1 Red & 1 Black Lead with Retractable Shield Banana Plugs & Alligator Clips

Optional: Part Number

T/C Wire Kit 1 for Types J, K, T & E 020-0202
T/C Wire Kit 2 for Types B, R/S & N 020-0203
Individual T/C wire 020-0210-*

Three feet (1 meter) of T/C extension wire, stripped on one end with a miniature
T/C male connector on the other end

Rubber Boot HH500A-RB
Small Carrying Case (fits unit with or without boot) SC-HH500
Ni-MH 1 Hour Charger with 4 Ni-MH AA Batteries 020-0103
(100-120 V AC input for North America Only)

*Insert T/C Type J, K, T, E, N, R/S or B

Page 8

More Than a Simple Boot

The optional boot provides
more than just protection. Flip
out the tilt stand and free up
both hands for calibration
adjustments.

(Shown without optional boot)

Product Description

• Easy to use

With the OMEGA CL540A Series you can check & calibrate all your thermocouple instruments.

• Take it without into the shop, plant or field

Carry it without worry - protect it with an optional rubber boot and rugged, low profile switches.
Easy to operate even in the dark areas of the plant with the backlit display.

• Calibrate directly in temperature (°C & °F)

Stop carrying around a millivolt source and thermocouple tables. The OMEGA CL540A Series
works with the thermocouples you use including types J, T, E, K, R, S, B, N, G, C, D, L (J-DIN), U
(T-DIN) and Platinel II. Easily set any value quickly to within 0.1° with the adjustable digital
potentiometer “DIAL” plus store any three temperatures for instant recall with the DIAL switch.

• Compatible with all process instruments

Connect directly to the thermocouple inputs of smart transmitters, PLCs, DCS and multichannel
recorders and verify their outputs or displays.

Page 1

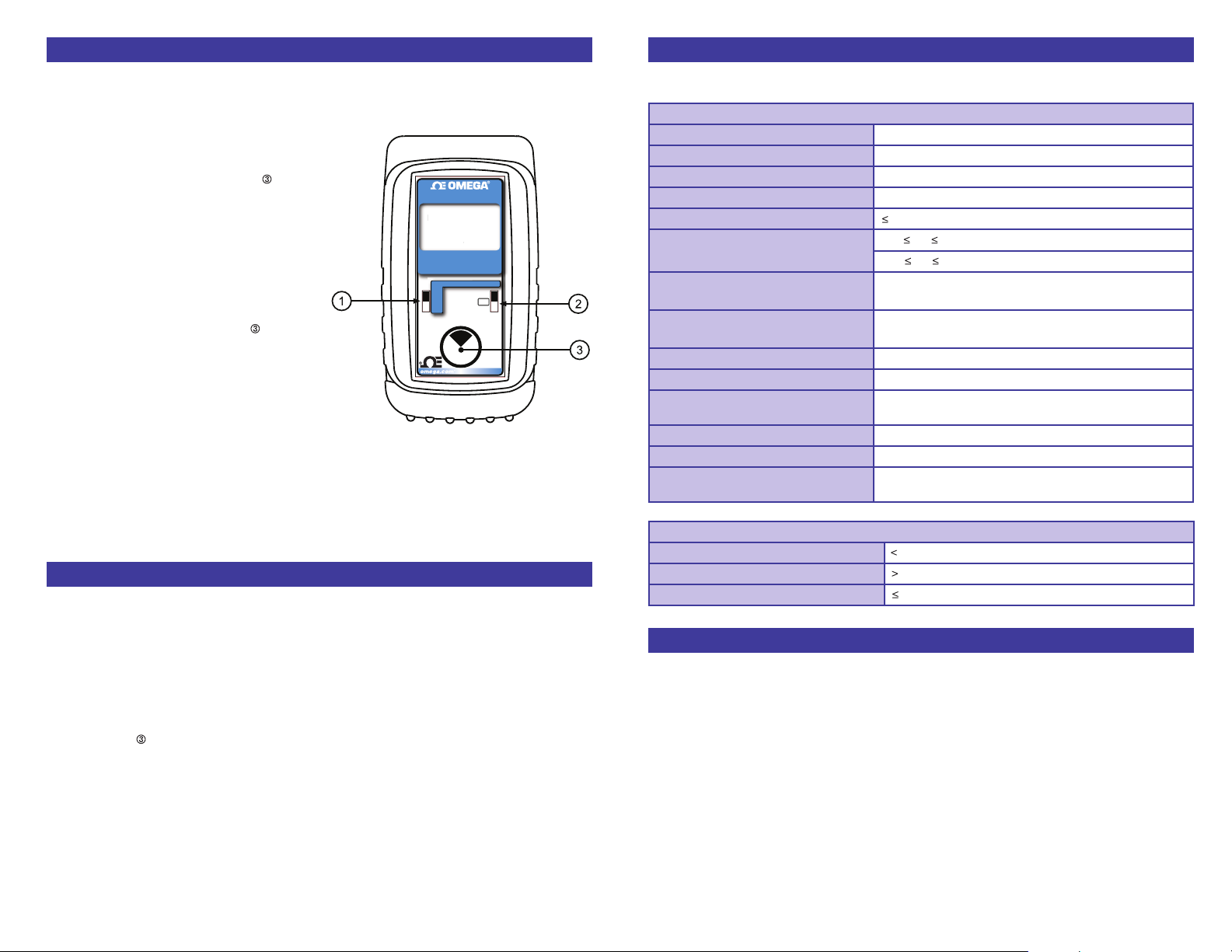

Basic Operation

I

T

C

CL510AZ

HI

H

322.1

TYPE K °C

YPE K °

THE RMO CO UPL E S OUR CE

TYP ES

J•T•E•K•R•S•B•N•G•C•D•L•U•P•mV

SET

(Optional Boot Shown)

DIAL SWITCH

SOURCE: Instantly output two preset thermocouple

temperatures by moving the DIAL switch to
the “LO” position or “HI” position.
point checks select the “DIAL” position. The
OMEGA CL540A will remember the last
“DIAL” value, even with the power off.
These values can easily be changed to suit the
calibration requirements. The temperatures stored in
the HI and LO positions are also used for Auto
Stepping.

SOURCE

HI

OFF

LO

Push & Turn

for
Fast Dialing
Push & Hold

to Store
Double Click
for Options

For fast three

SOURCE/OFF/READ Switch

Select “SOURCE” to output in °C, °F, or millivolts.
Select “READ” to read a thermocouple sensor
or millivolts.

DIAL KNOB

SOURCE: Turn the knob to adjust the output
level. Turn clockwise to increase the output,
counter clockwise to decrease the output in 0.1°
steps at a time. Push down and turn the
DIAL knob for faster dialing.
Press and hold the knob for two seconds to store
d

esired Check HI/LO points in SOURCE mode.

Double click the knob to get into the OMEGA
CL 540 A C onf igur ati on Mod e. Use
configuration to select °C or °F, T/C Type
CL540AZ Only) and Auto Off On/Off.

CHANGING BATTERIES

Low battery is indicated by “BAT” on the display.
Approximately one to four hours of typical
operation remain before the OMEGA CL450A
will automatically turn off. To change the batteries;
remove the optional rubber boot, remove the
battery door from the back of the unit by sliding
the door downward. This allows access to the
battery compartment. Replace with four (4) “AA”

1.5V batteries being careful to check the polarity.
Replace the battery door and replace the boot. All
stored conf

iguration options (T/C Type,
Memor ies, etc. , are reset to facto ry settin gs
when the batteries are removed.

Note: Alkaline batteries are supplied and
recommended for maximum battery life and
performance.

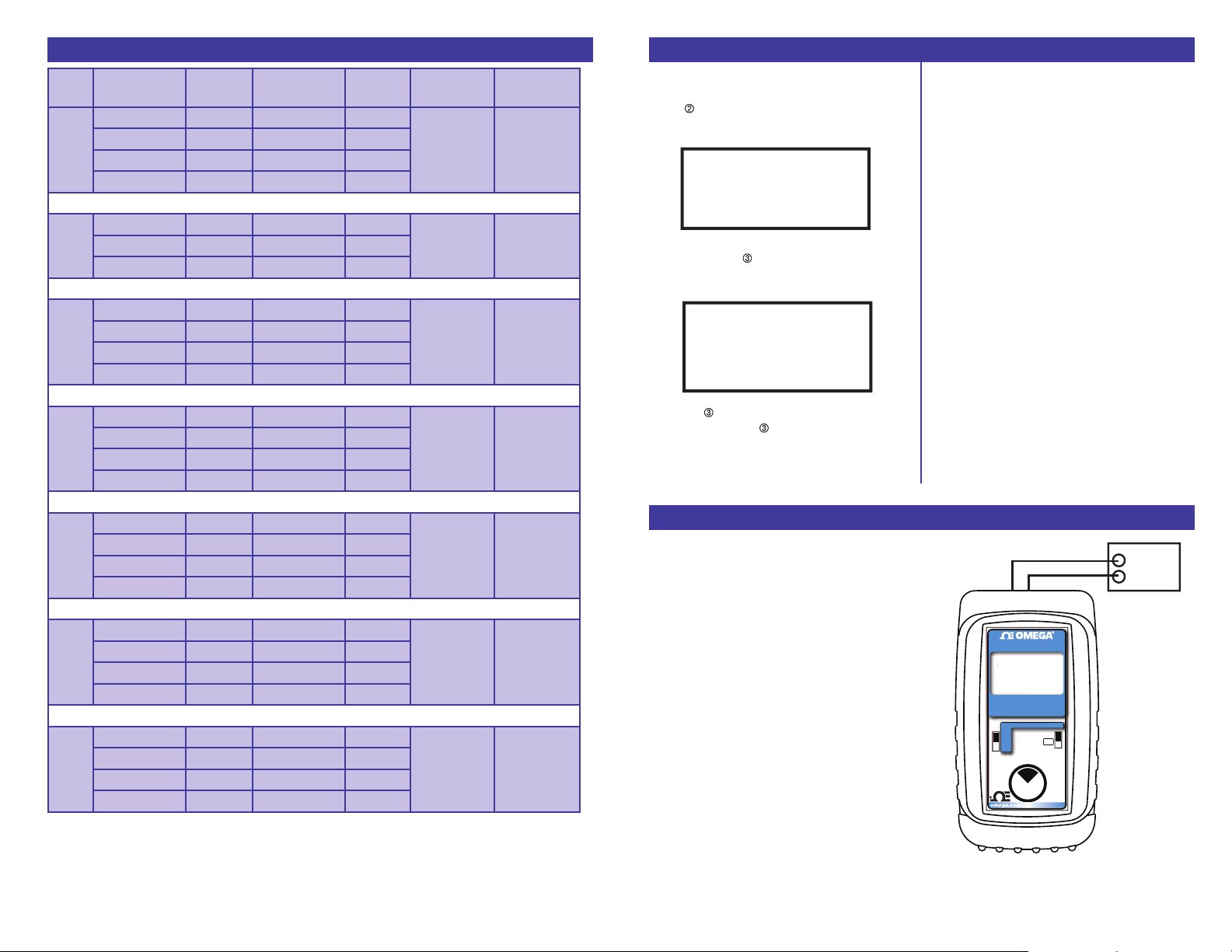

Ranges & Accuracies

T/C

Type

(W)

(W5)

Platinel®

J-DIN

Degrees C

Range

N -230.0 to -180.0 ±1.2° -382.0 to -292.0 ±2.2° +Nicrosil

-180.0 to -50.0 ±0.7° -292.0 to -58.0 ±1.3°

-50.0 to 1100.0 ±0.4° -58.0 to 2012.0 ±0.7°

Accuracy Degrees F

Range

Accuracy T/C

Material

-Nisil

Jacket

ISA/ANSI

Color

Orange

Orange

1100.0 to 1300.0 ±0.5° 2012.0 to 2372.0 ±0.9°

G

100.0 to 150.0 ±1.4° 212.0 to 302.0 ±2.5° +Tungsten

150.0 to 400.0 ±1.0° 302.0 to 752.0 ±1.8°

400.0 to 1700.0 ±0.6° 752.0 to 3092.0 ±1.1°

-W26/Re
Jacket

White

White/Blue

1700.0 to 2320.0 ±0.9° 3092.0 to 4208.0 ±1.6°

C

-1.1 to 1500 ±0.7° 30.0 to 2372.0 ±1.3° +W5/Re

1500 to 1900 ±0.8° 2372.0 to 3452.0 ±1.4°

-W26/Re

1900.0 to 2100.0 ±0.9° 3452.0 to 3812.0 ±1.6°

Jacket

White

White/Red

2100.0 to 2320.0 ±1.1° 3812.0 to 4208.0 ±2.0°

D -1.0 to 50.0 ±0.8° 30.0 to 122.0 ±1.4° +W3/Re

50.0 to 1400.0 ±0.6° 122.0 to 2552.0 ±1.3°

1400.0 to 1800.0 ±0.7° 2552.0 to 3272.0 ±1.3°

-W25/Re
Jacket

White

White/Yellow

1800.0 to 2320.0 ±1.1° 3272.0 to 4208.0 ±2.0°

-217.8 to -150.0 ±0.8° -360.0 to -238.0 ±1.4°

P

-150.0 to -50.0 ±0.6° -238.0 to -58.0 ±1.1°

-50.0 to 1000.0 ±0.4° -58.0 to 1832.0 ±0.7°

+Pd55/Pt31/Au14

-Au65/Pd35
Jacket

Yellow

Black

1000.0 to 1395.0 ±0.5° 1832.0 to 2543.0 ±0.9°

DIN Colors

L

-50.0 ±0.4° -328.0 to -58.0 ±0.7° +Iron

-200.0 to

-50.0 to 500.0 ±0.3° -58.0 to 932.0 ±0.5°

500.0 to 750.0 ±0.4° 932.0 to 1382.0 ±0.7°

-Connstantan
Jacket

Red

Red

Red

Red

Red

Red
Blue
Blue

U

T-DIN

-200.0 to -75.0 ±0.5° -328.0 to -103.0 ±0.9° +Copper

-75.0 to 100.0 ±0.4° -103.0 to 212.0 ±0.7°

100.0 to 600.0 ±0.3° 212.0 to 1112.0 ±0.5°

-Constantan
Jacket

Red
Brown
Brown

(Cold Junction Accuracy not included)

Page 2

Page 7

Ranges & Accuracies

H

C

T/C

Type

Degrees C

Range

Accuracy Degrees F

Range

Accuracy T/C

Material

J -200.0 to -180.0 ±0.5° -346.0 to -292.0 ±0.9° +Iron

-180.0 to -50.0 ±0.4° -292.0 to -58.0 ±0.7°

-50.0 to 500.0 ±0.3° -58.0 to 932.0 ±0.5°

-Connstantan
Jacket

500.0 to 1200,0 ±0.4° 932.0 to 2192.0 ±0..7°

K -230.0 to -100.0 ±0.8° -382.0 to -148.0 ±1.4° + Chromel®

-100.0 to 1050.0 ±0.4° -148.0 to 1922.0 ±0.7°

1050.0 to 1371.1 ±0.5° 1922.0 to 2500.0 ±0.9°

-Alumel®
Jacket

T -260.0 to -200.0 ±1.2° -436.0 to -328.0 ±2.2° +Copper

-200.0 to -50.0 ±0.7° -328.0 to -58.0 ±1.3°

-50.0 to 0.0 ±0.4° -58.0 to 32.0 ±0.7°

-Constantan
Jacket

0.0 to 400.0 ±0.3° 32.0 to 752.0 ±0.5°

ISA/ANSI

Color

White

Red

Black

Yellow

Red

Yellow

Blue

Red

Blue

Configuration

Configure the Calibrator

Move POWER SWITCH to “SOURCE” or
“READ”.

MODEL 51#B V#.##

DOUBLE CLICK

DIAL KNOB

FOR CONFIGURATION

Setup

Double click the DIAL KNOB at any time the
unit is on and the following displays will appear
for 15 seconds:

> EXIT 15
TEMP UNITS °C
T/C K
AUTO OFF ON

EXIT MENU - exits this menu immediately and

saves any changes. Menu will automatically exit
after 15 seconds of inactivity (countdown timer is
displayed).
TEMP UNITS - pressing the knob will toggle
between °C and °F.

T/C ­520: pressing the knob will toggle between the
factory configured T/C Type and mV.

521: pressing the knob will cycle through T/C
types J, T, E, K, R, S, B, N, G, C, D, L (J-DIN), U
(T-DIN), Platinel II and mV.

AUTO OFF - If AUTO OFF is ON, the unit will
turn off after 30 minutes of inactivity to save
battery life. If AUTO OFF is OFF the unit will stay
on until the POWER SWITCH is moved to the off
position.

E -240.0 to -200.0 ±0.6° -400.0 to -328.0 ±1.1° +Chromel

-200.0 to -100.0 ±0.4° -328.0 to -148.0 ±0.7°

-100.0 to 850.0 ±0.3° -148.0 to 1562.0 ±0.5°

-Constantan
Jacket

850.0 to 1000.0 ±0.4° 1562.0 to 1832.0 ±0.7°

R -13.3 to 250.0 ±1.4° -1.0 to 482.0 ±2.5° +Pt/13Rh

250.0 to 750.0 ±0.8° 482.0 to 1382.0 ±1.4°

750.0 to 1600.0 ±0.7° 1382.0 to 2192.0 ±1.3°

-Platinum
Jacket

1600.0 to 1767.8 ±0.8° 2192.0 to 3214.0 ±1.4°

S -18.3 to 100.0 ±1.4° -1.0 to 212.0 ±2.5° +Pt/10Rh

100.0 to 400.0 ±1.0° 212.0

to 752.0 ±1.8°

400.0 to 1700.0 ±0.8° 752.0 to 3092.0 ±1.4°

-Platinum
Jackrt

1700.0 to 1767.8 ±0.9° 3092.0 to 3214.0 ±1.6°

B 315.6 to 550.0 ±2.0° 600 to 1022.0 ±3.6° +Pt/30Rh

550.0 to 900.0 ±1.3° 1022.0 to 1652.0 ±2.3°

900.0 to 1150.0 ±0.9° 1652.0 to 2102.0 ±1.6°

-Pt/6Rh
Jacket

1150.0 to 1820.0 ±0.8° 2102.0 to 3308.0 ±1.5°

(Cold Junction Accuracy not included)

Purple

Red

Purple

Black

Red

Green

Black

Red

Green

Grey

Red

Grey

Turn the DIAL KNOB to move through the
menu. Press the DIAL KNOB to toggle
between OFF and ON or to scroll through the
settings.

Connections

Simulating thermocouples requires the use of
thermocouple or extension grade thermocouple
wire.

Plug thermocouple wires into the female
miniature thermocouple connector mounted in
the top end of the housing.

The OMEGA CL540A has two banana jacks
mounted in the top end of the housing. These
are not temperature compensated and are to be
used only for millivolt signals.

Note: All settings are remembered even with the
power off. Removing the batteries resets the

to factory defaults.

values

Thermocouple Wire

CL510AZ

HI

I

322.1

TYPE K °C

TYPE K °

THE RMOC OUP LE S OURC E

TYP ES

J•T•E•K•R•S•B•N•G•C•D•L•U•P•mV

SOURCE

HI

SET

OFF

LO

Push & Turn

Fast Dialing
Push & Hold

Store/Ramp
Double Click

for Options

for

to

Device

Requiring

Calibration

(Optional Boot Shown)

Page 6

Page 3

Sourcing Thermocouple

C

SOURCE

Choose this function to provide a simulated thermocouple signal into controllers, temperature
transmitters, indicators or any input devices that measure thermocouple sensors..

1) Disconnect the thermocouple sensor from the
device to be calibrated.

2) Select “SOURCE” with slide switch .

3) Connect a thermocouple wire (matching the type
of wire to sensor being simulated) with miniature
male T/C connector to the inputs of the device
being calibrated, making sure to check polarity.
Millivolt outputs (without cold junction) may be
connected with a copper (white) miniature T/C
connector or the banana jacks with copper wire.

The output is adjusted in 0.1° (or 0.001 mV)
increments by turning the knob while the
DIAL switch is in the “HI”, “LO” or “SET”

1

position. Press and turn the knob for faster dialing
with 10° (or 0.100) increments.

CL510AZ

HI

322.1

TYPE K °CTYPE K °

THE RMO COUP LE SOUR CE

TYP ES

J•T•E•K•R•S•B•N•G•C•D•L•U•P•mV

SET

SOURCE

HI

OFF

LO

Push & Turn

for
Fast Dialing
Push & Hold

to Store
Double Click
for Options

(Optional Boot Shown)

Specifications

(Unless otherwise indicated all specifications are rated from a nominal 23 °C,

General

Cold Junction Compensation ± 0.45°F (±0.25°C)

Operating Temperature Range -25 to 60°C (-10 to 140°F)

Temperature Drift 50 ppm of range (includes mV and Cold Junction)

Relative Humidity Range 10% RH 90% (0 to 35°C), Non-condensing

Size
With Boot

Weight
With Boot

Optional NiMh

Rechargeable battery kit

Protection against misconnection Over-voltage protection to 60 V dc (rated for 30 seconds)

70 % RH for 1 year from calibration)

Vm 000.08 ot 000.31-egnaR tlovilliM

10% RH 70% (35 to 60°C), Non-condensing

4.96 x 2.73 x 1.79 inches, 126 x 69 x 45 mm (L x W x H)

5.67 x 3.06 x 2.05 inches, 144 x 78 x 52 mm (L x W x H)

8.4 ounces, 0.24 kg (including batteries)
11 ounces, 0.32 kg (including batteries)

sruoH 05efiL yrettaB

120 VAC for North America Only; charger, four
batteries, AC & DC cords [Part # 020-0103]

for use in low lit areas.

)Vm 900.0 + gnidaeR fo %510.0(±ycaruccA

)6RL( V5.1 enilaklA ”AA“ ruoFseirettaB

NiMh

tfel efil fo ruoh 1 lanimon htiw noitacidni yrettab woLyrettaB woL

gnithgilkcab DEL .yalpsid latsyrc diuqil cihparg tsartnoc hgiHyalpsiD

Storing DIAL Outputs

STORING HI and LO DIAL Outputs

Choose this function to provide a simulated thermocouple signal into controllers, temperature
transmitters, indicators or any other input device that measure thermocouple sensors.

1) Stor e you r high (SPAN) output temperature by moving the DIAL switch to the HI position
and turn the DIAL knob until the desired temperature is on the display. Press and hold the
DIAL knob until STORED appears to store the value. Release the DIAL knob.

2) Stor e you r low (ZERO) output temperature by moving the DIAL switch to the LO position
and turn the DIAL knob until the desired temperature is on the display. Press and hold the
DIAL knob until STORED appears to store the value. Release the DIAL knob.

3) Insta nt ly o ut put your SPAN and ZER O te mp erature outputs by mo vi ng t he DIAL switch
between HI and LO. You may also select any third temperature output (such as mid-range) using
the SET position on the DIAL switch.

Page 4

Source

smhO 3.0 ecnadepmI tuptuO

)smhO 01 otni Vm 08 sevird( Am 02 tnerruC ecruoS

Noise 4 microvolts p-p for frequencies of 10 Hz or below

Additional Information

This product is calibrated on equipment traceable to NIST and includes a Certificate of Calibration.
OMEGA Engineering recommends a calibration interval of o ne year.

Page 5
