WB-DYNARES OWNER’S MANUAL
Table of Contents
0
Page 2
TABLE OF CONTENTS
In Chapter 1

Contents

Features at a Glance
Chapter 1 Introduction
General Information
Features and Configurations
iv
1 – 1 1 – 4
DYRE E01/P01 11/95
i
Page 3
WB-DYNARES OWNER’S MANUAL
In Chapter 2
Table of Contents
ii
Contents
Chapter 2 Installing the WB-DynaRes
Overview
Verifying Switch Settings
Illustration of the Board
Physical Board Installation
Measuring Current
Setting the Board Number Switch
Setting the Base Address
Changing Hardware Interrupts
2 – 1
2 – 2
2 – 3 2 – 4 2 – 6
2 – 6
2 – 8
2 – 10
Page 4
TABLE OF CONTENTS
In Chapter 3
Contents
Chapter 3 Technical Notes
Overview

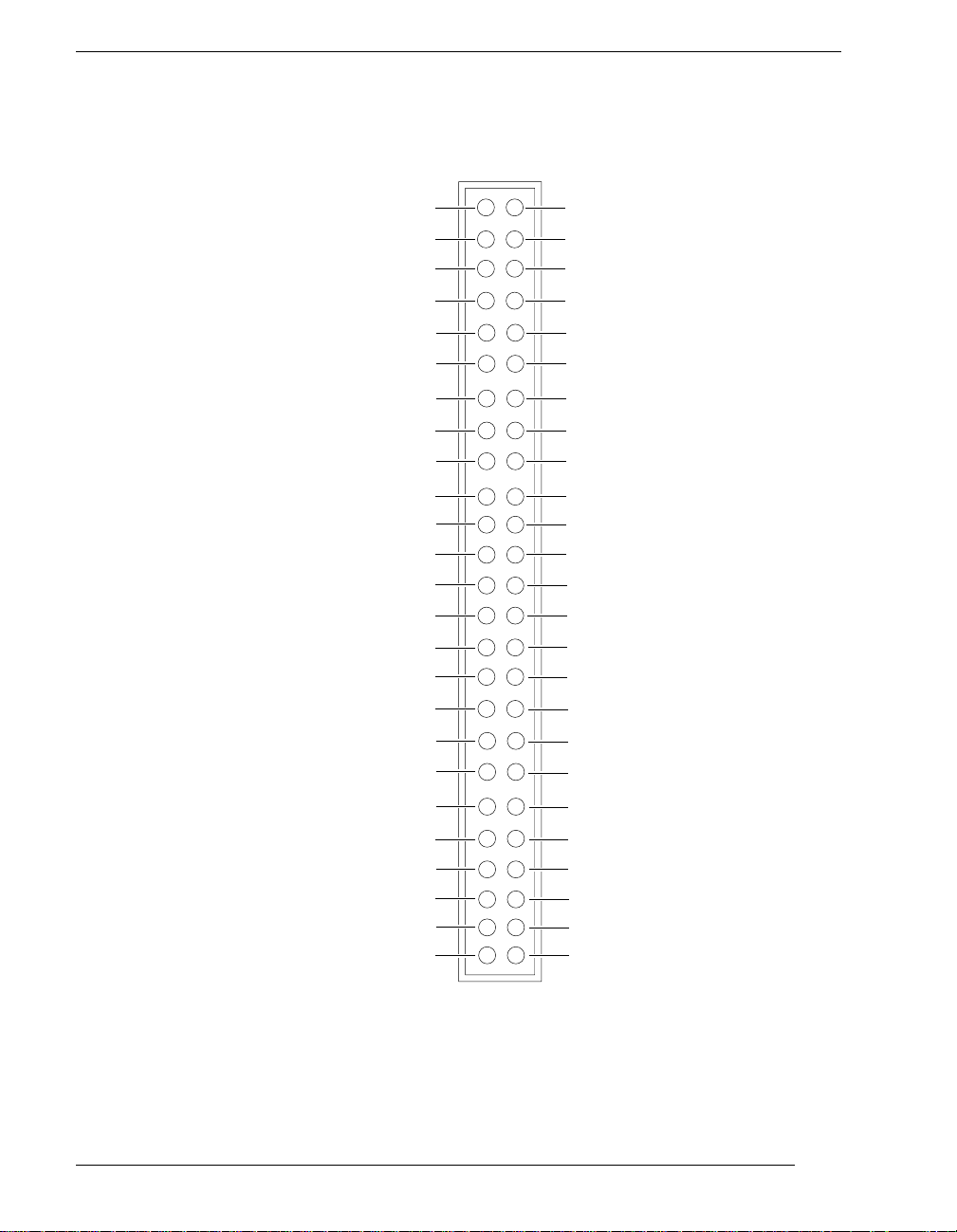

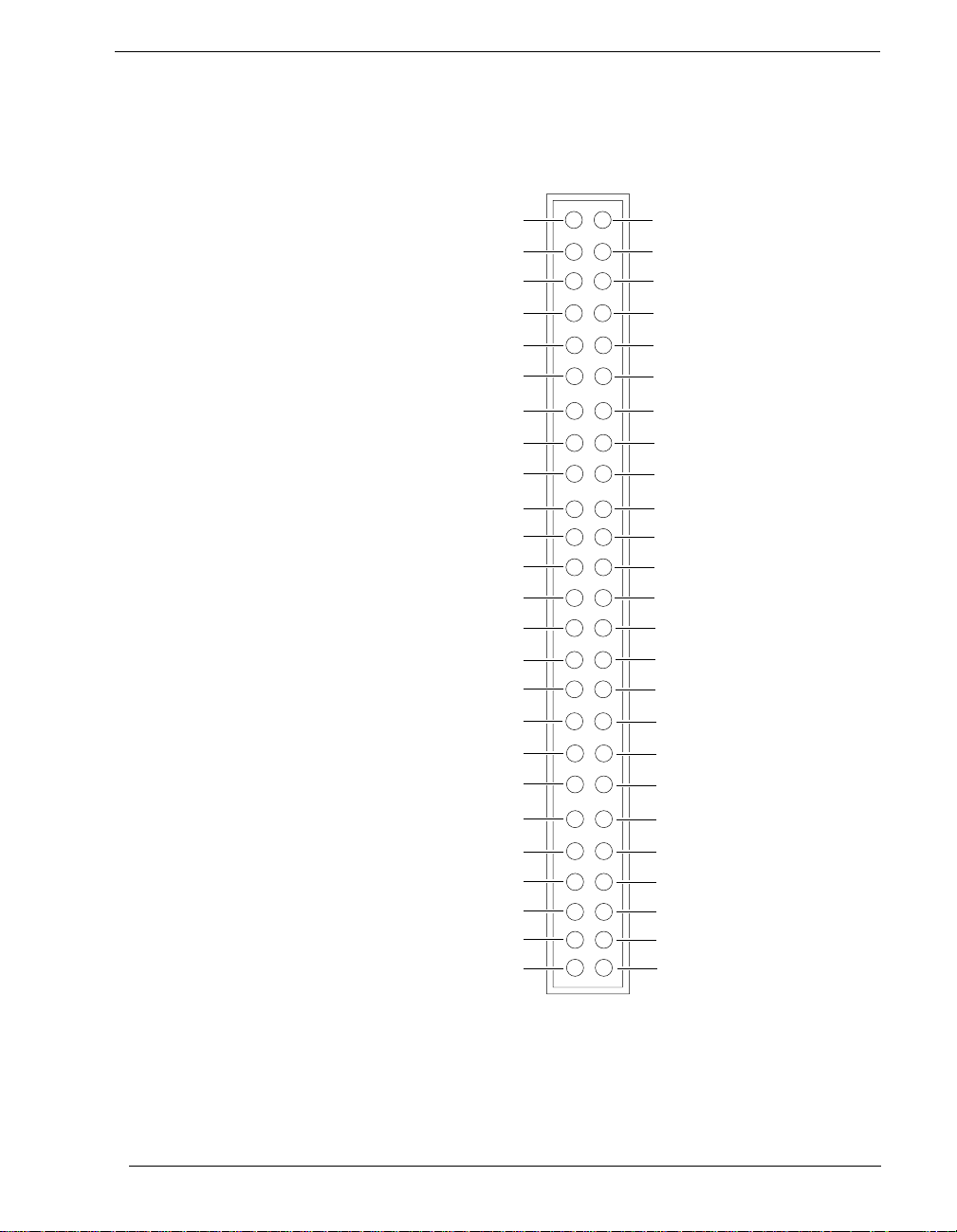

Pin Assignments for WB-DynaRes

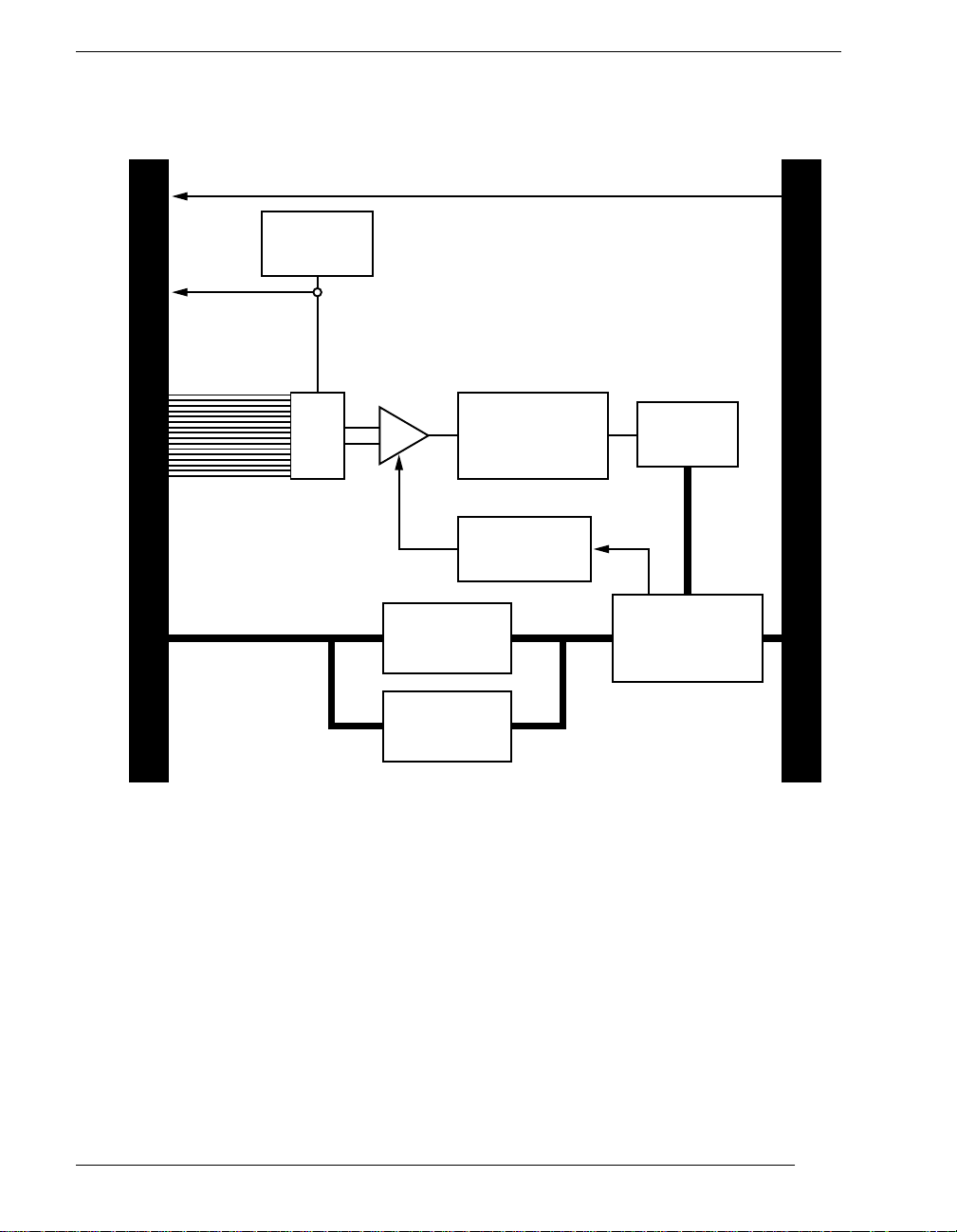

Block Diagram
Recalibration
EDITCAL Utility
Note on the AC Development System
Troubleshooting: Installation
Troubleshooting: Operation
Specifications of WB-DynaRes 8/16 Ultra
Specifications of WB-DynaRes 8/16
3 – 1
3 – 2
3 – 4 3 – 5 3 – 6
3 – 6
3 – 7
3 – 8 3 – 10 3 – 15
iii
Page 5
WB-DYNARES OWNER’S MANUAL
Features at a Glance

Highlights of the WB-DynaRes Models

Differential Analog Input Channels
16 Channels:
8 Channels:
WB-DynaRes 16 Ultra WB-DynaRes 16 WB-DynaRes 8 Ultra WB-DynaRes 8
Maximum Resolution
20 Bits (0.00009%):
18 Bits (0.0004%):
WB-DynaRes 16 Ultra WB-DynaRes 8 Ultra WB-DynaRes 16 WB-DynaRes 8
Maximum Speed
1700 Hz:
900 Hz:
WB-DynaRes 16 WB-DynaRes 8 WB-DynaRes 16 Ultra WB-DynaRes 8 Ultra
All Models Feature
8 or 16 Digital I/O lines, user configurable · Six voltage
input ranges · High noise rejection integrating
converter · Dynamic resolution · Input protection to 50
V olts continuous, 150 Volts momentary · Wide acceptance
of sensor devices · On-board counter/timer · Software
linearization for RTDs and thermocouples · Factory
guaranteed accuracy for two years from date of purchase
Front Matter
iv
Page 6
INTRODUCTION
General Information
Chapter 1: Introduction to the WB-DynaRes
Thank you for selecting the WB-DynaRes board for your project! Our primary objective is to provide you with data acquisition systems that
are easy to install, operate, and maintain. W e also strive to furnish the perfor­mance you need at the lowest overall cost. The benefits for you are increased productivity, data you can count on, and, of course, meeting your budget.
We manufacture the WB-DynaRes as an enhancement board that readily mounts in an expansion slot in an IBM PC, or -compatible, computer.
This product’s high noise rejection, its input protection to withstand as much as 150 Volts, and its guaranteed long term stability make it ideal both for the laboratory and for harsh industrial environments.
Using the WB-DynaRes board together with our graphical interface applica­tion software (such as WorkBench PC, or QuickLog PC), you can easily and very quickly implement a broad spectrum of research and commercial tasks, in a wide variety of settings. You can, for example,
· Display and log data
· Measure temperature, pressure, flow
· Perform scale, offset, or complex calculations
· Monitor and control processes
· Set alarm limits
· Control devices at preset levels
· Control devices from digital input
· Gather data unattended
You can use the system interactively, operating controls or modifying your setup while the system is running.
to disk for later analysis,
and most other analog inputs
from sensors and instruments,
on a measurement,
,
on any input,
(fans, pumps, heaters, etc.),
(e. g., from switches or TTL
signals), and
.
1 – 1
Page 7
WB-DYNARES OWNER’S MANUAL
DEVELOPMENT
EXPANDABILITY
RANGES/
DATA
DYNAMIC
General Information
People who decide, on the other hand, to write their own software
SYSTEM
(rather than using an off-the-shelf application) can employ the Analog Connection Development System hardware driver to ad­dress all features of the WB-DynaRes board from within a pr ogram they design and code for their specific purpose.
A WB-DynaRes product, depending on the model, has either eight or 16 differential analog input channels; and you can add one board at a time to your computer , up to as many as 15 boards, with a total of 240 analog input channels and 240 digital input/output lines!
The six input ranges of the WB-DynaRes span from 25 milliVolts
UNITS OF MEASURE
through 10 Volts, capable of accepting data from almost any sen­sor. Its high accuracy also makes the WB-DynaRes ideal for pr ecise measurement in the laboratory.
The WB-DynaRes together with our software – such as Work­Bench PC and QuickLog PC – make it easy to specify engineering units (degrees, Volts, milliAmperes, etc.) for measurements, as well as which ranges to use.
You can measure temperature, for example, by selecting from among 11 different thermocouple types, or from a wide variety of resistance temperature detectors – RTDs. With our application software, the process simply consists of selecting the type of sens­ing device from a menu – the driver automatically handles cold junction compensation and linearization.
PRESENTATION
RESOLUTION
Chapter 1 Introduction
1 – 2
The combination of our hardware and application software (W orkBench PC or QuickLog PC) enables both the display of data on the screen, and the logging of data to disk for later analysis.
The system is capable of showing data on the monitor in a variety of formats, including graphical meters. Charts can indicate trends for comparison of actual measurements on several channels, or for setting data points or alarms.
Your WB-DynaRes incorporates “Dynamic Resolution,” improv­ing the board’s accuracy.
With this feature, resolution is greater at the lower (negative) end of any range than at the higher end. As your readings approach the low end of any given range, the resolution becomes finer (that is, the increments of the signal you can distinguish become smaller).
Page 8
INTRODUCTION
General Information
This feature allows you to obtain the same advantages of an inte­grating converter, with the speed of a sample and hold converter, but without its susceptibility to noise.
Dynamic resolution gives a resolution that is a fixed percentage of the input voltage (not full scale voltage) down to about 10% of full scale. Our products, consequently, are the best available for taking accurate measurements of low-level signals, as you would using a thermocouple sensor.
Dynamic resolution is always best toward the negative end of any range:
Dynamic Resolution for Dissimilar Ranges –
+
10
10
range
5
–
-5
+
–
5
-5
range
-10

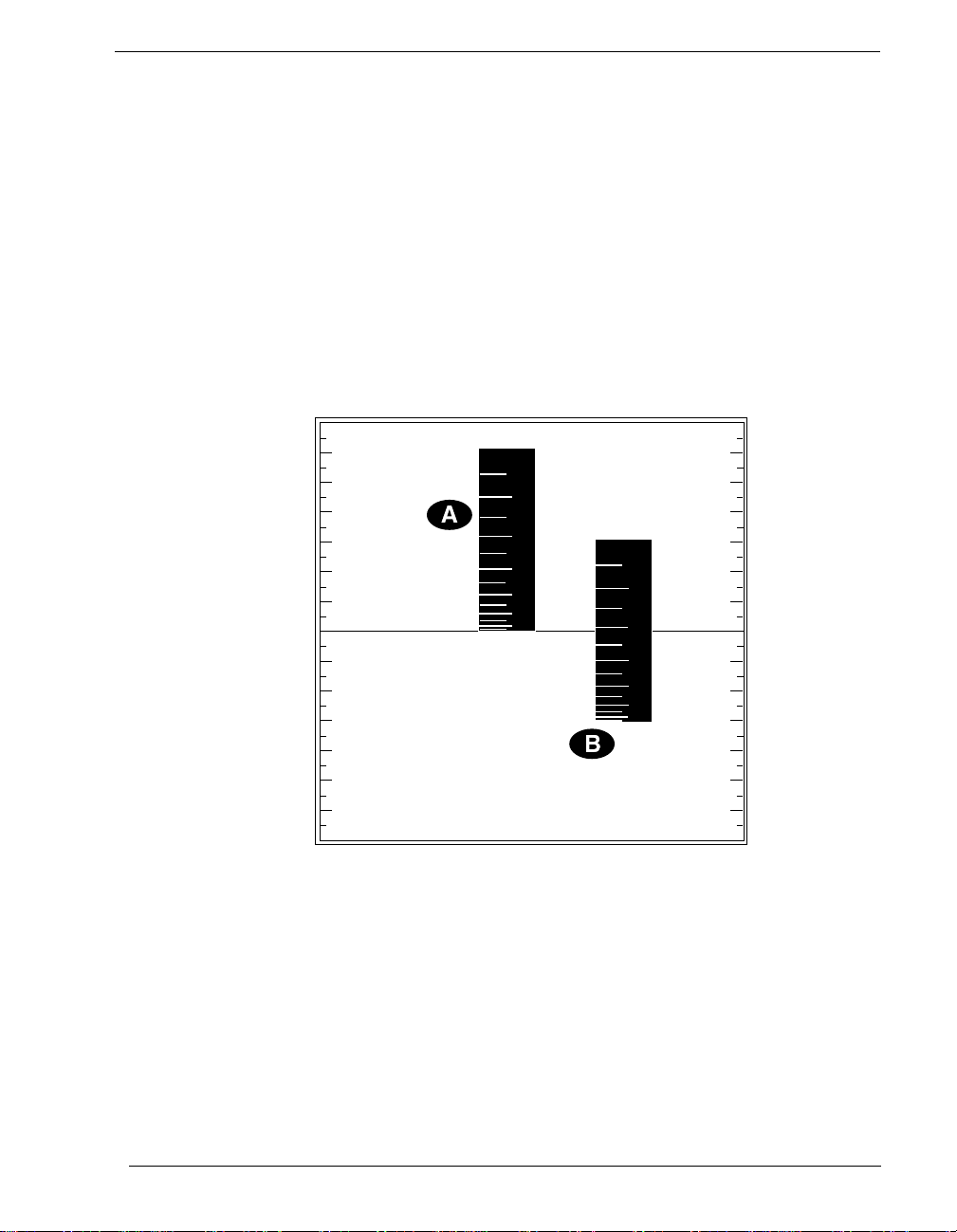

Two vertical black “rulers” (range A and range B) portray the impact of Dynamic Resolution. Their graduations – representing their ability to resolve – are always finer at the lower (more negative) ends of their ranges, regardless of the spectrum of values the ranges are measuring.
-10
1 – 3
Page 9
WB-DYNARES OWNER’S MANUAL
ANALOG
RESOLUTION
DATA ACQUISITION
RANGES
NOISE
SENSORS
ACCURACY
INPUT
DIGITAL I/O
COUNTER/TIMER
Features and Configurations

Features and Configurations

The WB-DynaRes line consists of two models: the WB-DynaRes 8/16 (capable of 12 bit resolution; that is, 0.024% of full scale), and the WB-DynaRes 8/16 Ultra (that can attain 16 bit resolution, or 0.0015% of full scale).
A WB-DynaRes board can have two possible analog input config-
INPUT CHANNELS
SELECTIONS
urations, also depending on the model of the product: The WB­DynaRes 8 and the WB-DynaRes 8 Ultra feature eight differential analog inputs, and the WB-DynaRes 16 and WB-DynaRes 16 Ultra models offer 16 differential analog inputs.
The resolution of your WB-DynaRes is selectable in software, ranging from 10 through 12 bits for the WB-DynaRes 8/16, and from 12 through 16 bits for the WB-DynaRes 8/16 Ultra.
(The WB-DynaRes also features advanced “dynamic resolution.” See page 1 – 2 for further explanation.)
Maximum acquisition rates for the WB-DynaRes 8/16 range up to 1700 Hz, while the WB-DynaRes 8/16 Ultra is capable of reading
SPEED
data up to 900 Hz. WB-DynaRes products have six voltage ranges, all selectable indi-
vidually for each analog input channel.
REJECTION
PROTECTION
Chapter 1 Introduction
1 – 4
All WB-DynaRes models feature a high noise rejection integrating converter (in “low noise mode” it helps reject 50/60 Hz AC power line interference).
Each WB-DynaRes provides accurate cold junction compensation and linearization for thermocouple devices, and signal condition­ing for resistance temperature detectors (RTDs).
We guarantee the factory calibration of the WB-DynaRes for a period of two years from the date of purchase. (If it is ever neces­sary, the user can recalibrate the board with precision through the use of software utilities we provide with every product.)
Built-in circuitry assures protection of analog input channels for 50 Volts, continuous , or 150 Volts, momentary.
There are 8 digital input/output channels on the WB-DynaRes 8 and WB-DynaRes 8 Ultra models; 16 digital I/Os are available on the WB-DynaRes 16 and WB-DynaRes 16 Ultra.
Every WB-DynaRes board includes a counter/timer for precise timing (for counting pulses or other events) which you can also
Page 10
INTRODUCTION
TERMINAL
FOR MORE
DYNARES SYSTEM
Features and Configurations
PANELS
INFORMATION
REQUIREMENTS
use as a pulse output. (
NOTE: If you are using WorkBench PC for Windows, the counter/timer of the first board installed will not be available for use.
)
Available accessories for the WB-DynaRes include your choice of screw terminal panels for connecting sensors. They include gener­al purpose, thermocouple, and resistance temperature detector (RTD) device terminal panels, all of which accept digital opto-iso­lators.
For more information about the capabilities of your WB-DynaRes, please see “Product Specifications” in Chapter 3.
For instructions on controlling the board with our interface soft­ware (such as WorkBench PC or QuickLog PC), refer to the appropriate software manual.
To learn more about data acquisition and process control in gen­eral, and how to use our products together to accomplish every­day tasks, consult our
Applications
manual.
And, last but not least, if you’re creating your own program to address the WB-DynaRes for a custom purpose, please see the
Analog Connection Development System Manual.
Before installing the WB-DynaRes, make sure the computer sys­tem fulfills these minimum requirements:
Hardware –
· IBM PC XT, AT, (or higher), or -compatible
640k system RAM and full-size slot,
· 3.5" Floppy disk drive
Software Environment –
· DOS 3.0
(or higher, depending on the application software),
· Application software
and a hard drive.
(WorkBench PC, QuickLog PC, the Analog Connection Development System, or other com­patible proprietary software; please see your software manual for directions for using it with the hardware).
, with at least
1 – 5
Page 11
INSTALLATION
Chapter 2: Installing the WB-DynaRes
Getting your WB-DynaRes data acquisition and process control board up and running is a straightforward process; you only need to:
· Verify the board’s switch settings
system addressing (see page 2 – 2),
that control board identity and
Overview
· Physically insert the board
(page 2 – 4; and illustration on 2 – 3),
· Connect a terminal panel to the board
and for digital outputs from the WB-DynaRes; see page 2 – 4), and
· Load and start up the software
As the scope of this manual focuses on the WB-DynaRes board, this chapter discusses board’s switch settings, and the physical insertion of the board.
Please see your terminal panel manual for full instructions regarding its attachment to the WB-DynaRes, as well as for how to connect sensors to the panel.
Guidelines for loading the software, and for starting up, depend on the application program you are going to use (such as our WorkBench PC for Windows or DOS, or QuickLog PC, or a package by a third party developer who has our authorization).
The program you are going to use with the WB-DynaRes might even be unique and proprietary, a product of your organization. (The Analog Con­nection Development System is a powerful set of utilities making it possible for software engineers to design and develop their own programs to exploit the WB-DynaRes’ many features.)
In any event, please refer to the software provider’s installation manual, or user guide, for specific information on how to load and run the particular program.
Troubleshooting –
to the “Troubleshooting” section in Chapter 3.
If you have any difficulty getting your board to work, refer
into a slot of the personal computer
(to attach sensing devices
to be used for the project.
2 – 1
Page 12
WB-DYNARES OWNER’S MANUAL
SINGLE BOARD
MULTIPLE
PREVIOUSLY
Verifying Switch Settings

Verifying WB-DynaRes Switch Settings

When you purchase a data acquisition board new from our com­pany, the product’s switch settings already are correct to operate a
single
board with our software (WorkBench PC, QuickLog PC, the
Analog Connection Development System, and all others). This means the factory switch settings are right for the purpose of
using only one board, and you can skip the task of confirming them. You can go directly to the “Physical Board Installation” sec­tion on page 2 – 4 in this chapter, and begin to follow the steps there.
If you are using more than one board at a time, set the individual
BOARDS
IN USE
boards’ Board Number Switch first (refer to “Setting the Board Number Switch” on page 2 – 6), then go on to perform the phys­ical installation.
Otherwise, there’s no reason to be concerned about the board’s switch settings, except in the unlikely event you encounter a problem in getting your product to operate. (If you experience a problem, refer to “Troubleshooting” in Chapter 3).
If, on the other hand, your board has been in use previously in another computer, or if your company uses its own proprietary software, the present switch positions might differ from the fac­tory settings.
Chapter 2 Installation
2 – 2
If your company uses such a program, making changes to factory switch settings might be necessary to accommodate it. Please consult the administrator of your internal system, or the provider of third party software, to determine their recommendations for any unusual switch setting.
To check and restore the factory values, please read “Board Num­ber Switch Settings” on 2 – 6 in this chapter.
Page 13
Attach
cable
connector
from
terminal
panel
here
INSTALLATION
WB-DynaRes Board
Spring Latch
Spring Latch
–
3 5 7 11 12 15
JP5 JP6 JP7
JP6 & 8
NORMAL
JP5 & 7
INVERT
JP8
S1
insert; seat firmly
IRQ
Interrupt Jumpers
Base Address
switches (detail:)
D
C
E
B
F
A
0
9
1
8
2
7
3
6
4
5
Board Number

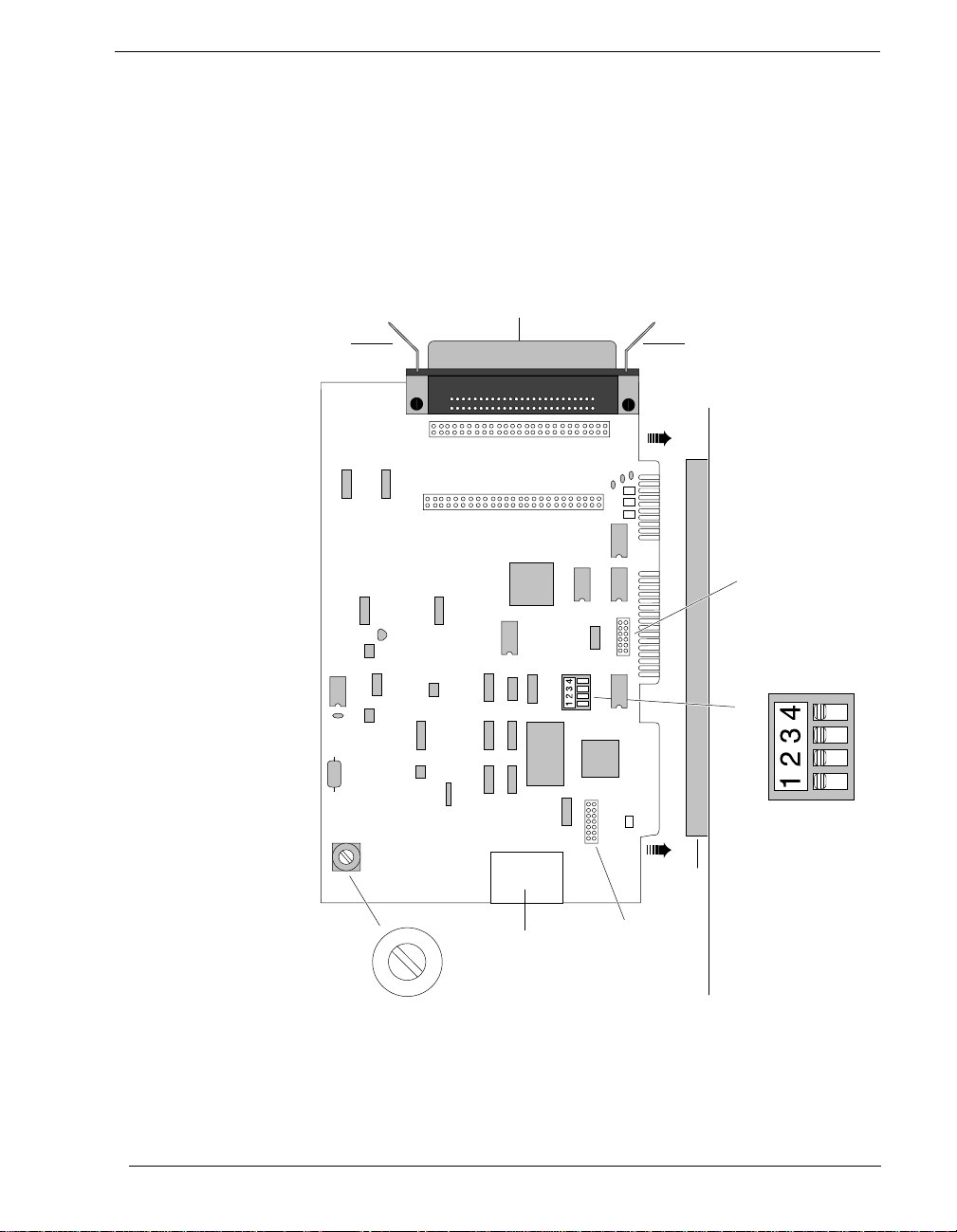

Illustration of WB-DynaRes Data Acquisition Board, Showing Physical Installation
switch (detail:)
Calibration
Numbers
ALE jumpers
PC ISA expansion slot
2 – 3
Page 14
WB-DYNARES OWNER’S MANUAL
TERMINAL PANEL
PHYSICAL
Physical Installation

Physical Board Installation

Installation very simply consists of inserting the board into an open peripheral (expansion) slot inside your computer.
(There are, for example, five available slots in the IBM PC, and eight in the IBM XT or AT. IBM and other companies sell expan­sion chassis that can accept even more analog cards. Our software supports as many as 15 boards at one time.)
When using a terminal panel with the WB-DynaRes (to connect
CONNECTIONS
external devices: sensors and digital input/output) you are going to use the provided Centronics cable.
Each cable can conduct eight analog input channels and eight digital I/O lines from your WB-DynaRes to a single terminal panel.
One T erminal Panel, One Cable –
Ultra, using eight analog input channels, requires one Centronics cable for connection to one terminal panel (this also allows the use of eight digital I/O lines).
A WB-DynaRes 8 or WB-DynaRes 8
INSTALLATION
Chapter 2 Installation
2 – 4
Two Terminal Panels, Two Cables –
DynaRes 16 Ultra, using 16 analog input channels, requires two Centronics cables for connection to two terminal panels (to han­dle two “banks” of eight analog inputs: Analog Input Channels 1­8, and Analog Input Channels 9-16).
(Refer to “Pinouts,” in Chapter 3 of this manual, for a description of the signals at the connectors.)
To Install the WB-DynaRes Board –
1.
TURN THE COMPUTER OFF!
puter without first turning the power switch off.
2.
Open the Computer
appropriate, refer to your computer’s owner’s manual for more information about removing the cover and installing enhancement boards.)
3.
Ground Yourself
touch the metal chassis of the computer to discharge any static electricity that might be on the surface of your body.
This is important, as static electricity can damage electronic
Remove the cover of the computer. (If
While holding the board, before installing it,
A WB-DynaRes 16 or WB-
Never remove the cover of the com-
Page 15
INSTALLATION
CAUTION
NEXT STEPS
Physical Installation
parts. (Likewise, if you ever remove the board from the com­puter, always store it in its protective shipping bag.)
4.
Remove
Plate
At the back panel of the computer, unscrew and remove the narrow dust cover plate that is directly behind the expansion slot you want to use. (Keep this screw handy.)
5.
Insert the Board
Push the edge of the WB-DynaRes board hav­ing “gold fingers” down and into the expansion slot (socket) on the chassis, making sure that the contacts align with the socket and the spring latches are through the socket. Then plug it in by pushing the board straight down. (NOTE: If you
are using a WB-DynaRes 16 or WB-DynaRes 16 Ultra, a second expansion slot is required for the second cable connector.)
6.
Fasten the Board to the Chassis
Install the “left over” screw from step 4. Place it in the original hole, through the WB-DynaRes board’s bracket, so that it fastens the top of the bracket to the computer’s back panel.
7.
Connect the Cable to the Terminal
Panel
Plug the cable’s connec­tor into the socket on the terminal panel (please refer to your terminal panel’s manual, if you are unsure about the correct position).
Incorrect installation of these cables can damage the data acquisition board or the terminal panel. If you are uncertain about proper placement, please see “Terminal Panel Connec­tions” at the beginning of this discussion, and inspect the dia­gram on page 2 – 3 .)
IMPORTANT! Measuring Current –
If you are going to measure cur-
rent, please see “Measuring Current” on the next page.
Single Board Usage –
If you intend to run with a single data acquisition board in your system, you are now ready to install your applica­tion software and to connect sensors to your terminal panel.
Multiple Board Usage –
If you are going to use more than one data acquisition board, now it’s time to set each Board Number Switch to an unique number. Follow the steps in the “Setting the Board Number Switch” section in this chapter on page 2 – 6.
Installing the Software –
For information on loading and configur­ing our WorkBench PC for Windows or DOS or QuickLog PC please refer to the user guide for that application package.
2 – 5
Page 16
WB-DYNARES OWNER’S MANUAL
CAUTION
MULTIPLE BOARDS

Measuring Current

Installing the T erminal Panels –
to the terminal panel see your terminal panel owner’s manual, or our Applications manual (which discusses data acquisition and control in general and provides examples of uses for the products).
T o learn how to connect experiments
Measuring Current
If you are going to connect a current, rather than a voltage, to one or more of the analog input channels, then make certain to set the “Current/Volt” switch for that channel on the terminal panel. These switches are located under the daughterboard on the WB­T71 terminal panel (see Terminal Panels manual for illustration) .
Moving a switch to the “Current” position selects current, placing a precision 24.9 Ω , 0.1% resistor in the circuit for that channel.
Two kinds of misuse can burn out the board’s input sense resistors:
Do not apply a voltage to a channel whose setting is for current. Also, do not apply more than 50 mA to a channel set for current.
Chapter 2 Installation
2 – 6

Setting the Board Number Switch

When you are using multiple boards in your installation, each board needs to have an identity for the software to recognize it as an “individual.”
The Board Number switch on a board accomplishes this, as it enables you to set an identifying number for the board (see the illustration on page 2 – 3).
This number determines, among other things, the sequence in which the software reads multiple boards (OMEGA programs can address as many as 15 boards).
When using more than one WB Series product in your installa­tion, every board’s Board Number switch needs to have a different
Page 17
INSTALLATION
SINGLE BOARD
DISABLING BOARDS
SETTING
Setting the Board Number Switch
number setting, and all switches are to be in number sequence, starting with 1. For example, if you are using three boards, the board number sequence would be 1, 2, 3.
(If there are also WB-Flash-12 or WB-WorkMate boards in your installation, and you are using DOS software, then their Board Numbers need to be at the high end of the number sequence.)
If your system includes just a single data acquisition board, then you don’t need to have much concern about the Board Number switch.
When your WB-DynaRes leaves our manufacturing facility, we set the Board Number switch to 1, and this is the setting we recom­mend for most purposes when you are using only one board in your installation.
If you want to disable the board, for any reason, set its Board Number switch to 0. This is handy if you want to use fewer boards for a while: that way you don’t have to r emove them from the computer. Remember, however, that all remaining boards must have their board numbers in a continuous sequence.
THE SWITCH
To Set the Board Number Switch –
1.
Locate
the Switch
With the cover of your computer removed, examine the illustration on page 2 – 3 in this chapter and find the “Board Number Switch” on the WB-DynaRes.
On the printed circuit board, this is a rotary switch with the label “BRD SEL.”
2.
Make
the Setting
Note that the switch has 16 possible posi­tions: numbers on the detents are 0 through 9 and A through F.
Determine which is to be the First Board. (This is easy, if it is the sole board.) Then turn its dial to 1.
Determine which is to be the Second Board, then set its switch to 2.
Continue to set the switches for all boards in your installation to unique numerical values in an unbroken sequence.
(As various models of our boards use different kinds of
switches, please see their owner’s manuals for an explanation of how to set switches on other boards.)
2 – 7
Page 18
WB-DYNARES OWNER’S MANUAL
SETTING WB-DYNARES

Setting the Base Address

Setting the Base Address
The Base Address determines the logical system address where the personal computer expects to find all data acquisition boards. Base Addresses must be the same
The factory setting for all of our data acquisition products is 300H (in hexadecimal format).
It is rarely necessary, but if you have difficulty getting the board to work you can change these switches to values different from the factory settings. (Another device in your PC, for example, might be trying to use the same Base Address.)
Indications of this are: if the program reports it cannot find your board, or if it reports fewer boards than you really have, or if another board starts to work improperly after you install the WB­DynaRes.
These problems indicate interference with another board using the same base address as the WB-DynaRes product.
Remedy the problem by changing the switches of all data acquisi­tion boards to an address that has no conflict. (If you have boards other than WB-DynaRes in your system, please refer to their owner’s manuals for instructions on how to change their sett­tings.)
on all boards.
BASE ADDRESS
Chapter 2 Installation
2 – 8
To Set the Base Address –
1.
Locate
the Address Switches
puter over the data acquisition board, and find the location of the Base Address switches. Refer to the board illustration on page 2 – 3 in this chapter and find “Base Address Switches” on the WB-DynaRes diagram.
On the printed circuit board itself, this is a block of four DIP
switches.
(NOTE: Depending on the space available in your installa-
tion, it might be necessary to remove the board to reach the Base Address Switches. If so, please follow the same precau­tions as in “Physical Installation” on page 2 – 4.)
2.
Change
the Setting
sists of all four DIP switches’ being in the “up” position (when the board is sitting in the computer’s expansion slot).
Remove the cover of your com-
300H is the normal base address. It con-
Page 19
INSTALLATION
BASE ADDRESS
Setting the Base Address
The DIP switches have the labels “1” through “4.” Sliding a switch to the “down” position adds
a value to 300H:
WB-DynaRes Base Address Switch Additive* Values –
Switch Position To 300H Add
1 Down 10H 2 Down 20H 3 Down 40H 4 Down 80H
SETTINGS
* As the switches are additive, your sliding
Switches 1 and 4 down, for example, is going to add 10H and 80H to the 300H, equalling 390H.
Possible WB-DynaRes Base Address Settings –
Value
300H U U U U
Switch Positions*
1 2 3 4
Comments
Factory setting
310H D U U U 320H U D U U
May interfere with hard disk drive
330H D D U U 340H U U D U
Recommended alternative
350H D U D U 360H U D D U 370H D D D U
May interfere with parallel printer
380H U U U D 390H D U U D
3A0H U D U D
3B0H D D U D 3C0H U U D D 3D0H D U D D
May interfere with graphics adaptor
3E0H U D D D
3F0H D D D D
May interfere with floppy disk drive
–
–
– –
– – – – –
–
* U = Up D = Down
2 – 9
Page 20
WB-DYNARES OWNER’S MANUAL

Changing Hardware Interrupts

Changing Hardware Interrupts
For users of Windows programs that employ hardware inter­rupts, the WB-DynaRes board provides for changing the inter­rupt number, if necessary.
Refer to page 2 – 3 to locate the interrupt jumper block on the WB-DynaRes board. By repositioning the jumper, which is a plug, to another socket on the block, you can select another of these interrupts: IRQ2, IRQ5, IRQ7, IRQ11, IRQ12, or IRQ15. (Remember that on AT computers the IRQ2 selection is actually the IRQ9 line.)
Chapter 2 Installation
2 – 10
Page 21
TECHNICAL NOTES
Chapter 3: Technical Notes
Although operations in this chapter are seldom necessary during everyday data acquisition, you might want to refer to them at certain times during operation of the WB-DynaRes. They are
· Pinouts (at the board’s connectors in the event you want to connect analog or digital signals directly, without using a terminal panel; please refer to pages 3 – 2);
· Block diagram of the WB-DynaRes showing on-board processing (please see page 3 – 4);
· Recalibration of all WB-DynaRes on-board references to bring the accu­racy of the product to factory specifications (see page 3 – 5);
· Using EDITCAL to edit calibration files on EEPROM to accommodate changes to your installation, or to restore missing files (on page 3 – 6);
· Note for DOS users with respect to the Analog Connection Develop­ment System (please see page 3 – 6);
Overview
· Troubleshooting: some possible problems and solutions after installing, and during operation of the WB-DynaRes (starting on page 3 – 7).
3 – 1
Page 22
WB-DYNARES OWNER’S MANUAL
Pin Assignments
Pinouts of the WB-DynaRes 8, WB-DynaRes 8 Ultra, and Channels 1–8 on the WB-DynaRes 16 and WB-DynaRes 16 Ultra (at Back Panel Connector) –
channel 1 – input
channel 2 – input channel 3 – input
channel 4 – input channel 5 – input
channel 6 – input channel 7 – input
channel 8 – input
Analog ground
Cold junction sensor high
Cold junction sensor low
Guard
– 12 Volts
CT Gate*
(no connection)
CT Out* digital I/O 8 digital I/O 7
digital I/O 6
digital I/O 5 digital I/O 4 digital I/O 3 digital I/O 2
digital I/O 1
+ 5 Volts
26
1
27
2
28
3 4
29 30
5
31
6
32
7
33
8
34
9
35
10
36
11
37
12
38
13
39
14
40
15
41
16
42
17
43
18
44
19
45
20
46
21
47
22
48
23
49
24
50
25
channel 1 + input channel 2 + input
channel 3 + input channel 4 + input channel 5 + input channel 6 + input
channel 7 + input
channel 8 + input Analog ground
6.9 Volt Reference + 5 Volts Analog ground
+ 12 Volts
(no connection) (no connection)
CT In* digital ground digital ground digital ground
digital ground digital ground
digital ground digital ground digital ground CT Trig*
Chapter 3 Technical Notes
3 – 2
* Note: When two terminal panels are used, the one spare counter/timer
on the board can be accessed from both terminal panels. Access to the
CT lines is through pins 14, 16, 41, and 50 on Terminal Panel 1 or through pins 21–24 on Terminal Panel 2 (pins 14, 16, 41, and 50 will have no connection on this panel). If one of these CT lines is used, then
that pin number on the other terminal panel cannot be used.
Page 23
TECHNICAL NOTES
Pin Assignments
Pinouts of Channels 9–16 on the WB-DynaRes 16 and WB-DynaRes 16 Ultra (at Back Panel Connector) –
channel 9 – input
channel 10 – input channel 11 – input
channel 12 – input channel 13 – input
channel 14 – input
channel 15 – input channel 16 – input
Analog ground
Cold junction sensor high
Cold junction sensor low
Guard
– 12 Volts (no connection) (no connection) (no connection)
digital I/O 16 digital I/O 15 digital I/O 14
digital I/O 13
(CT Gate)* digital I/O 12
(CT Trig)* digital I/O 11
(CT In)* digital I/O 10
(CT Out)* digital I/O 9
+ 5 Volts
26
1
27
2
28
3 4
29 30
5
31
6
32
7
33
8
34
9
35
10
36
11
37
12
38
13
39
14
40
15
41
16
42
17
43
18
44
19
45
20
46
21
47
22
48
23
49
24
50
25
channel 9 + input channel 10 + input channel 11 + input channel 12 + input channel 13 + input channel 14 + input
channel 15 + input channel 16 + input Analog ground
6.9 Volt Reference + 5 Volts Analog ground
+ 12 Volts
(no connection) (no connection)
(no connection) digital ground digital ground digital ground
digital ground digital ground
digital ground digital ground digital ground (no connection)
* Note: See the note on counter/timer lines on page 3-2.
3 – 3
Page 24
WB-DYNARES OWNER’S MANUAL
Block Diagram
Block Diagram of the WB-DynaRes (All Models) –
+5V, ±12V
Reference
Voltage
Differential
Analog Inputs *
MUX
Amplifier
Converter **
Real World
Control
I/O
Latches
Digital
I/O Lines *
Counter/
Timer
V/F
Gain
Digital
Processing
Computer Bus
Computer Bus
Interface
Chapter 3 Technical Notes
3 – 4
* Analog Inputs and Digital I/Os: 8 channels for WB-DynaRes 8
and WB-DynaRes 8 Ultra
16 channels for WB-DynaRes 16
and WB-DynaRes 16 Ultra
** V/F Converter: 12 bits for WB-DynaRes 8
and WB-DynaRes 16
16 bits for WB-DynaRes 8 Ultra
and WB-DynaRes 16 Ultra
Page 25
FACTORY
METHODS

RECALIBRATION

TECHNICAL NOTES
Recalibration
Recalibration
Your WB-DynaRes uses an exclusive calibration technology to achieve great stability, requiring no adjustment for years. (As a reflection of this, we guarantee the factory tolerances for two years from the date of purchase.)
Instead of employing adjustment potentiometers to calibrate the board, our technicians test and calibrate each WB-DynaRes after assembly. They then enter that board’s unique calibration number values into EEPROMs on the board; we also print the same num­bers on a label on the board itself.
Whenever you use our software with the board thereafter, the programs read the factory’s calibration numbers from the EEPROM, and automatically make minor compensations for real­world conditions (for instance, for cold junction properties of a thermocouple).
Under normal conditions, no full recalibration of the WB­DynaRes is necessary.
(If you ever suspect that your WB-DynaRes is out of tolerance, please call Technical Support for advice. If it requires recalibra­tion, we can perform the work for you at our facility using the same high accuracy test equipment we use during the manufac­turing quality assurance process.)
A Note About RECAL.EXE –
on the QuickLog PC disk, RECAL.EXE, is for the purpose of completely recalibrating our data acquisition boards. This soft­ware, however, is only suitable for use in a comprehensive hard­ware lab, and requires sophisticated test equipment.
(Successful use of RECAL.EXE requires, for example, a precision DC voltage supply, as well as a digital volt meter having 0.005% accuracy.)
Only if your organization is proficient in such techniques, and only if you have the necessary equipment, do we encourage you to proceed with recalibration (and please contact our Technical Support Department for guidelines).
For most customers, we recommend returning the board to our Technical Services Department, instead.
One of the utility programs we distribute
3 – 5
Page 26
WB-DYNARES OWNER’S MANUAL
STARTING
EDITCAL

EDITCAL Utility

EDITCAL Utility
EDITCAL.EXE (or EDITCAL, for short) is the utility program that simplifies the modification of values in the EEPROM.
Make sure the EDITCAL.EXE program file is in the same sub-
EDITCAL
directory as the application programs.
To Start Up EDITCAL.EXE –
1.
At the DOS prompt, enter EDITCAL, then press the [ENTER] key. (This invokes the utility.)
SELECTIONS
To Select a Function –
1.
Use the arrow keys to navigate back and forth among these menu selections:
DATA FILES To merge calibration files supplied from the factory
AC EEPROM To view or modify calibration data on Analog Con-
HS EEPROMS To view or modify calibration data on high speed
DS EEPROM T o view or modify calibration data on DATAshuttles’
QUIT Ends this EDITCAL session.
2.
Move the arrow keys until the selection you want is flashing.
3.
Press [ENTER].
into a single file for systems that have multiple boards, or to update existing calibration file (not for use with WB-DynaRes boards).
nection boards (including WB-DynaRes boards) that have non-volatile on-board EEPROMS.
boards EEPROM, such as WB-WorkMate or WB-Flash
12.
EEPROMS.

Note on the AC Development System

Chapter 3 Technical Notes
3 – 6
For those DOS users utilizing our Analog Connection Develop­ment System: The WB-DynaRes boards respond identically to the WB-FAI/AAI series of boar ds, except the card type returned by the “b” command is “3” instead of “0.”
Page 27
TECHNICAL NOTES
Troubleshooting: Installation
Troubleshooting: Installation
If you experience difficulty in getting your data acquisition board up and running, please check to see that the installation is according to the descriptions in Chapter 2.
If the software reports a board failure, or that it cannot find a board, then try these remedies:
1. Confirm that the board is seated properly
(reseat it, if necessary; see the illustration on page 2 – 3).
2. Verify the Board Number switch
3. Use a different Base Address.
your installation is trying to use the same Base Address (see the explanation on page 2 – 8). You may optionally specify this new number in the STI_DRV.INI.
is not set to “0.” (See page 2 – 6).
It is possible that another device in
in the PC expansion slot
4. If there is more than one data acquisition board in your installation
make sure they all have the same Base Address, but different Board Numbers.
5. Install the board in another open slot
tions on page 2 – 4).
6. Remove other devices
whether or not they are conflicting with your WB-DynaRes board.
from expansion slots in your PC to check
7. Verify that the software is up to date
the board you are using. Contact us, or your software pro­vider).
8. T ry different IRQ levels.
software, change the IRQ level on the jumpers on your data acquisition board (see illustration on page 2 – 3 to locate these jumpers). You may want to specify this new number in your STI_DRV.INI file. Alternatively, you may change the IRQ levels of other hardware in your computer.
If you are operating under our Windows
9. Remove other software drivers
10. If possible, install the board in another computer
rect operation.
in the PC (follow the instruc-
(a version compatible with
that may conflict with ours.
to verify its cor-
,
3 – 7
Page 28
WB-DYNARES OWNER’S MANUAL
HINTS
OPERATING
Troubleshooting: Operation
11. T ry alternate bus timing jumpers.
the Address Latch Enable (ALE) timing is not compatible with our data acquisition boards.
To try the alternate (falling edge) timing, locate jumpers JP5 through JP8 on the data acquisition board. The normal (rising edge) timing position is JP6 and JP8. To change this, you need to cut these traces with a sharp knife, then solder a wire across JP5 and JP7.
(NOTE: This alternate connection may not work in all mod­els of computers.)
(Please call our Technical Support line before returning a board – we hope to assist you with your problem via telephone.)
On some models of computers,
Troubleshooting: Operation
During operation, it’s good practice to short all analog input channels you’re not using; to do this, connect + to – to Com.
It’s essential to have exactly one ground reference per channel. This single connection to ground makes sure you don’t exceed the common mode range of input.
Qs AND As
Chapter 3 Technical Notes
3 – 8
(More than one connection per channel can lead to ground loops, causing errors or erratic readings. Connecting the – to the Com terminal provides a single ground. Your sensor might also pro­vide another ground. If you’re not sure that your sensor is grounded, try connecting the – to Com, and not, and see which works best.)
Remember that if speed is not critical, selecting the “low noise mode” in software always provides the best accuracy and resolu­tion with your data acquisition board.
Here are mini “case studies” of difficulties, along with some easy solutions:
Problem: My board reads analog inputs wrong.
Make sure the calibration numbers in the EEPROM are
Action:
correct (see the discussion beginning on page 3 – 6 in this
Page 29
TECHNICAL NOTES
IF YOU NEED
Troubleshooting: Operation
chapter). If the figures are correct, try shorting + to – to Com: the board should return a reading around 0V.
Problem: My board reads the thermocouple as a very negative tempera-
ture.
Verify the connections are secure. Opens read as negative
Action:
temperature.
Problem: My board reads thermocouple input wrong.
Confirm that the CCAL number in the EEPROM matches
Action:
the number on the terminal panel’s calibration label. (If you need to use a general purpose terminal panel – one
that doesn’t have a factory CCAL number – with a ther­mocouple, you can achieve approximate results by enter­ing a CCAL of 2300. Then change the figure by about 75 points for each degree C. that you want to raise the tem­perature.)
Problem: My readings are noisy.
Try using the low noise mode (see your software manual
Action:
for more information).
CUSTOMER SUPPORT
Problem: My board used to work, but now the software cannot find it, or
reports an error.
Check to make sure the Board Number switch is not set to
Action:
“0.”
What to do before calling technical support, to help us serve you better:
Have the part numbers of your boards and terminal panels
1.
ready.
2.
Have the type and version number of the software you’re
using.
3.
Have your computer’s type, model, and the version of the
operating system.
3 – 9
Page 30
WB-DYNARES OWNER’S MANUAL
ACCURACY
Product Specifications: WB-DynaRes 8/16 Ultra

Specifications of the WB-DynaRes 8 Ultra and WB-DynaRes 16 Ultra:

WB-DYNARES 8/16 ULTRA GENERAL CONDITIONS ACCURACY –
Range
-5 to +50 mV 0.8 µV 0.04% –
-25 to +25mV 0.8 µV 0.08% –
-50 to +500mV 8 µV 0.01% 0.05%
-250 to +250 mV 8 µV 0.01% 0.05%
VOLTAGE
-1 to +10 V 150 µV 0.01% 0.05%
-5 to +5 V 150 µV 0.01% 0.10%
General Conditions –
interface board, source resistance less than 1k Ohms. Includes linearity, drift, offset, resolution, and calibration error. 16 bit (0.0015%) resolution in use.
Thermocouple Conditions –
include the accuracy of the thermocouple itself (cold junction error must be added in; cold junction compensation with T21 terminal panel only; please see your terminal panel manual’s specifications for cold junction compensation error). Resolution assumes 16 bit resolution in use; it is approximate because reso­lution varies with temperature.
Thermocouples use the 50 mV range. For inputs below -5 mV (below approximately -100 degrees C.) use the +/-25 mV range. For the best resolution use the 50 mV range above -5 mV.
Typical Resolution
at Full Scale
From 15 to 35 degrees C. ambient at the
Same as General Conditions. Does not
Absolute Accuracy, the Larger of % of Range: % of Reading:
Chapter 3 Technical Notes
3 – 10
Page 31
TECHNICAL NOTES
Product Specifications: WB-DynaRes 8/16 Ultra
WB-DYNARES 8/16 ULTRA THERMOCOUPLE ACCURACY –
Type Range (°C.) Resolution (°C.) Accuracy (°C.)
-210 to -100 0.02 – 0.04 ± 1.2
J
-100 to 100 0.02 ± 0.7 100 to 880 0.01 ± 0.5
-250 to -150 0.03 – 0.15 ± 4
K
-150 to -50 0.03 ± 1
-50 to 1260 0.02 ± 0.7
-250 to -100 0.08 – 0.01 ± 2
E
-100 to 200 0.01 ± 0.6 200 to 680 0.01 ± 0.4
-250 to -120 0.03 – 0.1 ± 3
T
-120 to -25 0.02 – 0.03 ± 0.9
-25 to 200 0.01 – 0.02 ± 0.7
200 to 400 0.01 ± 0.5
-50 to 50 0.1 – 0.2 ± 5
S
50 to 300 0.1 ± 3
300 to 1770 0.08 ± 2
-50 to 25 0.1 – 0.2 ± 5
R
25 to 200 0.1 ± 3
200 to 1770 0.08 ± 2
200 to 300 0.25 – 0.4 ± 10
B
300 to 500 0.15 – 0.25 ± 6
500 to 1000 0.08 – 0.15 ± 4
1000 to 1820 0.08 ± 2
G
25 to 200 0.08 – 0.3 ± 8
200 to 2315 0.08 ± 2
D
-20 to 2315 0.04 – 0.08 ± 2
300 to 1500 0.04 ± 1.3
C
-20 to 2315 0.04 – 0.08 ± 2
100 to 1500 0.05 ± 1.5
N
-200 to -100 0.05 – 0.1 ± 3
-100 to 1300 0.02 – 0.05 ± 1.5
3 – 11
Page 32
WB-DYNARES OWNER’S MANUAL
STABILITY
INPUT IMPEDANCE
Product Specifications: WB-DynaRes 8/16 Ultra
WB-DYNARES 8/16 ULTRA RTD ACCURACY –
Set Resistor
Ω
RTD
Ω
Range
°C.
Resolution
°C.
Accuracy
10 k 50 -200 to 115 0.005 0.8 20 k 50 -200 to 525 0.01 0.9 20 k 100 -200 to 115 0.005 0.8 50 k 50 -200 to >850 0.03 1.4 50 k 100 -200 to 750 0.01 1.0
50 k 200 -200 to 115 0.005 0.8 100 k 100 -200 to >850 0.03 1.4 100 k 200 -200 to 750 0.01 1.0 100 k 500 -200 to 115 0.005 0.8 200 k 200 -200 to >850 0.03 1.4 200 k 500 -200 to 525 0.01 0.9 200 k 1000 -200 to 115 0.005 0.8 500 k 500 -200 to >850 0.03 1.4 500 k 1000 -200 to 750 0.01 1.0
1000 k 1000 -200 to >850 0.03 1.4
RTD Conditions –
Same as General Conditions. Does not include the accuracy of the RTD sensor itself. Includes linearization and signal conditioning errors. Resolution assumes 16-bit resolution is in use. RTD measurements are on the 50 mV range.
°C.
Chapter 3 Technical Notes
3 – 12
Accuracy specifications in this chapter already reflect these tem­perature drift errors for temperatures from 20° through 40° C.:
WB-DYNARES 8/16 ULTRA STABILITY –
Range % per °C. % Over a Year
50 mV ± 0.001 ± 0.02
± 25mV ± 0.001 ± 0.02
all other voltage ranges ± 0.0025 ± 0.03
In many applications, stability and noise can be more important than absolute accuracy. This is “repeatability.” Calculate the repeatability of a reading by adding together the stability and noise for the range you want.
The WB-DynaRes 8/16 Ultra has an input impedance of > 20 M Ω.
Page 33
TECHNICAL NOTES
NOISE REJECTION
COMMON MODE
INPUT PROTECTION
RESOLUTION/
Product Specifications: WB-DynaRes 8/16 Ultra
Important: All noise measurements are in low noise mode.
CMRR –
The Common Mode Rejection Ratio (CMRR) is >20 dB. Conditions for CMRR: DC to 400 Hz, common mode input ± 7.0 Volts channel to ground. This specification applies even when one or more nonmeasured channels exceeds the operating com­mon mode range.
RANGE
SCAN RATE
WB-DYNARES 8/16 ULTRA NOISE REJECTION –
Range Typical Internal Noise (RMS)
50 mV 0.5 µV
± 25 mV 0.5 µV
500 mV 2.5 µV
± 250 mV 2.5 µV
10 V 50 µV
± 5 V 50 µV
Operating, channel-to-ground – Nonoperating –
50 Volts continuous, 150 Volts for one second,
±7 Volts
nonrepetitive. 50 Volts continuous. 150 Volts for one second, nonrepetitive. Selectable in software:
WB-DYNARES 8/16 ULTRA RESOLUTION AND SCAN RATE* –
Resolution at Full Scale Scan Rate
low noise mode: 0.0004% 45/55 Hz
16 bits: 0.0015% 200 Hz 15 bits: 0.003 % 300 Hz 14 bits: 0.006 % 500 Hz 13 bits: 0.012 % 700 Hz 12 bits: 0.024 % 900 Hz
* Rates describe an IBM PC 486DX2 66MHz running WorkBench PC for Windows under Windows 3.1 with Tol­erate Error=0. Rates are somewhat faster in faster comput­ers. Please also see “Dynamic Resolution” on page 1 – 2.
Scan rate is the rate in Hertz (or, samples per second) to r ead data into memory, including the time it takes to switch channels and ranges. To calculate the total scan time for all channels, divide the rate by the number of channels.
3 – 13
Page 34
WB-DYNARES OWNER’S MANUAL
DIGITAL I/O
COUNTER/TIMER
GENERAL
Product Specifications: WB-DynaRes 8/16 Ultra
The WB-DynaRes 8/16 Ultra has 8 or 16 digital I/O lines, with
CHANNELS
each line individually selectable as input or output. These chan­nels are TTL- and MOS- compatible as they come out of the board.
Their outputs sinks are open collector and are 3 milliAmperes; as inputs they draw no current. (Please see the specifications in your terminal panel owner’s manual for open collector output.)
The WB-DynaRes 8/16 Ultra has one on-board 16 bit counter/ timer with 2 MHz internal clock. The counter timer is connected to Digital I/O lines 9–12 on Terminal Panel 2 or to CT Gate, CT Out, CT In, and CT Trig on Terminal Panel 1.
Maximum Voltage on any terminal –
CONDITIONS
Maximum Current on any terminal – Auxiliary Power Supplies –
puter’s power supply. The +6.9V supply draws it’ s curr ent from the +12V supply.
Voltage Maximum Current
150V
1A
+5V, +12V, or -12V, direct from the com-
Chapter 3 Technical Notes
3 – 14
+6.9V 20mA
+12V 200mA
+5V 100mA
-12V 200mA
+6.9V Supply Tolerance –
± 5%
· Temperature Coefficient: < 0.0005% per ºC
· Stability: < 0.01 per year
Operating Temperature Ambient – Physical Dimensions–
6.7" x 4.0" (17.0cm x 10.2cm)
WB-DynaRes 8/16 Ultra Current Consumption* –
Voltage
WB-DynaRes 8 Ultra: WB-DynaRes 16 Ultra:
0 to 50 degrees Celsius.
Supply Current Consumed by
+5V 317mA 335mA
+12V 10.5mA 13mA
-12V 1.6mA 2.5mA
Total 1.73 Watts 1.861 Watts
* Measurements are made after loading GDRV and GFIND, with no connection to terminal panel.
Page 35
TECHNICAL NOTES
ACCURACY
Product Specifications: WB-DynaRes 8/16

Specifications of the WB-DynaRes 8 and WB-DynaRes 16:

WB-DYNARES 8/16 GENERAL CONDITIONS ACCURACY –
Range
-5 to +50 mV 12 µV 0.08% –
-25 to +25mV 12 µV 0.16% –
-50 to +500mV 120 µV 0.05% 0.2%
-250 to +250 mV 120 µV 0.05% 0.2%
VOLTAGE
-1 to +10 V 2.4 mV 0.05% 0.2%
-5 to +5 V 2.4 mV 0.05% 0.3%
General Conditions –
interface board, source resistance less than 1k Ohms. Includes linearity, drift, offset, resolution, and calibration error. 12 bit (0.024%) resolution in use.
Thermocouple Conditions –
include the accuracy of the thermocouple itself. Includes cold junction compensation with T71-TC terminal panel only. Resolu­tion assumes 12 bit resolution in use; it is approximate because resolution varies with temperature. (Please see your terminal panel manual’s specifications for cold junction compensation error.)
Thermocouples use the 50 mV range. For inputs below -5 mV (below approximately -100 degrees C.) use the +/-25 mV range. For the best resolution use the 50 mV range above -5 mV.
T ypical Resolution
at Full Scale
From 15 to 35 degrees C. ambient at the
Same as General Conditions. Does not
Absolute Accuracy, the Larger of
% of Range: % of Reading:
3 – 15
Page 36
WB-DYNARES OWNER’S MANUAL
Product Specifications: WB-DynaRes 8/16
WB-DYNARES 8/16 THERMOCOUPLE ACCURACY –
Type Range (°C.) Resolution (°C.) Accuracy (°C.)
-210 to -100 0.1 – 0.3 ± 2.3
J
-100 to 0 0.05 ± 1.2 0 to 880 0.05 – 0.2 ± 1
-250 to -75 0.15 – 1.0 ± 8
K
-75 to -1260 0.07 – 0.3 ± 1.4 0 to 900 0.06 – 0.2 ± 1.2
-250 to -70 0.1 – 0.5 ± 4
E
-70 to 100 0.04 ± 1 100 to 680 0.04 – 0.15 ± 0.8
-250 to -50 0.15 – 0.8 ± 6
T
-50 to 10 0.06 ± 1.4 10 to 150 0.06 ± 1.2
150 to 400 0.06 – 0.1 ± 1
-50 to 120 0.4 ± 10
S
120 to 380 0.3 ± 5
380 to 1770 0.2 – 0.6 ± 4
-50 to 250 0.2 – 0.4 ± 10
R
250 to 800 0.2 ± 4
800 to 1770 0.2 – 0.4 ± 3
200 to 300 0.7 – 1.0 ± 20
B
300 to 500 0.4 – 0.7 ± 13
500 to 1000 0.2 – 0.4 ± 8
1000 to 1820 0.2 – 0.4 ± 4
G
25 to 200 0.2 – 1.0 ± 15
200 to 2315 0.15 – 0.8 ± 4
D
-20 to 2315 0.2 – 1.0 ± 4
150 to 2000 0.15 – 0.6 ± 3
C
-20 to 2315 0.15 – 1.0 ± 4
100 to 1500 0.15 – 0.4 ± 3
N
-200 to -100 0.7 – 1.4 ± 5
-100 to 1300 0.4 – 0.7 ± 3
Chapter 3 Technical Notes
3 – 16
Page 37
TECHNICAL NOTES
STABILITY
INPUT IMPEDANCE
Product Specifications: WB-DynaRes 8/16
WB-DYNARES 8/16 RTD ACCURACY –
Set Resistor
Ω
RTD
Ω
Range
°C.
Resolution
°C.
10 k 50 -200 to 115 0.02 to 0.1 0.9 20 k 50 -200 to 525 0.04 to 0.2 1.2 20 k 100 -200 to 115 0.02 to 0.1 0.9 50 k 50 -200 to >850 0.1 to 0.5 2.1 50 k 100 -200 to 750 0.05 to 0.2 1.4
50 k 200 -200 to 115 0.02 to 0.1 1.0 100 k 100 -200 to >850 0.1 to 0.5 2.1 100 k 200 -200 to 750 0.05 to 0.2 1.4 100 k 500 -200 to 115 0.02 to 0.1 0.9 200 k 200 -200 to >850 0.1 to 0.5 2.1 200 k 500 -200 to 525 0.04 to 0.2 1.2 200 k 1000 -200 to 115 0.02 to 0.1 0.9 500 k 500 -200 to >850 0.1 to 0.5 2.1 500 k 1000 -200 to 750 0.05 to 0.2 1.4
1000 k 1000 -200 to >850 0.1 to 0.5 2.1
RTD Conditions –
Same as General Conditions. Does not include the accuracy of the RTD sensor itself. Includes linearization and signal conditioning errors. Resolution assumes 12 bit resolution is in use. RTD measurements are on the 50 mV range.
Accuracy
°C.
Accuracy specifications in this chapter already reflect these tem­perature drift errors for temperatures from 20° through 40° C.:
WB-DYNARES 8/16 STABILITY –
Range % of °C. % Over a Year
50 mV ± 0.001 ± 0.02
± 25mV ± 0.001 ± 0.02
all other voltage ranges ± 0.0025 ± 0.03
In many applications, stability and noise can be more important than absolute accuracy. This is “repeatability.” Calculate the repeatability of a reading by adding together the stability and noise for the range you want.
The WB-DynaRes 8/16 has an input impedance of > 20 M Ω.
3 – 17
Page 38
WB-DYNARES OWNER’S MANUAL
NOISE REJECTION
COMMON MODE
INPUT PROTECTION
RESOLUTION/
Product Specifications: WB-DynaRes 8/16
Important: All noise measurements are in low noise mode.
CMRR –
The Common Mode Rejection Ratio (CMRR) is >20 dB.
Conditions for CMRR: DC to 400 Hz, common mode input +/-
7.0 V olts channel to gr ound. This specification applies even when one or more nonmeasured channels exceeds the operating com­mon mode range.
RANGE
SCAN RATE
WB-DYNARES 8/16 NOISE REJECTION –
Range Typical Internal Noise (RMS)
50 mV 1 µV
± 25 mV 1 µV
500 mV 5 µV
± 250 mV 5 µV
10 V 100 µV
± 5 V 100 µV
Operating, channel-to-ground – Nonoperating –
50 Volts continuous, 150 Volts for one second,
±7 Volts
nonrepetitive. 50 Volts continuous.150 Volts for one second, nonrepetitive. Selectable in software:
WB-DYNARES 8/16 RESOLUTION AND SCAN RATE* –
Resolution at Full Scale Scan Rate
low noise mode: 0.0004% 45/55 Hz
12 bits: 0.024% 1,200 Hz 11 bits: 0.05 % 1,400 Hz 10 bits: 0.1 % 1,700 Hz
Chapter 3 Technical Notes
3 – 18
* Rates describe an IBM PC 486DX2 66MHz running WorkBench PC for Windows under Windows 3.1 with Tol­erate Error=0. Rates are somewhat faster in faster comput­ers. Please also see “Dynamic Resolution” on page 1 – 2.
Scan Rate –
Scan rate is the rate in Hertz (or, samples per second) to read data into memory, including the time it takes to switch channels and ranges. To calculate the total scan time for all chan­nels, divide the rate by the number of channels.
Page 39
DIGITAL I/O
CHANNELS
COUNTER/TIMER
GENERAL
CONDITIONS
TECHNICAL NOTES
Product Specifications: WB-DynaRes 8/16
The WB-DynaRes 8/16 has 8 or 16 digital I/O lines, with each line individually selectable as input or output. These channels are TTL- and MOS- compatible as they come out of the board.
Their outputs sinks are open collector and 3 milliAmperes; as inputs they draw no current. (Please see the specifications in your terminal panel owner’s manual for open collector output.)
The WB-DynaRes 8/16 has one on-board 16 bit counter/timer with 2 MHz internal clock.
Maximum Voltage on any terminal – Maximum Current on any terminal – Auxiliary Power Supplies –
+5V, +12V, or -12V, direct from the com-
150V
1A
puter’s power supply. The +6.9V supply draws it’ s current fr om the +12V supply.
Voltage Maximum Current
+6.9V 20mA
+12V 200mA
+5V 100mA
-12V 200mA
+6.9V Supply Tolerance –
± 5%
· Temperature Coefficient: < 0.0005% per ºC
· Stability: < 0.01 per year
Operating Temperature Ambient – Physical Dimensions–
6.7" x 4.0" (17.0cm x 10.2cm)
WB-DynaRes 8/16 Current Consumption* –
Voltage
WB-DynaRes 8: WB-DynaRes 16:
0 to 50 degrees Celsius.
Supply Current Consumed by
+5V 317mA 335mA
+12V 10.5mA 13mA
-12V 1.6mA 2.5mA Total 1.73 Watts 1.861 Watts
* Measurements are made after loading GDRV and GFIND, with no connection to terminal panel.
3 – 19
Page 40
WB-DYNARES OWNER’S MANUAL
Chapter 3 Technical Notes
3 – 20
Page 41
WB-DYNARES OWNER’S MANUAL
Alphabetical Index of this Volume
Index – 0
Page 42

INDEX

A – D
Index
A
Accuracy
WB-DynaRes 8/16, 315
through 3-17
WB-DynaRes 8/16 Ultra, 3-10
through 3-12 Acquisition speed, data, 1-4 Address, base
additive values of switches,
2-9 setting, 2-8 troubleshooting, 3-7 values to avoid, 2-9
Analog Connection Development
System, 1-2, 1-5, 2-1, 2-2
Analog input channels, iv, 1-2
number of, 1-4
Analog input ranges, 1-2 Assignments (pin), 3-2 through 3-3
B
Base address
additive values of switches,
2-9 setting, 2-8 switch illustration, 2-3 troubleshooting, 3-7 values to avoid, 2-9
Block diagram of WB-DynaRes, 3-4 Board, disabling, 2-7 Board number, 2-2
setting, 2-7 troubleshooting, 3-8, 3-9
Boards, maximum, 1-5, 2-7
C
Calibration numbers, 3-5, 3-6
label (on board), 2-3 Calibration, terminal panel, 3-10 CCAL, 3-9 Changing quantity of boards, 3-8 Cold junction compensation, 1-2, 1-4,
3-10, 3-15 Common mode rejection ratio (CMRR)
WB-DynaRes 8/16, 3-18
WB-DynaRes 8/16 Ultra, 3-13 Connecting a terminal panel, 2-4 Counter/timer, iv, 1-5, 3-14, 3-19 Current, measuring, 2-6 Current/volt switches, 2-6
D
Data acquisition speed, 1-4 Data presentation, 1-1 Differential analog input channels, iv Digital input/output channels
characteristics, 1-4, 3-14,
3-19 Disabling a board, 2-7 Dynamic resolution, iv, 1-2, 1-3, 1-4,
3-13, 3-18 WB-DynaRes 8, iv, 1-4 WB-DynaRes 8 Ultra, iv, 1-4 WB-DynaRes 16, iv, 1-4 WB-DynaRes 16 Ultra, iv, 1-4 WB-DynaRes illustration, 2-3 WB-DynaRes models, iv, 1-4
Index – 1
Page 43
WB-DYNARES OWNER’S MANUAL
E – P
E
EEPROM, 3-7 EDITCAL (EDITCAL.EXE) calibration
file editing utility, 3-6
F
Features of DynaRes boards, iv
WB-Flash-12, 2-6, 3-6
G H
Hardware interrupts, 2-10 Hardware requirements, 1-5 Highlights of the WB-DynaRes models,
iv
I
Illustration of WB-DynaRes, 2-3 Input channels (analog), iv, 1-2
number of, 1-4 Input protection, iv, 1-2, 3-13, 3-18 input ranges (analog), 1-2 Installing the WB-DynaRes (physical
installation), 2-4 Interrupts, hardware, 2-10 I/O channels (digital)
characteristics, 1-4, 3-14,
3-19
J
K
L
M
Maximum
analog input channels (in an
installation), 1-2 boards, 1-2 current (on any terminal),
3-14, 3-19 digital I/O lines (in an
installation), 1-2 resolution, iv speed, iv voltage (on any terminal),
3-14, 3-19
Measuring current, 2-6 Models of the WB-DynaRes, iv, 1-4 Multiple boards, 2-2, 2-5, 2-6, 3-7
N
Noise rejection, 1-4
WB-DynaRes 8/16, 3-13 WB-DynaRes 8/16 Ultra, 3-18
O
Operating Temperature, 3-14, 3-19
P
Physical dimensions, 3-14, 3-19 Pin assignments (pinouts), 3-2 through
3-3
Power supplies, auxiliary, 3-14, 3-19
Alphabetical Index of this Volume
Index – 2
Page 44
INDEX
Q – T
Q
Quantity of boards (changing), 3-7 QuickLog PC, 1-2, 1-5, 2-1, 2-2, 2-7
R
Range
accuracy, 3-10, 3-15 common mode, 3-12, 3-17 dynamic resolution with, 1-2,
1-3 impedance, 3-13, 3-18 input, 1-2 noise rejection by, 3-13, 3-18 RTD, 3-12, 3-17 stability, 3-12, 3-17 thermocouple, 3-11, 3-16 voltage, 1-4
RECAL.EXE (recalibration utility), 3-5 Recalibration, 3-5 Rejection, noise, 1-4
WB-DynaRes 8/16, 3-13 WB-DynaRes 8/16 Ultra, 3-18
Repeatability, 3-12, 3-17 Requirements, system,1-5 Resistance temperature detector (RTD),
iv, 1-2, 1-4, 1-5, 3-12, 3-17
Resolution
WB-DynaRes 8/16, 3-10
through 3-12, 3-13 WB-DynaRes 8/16 Ultra,
3-15 through 3-17, 3-18 dynamic, iv, 1-2 through1-4,
3-13, 3-18 maximum, iv, 1-4
S
Scan rate (sample rate)
WB-DynaRes 8/16, 3-13 WB-DynaRes 8/16 Ultra, 3-18
Sensors, 1-4 Single board, 2-2, 2-5, 2-6, Software requirements, 1-5
Specifications
WB-DynaRes 8/16, 3-15
through 3-19
WB-DynaRes 8/16 Ultra 3-10
through 3-14 Speed, maximum, iv Stability
WB-DynaRes 8/16, 3-17 WB-DynaRes 8/16 Ultra, 3-12
Switch, base address, 2-3
additive values of switches,
2-9
setting, 2-8 switch illustration, 2-3 troubleshooting, 3-7 values to avoid, 2-9
Switch, board number, 2-2, 2-3
setting, 2-7
troubleshooting, 3-8, 3-9 Switch settings, verifying, 2-2 System requirements, 1-5
T
Terminal panel
connection, 2-1, 2-4
kinds available, 1-5
thermocouple, 1-5, 3-9 Terminal panel calibration numbers
(CCAL), 3-9 Thermocouple, 1-2, 1-3, 1-4, 1-5, 3-9,
3-10, 3-11, 3-15, 3-16 Troubleshooting
of installation, 3-7
of operation, 3-8
Index – 3
Page 45
WB-DYNARES OWNER’S MANUAL
U – Z
U
Using EDITCAL (calibration file
editing utility), 3-12
V
Volt/current switches, 2-6
W
WorkBench PC for Windows or DOS,
1-2, 1-5, 2-1, 2-2, 2-6
WB-WorkMate, 2-6, 3-6
X
Y Z
Alphabetical Index of this Volume
Index – 4
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
