SEPDH, SHDH, SSDH SERIES

Silicone Rubber Drum Heaters

SHDH, SSDH series

SEPDH series

© Copyright 2006 OMEGA ENGINEERING, Inc. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC

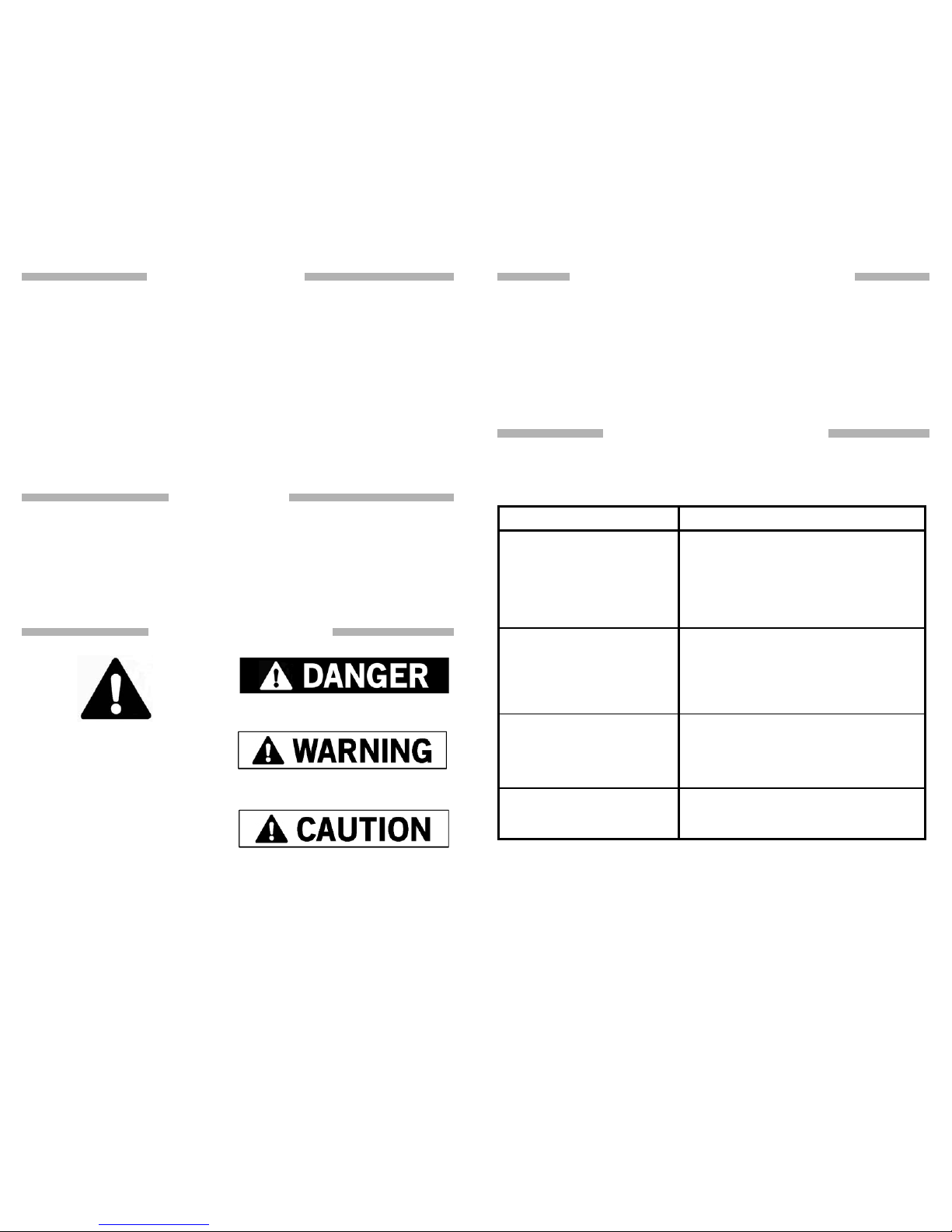

The symbol above is used to call your attention
to instructions concerning your personal safety.
It points out important safety precautions. It
means “ATTENTION! Become Alert! Your
Personal Safety is involved!” Read the
message that follows and be alert to the
possibility of personal injury or death.

Immediate hazards which WILL result in severe

personal injury or death

Hazards or unsafe practices which COULD result in

severe personal injury or death

Hazards or unsafe practices which COULD result in

minor personal injury or property damage.

SAVE THESE INSTRUCTIONS!

Additional copies of this manual are available upon request.

TABLE OF CONTENTS

INTRODUCTION

SAFETY ALERT SYMBOL

2

Thank you for purchasing a OMEGALUX® Silicone Rubber Drum Heater. Your
heater is designed to provide a long and effi cient service life with function, reli-
ability, and safety in mind. For successful operation of these heaters, read and
understand these instructions prior to use.

Introduction.................................................................

Safety Alert Symbol....................................................

Important Safety Instructions…..................................

Prior to Installation......................................................

Installation of Heater...................................................

Mounting of Temperature Sensor................................

Adjustment of Temperature Set-Point.........................

Connecting Heater to AC Power.................................

Troubleshooting Guide………………...…...................

Warranty......................................................................

2
2
3
4
4
5
5
6
7
BACK

© Copyright 2006 OMEGA ENGINEERING, Inc. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC

7

2. Connect the hazardous location approved plug to power source only after all
steps listed above are complete.

SEPDH series

2. Refer to external temperature controller instructions for power installation
instructions.

SHDH and SSDH without controller series

CONNECTING HEATER TO AC POWER

TROUBLESHOOTING GUIDE

Please read this guide prior to contacting OMEGA. This guide is designed to
answer the most commonly asked questions. If you are unable to identify the
problem or need additional assistance, please contact us at 1-800-USA-HEAT.

PROBLEM SOLUTION(S)

Does not heat Verify heater is connected to proper voltage. The

identifi cation label located on the power cord displays
the heater’s voltage requirement.

Check to see if there is a resistance reading (not an
open circuit) in heater using an ohm meter.

Circuit breaker is tripping Validate that the circuit breaker is capable of handling

the amp requirement of heater. The identifi cation
label located on the power cord displays the heater’s
amperage requirement.

Examine heater and cord for any damage.

Does not fi t Confi rm that the heater provided was designed to fi t

around your specifi ed drum.
If the heater was designed for the specifi ed drum,

please call 1-800-USA-HEAT for further assistance.

Something has lightly spilled on exterior
or interior

Apply any general household cleaner, that does not
contain any silicone rubber dissolving type
ingredients, with a clean cloth fabric.
