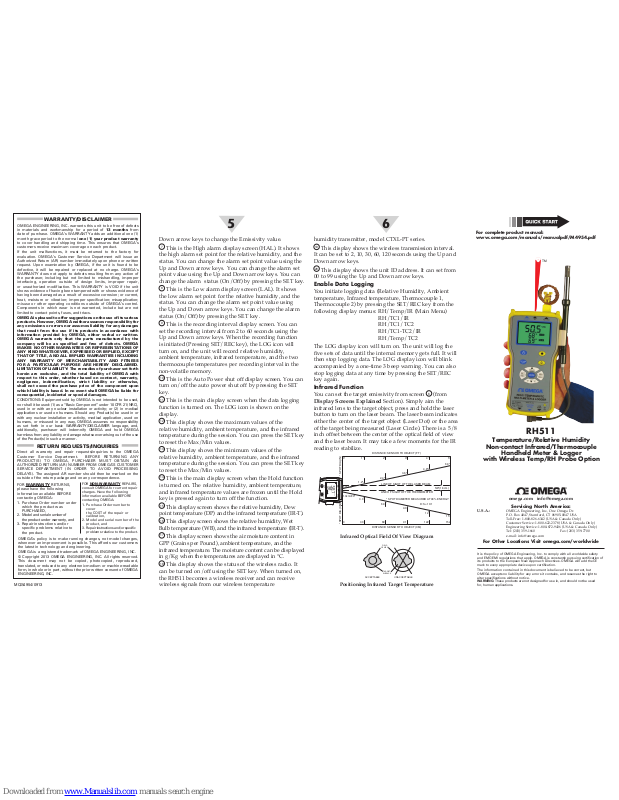

Omega RH511 Quick Start Manual

Down arrow keys to change the Emissivity value.

7

This is the High alarm display screen (HAL). It shows
the high alarm set point for the relative humidity, and the
status. You can change the alarm set point value using the
Up and Down arrow keys. You can change the alarm set
point value using the Up and Down arrow keys. You can
change the alarm status (On/Off) by pressing the SET key.

8

This is the Low alarm display screen (LAL). It shows
the low alarm set point for the relative humidity, and the
status. You can change the alarm set point value using
the Up and Down arrow keys. You can change the alarm
status (On/Off) by pressing the SET key.

9

This is the recording interval display screen. You can
set the recording interval from 2 to 60 seconds using the
Up and Down arrow keys. When the recording function
is initiated (Pressing SET/REC key), the LOG icon will
turn on, and the unit will record relative humidity,
ambient temperature, infrared temperature, and the two
thermocouple temperatures per recording interval in the
non-volatile memory.

10

This is the Auto Power shut off display screen. You can
turn on/off the auto power shut off by pressing the SET
key.

11

This is the main display screen when the data logging
function is turned on. The LOG icon is shown on the
display.

12

This display shows the maximum values of the
relative humidity, ambient temperature, and the infrared
temperature during the session. You can press the SET key
to reset the Max/Min values.

13

This display shows the minimum values of the
relative humidity, ambient temperature, and the infrared
temperature during the session. You can press the SET key
to reset the Max/Min values.

14

This is the main display screen when the Hold function
is turned on. The relative humidity, ambient temperature,
and infrared temperature values are frozen until the Hold
key is pressed again to turn off the function.

15

This display screen shows the relative humidity, Dew
point temperature (DP) and the infrared temperature (IR-T).

16

This display screen shows the relative humidity, Wet
Bulb temperature (WB), and the infrared temperature (IR-T).

17

This display screen shows the air moisture content in
GPP (Grains per Pound), ambient temperature, and the
infrared temperature. The moisture content can be displayed
in g/Kg when the temperatures are displayed in °C.

18

This display shows the status of the wireless radio. It
can be turned on/off using the SET key. When turned on,
the RH511 becomes a wireless receiver and can receive
wireless signals from our wireless temperature

5

6

RH511

Temperature/Relative Humidity

Non-contact Infrared/Thermocouple

Handheld Meter & Logger

with Wireless Temp/RH Probe Option

omega.com [e-mail]

®

Servicing North America:

U.S.A.: OMEGA Engineering, Inc., One Omega Dr.

P.O. Box 4047, Stamford, CT 06905-0047 USA
Toll-Free: 1-800-826-6342 (USA & Canada Only)

Customer Service: 1-800-622-2378 (USA & Canada Only)
Engineering Service: 1-800-872-9436 (USA & Canada Only)
Tel: [phone] Fax: [phone]
e-mail: [e-mail]

For Other Locations Visit omega.com/worldwide

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety
and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of
its products to the European New Approach Directives. OMEGA will add the CE
mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but
OMEGA accepts no liability for any errors it contains, and reserves the right to
alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used
for, human applications.

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects
in materials and workmanship for a period of 13 months from
date of purchase. OMEGA’s WARRANTY adds an additional one (1)
month grace period to the normal one (1) year product warranty
to cover handling and shipping time. This ensures that OMEGA’s
customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for
evaluation. OMEGA’s Customer Service Department will issue an
Authorized Return (AR) number immediately upon phone or written
request. Upon examination by OMEGA, if the unit is found to be
defective, it will be repaired or replaced at no charge. OMEGA’s
WARRANTY does not apply to defects resulting from any action of
the purchaser, including but not limited to mishandling, improper
interfacing, operation outside of design limits, improper repair,
or unauthorized modification. This WARRANTY is VOID if the unit
shows evidence of having been tampered with or shows evidence of
having been damaged as a result of excessive corrosion; or current,
heat, moisture or vibration; improper specification; misapplication;
misuse or other operating conditions outside of OMEGA’s control.
Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various
products. However, OMEGA neither assumes responsibility for
any omissions or errors nor assumes liability for any damages
that result from the use if its products in accordance with
information provided by OMEGA, either verbal or written.
OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA
MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF
ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT
THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING
ANY WARRANTY OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED.
LIMITATION OF LIABILITY: The remedies of purchaser set forth
herein are exclusive, and the total liability of OMEGA with
respect to this order, whether based on contract, warranty,
negligence, indemnification, strict liability or otherwise,
shall not exceed the purchase price of the component upon
which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used,
nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC),
used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or
with any nuclear installation or activity, medical application, used on
humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and,
additionally, purchaser will indemnify OMEGA and hold OMEGA
harmless from any liability or damage whatsoever arising out of the use
of the Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA
Customer Service Department. BEFORE RETURNING ANY
PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER
SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING
DELAYS). The assigned AR number should then be marked on the
outside of the return package and on any correspondence.

FOR WARRANTY RETURNS,
please have the following
information available BEFORE
contacting OMEGA:

1. Purchase Order number under
which the product was
PURCHASED,

2. Model and serial number of
the product under warranty, and

3. Repair instructions and/or
specific problems relative to
the product.

FOR NON-WARRANTY REPAIRS,
consult OMEGA for current repair
charges. Have the following
information available BEFORE
contacting OMEGA:

1. Purchase Order number to
cover
the COST of the repair or
calibration,

2. Model and serial number of the
product, and

3. Repair instructions and/or specific
problems relative to the product.

OMEGA’s policy is to make running changes, not model changes,
whenever an improvement is possible. This affords our customers
the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2013 OMEGA ENGINEERING, INC. All rights reserved.
This document may not be copied, photocopied, reproduced,
translated, or reduced to any electronic medium or machine-readable
form, in whole or in part, without the prior written consent of OMEGA
ENGINEERING, INC.

MQS4954/0913

humidity transmitter, model CTXL-PT series.

19

This display shows the wireless transmission interval.
It can be set to 2, 10, 30, 60, 120 seconds using the Up and
Down arrow keys.

20

This display shows the unit ID address. It can set from
00 to 99 using the Up and Down arrow keys.

Enable Data Logging
You initiate logging data (Relative Humidity, Ambient
temperature, Infrared temperature, Thermocouple 1,
Thermocouple 2) by pressing the SET/REC key from the
following display menus: RH/Temp/IR (Main Menu)
RH/TC1/IR
RH/TC1/TC2
RH/TC1-TC2/IR
RH/Temp/TC2

The LOG display icon will turn on. The unit will log the
five sets of data until the internal memory gets full. It will
then stop logging data. The LOG display icon will blink
accompanied by a one-time 3 beep warning. You can also
stop logging data at any time by pressing the SET/REC
key again.

Infrared Function

You can set the target emissivity from screen

6

(from
Display Screens Explained Section). Simply aim the
infrared lens to the target object, press and hold the laser
button to turn on the laser beam. The laser beam indicates
either the center of the target object (Laser Dot) or the area
of the target being measured (Laser Circle). There is a 5/8
inch offset between the center of the optical field of view
and the laser beam. It may take a few moments for the IR
reading to stabilize.

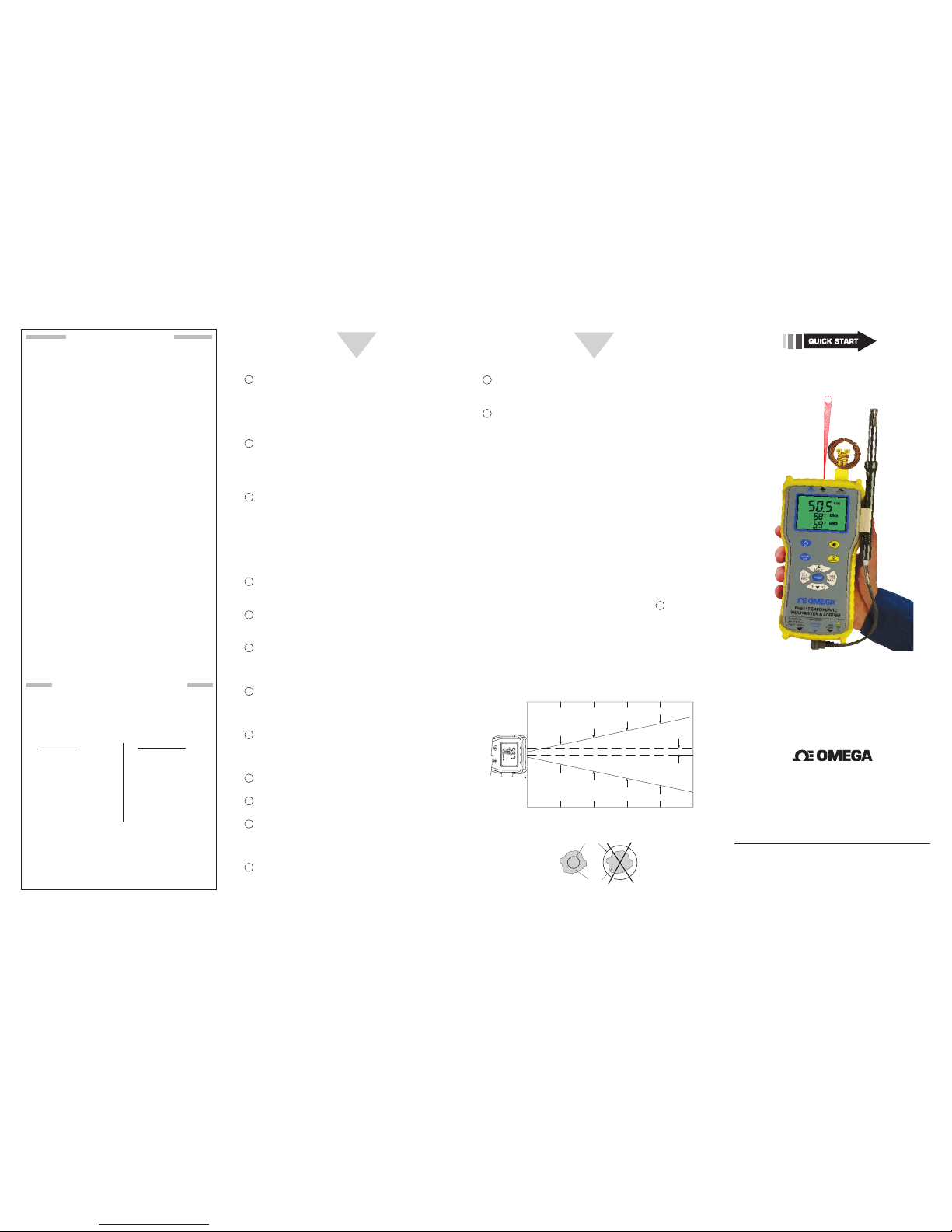

Infrared Optical Field Of View Diagram

Positioning Infrared Target Temperature

For complete product manual:
www.omega.com/manuals/manualpdf/M4954.pdf

TM

TC1/TC2

IR

LASER

RH%

°F

°F

IR-T

POWER

LCD BACKLIGHT

.50"@0"

1.3cm@0"

* SPOT DIA.(IN)

* SPOT DIA.(CM)

DISTANCE: SENSOR TO OBJECT (FT)

DISTANCE: SENSOR TO OBJECT (CM)

1' 2' 3' 4' 5'

1.2"

2.4"

3.6"

4.8"

6.0"

30 60 91 122 152

* SPOT DIAMETER MEASURED AT 90% ENERGY

LINE OF SIGHT OF THE LASER BEAM

LINE OF SIGHT OF THE THERMOMETER

5/8"(1.6cm)

3.0

6.0

9.0

12

15

0'

0

D:S = 10:1

TARGET

SURFACE

FIELD

OF VIEW

ACCEPTABLE

UNACCEPTABLE

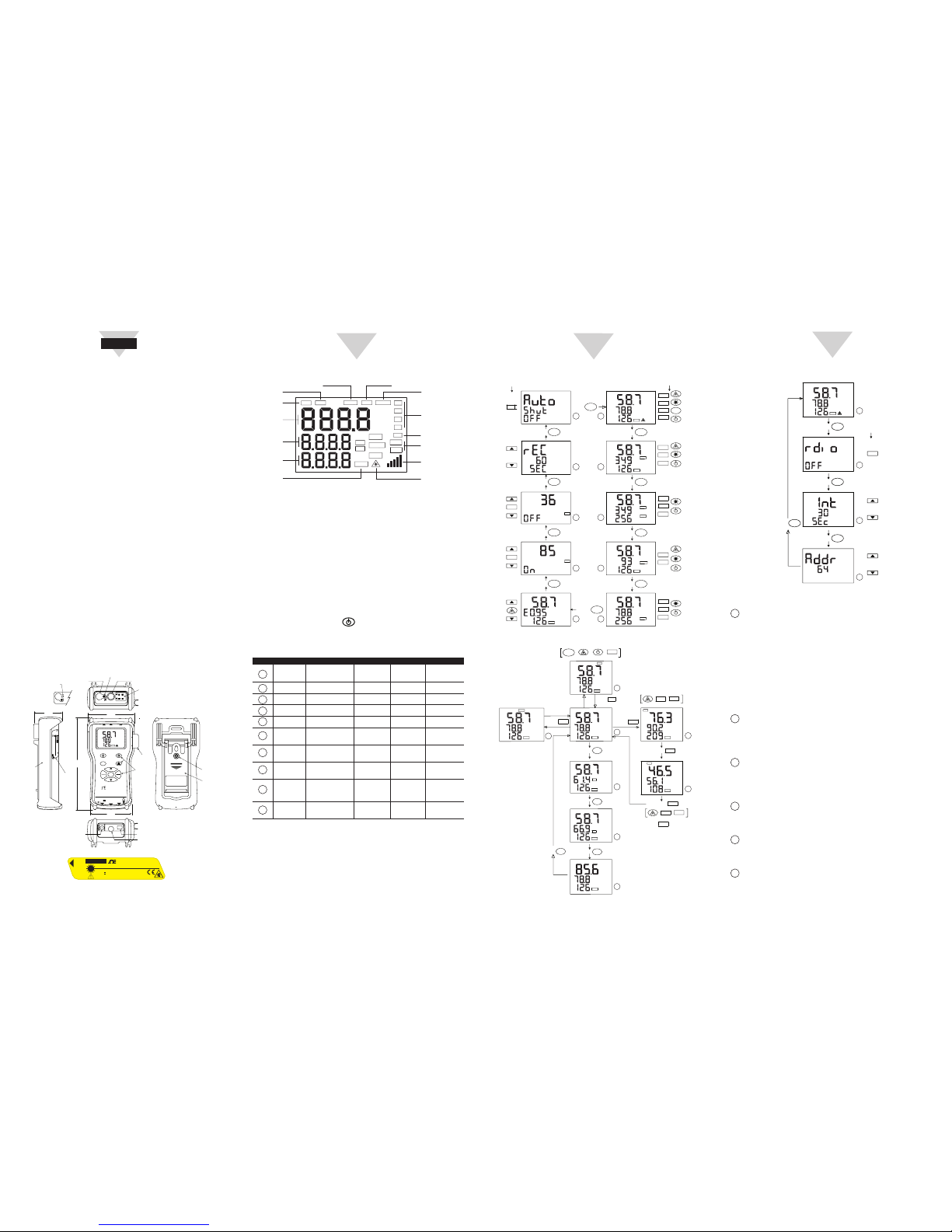

Main Functional Flow Chart

Additional Function Flow Chart

Custom LCD Display Of RH511 General

Operation

In order to install the 6 AA size batteries, remove the
yellow rubber boot, and unscrew the battery door with
the case to get to the battery compartment.

After installing the batteries, close the battery door, and
put back on the rubber boot. If the unit comes with a
wired temperature/RH probe, connect the probe to the
meter. The connection is at the bottom of the unit. The
probe can be attached to the meter via the probe holder
on the side.

Press the Power button

to turn on the unit. The
display will show the relative humidity, ambient
temperature, and the no-contact infrared temperature.

Keypad Flow Chart

START HERE

2

3

4

Using This Quick Start Manual

Use this Quick Start Manual with your RH511
handheld/benchtop meter for quick setup and
basic operation. For detailed information, refer to
the User’s Guide (Manual # M4954).

General Information

The RH511 is a handheld/benchtop meter that can
measure & display ambient temperature, relative
humidity, non-contact infrared temperature,
and dual K type thermocouple temperatures.
RH511 has built-in wireless capability. It acts as
a wireless receiver when used with our wireless
temperature/RH transmitter, model CTXL-PT.

RH511 has a built-in laser sighting feature used
as an aiming tool to measure non-contact target
temperatures. The laser beam is switchable
between laser dot and circle. RH511 operates from
6 AA size batteries. It also has 9Vdc adapter input
and USB PC interface. The USB port is used to
configure the unit and downloading logged data.

RH511 has logging capability where the user can
log all the inputs (Ambient Temperature, Relative
Humidity, Thermocouple 1, Thermocouple 2, and
Infrared Temperature) simultaneously. The logging
interval can be set from the front keypad and the
display menus.

Dimensions And Locations Of Key Features

MODE

DP-WB
GPP

H O L D

°F

°C

MAX
MIN

SET
REC

TC1/TC2

IRLASER

PROBE

DC POWER
INPUT

USB

PORT

TEMP/RH

9V
100mA

OMEGA

RH511 TEMP/RH/IR/TC
MULTI-METER & LOGGER

MADE IN U.S.A

!

+

-

RH%

°F

°F

IR-T

!

108

(4.25)

215.9
(8.50)

63.5
(2.50)

LASER

WARNING

LABEL

RUBBER

BOOT

TEMP/RH

PROBE

HOLDER

DUAL K TYPE
THERMOCOUPLE
INPUT (SMP) SOCKETS

INFRARED LENS

LASER DOT/

CIRCLE SWITCH

LASER DOT

LASER BEAM APERTURE (LASER CIRCLE)

95.3

(3.75)

USB PORT

TEMP/RH PROBE
CONNECTOR

DIMENSIONS mm (in)

DC ADAPTER

INPUT

BACK VIEW

TRIPOD
MOUNT

TILT
STAND

MEMBRANE
KEYPAD

POWER

LCD BACKLIGHT

LASER

WAVELENGTH 630-670 nm

LASER RADIATION- DO NOT STARE INTO BEAM

CLASS II (2) LASER PRODUCT. COMPLIES WITH

OUTPUT< 1mW,

IS EMITTED FROM

AVOID EXPOSURE

THIS APERTURE

CAUTION

LASER RADIATION

R

FDA 21CFR 1040.10 & EN 60825-1/11.2001

DC 9V

T2

T1

PRESS HERE

OMEGASCOPE

AVOID EXPOSURE

LASER RADIATION

IS EMITTED FROM

THIS APERTURE

LASER RADIATION - DO NOT STARE INTO BEAM

OUTPUT <1 mW, WAVELENGTH 630-670 nm
CLASS II (2) LASER PRODUCT, COMPLIES
WITH FDA 21CFR 1040.10 & EN60825-1/11.2001

®

OMEGASCOPE

CAUTION

RH%

g/Kg

GPP

°C

°F

DP

WB

°C

°F

T1-K

MIN

MAX

LOGHOLD

LOBAT

LAL

HAL

E1

E2

E3

E4

RX

IR-T

T2-K

T1-T2

RELATIVE
HUMIDITY
DISPLAY

AMBIENT TEMPERATURE

TC1,TC1-TC2,

DP,WB DISPLAYS

TC2, INFRARED
TEMPERATURE

DISPLAYS

MAXIMUM DISPLAY

ICON

MINIMUM DISPLAY

ICON

HOLD FUNCTION ICON

DATA LOGGING ICON

LOW BATTERY ICON

WIRELESS
COMMUNICATION
ERROR CODES

WIRELESS DATA
RECEIVE ICON

HIGH & LOW
ALARM ICONS

WIRELESS RECEPTION

SIGNAL STRENGTH

LASER INDICATOR ICON

INFRARED

TEMPERATURE

ICON

Screen No. Mode Press Mode Press SET/REC Press Up/Hold Press Dwn/ºF<>ºC

RH/Temp/IR Go to RH/TC1/IR Start/Stop Enable/Disable Temp in °F or °C
Record

RH/TC1/IR Go to RH/TC1/TC2 Same Same Same

RH/TC1/TC2 Go to RH/TC1-TC2/IR Same Same Same

RH/TC1-TC2/IR Go to RH/Temp/TC2 Same Same Same

RH/Temp/TC2 Go to RH/Emiss/IR Same Same Same

RH/Emiss/IR Go to High Alarm ------- Increase Decrease
Emissivity Emissivity

RH-High Alarm Go to Low Alarm Enable/Disable Increase High Decrease High
Alarm Alarm set point Alarm set point

RH–Low Alarm Go to Recording Enable/Disable Increase Low Decrease Low
Interval Alarm Alarm set point Alarm set point

Recording Go to Auto Power -------- Increase Decrease
Interval Shut off Recording Recor ding
Interval Interval

Auto Power Go to RH/Temp/IR Enable/Disable ----------- ---------­ Shut Off Power shut off

1

2

3

4

5

6

7

8

9

10

RH%

°F

°F

IR-T

RH%

°F

°F

T1-K

IR-T

MAIN MENU

RH%

°F

°F

T1-K

T2-K

PRESS

RH%

°F

°F

T2-K

RH%

°F

IR-T

RH%

HAL

RH%

LAL

RH%

°F

°F

IR-T

T1-T2

MODE

REC

REC

REC

REC

REC

ACTIVE KEYS

°F<->°C

MIN/MAX

HOLD

HOLD

HOLD

HOLD

DP-WB

GPP

°F<->°C

PRESS

MODE

°F<->°C

°F<->°C

PRESS

MODE

PRESS

MODE

°F<->°C

PRESS

MODE

ACTIVE KEYS

PRESS

MODE

SET

PRESS

MODE

SET

PRESS

MODE

PRESS

MODE

PRESS

MODE

SET

10

9

8

7

6

1

2

3

4

5

RH%

°F

°F

IR-T

MAIN MENU

PRESS & HOLD

MODE

PRESS

MODE

PRESS

MODE

PRESS

MODE

ACTIVE KEYS

SET

for 2 seconds

1

18

19

20

RH%

°F

°F

MAX

IR-T

RH%

°F

°F

IR-T

RH%

°F

DP

°F

IR-T

RH%

°F

WB

°F

IR-T

GPP

°F

°F

IR-T

RH%

°F

°F

MIN

IR-T

HOLD

RH%

°F

°F

IR-T

PRESS

PRESS

PRESS

PRESS

RH%

°F

°F

IR-T

LOG

PRESS

MAIN
MENU

HOLD

REC

MIN/MAX

MIN/MAX

PRESS

MIN/MAX

DP-WB

GPP

PRESS

PRESS

MIN, MAX VALUES

TO RESET

DP-WB

GPP

PRESS

DP-WB

GPP

PRESS

DP-WB

GPP

ACTIVE KEYS [ ]

MODE

°F<->°C

SET

°F<->°C

SET

SET

°F<->°C

11

1

12

13

14

15

16

17

Wireless Function Flow Chart

Display Screens Explained

1

This is the main display screen when you power
up the unit. It displays the relative humidity (%RH),
ambient temperature (°F) on the second line, and
the non-contact infrared temperature (°F) on the
third line of the display. The IR-T icon indicates IR
temperature measurement. Press and holding the
laser key will turn on the laser beam and the laser
icon on the display. There is a laser cover switch
on front of the unit where by turning the cover, the
laser beam changes from circle to laser dot.

2

This display shows the relative humidity,
thermocouple input 1 on the second line, and
the infrared temperature on the third line of the
display.

3

This display shows the relative humidity,
thermocouple input 1 on the second line, and
the thermocouple input 2 on the third line of the
display.

4

This display shows the relative humidity,
differential thermocouple temperature inputs 1 and
2 (T1-T2), and infrared temperature.

5

This display shows the relative humidity,
ambient temperature, and the second thermocouple
input (T2-K).

6

This display shows the relative humidity,
Emissivity value for the IR measurement and the
Infrared temperature. You can press the Up and
