Omega Engineering PX2670 User Manual

User’s Guide

http://www.omega.com

email: [e-mail]

MODEL PX2670

Low Pressure Tranducers

and T ransmitters

OMEGAnet On-Line Service Internet e-mail
http://www.omega.com [e-mail]

Servicing North America:

USA: One Omega Drive, Box 4047
ISO 9001 Certified Stamford, CT 06907-0047
Tel: [phone] FAX: [phone]
e-mail: [e-mail]
Canada: 976 Bergar
Laval (Quebec) H7L 5A1
Tel: [phone] FAX: [phone]

e-mail: [e-mail]

For immediate techincal or application assistance:

USA and Canada Sales Service: 1-800-826-6342/1-800-TC-OMEGASM
Customer Service: 1-800-622-2378/1-800-622-BESTSM
Engineering Service: 1-800-872-9436/1-800-USA-WHENSM
TELEX:996404 EASYLINK: 62968934 CABLE: OMEGA
Mexico and Latin America: Tel: [phone] FAX: [phone]

En Espan~ol: (95) 203-359-7803 email: [e-mail]

Servicing Europe:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands
Tel: [phone] FAX: [phone]

Toll Free in Benelux: 0800 0993344

e-mail: [e-mail]
Czech Republic ul. Rude armady 1868, 733 01 Karvina-Hranice
Tel: [phone] FAX: [phone]

Toll Free: 0800-1-66342 e-mail: [e-mail]
France: 9, rue Denis Papin, 78190 Trappes
Tel: [phone] FAX: [phone]

Toll Free in France: 0800-4-06342

e-mail: [e-mail]
Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
Tel: [phone] FAX: [phone]

Toll Free in Germany: 0130 11 21 66

e-mail: [e-mail]
United Kingdom: One Omega Drive, River Bend Technology Centre
ISO 9002 Certified Northbank, Irlam, Manchester

M44 5EX, England

Tel: [phone] FAX: [phone]

Toll Free in the United Kingdom: 0800-488-488

e-mail: [e-mail]

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply.
OMEGA is constantly pursuing certification of its products to the European New Approach Directives.
OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts
no liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.

SS2045 03/24/99 Rev.A

General Information
The PX2670 Series pressure transducers and transmitters sense differential pressure and

gage (static) pressure and convert this pressure difference to a proportional high level
analog output for both unidirectional and bidirectional pressure ranges. Two versions are
offered: the voltage model transducer with 0 to 10 VDC output and the current model
transmitter with 4 to 20 mA output.

Environmental Conditions
The PX2670 Series is designed to be operated and stored in the following environmental

conditions:

Temperature - The PX2670 is designed to operate and be stored with the
following temperature limitations:

Operating: 0 to 150°F (-18 to 65°C)

Storage: -65 to 180 °F (-54 to 82°C)

Position Effect:

Range Zero Offset
0 to .1” WC 2.1% FS
0 to 1” WC .22% FS
0 to 5” WC .14% FS
0 to 30” WC .06% FS

Electrical Connections
Wiring is through a standard PG13.5 cable strain relief. Wiring terminations are identified

on the circuit board below the terminal strip (see Figure 1). To access the terminal strip,
remove the cover by unscrewing the 2 captive screws on top of the case.

Voltage Models
The voltage model is a 3-wire circuit. The standard voltage model can operate from
either 24 VAC or 24 VDC excitation with a 0 to 10 VDC output. The input tolerances are
as follows:

24 VAC can operate from 9 to 30 VAC
24 VDC can operate from 12 to 40 VDC

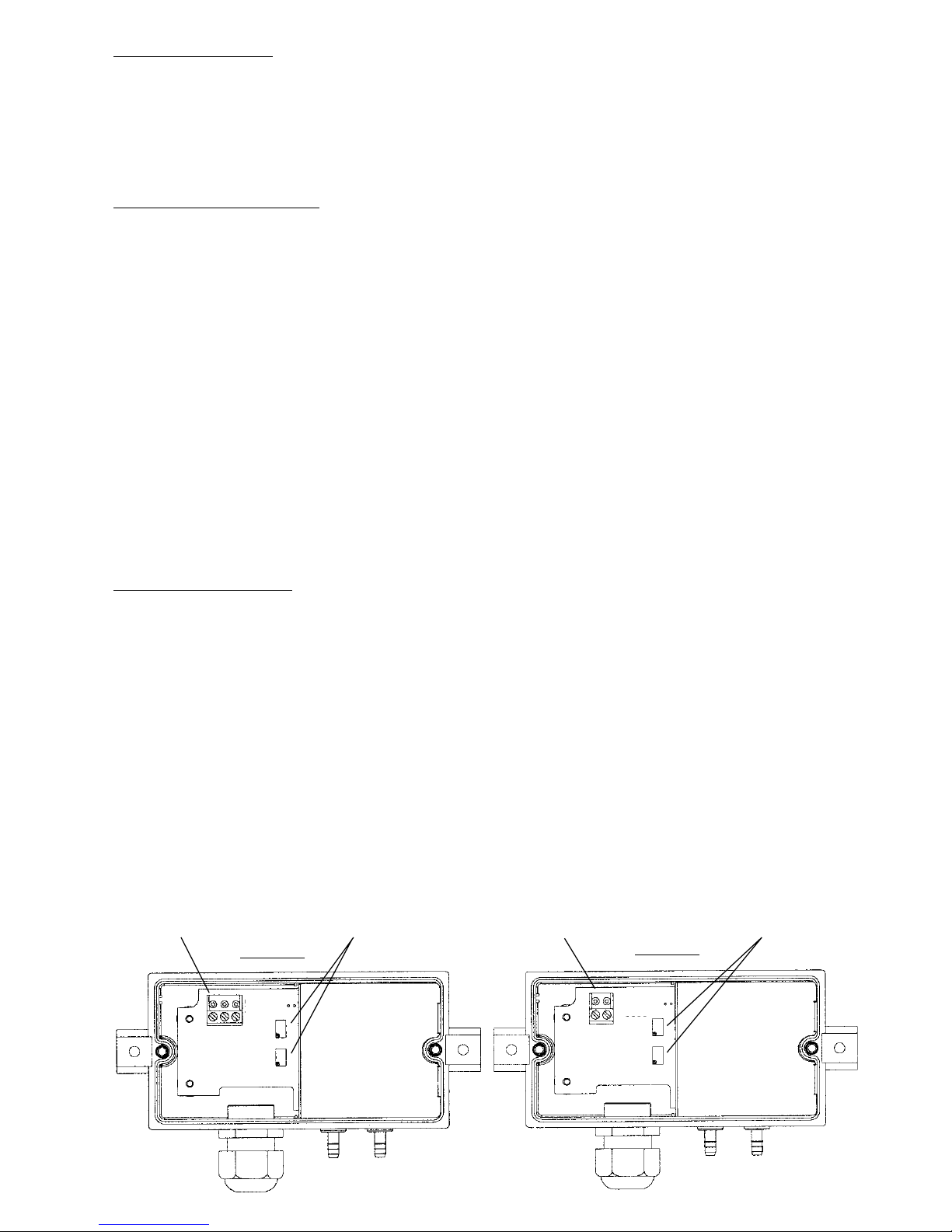

Electrical
Connections

Electrical
Connections

Zero & Span
Adjustment

Zero & Span
Adjustment

Voltage

Current

+EXC GND +SIG

Zero

Span

+EXC -

Zero

Span

Figure 1
