OMEGASCOPE™

OMSP-3000 SERIES

PC Oscilloscopes

®

OMEGAnet®Online Service Internet e-mail

omega.com [email protected]

Servicing North America:

U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford, CT 06907-0047 USA

Toll Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

Canada: 976 Bergar

Laval (Quebec), H7L 5A1 Canada
Toll-Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

For immediate technical or application assistance:

U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA

Customer Service: 1-800-622-2378/1-800-622-BEST
Engineering Service: 1-800-872-9436/1-800-USA-WHEN

Mexico/ En Español: 001 [phone] FAX: [phone]
Latin America [email protected] e-mail: [email protected]

®

®

®

Servicing Europe:

Benelux: Managed by the United Kingdom Office

Toll-Free: 0800 099 3344 TEL: [phone]
FAX: [phone] e-mail: [email protected]

Czech Republic: Frystatska 184

733 01 Karviná, Czech Republic
Toll-Free: 0800-1-66342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

France: Managed by the United Kingdom Office

Toll-Free: 0800 466 342 TEL: [phone]
FAX: [phone] e-mail: [email protected]

Germany/Austria: Daimlerstrasse 26

D-75392 Deckenpfronn, Germany
Toll-Free: 0800 6397678 TEL: [phone]
FAX: [phone] e-mail: [email protected]

United Kingdom: OMEGA Engineering Ltd.

ISO 9001 Certified One Omega Drive, River Bend Technology Centre, Northbank

Irlam, Manchester M44 5BD United Kingdom
Toll-Free: 0800-488-488 TEL: [phone]
FAX: [phone] e-mail: [email protected]

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.

Contents

IOMSP-3000 Series User's Guide

....................................................................................................................................11 Welcome

....................................................................................................................................22 Introduction

1 Safety symbols

2 Safety warning

3 FCC notice

4 CE notice

5 Trademarks

6 Company details

7 Minimum system requirements

........................................................................................................................................2

........................................................................................................................................2

........................................................................................................................................3

........................................................................................................................................3

........................................................................................................................................4

........................................................................................................................................4

........................................................................................................................................5

....................................................................................................................................63 Product information

1 Comparison table for Models OMSP-3204, OMSP-3205, and OMSP-3206

2 Installation Instructions

3 Specifications

........................................................................................................................................6

........................................................................................................................................6

........................................................................................................................................8

....................................................................................................................................124 Glossary

Index

....................................................................................................................................13

M5061

OMSP-3000 Series User's Guide 1

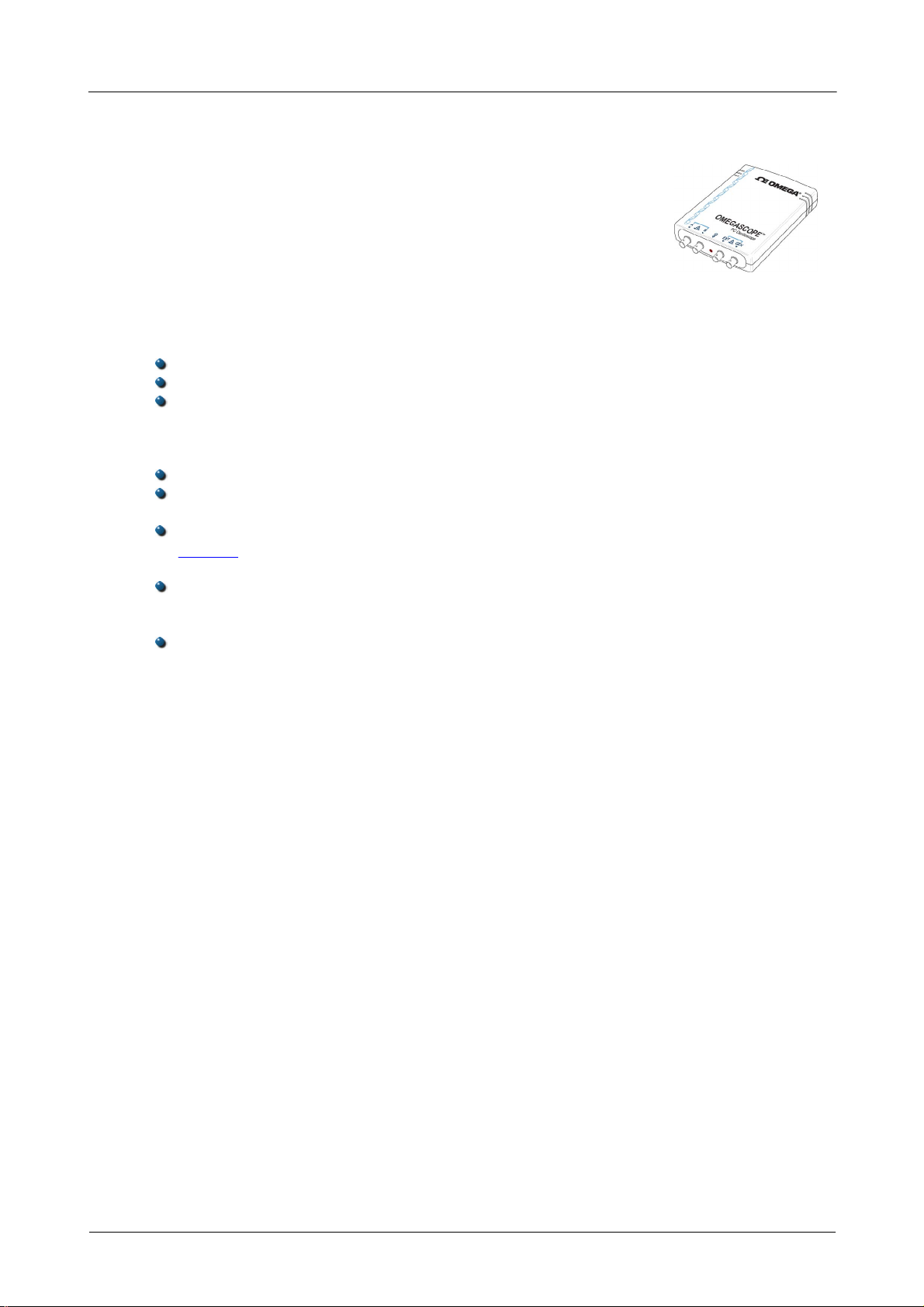

The new OMSP-3000 Series of PC Oscilloscopes is a range of
high-specification, real-time measuring instruments that
connect to the USB port of your computer. The oscilloscopes
obtain their power supply through the USB cable, so they do
not need an additional power supply and are therefore highly
portable.

1 Welcome

The new OMSP-3000 Series consists of three high-speed, portable oscilloscopes with
function generator, arbitrary waveform generator and deep memory:

OMSP-3204
OMSP-3205
OMSP-3206

Here are some of the benefits provided by your new OMSP-3000 Series oscilloscope:

Portability: Take the unit with you and plug it in to any Windows PC.
Performance: 500 MS/s sampling, with up to 200 MHz bandwidth and a 128 MS

buffer.
Long-term support: Software upgrades are available to download from our

website. You can also call our technical specialists for support. You can continue to

use both of these services free of charge for the lifetime of the product.
Value for money: You don't have to pay twice for all the features that you already
have in your PC, as the OMSP-3000 Series oscilloscope contains the special
hardware you need and nothing more.
Convenience: The software makes full use of the full-sized display, disk storage,
user interface and networking built in to your PC.

M5061

2 Introduction

This symbol indicates that a safety hazard exists on the indicated
connections if correct precautions are not taken. Read all safety
documentation associated with the product before using it.

This symbol indicates that the outer shells of the indicated BNC
connectors are all at the same potential (shorted together). You must
therefore take necessary precautions to avoid applying a potential
across the return connections of the indicated BNC terminals as this
may cause a large current to flow, resulting in damage to the product
and/or connected equipment.

Maximum input range

The new OMSP-3000 Series PC Oscilloscopes are designed to measure voltages in the
range -20 V to +20 V. Inputs are protected to ±100 V. Contact with voltages outside
the protection range may cause permanent damage to the unit.

Introduction2

2.1

2.2

Safety symbols

Symbol 1: Warning Triangle

Symbol 2: Equipotential

Safety warning

We strongly recommend that you read the general safety information below before
using your oscilloscope for the first time. Safety protection built in to equipment may
cease to function if the equipment is used incorrectly. This could cause damage to
your computer, or lead to injury to yourself and others.

Mains (line) voltages

These products are not designed for use with mains (line) voltages. To measure mains
(or line) voltage, use a differential isolating probe specifically designed for that
purpose.

Safety grounding

OMSP-3000 Series PC Oscilloscopes connect direct to the ground of a computer
through the interconnecting cable provided to minimize interference.

As with most oscilloscopes, avoid connecting the ground input to any potential other
than ground. If in doubt, use a meter to check that there is no significant AC or DC
voltage between the ground input of the oscilloscope and the point to which you
intend to connect it. Failure to check may cause damage to your computer, or lead to
injury to yourself and others.

You should not rely on the product to provide a protective safety earth.

Repairs

The oscilloscope contains no user-serviceable parts. Repair or calibration of the
oscilloscope requires specialized test equipment and must be performed by the
factory.

M5061

OMSP-3000 Series User's Guide 3

2.3

2.4

FCC notice

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his or her own
expense.

For safety and maintenance information see the safety warning .

2

CE notice

The OMSP-3000 Series PC Oscilloscopes meet the intent of the EMC directive
89/336/EEC and have been tested to EN61326-1:2006 Class A Emissions and
Immunity standard.

The product also meets the intent of the Low Voltage Directive and has been
designed to meet the BS EN 61010-1:2001 Safety requirements for electrical
equipment for measurement, control, and laboratory use standard.

M5061

Introduction4

2.5

2.6

Trademarks

Windows is a registered trademark of Microsoft Corporation in the USA and other
countries.

OMEGASCOPE™ is a trademark of Omega Engineering, Inc.

Company details

Address:

Omega Engineering, Inc
One Omega Drive,
P.O. Box 4047,
Stamford, CT 06907,
USA

Phone:[phone]
Fax: [phone]

Email:

Technical Support: [email protected]
Sales: [email protected]

Web site: www.omega.com

M5061

OMSP-3000 Series User's Guide 5

Item

Absolute

minimum

Recommended

minimum

Recommended

full specification

Operating system

Windows XP SP2

Windows Vista

Windows 7

32 bit and 64 bit versions supported

Processor

As required
by Windows

300 MHz

1 GHz

Memory

256 MB

512 MB

Free disk space*

1.5 GB

2 GB

Ports

USB 1.1 compliant port

USB 2.0 compliant port

2.7

Minimum system requirements

To ensure that your OMSP-3000 Series PC Oscilloscope operates correctly, you must
have a computer with at least the minimum system requirements to run one of the
supported operating systems, as shown in the following table. The performance of the
oscilloscope will be better with a more powerful PC, and will benefit from a multi-core
processor.

*

The OMEGASCOPE™ software does not use all the disk space specified in the table.
The free space is required to make Windows run efficiently.

M5061

3 Product information

Model

Bandwidth

Sampling

Memory

Waveform Output

Probes
Supplied

OMSP-3204

60 MHz

500 MS/s

8 MS

Function generator and AWG

2 x 60 MHz

OMSP-3205

100 MHz

500 MS/s

32 MS

Function generator and AWG

2 x 150 MHz

OMSP-3206

200 MHz

500 MS/s

128 MS

Function generator and AWG

2 x 250 MHz

Important:

Do not connect your OMSP-3000 Series PC Oscilloscope to the PC

until you have installed the software.

With the OMEGASCOPE™ you can use OMSP-3000 Series as oscilloscopes and
spectrum analyzers.

An OMSP-3000 Series PC Oscilloscope is supplied with the following items:

USB cable, for use with any standard USB 1.1 or 2.0 port
Software and Reference CD
Installation Guide
2 x Probes (see below for probe details)

Product information6

3.1

3.2

Comparison table for Models OMSP-3204, OMSP-3205, and OMSP-3206

Installation Instructions

Procedure

Follow the instructions in the Installation Guide included with your product package.
Connect your PC Oscilloscope to the PC using the USB cable supplied.
There is no need for an additional power supply, as the unit obtains its power from

the USB port.

Checking the installation

Once you have installed the software and connected the PC Oscilloscope to the PC,
start the OMEGASCOPE™ software. The software should now display any signal
connected to the scope inputs. If you have a probe connected to your oscilloscope, you
should see a small 50 or 60 hertz signal in the oscilloscope window when you touch
the probe tip with your finger.

Standard oscilloscope connectors

The new OMSP-3000 Series PC Oscilloscopes have standard oscilloscope connectors.
The input impedance is also standard, so the x10 function on scope probes works
correctly.

M5061

OMSP-3000 Series User's Guide 7

OMSP-3204
OMSP-3205
OMSP-3206

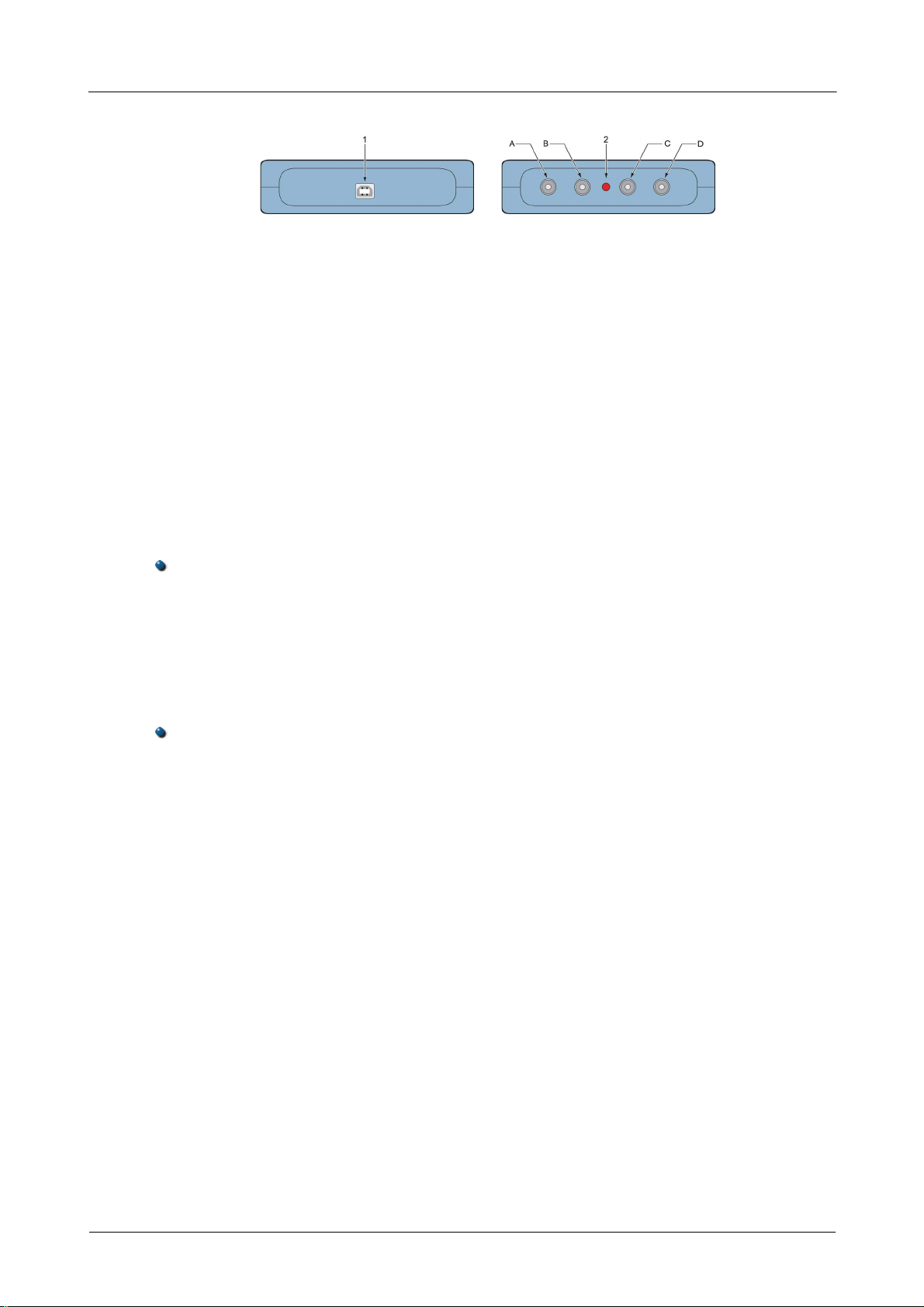

Connector diagrams

1 USB port
2 LED: flashes when the oscilloscope is sampling data
A: Input channel A
B: Input channel B
C: External trigger input
D: Function generator and AWG output

Moving your OMSP-3000 Series PC Oscilloscope to another USB port

Windows XP

When you first installed the OMSP-3000 Series PC Oscilloscope by plugging it into a
USB port, Windows associated the driver with that port. If you later move the
oscilloscope to a different USB port, Windows will display the "New Hardware Found
Wizard" again. When this occurs, just click "Next" in the wizard to repeat the
installation. If Windows gives a warning about Windows Logo Testing, click "Continue
Anyway". As all the software you need is already installed on your computer, there is
no need to insert the Software CD again.

Windows Vista and Windows 7

The process is automatic. When you move the device from one port to another,
Windows displays an "Installing device driver software" message and then a "OMSP­3000 Series PC Oscilloscope" message. The PC Oscilloscope is then ready for use.

M5061

Product information8

VERTICAL

OMSP-3204

OMSP-3205

OMSP-3206

Bandwidth (-3 dB)

60 MHz

100 MHz

200 MHz

Rise time (calculated)

5.8 ns

3.5 ns

1.75 ns

Resolution

8 bits

Input characteristics

2 channels, 1 MΩ ±1%, in parallel with 13 pF ±1 pF

Input coupling

AC/DC

Input sensitivity

10 mV/div to 4 V/div (10 vertical divisions)

Input ranges

±50 mV to ±20 V in 9 ranges

Analogue offset range
(vertical position
adjustment)

±250 mV (50 mV, 100 mV, 200 mV ranges)

±2.5 V (500 mV, 1 V, 2 V ranges)

±20 V (5 V, 10 V, 20 V ranges)

DC accuracy

±3% of full scale

Overload protection

±100 V (DC + AC Peak)

HORIZONTAL

Sampling rate (real
time 1 Ch)

500 MS/s

500 MS/s

500 MS/s

Sampling rate (real
time 2 Ch)

250 MS/s

250 MS/s

250 MS/s

Sampling rate
(repetitive sampling)

2.5 GS/s

5 GS/s

10 GS/s

Sampling rate (cont.
USB streaming)

1 MS/s in OMEGASCOPE™ software.

Timebase ranges

2 ns/div to 200 s/

div

1 ns/div to 200 s/div

500 ps/div to 200

s/div

Buffer memory*

8 MS

32 MS

128 MS

Waveform buffer (no.
of segments)

1 to 10,000

Timebase accuracy

±50 ppm

Sample jitter

< 5 ps RMS

* Shared between active channels

DYNAMIC PERFORMANCE (typical)

Crosstalk

Better than 400:1 up to full bandwidth (equal voltage ranges)

Harmonic distortion

< -50 dB at 100 kHz full scale input

SFDR

52 dB Typical

ADC ENOB

7.6 bits

Noise

180 µV RMS (on most sensitive range)

Pulse response

< 5% overshoot

Bandwidth flatness

(+0.3 dB, -3 dB) at scope input, from DC to full bandwidth

3.3

Specifications

M5061

OMSP-3000 Series User's Guide 9

TRIGGER

Trigger modes

Auto, repeat, single, none, rapid (segmented memory)

Advanced digital
triggers
(Ch A, Ch B)

Edge: rising, falling or dual edge with adjustable hysteresis
Window: signal enters or exits a user-defined voltage range
Pulse width: a negative or positive pulse is wider or narrower
than a set width, or inside / outside a range of widths
Window pulse width: signal is inside or outside a voltage range
for a set time
Dropout: signal does not cross a voltage threshold for at least
a set time
Window dropout: signal does not enter or exit a voltage range
for at least a set time
Interval: time between two edges is greater or less than a set
time, or inside / outside a time range
Logic: arbitrary logic state of Channels A, B and EXT matches
a user-defined pattern
Runt pulse: signal crosses one voltage threshold and returns
without crossing the other

Trigger sensitivity
(Ch A, Ch B)

Digital triggering provides 1 LSB accuracy up to full bandwidth

of scope

Max. pre-trigger
capture

Up to 100% of capture size

Max. post-trigger delay

Up to 4 billion samples

Trigger re-arm time

< 2 µs on fastest timebase

Max. trigger rate

Up to 10,000 waveforms in a 20 ms burst

EXTERNAL TRIGGER INPUT

Trigger types

Edge, pulse width, dropout, interval, logic, delayed

Input characteristics

Front panel BNC, 1 MΩ ±1% in parallel with 13 pF ±1 pF

Bandwidth

60 MHz

100 MHz

200 MHz

Voltage range

±5 V, DC coupled

Overvoltage protection

±100 V (DC + AC peak)

M5061

Product information10

MODEL

OMSP-3204

OMSP-3205

OMSP-3206

FUNCTION GENERATOR

Standard output
signals

Sine, square, triangle, DC voltage, ramp, sinc, Gaussian, half-

sine, white noise, PRBS

Standard signal
frequency

DC to 1 MHz

Bandwidth

> 1 MHz

Output frequency
accuracy

±50 ppm

Output frequency
resolution

< 0.01 Hz

Output voltage range

±2 V with ±1% DC accuracy

Output voltage
adjustment

Signal amplitude and offset adjustable in approx. 1 mV steps

within overall ± 2 V range

Amplitude flatness

< 0.5 dB to 1 MHz, typical

SFDR

> 60 dB, 10 kHz full scale sine wave

Connector type

Front panel BNC with 600 Ω output impedance

Overvoltage protection

±10 V

Sweep modes

Up, down, dual with selectable start/stop frequencies and

increments

AWG

Update rate

20 MS/s

Buffer size

8 kS

8 kS

16 kS

Resolution

12 bits (output step size approx. 1 mV)

Standard signal
frequency

DC to 1 MHz

Bandwidth

> 1 MHz

Rise time (10 - 90%)

< 100 ns

SPECTRUM ANALYZER

Frequency range

DC to 60 MHz

DC to 100 MHz

DC to 200 MHz

Display modes

Magnitude, average, peak hold

Windowing functions

Rectangular, Gaussian, triangular, Blackman, Blackman-

Harris, Hamming, Hann, flat-top

Number of FFT points

Selectable from 128 to 1 million in powers of 2

MATH CHANNELS

Functions

Arbitrary equations using these: - x, x+y, x- y, x*y, x/y, sqrt

(x), x^y, exp(x), ln(x), log(x), abs(x), norm(x), sign(x), sin

(x), cos(x), tan(x), arcsin(x), arccos(x), arctan(x), sinh(x),

cosh(x), tanh(x)

Operands

A, B (input channels), T (time), reference waveforms,

constants, pi

AUTOMATIC MEASUREMENTS

Oscilloscope

AC RMS, true RMS, DC average, cycle time, frequency, duty
cycle, falling rate, fall time, rising rate, rise time, high pulse

width, low pulse width, maximum, minimum, peak to peak

Spectrum

Frequency at peak, amplitude at peak, average amplitude at

peak, total power, THD %, THD dB,

THD plus noise, SFDR, SINAD, SNR, IMD

Statistics

Minimum, maximum, average and standard deviation

M5061

OMSP-3000 Series User's Guide 11

MODEL

OMSP-3204

OMSP-3205

OMSP-3206

SERIAL DECODING

Protocols

CAN Bus, I²C, SPI, RS232/UART

MASK LIMIT TESTING

Statistics

Pass/fail, failure count, total count

DISPLAY

Interpolation

Linear or sin(x)/x

Persistence modes

Digital color, analog intensity, custom, or none

GENERAL

PC connectivity

USB 2.0 hi-speed

Power requirements

Powered from USB port (500 mA at 5 V)

Dimensions

200 x 140 x 40 mm (including connectors)

Weight

< 0.5 kg

Temperature range

Operating: 0 °C to 50 °C (20 °C to 30 °C for stated accuracy)

Safety approvals

Designed to EN 61010-1:2001

EMC approvals

Tested to EN61326-1:2006 and FCC Part 15 Subpart B

Environmental
approvals

RoHS and WEEE compliant

Software/PC
requirements

OMEGASCOPE™, Microsoft Windows XP, Vista or Windows 7.

Accessories

USB cable and 2 probes in probe case.

Languages (full
support):

English, French, German, Italian and Spanish

Languages (UI only):

Chinese (Simplified and Traditional), Czech, Danish, Dutch,

Finnish, Greek, Hungarian, Japanese, Norwegian, Polish,

Portuguese, Romanian, Russian, Swedish and Turkish

M5061

4 Glossary

Bandwidth. The input frequency at which the measured signal amplitude is 3 decibels
below its true value.

Buffer size. The size of the oscilloscope buffer memory, measured in samples. In
block mode, the buffer memory is used by the oscilloscope to store data temporarily.
This allows the oscilloscope to sample data independently of the speed at which it can
transfer data to the computer.

Device Manager. Device Manager is a Windows program that displays the current
hardware configuration of your computer. Right-click on 'My Computer,' choose
'Properties', then click the 'Hardware' tab and the 'Device Manager' button.

Driver. A program that controls a piece of hardware. The driver for the OMSP-3000
Series PC Oscilloscopes is supplied in the form of a 32-bit Windows DLL, ps3000a.dll.
This is used by the OMEGASCOPE™ software, and by user-designed applications, to
control the oscilloscopes.

External trigger. This is the BNC socket marked EXT on the new OMSP-3000 Series
PC oscilloscopes. It can be used to start a data collection run but cannot be used to
record data.

Maximum sampling rate. A figure indicating the maximum number of samples the
oscilloscope can acquire per second. Maximum sample rates are usually given in MS/s
(megasamples per second) or GS/s (gigasamples per second.) The higher the
sampling rate of the oscilloscope, the more accurate the representation of the high­frequency details in a fast signal.

PC Oscilloscope. The instrument formed by connecting a OMSP-3000 Series PC
Oscilloscope to a computer running the OMEGASCOPE™ software application.

OMSP-3000 Series. An oscilloscope range comprising the OMSP-3204, OMSP-3205,
and OMSP-3206 PC Oscilloscopes.

OMEGASCOPE™ software. This is a software product that accompanies all our
oscilloscopes. It turns your PC into an oscilloscope, spectrum analyzer, and meter
display.

Signal generator. A built-in circuit that generates signals suitable for driving an
external device under test. The signal generator output is the BNC socket marked GEN
on the oscilloscope. If you connect a BNC cable between this and one of the channel
inputs, you can send a signal into one of the channels.

Glossary12

M5061

OMSP-3000 Series User's Guide 13

Index

I

Input

A

Accessories 8
ADC ENOB 8
Advanced digital triggers 8
Amplitude flatness 8
Analogue offset range (vertical position

adjustment) 8
Approvals

EMC 8
Environmental 8
Safety 8

AWG 8

Characteristics 8
Coupling 8
Ranges 8
Sensitivity 8

Interpolation 8

L

Languages

Full support 8
UI only 8

M

B

Bandwidth 6

Flatness 8

Buffer

Memory 8
Size 8

Buffer size 6

C

Calibration 2
Company information 4
Compliance 3
Connector type 8
Contact details 4
Crosstalk 8

D

DC accuracy 8
Dimensions 8
Display modes 8

E

External trigger 6

F

Max

Post-trigger delay 8
Pre-trigger capture 8

Trigger rate 8
Maximum input range 2
Maximum sampling rate 6

N

Noise 8
Number of FFT points 8

O

OMEGASCOPE™ software 6
OMSP-3000 Series 2, 3, 5, 6
Operands 8
Oscilloscope 8
Oscilloscope probe 6
Output frequency

Accuracy 8

Resolution 8
Output voltage

Adjustment 8

Range 8
Outputs 6
Overload protection 8
Overvoltage protection 8

Frequency range 8
Functions 8

H

Harmonic distortion 8

M5061

P

PC connection 6
PC connectivity 8
Persistence modes 8
Power requirements 8
Power supply 6

Protocols 8
Pulse response 8

Index14

V

R

Repair 2
Resolution 8
Rise time 8

S

Safety

symbols 2

warning 2, 3
Sample jitter 8
Sampling rate 6

(cont. USB streaming) 8

(real time 1 Ch) 8

(real time 2 Ch) 8

(repetitive sampling) 8
Scope probe 6
SFDR 8
Signal generator 6
Software/PC requirements 8
Specifications 6
Spectrum 8
Standard output signals 8
Standard signal frequency 8
Statistics 8
Sweep modes 8
System requirements 5

Voltage range 8

W

Waveform buffer 8
Weight 8
Windowing functions 8

T

Technical support 4
Temperature range 8
Test equipment 2
Timebase

Accuracy 8

Ranges 8
Trademarks 4
Trigger

Modes 8

Re-arm time 8

Sensitivity 8

Types 8

U

Update rate 8
USB 5

M5061

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be
as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE,
AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR WARRANTY
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product
was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems
relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2011 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

RETURNS, please have the

FOR NON-WARRANTY REPAIRS,
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST
of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems
relative to the product.

consult OMEGA

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

sm

TEMPERATURE

䡺⻬

Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

䡺⻬

Wire: Thermocouple, RTD & Thermistor

䡺⻬

Calibrators & Ice Point References

䡺⻬

Recorders, Controllers & Process Monitors

䡺⻬

Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

䡺⻬

Transducers & Strain Gages

䡺⻬

Load Cells & Pressure Gages

䡺⻬

Displacement Transducers

䡺⻬

Instrumentation & Accessories

FLOW/LEVEL

䡺⻬

Rotameters, Gas Mass Flowmeters & Flow Computers

䡺⻬

Air Velocity Indicators

䡺⻬

Turbine/Paddlewheel Systems

䡺⻬

Totalizers & Batch Controllers

pH/CONDUCTIVITY

䡺⻬

pH Electrodes, Testers & Accessories

䡺⻬

Benchtop/Laboratory Meters

䡺⻬

Controllers, Calibrators, Simulators & Pumps

䡺⻬

Industrial pH & Conductivity Equipment

DATA ACQUISITION

䡺⻬

Data Acquisition & Engineering Software

䡺⻬

Communications-Based Acquisition Systems

䡺⻬

Plug-in Cards for Apple, IBM & Compatibles

䡺⻬

Data Logging Systems

䡺⻬

Recorders, Printers & Plotters

HEATERS

䡺⻬

Heating Cable

䡺⻬

Cartridge & Strip Heaters

䡺⻬

Immersion & Band Heaters

䡺⻬

Flexible Heaters

䡺⻬

Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

䡺⻬

Metering & Control Instrumentation

䡺⻬

Refractometers

䡺⻬

Pumps & Tubing

䡺⻬

Air, Soil & Water Monitors

䡺⻬

Industrial Water & Wastewater Treatment

䡺⻬

pH, Conductivity & Dissolved Oxygen Instruments

M5061/1111
