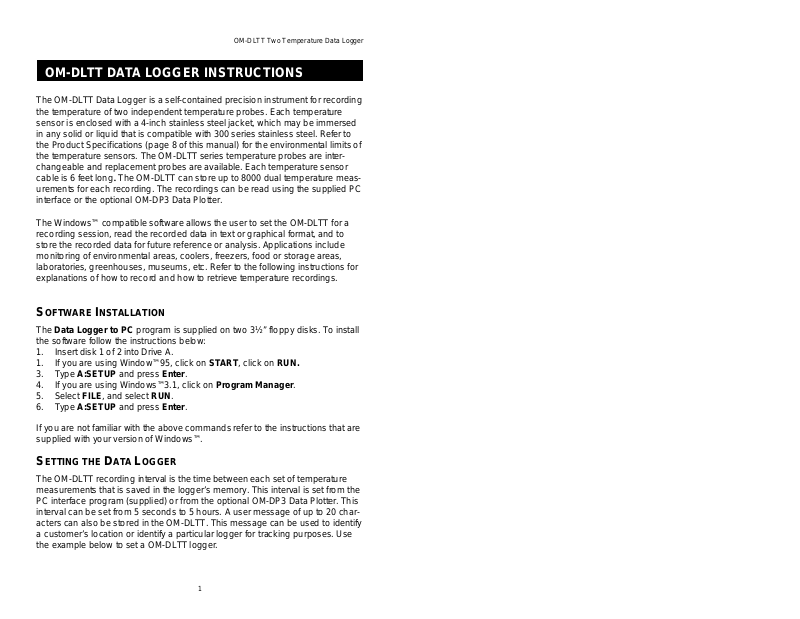

OM-DLTT Two Temperature Data Logger
OM-DLTT DATA LOGGER INSTRUCTIONS
The OM-DLTT Data Logger is a self-contained precision instrument for recording
the temperature of two independent temperature probes. Each temperature
sensor is enclosed with a 4-inch stainless steel jacket, which may be immersed
in any solid or liquid that is compatible with 300 series stainless steel. Refer to
the Product Specifications (page 8 of this manual) for the environmental limits of
the temperature sensors. The OM-DLTT series temperature probes are interchangeable and replacement probes are available. Each temperature sensor
cable is 6 feet long
urements for each recording. The recordings can be read using the supplied PC
interface or the optional OM-DP3 Data Plotter.
The Windows™ compatible software allows the user to set the OM-DLTT for a
recording session, read the recorded data in text or graphical format, and to
store the recorded data for future reference or analysis. Applications include
monitoring of environmental areas, coolers, freezers, food or storage areas,
laboratories, greenhouses, museums, etc. Refer to the following instructions for
explanations of how to record and how to retrieve temperature recordings.
. The OM-DLTT can store up to 8000 dual temperature meas-
SOFTWARE INSTALLATION
The Data Logger to PC program is supplied on two 3½” floppy disks. To install
the software follow the instructions below:
1. Insert disk 1 of 2 into Drive A.
1. If you are using Window™95, click on START, click on RUN.
3. Type A:SETUP and press Enter.
4. If you are using Windows™3.1, click on Program Manager.
5. Select FILE, and select RUN.
6. Type A:SETUP and press Enter.
If you are not familiar with the above commands refer to the instructions that are
supplied with your version of Windows™.
SETTING THE DATA LOGGER
The OM-DLTT recording interval is the time between each set of temperature
measurements that is saved in the logger’s memory. This interval is set from the
PC interface program (supplied) or from the optional OM-DP3 Data Plotter. This
interval can be set from 5 seconds to 5 hours. A user message of up to 20 characters can also be stored in the OM-DLTT. This message can be used to identify
a customer’s location or identify a particular logger for tracking purposes. Use
the example below to set a OM-DLTT logger.
1
Page 2
OM-DLTT Two Temperature Data Logger
1. Plug the PC interface into the printer port of the computer being used to set
the OM-DLTT. Plug the OM-DLTT being set to the cable from the PC interface. The temperature probes do not have to be plugged in for this operation.
2. Start the Data Logger program. If you are using Windows™95, click on
Start, click on Programs, click on Omegalog, click on OMEGALOG.
3. If you are using Windows™3.1, double-click on the window labeled
Omegalog, then double-click on the OMEGALOG icon.
4. The program will open with a
blank window showing no text
or graph. On the toolbar
located along the top of the
screen, click on the Setting
Data Logger before

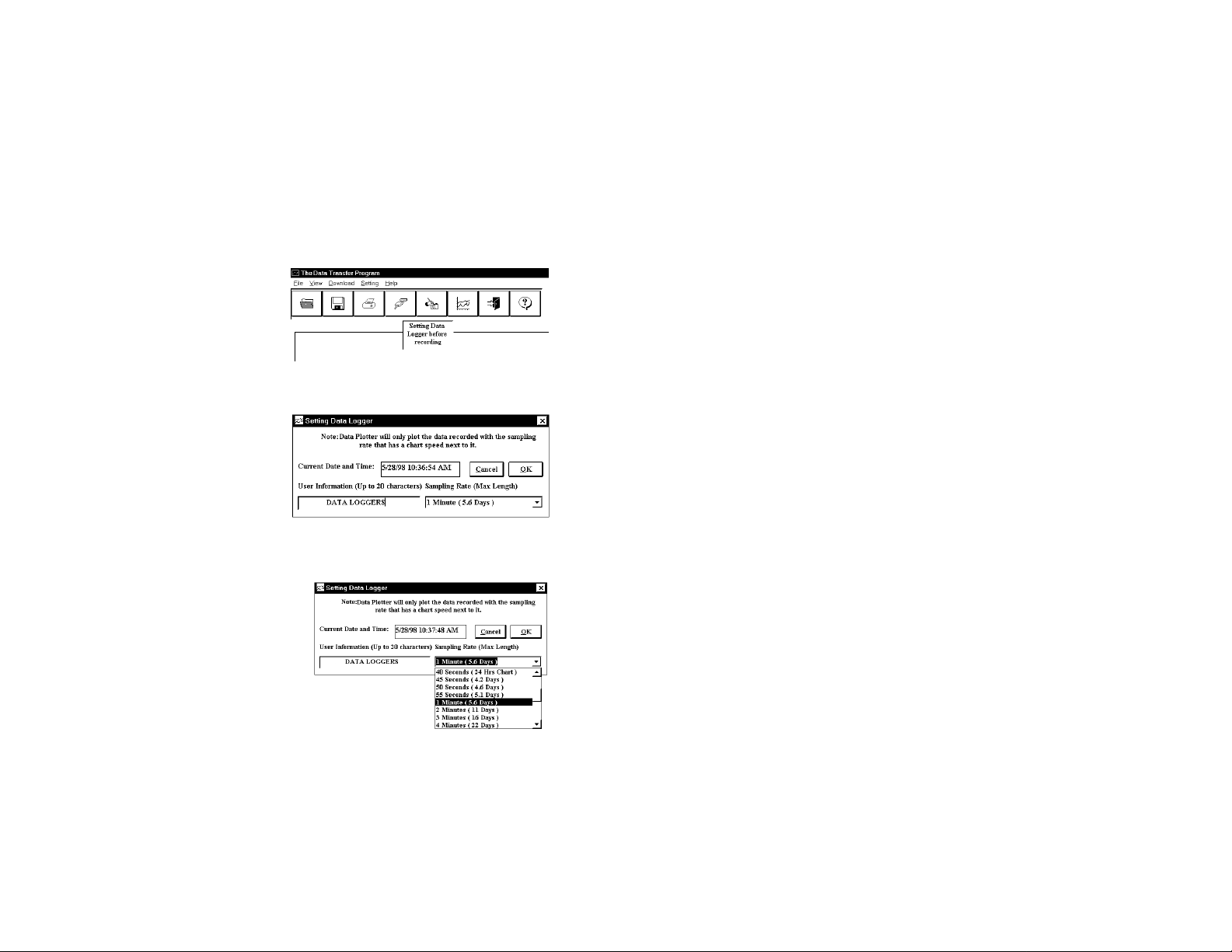

recording button. This will open a secondary window Setting Data Logger.
5. If a user message is desired,
click in the User Information
field and add t he desired
message. Note that the last
message entered will be
displayed and will remain until
it is erased or changed by the
user.
6. To select the recording interval
click on
the down arrow in the
Sampling Rate box. This will
open a drop-d own menu with the
recording interval selections. The
time shown in parenthesis is the
maximum record in g l e n gth. Note
that recording intervals that
correspond to charts used by the
OM-DP3 data plotter, will display a chart length rather than a maximum recording time, and will show a colored background in the Sampling Rate
window.
7. Click on the desired recording interval. You may need to use the up or
down arrows on the drop down menu to see more of the available recording
intervals.
2
Page 3
OM-DLTT Two Temperature Data Logger
8. The time and date the logger is
set to will be the same time as
the PC clock. It is important to
make sure the time set in the PC
is correct. The PC time will be
displayed as the Current Date
and Time in the setting window.
Refer to the owner’s manual for your computer to find instructions on setting
the PC time if it is not correct.
9. When all of the settings for the OM-DLTT are to your satisfaction, click on
OK to store the setting in the OM-DLTT and to close the window.
10. The OM-DLTT is now set and ready to begin a new recording. Disconnect
the OM-DLTT from the PC interface and, if necessary, connect the temperature probes.
11. You can now connect a different OM-DLTT or exit the program. To exit the
program click on the Exit button on the tool bar.
TO START A RECORDING

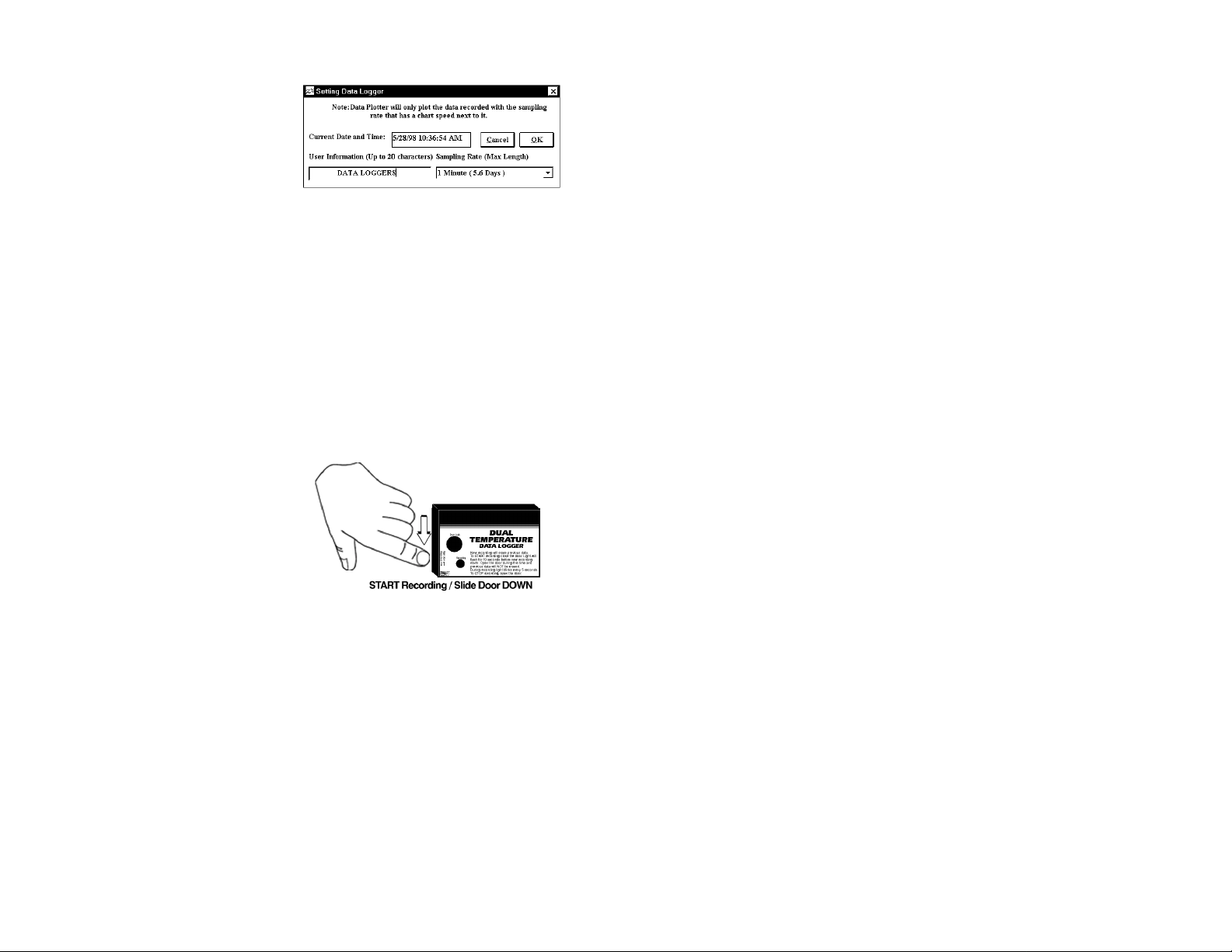

To begin a new recording slide the
access door closed. The LED ind i ca tor
will begin to flash for 10 seconds.
During this period the recording can
be can celed without losing the data
previ o usly re c orded. When the LED
indicator stops flashing, a new
recording has begun and an y previous
data has been erased. The OM-DLTT recording function can be “locked” on by
passing a Ty-Wrap™ or similar restriction through the logger-mounting opening.
This can be used to prevent accidental or intentional disruptions of a temperature recording.
The LED will flash every 5 seconds to indicate operation. A bright flash of the
LED is used to indicate that each temperature probe has been sampled and
recorded. A dim flash is used to indicate the OM-DLTT is operating properly and
no temperature information has not been sampled or recorded. The LED indicator will continue to flash until the user stops the recording, or the memory has
reached its maximum capacity of 8,000 dual temperature samp les.
NOTE: If the battery is exhausted during a recording the OM-DLTT will
automatically terminate the recording and save any tem per ature data recorded up to that point. The LED will stop flashing and the OM-DLTT will not
allow a new recording to be started until the battery has been replaced. Recorded data can be retrieved regardless of th e co ndition of the battery.
3
Page 4
OM-DLTT Two Temperature Data Logger
TO STOP A TEMPERATURE RECORDING

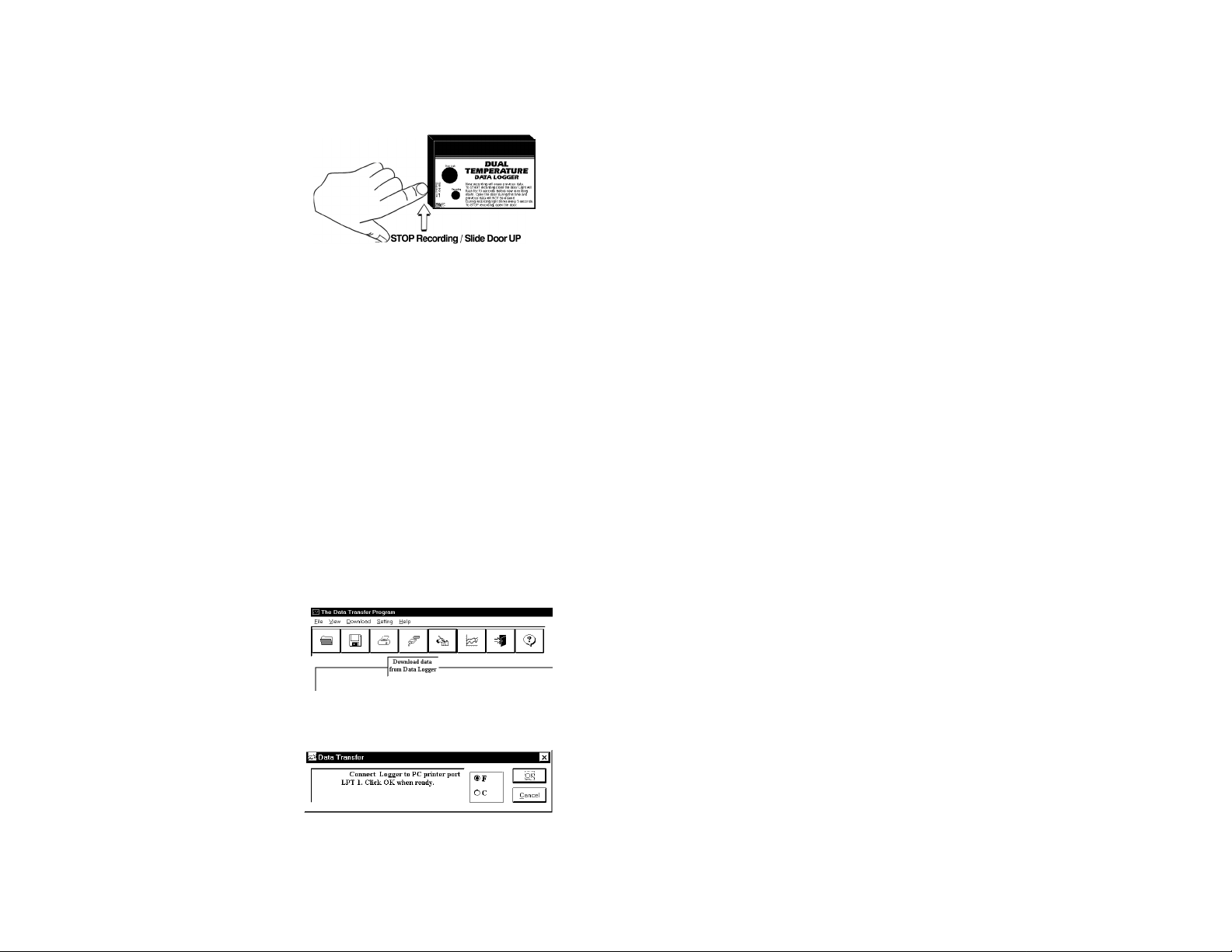

Slide the access door open (If locked,
first remove the restriction device). The
LED indicator will stop flashing. The
recorded temperature information can
be retrieved using the supplied Windows™ compatible software and PC
interface, or the temperature recording
can be plotted on a circular chart using the optional OM-DP3 Data Plotter.
NOTE: Do not close the door until a new recording is desired! It is important
to leave the door open until you want to start a new recording. Starting a new
recording now will erase any previous recording. To prevent accidental erasing
of recordings the sliding access door of the OM-DLTT can be “locked” open by
passing a Ty-Wrap™ or similar restriction through the lock opening. The temperature recording will remain in the OM-DLTT until a new recording is started.
The recordings may be retrieved as many times as required or the battery can
be removed with no effect on the stored data.
RETRIEVING TEMPERATURE RECORDINGS
1. Plug the PC interface into the printer port of the computer being used to
retrieve the OM-DLTT recording. Start the Data Logger program.
2. If you are using Windows™95, click on Start, click on Programs, click on
Omegalog, click on OMEGALOG.
3. If you are using Windows™3.1, double-click on the window labeled
Omegalog, then double-click on the OMEGALOG icon.
4. The program will open with a
blank window showing no text or
graph. On the toolbar located
along the top of the screen click
on the Download data from Data
Logger button. A Data Transfer
window will open. A message will be displayed to connect the OM-DLTT to
the printer port. Connect the OM-DLTT now if it is not already connected.
5. To the right of the connect
message a selection box will
allow you to select the
temperatu r e information in
Celsius or Fahrenheit. Click on
the desired scale, °F or °C.
4
Page 5
OM-DLTT Two Temperature Data Logger
6. Click on OK. The program will begin to retrieve the recording. A status bar
along the top of the window will show the progress of information being retrieved.
7. When the information has been retrieved, the program will automatically
display the recording as a text listing.

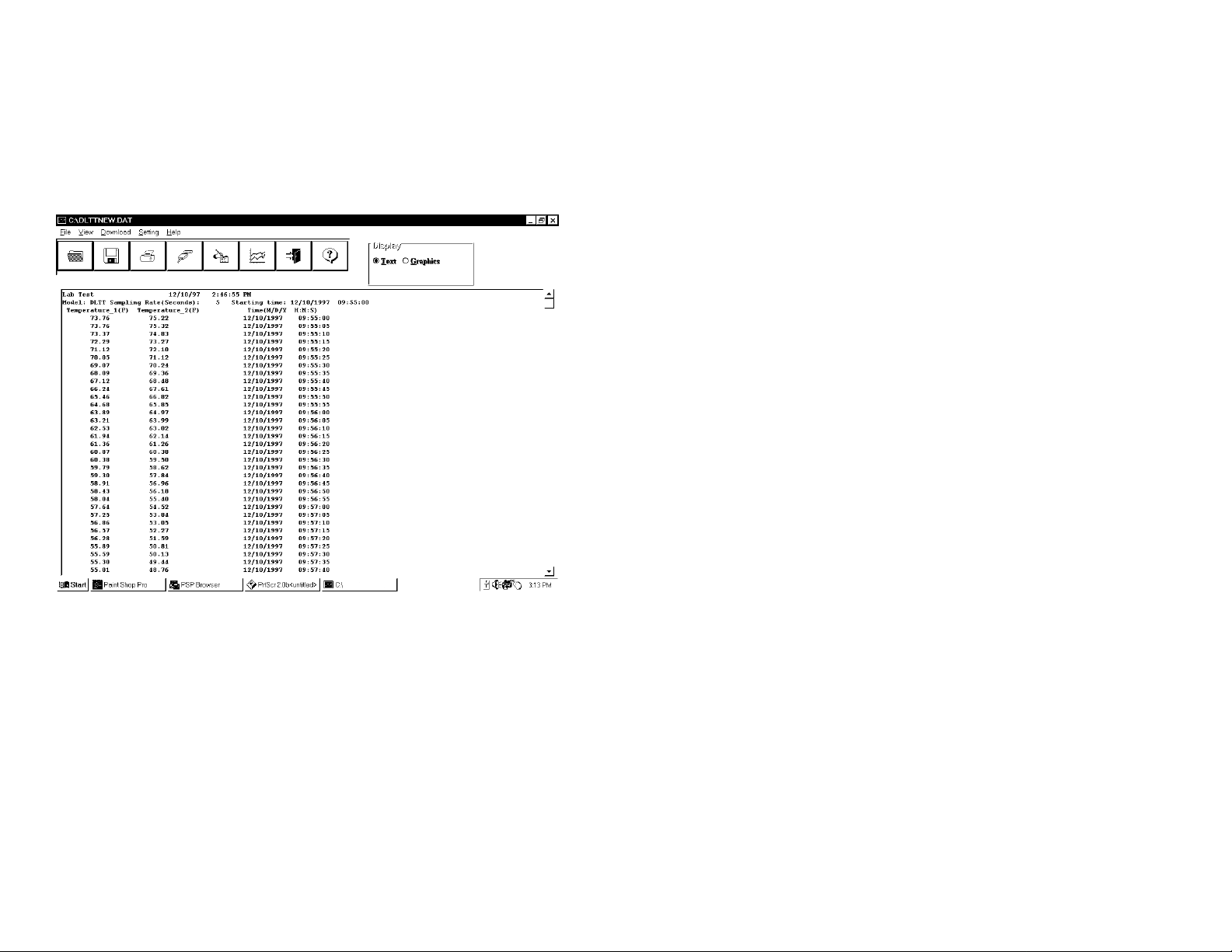

Example of Text Listing Screen
5
Page 6
OM-DLTT Two Temperature Data Logger
VIEWING A RECORDING AS A GRAPH

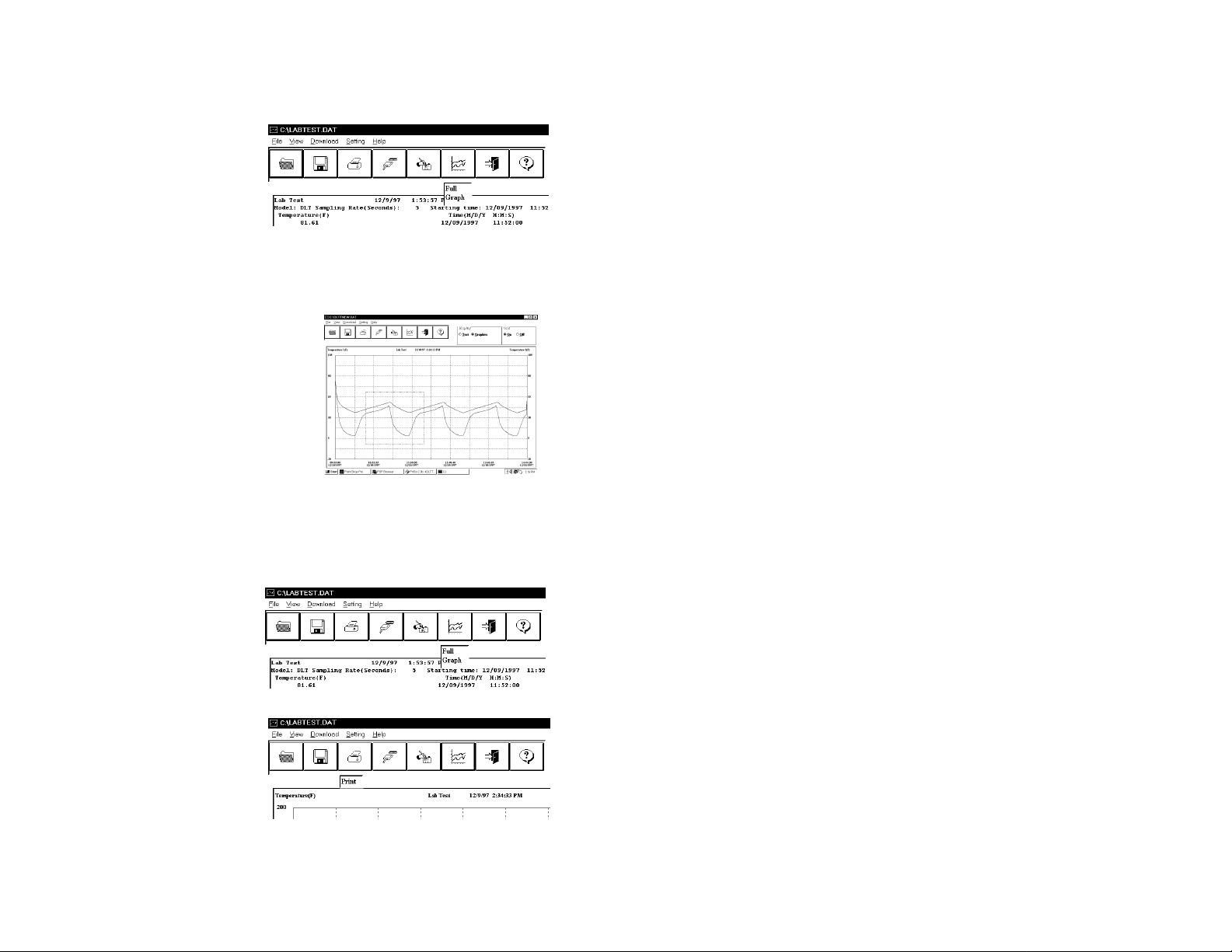

1. To view a graph of the
recording click on the Full
Graph button. The program
will display the entire
recording as a plotted
graph with two temperatures on the vertical scale
and the time on the
horizontal scale.
2. To zoom to a particular part of the graph place the mouse cursor in a corner
of an imaginary box that will enclose the area of interest.
3. Press and hold the left mouse button
and move the cursor in a diagonal direction from the original position of
the cursor. A dashed line forming a
box will be displayed.
4. Move the cursor until the box
encloses the area of interest and
release the left mouse button.
5. The box will now be stationary on the screen. Move the mouse cursor so that
it is inside the box and click
the lef t m ouse button.
6. The enclosed area of the box will now be zoomed so that it fills the entire
window. This may be repeated if additional magnification of an area of the
graph is desired.
7. To return to the original
graph click on the Full
Graph button.
8. The graph on the screen
may be printed at any time
by clicking on the Print
button. Note that the
printout will be what is
displayed on the screen
when the button is clicked.
6
Page 7
OM-DLTT Two Temperature Data Logger

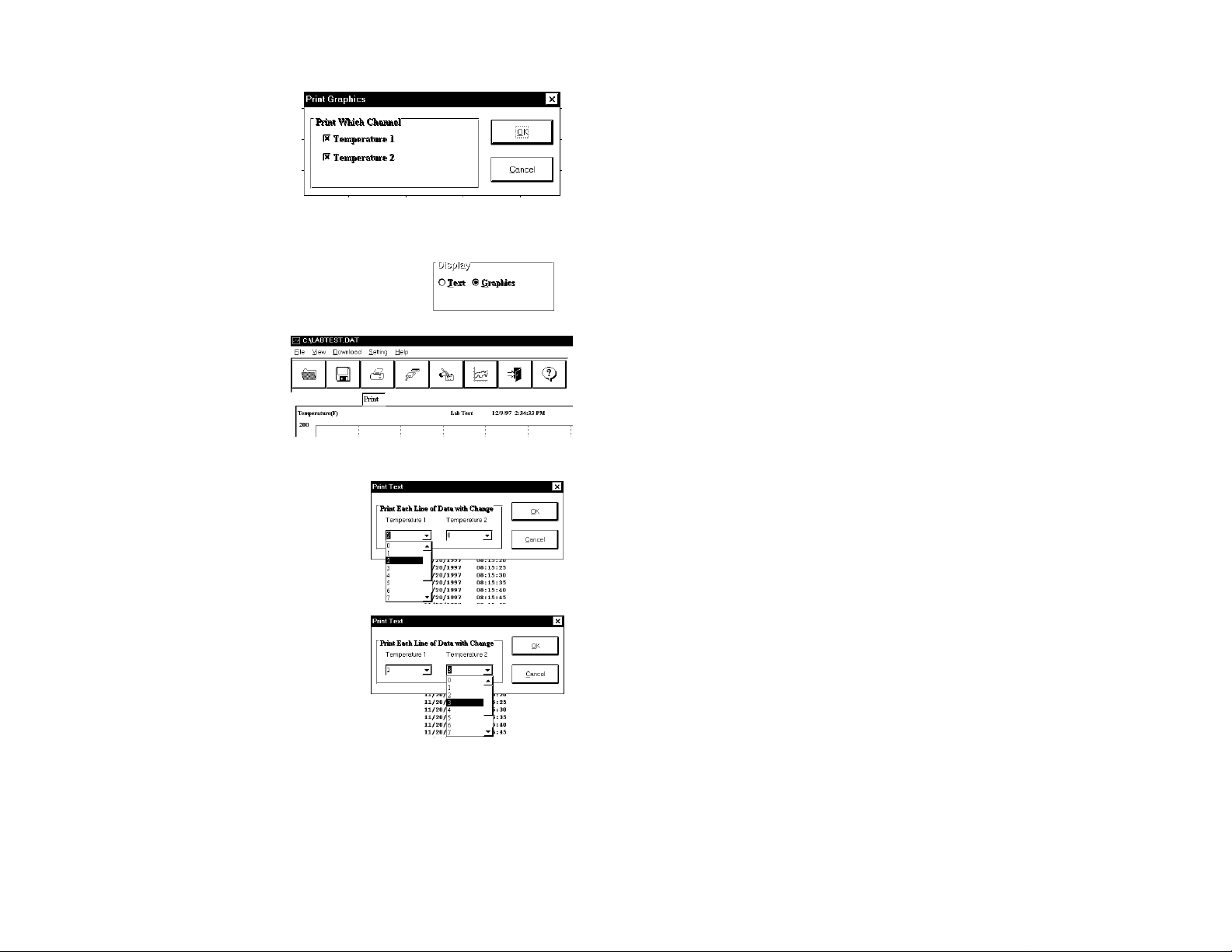

9. A window will open in the middle
of the screen. You can select to
print one or both of the
temperature channels by
selecting each box. When you
have selected which items to
print click OK, or click Cancel of
you change your mind.
VIEW A RECORDING AS TEXT
1. When a recording is first retrieved or when a saved
recording is opened, the default format is a text table of the recording.
2. To view a recording as text
when a graph is on the screen
click the Text button located
in the display box.
3. Use the Windows™ scroll bar
on the right hand side of the
screen to scroll through the text information.
4. To print the text information as text data
click on the Print Button. A window will
open in the middle of the screen. In the
lower left of the window will be a dropdown menu which will allow you to select
the number of degrees that each temperature has to change before the new
value is printed. This feature will prevent
needless printing of the temperature information when no temperature change has
occurred. If you wish to print all the recorded information, leave this value at
zero. Typically only one temperature channel will be used as a filter. It is possible,
however, to filter both temperature channels independently of each other to provide
maximum flexibility for this filter function.
5. When you have selected the amount of temperature change to print (if any),
click on the OK button to start printing.
7
Page 8
OM-DLTT Two Temperature Data Logger
DATA LOGGER CALIBRATION
You can calibrate t he OM-DLTT data logger to make its rea ding match
an external reference or standard. Set the OM-DLTT sampling rate long
enough to allow the logger to stabilize at the reference tempera ture and
humidity and make a recording along with an external reference in a
controlled enviro nment such as a temperature / humidity chamber.
The calibration routine will use
the second recording sample to
make the logger reading match
with the external reference. Click

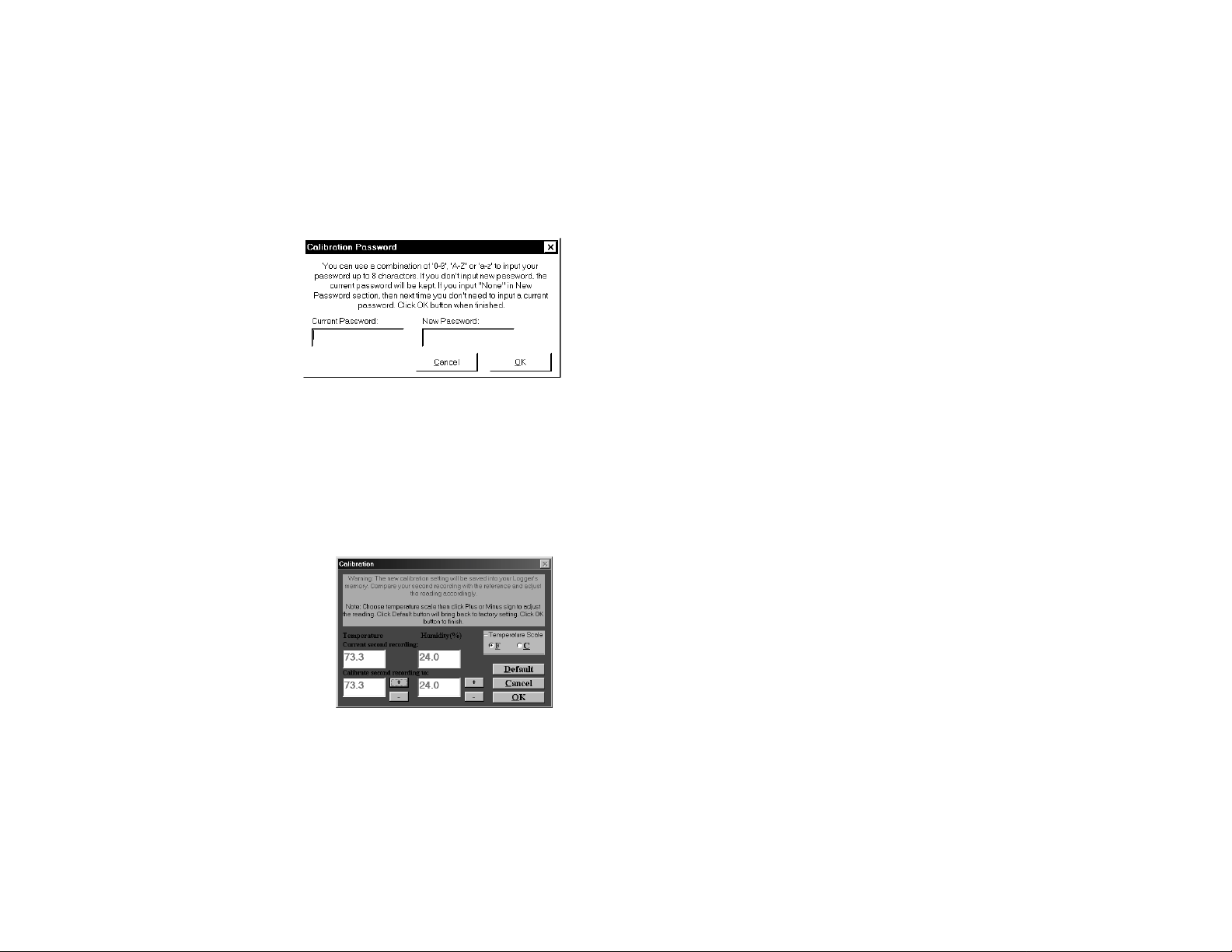

Tools on the menu a nd click
Calibrate Logger. A calibratio n
password window will open. Type
your password in the Current
Password section. If you want to have a new password next time, you
can type a new password in the New Password section. Click the OK
button when finished. If this is the first time you are calibrating the OMDLTT, no password is needed. You can cl ick the OK button or press the
Enter key to continue. If you have typed a password before an d you
don’t want passw ord protection for the calibration function, you can input None as the new password and th is will clear the pa ssword protection.
After you type the correct current
password and click OK, a c a l ibration
window will ope n. You can click the
plus or minus button to make the data
logger readin g match with the r eference reading that you recorded at the
same time and same place with the
OM-DLTT. Click the OK button and the
software will mak e a new data retrieval
based on your new ca libration setting. The new calibration setting will be
saved in the OM-DLTT and apply to all future recordings.
8
Page 9
OM-DLTT Two Temperature Data Logger
BATTERY REPLACEMENT
The OM-DLTT Data Logger uses a 9-Volt Alkaline battery, which will have an
average life of 1 year. The actual life of the battery will depend on a variety of
factors such as the temperature the battery is used in, the sampling rate of the
logger, and how often the OM-DLTT is used. Extreme temperatures will result in
reduced battery life. If the battery is exhausted during a recording, the OM-DLTT
will automatically terminate the recording and save any data recorded up to that
point. The LED will stop flashing and the OM-DLTT will not allow a new recording
to be started until the battery has been replaced. Recorded data can be retrieved regardless of the condition of the battery.
When the logger will not be used for an extended period, or when the battery is
exhausted, it is strongly recommended to remove the battery to avoid damage
to the logger from battery leakage. Use only Alkali ne ba tteries in the OM-
DLTT. Substitution of a different battery can result in reduced performance or
permanent damage to this instrument.
To replace the OM-DLTT’s battery follow the steps below:
1. Make sure the logger is not set in the recording position. If so, slide the door
open. Any temperature information recorded up to this point will not be lost
and is automatically saved.
2. Remove the rear battery cover.
3. The battery and battery clip may be extended from the battery compart-
ment to facilitate replacement.
4. Remove the battery from the battery clip and dispose of properly.
5. Line up the connector of the new battery and push onto the pins of the battery clip with a firm motion. Do NOT reverse the battery connection, even
momentarily, as this can result in loss of data or permanent damage to
the logger.
6. Place the battery in the battery compartment of the OM-DLTT.
7. Replace the battery cover.
Once the battery has been replaced it will be necessary to reset the logger’s
internal clock. Refer to the section, “Setting the Data Logger” for instructions on
how to do this.
9
Page 10
PRODUCT SPECIFICATIONS
OM-DLTT Two Temperature Data Logger
Operating Temperature Range
(Logger)
Operating Temperature Range
(Sensors)
Storage Temperature -40°F to +170°F(-40°C to 76°C)
Time Accuracy +/- 100ppm @ 75°F
Relative Humidity Range 0 to 95% Non-condensing
Remote Temperature Probe Solid State sensor with 6 ft. long cable
Temperature Accuracy +/- 2°F (+/-1°C)
Temperature Resolution 0.1° F
Measurement Capacity 8000 Dual Temperature Data Samples
Size 2.5” x 3.6” x 1.1”
Weight 0.26 Lbs.
Power Source 9 Volt Alkaline Battery
Battery Life 1 year (avg.)
Software WIN 3.1x/95/98 Interface Software with
+10°F to +130°F(-12°C to 55°C)
-40°F to +150°F(-40°C to 65°C)
and 4” stainless steel submersible tip,
probes are field interchangeable
6 ft. connecting cable and Pa r all el Port

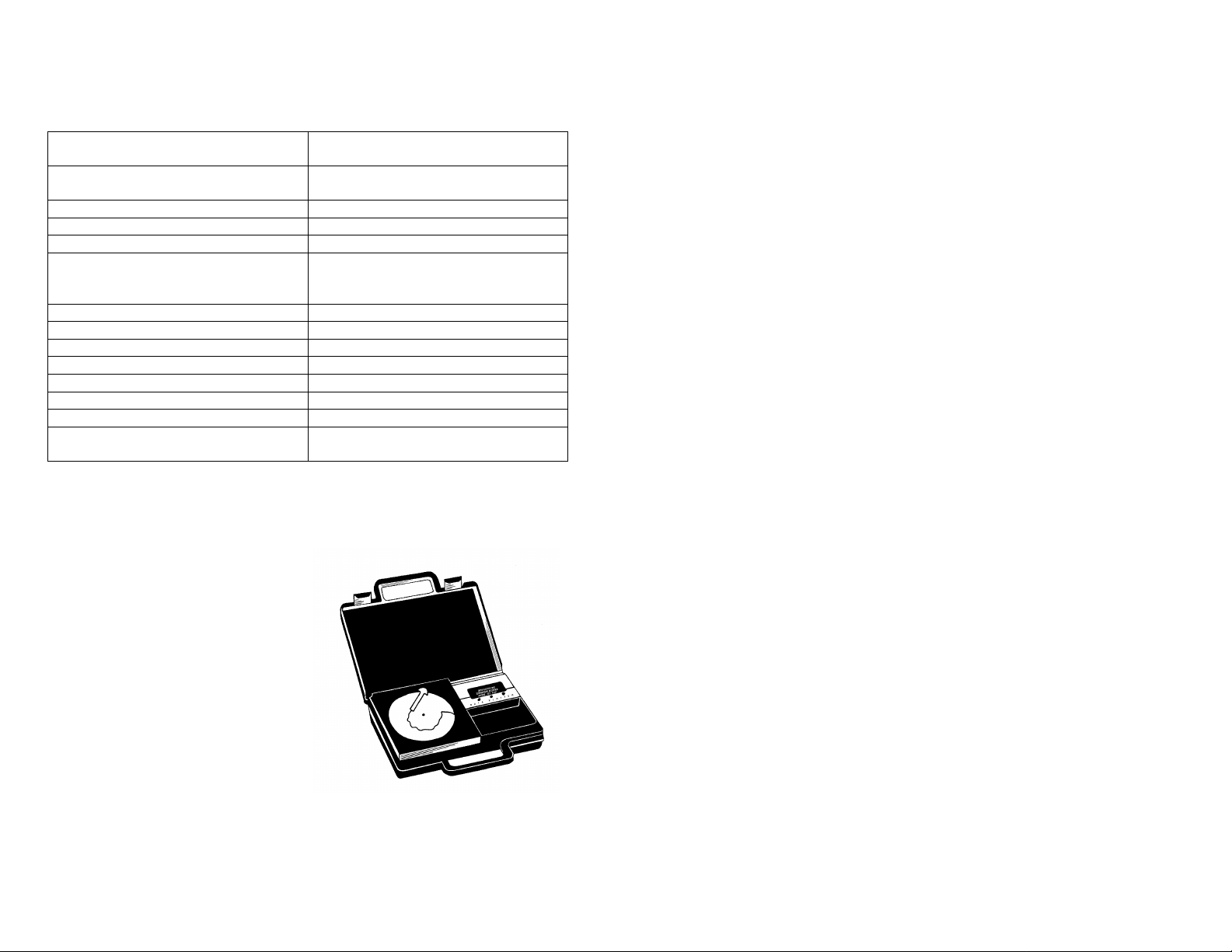

OM-DP3 DATA PLOTTER
The OM-DP3 is an optional accessory
instrument that allows the user to
retrieve data and program OM-DLTT
data loggers in the field without the
need of a computer. Using the OMDP3 you can plot recorded inf ormation
from a data logger or change the
settings of a data logger prior to
making a different data recording. The
OM-DP3 can be operated from
batteries or from the supplied AC
adapter. The OM-DP3 uses a series of
structured menus to provide a user
friendly intuitive style of operation. The
OM-DP3 also serves as a conventional
temperature recorder.
10
Loading...
