OM-DLTH Temperature/Humidity Logger

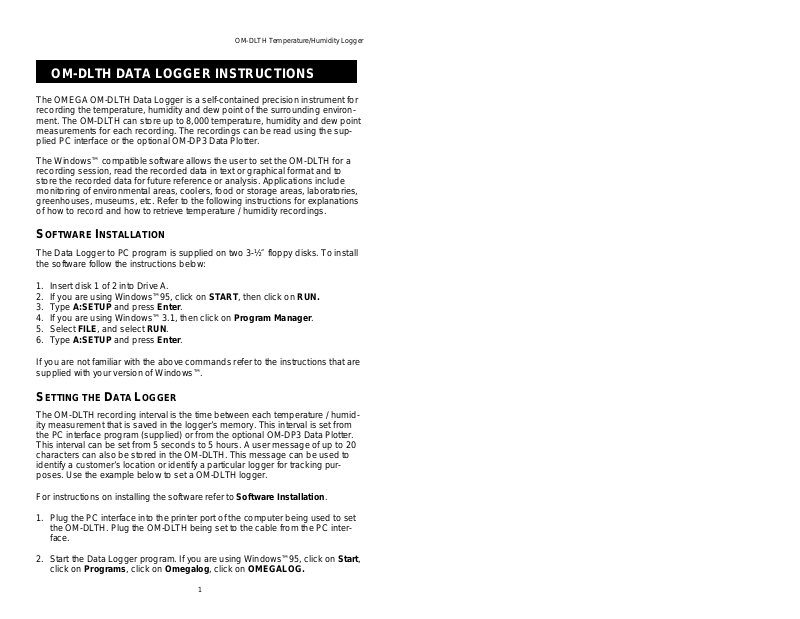

OM-DLTH DATA LOGGER INSTRUCTIONS
The OMEGA OM-DLTH Data Logger is a self-contained precision instrument for
recording the temperature, humidity and dew point of the surrounding environment. The OM-DLTH can store up to 8,000 temperature, humidity and dew point
measurements for each recording. The recordings can be read using the supplied PC interface or the optional OM-DP3 Data Plotter.
The Windows™ compatible software allows the user to set the OM-DLTH for a
recording session, read the recorded data in text or graphical format and to
store the recorded data for future reference or analysis. Applications include
monitoring of environmental areas, coolers, food or storage areas, laboratories,
greenhouses, museums, etc. Refer to the following instructions for explanations
of how to record and how to retrieve temperature / humidity recordings.
SOFTWARE INSTALLATION
The Data Logger to PC program is supplied on two 3-½″ floppy disks. To install
the software follow the instructions below:
1. Insert disk 1 of 2 into Drive A.
2. If you are using Windows™95, click on START, then click on RUN.
3. Type A:SETUP and press Enter.
4. If you are using Windows™ 3.1, then click on Program Manager.
5. Select FILE, and select RUN.
6. Type A:SETUP and press Enter.
If you are not familiar with the above commands refer to the instructions that are
supplied with your version of Windows™.
SETTING THE DATA LOGGER
The OM-DLTH recording interval is the time between each temperature / humidity measurement that is saved in the logger’s memory. This interval is set from
the PC interface program (supplied) or from the optional OM-DP3 Data Plotter.
This interval can be set from 5 seconds to 5 hours. A user message of up to 20
characters can also be stored in the OM-DLTH. This message can be used to
identify a customer’s location or identify a particular logger for tracking purposes. Use the example below to set a OM-DLTH logger.
For instructions on installing the software refer to Software Installation.
1. Plug the PC interface into the printer port of the computer being used to set
the OM-DLTH. Plug the OM-DLTH being set to the cable from the PC interface.
2. Start the Data Logger program. If you are using Windows™95, click on Start,
click on Programs, click on Omegalog, click on OMEGALOG.
1
Page 2
OM-DLTH Temperature/Humidity Logger
3. If you are using Windows™3.1, double-click on the window labeled Omega-
log, then double-click on the OMEGALOG icon.

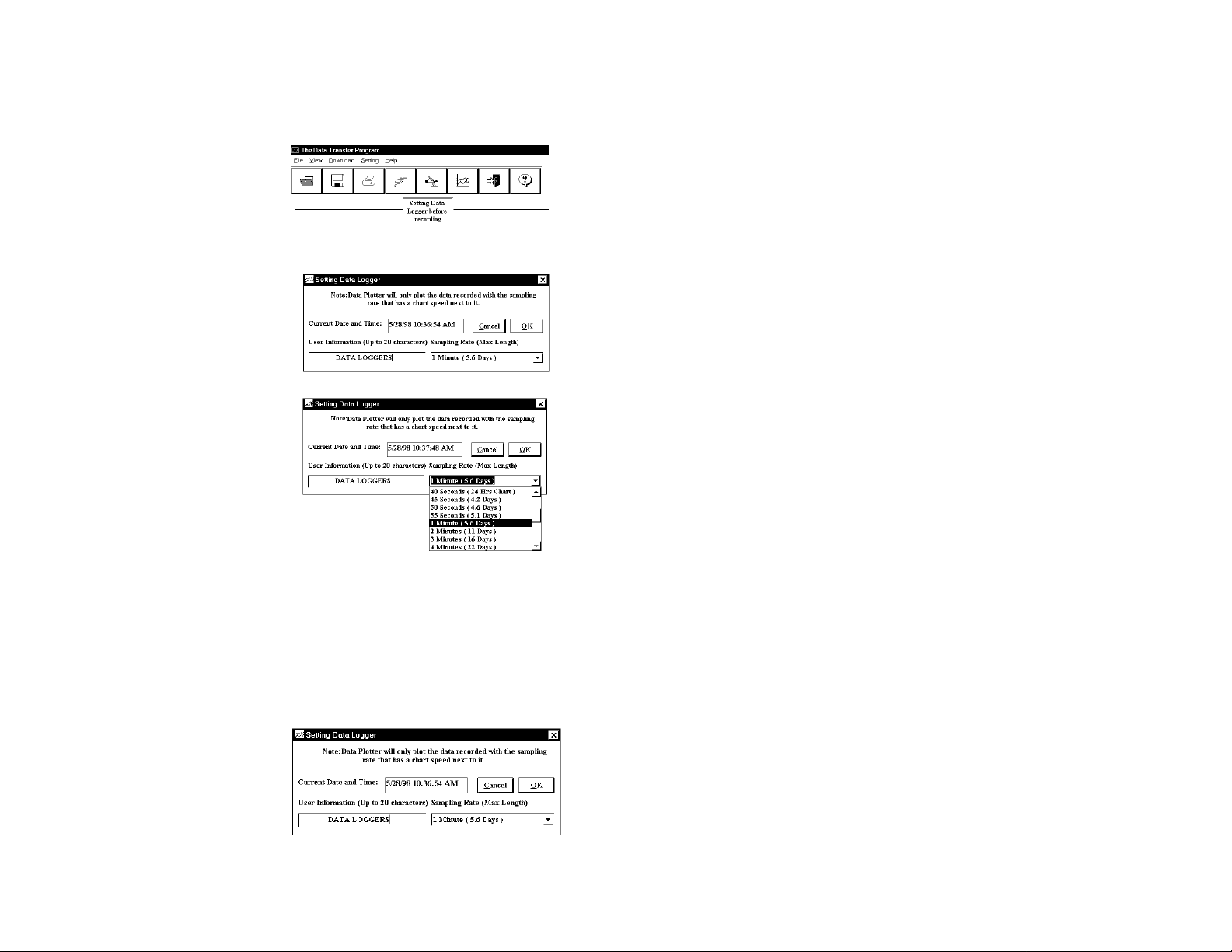

4. The program will open with a
blank window showing no text
or graph. On the toolbar
located along the top of the
screen, click on the Setting
Data Logger before recording
button. This will open a secondary window Setting Data Logger.
5. If a user message is desired,
click in the User Information
field and add t he desired
message. Note that the last
message will be displayed and
will remain until it is erased or
changed by the user.
6. To select the recording interval
click on the down arrow in the
Sampling Rate box. This will
open a drop-d own menu with the
recording interval selections. The
time shown in parenthesis is the
maximum record ing length. Note
that the maximum recording
times are indicated in
parentheses next to the recording interval.
7. The recording intervals that correspond to charts used by the OM-DP3 Data
Plotter show the appropriate chart selection instead of a maximum recording
time.
8. Click on the desired recording interval. You may need to use the up or down
arrows on the drop down menu to see more of the available recording intervals.
9. The bottom tool bar will show
the current time that is set in
the PC being used to set the
OM-DLTH. If this time is not
correct, or if for some reason
you wish to change the time set
in the OM-DLTH, use the down
arrows at each box (Year, Month, Day, Hour, Minute) to open a drop down
menu that will allow the displayed number to be changed.
2
Page 3
OM-DLTH Temperature/Humidity Logger
10. When all of the settings for the OM-DLTH are to your satisfaction, click on OK
to store the setting in the OM-DLTH and to close the window.
11. The OM-DLTH is now set and ready to begin a new recording. Disconnect
the OM-DLTH from the PC interface.
12. You can now connect a different OM-DLTH or exit the program. To exit the
program click on the Exit button on the tool bar.
TO START A RECORDING
Prior to starting a new recording be sure that the OM-DLTH is set for the required recording interval. You may also wish to add a descriptive message to
identify the location or other important user information. Refer to Setting the
Data Logger for specific instructions on selecting recording intervals and storing
user messages.

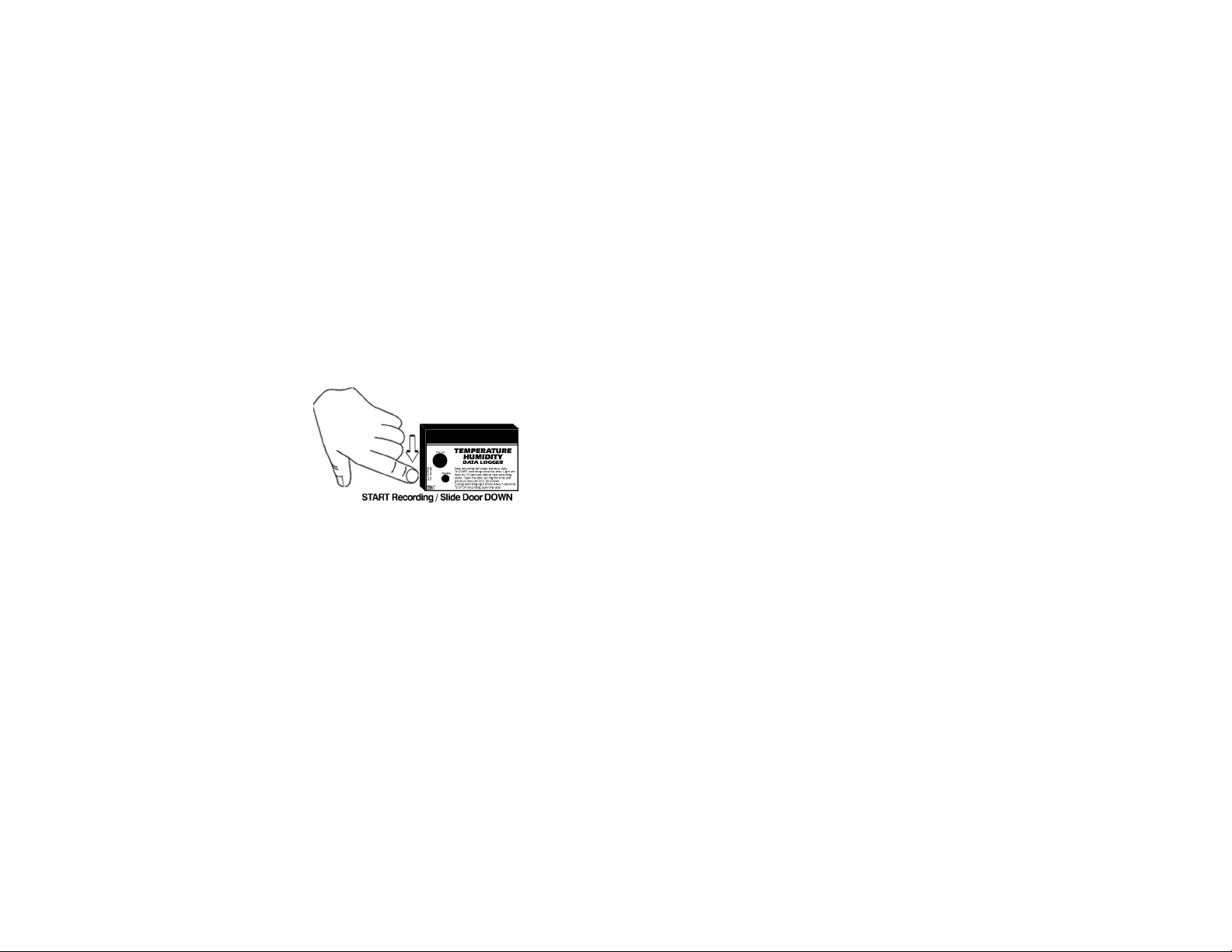

To begin a new recording slide the
access door closed. The LED ind i ca tor
will begin to flash for 10 seconds.
During this period the recording can
be can celed without l osing the data
previ o usly re c orded. When the LED
indicator stops flashing, a new
recording has begun and any previous
data has been erased. The recording function can be “locked” on by passing a
Ty-Wrap™ or similar restriction through the logger-mounting opening. This can
be used to prevent accidental or intentional disruptions of a recording.
The LED will flash every 5 seconds to indicate operation. A bright flash of the
LED is used to indicate the temperature and humidity has been sampled and
recorded. A dim flash is used to indicate the OM-DLTH is operating properly and
the temperature and humidity have not been sampled or recorded. The LED
indicator will continue to flash until, the user stops the recording, or when the
memory has reached its maximum capacity of 8,000 samples.
NOTE: If the battery is exhausted during a recording, the OM-DLTH will
automatically terminate the recording and save any tem per ature and humidity data recorded up to that point. The LED will stop flashing and the
OM-DLTH will not allow a new recording to be started until the battery has
been replaced. Recorded data can be retrieved regardless of the condition
of the battery.
3
Page 4
OM-DLTH Temperature/Humidity Logger
TO STOP A RECORDING

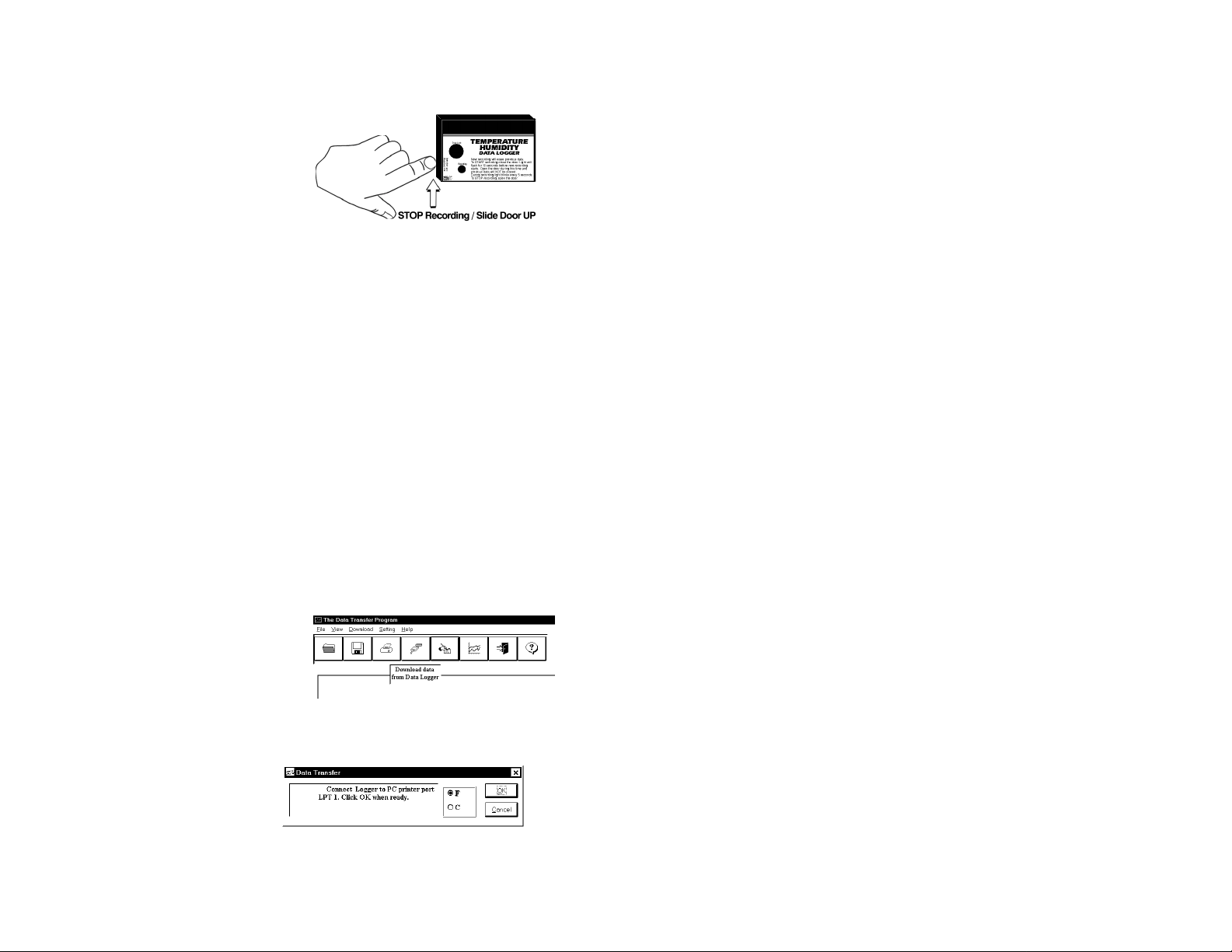

Slide the access door open. If locked,
first remove restriction device. The
LED indicator will stop flashing. The
recorded data can now be retrieved
using the supplied Windows™
compatible software and PC interface
or the recording can be plotted on a
circular chart using the optional OM-DP3 Data Plotter.
NOTE: Do not close the door until a new recording is desired! It is important
to leave the door open until you want to start a new recording. Starting a new
recording now will erase any previous recording. To prevent accidental ending
of recordings the access door of the OM-DLTH can be “locked” open by passing a Ty-Wrap™ or similar restriction through the lock opening. The recording
will remain in the OM-DLTH until a new recording is started. The recordings may
be retrieved as many times as required or the battery can be removed with no
effect on the stored data.
RETRIEVING TEMPERATURE RECORDINGS
1. Plug the PC interface into the printer port of the computer being used to set
the OM-DLTH. Plug the OM-DLTH being set to the cable from the PC interface.
2. Start the Data Logger program. If you are using Windows™ 95, click on Start,
click on Programs, click on Omegalog, click on OMEGALOG.
3. If you are using Windows™ 3.1, double-click on the window labeled
Omegalog, then double-click on the OMEGALOG icon.
4. The program will open with a blank
window showing no text or graph.
On the toolbar located along the
top of the screen click on the
Download data from Data Logger
button. A Data Transfer window
will open. A message will be displayed to connect the OM-DLTH to the
printer port. Connect the OM-DLTH now if it is not already connected.
5. To the right of the connect
message a selection box will
allow you to select the
temperature information in
Celsius or Fahrenheit. Click on the desired scale, °F or °C.
4
Page 5
OM-DLTH Temperature/Humidity Logger
6. Click on OK. The program will begin to retrieve the recording. A status bar
along the top of the window will show the progress of information being retrieved. When the information has been retrieved, the program will automatically display the recording as a text listing.
7. When the information has been retrieved, the program will automatically display the recording as a text listing.

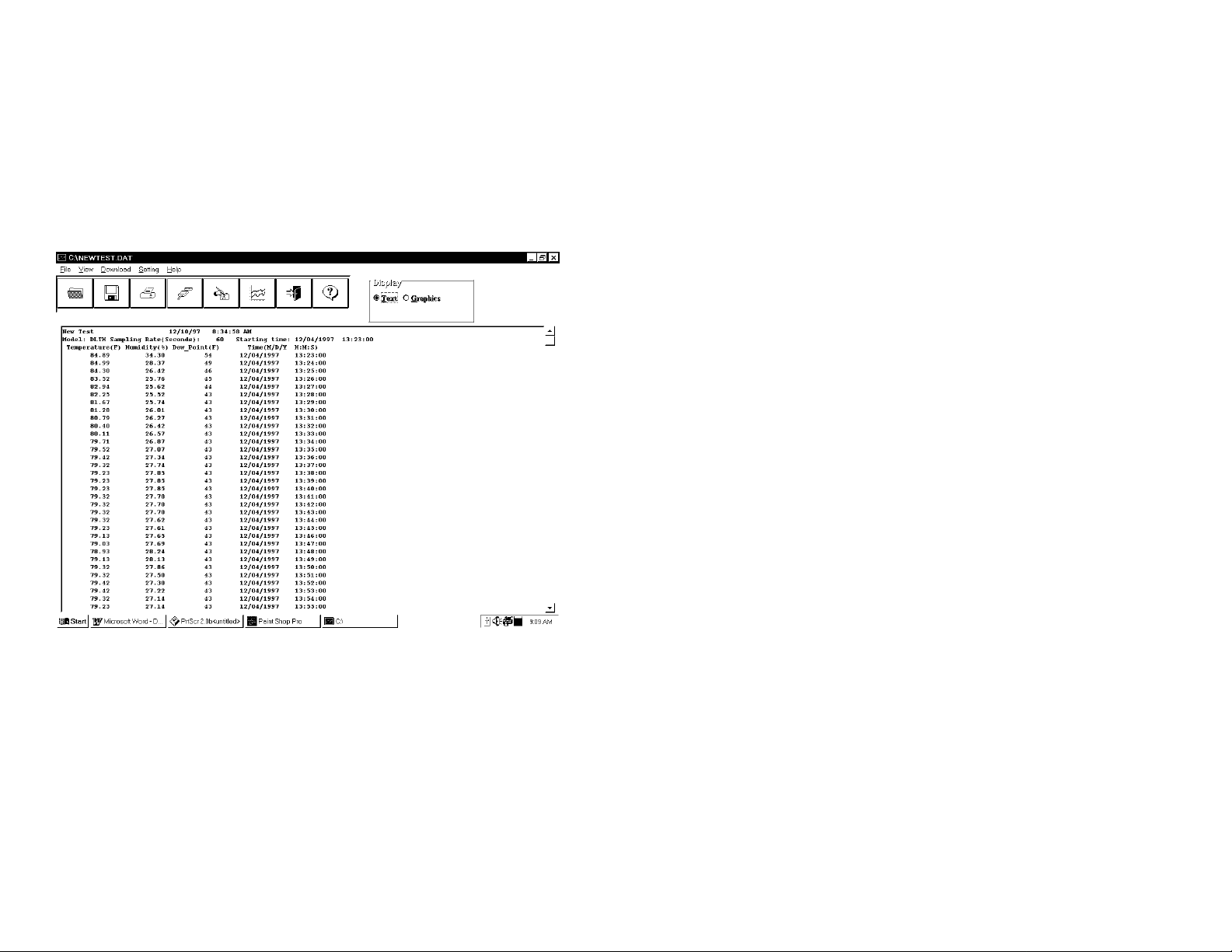

Example of Text Listing Screen:
5
Page 6
OM-DLTH Temperature/Humidity Logger
VIEWING A RECORDING AS A GRAPH

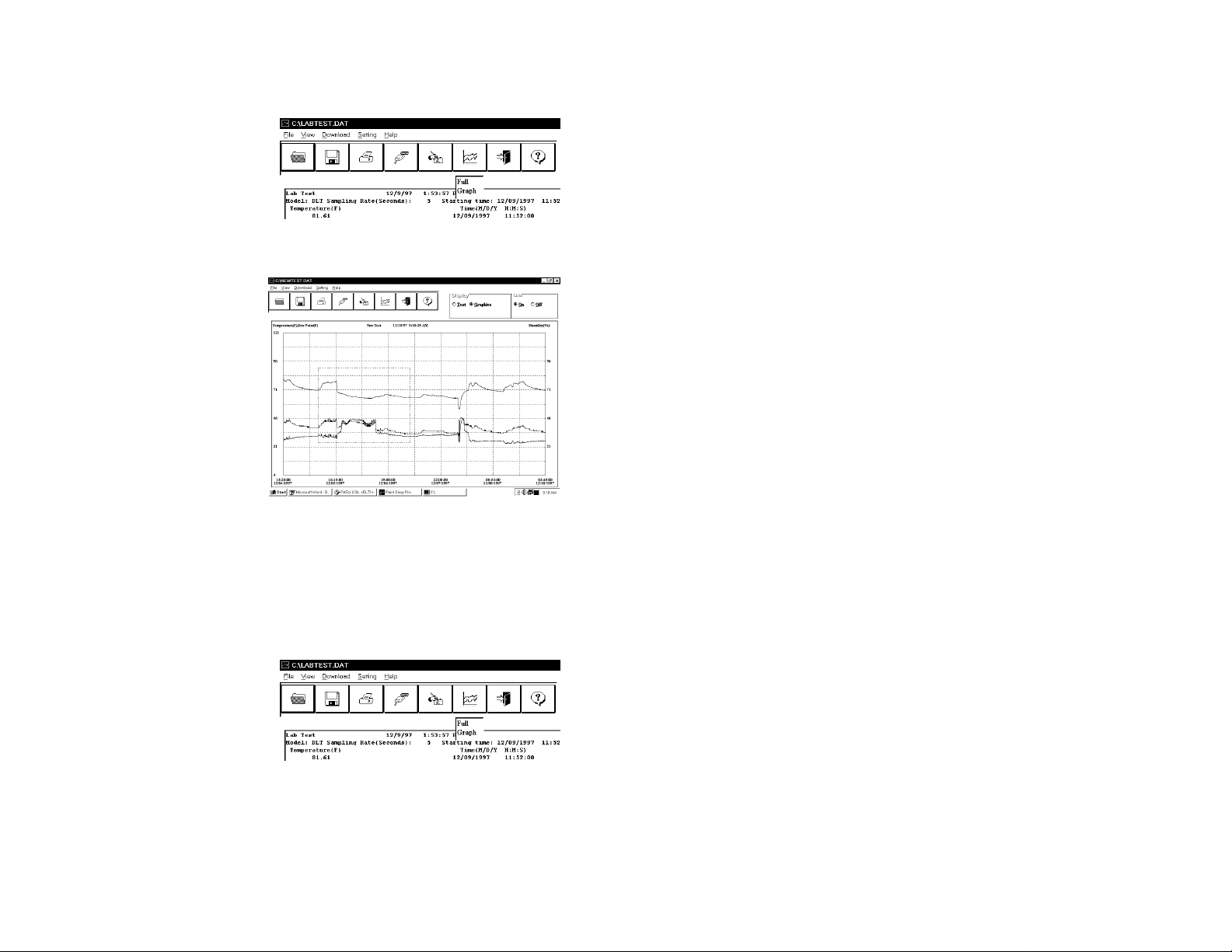

1. To view a graph of the
recording click on the Full
Graph button. The program
will display the entire
recording as a plotted graph
with the temperature,
humidity and dew point on
the vertical scale and the time on the horizontal scale. For clarity each parameter is a different color. Note the legend at the top of the screen.
2. To zoom to a particular part
of the graph place the
mouse cursor in a corner of
an imaginary box that will
enclose the area of interest.
Press and hold the left
mouse button and move the
cursor in a diagonal
direction from the original
position of the cursor. A
dashed line forming a box
will be displayed.
3. Move the cursor until the box encloses the area of interest and release the
left mouse button.
4. The box will now be stationary on the screen. Move the mouse cursor so that
it is inside the box and click the left mouse button.
5. The enclosed area of the box will now be zoomed so that it fills the entire
window. This may be repeated if additional magnification of an area of the
graph is desired.
6. To return to the original graph
click on the Full Graph
button.
6
Page 7
OM-DLTH Temperature/Humidity Logger

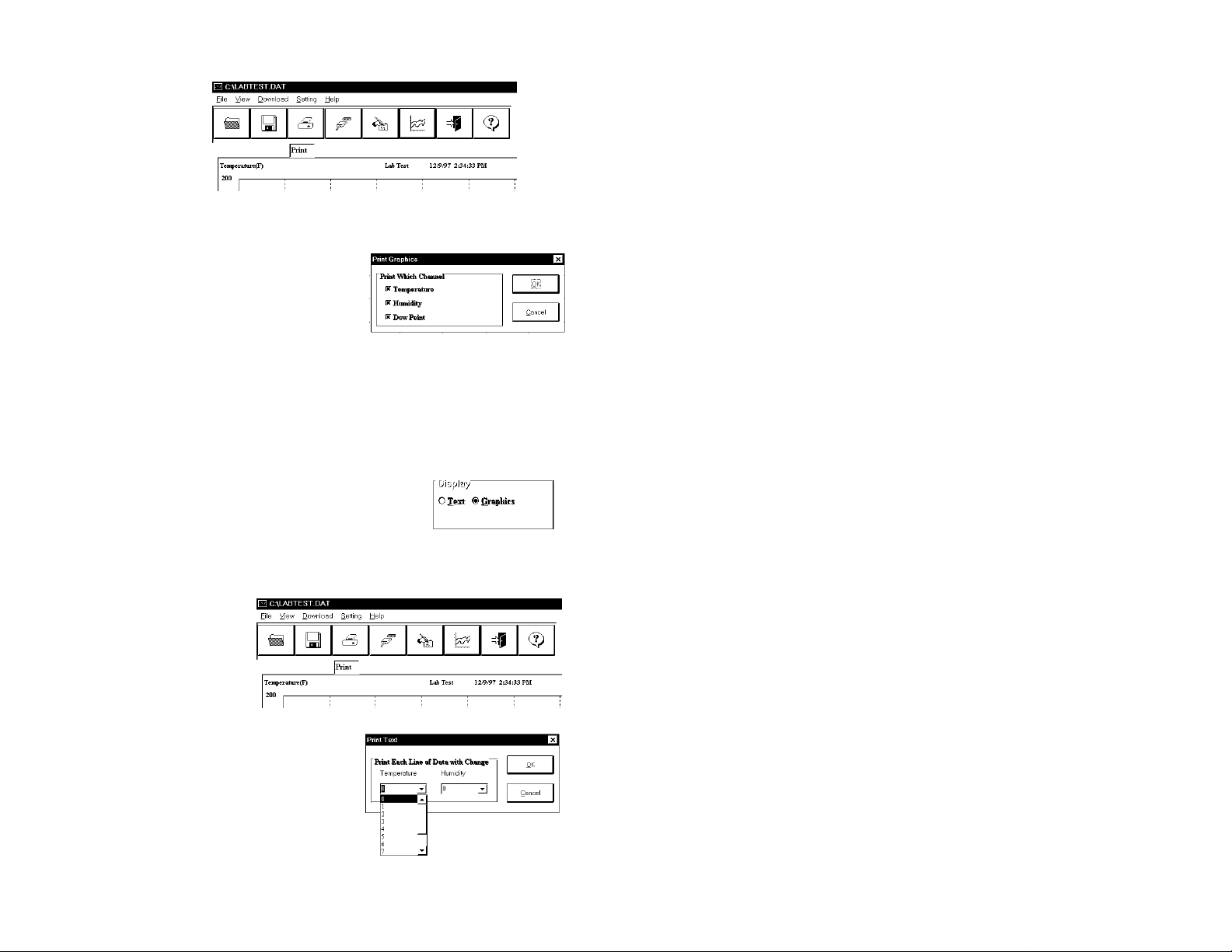

7. The graph on the
screen may be
printed at any time
by clicking on the
Print button. Note
that the printout
will be what is
displayed on the screen when the button is clicked.
8. A window will open in the middle of the
screen. You can select temperature, humidity
or dew point to print by selecting each box.
When you have selected which items to print
click OK, or click Cancel of you change your
mind.
VIEW A RECORDING AS TEXT
1. When a recording is first retrieved or when a saved recording is opened, the
default form at is a text table o f the recording.
2. To view a recording as text when a graph is on the
screen click the Text button located in the display
box.
3. Use the Windows™ scroll bar on the right hand side
of the screen to scroll through the text information.

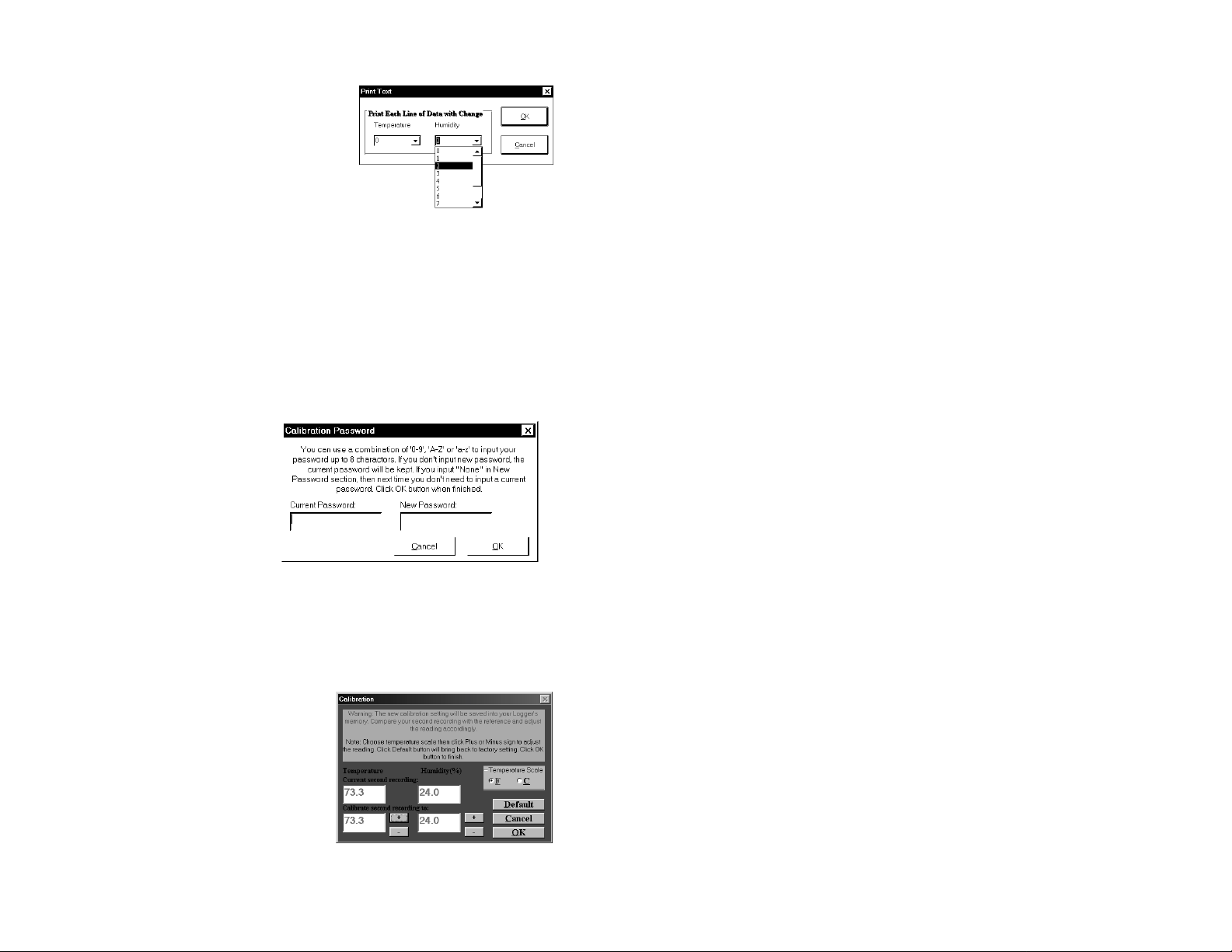

4. To print the text
information as text data
click on the Print Button.
A window will open in the
middle of the screen. In
the lower left of the
window will be a drop-down menu which
will allow you to select the number of degrees the temperature has to change before the new value is printed or the percent
of humidity that has to change before a
new value is printed. This feature will prevent needless printing of the temperature
and humidity when no change has occurred. If you wish to print all the recorded
information, leave this value at zero. Typically only one channel will be used as a filter. It is possible, however, to filter
7
Page 8
OM-DLTH Temperature/Humidity Logger
both the temperature and humidity channels independently of each other to provide maximum flexibility for this filter function.
5. When you have selected the amount of
temperature or humidity change to print (if
any), click on the OK button to start printing.
DATA LOGGER CALIBRATION
You can calibrate the OM-DLTH data logger to make its reading match an external reference or standard. Set the OM-DLTH sampling rate long enough to allow
the logger to stabilize at the reference temperature and humidity and make a
recording along with an external reference in a controlled environment such as a
temperature / humidity chamber.
The calibration routine will use the second recording sample to make the logger
reading match with the external
reference. Click Tools on the
menu and click Calibrate Logger.
A calibration password window
will open. Type your password in
the Current Password section. If
you want to have a new password
next time, you can type a new
password in the New Password
section. Click the OK button when
finished. If this is the first time you
are calibrating the OM-DLTH, no password is needed. You can click the OK
button or press the Enter key to continue. If you have typed a password before
and you don’t want password protection for the calibration function, you can
input None as the new password and this will clear the password protection.
After you type the correct current password and click OK, a calibration window
will open. You can click the plus or minus
button to make the data logger reading
match with the reference reading that you
recorded at the same time and same pla ce
with the OM-DLTH. Click the OK butto n
and the software will make a new data
retrieval based on your new calibration
setting. The new calibration setting will be
saved in the OM-DLTH and apply to all
future recordings.
8
Page 9
OM-DLTH Temperature/Humidity Logger
BATTERY REPLACEMENT
The OM-DLTH Data Logger uses a 9-volt Alkaline battery (not supplied) which
will have an average life of 1 year. The actual life of the battery will depend on a
variety of factors such as the temperature the battery is used in, the sampling
rate of the logger, and how often the OM-DLTH is used. Extreme temperatures
will result in reduced battery life. If the battery is exhausted during a recording,
the OM-DLTH will automatically terminate the recording and save any data recorded up to that point. The LED will stop flashing and the OM-DLTH will not
allow a new recording to be started until the battery has been replaced. Recorded data can be retrieved regardless of the condition of the battery. Use only
Alkaline batteries. Substitution of a different battery c a n result in reduced
performance or permanent damage to thi s instrument.
To replace the OM-DLTH’s battery follow the steps below:
1. Make sure the logger is not set in the recording position. If so, slide the door
open. Any information recorded up to this point will not be lost and is automatically saved.
2. Remove the rear battery cover.
3. The battery and battery clip may be extended from the battery compartment
to facilitate replacement.
4. Remove the battery from the battery clip and dispose of properly.
5. Line up the connector of the new battery and push onto the pins of the battery clip with a firm motion. Do NOT reverse the battery connecti on, even
momentarily, as this can result in loss of data or permanent damage to
the logger.
6. Place the battery in the battery compartment of the OM-DLTH.
7. Replace the battery cover.
Once the battery has been replaced it will be necessary to reset the logger’s
internal clock. Refer to the section Setting the Data Logger for instructions on
how to do this.
9
Page 10

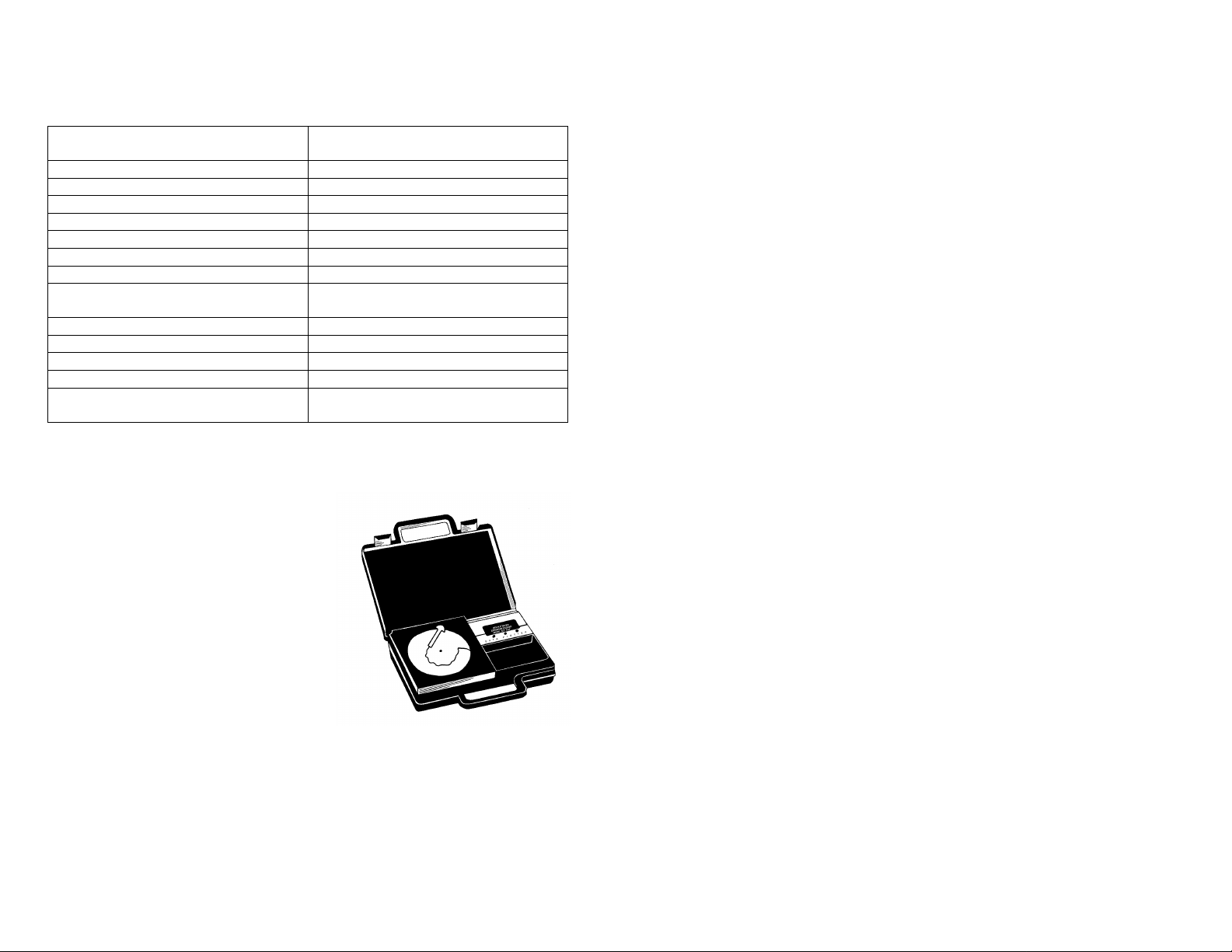

OM-DLTH Temperature/Humidity Logger
PRODUCT SPECIFICATIONS
Ambient Operating
Temperature Range
Storage Temperature -40°F to +170°F, (-40°C to 76°C)
Time Accuracy +/- 100ppm @ 75°F
Relative Humidity Range 0 to 100% non-condensing
Relative Humidity Accuracy +/- 2%
Relative Humidity Resolution 0.1%
Temperature Accuracy +/- 2°F (1°C)
Temperature Resolution 0.1° F
Measurement Capacity 8000 Temperature / Humidity /
Size 2.5” x 3.6” x 1.1”
Weight 0.26 lbs.
Power Source 9 Volt Alkaline Battery
Battery Life 1 year (avg.)
Software WIN 3.1x/95/98 Interface Software with
+10°F to +140°F, (-12°C to 60°C)
Dew Point Data Samples
6 ft. connecting cable and Pa r all el Port
OM-DP3 DATA PLOTTER
The OM-DP3 is an optional accessory
instrument that allows the user to retrieve
data and program OM-DP3 data loggers
in the field without the need of a
computer. Using the OM-DP3 you can
plot recorded information from a data
logger or change the settings of a data
logger prior to making a different data
recording. The OM-DP3 can be operated
from batteries or from the supplied AC
adapter. The OM-DP3 uses a series of
structured menus to provide a user
friendly intuitive style of operation. The
OM-DP3 also serves as a conventional
temperature recorder.
10
Loading...
