Event Data Logger

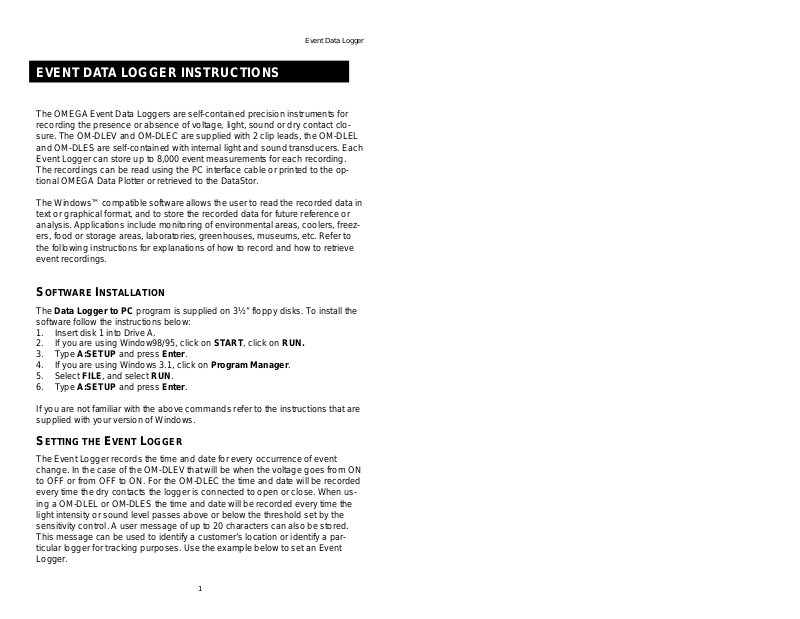

EVENT DATA LOGGER INSTRUCTIONS
The OMEGA Event Data Loggers are self-contained precision instruments for
recording the presence or absence of voltage, light, sound or dry contact closure. The OM-DLEV and OM-DLEC are supplied with 2 clip leads, the OM-DLEL
and OM-DLES are self-contained with internal light and sound transducers. Each
Event Logger can store up to 8,000 event measurements for each recording.
The recordings can be read using the PC interface cable or printed to the optional OMEGA Data Plotter or retrieved to the DataStor.
The Windows™ compatible software allows the user to read the recorded data in
text or graphical format, and to store the recorded data for future reference or
analysis. Applications include monitoring of environmental areas, coolers, freezers, food or storage areas, laboratories, greenhouses, museums, etc. Refer to
the following instructions for explanations of how to record and how to retrieve
event recordings.
SOFTWARE INSTALLATION
The Data Logger to PC program is supplied on 3½” floppy disks. To install the
software follow the instructions below:
1. Insert disk 1 into Drive A.
2. If you are using Window98/95, click on START, click on RUN.
3. Type A:SETUP and press Enter.
4. If you are using Windows 3.1, click on Program Manager.
5. Select FILE, and select RUN.
6. Type A:SETUP and press Enter.
If you are not familiar with the above commands refer to the instructions that are
supplied with your version of Windows.
SETTING THE EVENT LOGGER
The Event Logger records the time and date for every occurrence of event
change. In the case of the OM-DLEV that will be when the voltage goes from ON
to OFF or from OFF to ON. For the OM-DLEC the time and date will be recorded
every time the dry contacts the logger is connected to open or close. When using a OM-DLEL or OM-DLES the time and date will be recorded every time the
light intensity or sound level passes above or below the threshold set by the
sensitivity control. A user message of up to 20 characters can also be stored.
This message can be used to identify a customer’s location or identify a particular logger for tracking purposes. Use the example below to set an Event
Logger.
1
Page 2
Event Data Logger
1. Plug the PC interface cable (OM-DLS) into the printer port of the computer
being used. Plug the Event Logger being set to the cable from the PC interface.
2. Start the Data Logger program. If you are using Windows 98/95, click on
Start, click on Programs, click on Omegalog, click on OMEGALOG.
3. If you are using Windows 3.1, double-click on the window labeled Omega-
log, then double-click on the OMEGALOG icon.

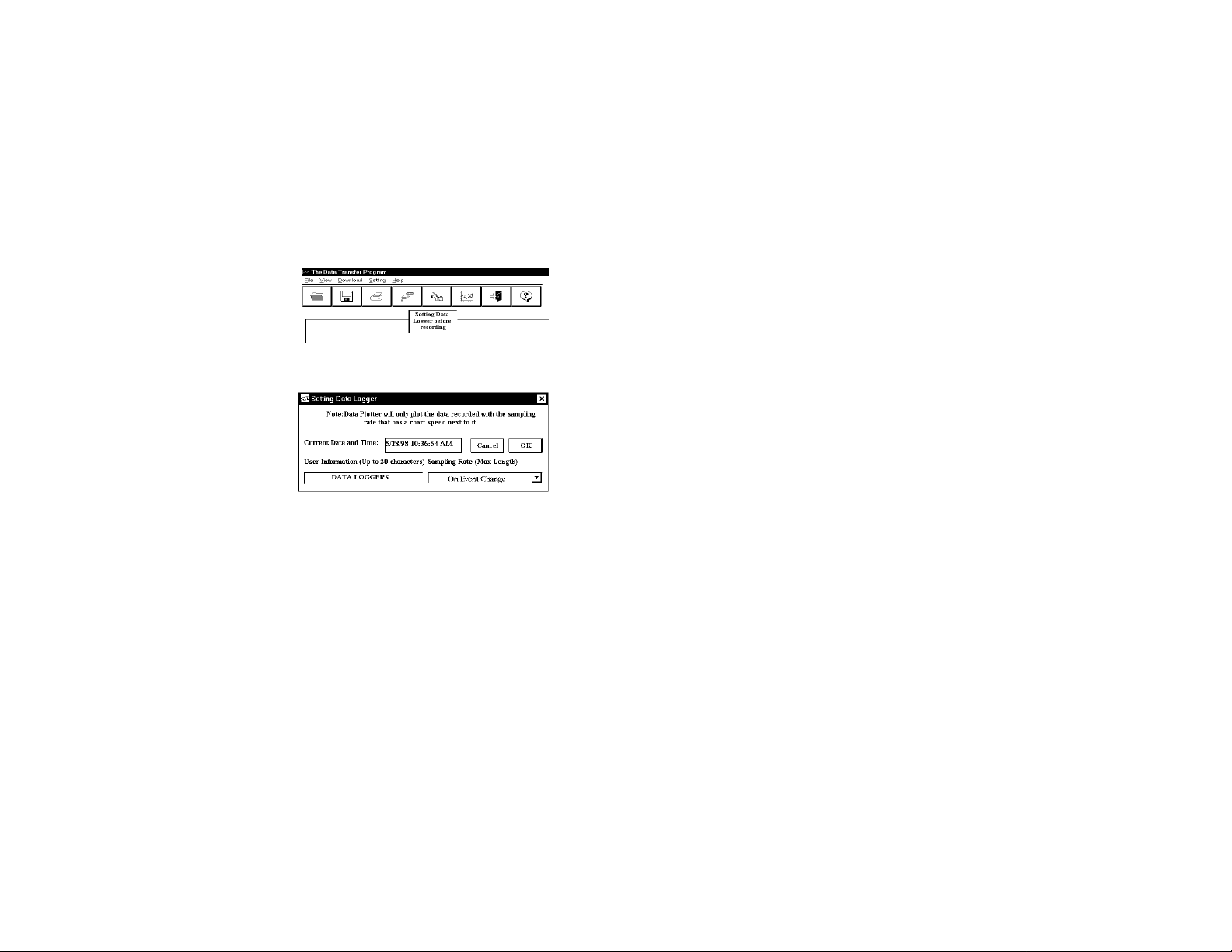

4. The program will open with a
blank window showing no text
or graph. On the toolbar located
along the top of the screen, click
on the Setting Data Logger
before recording button. This
will open a secondary window Setting Data Logger.
5. All Event Loggers record on
event change. That means
there is no recording interval to
set. The setting window will
allow you to update the clock in
the Event Logger and also to
enter a user message. If a user
message is desired, click in the User Information field and add the desired
message. Note that the last message entered will be displayed and will remain until it is erased or changed by the user.
6. The time and date the logger is set to will be the same time as the PC clock.
It is important to make sure the time set in the PC is correct. The PC time
will be displayed as the Current Date and Time in the setting window. Refer
to the owner’s manual for your computer to find instructions on setting the
PC time if it is not correct.
7. When all of the settings are to your satisfaction, click on OK to store the
setting and to close the window.
8. The Event Logger is now set and ready to begin a new recording. Discon-
nect the Event Logger from the PC interface. Note that all four Event Loggers are set by using the same procedure.
9. To exit the program click on the Exit button on the tool bar.
2
Page 3
Event Data Logger

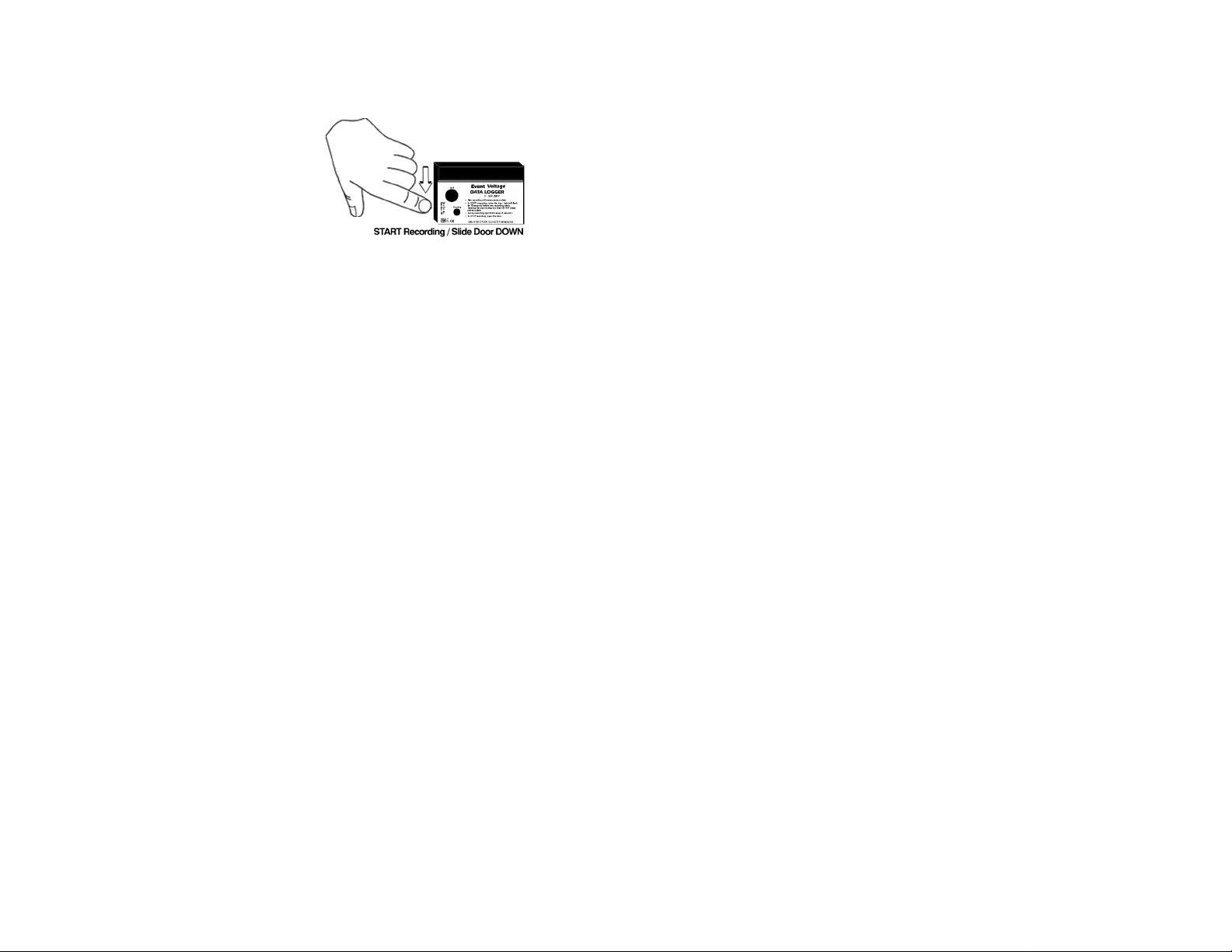

TO START A RECORDING
To begin a new recording slide the access door closed. The LED indi ca tor wi ll
begin to f l ash for 10 seconds. Duri ng
this period the recording can be canceled without losing the data previously
recorded. When the LED indicator stops
flashing, a new recording has begun
and any previous data has been erased.
The Event Logger recording function can be “locked” on by passing a TyWrap™ or similar restriction through the logger-mounting opening. This can be
used to prevent accidental or intentional disruptions of an event recording.
The LED will flash every 10 seconds to indicate operation. A bright flash of the
LED is used to indicate that an event function has occurred and been recorded.
This is also how the sensitivity control is adjusted if you are using a OM-DLEL or
OM-DLES. A dim flash is used to indicate the Event Logger is operating properly
and no event functions have occurred or have been recorded. The LED indicator
will continue to flash until the user stops the recording, or the memory has
reached its maximum capacity of 8,000 event samples.
NOTE: If the battery is exhausted during a recording the Event Logger will
automatically terminate the recording and save any tem per ature data recorded up to that point. The LED will stop flashing and the Event Logger will
not allow a new recording to be started until the battery has been replaced.
Recorded data can be retrieved regardles s of the condition of the battery.
SETTING THE SENSITIVITY CONTROL
The OM-DLEL and OM-DLES both have a sensitivity control that allows the user
to set the threshold of light or sound intensity that triggers an event recording.
The easiest way of setting the control is to start a test recording and turn the
sensitivity control to the middle of its range. Turn the control so that the LED
gives a bright flash when the light or sound increases (ON) and a bright flash
when the sound or light decreases (OFF). In some cases the maximu m so und or
light level will be beyond the range of the control so the best result will be to set
the sensitivity range above the minimum level far enough that false triggering will
not occur. After the sensitivity control is set the recording can be terminated and
a new recording started to capture the actual event information.
3
Page 4
Event Data Logger
CONNECTING THE OM-DLEV
Plug each clip lead firmly into the OM-DLEV. Make sure that there is no strain
that could pull the clip leads out of the OM-DLEV socket. Attach the clip leads
from the interface box to the points being measured. The polarity of the leads is
not important.
MAKE SURE THE EQUIPMENT POWER IS OFF BEFORE CONNECTING
THE LEADS!
CAUTION!
Electrical connection to an y type of operating equipment is Dangerous.
The OM-DLEV leads shoul d only be connected when it h as been
determined that the power is off and the equipment is safe to touch!
CONNECTING THE OM-DLEC
Plug each clip lead firmly into the OM-DLEC. Make sure that there is no strain
that could pull the clip leads out of the OM-DLEC socket. Attach the clip leads
from the interface box to the dry contacts being measured. The OM-DLEC can
only be connected to dry contacts. The polarity of the leads is not important.
DO NOT connect the OM-DLEC leads to any contacts that have electrical
power applied. This will cause permanent damage to the OM-DLEC!

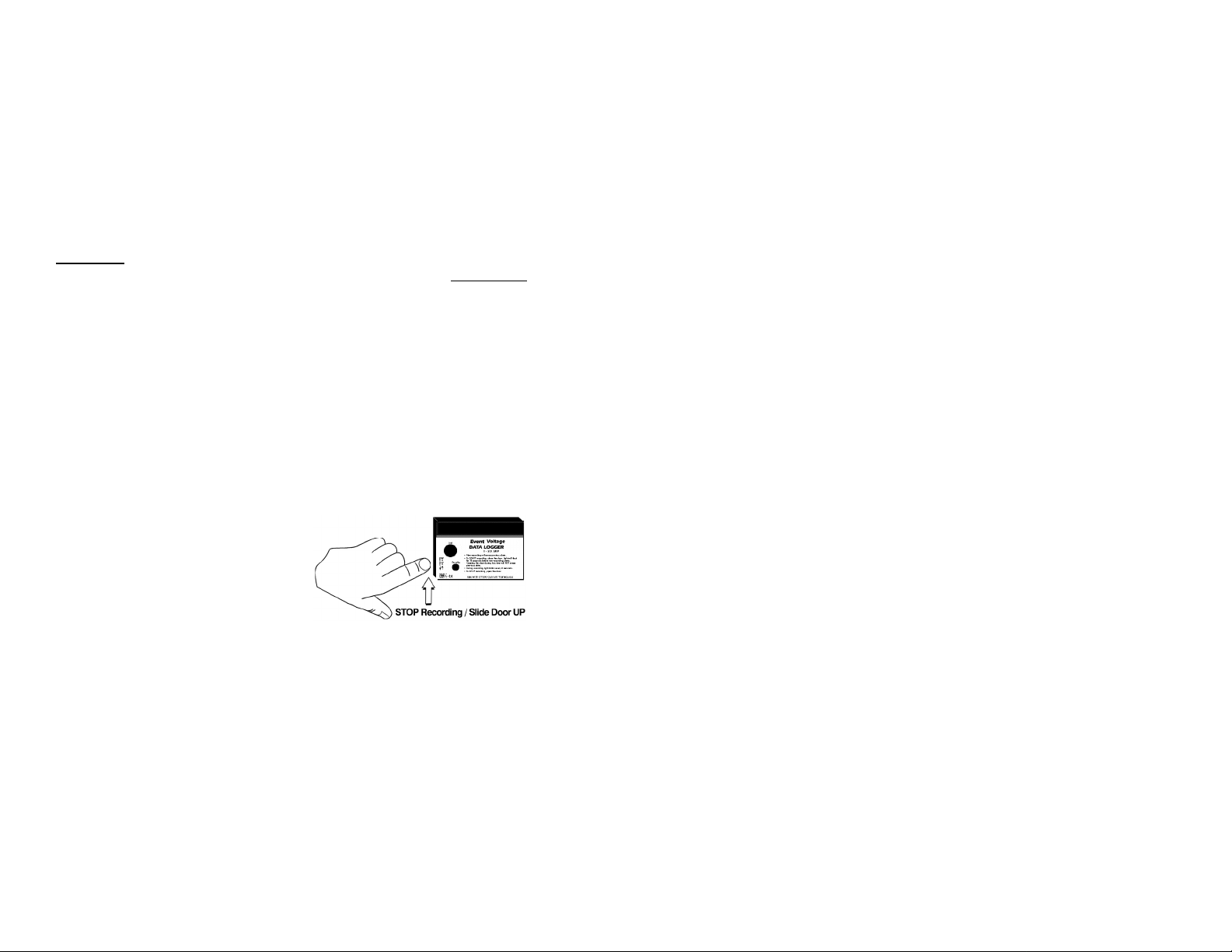

TO STOP A RECORDING
Slide the access door open (If locked,
first remove the restriction device). The
LED indicator will stop flashing. The
recorded event information can be
retrieved using the Windows compatible software and PC interface cable, or

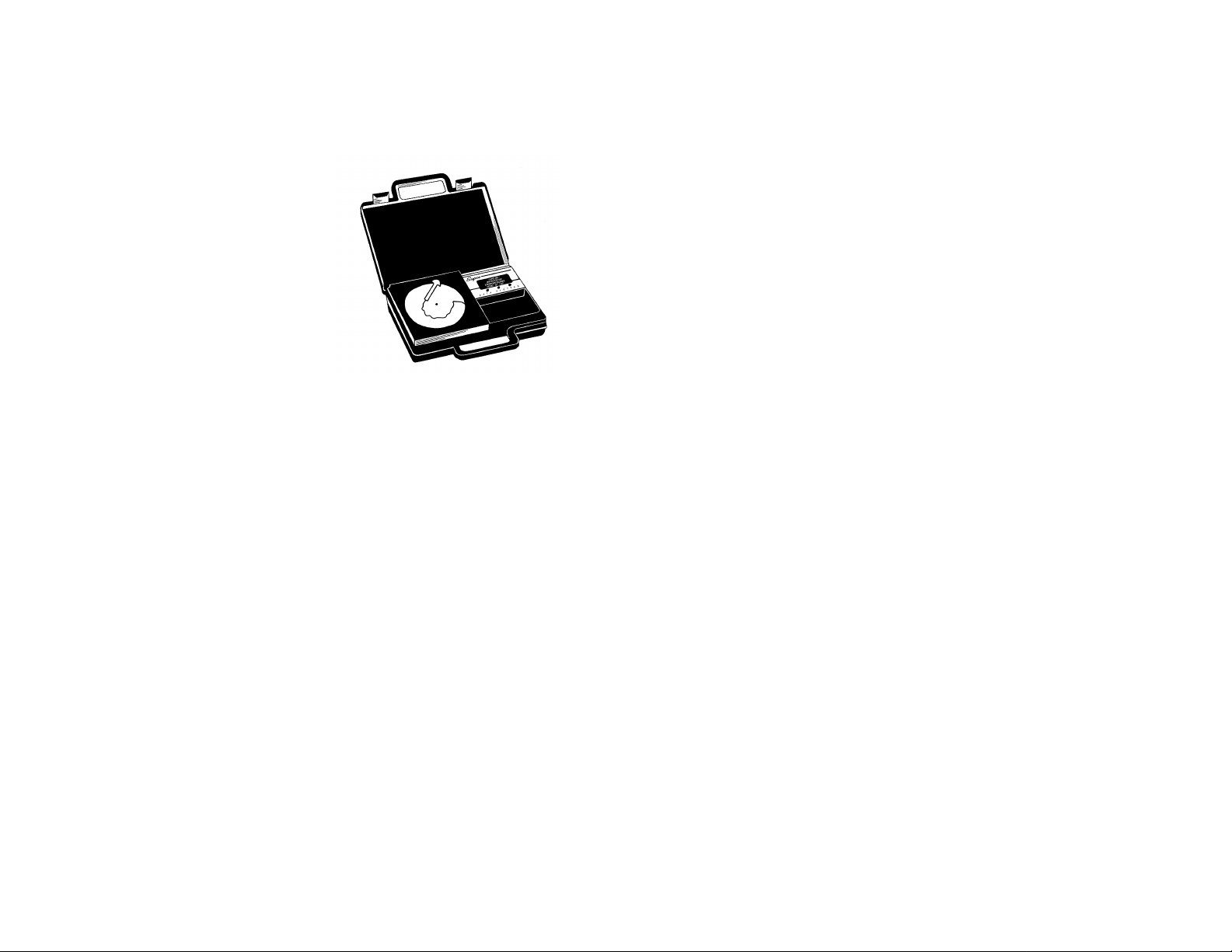

the event recording can be plotted on a circular chart using the optional OMEGA
Data Plotter OM-DP3 or retrieved to the DataStor. NOTE: Do not close the door
until a new recording is desired! It is important to leave the door open until
you want to start a new recording. Starting a new recording now will erase any
previous recording. To prevent accidental erasing of recordings the sliding access door of the Event Logger can be “locked” open by passing a Ty-Wrap™ or
similar restriction through the lock opening. The event recording will remain in
the Event Logger until a new recording is started. The recordings may be retrieved as many times as required or the battery can be removed with no effect
on the stored data.
4
Page 5
Event Data Logger
RETRIEVING EVENT RECORDINGS
1. Plug the PC interface cable into the printer port of the computer being used.
2. If you are using Windows 98/95, click on Start, click on Programs, click on
Omegalog, click on OMEGALOG.
3. If you are using Windows 3.1, double-click on the window labeled Omega-
log, then double-click on the OMEGALOG icon.

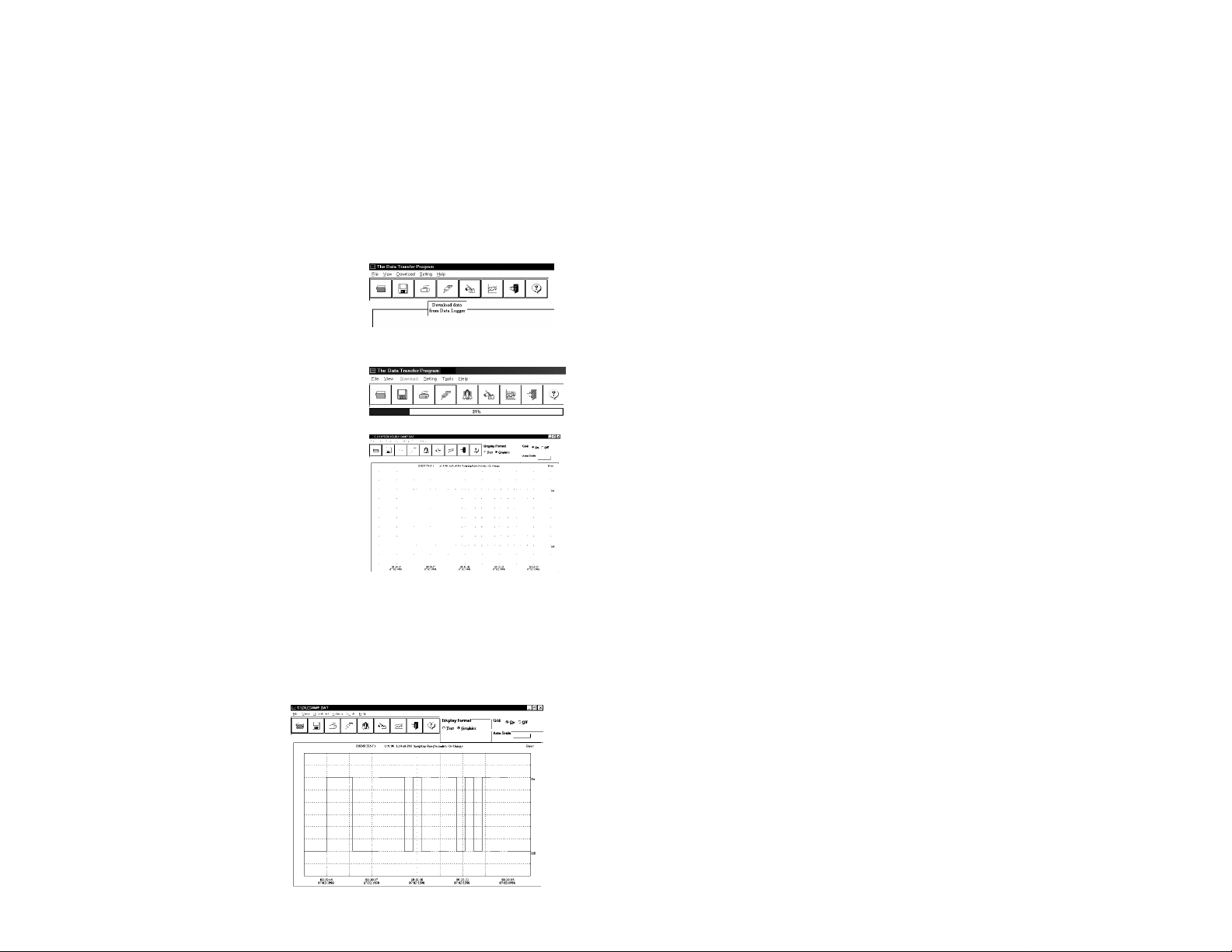

4. The program will open with a blank
window showing no text or graph. On the
toolbar located along the top of the screen
click on the Download data from Data
Logger button. When you click this button
the program will retrieve data from the logger immediately.
5. Along the top of the screen you will see a
progress bar to indicate that dat a is being
retrieved from the Event Logger.
Depending on the size of the recording a
Pentium based PC will take several minutes
to retrieve the information. The slower the
computer speed the longer it will take to retrieve and display information.
6. When all the data has been retrieved from
the Event Logger the screen will automatically change to an auto-scaled graphic
screen. Note the example picture on the
right.
VIEWING A RECORDING AS A GRAPH
1. After data has been retrieved from the Event Logger it is automatically displayed as a graph. The program will display the entire recording as a plotted graph with the event function on the vertical scale and the time on the
horizontal scale.
2. To zoom to a particular part of
the graph place the mouse
cursor in a corner of an
imaginary box that will enclose
the area of interest.
3. Press and hold the left mouse
button and move the cursor in
a diagonal direction from the
original position of the cursor.
5
Page 6
Event Data Logger
A dashed line forming a box will be displayed.
4. Move the cursor until the box encloses the area of interest and release the
left mouse button.
5. The box will now be stationary on the screen. Move the mouse cursor so
that it is inside the box and click
the left mouse button.
6. The enclosed area of the box will now be zoomed so that it fills the entire
window. This may be repeated if additional magnification of an area of the
graph is desired.

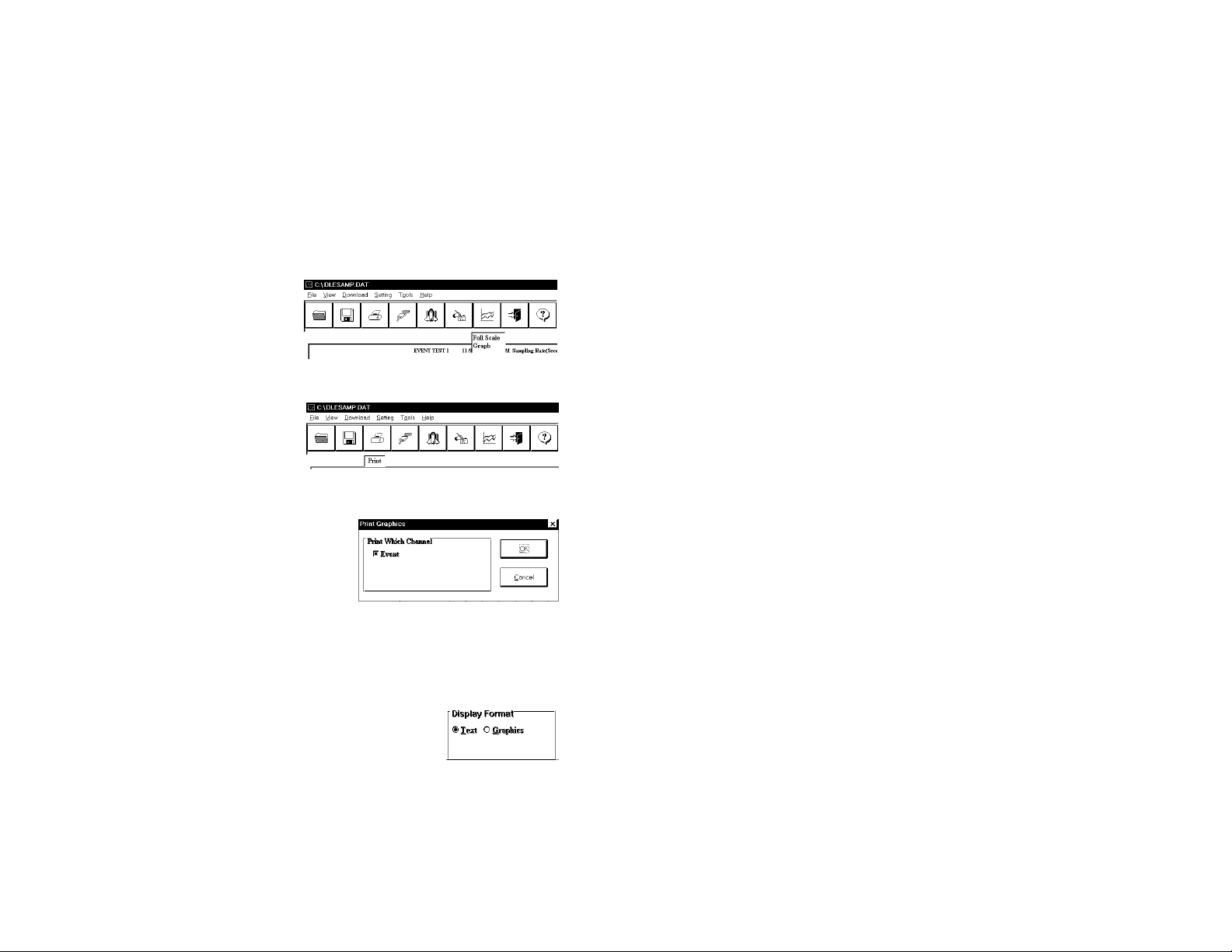

7. To return to the original graph
click on the Full Graph button.
Note that for Event Loggers the
Full Graph and the Auto-scale
button perform the same function.
8. The graph on the screen may be
printed at any time by clicking on
the Print button. Note that the
printout will be what is displ aye d
on the screen when the button is
clicked.
9. A window will open in the middle of the
screen. In the case of the Event Loggers
the only print option is the event information. To print this click on OK, or click
Cancel of you change your mind.
VIEW A RECORDING AS TEXT
1. When a recording is first retrieved or when a saved recording is opened, the
default format is an auto scaled graph of the recording.
2. To view a recording as text when a graph is on the
screen click the Text button located in the display box.
3. Use the Windows scroll bar on the right hand side of
the screen to scroll through the text information.
6
Page 7
Event Data Logger

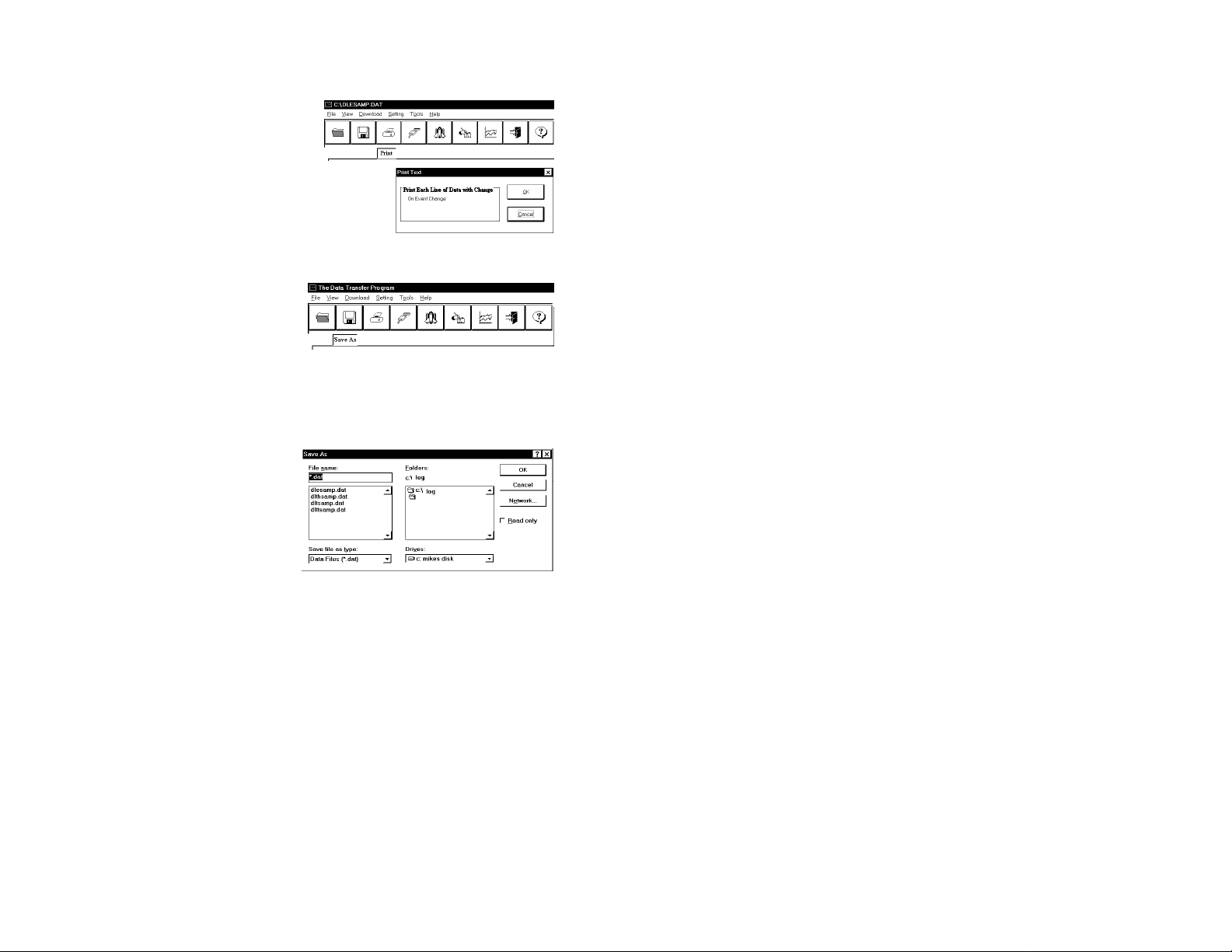

4. To print the text information as text
data click on the Print Button. A
window will open in the middle of
the screen. The event function does
not use the filter that is available with the
temperature and humidity loggers. To print the
text information click OK or click Cancel if you
change your mind.
SAVING A RECORDING
A recording may be saved at any time
in either the text or graphic display.
All recordings are saved in a text
format that is compatible with all
major word processors and Excel. To
save a recording click on the Save As button, this will open a window prompting
you to type a name for the recording and which directory you wish to store the
file.
To type a file name click in the box
below File Name next to the
asterisk. Type in a name for the
recording of eight characters or less
and delete the asterisk. Do not
change the dat extension of the file,
as the program will not recognize it
as a valid data file.
When you have typed in a name for the recording you wish to save click OK.
BATTERY REPLACEMENT
The Event Data Loggers use a 9-Volt Alkaline battery, which will have an average
life of 1 year. The actual life of the battery will depend on a variety of factors such
as the temperature the battery is used in, the frequency of events, and how often
the Event Logger is used. Extreme temperatures will result in reduced battery
life. If the battery is exhausted during a recording, the Event Logger will automatically terminate the recording and save any data recorded up to that point.
The LED will stop flashing and the Event Logger will not allow a new recording
to be started until the battery has been replaced. Recorded data can be retrieved regardless of the condition of the battery.
When the logger will not be used for an extended period, or when the battery is
exhausted, it is strongly recommended to remove the battery to avoid damage
to the logger from battery leakage. Use only Alkali ne batteries in all Event
Loggers. Substitution of a different battery can result in reduced performance or permanent damage to this instrument.
7
Page 8
Event Data Logger
To replace the Event Logger’s battery follow the steps below:
1. Make sure the logger is not set in the recording position. If so, slide the door
open. Any temperature information recorded up to this point will not be lost
and is automatically saved.
2. Remove the rear battery cover.
3. The battery and battery clip may be extended from the battery compartment
to facilitate replacement.
4. Remove the battery from the battery clip and dispose of properly.
5. Line up the connector of the new battery and push onto the pins of the battery clip with a firm motion. Do NOT reverse the battery connection, even
momentarily, as this can result in loss of data or permanent damage to
the logger.
6. Place the battery in the battery compartment.
7. Replace the battery cover.
Once the battery has been replaced it will be necessary to reset the logger’s
internal clock. Refer to the section, “Setting the Data Logger” for instructions on
how to do this.
EVENT LOGGER PRODUCT SPECIFICATIONS
SPECIFICATIONS
OM-DLEV Range 24VAC to 270VAC (50/60Hz.)
24VDC to 180VDC
OM-DLEC Range DRY Contacts from 0 to 10 Ohms
OM-DLEL Range Illumination Threshold Range
18 LUX to 1900LUX +/- 20%
OM-DLES Range Sound Threshold Range
40db to 114db @ 1Khz +/- 20%
Ambient Operating
Temperature Range
Storage Temperature -40°F to +170°F (-40°C to 76°C)
Time Accuracy +/- 100ppm @ 75°F (24°C)
Measurement Capacity 8,000 Event Samples
Size 2.5" x 3.6" x 1.1"
Weight 0.26 Lbs. (0.12Kg.)
Power Source 9 Volt Alkaline Battery
Battery Life 1 Year (Average Use)
+10°F to +140°F (-12°C to 60°C)
(63.5mm x 91.4mm x 1.1mm)
8
Page 9
OM-DP3 DATA PLOTTER - PART NO. OM-DP3
The OMEGA OM-DP3 is an optional
accessory instrument that allows the user
to retrieve data and program OMEGA
data loggers in the field without the need
of a computer. Using the OM-DP3 you
can plot recorded information from a data
logger or change the settings of a data
logger prior to making a different data
recording. The OM-DP3 can be operated
from batteries or from the supplied AC
adapter. The OM-DP3 uses a series of
structured menus to provide a user
friendly intuitive style of operation. The
OM-DP3 also serves as a conventional
temperature recorder.
Event Data Logger
9
Loading...
