Omega OM-DL420 User guide

Page 1
4-20 ma Current Data Logger
1
Page 2
4-20 ma Current Data Logger

OM-DL420 DATA LOGGER INSTRUCT IONS

The OMEGA OM-DL420 Data Logger is a self-contained precision instrument for recording the current in a 4 – 20 ma loop. The OM-DL420 can store up to 10,000 measurements for each recording. The recordings can be read using the sup­plied PC interface or the optional OM-DP3 Data Plotter.
The Windows™ compatible software allows the user to set the OM-DL420 for a recording session, read the recorded data in text or graphical format and to store the recorded data for future reference or analysis. Applications include monitoring of environmental areas, coolers, freezers, food or storage areas, laboratories, greenhouses, museums, etc. Refer to the following instructions for explanations of how to record and how to retrieve temperature recordings.

SOFTWARE INSTALLATION

The Data Logger to PC program is suppl ied on 3-½″ floppy disks. To install the software follow the instructions below:
1. Insert disk 1 of 2 into Drive A.
2. If you are using Window™98 /95, click on START, then cl ick on RUN.
3. Type A:SETUP and press Enter.
4. If you are using Windows™3.1, click on Program Manager.
5. Select FILE, and select RUN.
6. Type A:SETUP and press Enter. To get the latest product information and current release of the Data Logger to
PC software, visit the OMEGA website at www.omega.com If you are not familiar with the above commands, refer to the instructions that are supplied with your version of Windows™.

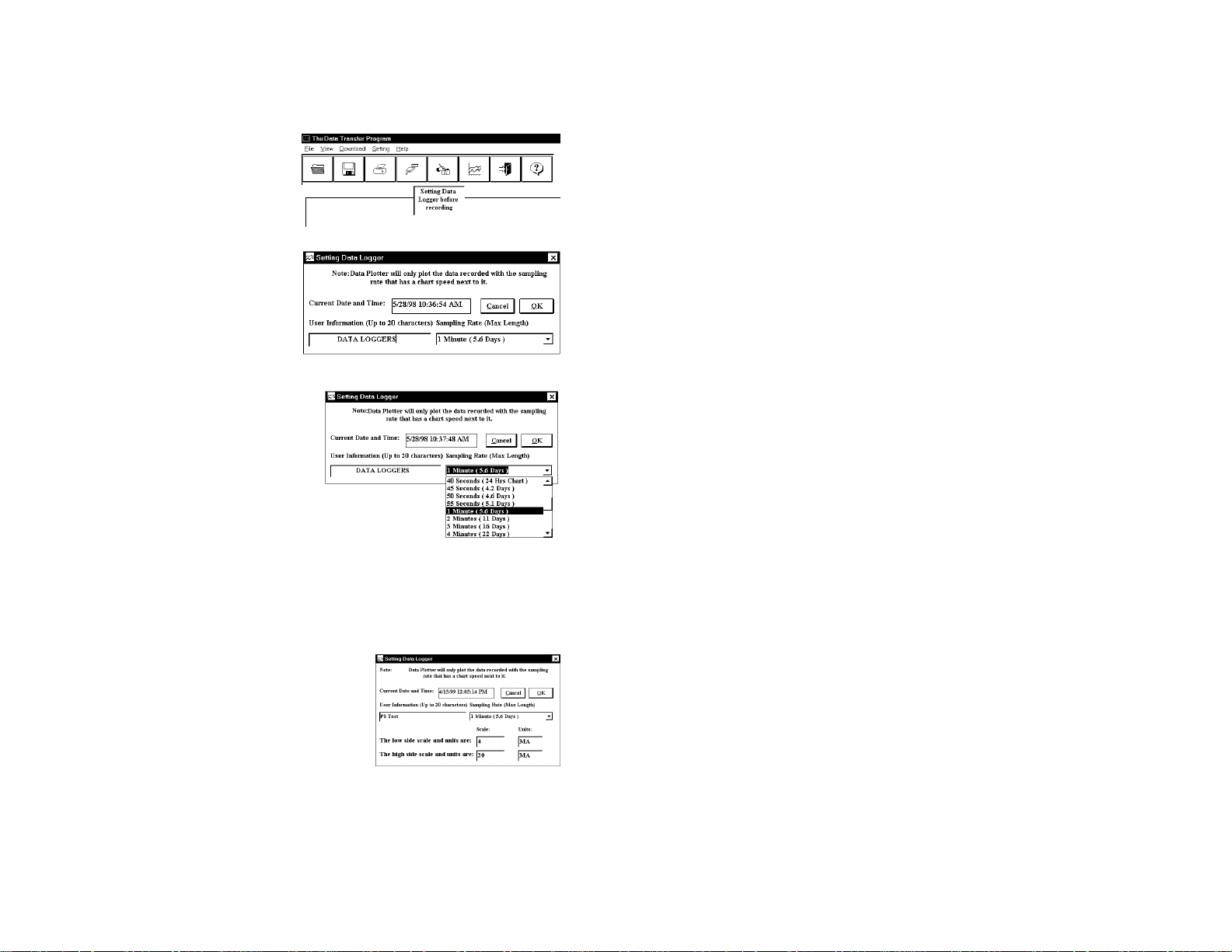

SETTING THE DATA LOGGER

The OM-DL420 recording interval, or sampling rate, is the time between each current measurement that is saved in the logger’s memory. This interval is set from the PC interface program (supplied) or from the optional OM-DP3 Data Plotter. This interval can be set from 5 seconds to 60 minutes. A user message of up to 20 characters can also be stored in the OM-DL420. This message can be used to identify a customer’s location or identify a particular logger for track­ing purposes. Use the example below to set a OM-DL420 logger.
1. Plug the PC interface cable (OM-DLS) into the printer port of the computer being used to set the OM-DL420. Plug the OM-DL420 being set to the cable from the PC interface cable DLCABL E (pa rt of OM-DLS p a ck a g e).
2. Start the Data Logger program. If you are using Windows™98/95, click on Start, click on Programs, click on Omegalog, click on OMEGALOG. If you are using Windows™3.1, double-click on the window labeled
2
Page 3
4-20 ma Current Data Logger
Omegalog, then double-click on the OMEGALOG icon.
3. The program will open with a blank window showing no text or graph. On the toolbar located along the top of the screen, click on the
Setting Data Logger before recording button. This will open a secondary window Setting Data Logger.
4. If a user message is desired, click in the User Information field and add t he desired message. Note that the last message will be dis-played and will remain until it is erased or changed by the user.
5. To select the sampling rate, click on the down arrow in the Sampling Rate box. This will open a drop­down menu wit h the recording interval selections. Note that the maximum recordin g times are indicated in parentheses next to the recording interval. The recording intervals that correspond to cha rts used by the OM-DP3 Data Plotter show the appropriate ch ar t sel ection instead of a maximum recor d ing time.
6. Click on the desired sampling rate. You may need to use the up or down arrows on the drop down menu to see more of the available recording intervals.
7. The time and date the logger is set to will be the same time as the PC clock. It is important to make sure the time set in the PC is correct. The PC time will be displayed as the Current Date and Time in the setting window. Refer to the owner’s manual for your computer to find instructions on setting the PC time if it is not correct.
8. When all of the settings for the OM-DL420 are to your satisfaction, click on OK to store the setting in the OM-DL420 and to close the window.
3
Page 4
4-20 ma Current Data Logger
9. The OM-DL420 is now set and ready to begin a new recording. Disconnect the OM-DL420 from the PC interface.
10. You can now connect a different OM-DL420 or exit the program. To exit the program, click on the Exit button on the tool bar.

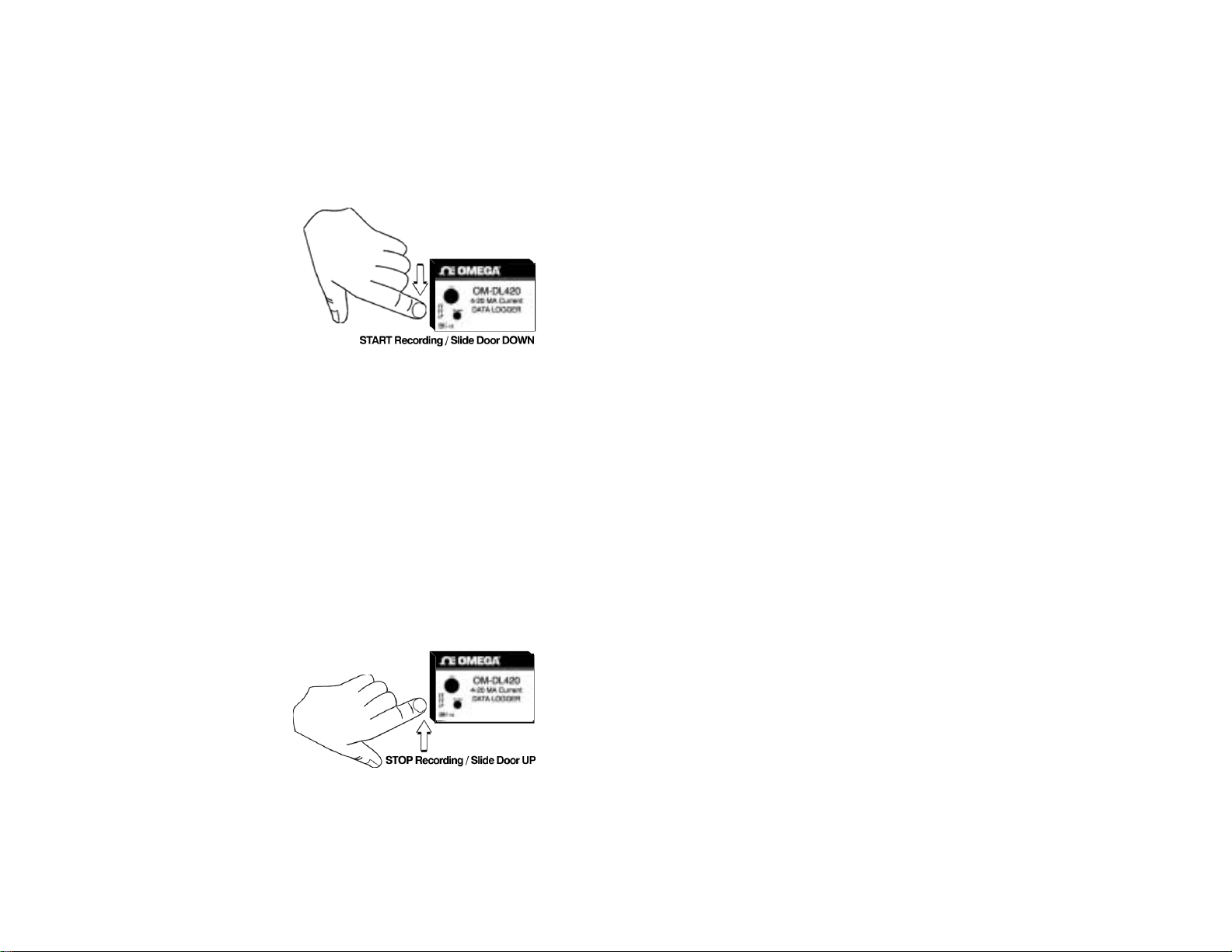

TO START A RECORDING

To begin a new recording slide the access door closed. The LED indicator will begin to flash for 10 seconds. During this period the recording can be can celed without losing the data previously recorded. When the LED indicator stops flashing, a new recording has begun and any previous data has been erased. The OM-DL420 recording function can be “locked” on by passing a Ty­Wrap™ or similar restriction through the logger-mounting opening. This can be used to prevent accidental or intentional disruptions of a temperature recording.
The LED will flash every 5 seconds to indicate operation. A bright flash of the LED is used to indicate that the loop current has been sampled and recorded. A dim flash is used to indicate that the OM-DL420 is operating properly and the loop current has not been sampled or recorded. The LED indicator will continue to flash, until the user stops the recording or the memory has reached its maxi­mum capacity of 10,000 samples.
NOTE: If the battery is exhausted during a recording, the OM-DL420 will automatically terminate the recording and save any data recorded up to that point. The LED will stop flashing and the OM-DL420 wil l not allow a new re­cording to be started until the ba tter y has been replaced. Recorded data can be retrieved regardless of the condition of the battery.

TO STOP A RECORDING

Slide the access door open (If locked, remove the restriction de­vice first.) The LED indicator will stop flashing. The recorded data can now be retrieved using the supplied Windows™ compatible software and PC interface, or the recording can be plotted on a cir cular chart using the optional OM-DP3 Data Plotter. NOTE: Do not close the door until a new recording is desired! It is important to leave the door open until you want to start a new recording. Starting a new recording now will erase the previous recording. To prevent accidental erasing of recordings, the access door of the OM-DL420 can be “locked” open by passing a Ty-Wrap™ or similar restriction through the lock opening. The loop
4
Page 5
4-20 ma Current Data Logger
current recording will remain in the OM-DL420 until a new recording is started. The recordings may be retrieved as many times as required or the battery can be removed with no effect on the stored data.

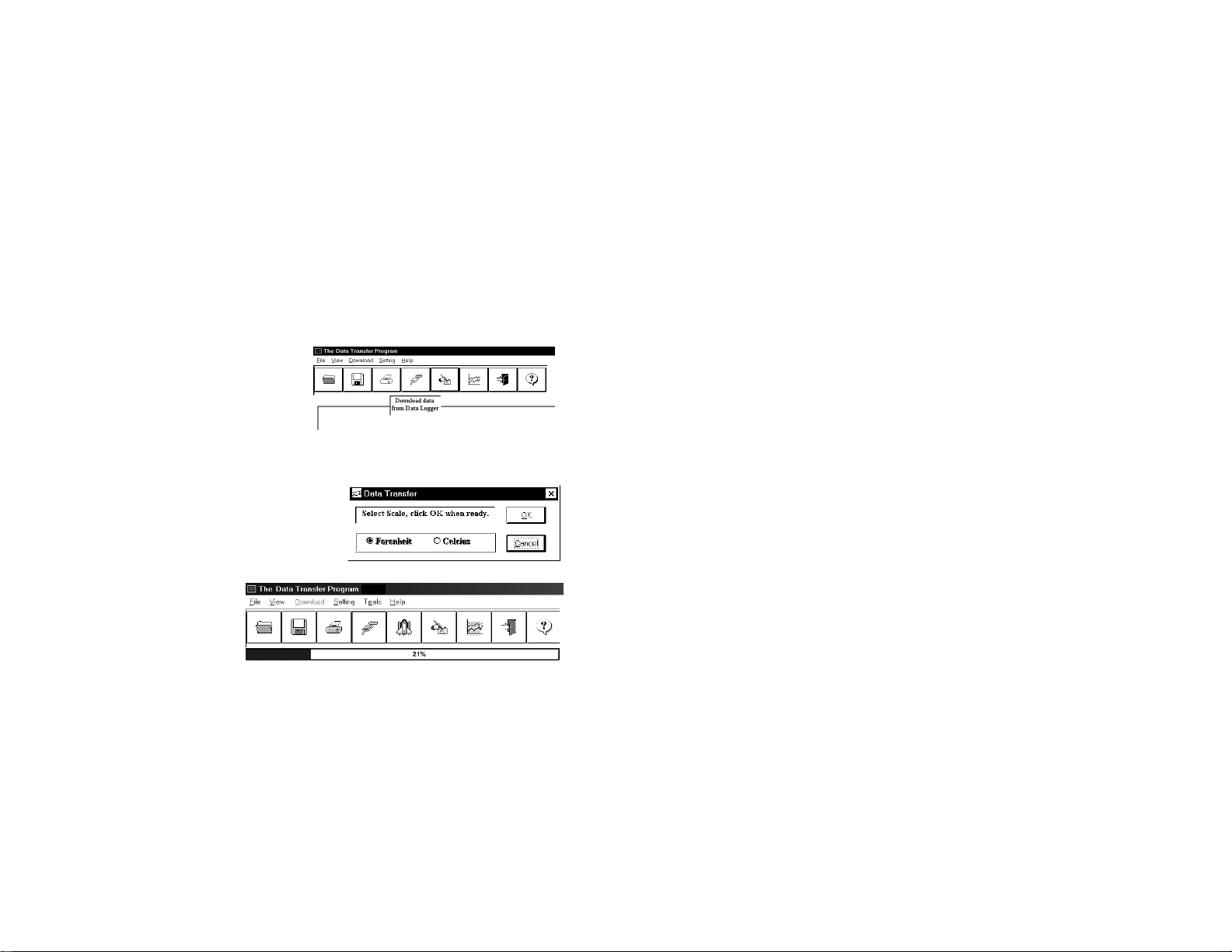

RETRIEVING 4 – 20 ma LOOP RECORDINGS

1. Plug the PC interface into the printer port of the computer being used to set the OM-DL420. Plug the OM-DL420 being read to the cable from the PC in­terface.
2. Start the Data Logger program. If you are using Windows™98/95, click on Start, click on Programs, click on Omegalog, click on OMEGALOG. If you are using Windows™3.11, double-click on the window labeled Omegalog, double-click on the OMEGALOG icon.
3. The program will open with a blank window showing no text or graph. On the toolbar located along the top of the screen, click on the
Download data from Data Logger button. A Data Transfer
window will open. Connect the OM-DL420 now if it is not already connected.
4. To the right of the “Connect” message is a selection box, which will allow you to select the temperature information in Celsius or Fahrenheit. Click on the de­sired scale, °F or °C.
5. Click on OK. The program will begin to retrieve the recording. A status bar along the top of the window will show the progress of information being retrieved.
6. When the information has been retrieved, the program will automatically dis­play the recording in the current mode that has been selected. If you have been using the text mode, then the recording will be displayed in the text mode. If you have been using the graph mode, then the recording will be displayed as an auto scaled graph.
5
Page 6
4-20 ma Current Data Logger

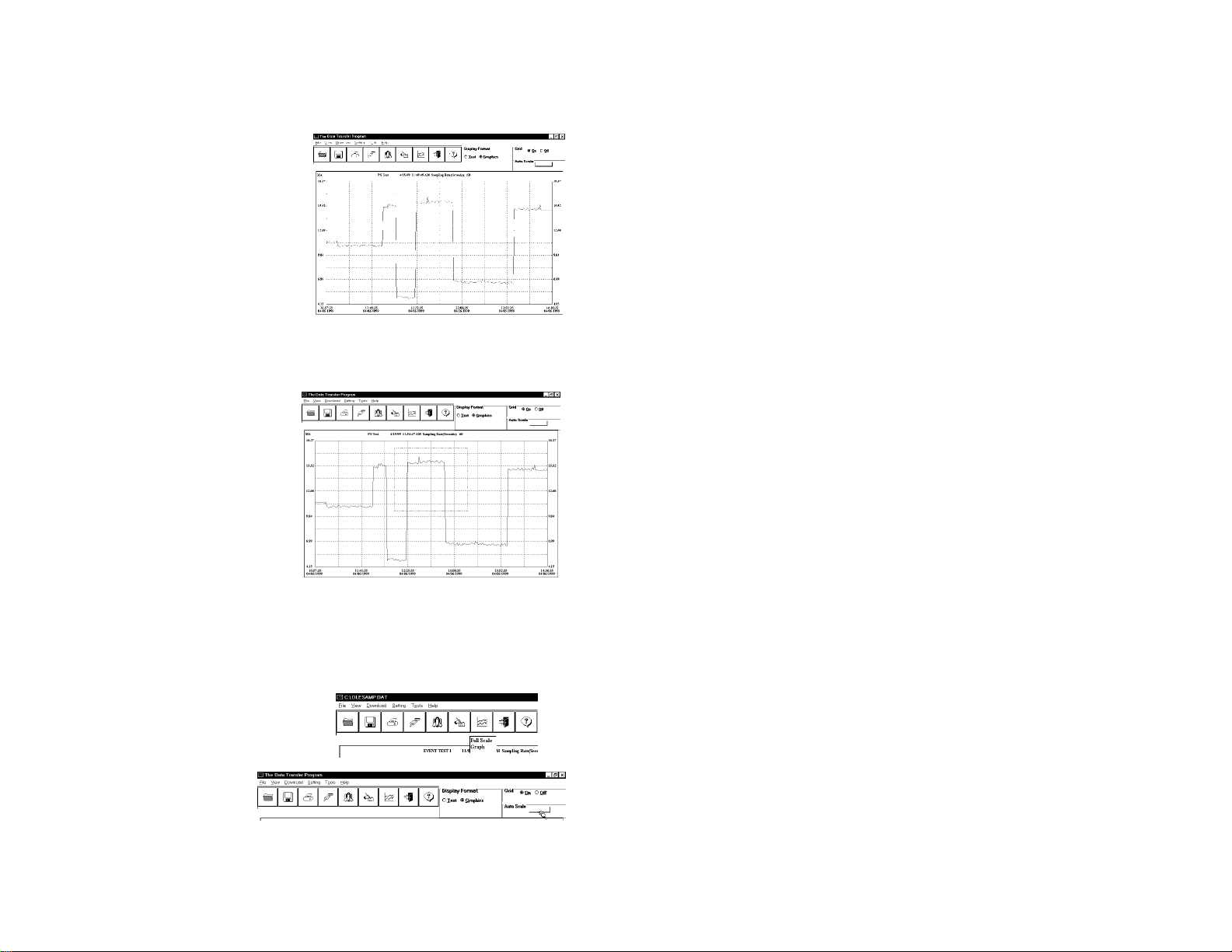

VIEWING A RECORDING AS A GRAPH

1. When information is retrieved or when a file is opened, it will automatically be displayed in the most recently used mode. To view a recording as a graph, select the graph option in the Display Format box. The program will display the entire recording as a plotted graph with the temperature on the vertical scale and the time on the horizontal scale.
2. To zoom to a particular part of the graph, place the mouse cursor in a cor­ner of an imaginary box that will enclose the area of interest.
3. Press and hold the left mouse button and move the cursor in a diagonal direction from the original position of the cursor. A dashed line forming a box will be displayed. Move the cursor until the box encloses the area of interest and release the left mouse but­ton.
4. The box will now be stationary on the screen. Move the mouse cursor so that it is inside the box and click the left mouse button.
5. The enclosed area of the box will now be zoomed so that it fills the entire window. This may be repeated if additional magnification of an area of the graph is desired.
6. To return to the original graph with no auto scaling, click on the Full Graph button.
7. To auto-scale the graph, click on the Auto Scale button. The graph will automatically be readjusted to fill the vertical axis of the screen.
6
Page 7
4-20 ma Current Data Logger
8. The graph on the screen may be printed at any time by clicking on the Print button. Note that the printout will be what is displ ay ed on the screen when the button is clicked.
9. A prompt window will open in the middle of the screen. Click OK to print, or Cancel if you change your mind.

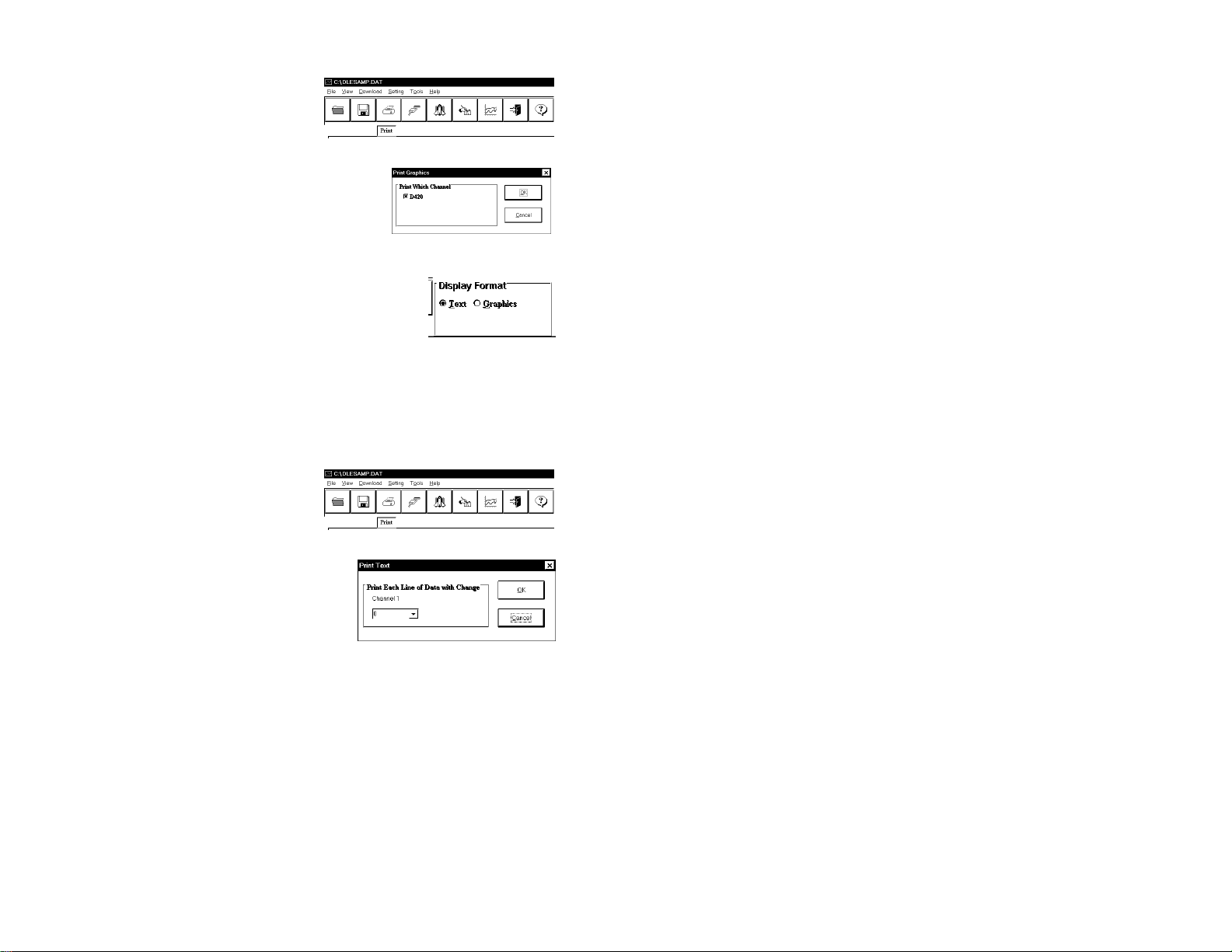

VIEW A RECORDING AS TEXT

1. When a recording is retrieved, or when a saved re­cording is opened, it is displayed in the most re­cently used mode. The recording can be viewed as a text listing or a plotted graph.
2. To view a recording as text when a graph is on the screen, click the Text button located in the display box.
3. Use the Windows™ scroll bar on the right hand side of the screen to scroll through the text information
4. To print the text information as text data, click on the Print button. A window will open in the middle of the screen. In the lower left of the window will be a drop-down menu which will allow you to select the number of de­grees the temperature has to change before the new value is printed. This fea­ture will prevent needless printing of the temperature when no temperature change has occurred. If you wish to print all the recorded information, leave this value at zero.
5. When you have selected the amount of temperature change to print (if any) click on the OK button to start printing.
7
Page 8
4-20 ma Current Data Logger

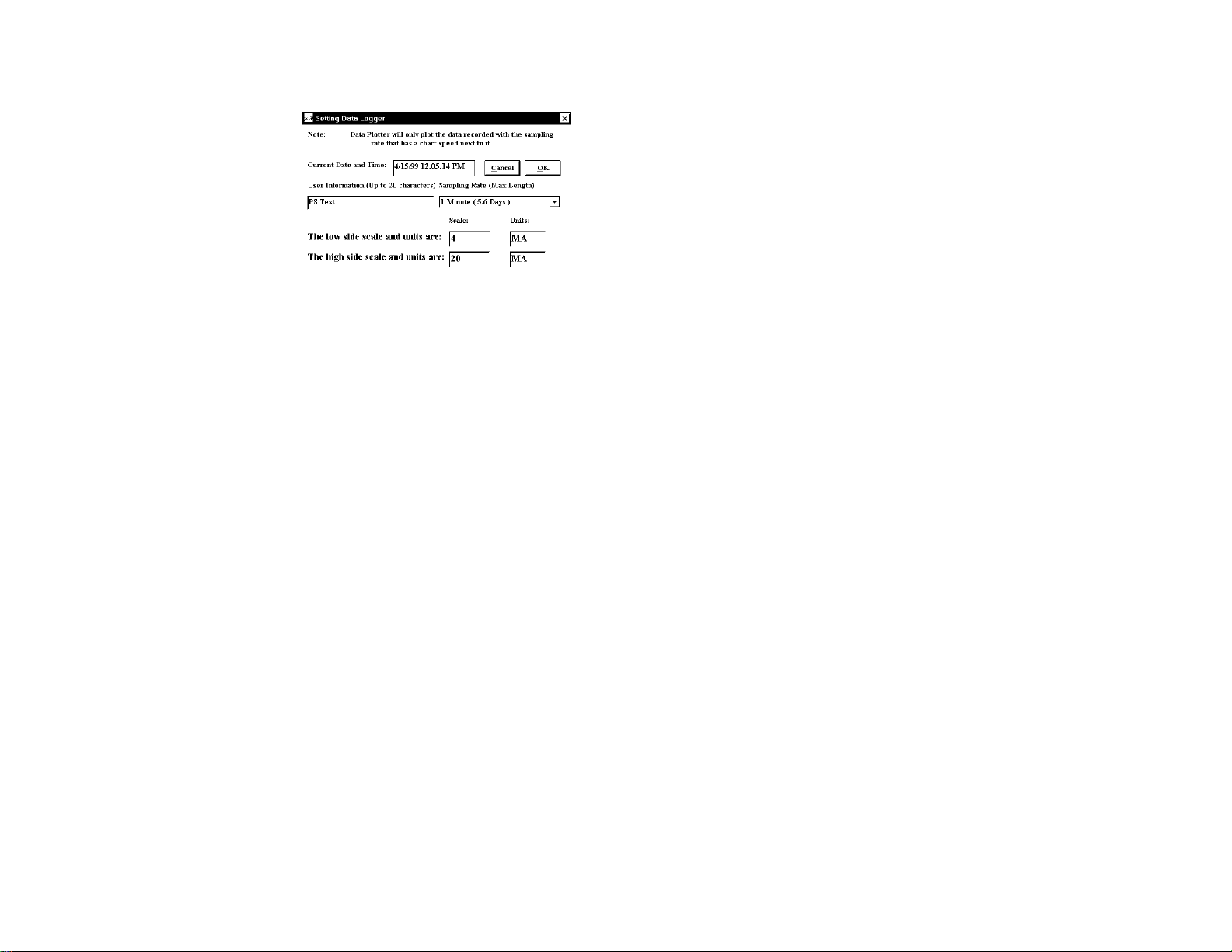

DATA LOGGER CALIBRATION

You can calibrate the OM-DL420 data logger to make its reading match the range of an external transducer or standard. In the setting menu note the two lines at the bottom of the box.
The default setting of the OM-DL420 is 4 ma to 20 ma. In typical applications a transducer will be connected to a 4 ma to 20 ma transmitter and the transmitter will be converting the output of the transducer to a 4 ma to 20 ma signal. The setting menu allows the user to set the range of the graph to match that of the transducer connected to the 4 ma to 20 ma transmitter.
To set the scale, first click in the low side Scale box, and enter the lower limit for the transducer being measured. Then click the high side scale box and enter the upper limit for the transducer being measured.
Finally click in the Units box and enter up to 4 letters to indicate what units are being measured. Some examples would be PSI, Gal, Lbs., F, C, etc. You can use an y one of th e U nits box to enter your te xt into. The other U nits box w ill change automatically to match the text in the selected Units box.
When you have finished, click OK and the new Scale and Unit information will be saved into the logger and will apply to any recordings retrieved from the logger from this point on. Note that the Scale and Units will remain with the logger until the user has selected different value and loaded them into the logger.

BATTERY REPLACEMENT

The OM-DL420 Data Logger uses a 9-Volt Alkaline battery which will have an average life of 1 year. The actual life of the battery will depend on a variety of factors such as the temperature the battery is used in, the sampling rate of the logger, and how often the OM-DL420 is used. Extreme temperatures will result in reduced battery life. If the battery is exhausted during a recording, the OM-DL420 will automatically terminate the recording and save any data re­corded up to that point. The LED will stop flashing and the OM-DL420 will not allow a new recording to be started until the battery has been replaced. Re­corded data can be retrieved regardless of the condition of the battery.
When the logger will not be used for an extended period, or when the battery is exhausted, it is strongly recommended to remove the battery to avoid damage to the logger from battery leakage. Use only Alkaline batteries in the OM-DL420.
8
Page 9
4-20 ma Current Data Logger
Substitution of a different battery can result in reduced performance or permanent damage to this instrument.
To replace the OM-DL420’s battery follow the steps below:
1. Make sure the logger is not set in the recording position. If so, slide the door open. Any information recorded up to this point will not be lost and is auto­matically saved.
2. Remove the rear battery cover.
3. The battery and battery clip may be extended from the battery compartment to facilitate replacement.
4. Remove the battery from logger and dispose of properly. To assure proper reset of the logger, wait at least one minute before connecting new battery.
5. Line up the connector of the new battery and push onto the pins of the bat­tery clip with a firm motion. Do NOT reverse the battery connection, even momentarily, as this can result in loss of data or permanent damage to the logger.
6. Place the battery in the battery compartment of the OM-DL420.
7. Replace the battery cover.
Once the battery has been replaced, it will be necessary to reset the logger’s internal clock. Refer to the section, “Setting the Data Logger” for instructions on how to do this.

OM-DL420 DATA LOGGER PRODUCT SPECIFICATIONS

Ambient Operating Temperature Range Storage Temperature -40°F to +170°F (-40°C to +76°C)
Time Accuracy +/- 100ppm @ 75°F Relative Humidity Range 0 to 95% Non-Condensing Current Resolution 0.01ma Current Accuracy 0.1ma Measurement Capacity 10,000 Data Points Size 2.5" x 3.6" x 1.1" Weight 0.26 Lbs. Power Source 9V Alkaline Battery (Not Supplied) Battery Life 1 Year (Average)
+10°F to +140°F (-12°C to +60°C)
9
Page 10

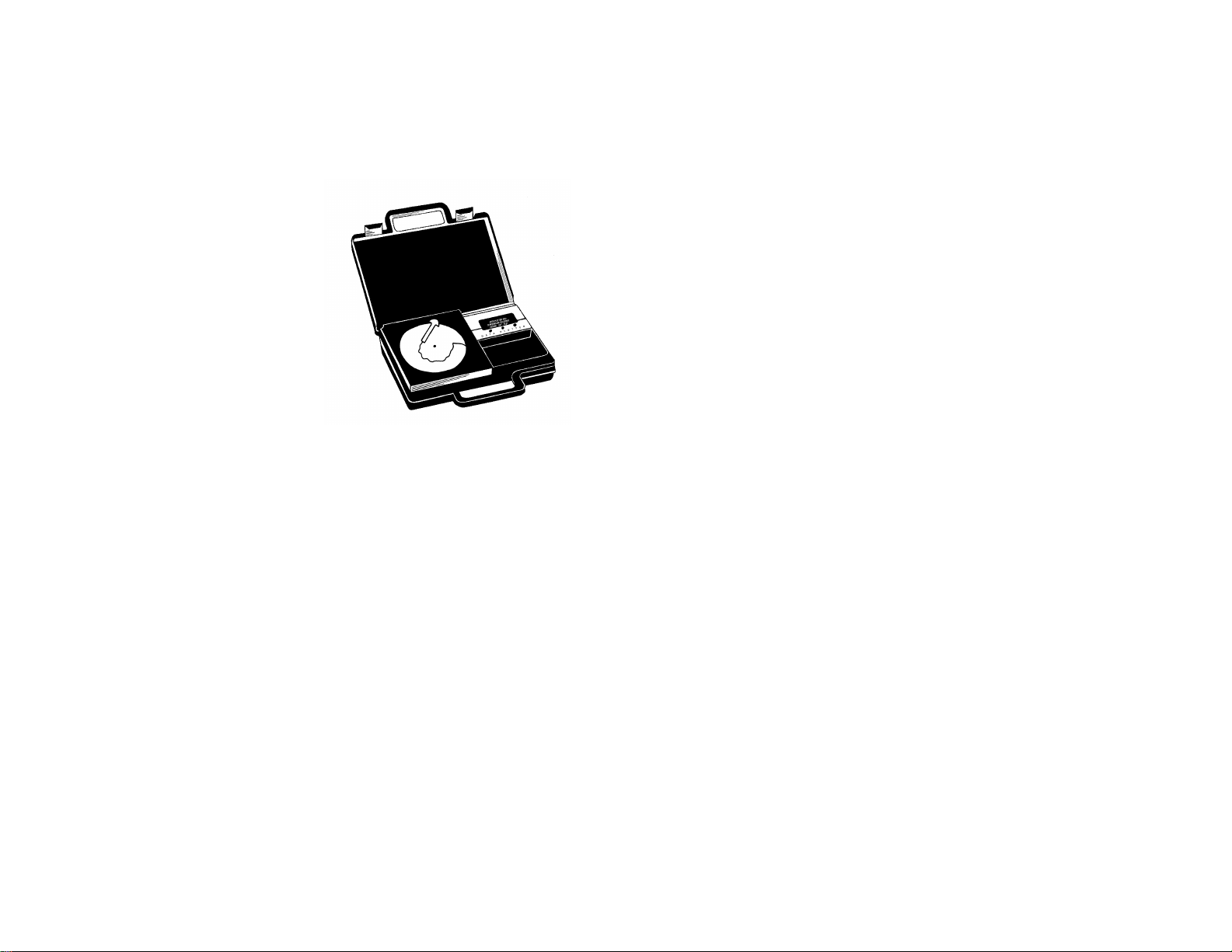

OM-DP3 DATA PLOTTER

The OM-DP3 is an optional accessory instrument that allows the user to retrieve data and program data loggers in the field without the need of a computer. Using the OM-DP3 you can plot recorded information from a data logger or change the settings of a data logger prior to making a different data recording. The OM-DP3 can be operated from batteries or from the supplied AC adapter. The OM-DP3 uses a series of structured menus to provide a user friendly intuitive style of operation. The OM-DP3 also serves as a conventional temperature recorder.
4-20 ma Current Data Logger
