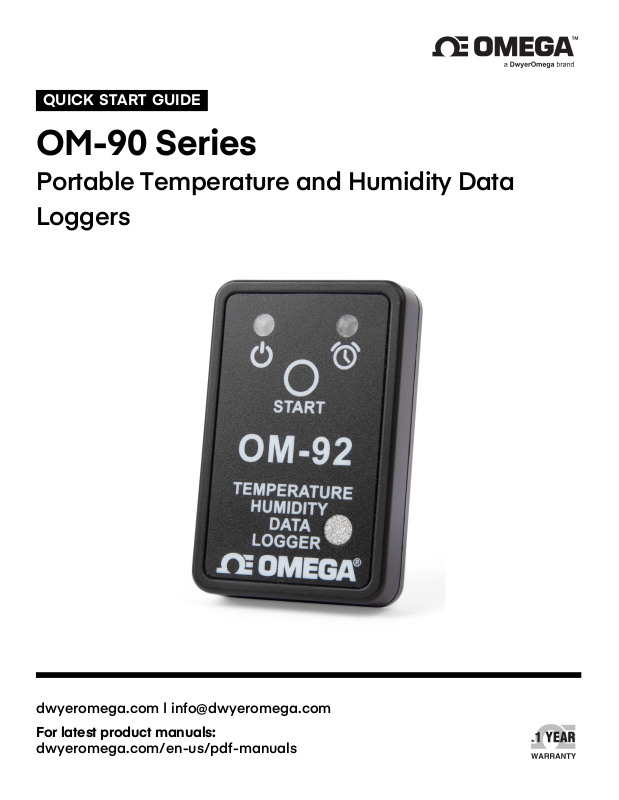

QUICK START GUIDE
OM-90 Series
Portable Temperature and Humidity Data
Loggers
dwyeromega.com | [email protected]
For latest product manuals:
dwyeromega.com/en-us/pdf-manuals
TM
Page 2
Table of Contents
1. Description ............................................................................................................................................................................. 3
2. Battery Installation .............................................................................................................................................................. 3
3. Connecting to a Data Logger .......................................................................................................................................... 4
4. Configuring a Data Logger ............................................................................................................................................... 5
5. Retrieving Data .....................................................................................................................................................................7
6. More Advanced Topics ....................................................................................................................................................... 7
2
Page 3
1. Description
The OM-90 Series are portable, battery operated, temperature and humidity data
loggers able to store 65,520 samples of both temperature and humidity along with a
time stamp. The data logger runs off of a CR2032 coin cell battery that provides a
2-year battery life while logging.
This Quick Reference Guide gets you started with the logger with the most basic
functions to have you up and running with your logger in a matter of minutes.
2. Battery Installation
The data logger runs from a standard CR2032 battery. There are different manufacturers. You can nd it easily
on the web. The key thing is to choose a CR2032 battery with high capacity since this will translate into a longer
logger battery life.
First remove the data logger cover by unscrewing the two fastener screws (#1 Philips) at the rear of the logger.
3
Page 4
Then remove the circuit board from the box (use soft tool or ngernail to remove)
Insert a new battery as shown being careful not to touch and exposed electronics in the process.
Finally re-attach the cover and tighten the fastener screws again (be careful not to over tighten).
3. Connecting to a Data Logger
To congure or retrieve data from a logger you will need a Windows PC running Windows XP, Windows Vista,
Windows 7 or Windows 8. Connect the data logger to your PC using a USB-C cable. Any USB port on the PC can
be used.
4
Page 5
4. Configuring a Data Logger
Installation of the Omega OM-90 Series Data Logger Software is very simple. The data logger needs no special
drivers since it is a USB HID device and such devices can make use of the standard drivers that come with
Windows.
In the Windows Start Menu launch the Omega PC Application.
The front page of the GUI is an overview of the logger. Press the Conguration button to get to the next page.
5
Page 6
Connect the logger and you will see the connected indication changes to blue.
Next ll out the conguration settings. For example:
• °C or °F
• logging start to “On Disconnection”
• logging interval to say 10 seconds
• temperature alarm enabled and thresholds set
• humidity alarms enabled and thresholds set
Press the “Congure Button” so that the settings are updated in your logger. Please wait until the software has
nished updating the logger.
Disconnect the logger. You should see that logging will start automatically indicated by a 1 second green light.
The green light will then ash every 6 seconds to indicate that the unit is logging. The red light will ash also in
the case that the temperature or humidity goes outside of the allowed limits and triggers the alarms.
If the logger becomes full then all lights will stop ashing.
6
Page 7
5. Retrieving Data
Connect your data logger. The logger red light will illuminate for 1 second indicating logging is stopping.
Start the OM-90 Series Data Logger Software and navigate to the Conguration page.
Press “Read Logger Conguration/Data” to retrieve the conguration and data from the connected logger.
Wait until all information is retrieved from the logger.
The graph and spread sheet will be lled with the logged data.
Zooming in and out of the graphs can be achieved by the following controls:
• to Zoom In - drag the left mouse button
• to Zoom Out - click the right mouse button
• when zoomed in you can move around using the keyboard arrows or the mouse scroll wheel
To write data and conguration to le, press the save icon.
6. More Advanced Topics
This document has shown the most basic way to congure the data logger in order for you to get started very
quickly.
There are for example other logger start modes such as button press, start at a dened time and real time
logging. For a more exhaustive description of all features of the logger then please consult the full OM-90 Series
User Guide. The software is available on the OM-90 web page for download.
