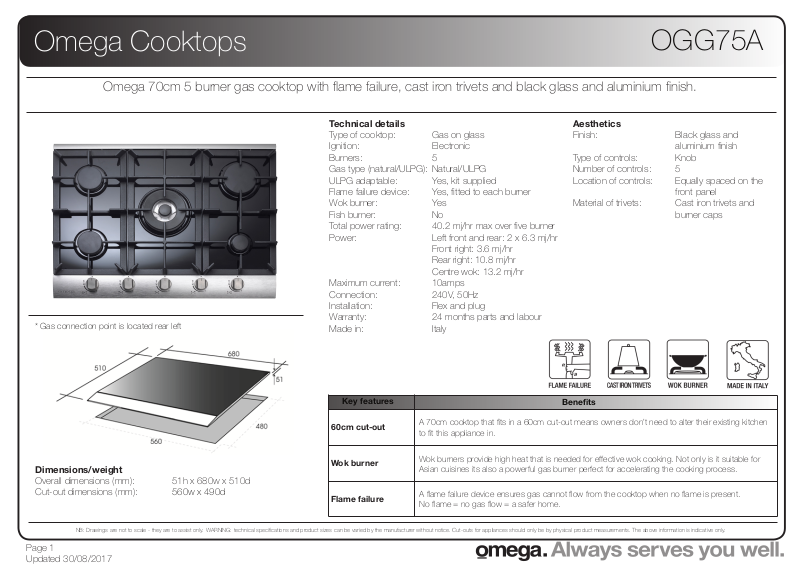

Omega OGG75A Specifications Sheet

Omega Cooktops

Omega 70cm 5 burner gas cooktop with flame failure, cast iron trivets and black glass and aluminium finish.

OGG75A

* Gas connection point is located rear left

Technical details

Type of cooktop: Gas on glass
Ignition: Electronic
Burners: 5
Gas type (natural/ULPG): Natural/ULPG
ULPG adaptable: Yes, kit supplied
Flame failure device: Yes, fitted to each burner
Wok burner: Yes
Fish burner: No
Total power rating: 40.2 mj/hr max over five burner
Power: Left front and rear: 2 x 6.3 mj/hr
Front right: 3.6 mj/hr
Rear right: 10.8 mj/hr
Centre wok: 13.2 mj/hr
Maximum current: 10amps
Connection: 240V, 50Hz
Installation: Flex and plug
Warranty: 24 months parts and labour
Made in: Italy

Aesthetics

Finish: Black glass and
aluminium finish
Type of controls: Knob
Number of controls: 5
Location of controls: Equally spaced on the
front panel
Material of trivets: Cast iron trivets and
burner caps

Dimensions/weight

Overall dimensions (mm): 51h x 680w x 510d
Cut-out dimensions (mm): 560w x 490d

NB: Drawings are not to scale - they are to assist only. WARNING: technical specifications and product sizes can be varied by the manufacturer without notice. Cut-outs for appliances should only be by physical product measurements. The above information is indicative only.

Page 1
Updated 30/08/2017

Key features

60cm cut-out

Wok burner

Flame failure

Benefits

A 70cm cooktop that fits in a 60cm cut-out means owners don’t need to alter their existing kitchen
to fit this appliance in.

Wok burners provide high heat that is needed for effective wok cooking. Not only is it suitable for
Asian cuisines its also a powerful gas burner perfect for accelerating the cooking process.

A flame failure device ensures gas cannot flow from the cooktop when no flame is present.
No flame = no gas flow = a safer home.
