Omega OAPC167 User Manual
OAPC167
PORTABLE AIR CONDITIONER
2
Table of Contents
Table of Contents ......................................................................... 2
Important Safeguards ................................................................... 3-4
Placement and Installation ............................................................ 5-6
Parts List ....................................................................................... 6-7
Control Panel ................................................................................ 8
Remote Control .............................................................................. 9
Operation Methods ........................................................................ 9-10
Water Drainage ............................................................................. 11
Maintenance ................................................................................. 12
Troubleshooting……………………………………………………….13
Technical Data…………………………………………………………14
Circuit Diagram ...…………………………………..….….... Appendix A
3
Important Safeguards
Please read this manual
Inside you will find many helpful hints on how to use and maintain your air
conditioner properly. Just a little preventative care on your part can save you a
great deal of time and money over the life of your air conditioner. You will find
many answers to common problems inside this manual.
CAUTION
•
Contact the authorized service center for repair of this air conditioner
•
This air conditioner is not intended for use by young children or infirm
persons, without Supervision.
•
Young children should be supervised to ensure that they do not play with the
appliance.
•
If the power cord is damaged it must be repaired by an authorized agent of
Omega Altise
SAFETY RULES
To prevent injury to the user or other people and to prevent property damage,
the following instructions must be followed. Incorrect operation due to not
reading the instructions may cause harm or damage.
•
Your portable air conditioner should be used in such a way that it is
protected from moisture (e.g. condensation or water) do not store or
place the air conditioner where it can fall from an elevated surface.
•
Always transport the air conditioner in a vertical position and stand it on
a stable, level surface during operation.
•
Turn off the air conditioner when not in use.
4
•
Always contact an authorized qualified service agent to carry out repairs.
•
If the supply cord is damaged it must be repaired by a qualified repairer
•
Keep the area clear around the air conditioner. There needs to be an air path of a
Minimum of 50cm all around the air conditioner from walls, furniture and
curtains.
•
If the air conditioner is knocked over during use turn off the air conditioner
and unplug it from the power point.
•
Do not operate the air conditioner in a wet room such as a bathroom or laundry
•
Do not touch the air conditioner with wet hands
•
Do not press buttons on the air conditioner with anything but fingers.
•
Do not remove fixed covers. Do not use this air conditioner if it is
malfunctioning or has been dropped or damaged
•
Never use the power point switch to start or stop the air conditioner. Use the
control panel first.
•
Do not obstruct the inlet or outlet grills
•
Do not use harsh chemicals to clean the air conditioner.
•
Do not run the air conditioner near dangerous chemicals and or hazardous
chemicals.
•
Do not use this air conditioner for functions other than those described in this
instruction manual.
ENERGY SAVING
•
Use the air conditioner in the recommended room size
•
Locate the air conditioner where furniture cannot obstruct air flow
•
Keep blinds and curtains closed to keep out the sun
•
Keep the filters clean
•
Keep doors and windows closed to keep cool air in and hot air out
5
Placement and Installation
Placement

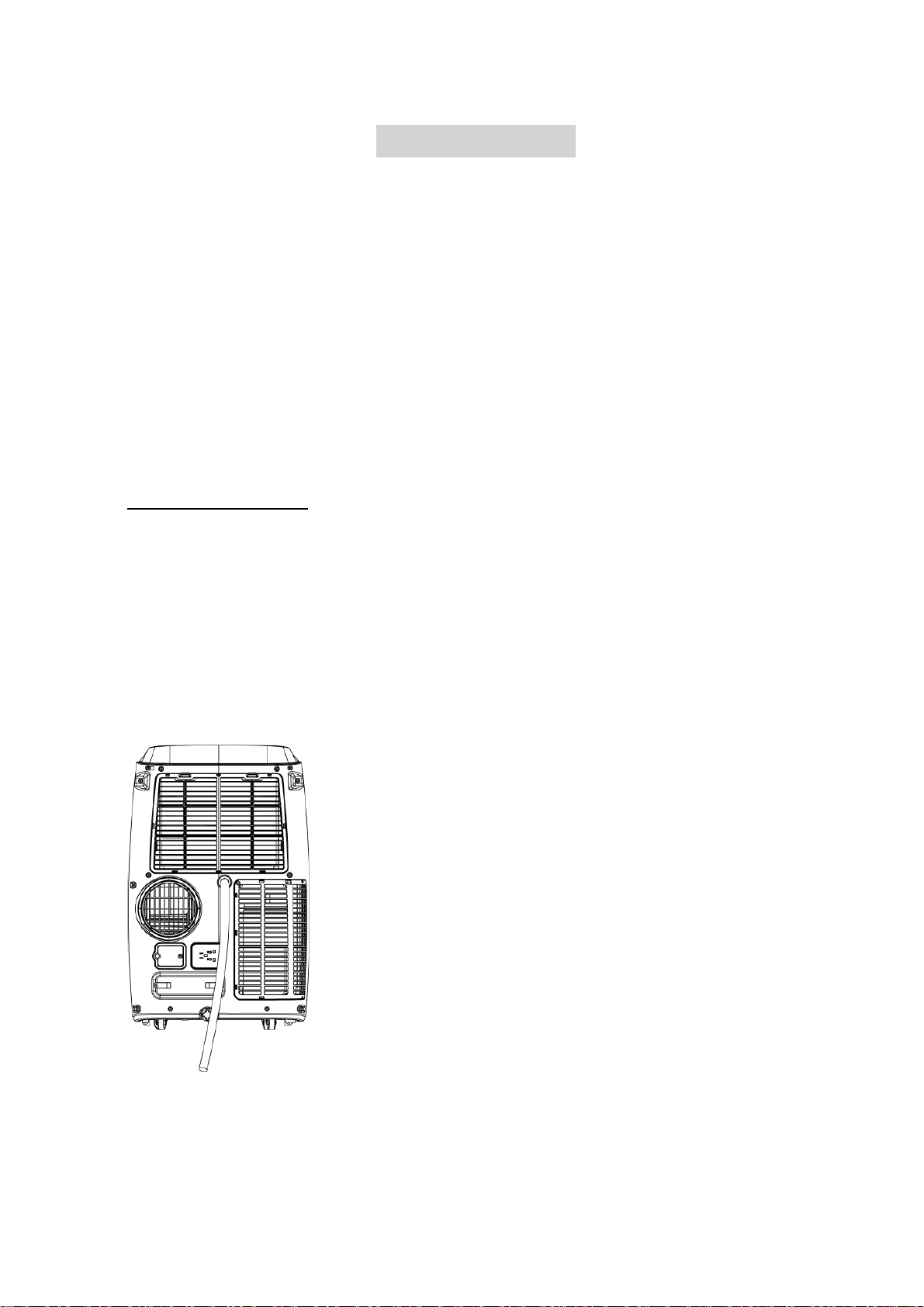

Place the on flat and dry ground, and keep at least 50 cm from walls
etc. (figure 1)
Installation
•
Spin slide bar connector into exhaust hose first, then spin the exhaust hose into
exhaust connector (counter-clockwise).
•
Put slide bar connector into adjustable slide bar, adjust window open width in
order slide bar match window well, and the length of slide bar is adjustable.
(figure 2)
FIGURE 1
Installation Errors
•
Free access of exhaust pipe is important; If air is not taken out it will affect
performance of the appliance.
•
Avoid sharp bends in the exhaust-pipe (figure 2)
•
Make sure air in exhaust pipe can run smoothly (figure 3)
