DESCRIPTION
The ST and HT range of high reliability L.V.D.T.’s are shielded from electrostatic and electromagnetic interference
by magnetic stainless steel casing and end plates.
Because the manufacturing process is fully understood and is of the highest standard, this results in the cores
being interchangeable with no specific orientation.
High output voltage over a large frequency range and large core to bore clearance are major features of this
L.V.D.T.
The design is splash proof, but may not be suitable for complete immersion.
INSTALLATION
L.V.D.T. transducers generally are a reliable and proven technology that is well established in all areas of
manufacturing and control industries. The majority of the associated problems experienced with their application
and use are totally avoidable, particularly if sufficient thought is given during the initial design stages of
equipment, to the positioning and clamping methods employed for these feedback elements.
L.V.D.T.’s being of inductive nature are susceptible to some degree to the influence of magnetic fields and
therefore should be positioned well away from electric motors, relays and permanent magnets, where this is not
possible then magnetic shielding should be considered as an alternative.
Clamping of the coil assembly should be carefully considered, some example methods are shown overleaf. Ideally
the body of the transducers should be clamped centrally in a pinch or yoke type clamp, manufactured from a low
conductivity, non-magnetic material, if this is not possible then the introduction of a non-metallic bush between
body and clamp is a preferred alternative.
Irrespective of clamping method care must be taken not to overtighten retaining screws as distortion of the body
may prove damaging to the integrity of the transducer and adversely effect the geometry of the installation.
If the L.V.D.T. is to be mounted on equipment subject to high ”g” then dependent on the direction of these forces,
it may be advantageous to consider end to end clamping in preference to over body clamping.
The magnetic core supplied with each transducer has been manufactured and heat treated to achieve the
optimum magnetic performance, any subsequent handling of the core which results in stress being imparted will
render the calibration void, this includes overtightening of the core during installation onto its carrier. Hand
tightening and retention by means of a suitable thread locking anaerobic retainer is the recomm ended procedure.

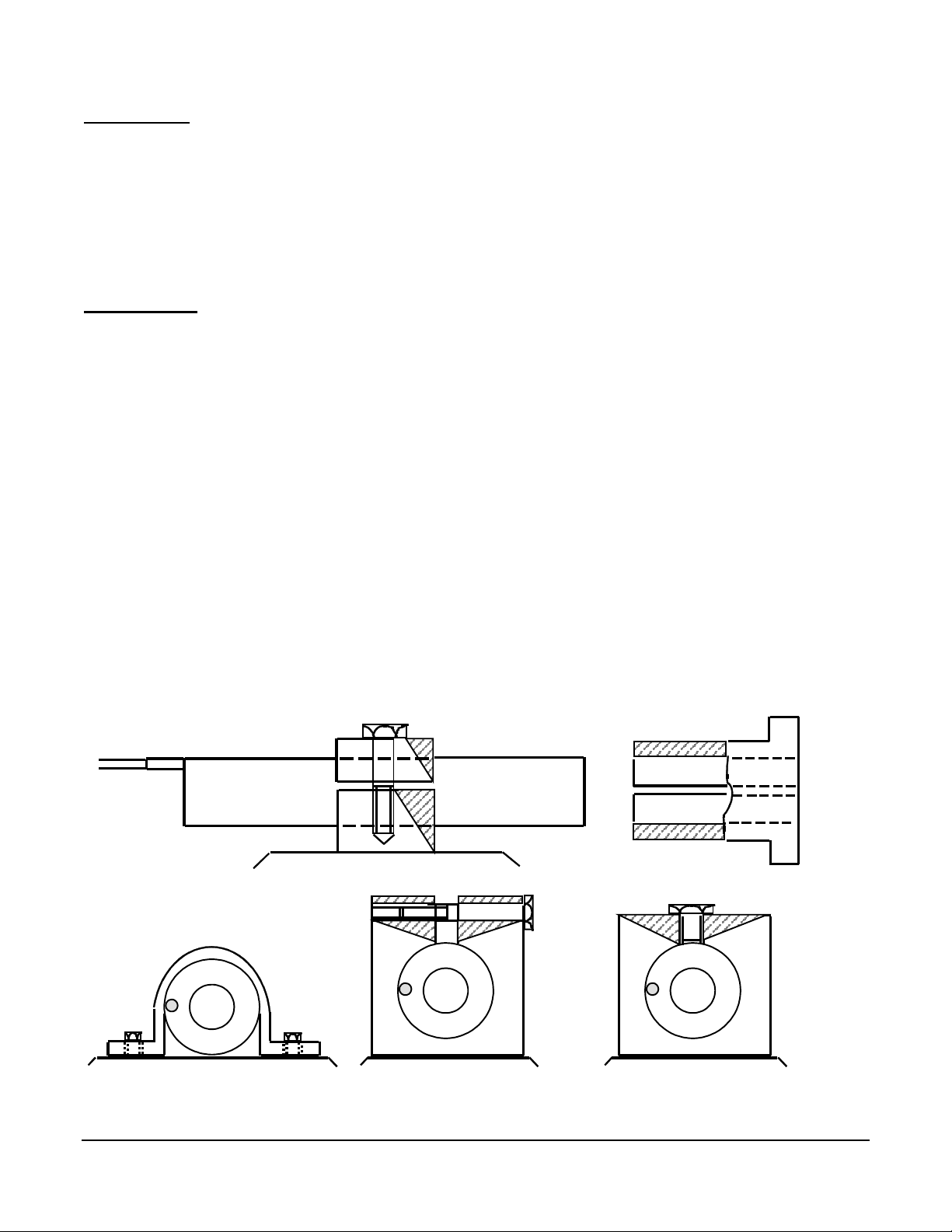

Figure 1 Examples of Clamping Methods
IF POSSIBLE CENTRALISE L.V.D.T.
NON-METALLIC SPLIT (TUFNOL)
BUSH FOR USE WITH METALLIC CLAMP
LDN310M-3341 09/05
Page 3 of 6
Page 4

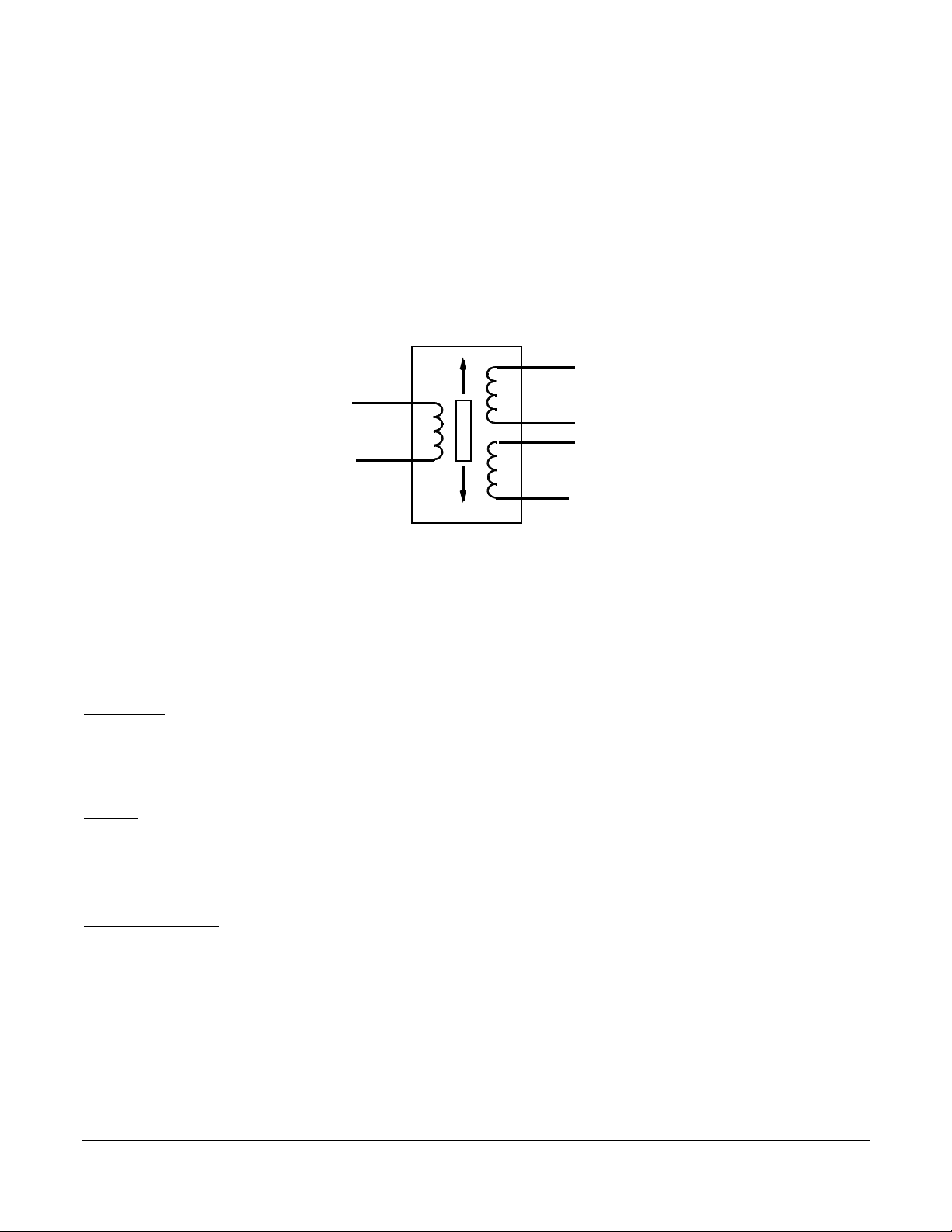

Figure 2 Electrical Connections
Y
Y
PRIMARY
SECONDARY
Black
ellow/Black
Green
Blue
ellow/Red
Red
Connect Blue to Green or Black to Red for differential output.
Calibrated frequency,voltageload
2.5kHz3 volts rms100kΩ
Yellow/Red and Red are in phase for forward displacement (toward cable end).
Note: Fit ”Quad Balance” resistor if supplied, between Red/Blue or Black/Green, as directed, in order to optimise
linearity around null.
CARRIERS
A standard length carrier is available for each model of transducer, manufactured from 316 stainless steel and
incorporating an 6-40UNF x 0.39” (10mm) long male thread for attachment to the standard core and an M4 x
0.027” x 0.78” (0.7 x 20mm) or 6-40UNF male thread for attachment to the fixture.
CABLE
The standard termination is by 7/0.125 P.T.F.E. insulated flying leads, capable of withstanding the operating
temperature of the L.V.D.T.
Routing of cables should be kept as smooth as possible avoiding burrs, sharp edges and excessive cable loads.
ENVIRONMENTAL
STHT
ST(HT) Operating Temperature Range
ST(HT) Storage Temperature Range
-67°F/+302°F
(-55°C/+150°C)
-67°F/+302°F
(-55°C/+150°C)
–67°F/+392°F
(-55°C/+200°C)
–67°F/+392°F
(-55°C/+200°C)
Conditions of high humidity and vibration should be avoided.
LD310M-3341 09/05
Page 4 of 6
Page 5
