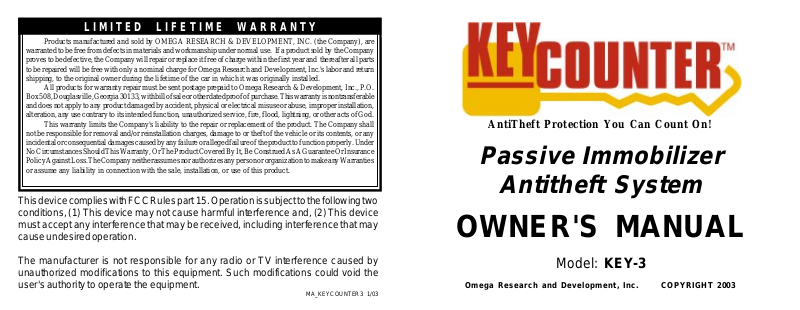

L I M I T E D L I F E T I M E W A R R A N T Y
Products manufactured and sold by OMEGA RESEARCH & DEVELOPMENT, INC. (the Company), are
warranted to be free from defects in materials and workmanship under normal use. If a product sold by the Company
proves to be defective, the Company will repair or replace it free of charge within the first year and thereafter all parts
to be repaired will be free with only a nominal charge for Omega Research and Development, Inc.'s labor and return
shipping, to the original owner during the lifetime of the car in which it was originally installed.
All products for warranty repair must be sent postage prepaid to Omega Research & Development, Inc., P.O.
Box 508, Douglasville, Georgia 30133, with bill of sale or other dated proof of purchase. This warranty is nontransferable
and does not apply to any product damaged by accident, physical or electrical misuse or abuse, improper installation,
alteration, any use contrary to its intended function, unauthorized service, fire, flood, lightning, or other acts of God.
This warranty limits the Company's liability to the repair or replacement of the product. The Company shall
not be responsible for removal and/or reinstallation charges, damage to or theft of the vehicle or its contents, or any
incidental or consequential damages caused by any failure or alleged failure of the product to function properly. Under
No Circumstances Should This Warranty, Or The Product Covered By It, Be Construed As A Guarantee Or Insurance
Policy Against Loss. The Company neither assumes nor authorizes any person or organization to make any Warranties
or assume any liability in connection with the sale, installation, or use of this product.
This device complies with FCC Rules part 15. Operation is subject to the following two
conditions, (1) This device may not cause harmful interference and, (2) This device
must accept any interference that may be received, including interference that may
cause undesired operation.
AntiTheft Protection You Can Count On!
Passive Immobilizer
Antitheft System
OWNER'S MANUAL
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user's authority to operate the equipment.
MA_KEYCOUNTER3 1/03
Model: KEY-3
Omega Research and Development, Inc. COPYRIGHT 2003
![](/html/7d/7d96/7d96a1783b6018225ca7a94da2806b47ef08385cd64011df0ef0bb1bf5b549fb/bg2.png)
The best operating performance is obĀtained by placing the KeyCounter disc
on your keys as shown: place your
LOCK
The operation of
the KeyCounter is
explained in detail
starting on page 4.
The system's antenna
is typically concealed
within the steering column.
Page - 2
ignition key only on the
disc's small ring, and
place the key ring
and remaining keys
on the opposite
side of the disc.
KEY
COUNTER
Configuring the
key fob disc in this
fashion orients the
transponder in
the disc to the
antenna and at
the same time
ensures that the
signal is not blocked
by the other keys.
5) Again present the Red Programming disc to the antenna; the Status Light will go
out momentarily to indicate the disc's code is retained as the Programming disc.
The Status Light returns to solid Red. Remove the Red Programming disc from
the antenna.
6) Now present the first Black Daily Use disc to the antenna; the Status Light will
momentarily go out, then return to solid Red.
7) Repeat the previous step for each additional Black Daily Use disc.
After 10 seconds of no further disc presentations, the Status Light will change from
solid Red to solid Orange, which indicates the exit from programming mode and the
start of the normal engagement process. If all five code slots are filled, i.e.- one Red
disc and four Black discs, the Status Light's change from Red to Orange will occur
as soon as the fifth disc is presented.
Note: The KeyCounter system has a special antenna which is designed to be
mounted behind the steering column trim panel, below the ignition switch. If the
vehicle's steering column structure allows optimal antenna placement, when the
transponder disc is placed within approximately three inches of the antenna, the radio
transmissions between the disc and control module are made and the vehicle is
allowed to start. If the door circuit wire is connected, the radio transmissions will occur
as the key is being inserted into the switch.
Page - 11
