Omega HHF142, HHF142A User guide

Download

Page 1

User’s

Guide

Shop online at omega.com

e-mail: [email protected]

For latest product manuals: omega.com/en-us/pdf-manuals

HHF142 Series

Handheld Rotating High-Accuracy Metal-Vaned Digital Anemometers

With Volume Flow Calculation

M4746/1222

Page 1 of 32

Page 2

omega.com [email protected]

Servicing North America:

U.S.A. Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)

Omega Engineering, Inc.

Customer Service: 1-800-622-2378 (USA & Canada only) Engineering Service: 1-800-872-9436 (USA & Canada only) Tel: (203) 359-1660 e-mail: [email protected]

For Other Locations Visit omega.com/worldwide

Fax: (203) 359-7700

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any

errors it cont ains and reserves t he right to alter specifications without notice.

M4746/1222

Page 2 of 32

Page 3

INTRODUCTION

Omega’s Model HHF142 digital anemometer is a versatile instrument for measuring air velocity in various applications such as HVAC, aerospace development, industrial process airflow, and fluids research.

Air Volume flow is automatically calculated in units of either cubic feet per

minute (ft

/min) or cubic meters per hour (m3/hr).

The rugged yet precise probes can be used for airstreams that have a wide range of humidity, temperature, and contaminants without compromising accuracy.

Features include choice of probe diameters, custom cable lengths, service temperatures up to 212˚F (100˚C) at the probe, high reliability, and long life.

This manual has been prepared for both HHF141A (1.00” probe) and HHF141B (2.75” probe) models including all optional outputs.

IMPORTANT SAFETY INFORMATION

Classifications

Danger: To Prevent Serious Injury or Death

Warnings in this classification indicate danger that may result in serious injury or death if not observed.

Caution: To Prevent Damage to the Product

Warnings in this classification indicate risks of damage to the product that may void the product warranty and/or calibration.

Description of Symbols

ESD Caution: To Prevent Damage to the Product

Warnings in this classification indicate risks of damage to the product that may void the product warranty and/or calibration. Internal components are static sensitive and are not user serviceable. Opening the cases by a non-authorized service center and/or in a nonESD safe environment may cause damage not covered by the manufacturer’s warranty.

Important: Mandatory Action Required

The specific action is given near this symbol.

M4746/1222

Page 3 of 32

Page 4

COMPLIANCE INFORMATION

FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular situation.

EU – Declaration of Conformity Miltronics Mfg. Svcs., Inc. (the manufacturer) declares that the product for this manual demonstrates compliance with the requirements of:

A copy of the Declaration of Conformities (DoC) is available on request from the address found in this manual, on the last page.

UKCA – Declaration of Conformity Miltronics Mfg. Svcs., Inc. (the manufacturer) declares that the product for this manual demonstrates compliance with the requirements of:

A copy of the Declaration of Conformities (DoC) is available on request from the address found in this manual, on the last page.

RoHS Statement Miltronics Mfg. Svcs., Inc. (the manufacturer) declares that to the best of our knowledge, based on supplier provided information, the product for this manual demonstrates compliance with the requirements of:

and is not intentionally manufactured with, formulated with, or contains amounts greater than maximum concentration values by weight in homogenous materials of the following substances:

Please be advised that we do not analyze for these substances.

WEEE – Waste Electrical and Electronic Equipment - 2012/19/EU Miltronics Mfg. Svcs., Inc. (the manufacturer) asks that all our products to be recycled at the end of their current use, to comply with local waste requirements. We support local Waste Electrical and Electronic Equipment (WEEE) directives where they are in operation. That means that WEEE products may not be disposed as unsorted municipal waste but is to be collected separately. These products are therefore labeled with a crossed-out “wheelie-bin” symbol which you can see above. WEEE products may contain hazardous substances which may negatively affect the environment and human health when disposed of through normal channels. We are committed to reduce the negative environmental and human health effects of WEEE.

• European Community Council Directive 2014/30/EU

• UKCA Electromagnetic Compatibility Regulations 2016.

• RoHS Directive: 2015/863/EU

• Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012 (as amended): Great Britain

• Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012 (as amended): Northern Ireland

• Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr VI), Polybrominated Biphenyls

(PBB), Polybrominated Diphenyl Ethers (PBDE), Bis(2-Ethylhexyl) phthalate (DEHP), Benzyl butyl phthalate (BBP), Dibutyl phthalate (DBP), and Di isobutyl phthalate (DIBP): 0,1 % or 1000 ppm

• Cadmium (Cd): 0,01 % or 100 ppm

M4746/1222

Page 4 of 32

Page 5

DANGER

Never touch the vane assembly blades and/or thermal sensors. The vane assembly blades may contain sharp edges which may cause minor cuts. The assembly contains precision bearings which are sensitive, and the blades are finely adjusted to specific pitches. Touching this assembly or its parts may cause damage which can affect its operation and the calibration. NOTE: If the vane assembly head or probe head requires cleaning, we recommend a fine mist of isopropyl alcohol and a fine long-haired brush or send the unit in or servicing.

Do not disassemble or heat the batteries or put them into a fire. They may cause burns and the batteries may burst. Please dispose of used batteries in the proper manner per local ordinances.

CAUTION

When measuring, ensure that the direction arrow is facing the direction of airflow.

The arrow indicates the direction of airflow for the data provided on the calibration certificate. It is meant to allow for uniform and consistent readings as per the provided data. The probe will operate in the opposite direction, but the data may be different.

Do not use or leave the instrument in a high temperature, high humidity,

high speed airflows or dusty environments for prolonged periods.

The instrument may not function properly out of the specified operating conditions and/or have a greatly reduced operating life span.

Do not subject the instrument or the probe to strong impacts. Dropping the instrument or the probe may cause damage or malfunction to the instrument and may change the calibration data. We recommend sending it in immediately to be checked.

M4746/1222

Page 5 of 32

Page 6

CAUTION (continued)

Never disassemble, modify, or repair the product. Failure to observe the above may cause damage to the instrument or the probe. It may also void the manufacturer’s warranty and calibration certificate.

Do not pick up or carry the instrument by the cable. It may cause a malfunction or damage to the wiring of the cable.

Remove the batteries from the instrument when storing for long

periods of time. When inserting the batteries, be sure to insert them with the polarity facing the correct direction.

Failure to do so may cause battery leakage and subsequent damage to the instrument. The manufacturer does not recommend any specific brand of batteries, but a high-quality name brand alkaline battery seems to last the longest.

Do not wipe the instrument with a volatile solvent. Use neutral solvents and simple cleaners to clean the instrument with a soft cloth.

Regularly check the head of the probe for contamination.

Impurities (such as dust) on the blades and/or thermal sensor may affect the accuracy of the instrument.

NOTE: If the vane assembly head or probe head requires cleaning, we recommend a fine mist of isopropyl alcohol and a fine long-haired brush or send the unit in or servicing.

disconnecting the cable(s) and returning it to the original carrying case.

When storing or shipping the instrument, the manufacturer recommends

M4746/1222

Page 6 of 32

Page 7

SECTION 1 - SPECIFICATIONS

Ranges:

Probe AP275: 50 to 7800 ft/min (feet per minute)

0.25 to 39.60 m/sec (meters per second)

Air Probe AP100: 300 to 6890 ft/min (1.50 to 35.00 m/sec)

Calculated Air Volume Flow:

0.0 to 9999 ft

0.0 to 9999 m

Accuracy: Air Velocity: AP275: ± 1.0% of reading ±1 digit

AP100: ± (0.50% of F.S. + 0.75% of reading + 1 digit)

Resolution: 1 ft/min or 0.01 m/sec

0.1 ft

Operating Temperature:

Instrument: 32˚ to 125˚F (0˚ to 50˚C) Probes: -4˚ to 212˚F (-20˚ to 100˚C)

Power Supply: 3 AA alkaline batteries

Battery Life: Approx. 150 hours, without backlight

Battery check: Automatic low battery display

Display: 0.5” LCD, 4 digits, with LED backlight

/min (cubic feet per minute)

/hr (cubic meters per hour)

/min or 0.1 m3/hr

M4746/1222

Page 7 of 32

Page 8

OPTIONS AND COMPONENTS

Options Available:

• Protective Boot and Splash-Proof Seal for the Instrument

• USB Communications

• RS232 Communications

• Analog 0-5 Volt Output

• Wall Transformer Power for the Instrument (US only)

• Additional Probes, 2.75-inch diameter or 1 inch diameter

• Extra extension and/or flexible rods

• 8-ft Telescopic Extension Rod

• Custom cable lengths, in 5-ft increments, up to 100-ft (30-

meters).

• Custom probe connections.

Included:

• (1) HHF141 Instrument

• (1) Vane-type probe head, choice of 2.75-inch diameter or 1 inch

diameter

• (3) Rigid extension rods with handle grip

• (1) Flexible extension rod

• (1) Probe connection cable, 5 ft.

• (3) Size AA 1.5V alkaline batteries

• (1) Hard-shell carrying case with foam liner

• (1) Operation Manual

(installed in instrument)

M4746/1222

Page 8 of 32

Page 9

INSTRUMENT

2.75 INCH PROBE

1 INCH PROBE

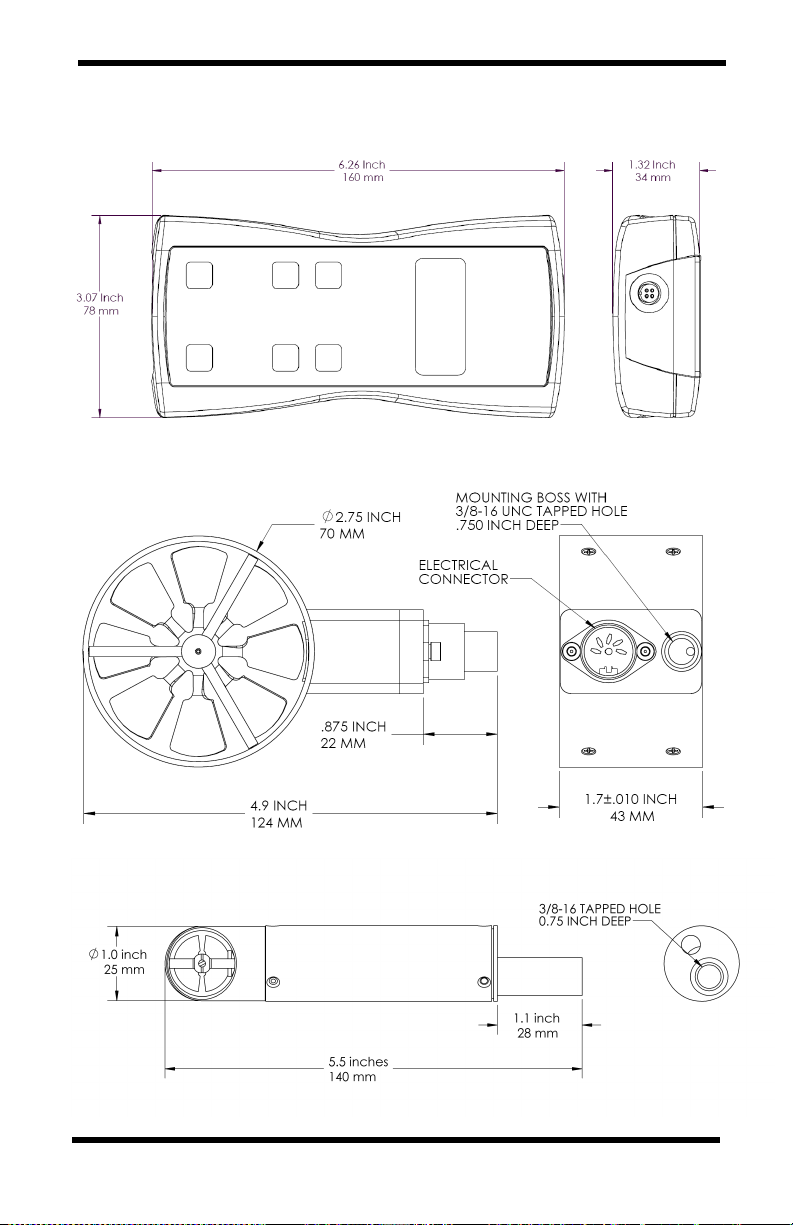

DIMENSIONS

Page 9 of 32

M4746/1222

Page 10

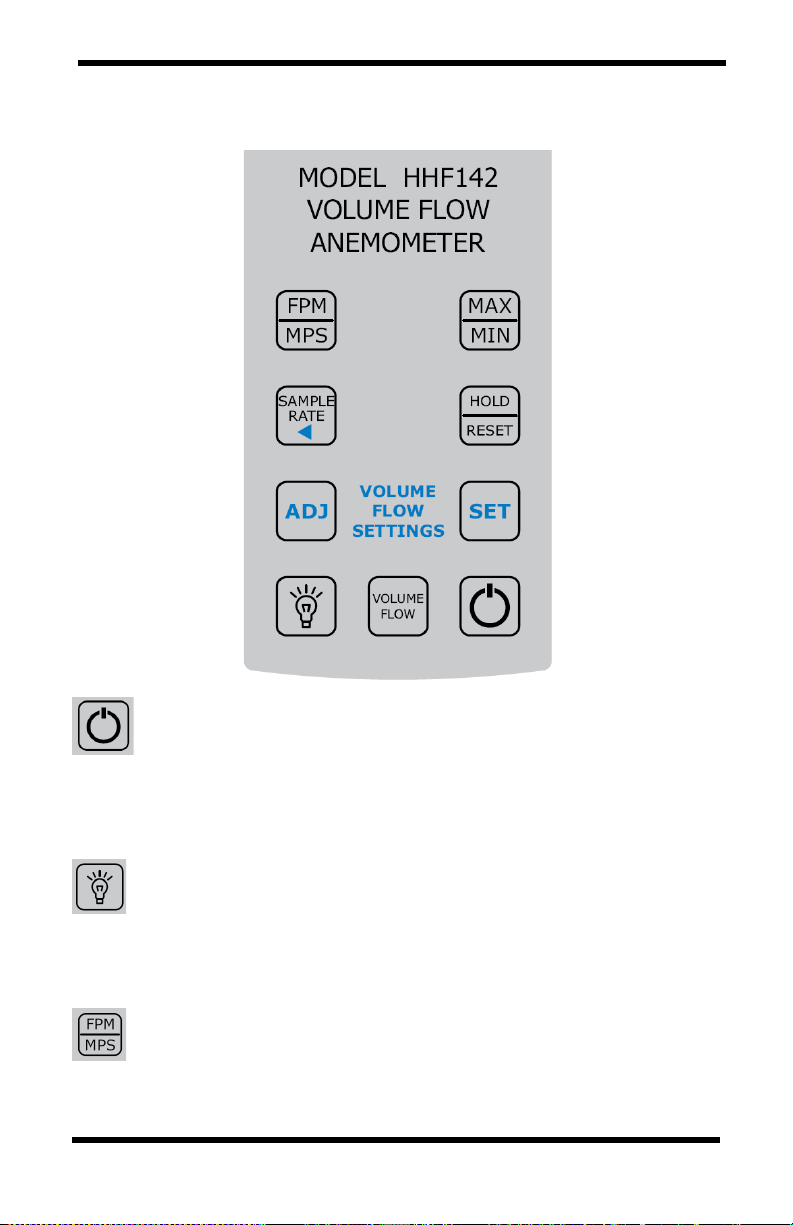

SECTION 2 – SWITCH FUNCTIONS

Pressing the ON/OFF key switches the instrument ON. Hold down the key for 2 seconds to switch the unit OFF. The unit will

automatically power off after 30 minutes without any key presses. To disable auto power-off, hold down the power button during turn-on. The unit will flash AOFF, which means that the auto power-off has been disabled. The auto power-off is re-enabled each time the instrument is turned on.

Press the BACKLIGHT key to turn the LCD backlight on for 30

seconds. To turn the backlight on permanently, hold the backlight key down for 3 seconds. The LCD will flash. The backlight is now switched on permanently. To switch the backlight off, press the backlight key again.

Press the FPM/MPS key to switch the measurement units from FPM

(feet per minute, 1 FPM resolution) to MPS (meters per second, 0.01

MPS resolution).

M4746/1222

Page 10 of 32

Page 11

SECTION 2 – continued

Press the SAMPLE RATE key to change the measurement averaging rate

(“sample rate”) of the unit:

2 sec An average value of airspeed measurements during the preceding 2 seconds is

displayed.

4 sec An average value of airspeed measurements during the preceding 4 seconds is

displayed.

8 sec An average value of airspeed measurements during the preceding 8 seconds is

displayed.

16 s An average value of airspeed measurements during the preceding 16 seconds is

Press the MAX/MIN key to record and display the maximum airspeed reading.

The maximum airspeed reading display will alternate with the letter “H”

displayed with the sample rate. Press the MAX/MIN key again to record and

reading display will alternate with the letter “L” displayed with the sample rate. For example:

1065 alternating with h 8 signifies that 1065 is the highest airspeed reading since the MAX/MIN key was pressed, and the sample rate is set to 8 seconds.

82 alternating with l 16 signifies that 82 is the lowest airspeed reading since the MAX/MIN key was pressed, and the sample rate is set to 16 seconds.

To exit MAX/MIN mode, press the SAMPLE RATE key.

Press the HOLD/RESET key to freeze the current reading on the display.

HOLD is displayed on the LCD and the reading is held.

Press the HOLD/RESET key a second time to clear this mode and return the unit to normal operation.

Press the HOLD/RESET key while in MIN/MAX mode to display BOTH the minimum and maximum airspeed reading since the MAX/MIN key was pressed. Once the HOLD/RESET key is pressed while in MAX/MIN mode, new airspeed readings are no longer recorded. To return to MAX/MIN mode, press the HOLD/RESET key again.

Press the “VOLUME FLOW” key to enter Volume Flow mode. Press it again

to exit Volume Flow mode and return to Airspeed mode.

displayed.

hold the minimum airspeed reading. The minimum airspeed

M4746/1222

Page 11 of 32

Page 12

SECTION 2 – continued

While in Volume Flow mode, or Airspeed mode, press “ADJ” to select which

Duct setup you’d like to use when in Volume Flow mode. There are 10 Duct

setups to choose from and they are shown as duc0 through duc9.

While in Volume Duct Entry mode, press this key to advance to begin editing a setting, or to adjust a setting, like changing units from inch (inches) to cent (centimeters), or

incrementing a duct size by 1 unit.

While in Volume Flow mode or Airspeed mode, press “SET” to enter Volume

Duct Entry mode. This allows you to edit the Duct settings for the currently

selected Duct setup.

While in Volume Duct Entry mode, press this key to accept a value. For example, pressing “ADJ” will toggle the units setting between inch and cent. Pressing “SET”

will accept the currently displayed value and advance you to the next menu.

Press the SAMPLE RATE key while adjusting duct sizes to move one digit to

the left. This will allow you to go back and adjust the digit you have just set.

Press the HOLD/RESET key at any time while adjusting duct sizes to exit the

duct size adjustment. Any changes you have made to duct sizes are not saved.

M4746/1222

Page 12 of 32

Page 13

SECTION 2 – continued

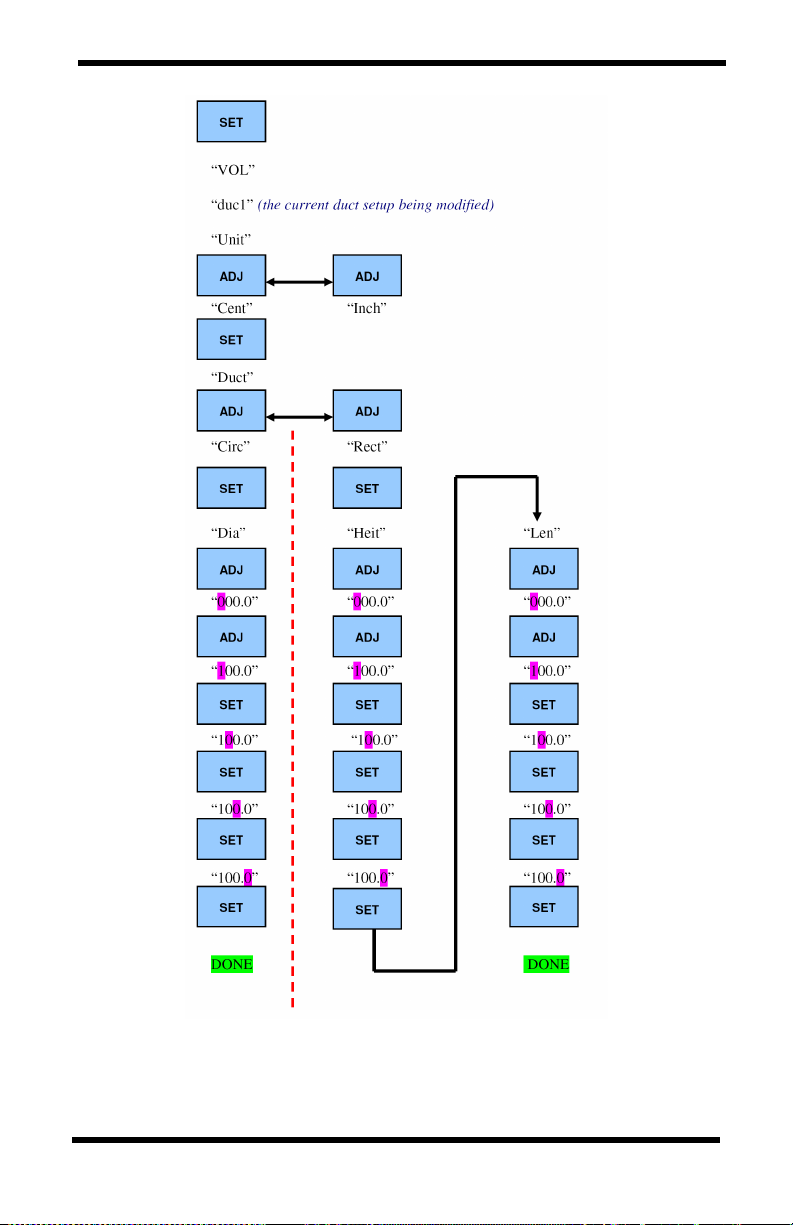

Duct Size Entry example:

The following example shows how to enter the dimensions of a 12-inch x 12inch rectangular duct and save this duct at Duct # 4 in memory.

1. Turn the DA410 on.

2. Once turned on, press the “ADJ” key. Continue pressing and releasing

duc4 is displayed. This now selects Duct setup 4.

until

3. Press the “SET” key to enter Volume Duct Entry mode. The display

uol stating that we’re in Volume Duct Entry mode, then shows

shows

the Duct setup selection of

“ADJ” key to enter the Units menu.

4. Press and release the “ADJ” key to toggle between inch and cent.

This determines whether the units will be in Inches or Centimeters.

5. Once inch has been displayed, press the “SET” key to accept Inches

as the Units.

6. The display now shows duct stating that we’re now in the Duct Type

menu. Press the “ADJ” key to enter the Duct Type menu.

7. Press and release the “ADJ” key to toggle between rect and circ.

This determines whether the Duct type will be a Rectangular duct or a

Circular duct.

8. Once rect has been displayed, press the “SET” key to accept

Rectangular duct as the Duct type.

9. The display now shows heit stating that we’re now in the Height

Entry menu. Press the “ADJ” key to enter the Height Entry menu. The

Height can now be edited one digit at a time.

10. To enter in 12.0 inches, press the “SET” key to accept 0 and move to

the cursor to the right, press the “ADJ” Key to increment the current

digit to

the right, press the “ADJ” Key twice to increment the current digit to

1 , press the “SET” key to accept 1 and move to the cursor to

duc4, and then stops at unit. Press the

2 , press the “SET” key to accept 2 and move to the cursor to the

right, press the “SET” key to accept

Duct Height. (Note: The blinking digit is the current digit for editing.

To increment the current digit, the “ADJ” key can be pressed. To save

the current digit and move the cursor to the right, the “SET” key can

be pressed. If a digit needs to be edited again, the “SAMPLE

RATE/Arrow” key can be pressed to move the cursor to the left again.)

Page 13 of 32

0 and to finish the editing of the

M4746/1222

Page 14

11. The display now shows len stating that we’re now in the Length

Entry menu. Press the “ADJ” key to enter the Length Entry menu. The

Length can now be edited one digit at a time.

12. To enter in 12.0 inches, press the “SET” key to accept 0 and move to

the cursor to the right, press the “ADJ” Key to increment the current

digit to

the right, press the “ADJ” Key twice to increment the current digit to

1 , press the “SET” key to accept 1 and move to the cursor to

2 , press the “SET” key to accept 2 and move to the cursor to the

right, press the “SET” key to accept

Duct Length.

13. The display now shows done which means that we’ve completed the

Duct setup and are exiting Volume Duct Entry mode.

14. Now press the “VOLUME FLOW” Key to enter Volume Flow Mode.

15. A 12” x 12” Rectangular duct can now be measured for Volume Flow.

(Note: To get an accurate reading, increase the sample rate to 16

Seconds by pressing the “SAMPLE RATE” key. Then slowly move the

air probe around the entire duct opening to get an average reading

across the duct opening. This will give a more accurate value for the

volume flow rate out of the duct.)

The following page shows a graphical representation of the steps required to enter the duct dimensions into the HHF142.

Page 14 of 32

0 and to finish the editing of the

M4746/1222

Page 15

M4746/1222

Page 15 of 32

Page 16

Duct #

Length

Height

Diameter

Description

Duct 0

Duct 1

Duct 2

Duct 3

Duct 4

Duct 5

Duct 6

Duct 7

Duct 8

Duct 9

SECTION 2 – continued

While in Volume Flow Mode, press the FPM/MPS key to switch

between units of cubic feet per minute (CFM) and cubic meters per

hour (CMH). CUBIC will be displayed along with either FPM or

MPS on the LCD display to tell you what units you are in.

Note: When CUBIC and MPS are displayed on the LCD display, the reading displayed is in units of CUBIC METERS PER HOUR.

Duct Dimension Reference Table

The following reference table can be used to record which duct dimensions are stored under which Duct Number in your HHF142 Anemometer.

M4746/1222

Page 16 of 32

Page 17

SECTION 3 – OPERATIONAL NOTES

Caution: Do not attempt to measure flow from a duct that is smaller than the

diameter of the probe head that you are using. This will cause a false reading. Follow the minimum duct cross-section guidelines as detailed below:

2.75-inch Air Probe: Minimum duct width of 2.7 inches (69 cm) Minimum duct height of 2.7 inches (69 cm) Minimum duct diameter of 2.7 inches (69 cm)

1 Inch Air Probe: Minimum duct width of 1.0 inches (2.7 cm) Minimum duct height of 1.0 inches (2.7 cm) Minimum duct diameter of 1.0 inches (2.7 cm)

9009 - Out of Range Error: There are a few circumstances which will cause

the instrument to display

1. Duct dimension is too small: If one of the user-entered duct

dimensions is smaller than the probe diameter as described above, the

instrument will display the out-of-range error.

2. Duct cross-sectional area is too large: If the cross-sectional area of

the duct is too large, the instrument will not be able to display a

meaningful result. The out-of-range error will be displayed. The

maximum duct cross-sectional areas are as follows:

a. 35 ft

b. 20 ft

3. Volume flow rate is too high: If the calculated volumetric flow rate is

higher than 9999 cubic feet per minute (CFM) or 9999 cubic meters per

hour (CMH) the result cannot be displayed by the instrument. The out-

of-range error is displayed.

Page 17 of 32

9009, which is the out-of-range error. They are:

(3.25 m2) when displaying in cubic feet per minute

(CFM)

(1.86 m2) when displaying in cubic meters per hour

(CMH)

M4746/1222

Page 18

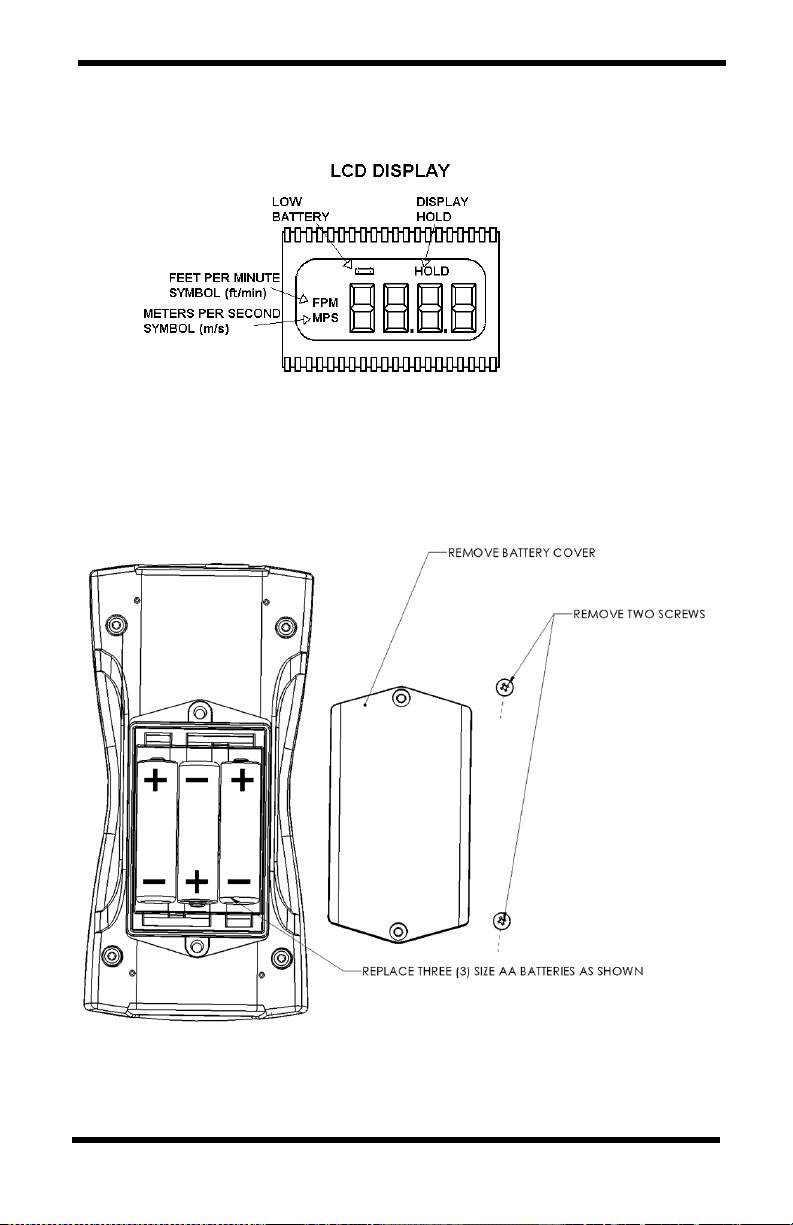

APPENDIX A – LCD DISPLAY SYMBOLS

APPENDIX B – BATTERY REPLACEMENT

Page 18 of 32

M4746/1222

Page 19

APPENDIX C – AIRFLOW VOLUME CALCULATIONS

To calculate cubic feet per minute (CFM) from a measured air velocity (FPM), you need the calculated cross-sectional area of the air flow stream:

Volume Flow (CFM) = Velocity (FPM) X Area (sq ft).

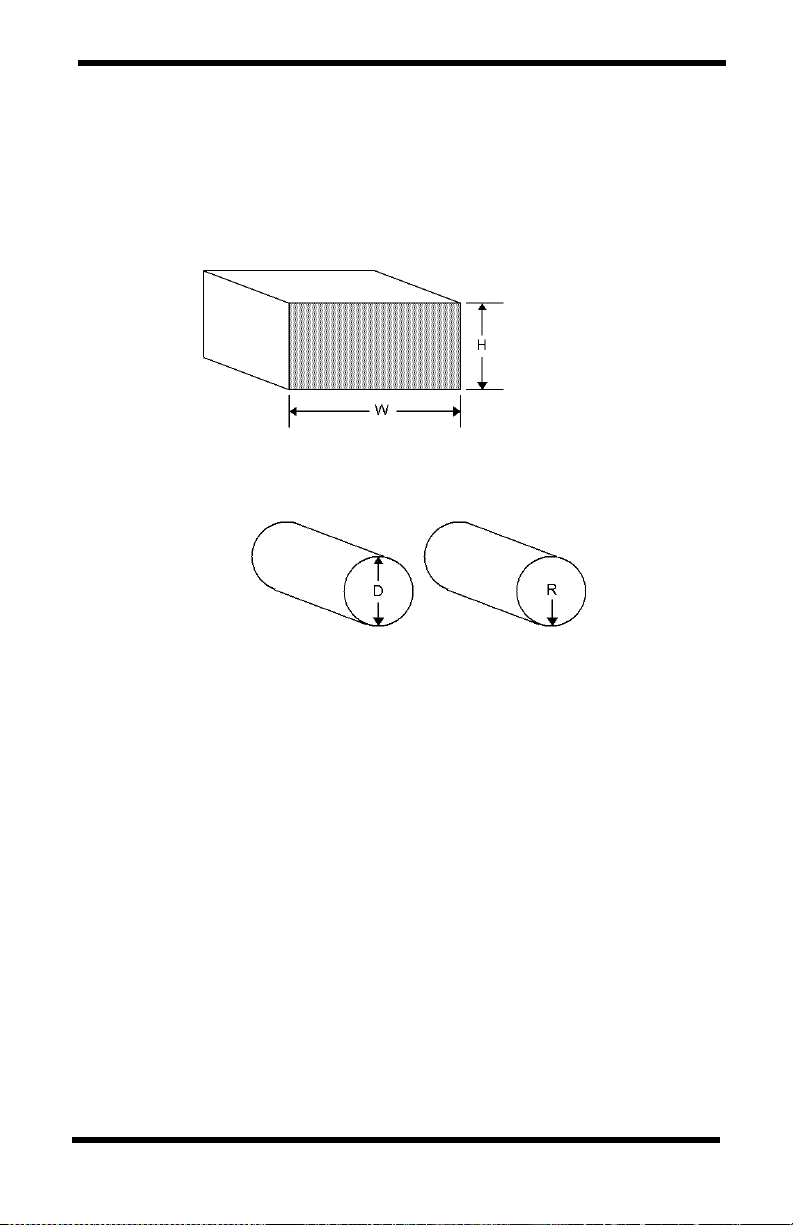

In a rectangular duct this cross-sectional area equals the Width times the Height.

W x H=A (cross-sectional area)

In a circular duct this cross-section area equals the radius squared times π (3.14).

R x R x 3.14=A (cross-sectional area)

To convert an area calculated in square inches to an area calculated in square feet (which is required for the Volume Flow equation above) divide by 144: (area in sq in.)/144 = (area in sq ft.).

Example: The air duct is rectangular; the width is 24 in., and the height

is 12 in. The air velocity reading through the duct is 450 FPM. Calculate the Volume Flow.

Step 1: Cross-sectional area = 24 in. x 12 in. = 288 sq in. Step 2: 288 sq in /144 = 2 sq ft. Step 3: Volume flow = Air Velocity x Area, therefore, Volume flow rate = 450 FPM x 2 sq ft. = 900 CFM.

M4746/1222

Page 19 of 32

Page 20

Corresponding

Wire

Analog

Output

Measurement

Equation* to convert

from

Color

Function

Voltage

Range

Volts (V) to Measurement

Value

BLK 1 Ground

--- N/A ---

GRN 2 Air Velocity

0 to 5 Volts

0 to 10,000

FPM

Air Velocity = 2000×V

GRY 3 --- Not Used ---

--- N/A ---

WHT

--- Not Used ---

--- N/A ---

APPENDIX D – ANALOG OUTPUTS (IF EQUIPPED)

If the instrument is equipped with the analog output option, there will be a fivepin connector on the bottom of the instrument. Also, an analog output cable will be included with the instrument. This cable will have a five-pin connector on one end and four tinned wires on the other end.

The instrument will output a Voltage between 0 and 5 Volts that corresponds to the Air Velocity measured by the instrument. The output range, pin assignments, and wire colors are given in the table below. Also shown is a block diagram of the analog output circuit.

*To convert from Volts to Air Velocity in Feet per Minute, multiply by 2000.

► For example, an analog output of 2.375 Volts means that the instrument is

measuring an air velocity of 4750 feet per minute (FPM).

► 2.375 Volts

Note: When using analog outputs, there is an additional ±1% error in the analog output voltage. This is in addition to the normal measurement error. ► For example, an air velocity reading of 500 FPM would normally have an

accuracy of ±1% of reading ±1 digit (±6 FPM) when the data is viewed on the LCD display.

► With the additional error associated with the analog output voltage, the

effective accuracy of the analog output for this air velocity measurement will be ±2% of reading ±1 digit (±11 FPM).

Custom Analog Voltage Outputs are also available – contact Omega for details.

Page 20 of 32

× 2000 = 4750 FPM

M4746/1222

Page 21

Mating Cable Connector:

Binder Part No. 99-0413-00-05

APPENDIX D – continued

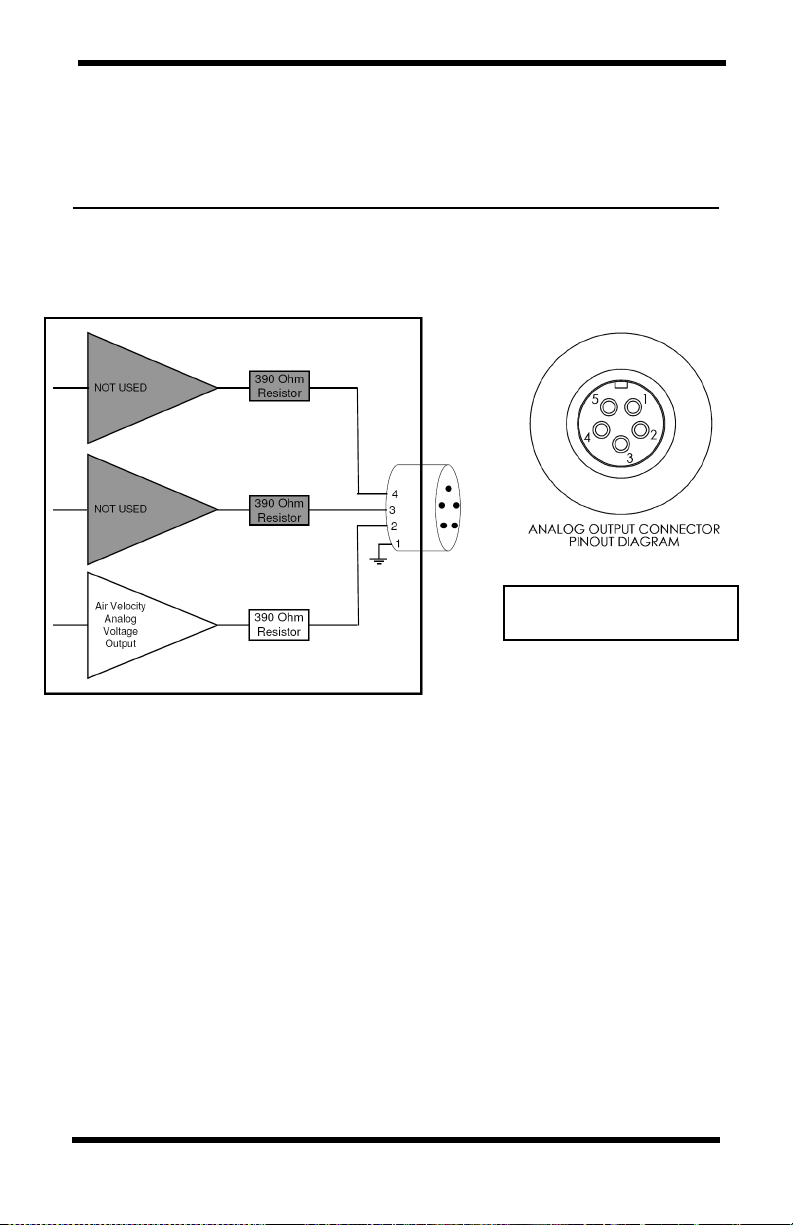

Analog Output circuit block diagram and connector pin assignment

Page 21 of 32

M4746/1222

Page 22

APPENDIX E - USB DATA OUTPUT (IF EQUIPPED)

If the instrument is equipped with the USB Communications option, there will be a four-pin male connector on the bottom of the instrument. Also, a USB cable will be included with the instrument. This cable will have a four-pin female connector on one end and a USB Type-A connector on the other end.

USB Data Output – Instructions for Use

STEP 1: Install a Virtual COM Port (VCP) Driver on your computer.

Free VCP drivers can be downloaded for Windows, Linux, and MAC from FTDI Ltd on their website:

http://www.ftdichip.com/Drivers/VCP.htm

We recommend downloading the setup executable, which automatically runs and configures the drivers for you.

STEP 2: Connect the USB cable (included) to the male connector on the

bottom of your instrument. Connect the other end to a USB port on your computer.

STEP 3: Turn the Instrument ON.

STEP 4: Verify that the Instrument has been set up as a USB Serial Port with

a unique COM port number. (You only need to do this once)

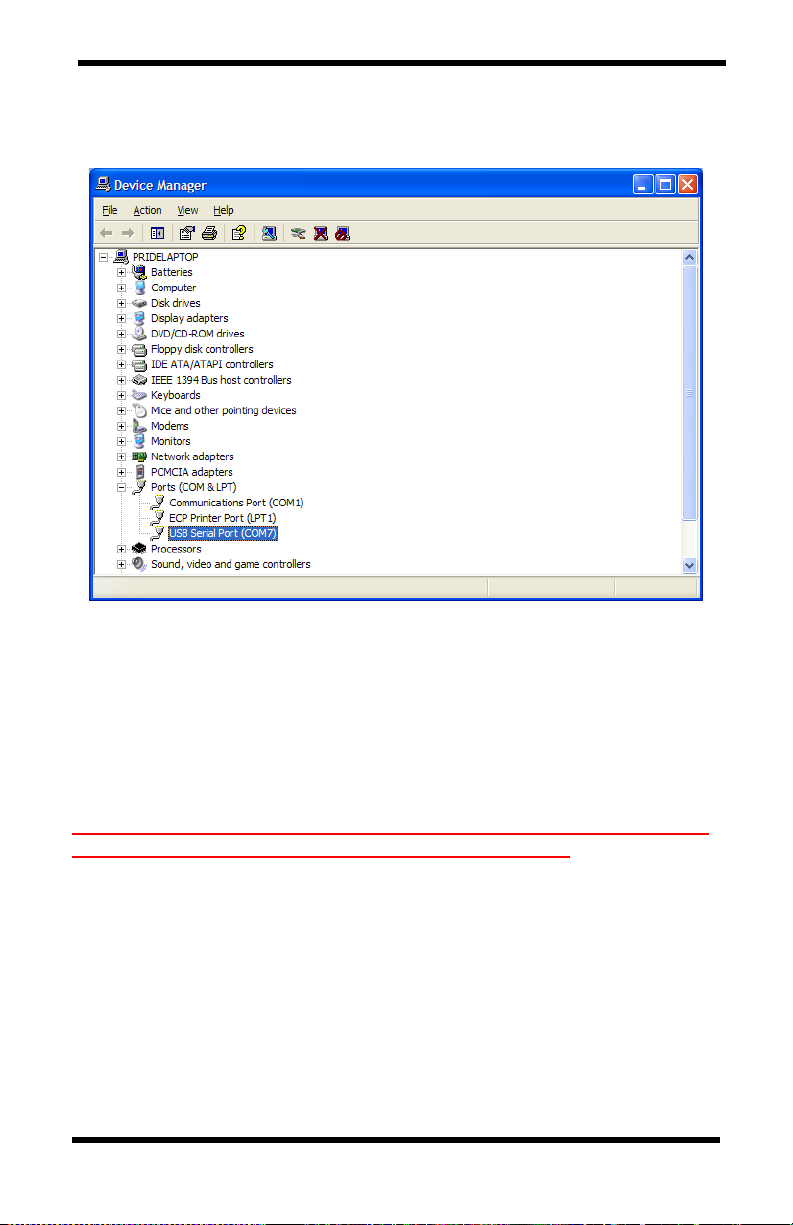

For Windows users, open the Windows Device Manager (found in

Control Panel) and verify that a USB serial port exists as shown below.

Page 22 of 32

M4746/1222

Page 23

APPENDIX E – continued

You are now ready to capture the data being measured by your

instrument.

Please refer to Appendix G – Viewing and Capturing Data for

further instructions.

NOTE: Units with USB or RS232 communications, output only Air data at this time. Temperature data is not available on the output.

M4746/1222

Page 23 of 32

Page 24

APPENDIX F – RS232 COMMUNICATIONS (IF EQUIPPED)

If the instrument is equipped with the RS232 Communications option, there will be a three-pin male connector on the bottom of the instrument. Also, an RS232 cable will be included with the instrument. This cable will have a three-pin female connector on one end and a DB9 Female connector on the other end.

RS232 Data Output – Instructions for Use

STEP 1: Connect the RS232 cable (included) to the female connector on the

bottom of your instrument. Connect the other end to an RS232 port on your computer.

STEP 3: Turn the Instrument ON.

STEP 4: Verify that the Instrument has been set up as a RS232 Serial Port

with a unique COM port number. (You only need to do this once). For Windows users, open the Windows Device Manager (found in Control Panel) and verify that a serial port exists.

You are now ready to capture the data being measured by your

instrument.

Please refer to Appendix G – Viewing and Capturing Data for

further instructions.

M4746/1222

Page 24 of 32

Page 25

APPENDIX G – VIEWING AND CAPTURING DATA

(IF EQUIPPED WITH EITHER USB OR RS232 OUTPUTS)

NOTE: HyperTerminal is no longer included with Windows Vista or later packages. Previous manuals referenced this program. We now reference, Parallax Serial Terminal.

There are many terminal emulator programs available on the market. It is up to the end-user to determine which program is compatible with his/her system, what settings it may require, and the Omega Engineering product being used. Omega Engineering does not endorse or recommend any of these programs and assumes no liability for their use.

There are many ways to capture the serial port data from the instrument. The simplest method is to use a terminal emulator program.

Using a terminal emulator allows the serial COM port to be opened, with the below port settings, and real-time data to be viewed from the instrument. One such terminal emulator program is Parallax Serial Terminal, available from

www.parallax.com

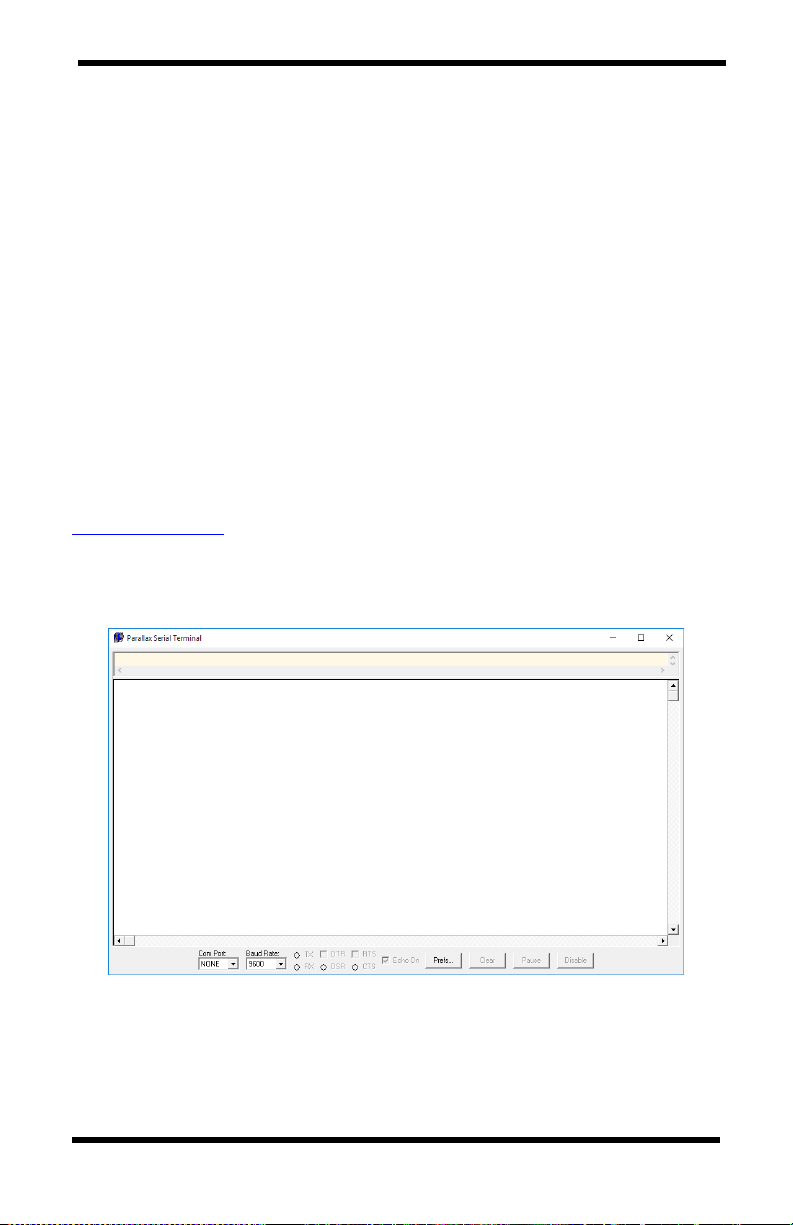

Open the Parallax Serial Terminal, based on how you installed the program onto your computer. The below screen will come up.

Attach your instrument & probe to your computer via the USB cable. Select the appropriate ‘Com Port:’. In the below example, COM5 is being used. Set the ‘Baud Rate:’ to 9600

M4746/1222

Page 25 of 32

Page 26

APPENDIX G – continued

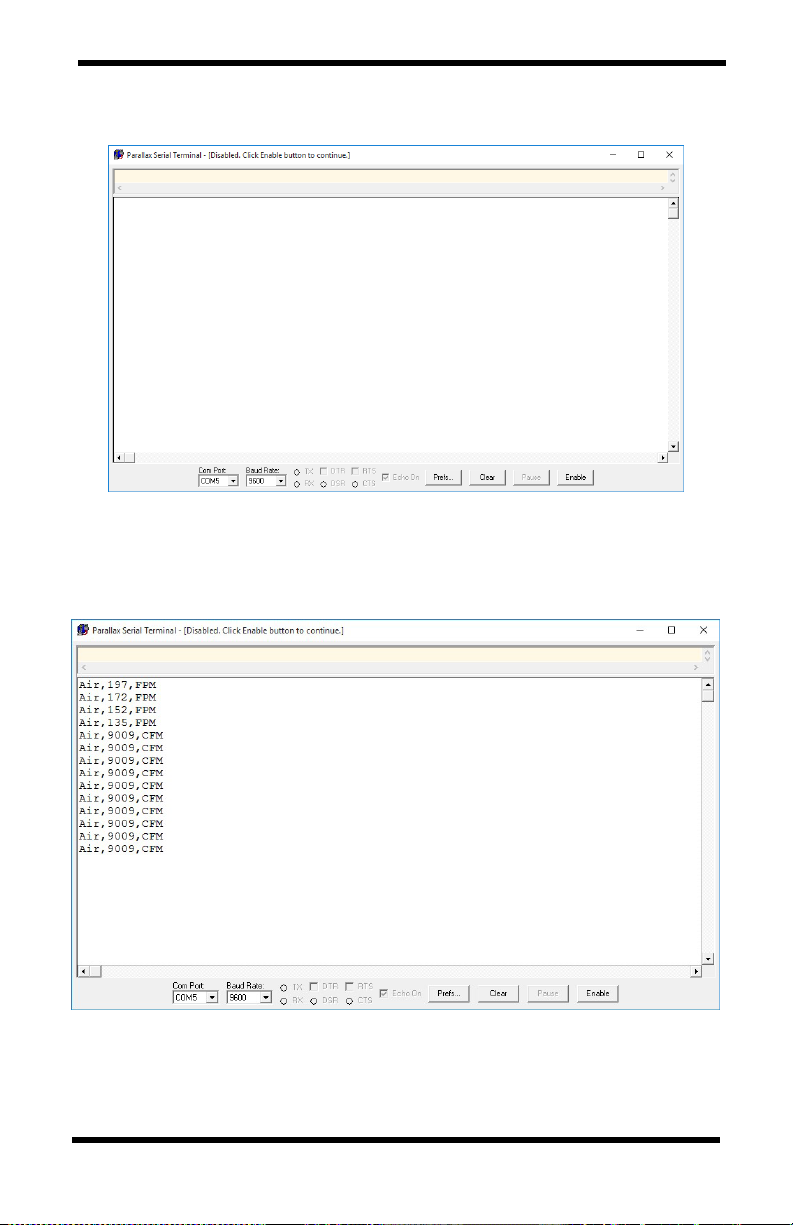

You will now receive data from your instrument. The graphic below shows the serial port output data from Parallax Serial Terminal when connected to an Omega HHF142 Instrument.

Graphics may vary.

M4746/1222

Page 26 of 32

Page 27

APPENDIX G – continued

Serial Port Settings

Bits per Second (Baud) 9600

Serial Port Protocol

Data Output Interval One Second Data Format Comma-Separated Values (CSV) Measurement Units Same as Units shown on LCD Display

Below are examples of the formatted output data for Omega Engineering HHF141-HHF144 Series Instruments (units may be different depending on the units selected on the LCD display):

Model HHF141: Air,47, FPM

Model HHF142, in Air Velocity Mode: Air,47, FPM Model HHF142, in Volume Flow Mode: Air,251, CFM

Model HHF143: Air,47, FPM

Model HHF144: Air,47, FPM

M4746/1222

Page 27 of 32

Page 28

APPENDIX G – continued

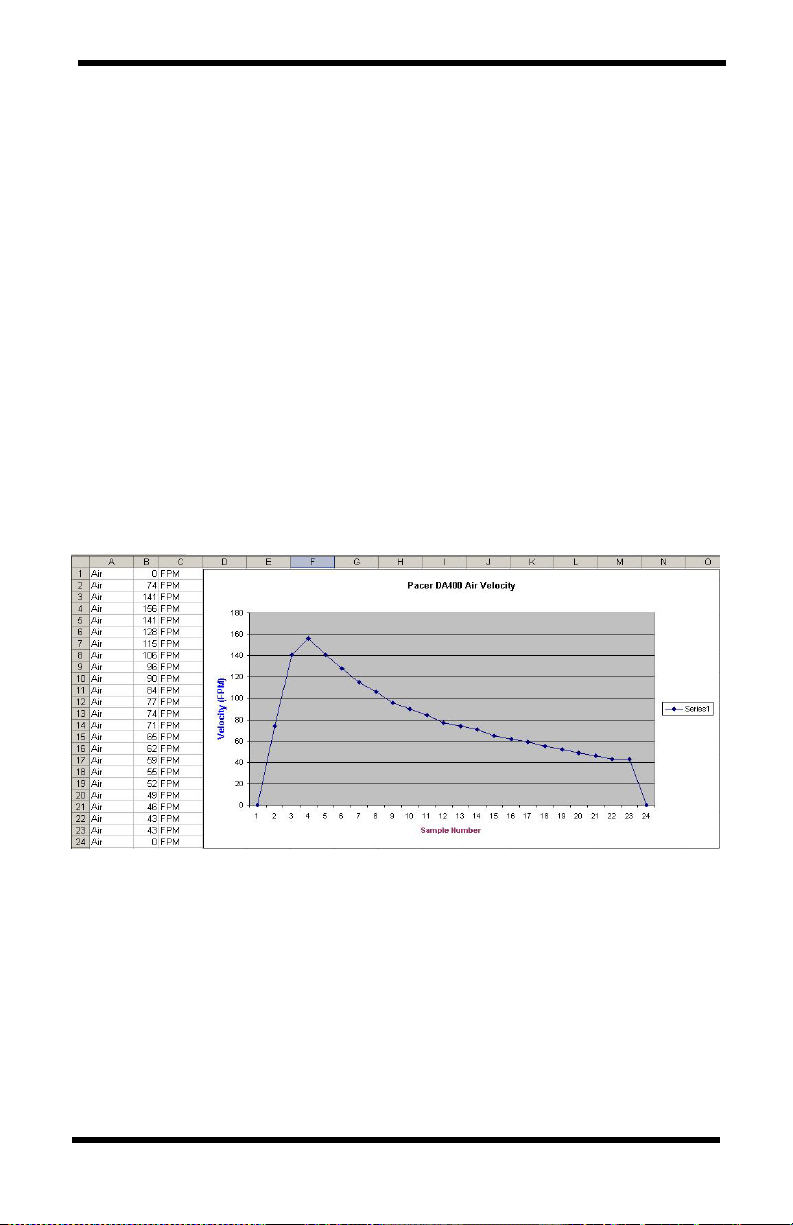

Exporting and Graphing Data

Exporting serial port instrument data from the Pacer Instrument to a spreadsheet application such as Microsoft Excel or OpenOffice Calc allows the data to graphed or recorded.

The simplest way to export the instrument data is to use a terminal emulator program, like Parallax Serial Terminal, and either capture the serial data/text to a file (menu selection) or to manually highlight, copy, and then paste the instrument data into an editor such as Windows Notepad.

Once you have the instrument data in a file, save the file as a .CSV type (e.g., InstrumentData.csv).

Open the file in a spreadsheet application such as Microsoft Excel or OpenOffice Calc. A graph of the data as shown below can now be generated.

M4746/1222

Page 28 of 32

Page 29

Notes:

M4746/1222

Page 29 of 32

Page 30

Notes:

M4746/1222

Page 30 of 32

Page 31

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of

13 months

from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace

period to the normal

one (1) year product warranty

to cover handling and shipping time. This ensures

that OMEG A’s customers

receive maximum

coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue

an Authorized Return

(AR) number immediately upon phone or written

request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat,

moisture

or vibration; improper specification; misapplication;

misuse or

other operating

conditions outside

OMEGA’s control. Components in which wear is not

warranted, include

but are not

limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that

result

from the use of its products in accordance with

information

provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification,

strict

liability or otherwise, shall not exceed the purchase price of the

component up

on which liability is based. In no event shall OMEGA be liable for consequential,

incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor

shall it be used:

(1) as a “Basic

Component” under

CFR 21 (NRC), used in or with any nuclear installation

or activity; or

(2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical

application,

used on humans, or misused in any way, OMEGA

assumes no

responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR

WARRANTY

RETURNS, please have the following information available BEFORE contacting OMEGA:

Purchase Order number under which the product was PURCHASED,

Model and serial number of the product under warranty, and

Repair instructions and/or specific problems relative to the product.

FOR NON-WARRANTY REPAIRS, consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:

Purchase Order number to cover the COST of the repair,

Model and serial number of the product, and

Repair

instructions

and/or specific

problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.

reproduced, translated, or reduced to an y electronic medium or machine

-readable form, in whole or in part, without the prior

written consent of OMEGA ENGINEERING, INC.

Page 31 of 32

M4746/1222

Page 32

Where Do

I Find

Everything I Need for

Process

Measurement

and Control?

OMEGA…Of Course!

Shop online at omega.com

TEMPERATURE

Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

Wire: Thermocouple, RTD & Thermistor

Calibrators

& Ice Point References

Recorders, Controllers & Process Monitors

Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

Transducers

& Strain Gages

Load Cells & Pressure Gages

Displacement Transducers

Instrumentation

& Accessories

FLOW/LEVEL

Rotameters, Gas Mass Flowmeters & Flow Computers

Air Velocity Indicators

Turbine/Paddlewheel Systems

Totalizers & Batch Controllers

pH/CONDUCTIVITY

pH Electrodes, Testers & Accessories

Benchtop/Laboratory Meters

Controllers, Calibrators, Simulators & Pumps

Industrial pH & Conductivity Equipment

DATA ACQUISITION

Communications-Based Acquisition Systems MU Data Logging Systems MU

Wireless Sensors,

Transmitters,

& Receivers

Signal Conditioners

MU Data Acquisition Software

HEATERS

Heating Cable

Cartridge & Strip Heaters

Immersion &

Band Heaters

Flexible Heaters

Laboratory Heaters

ENVIRONMENTAL MONITORING AND CONTROL

Metering & Control Instrumentation

Refractometers

Pumps & Tubing

Air, Soil & Water Monitors

Industrial Water & Wastewater Treatment

pH, Conductivity & Dissolved Oxygen Instruments

Page 32 of 32

M4746/1222
