HH378

Data Logger / K,J,E,T, Type

THERMOMETER

CONTENTS

TITLE PAGE

1. General Description….…………………………………………………….……………. 1

2. Safety Information………………………………………………………………………...1

3. Feature……………………………………………………………………………………... 1

4. Specifications……………………………………………………………………………...2

5. Symbol Definition and Button Location………...................................................... 2

6. Operation Instructions……………………….………………….................................. 4

6.1 Power ON/OFF & Backlight Operation………………….................................. 4

6.2 REC button…………………............................................................................... 4

6.3 T1-T2 button…………………............................................................................. 4

6.4 MAX/MIN mode…………………........................................

6.5 Data-Hold mode…………………....................................................................... 5

6.6 Selecting temperature units………………….................................................... 5

6.7 Connecting to a computer…………………...................................................... 5

6.8 External DC 9V power supply jack…………………......................................... 5

6.9 Using the offset to compensate for probe errors…………………................. 5

6.10 Select thermocouple type: K, J, E, or T…………………...………................. 6

7. Data Logger………………………………………………………...........……………….. 6

8. Setting the Time…………………………………………………………........................ 7

9. Power Preparation…………………………………………………………………......... 8

. Testlink SE-378 Software………………………………………………….……......... 9

10

11. Maintenance .…….……………………………………………………………….…… 17

.................................4

DATALOGGER THERMOMETER

1. GENERAL DESCRIPTION

Thank you for choosing our Data Logger thermometer. To ensure the safety and the best
performance of this instrument, we recommend you to read and follow the manual carefully before
operation.

Test reading and measurement settings are shown on the backlit LCD panel.

Data can be stored in the meter or directly saved on a computer through PC interface. Recorded
data can be further processed by PC computer.

2. SAFETY INFORMATION

Read the following safety information carefully before operate or service the meter. Use the meter
in the way specified in this manual; otherwise the protections provided by the meter may be
impaired.

ENVIRONMENT CONDITIONS

Altitude up to 2000 meters

Relatively humidity: 90% max

Operation ambient temperature: -10 to 50°C

MAINTENANCE & CLEARING

Repairs or servicing not covered in this manual should only be performed by qualified

technician.

Periodically wipe the case with a dry cloth. Do not use abrasives or solvents on this instrument.

SAFETY SYMBOLS

Comply with EMC

When servicing, use only specified replacement parts.

3. FEATURE

Four channel reading LCD display

16,000 Records Data Logger

PC Interface

With Windows software

Auto power off for battery saving

Isolated input protection up to 250Vac between any two inputs

1

DATALOGGER THERMOMETER

4. SPECIFICATIONS

Measurement range:

Resolution: 0.1°C/°F < 1000° , 1°C/°F ≥1000°

Accuracy: ±(0.1% of reading+0.7°C) ±(0.1% of reading+1.4°F)

Temperature coefficient:

Sample rate:

Battery type:

Battery lifetime:

AC adapter:

Operation temperature:

Operation humidity:

Storage temperature:

Storage humidity:

Dimensions/ Weight:

Standard Accessories:

Optional Accessories:

K: -200 ~1372°C (- 328 ~ 2501°F)

J: -150°C~1000°C (- 238 ~ 1832°F)

E: -150°C~750°C (- 238 ~ 1382°F)

T: -180°C~400°C (- 292 ~ 752°F)

Below -100°C (-148°F)

±(0.4% of reading +0.7°C) ±(0.4% of reading +1.4°F)

0.01% of reading + 0.05°C per °C (<18°C or >28°C)

1 time per second

9V Battery

Approx. 30 hours (alkaline battery)

9 VDC ( 8-10VDC Max )

-10 to 50°C (14 to 122°F)

10 to 90%RH (no condensing)

-40 to 60°C (-40 to 140°F)

10 to 75%RH

197mm(L) × 65mm(W) × 36mm(H)/ Approx. 310g

Instruction manual, 9V Battery, windows software, carrying

case, USB cable, K Type Bead Probe x 2 PCS.

AC/DC adapter

Accuracy is specified for ambient temperatures between 18°C (64°F) and 28°C (82

specifications do not include thermocouple sensor error.

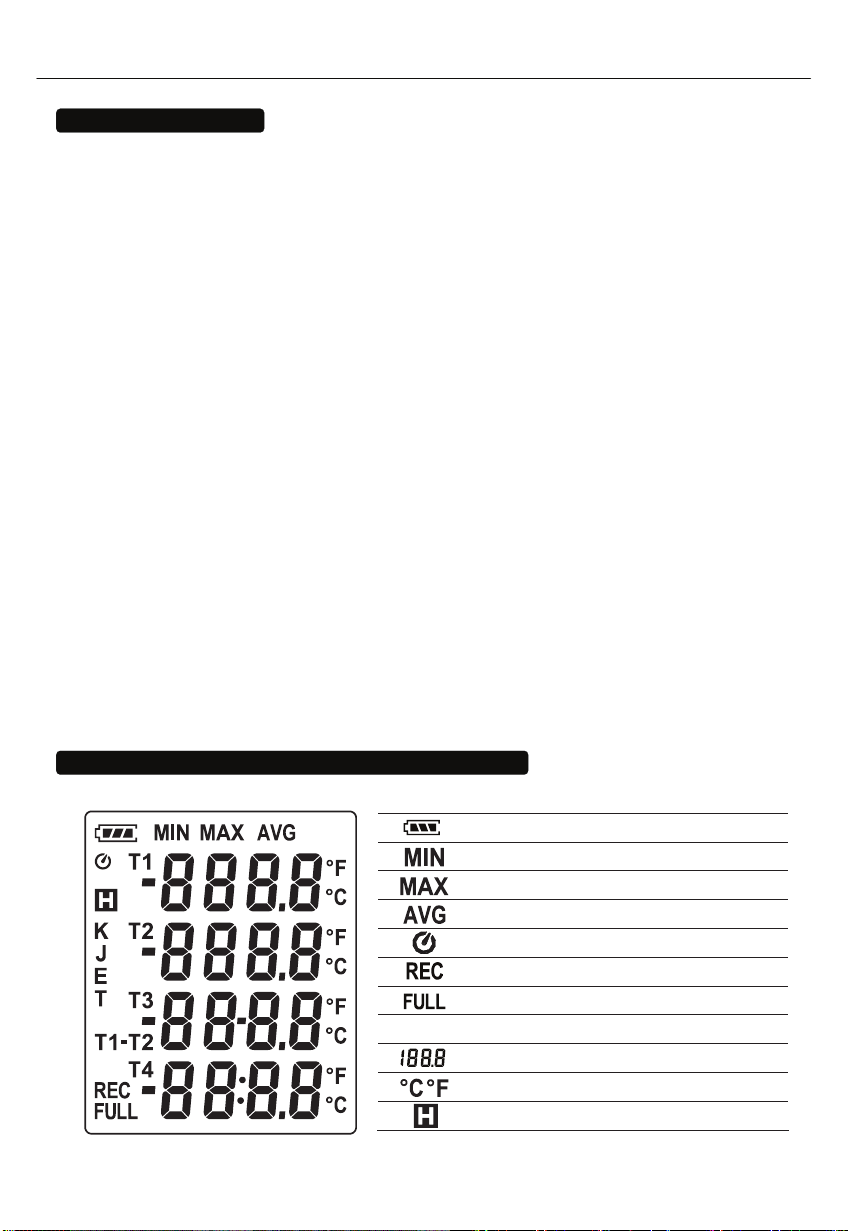

5. SYMBOL DEFINITION & BUTTON LOCATION

: Battery condition indicator

: Minimum indicator

: Maximum indicator

: Average indicator

: This indicates Auto Power Off is enabled

: Recording data logger indicator

: Memory full indicator

K.J.E.T

: Thermocouple type

: Temperature reading

: Temperature measurement units

: Data hold indication

2

°F). The above

HH378 THERMOMETER

DATALOGGER THERMOMETER

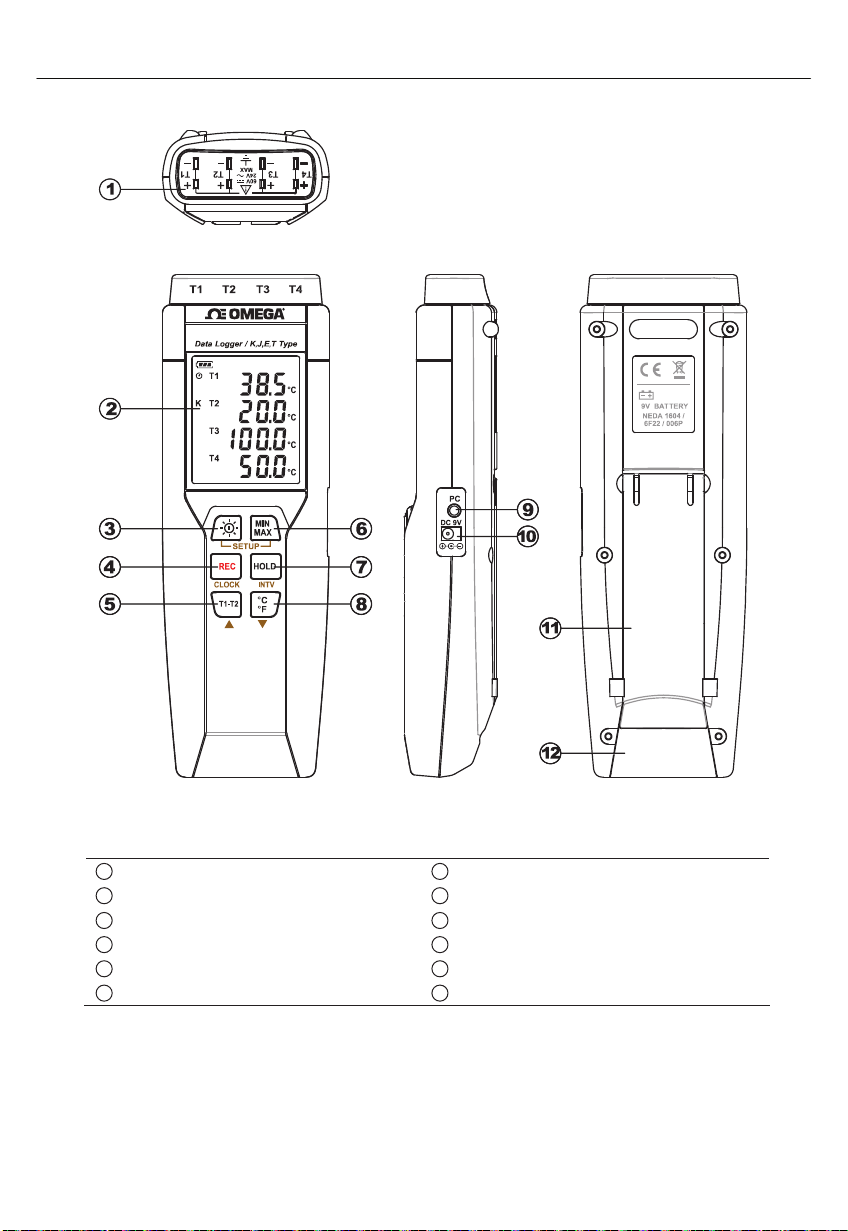

1

Thermocouple input DATA HOLD button

2

Display screen °C , °F button

3

Power ON/OFF and Back light button PC Interface

4

REC button External DC 9V power supply jack

5

T1-T2 button Tilt stand

6

MAX MIN button Battery Compartment

7

8

9

10

11

12

3

DATALOGGER THERMOMETER

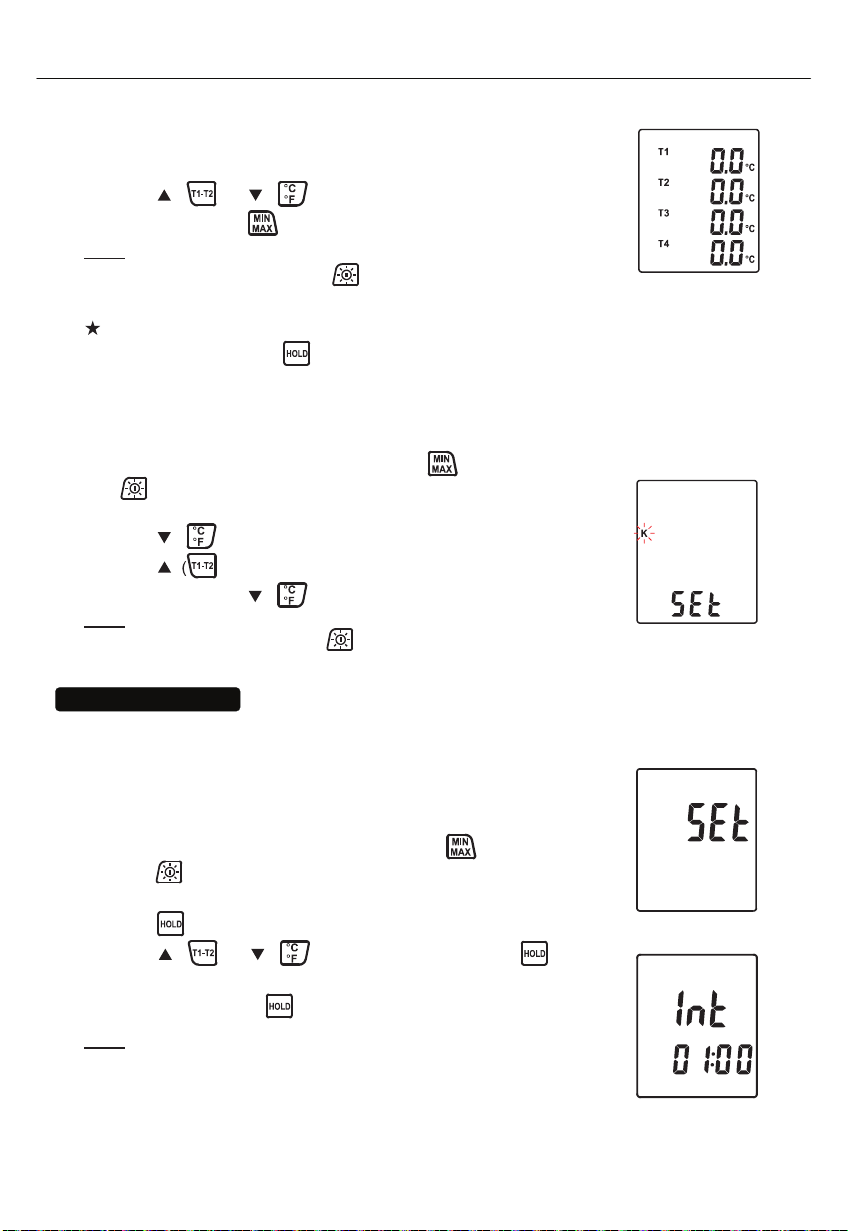

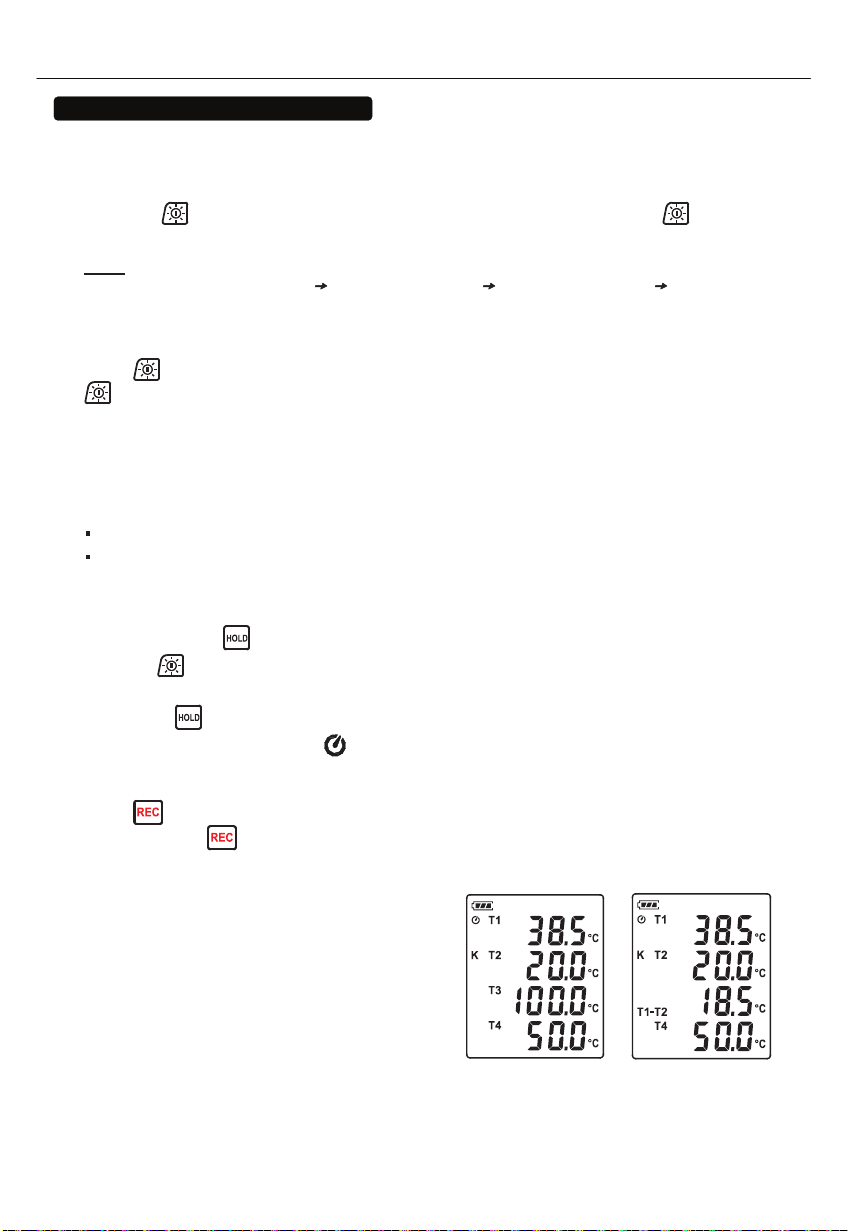

6. OPERATION INSTRUCTIONS

6.1 Power ON/OFF & Backlight Operation:

6.1.1 Power on/off:

Press the button to turn on the meter. To turn the unit off, press and hold button down
until the screen shows “OFF 3, 2, 1,” then the LCD screen goes off.

When the unit is on, the LCD will show the following initial information before entering the

Note:
main function: Offset setting
function. (if all offset is set to zero, offset will not be shown)

6.1.2 LCD backlight on/off:

Press to turn on the LCD backlight. This makes it easier to read in dark environment. Press

again to turn off backlight. The meter can also turn the backlight off automatically after 30

seconds to save battery power.

6.1.3 Auto power off:

To save battery life, by default, every time the unit is powered on, it is under auto power off mode.
The unit will power itself off after 30 minutes if there is no key operation.
Auto power off will be automatically disabled under the following 2 situations:

When connecting to PC.

When data logger function is in process.

6.1.4 Disabled auto power off:

(1) Turn off the unit.

(2) Press and hold

(3) Press

(4) The LCD shows the initial information and then enters main function.

(5) Release

(6) Make sure the auto power off

to turn on the unit.

button.

button.

Current date/time Available memory Entering main

symbol disappears from display screen.

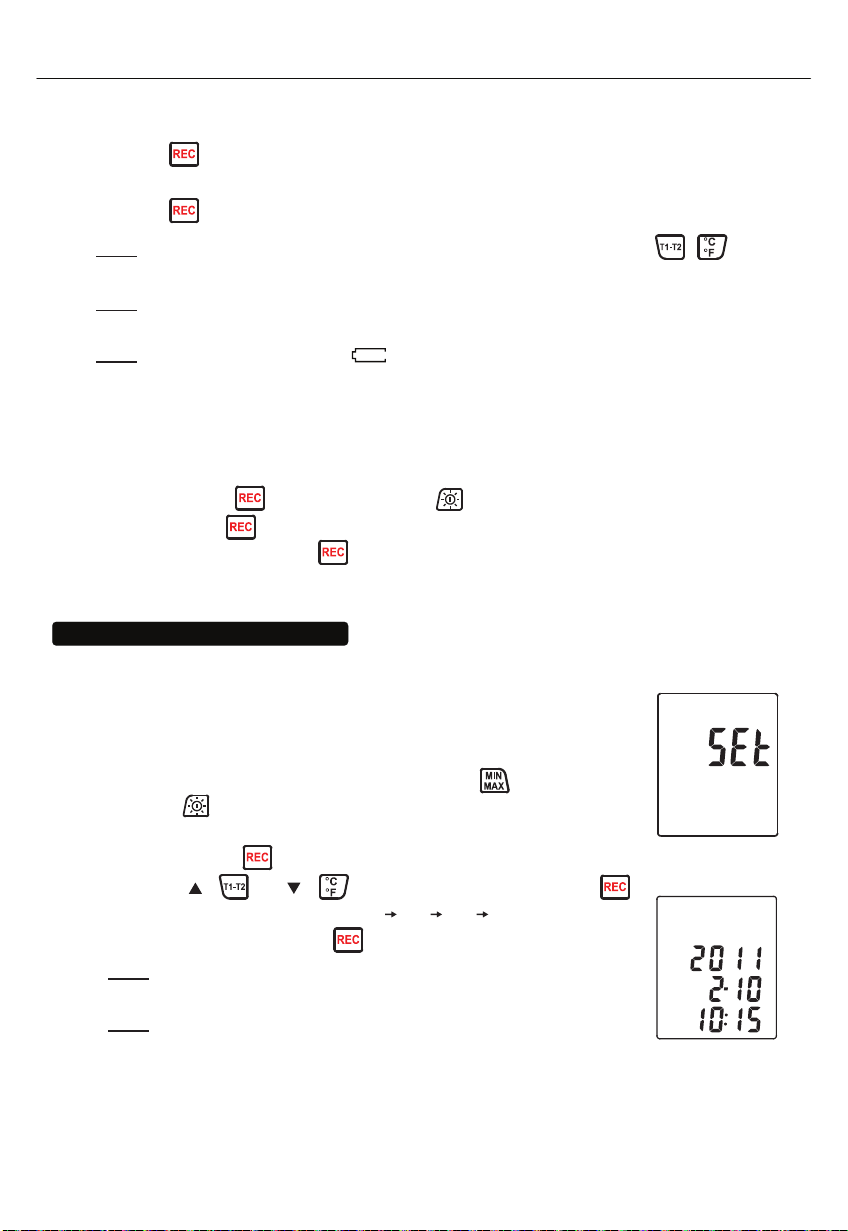

6.2 REC button:

Press button to start recording data. The REC symbol will display on the screen. To stop

recording, press

button again.

6.3 T1-T2 button:

Push this key to display T1-T2 at the 3rd column
on LCD.
(please refer to Fig.1)

Fig.1

4

DATALOGGER THERMOMETER

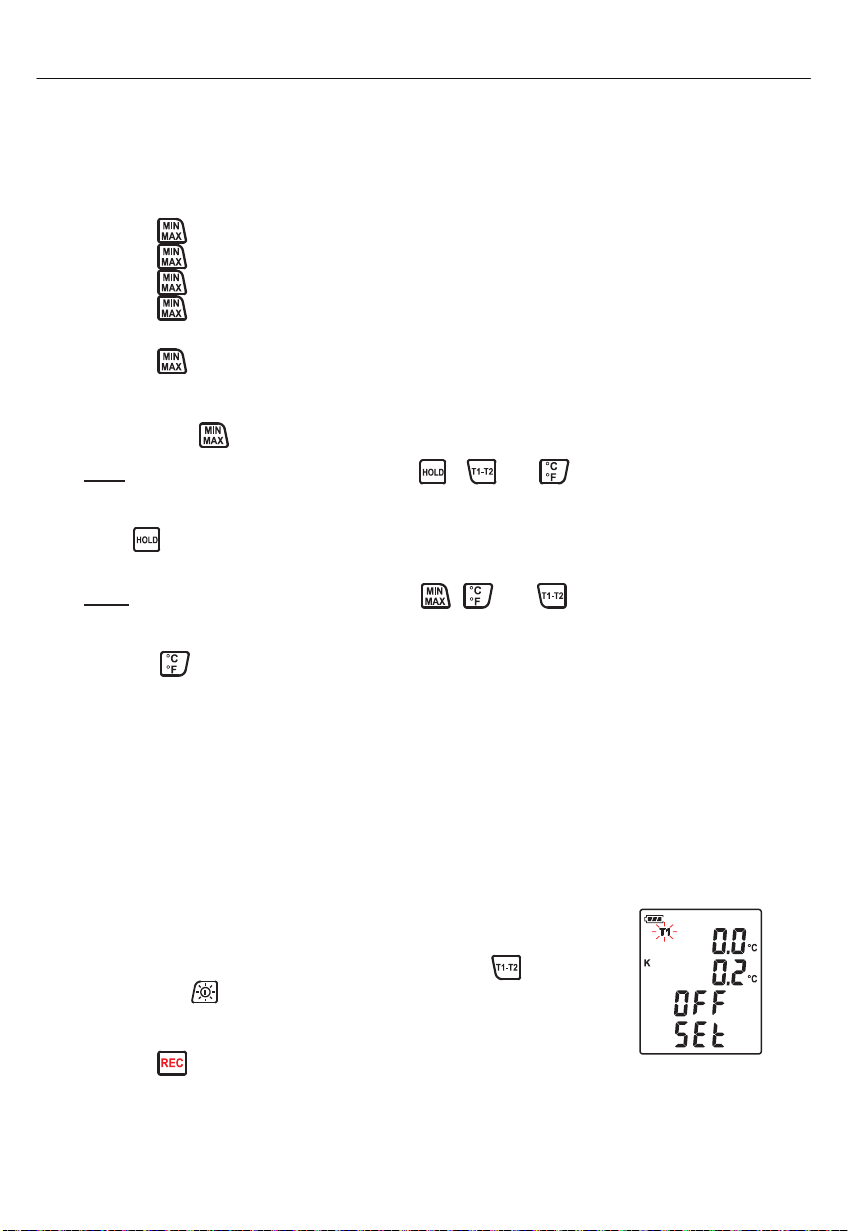

6.4 MAX/MIN mode (only for channel T1):

Under this mode, the unit simultaneously monitors and stores the maximum, minimum and average
value in the memory. The unit will keep updating/refreshing the data.

To start:

(1) Press button. MAX symbol lights up on LCD, the reading shows the maximum data.

(2) Press

(3) Press

(4) Press

T1 temperature.

(5) Press

button again to show minimum data; the MIN symbol lights up on LCD.

button again to show average data; the AVG symbol lights up on LCD.

button again, the MAX and MIN symbol blinks together. The reading shows present

button again, will circular the whole process again.

To exit MAX/MIN mode:

Press and hold button for 2 seconds to exit MAX/MIN mode.

Note:

When the unit is under MAX/MIN mode, , and buttons are disabled.

6.5 Data-Hold mode

Press button to freeze the data shows on the LCD screen. Press it again to exit Data-Hold
mode.

When the unit is in the Data-Hold mode, , , and buttons are disabled.

Note:

6.6 Selecting temperature units:

Press the button to switch between Celsius (°C) and Fahrenheit (°F).

6.7 Connecting to a computer:

The meter can be connected to PC through USB-120 USB cable (standard accessory) to connect
with a computer. There is also RS-232 cable available and user can purchase it separately.

6.8 External DC 9V power supply jack:

Connect the AC/DC adapter (optional accessory) to use external power.

6.9 Using the offset to compensate for probe errors:

The user can adjust the readings of thermometer to compensate for the errors against a specific
thermocouple.

(1) Plug the thermocouple into a desired input terminal (T1 ~ T4).

(2) Turn off the unit.

(3) Enter offset setting mode by pressing and holding

then press

The upper reading is the current reading with offset and the lower
reading is the offset which can be adjusted.

(4) Press

power button to turn on the unit.(see Fig.2)

to select corresponding input terminal (T1 ~ T4).

button and

Fig.2

5

DATALOGGER THERMOMETER

(5) Place the thermocouple in a known stable temperature environment

(such as an ice bath or a dry well calibrator).

(6) Allow the readings to stabilize.

(7) Press

(8) When finish, press

Note:

To abort setting process, press
setting mode.

( ) or ( ) to adjust value.

button to store and exit offset setting mode.

power button to exit offset

Fig.3

How to display offset value:

Under normal mode, press button for more than 1 second to display offset value. Relase the
button will go back to normal mode. (see Fig.3)

6.10 Select thermocouple type: K, J, E, or T

(1) Power off the meter first. Press and hold button, then press

button to power on and enter setting mode. Release all

buttons, the LCD blinks “SEt.”.

(2) Press

(3) Press

(4) When done, press

Note:

During the setting process, press

( ) button to Selecting Thermocouple type (see Fig.4)

) to select from K, J, E, or T type thermocouple.

( ) button to exit setting mode

button anytime to cancel and exit.

°

Fig.4

7. DATA LOGGER

This section will explain how to store data (data logger) in memory and how to recall data from
memory.

7.1 Setting interval time for data storing:

(1) Turn off the unit.

(2) Enter SETUP mode by pressing and holding

press

screen. (see Fig.5)

(3) Press

(4) Press

again to adjust second.

(5) When finished, press

Note:

To abort during the process, press power button to exit SETUP mode.

power button to turn on the unit. “SEt ” blinks on the LCD

button to set storing interval.(see Fig.6)

( ) or ( ) to adjust the minute, press button

button to exit SETUP mode.

button and then

Fig.5

Fig.6

6

DATALOGGER THERMOMETER

7.2 Start data logger (storing data in the memory):

(1) Press button to start data logger (storing the measured values in built-in memory).

(2) REC symbol lights up on LCD screen.

(3) Press

During recording period, most of the buttons are disabled, such as the , , etc. All

Note:

When the memory is full (16000 recorders), FULL symbol will blink on the LCD screen.

Note:

Note:

When battery power is low ( symbol lights up on the screen), data logger cannot be

button again to stop recording.

other settings must be made before starting the data logger function.

The data logger stops.

started. If during data logger, the battery starts running low, data logger will stop

automatically.

7.3 Clearing Data:

(1) Turn off the unit.

(2) Press and hold

(3) Keep holding

memory. (To abort, release

button and then press power button to turn on the unit.

button, then LCD will show "CLr" and “SUrE 5, 4…1, 0” until clean the

button before “SUrE 0”.)

8. SETTING DATE AND TIME

The unit incorporates a clock so that the data logger function can also record the data and time
along with the measurement value in the memory.

8.1 Setting date and time:

(1) Turn off the unit.

(2) Enter SETUP mode by pressing and holding

press

screen. (see Fig.7)

(3) Press CLOCK (

(4) Press (

button to adjust next value (month

(5) When finish, press CLOCK (

Note:

Note:

An internal backup battery supplies power for the clock.

power button to turn on the unit. “SEt” blinks on the LCD

) button to set clock.

) or ( ) to adjust year, press CLOCK ( )

date hour minute). (see Fig.8)

) button to exit SETUP mode.

To abort during the process, press power button to exit SETUP

mode.

button and then

Fig.7

Fig.8

7

DATALOGGER THERMOMETER

9. POWER PREPARATION

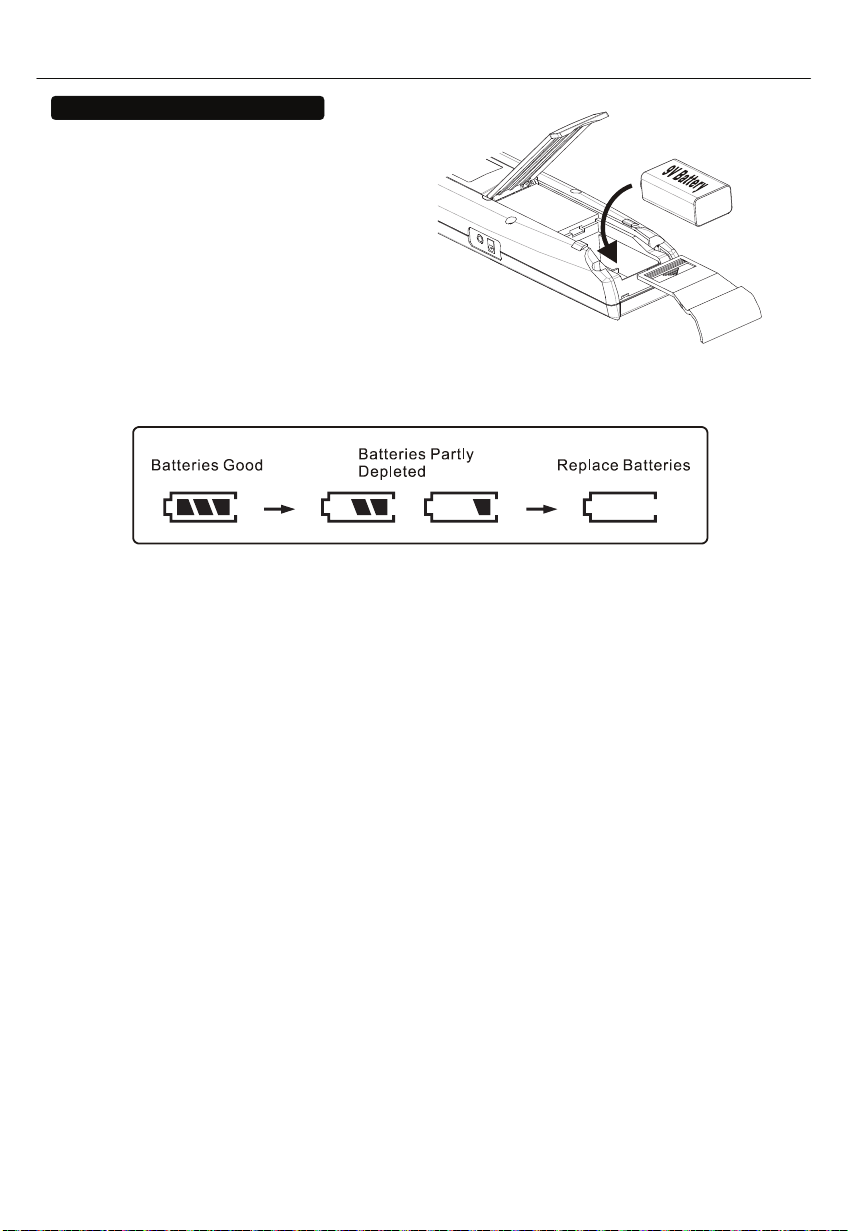

9.1 Battery Loading:

Remove the battery cover on the back
and insert one 9V battery.

9.2 Battery capacity indicator:

When operating the unit on batteries, periodically check this indicator to determine the
remaining battery capacity.

9.3 AC Adapter Connection:

When the AC adapter is used, insert the plugs of the adapter into the DC9V connector on the
side panel.
Note: When the AC adapter is connected while battery is inserted, the unit will be powered from
the adapter (the AC adapter has priority).

8

DATALOGGER THERMOMETER

10. TESTLINK SE-378 SOFTWARE

10.1 The SE-378 package contains:

Software CD disk

Custom designed USB cable for SE378

10.2 System Required:

Windows NT 4.0/ NT2000/ XP/ VISTA/ Windows 7/ Windows 8

10.3 Minimum Hardware Required:

PC or NoteBook with Pentium 800MHz or higher, 512 MB RAM

At least 50 MB hard disk space available to install SE378

Recommended screen resolution 1024X768 or above

10.4 Install SE-378 and USB-120 connector driver:

(1) We recommend close all other application before installing SE378.

(2) Insert setup CD disk to CD disk drive to display install screen. You may also run

mainsetup.exe in the directory of the CD.

(3) Click Install to begin installation.

(4) It will install USB-120 connector driver first.

(5) While installing, it will show this window below, just click “next” to continue.(see Fig.8)

(6) Select “Launch the CP210x VCP Driver Installer” option, then click Finish. (see Fig.9)

Fig.8 Fig.9

(7) Click Install.

9

DATALOGGER THERMOMETER

(8) After finish installing USB-120 connector driver, it will install SE378 software automatically.

It will copy SE378.exe ( executable file ) and help file to your hard disk ( default location is

c:\program files\SE378)

(9) After finish installation, plug USB-120 connector to PC usb port, execute

”start” ”My Computer”, then choose “View System Information” on the left top of the

window, the window below will show up.(see Fig.10)

(10) Choose “Hardware” option and click “Device Manager” button, click “+” symbol on the left

side of Ports(COM &LPT), if the device “CP2101 USB to UART Bridge Controller(COMx)”

is in the list, the connector is ready to work.(see Fig.11)

Fig.10 Fig.11

10.5 Tutorial - Quick Start to Use TestLink SE378:

(1) Recording real time data in waveform.

(2) Power on the 4 Channel Thermometer first and connect it to a PC RS-232 serial port with

the cable(USB-120),

(3) Start SE378 program.

(4) If the connection is successful the panel will

display the same value as the 4 Channel

Thermometer. If fail to connect the meter with PC,

it will display "No Connection" on the panel

window in TestLink SE378.

(5) Select sampling rate from Real-Time Graph

window.

If PC speed is slow , select sampling rate above 1 second. And if it is going to sample a

Note:

large amount data(more than 5000), at least 512 mega bytes ram is recommended to keep

PC running in good performance working well.

10

DATALOGGER THERMOMETER

(5) When the connection is successful, click “Real Time | run” or from main menu to

start recording real time data and there will be a waveform on the Real Time Graph

Window.

(6) Click “Real Time | Stop” or

to stop recording.

10.6 How to save the recorded real time data to a file?

(1) Click the graph window you want to save and the graph window will become active, then

choose File | Save from main menu or click from the tool bar .

(2) There will be a save dialog window for you to choose the file name and file type to

save.There are three types of file format you can choose, binary file(*.ghf), text file(*.txt)

and EXCEL format file(*.csv). The *.ghf file use much fewer disk space to save the data

than the other two file formats, but it can only be used in TestLink SE378. Text file can be

opened by TestLink SE378 and any other word processor program like word, notepad etc.

EXCEL format file can be opened by TestLink SE378 and Microsoft EXCEL.

If decimal separator is comma in your country, this file format will be disabled,

Note:

because .CSV file also use comma to be data separator. For example 78,6 will become 78

and 6 in EXCEL )

11

DATALOGGER THERMOMETER

10.7 How to load the recorded data from the memory of 4 Channel Thermometer
and save it to a file?

(1) Power on the 4 Channel Thermometer.

(2) Press the REC button of the meter to start recording data.

(3) After a while, press REC button again to stop recording data.

(4) Connect the Meter to PC

(5) Start SE378 program.

(6) Choose Data Logger from main menu or click

(7) In reference to Data Logger , see DataLogger

from tool bar.

10.8 Main Menu:

File | Oepn- Retrieve files from the disk.

Save - Save the active window (when the caption bar is highlighted) data to the disk.

Print - Print the data of the acitve window (graph or list).

Printer Setup - Select printer.

File | Exit: Terminates TestLink program.

View | Control Panel:

By opening the Panel Window, the user can control meter via the button in this

window.

View | Real-Time Graph:

Open Real-Time Graph display to graph the present data.

Real Time Data | Run - Start collecting real time data.

Stop - Stop collecting real time data.

12

DataLogger:

By opening the DataLogger Window, the user can load recorded data of meter to

PC in this window.

Output To Graph - Graphing tabular data.

10.9 DataLogger:

DATALOGGER THERMOMETER

When you have the theromameter connceted to PC, select "DataLogger" from main menu or

click Datalogger icon from tool bar to load recorded data from the meter and there will be a

progress indicator to show the loading status. If error occurs, just click "DataLogger icon"

again.

After the data was downloaded, the left hand side will show how many data sets were loaded

and detail information for each data set (start data, start time, recording rate and record

numbers).

for examples:

13

DATALOGGER THERMOMETER

It will transfer first data set to graph on the right hand side. The user can also click at any

other data set to choose that set for graph.

Graph:

Tool Bar:

- Display or hide Statistic1.

- Display or hide Statistic2.

- Normal cursor.

- When selected, the mouse cursor will become a cross sign when moving to the graph,

click on the graph to mark a cross sign on the graph. This is available only when "Split"

option is unchecked. And all the mark you make will exist with T1.

-When selected, the mouse cursor will become a "I" sign when moving to the graph,

click on the graph to annotate. This is available only when "Split" option is unchecked.

And all the text you make will exist with T1.

14

- Seperate the four channel.

- Combine the four channel.

DATALOGGER THERMOMETER

-Graph Customization

-Change the Y axis extention

Note: When the Split is unchecked, graph will use T1 as the Y axis display range.

15

DATALOGGER THERMOMETER

-To Undo the Zoom

You can Zoom this graph by using mouse:

To Zoom:

(1) Press the left mouse button and drag the cursor to select the new extents.

(2) Release the mouse button.

You can choose channel number showing in the graph.

a. Click "Graph Option" to call Customization dialog.

b. Select Subsets tab.

c. Select a single channel or multiselect (hold Ctrl key, use mouse to choose) channels.

10.10 Frequently Asked Question:

(1) I had connected 4 Channel Thermometer to PC serial port and turned meter power on, but

it still show "NO CONNECTION"?

Answer: It could be that all com port are occupied by other application, close all other

application. If it still don't work. Restart your computer and run TestLink SE378 again. When

program start, it will search automatically all com port to check connected 4 Channel

Thermometer. You can check the connection status from main window like the figure

Thermometer is connected to Com2. You can manually change to another COM port when

you find out that program can not find the correct COM port which 4 Channel Thermometer is

connected to.

below,

16

DATALOGGER THERMOMETER

(2) How can I save the graph to a file which can be used in EXCEL?

Answer: When you save a graph to a file, the default file format is "*.ghf" and you can select

*.csv to save files. CSV is an EXCEL file format.You can open it in EXCEL.

If decimal separator is comma in your country, this file format will be disabled,

Note:

because .CSV file also use comma to be data separator. for example 78,6 will become 78

and 6 in EXCEL

(3) How to uninstall TestLink SE378 ?

Answer: Uninstall TestLink SE378 by launching the Add/Remove Programs applet out of the

Control Panel, highlighting the SE378, and clicking on the Add/Remove... push button, then it

will remove the SE378 folder and files from your computer.

(4) Why loading data fail?

Answer: This might cause by the slow respond from some of the notebook PC system.

(5) How to zoom the graph?

Answer: Press the left mouse button and drag the cursor to select the new extents, then

release the mouse button.

(6) When I setup the real time sampling with a fast rate(eg. 1 sec), Some of the sampling

data might be lost.

Answer: This might be caused by slow

the user may close the panel window.

respons

e time of the PC interface. For better result,

11. Maintenance

In order to ensure the accuracy of the thermometer for a longer period of time you should calibrate
it once a year.

Clean the device and the window of the display with a clean, lint-free, antistatic and dry cleaning
cloth.

Do no use cleaning agents that contain carbon or benzenes, alcohol or anything similar to clean
the product since these substances damage the surface of the measuring instrument. Moreover, these
fumes are hazardous to health and explosive. Do not use tools with sharp edges, screwdrivers, me
brushes or anyth

ing similar to clean the device.

17

tal

WARRANTY/DISCLAIMER

OMEGA E NGI NEE RIN G, INC. warrants this unit to b e free of defects in m ate ria ls and
workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds
an additional one (1) month grace period to the normal one (1) year product warranty to
cover handling and shipping time. This ensures that OMEGA’s customers receive maximum
coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone or
written request. Upon examination by OMEGA, if the unit is found to be defective, it will be
repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting
from any act ion of the pur chaser, including but not limited to mis handling, improper
interfacing, operation outside of design limits, improper repair, or unauthorized modification.
This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows
evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture
or vibration; improper specification; misapplication; misuse or other operating conditions
outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes
liability for any damages that result from the use of its products in accordance with
information provided by OMEGA, either verbal or written. OMEGA warrants only
that the parts manufactured by the company will be as specified and free of
defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY
KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL
IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total
liability of OMEGA with respect to this order, whether based on contract, warranty,
negligence, indemnification, strict liability or otherwise, shall not exceed the
purchase price of the component upon which liability is based. In no event shall
OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1)
as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or
activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or
with any nuclear installation or activity, medical application, used on humans, or misused in
any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER
language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from
any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.

RETURN REQUESTS/INQUIRIES

BEFOR E RETUR NIN G AN Y PR ODU CT(S) T O OM EGA , PU RCH ASER MUST O BTAIN A N
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT
(IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be
marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to
prevent breakage in transit.

FOR WARRANTY
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which
the product was PURCHASED,

2. Model and serial number of the product
under warranty, and

3. Repair instructions and/or specific
problems relative to the product.

OME GA’s policy i s to make r unni ng chan ges, n ot mode l chan ges, wh enev er an impro veme nt is possi ble.
This affords our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2013 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without
the prior written consent of OMEGA ENGINEERING, INC.

RETURNS, please have

FOR NON-WARRANTY REPAIRS,

consult
OMEGA for current repair charges. Have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number to cover the

COST of the repair,

2. Model and serial number of theproduct, and

3. Repair instructions and/or specific problems

relative to the product.

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

TEMPERATURE

䡺⻬

Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies

䡺⻬

Wire: Thermocouple, RTD & Thermistor

䡺⻬

Calibrators & Ice Point References

䡺⻬

Recorders, Controllers & Process Monitors

䡺⻬

Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

䡺⻬

Transducers & Strain Gages

䡺⻬

Load Cells & Pressure Gages

䡺⻬

Displacement Transducers

䡺⻬

Instrumentation & Accessories

FLOW/LEVEL

䡺⻬

Rotameters, Gas Mass Flowmeters & Flow Computers

䡺⻬

Air Velocity Indicators

䡺⻬

Turbine/Paddlewheel Systems

䡺⻬

Totalizers & Batch Controllers

pH/CONDUCTIVITY

䡺⻬

pH Electrodes, Testers & Accessories

䡺⻬

Benchtop/Laboratory Meters

䡺⻬

Controllers, Calibrators, Simulators & Pumps

䡺⻬

Industrial pH & Conductivity Equipment

SM

DATA ACQUISITION

䡺⻬

Data Acquisition & Engineering Software

䡺⻬

Communications-Based Acquisition Systems

䡺⻬

Plug-in Cards for Apple, IBM & Compatibles

䡺⻬

Data Logging Systems

䡺⻬

Recorders, Printers & Plotters

HEATERS

䡺⻬

Heating Cable

䡺⻬

Cartridge & Strip Heaters

䡺⻬

Immersion & Band Heaters

䡺⻬

Flexible Heaters

䡺⻬

Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

䡺⻬

Metering & Control Instrumentation

䡺⻬

Refractometers

䡺⻬

Pumps & Tubing

䡺⻬

Air, Soil & Water Monitors

䡺⻬

Industrial Water & Wastewater Treatment

䡺⻬

pH, Conductivity & Dissolved Oxygen Instruments

M5267/0313
