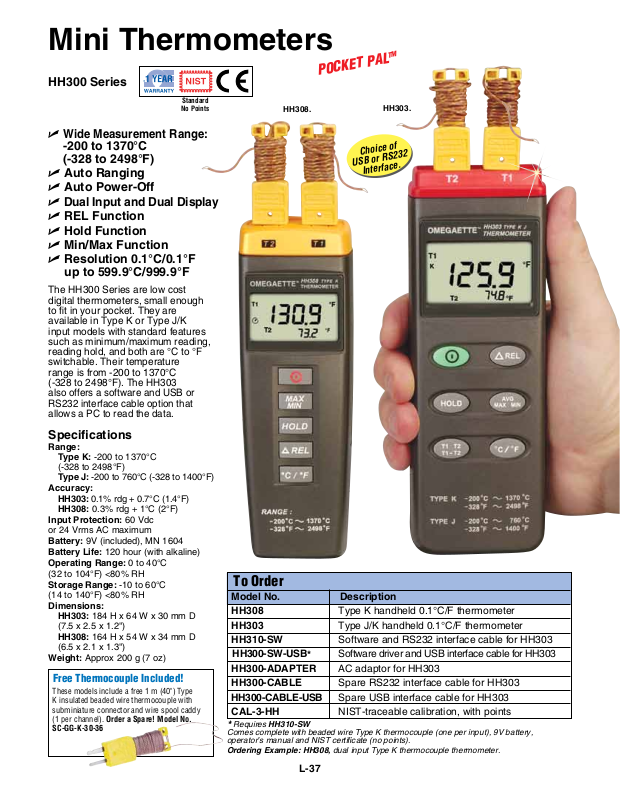

Mini Thermometers
POCKET PAL
HH300 Series
Standard
No Points
U Wide Measurement Range:
-200 to 1370°C
(-328 to 2498°F)
U Auto Ranging
U Auto Power-Off
U Dual Input and Dual Display
U REL Function
U Hold Function
U Min/Max Function
U Resolution 0.1°C/0.1°F
up to 599.9°C/999.9°F
The HH300 Series are low cost
digital thermometers, small enough
to fit in your pocket. They are
available in Type K or Type J/K
input models with standard features
such as minimum/maximum reading,
reading hold, and both are °C to °F
switchable. Their temperature
range is from -200 to 1370°C
(-328 to 2498°F).
also offers a software and USB or
RS232 interface cable option that
allows a PC to read the data.
The HH303
HH308.
TM
HH303.
Choice of
USB or RS232
Interface.
Specifications
Range:
Type K: -200 to 1370°C
(-328 to 2498°F)
Type J: -200 to 760°C (-328 to 1400°F)
Accuracy:
HH303: 0.1% rdg + 0.7°C (1.4°F)
HH308: 0.3% rdg + 1°C (2°F)
Input Protection: 60 Vdc
or 24 Vrms AC maximum
Battery: 9V (included), MN 1604
Battery Life: 120 hour (with alkaline)
Operating Range: 0 to 40°C
(32 to 104°F) <80% RH
Storage Range: -10 to 60°C
(14 to 140°F) <80% RH
Dimensions:
HH303: 184 H x 64 W x 30 mm D
(7.5 x 2.5 x 1.2")
HH308: 164 H x 54 W x 34 mm D
(6.5 x 2.1 x 1.3")
Weight: Approx 200 g (7 oz)
Free Thermocouple Included!
These models include a free 1 m (40") Type
K insulated beaded wire thermocouple with
subminiature connector and wire spool caddy
(1 per channel). Order a Spare! Model No.
SC-GG-K-30-36
To Order
Model No. Description
HH308 Type K handheld 0.1°C/F thermometer
HH303 Type J/K handheld 0.1°C/F thermometer
HH310-SW Software and RS232 interface cable for HH303
HH300-SW-USB* Software driver and USB interface cable for HH303
HH300-ADAPTER AC adaptor for HH303
HH300-CABLE Spare RS232 interface cable for HH303
HH300-CABLE-USB Spare USB interface cable for HH303
CAL-3-HH NIST-traceable calibration, with points
Requires HH310-SW
*
Comes complete with beaded wire Type K thermocouple (one per input), 9V battery,
operator’s manual and NIST certificate (no points).
Ordering Example: HH308, dual input Type K thermocouple thermometer.
L-37
