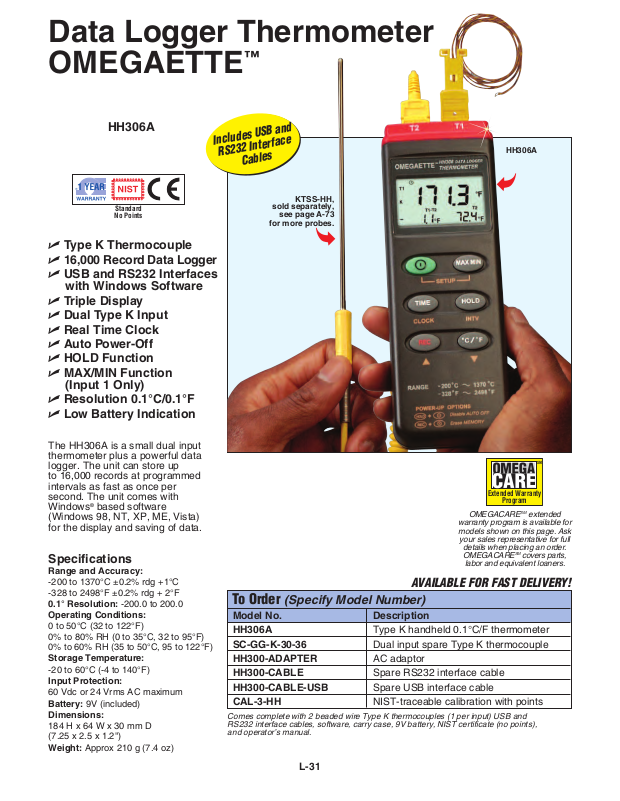

Page 1
Data Logger Thermometer
Extended Warranty
Program
SM
™
OMEGAETTE
HH306A
Includes USB and
RS232 Interface
Cables
KTSS-HH,
Standard
No Points
Type K Thermocouple
16,000 Record Data Logger
USB and RS232 Interfaces
with Windows Software
Triple Display
Dual Type K Input
Real Time Clock
Auto Power-Off
HOLD Function
MAX/MIN Function
(Input 1 Only)
Resolution 0.1°C/0.1°F
Low Battery Indication
sold separately,
see page A-73
for more probes.
HH306A
The HH306A is a small dual input
thermometer plus a powerful data
logger. The unit can store up
to 16,000 records at programmed
intervals as fast as once per
second. The unit comes with
Windows®based software
(Windows 98, NT, XP, ME, Vista)
for the display and saving of data.
Specifications
Range and Accuracy:
-200 to 1370°C ±0.2% rdg +1°C
-328 to 2498°F ±0.2% rdg + 2°F
0.1° Resolution: -200.0 to 200.0
Operating Conditions:
0 to 50°C (32 to 122°F)
0% to 80% RH (0 to 35°C, 32 to 95°F)
0% to 60% RH (35 to 50°C, 95 to 122°F)
Storage Temperature:
-20 to 60°C (-4 to 140°F)
Input Protection:
60 Vdc or 24 Vrms AC maximum
Battery: 9V (included)
Dimensions:
184 H x 64 W x 30 mm D
(7.25 x 2.5 x 1.2")
Weight: Approx 210 g (7.4 oz)
OMEGACARESMextended
warranty program is available for
models shown on this page. Ask
your sales representative for full
details when placing an order.
OMEGACARE
labor and equivalent loaners.
SM
covers parts,
AVAILABLE FOR FAST DELIVERY!
To Order (Specify Model Number)
Model No. Description
HH306A Type K handheld 0.1°C/F thermometer
SC-GG-K-30-36 Dual input spare Type K thermocouple
HH300-ADAPTER AC adaptor
HH300-CABLE Spare RS232 interface cable
HH300-CABLE-USB Spare USB interface cable
CAL-3-HH NIST-traceable calibration with points
Comes complete with 2 beaded wire Type K thermocouples (1 per input) USB and
RS232 interface cables, software, carry case, 9V battery, NIST certificate (no points),
and operator’s manual.
L-31
