1. Installation/remove
1.1 The minimum hardware requirements for Temp Monitor software are:
• Windows 98/ Windows 2000/ Windows XP (Windows
2000/ Windows XP are recommended)
• Pentium 133-megahertz (MHz) processor or faster (300
MHz is recommended)
• At least 64 megabytes (MB) of RAM (256 MB is
recommended)
• At least 250 megabytes (MB) of available space on the
hard disk
• CD/ DVD-ROM driver
• Keyboard and a Microsoft Mouse or some other
compatible pointing device
• Video adapter and monitor with Super VGA (800 x 600)
or higher resolution
• This software supports Excel to save / open files function,
if needed please i
nstall Microsoft Excel 2000 / 2003.
1
Page 4
1.2 Installation
Notice: Before you go on-line with the thermometer, you first need to install the software and USB driver on a Windows platform.
1. Insert CD-ROM in the CD-ROM driver of the PC. Manual is down loaded automatically. If the manual can’t be down loaded automatically, double click the CD-ROM icon, double click “autorun.exe”.
2.Install Temp Monitor 1 software, click in spring “Install” of
menu or browse “setup.exe” of the CD-ROM and install.
the (D:\setup.exe -Suppose D is a CD-ROM driver)
2
Page 5
When installing, the following picture will
click “Next”
appear
.
click “Next”
3
Page 6
click “Next”
The file is being copied onto the computer.
4
Page 7
When the above picture appears during software
installation of Temp Monitor 1 click “Finish”.
3. Install USB driver, click in “USB Driver Install”
springing in menus automatically or browse “PL-2303
Driver Installer.exe” of the CD-ROM and install.
(D:\PL-2303 Driver Installer.exe-Suppose D is a CD-ROM
driver) When installing, the following picture will
5
appear:
Page 8
click “Next”
When the above picture appears during software
installation
of USB driver, click
“
Finish”.
Note: The
CD-ROM that inserts the PC will then be taken out of the CD-ROM driver.
6
Page 9
1.3 Remove Temp Monitor 1 and USB driver
1. To close the
2. Click “start”.
3. Click “programs” “Temp Monitor 1” “Uninstall
Temp Monitor 1” to uninstall.
4. Click “start”.
5. Click “programs” “PL-2303 USB-Serial Driver”
“Uninstall” to uninstall.
use software first
7
Page 10
2. On-line/download to PC
1. For USB wire/RS-232 wire to connect PC and thermometer well
2. Click “start” Temp Monitor.
programs Temp Monitor 1
8
Page 11

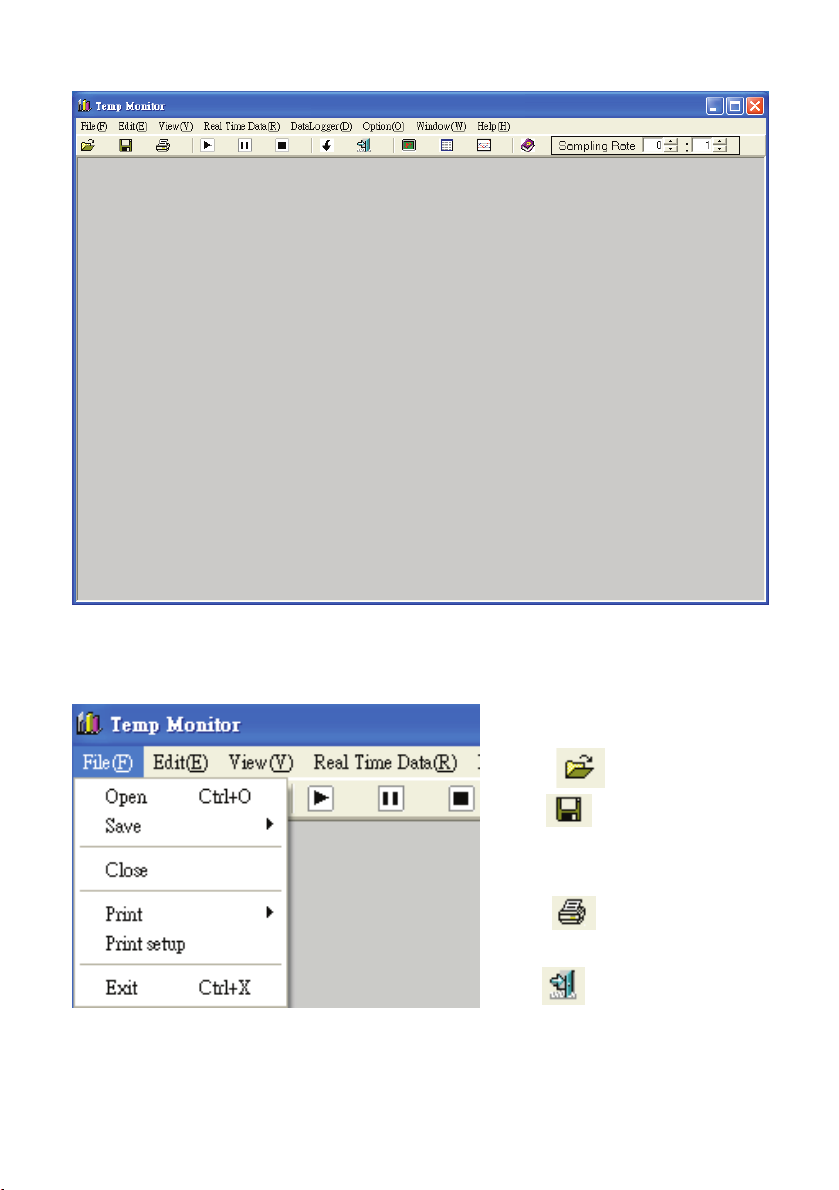

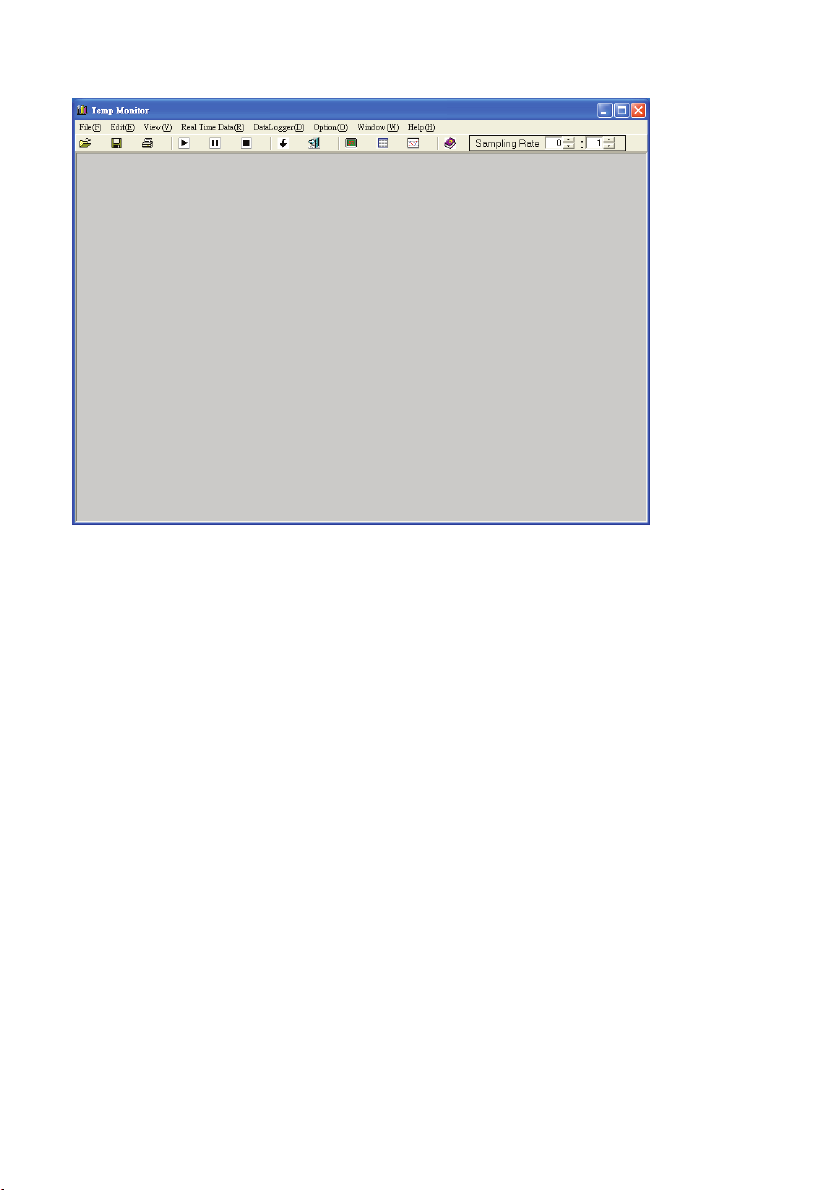

3. Picture of the software.
2.1 Brief introduction of every function:
File menu:
Open : open file.
Save Close: Close picture. while carrying out.
Print Print setup: Set up printer
Exit
9
: save file.
: print file.
: Finish program.
Page 12

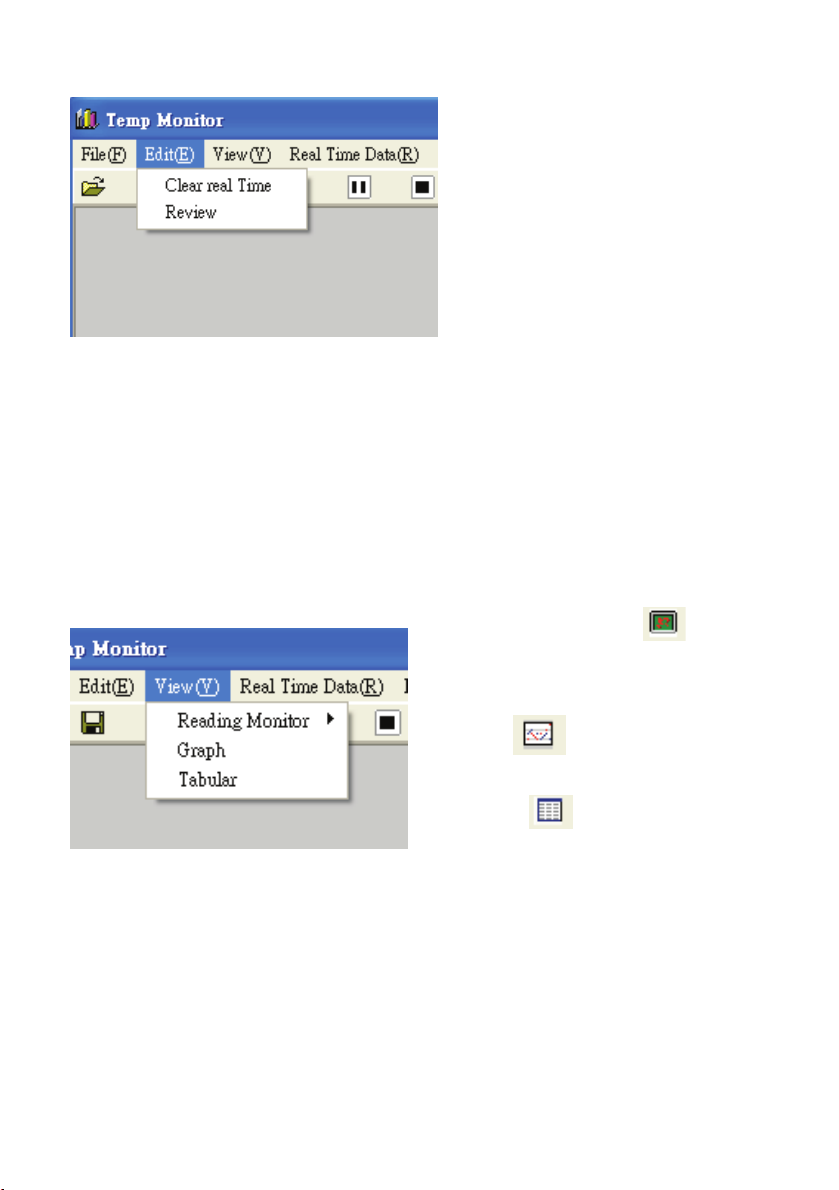

Edit menu:
Clear real Time: Remove record data. Review: The window
GRAPH is described again.
Notice: Clear real Time uses the record data to clear under the
real time recording mode. Please consult page 10 Real Time
Data menu to carry out record data to clear.
View menu:
Reading Monitor : open/ close Reading Monitor window.
Graph Graph
Tabular Tabular window.
10
: open / close
window.
: open/close
Page 13

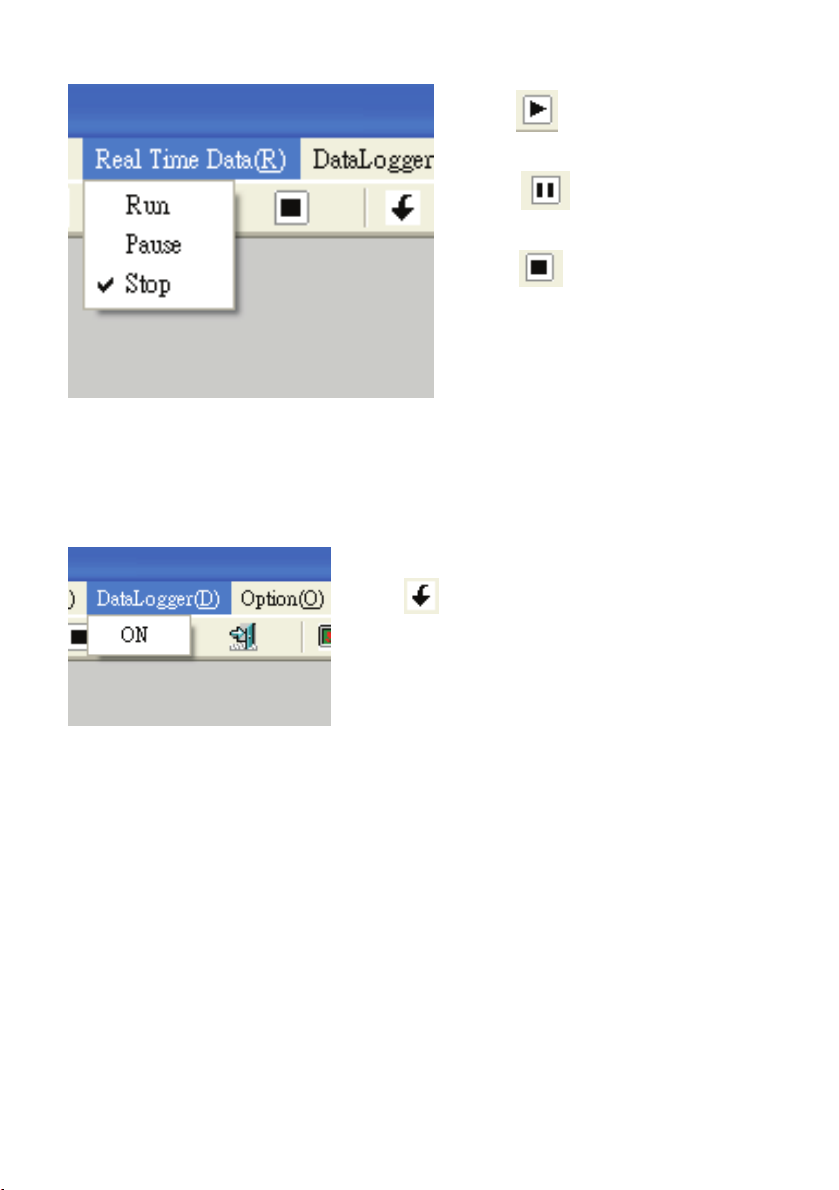

Real Time Data menu:
Run :on-line, carry out Real Time function.
DataLogger menu:
Pause record is suspended
Stop with Meter)
ON : Loaded the record data of data logger from METER to PC.
: Real Time
: off-line (off-line
11
Page 14
Option menu:

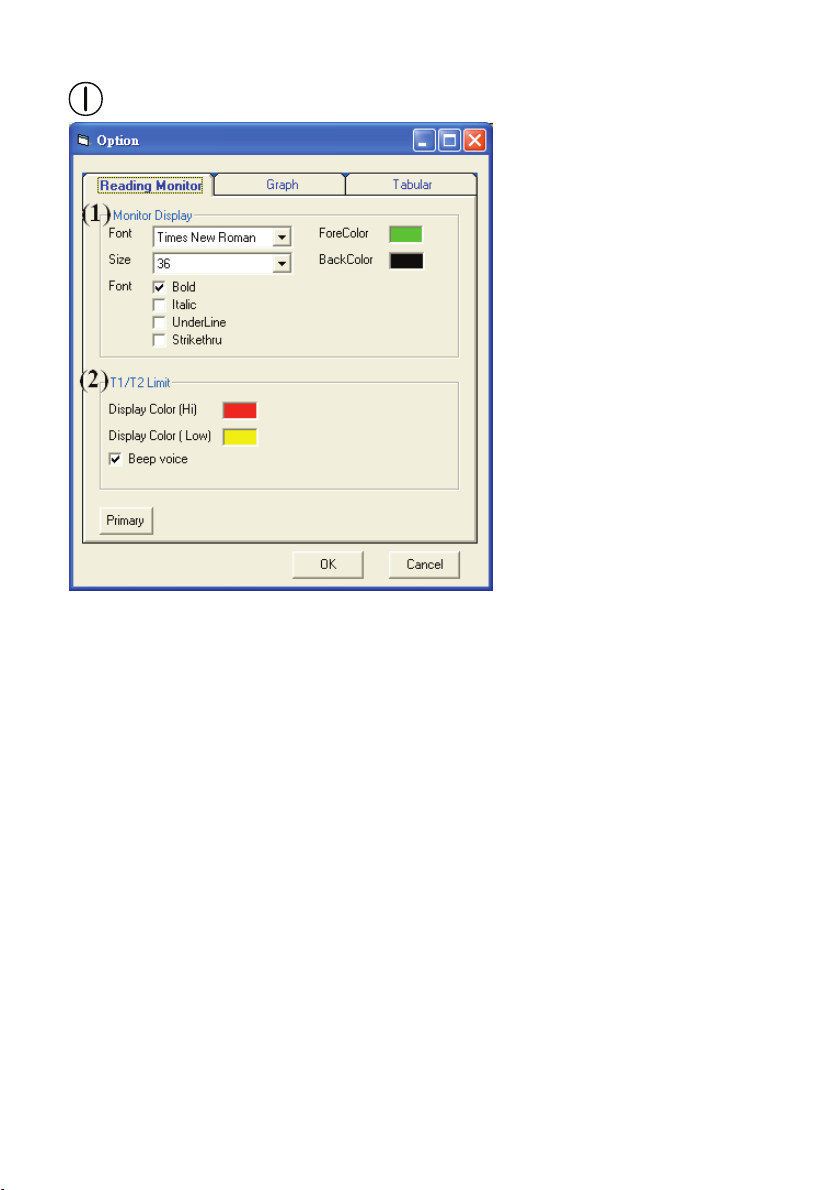

Reading Monitor -The reading of selects and sets up.
(1) Monitor Display
Set up style, size of script, the color and background color
the reading window.
of
(2) T1/ T2 Limit (T1/T2 critical value restraint in setting up)
Set up warning background color and the opening and
closing of the warnings of the maximum, minimum critical
value. It is not recommended to use the white color as a
warning background color.
Primary button can be returned to initial selects.
12
Page 15

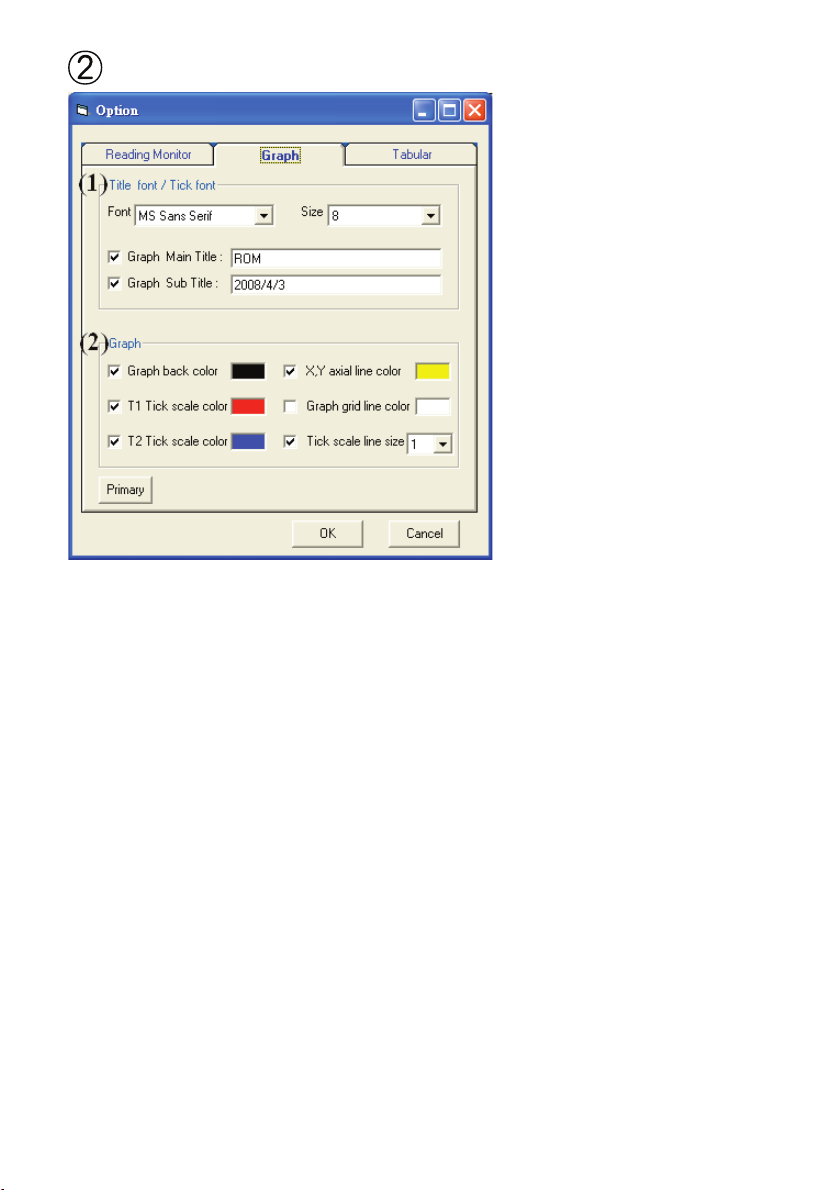

Graph- graph selects and sets up
(1) Title font/ Tick font (the style of title/the style of
the mark sets up)
Set up style of the title, subtitle and mark and size of script.
(2) Graph- graph window picture sets up
Set up the background color of the graph window, T1, T2
graph, cross axle, grid color are set up, T1, T2 graph thickness are set up. You can also select to determine whether to Primary button can be returned to initial selects.
show on the graph a window picture or not.
13
Page 16

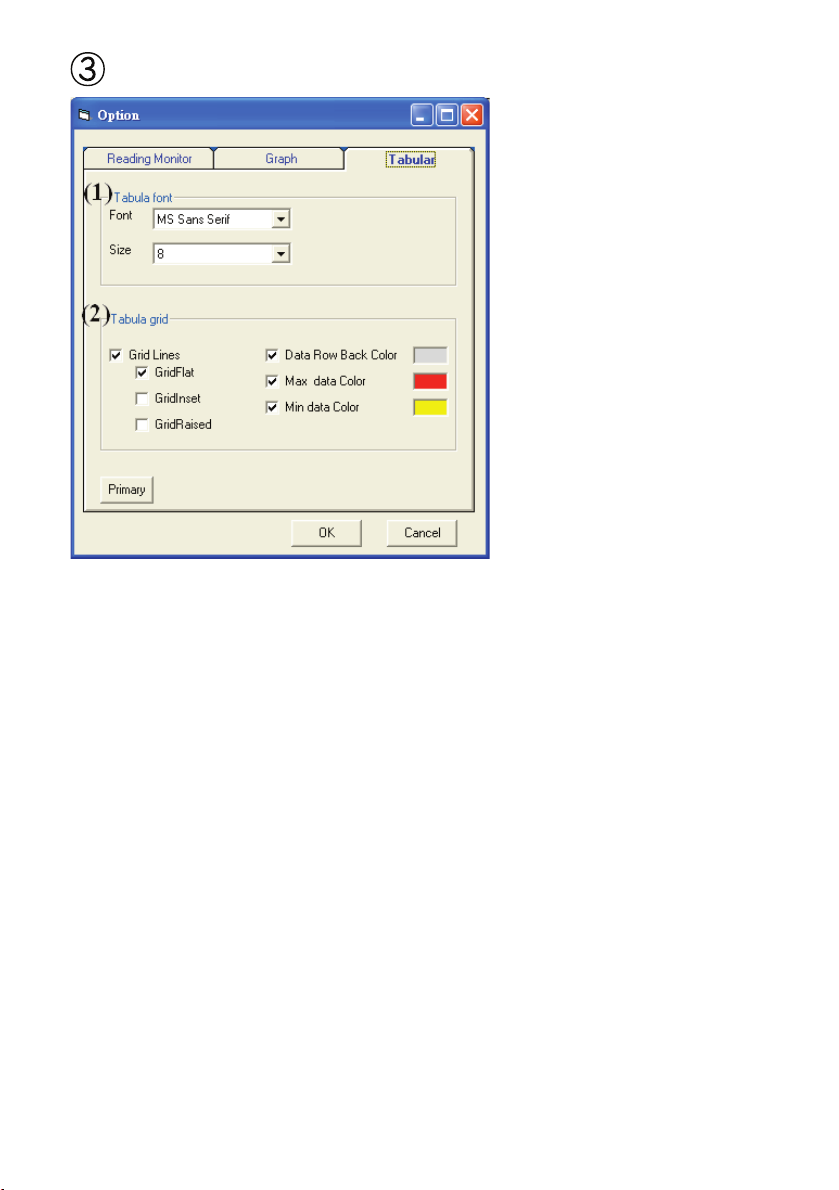

Tabular-The form selects and sets up.
(1) Tabular font (The style of the form sets up)
Set up the style of form and size of script.
(2) Tabular grid (The form grid sets up)
Set up grid type, background form color and maximum, minimum value and label color. Primary button can be returned to initial selects.
14
Page 17

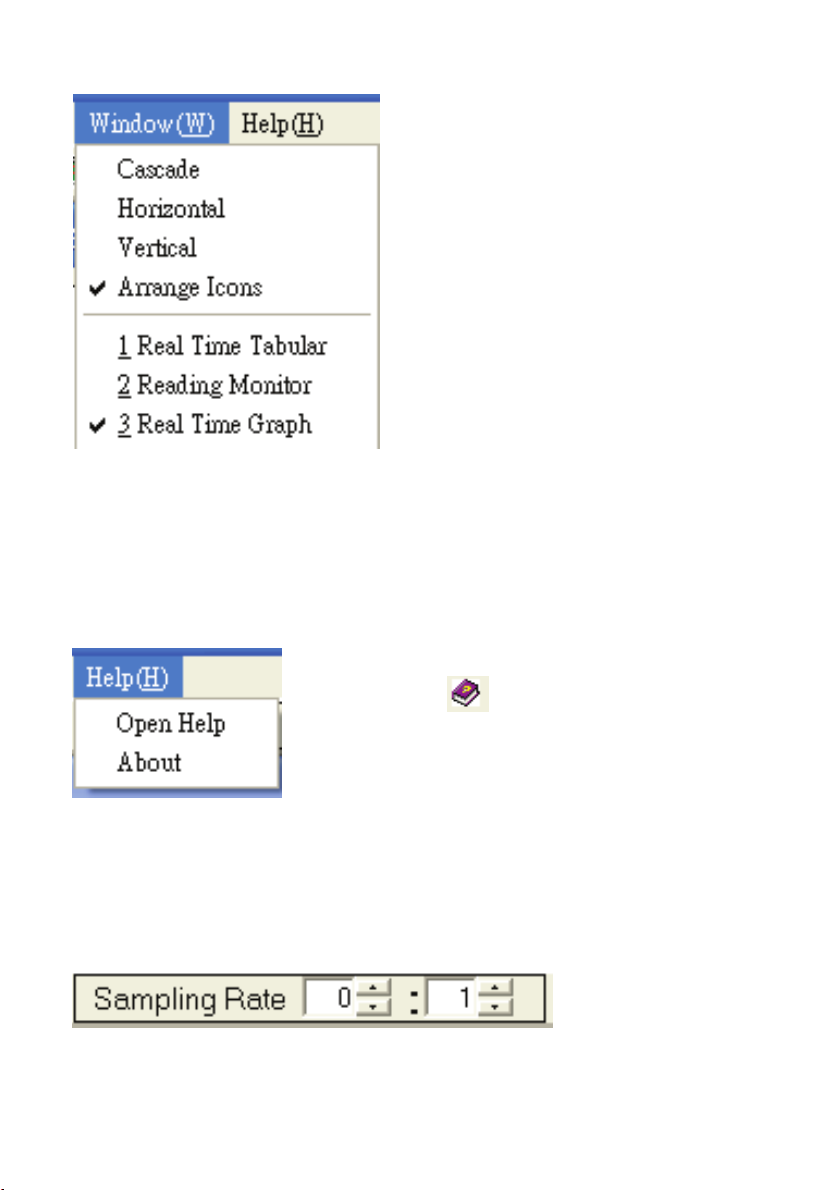

Window menu:
Cascade: cascade arrange.
Horizontal: horizontal arrange.
Vertical: vertical arrange.
Arrange Icons: arrange icon.
Real Time Tabular: Select
Tabular window as the window
in function.
Reading Monitor: Select
Reading
the window in function.
Real Time Graph: Select Graph window as the window in function.
Monitor window as
Help menu:
Open Help :open Help file. About: The edition declares.
Interval of on-line record of Real
Only Real Time has this function, from 00 minute and 01 second to 59 minutes and 59 seconds.
Time:
15
Page 18
2.2 Carry out Real Time:

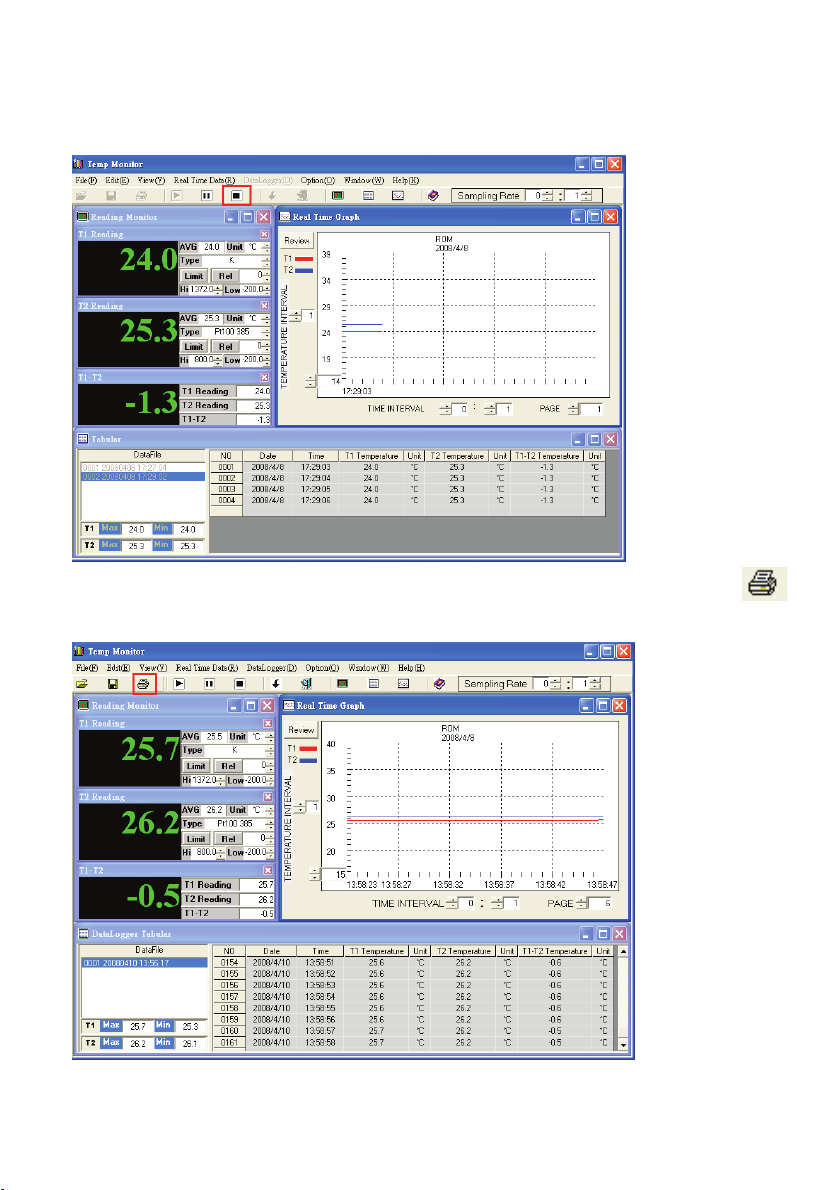

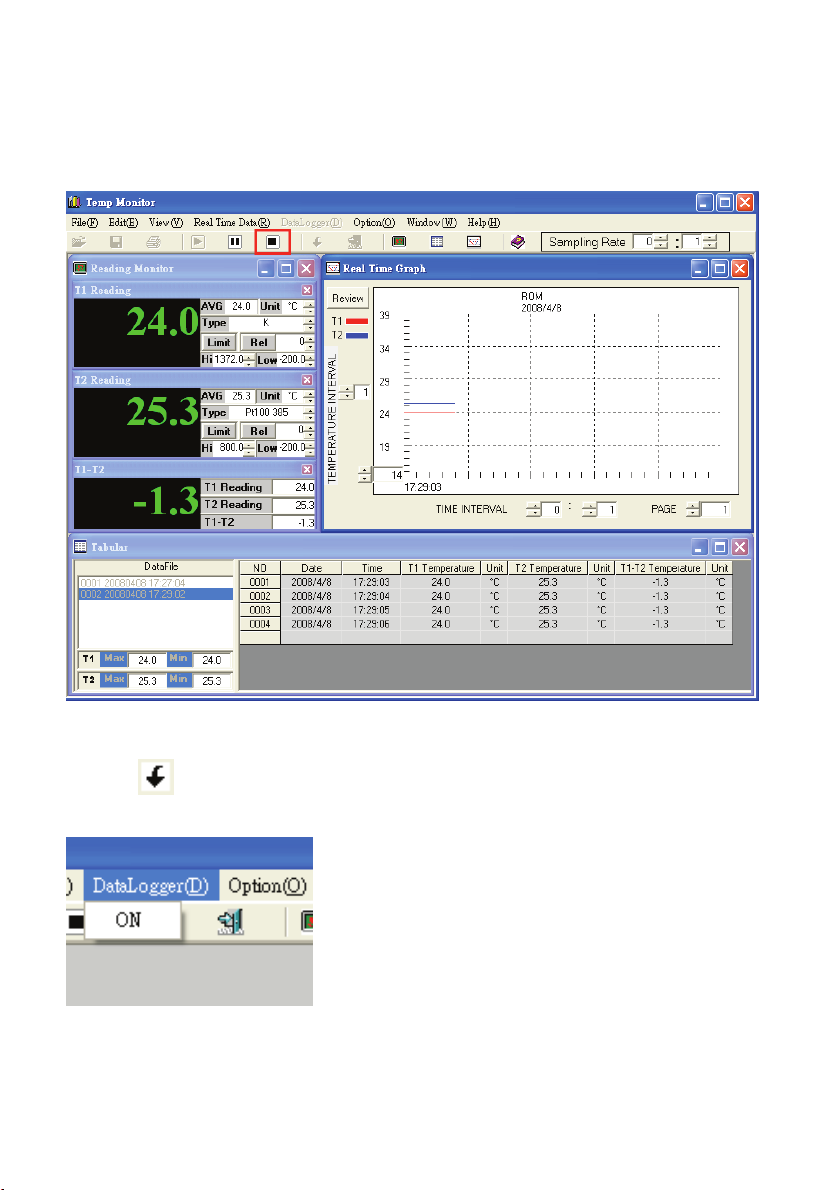

2.The software on- line will have the following picture:
16
Page 19

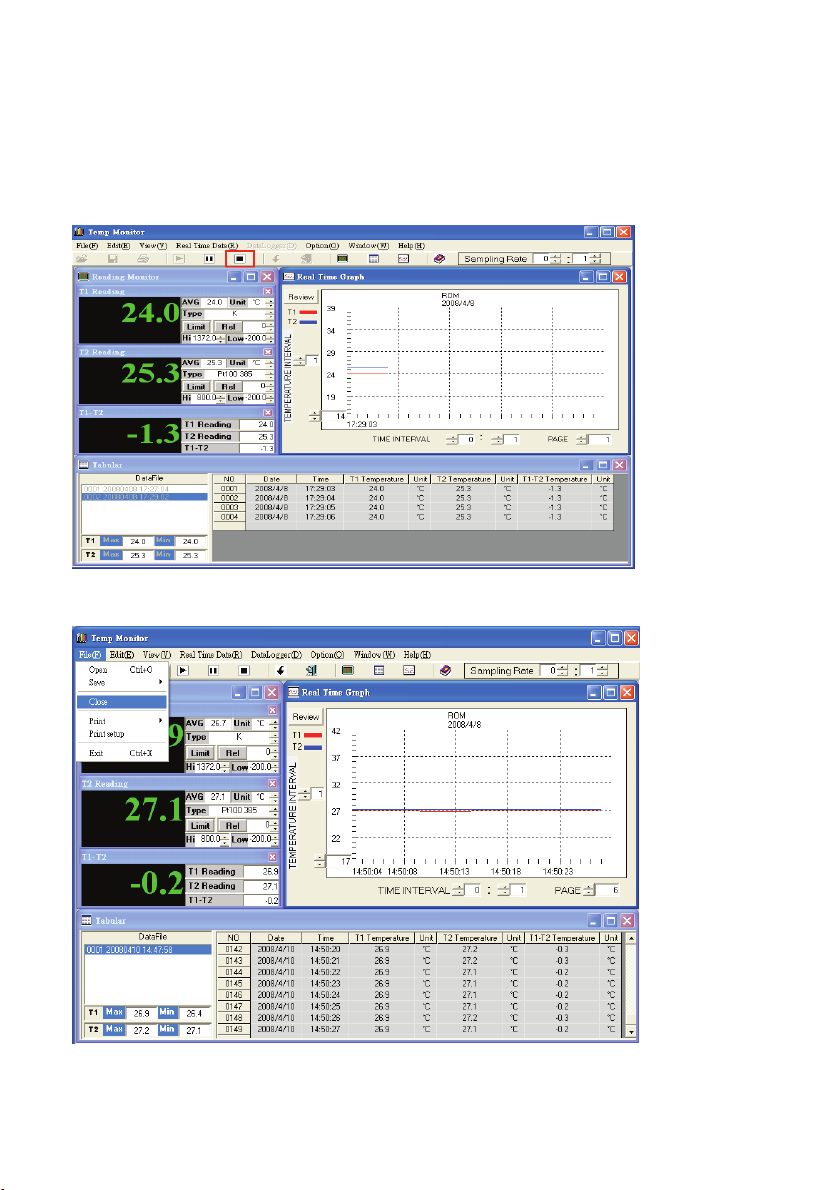

3.Operation picture
17
Page 20
2.3 Brief introduction

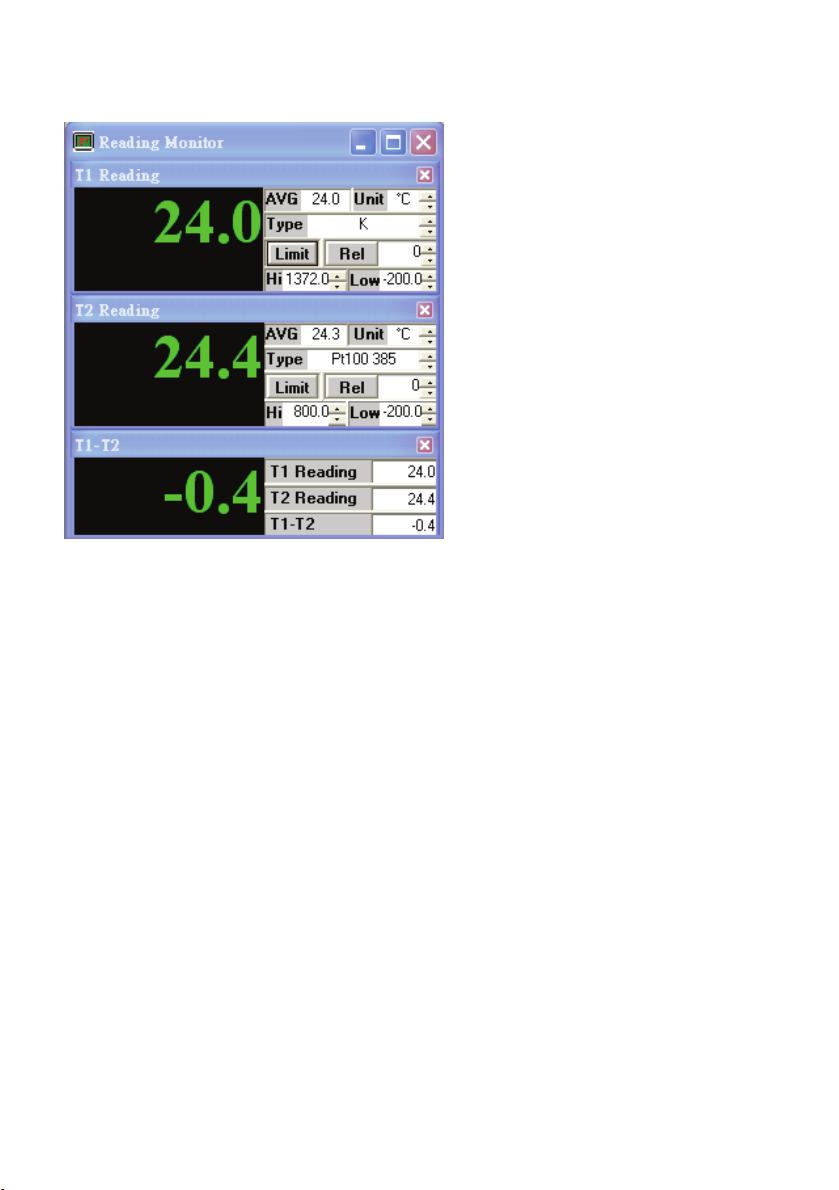

Reading Monitor window
of every window
AVG: average value.
Unit: temperature unit
choose,
°C or °F.
function:
Type: thermocouple T
ype
form is chosen, it is
determined
that optional
Type is set up by Meter function.
Rel: The setting up value of Rel, press the function key of
Rel, the window shows Rel symbol, the showing reading
reduces the setting up value of Rel.
Limit & Hi/Low:
lower limit are decided by Type chosen,
of Limit from Type, the window shows Limit symbol. When the
reading is greater than the setting up value of Hi, the window
turns
a warning. When the reading is smaller than the setting up value
of Low, the window sets up color of Low, and sends out the
warnings to the PC at the same time.
into sets up color of Hi, at the same time the PC will display
The setting up value of Hi Low, upper and
press the function key
18
Page 21
Real Time Graph window:
19
Page 22

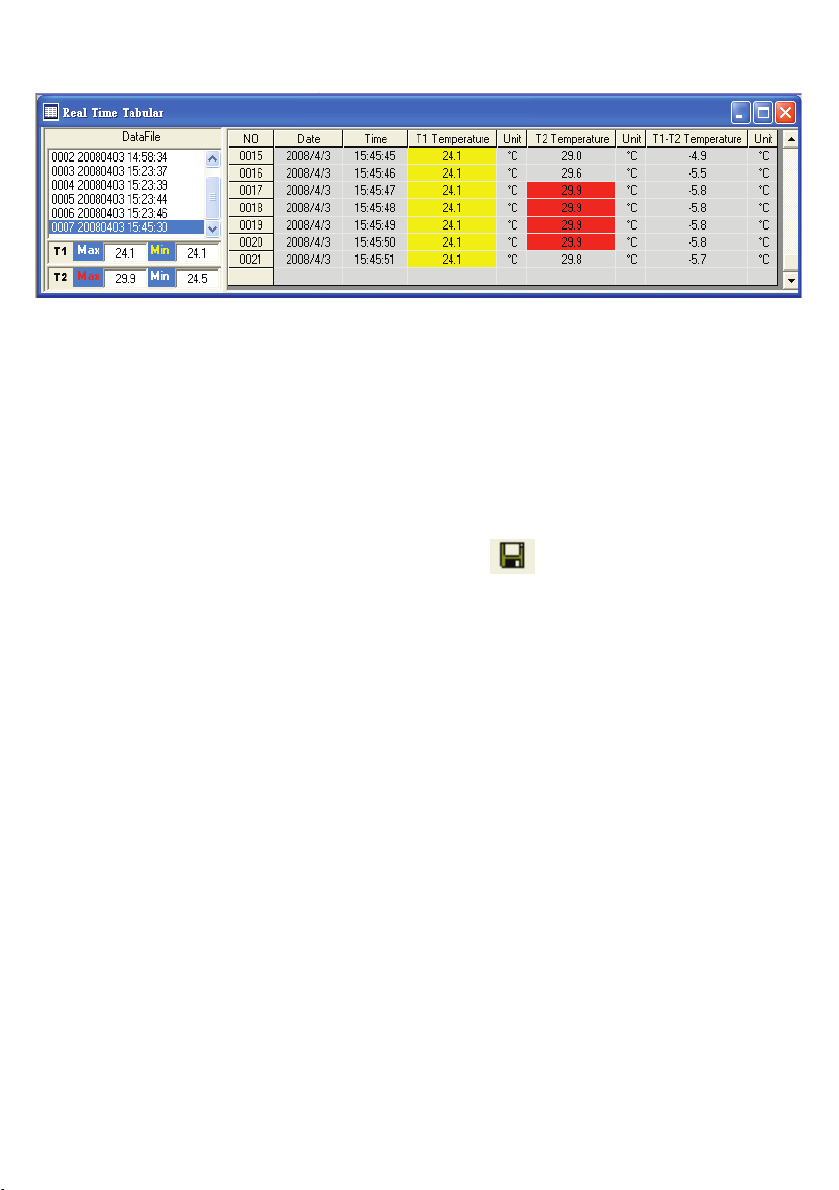

Tabular window:
DataFile : The seat files temporarily for recorded value,
each file can record 9999 record data. Exceeding 9999 will
change the new recorded value file and continue to record
temporarily automatically.
Notice: If you want to save the data then please select files
in
temporarily
menu.
click the file you want to delete, then press mouse right
key or choose Clear real Time of Edit of menu.
T1/T2:T1/T2 maximum, minimum value of recorded value, press MAX or MIN to find the relative recorded
value in the recorded list.
If you want to delete a recorded file in DataFile,
DataFile and press
20
or "Save" of File of
Page 23
2.4 Carry out Data Logger download data:
Notice: Before making the download data of Data Logger, if you used Real Time function, then please stop Real Time saving first, then carry on Data Logger download data.
1. Start Data Logger download data:
Click of picture function keys or “ON” of Data Logger
menu.
21
Page 24

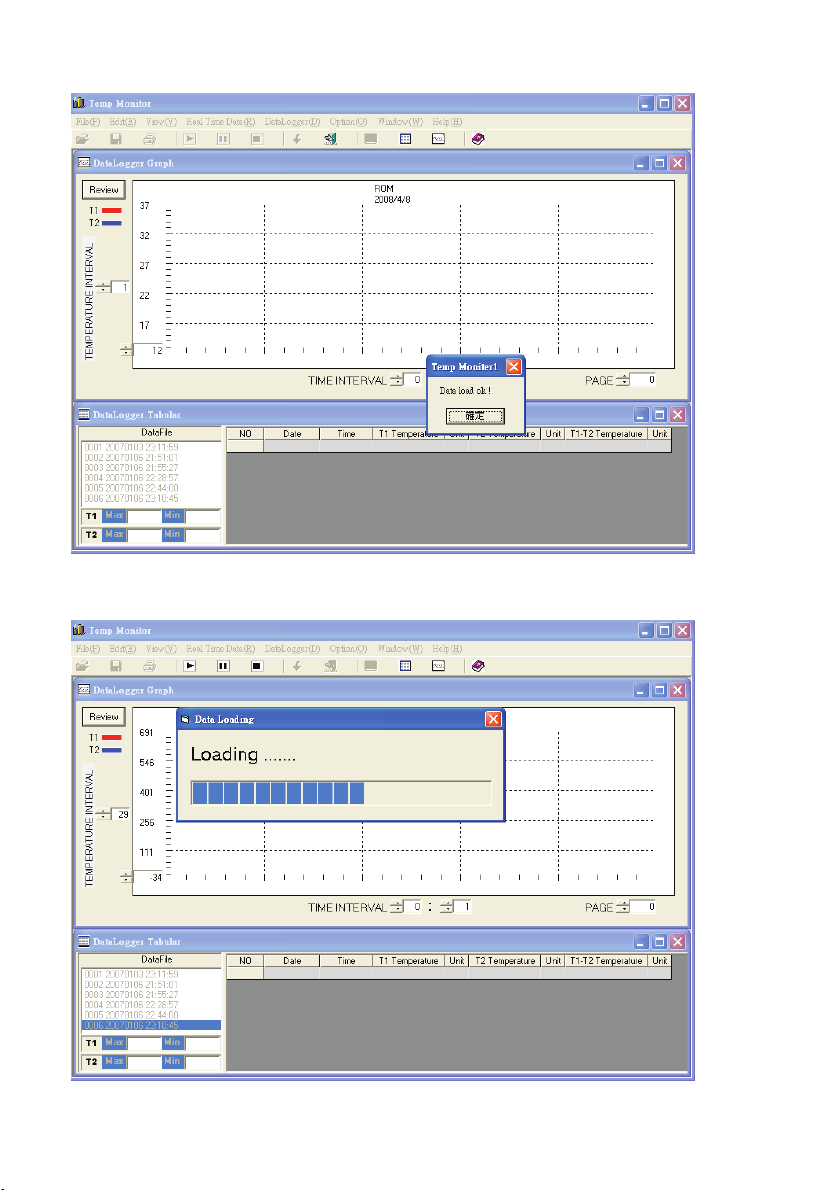

2.The software on-line will have the following picture:

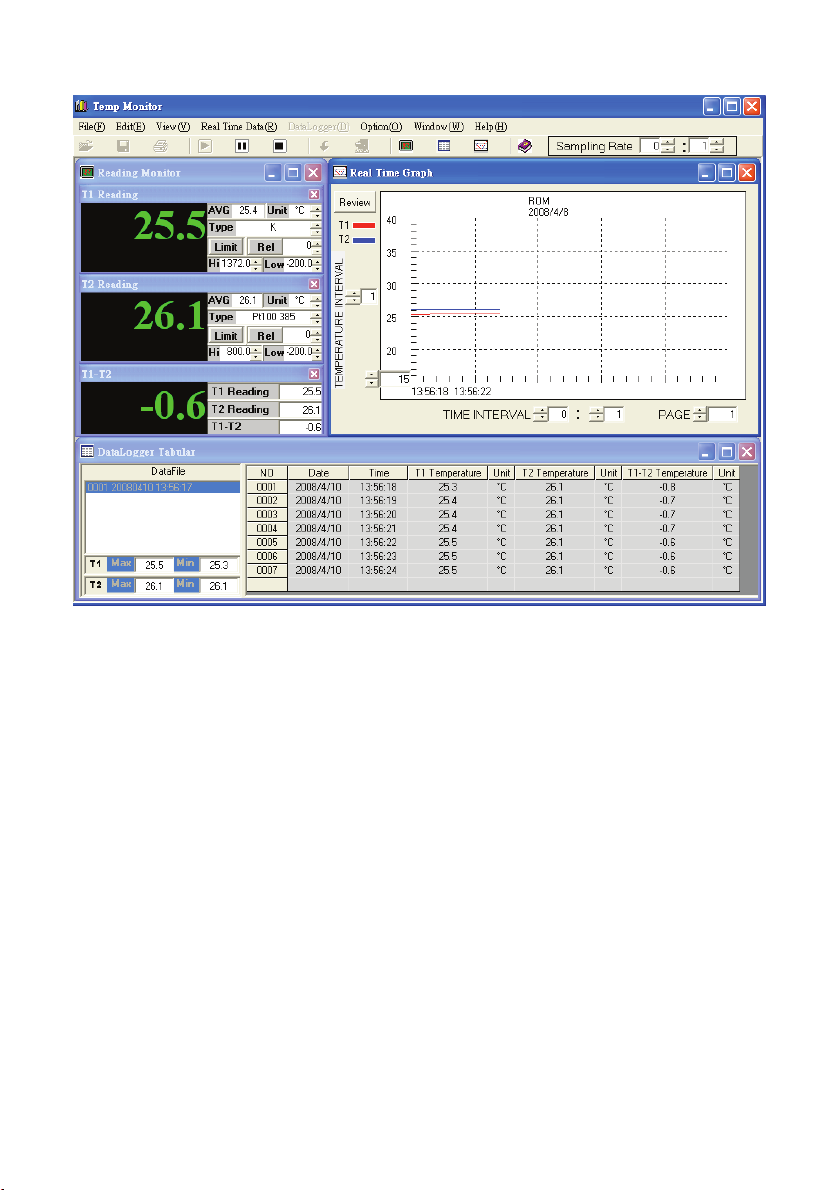

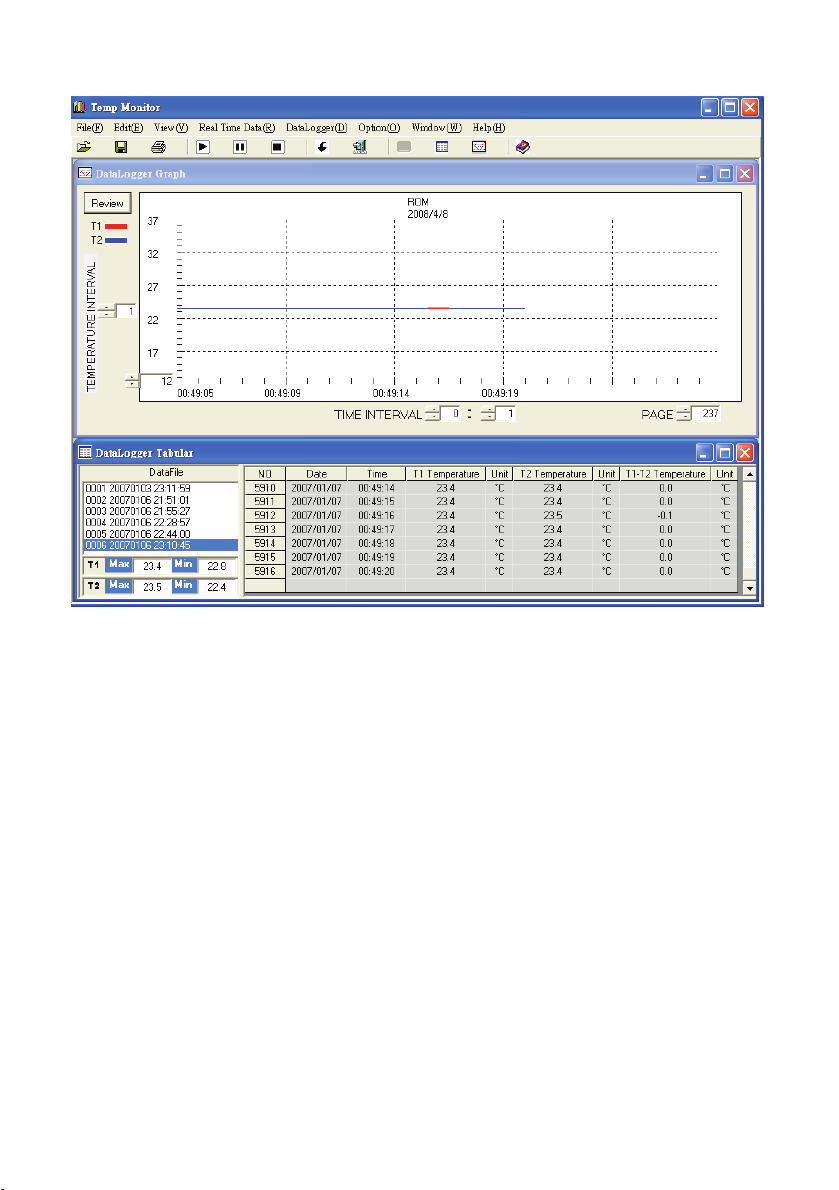

3.The picture of download data after on-line
22
Page 25
4. The download data finished picture
5. Open download data picture
23
Page 26
6. Download data open the picture of finishing
24
Page 27
2.5 Save files:
Notice: Before saving data, if you used Real Time function, please stop Real Time first, and then carry on “SAVE” data.

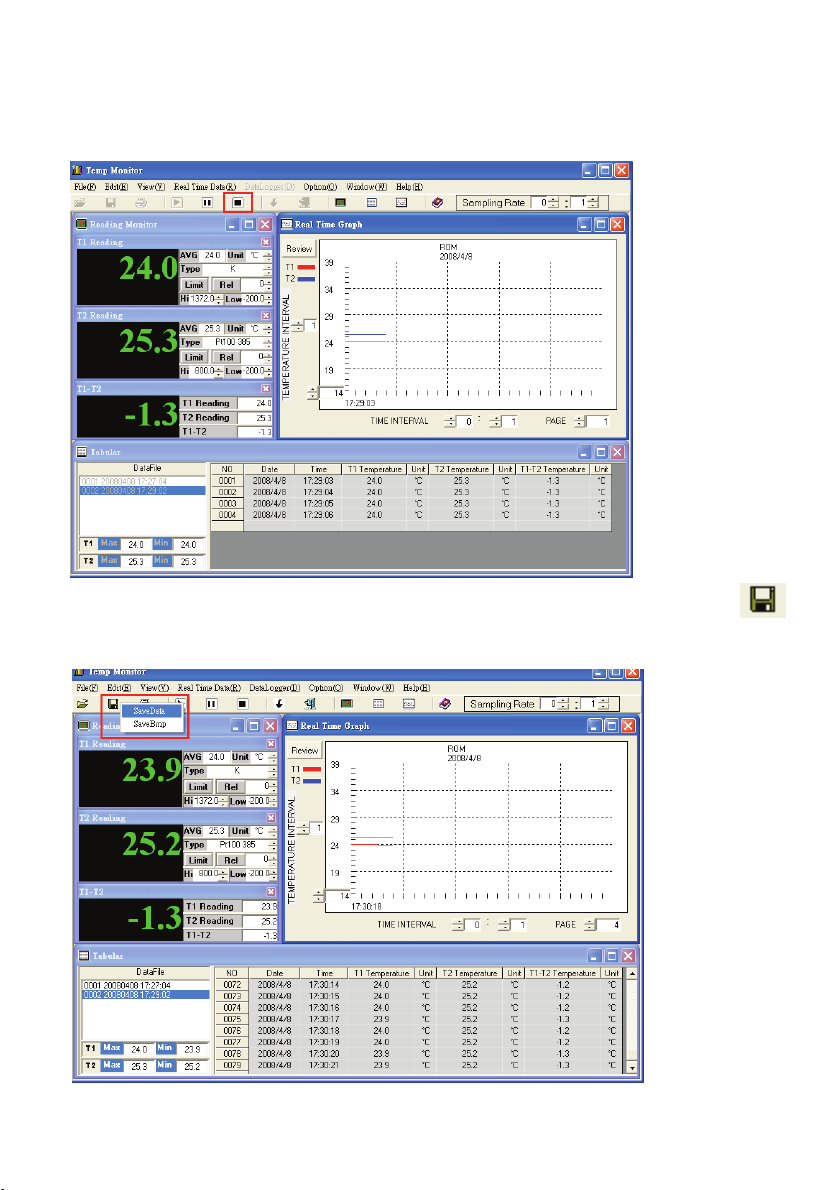

1. Click record temporary file in DataFile then to click “Save” of File menu.
or
25
Page 28
2. Choose SaveData picture
Left side functions of pictures are arranged with draw menu’s in the saved position. The type can be revised below to change a file name or type of saved file being scheduled type of saving is *.txt. If you wish to change save
type
to
*.xls, please change the picture.
Notice:
Data Logger data are also saved to files this way
too.
26
Page 29
3. Choose SaveBMP picture
Left side functions of pictures are arranged with draw menu’s in the saved position. The type can be revised below to change a file name or type of saved file being scheduled
type of saving is *.BMP. If you wish to change saved
type to *.jpg, *.png or *.emf, please change by the picture.
Notice: Data Logger data are also saved to files this way too.
27
Page 30
2.6 Open - open old file:
Notice: Before printing data, if you used Real Time function, please stop Real Time first, and then

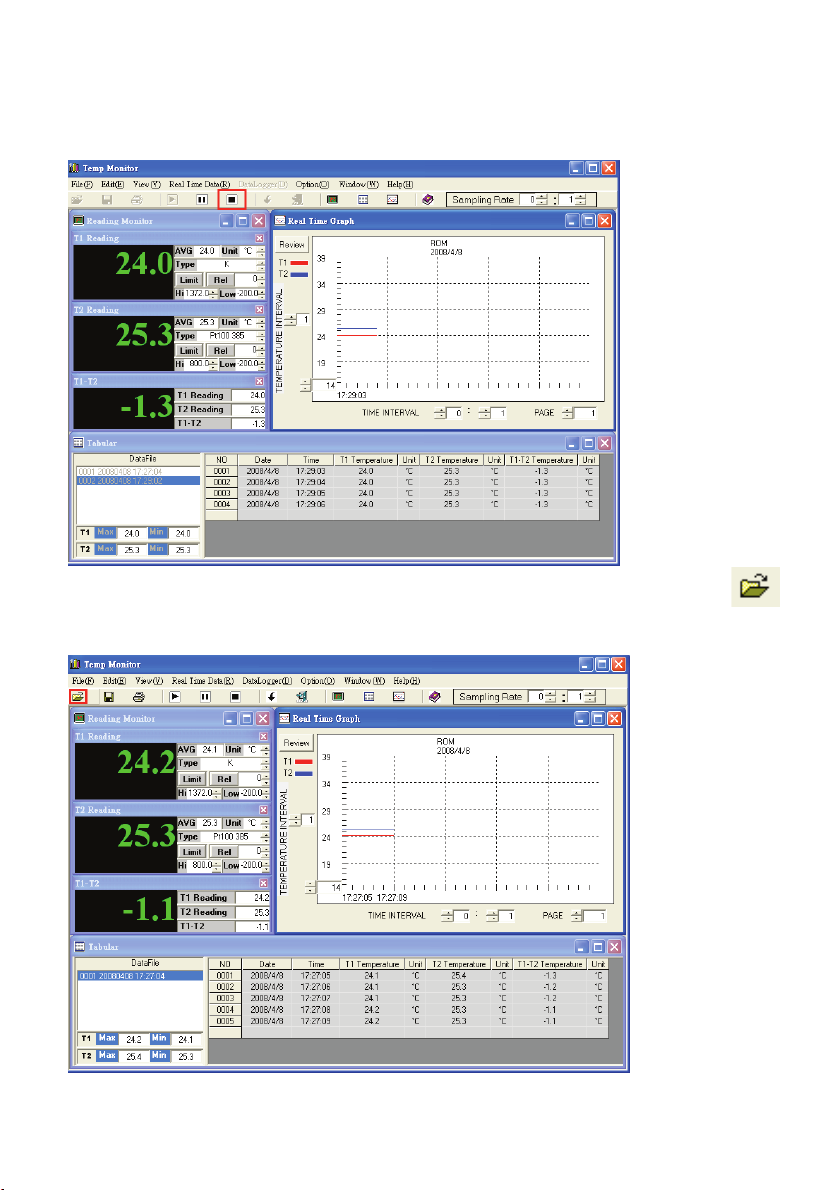

1. Click record temporary file in DataFile then to click or “Open” of File menu.
carry on OPEN -open old file.
28
Page 31
2. Choose picture of file:
Press “open” of the lower right corner after choosing the
file
you wanted to open.
If the open file of type is different please open according to down picture.
29
Page 32
3.Open picture of finished
30
Page 33
2.7 Print types the file:
Notice: Before printing data, if you used Real Time
function, please stop Real Time first, and then Print data.
1. Click record temporary file in DataFile then to click
or
“Print” of File menu.
31
Page 34

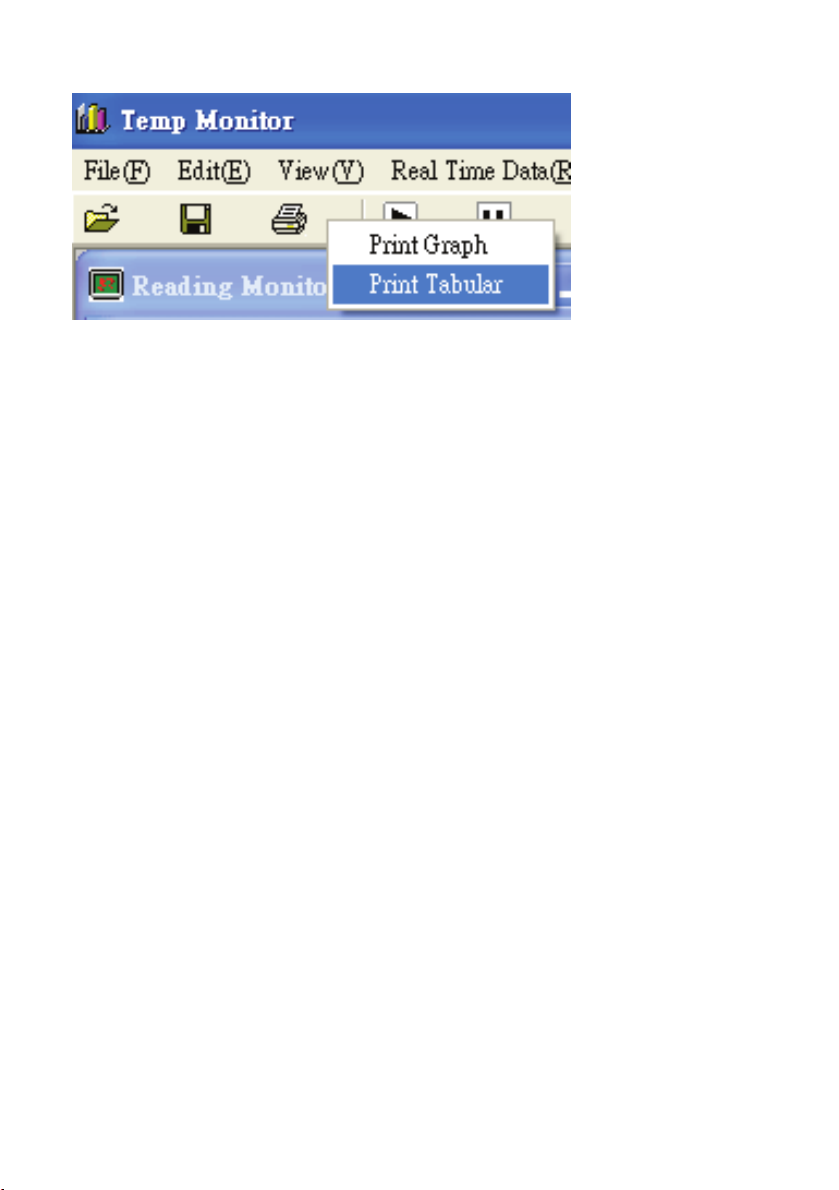

2. Choose the print type
(1) Print Graph type picture.
This function prints in the Graph window picture at present. To choose the printer window after clicking, please choose the type of printer by clicking the print button of the printer.
Notice: Before printing Graph window picture, please use the Graph of Option to set up the window first.
(2) Print Tabular of form content:
This function is set up to print the form content at Tabular window. To choose the printer window please choose the type of printer by clicking the print button that will be printed.
32
Page 35
2.8 Close the picture while carrying out:
Notice: Before closing the picture while carrying out, if you used
Real Time function, please stop Real Time first, and then close
close the picture while carrying out.
1.Click Close in menu of File.
33
Page 36
2. Picture after carry out.
34
Page 37
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibra­tion; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of pur­chaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.
FOR WARRANTY
RETURNS, please have the following information available BEFORE contacting OMEGA:
1. Purchase Order number under which
the product was PURCHASED,
2. Model and serial number of the product
under warranty, and
3. Repair instructions and/or specific
problems relative to the product.
FOR NON-WARRANTY REPAIRS,
consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC. © Copyright 2009 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.
Page 38
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
SM
TEMPERATURE
䡺⻬
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
䡺⻬
Wire: Thermocouple, RTD & Thermistor
䡺⻬
Calibrators & Ice Point References
䡺⻬
Recorders, Controllers & Process Monitors
䡺⻬
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
䡺⻬
Transducers & Strain Gages
䡺⻬
Load Cells & Pressure Gages
䡺⻬
Displacement Transducers
䡺⻬
Instrumentation & Accessories
FLOW/LEVEL
䡺⻬
Rotameters, Gas Mass Flowmeters & Flow Computers
䡺⻬
Air Velocity Indicators
䡺⻬
Turbine/Paddlewheel Systems
䡺⻬
Totalizers & Batch Controllers
pH/CONDUCTIVITY
䡺⻬
pH Electrodes, Testers & Accessories
䡺⻬
Benchtop/Laboratory Meters
䡺⻬
Controllers, Calibrators, Simulators & Pumps
䡺⻬
Industrial pH & Conductivity Equipment
DATA ACQUISITION
䡺⻬
Data Acquisition & Engineering Software
䡺⻬
Communications-Based Acquisition Systems
䡺⻬
Plug-in Cards for Apple, IBM & Compatibles
䡺⻬
Data Logging Systems
䡺⻬
Recorders, Printers & Plotters
HEATERS
䡺⻬
Heating Cable
䡺⻬
Cartridge & Strip Heaters
䡺⻬
Immersion & Band Heaters
䡺⻬
Flexible Heaters
䡺⻬
Laboratory Heaters
ENVIRONMENTAL MONITORING AND CONTROL
䡺⻬
Metering & Control Instrumentation
䡺⻬
Refractometers
䡺⻬
Pumps & Tubing
䡺⻬
Air, Soil & Water Monitors
䡺⻬
Industrial Water & Wastewater Treatment
䡺⻬
pH, Conductivity & Dissolved Oxygen Instruments
M4726/0709
Loading...
